PERFECTPRO Rock Pro User manual

3A81TY6L00000
FM-RDS / Aux-in Digital Tuning
Worksite Radio with SD Card /
USB Socket for MP3 / WMA Playback
GB
NL
D
S
F
Operating instruction
Gebruiksaanwijzing
Bedienungsanleitung
Bruksanvisning
Mode d’emploi

1
Table of Contents
Important safety instructions .............................................. 2-3
Controls and connections ................................................... 4-6
Power the radio ........................................................................ 7
Charging the batteries ............................................................ 8
Using the radio for the first time ............................................ 9
Operating your radio – Manual tuning FM ......................... 10
Search tuning FM ................................................................. 11
Presetting stations / Recalling a preset station from
preset memories ................................................................... 12
Display modes FM ............................................................... 13
FM Stereo Mono ................................................................... 14
Using SD cards or USB memory device ..................... 14-18
Operating the radio – Aux In .......................................... 19-20
Loudness / LCD illumination ............................................... 21
Specifications ........................................................................ 22

2
GB
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with
the instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves or other apparatus (including amplifiers) that
produce heat.
9. Do not defect the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet – USA
version only.
10. Protect the power cord from being walked on or pinched particularly
at plug, convenience receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate normally, or has
been dropped.
15. To reduce the risk of fire or electric shock, do not expose this
appliance to Rain or Moisture.
16. The Shock Hazard Marking and Associated Graphical Symbol is
provided on the back of unit.

3
17. Apparatus shall not be exposed to dripping or splashing and no
objects filled with liquids, shall be placed on the apparatus.
18. The power plug should be close to the radio, and easy to be
approached that during the emergency, to disconnect the power
from the radio, just unplug the power plug from the AC power slot.
19. Where the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain
readily operable
20. A warning that batteries (battery pack or batteries installed) shall not
be exposed to excessive heat such as sunshine, fire or the like.

4
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
LCD display
Tuning / Seek knob(FM BAND) / file browser (SD/USB)
Loudness ON/OFF
Stereo / Mono (FM only) / PLAY MODE (SD/USB)
Info button
Speakers
SD card slot
USB socket
Aux In socket
POWER ON/OFF
Charging indicator LED
Source
Volume control knob
Preset 1 / Folder Down button
Preset 2 / Folder Up button
Preset 3 / Rewind button
Preset 4 / Fast Forward button
Preset 5 / Play & Pause button
GB
Controls and connections

5

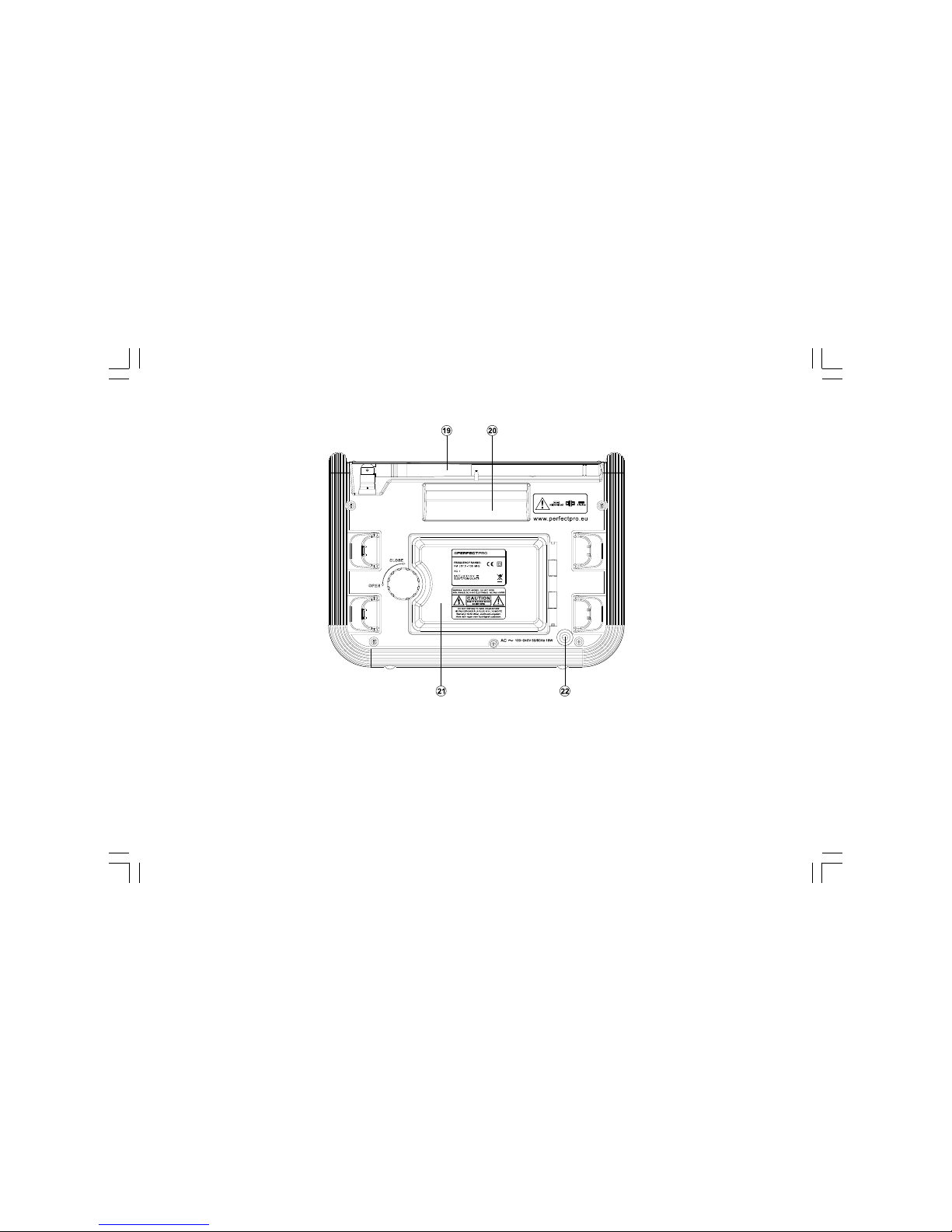

19.
20.
21.
22.
Battery compartment
AC power cord
FM antenna
Handle
Controls and connections
100~240V 50/60Hz 18W

6

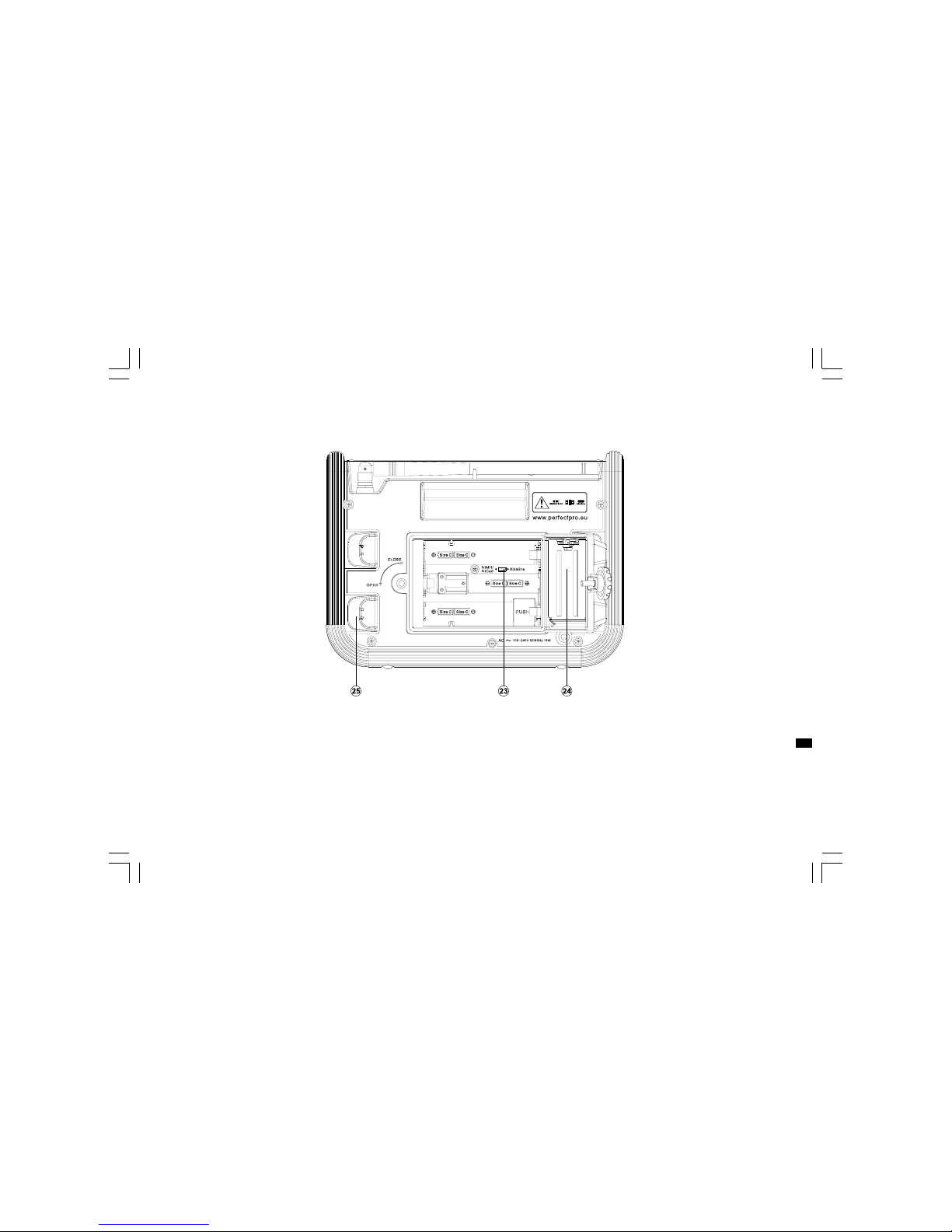

23.
24.
25. AC cable hook Alkaline/NiMH/NiCad rechargeable battery switch
Storage compartment e.g. for USB sticks or SD cards
GB
Controls and connections

7
Power the radio
1. Installing the batteries, first turn battery cover fixture anti-clockwise to
loosen and pull down the battery cover.
Note:
Before you insert the batteries, if you use non-rechargeable batteries,
make sure the NiMH/Alkaline switch is switched to Alkaline position.
2. Insert 6 x C size (UM-2) batteries into the compartment. Ensure the
batteries are completely inserted in accordance with the
diagram shown. Close the battery cover and fasten the fixture by
turning clockwise.
Reduced power, distortion and a “stuttering sound”, or low battery
sign flashing on the LCD display are all signs that the batteries need
replacing or recharging (see below Charging the batteries).
Run time of the radio on batteries varies strongly depending on
the quality and capacity (mAh) of the batteries, temperature,
volume level etc.
3. AC Operation
Before plugging the AC power cord into the AC socket, be sure
the voltage is correct. If you have batteries in the radio and connect
AC power cord into the AC socket, the batteries will automatically
be disconnected.
AC cable hook is designed to store the AC power cord when the radio is
not in use.

8
GB
Charging the batteries
Reduced power, distortion and a “stuttering sound” or low battery sign
flashing on the LCD display are all signs that the batteries need
recharged if you use rechargeable batteries to power the radio.
Note:
The radio can be charged only when the radio is off. Connect the
AC power cord into the AC socket to charge the batteries. Be sure the
battery type switch is set to Ni/MH position.
When the batteries are being charged, the red Charge LED will be on.
Charging time can take up to approx. 10 hours depending on the battery
capacity of the rechargeable batteries. When the batteries are fully
charged, the charged LED will be steady on green color.
Note:
Charge new batteries fully the first time before first use. This can take
longer depending on the capacity of the rechargeable batteries.
Do not use a mix of old and new rechargeable batteries.
Do not use a mix of full and empty rechargeable batteries.
Do not use batteries that have a different mAh capacity.
Do not use damaged or leaking batteries.

9
Using the radio for the first time
1. Place your radio on a flat surface.
2. Please press the Power button to switch on your radio. It may be
necessary to relocate your radio to a position giving better reception.
You should then carry out a scan to find stations in FM.
Setting the clock time
The users can not set the clock time manually, but the FM RDS
performs automatically CT alignment.
1. Press the source to FM radio, select a FM radio station which
provides RDS CT service, the clock will be aligned in 5 minutes once
the CT service is available.
2. Press the Info button to check if the clock screen has a correct
time alignment.
3. This aligned clock will be the new system clock for SD/USB
playing mode.
4. The aligned clock will be reset to 0:00 once the power is off, then the
user need to do the automatic alignment of FM RDS CT again.
2

10
GB
Operating your radio – Manual tuning FM
1. Press the POWER button to switch on your radio.
2. Press the SOURCE button to select FM band and stand up the
rubber antenna properly to get best FM reception.
3. Rotate the Tuning/Seek knob to tune required FM station frequency.
The radio will change the frequency in the increment of 100 kHz.
4. Select required loudness setting and stereo / mono mode for
obtaining a best sounding quality.
5. A stereo symbol will appear on the LCD display if a stereo
broadcasting station is found.
6. Rotate the Volume control knob to get required sound level.
7. To turn off the radio, press the POWER button.
2
1,7
6
3

11
Search tuning FM (Seek station)
1. Press the POWER button to turn radio on.
2. Select FM band by pressing the SOURCE button as described.
Stand up the FM rubber antenna properly to get best reception.
3. Press and release the Tuning/Seek knob, and the radio will seek
forward and stop automatically when it finds a radio station with
good signal.
4. The radio will seek forward for the next available station if pressing
down the Tuning control knob again.
2
1
3

12
GB

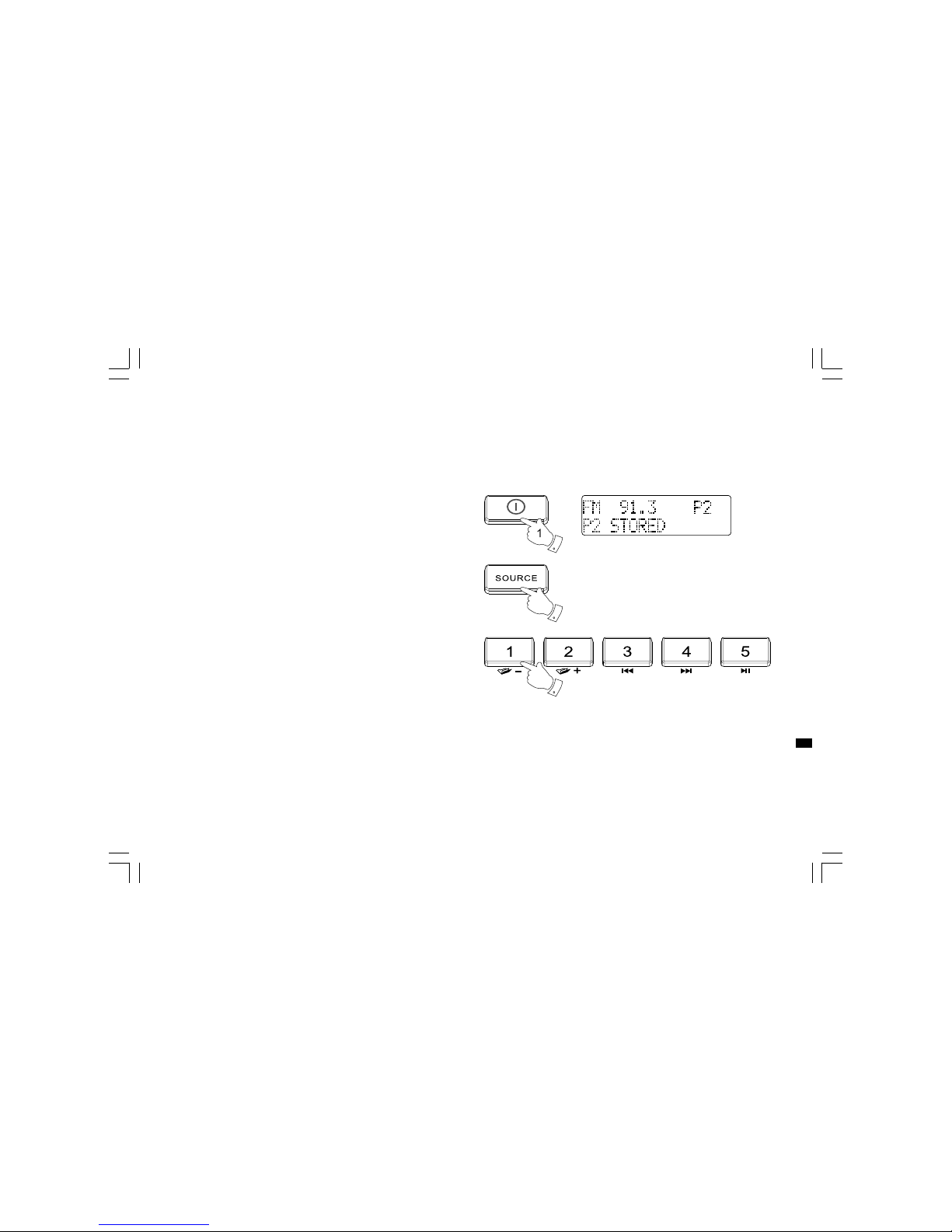

Presetting stations
You may store your preferred FM radio stations to the preset station
memories (1 to 5). The procedure for setting presets and using them to
tune stations is described below.
1. Press the POWER button to turn on the radio.
2. Press the SOURCE button and tune to the required station as
previously described.
3. Press and hold the required Preset button (1~5) until radio
beeps once and the display shows corresponding “Px” on the upper
right corner.
4. Repeat this procedure for the remaining presets as you wish.
5. Stations stored in preset memories may be overwritten by following
above procedures if required.
Recalling a preset station from preset memories
1. Press the POWER button to turn on the radio.
2. Press the SOURCE button to select FM band.
3. Momentarily press the required Preset button (1~5) to cause your
radio to tune to the station stored in preset memory.
2
3

13
Display modes – FM
On FM the bottom line of the display can be set to display any of the
following modes:
1. Press and release the Info button repeatedly to cycle through the
various modes:
a.
b.
c.
d.
e.
Displays the name of the station being
listened to.
Displays type of station being listened to
e.g. Pop, Classic, News, etc.
Displays radio text messages such as news
items etc.
Display the current time and date.
Displays the signal strength for the station
being listened to.
Program service name
Program type
Radio text
Time and date
Signal level
1

14
GB

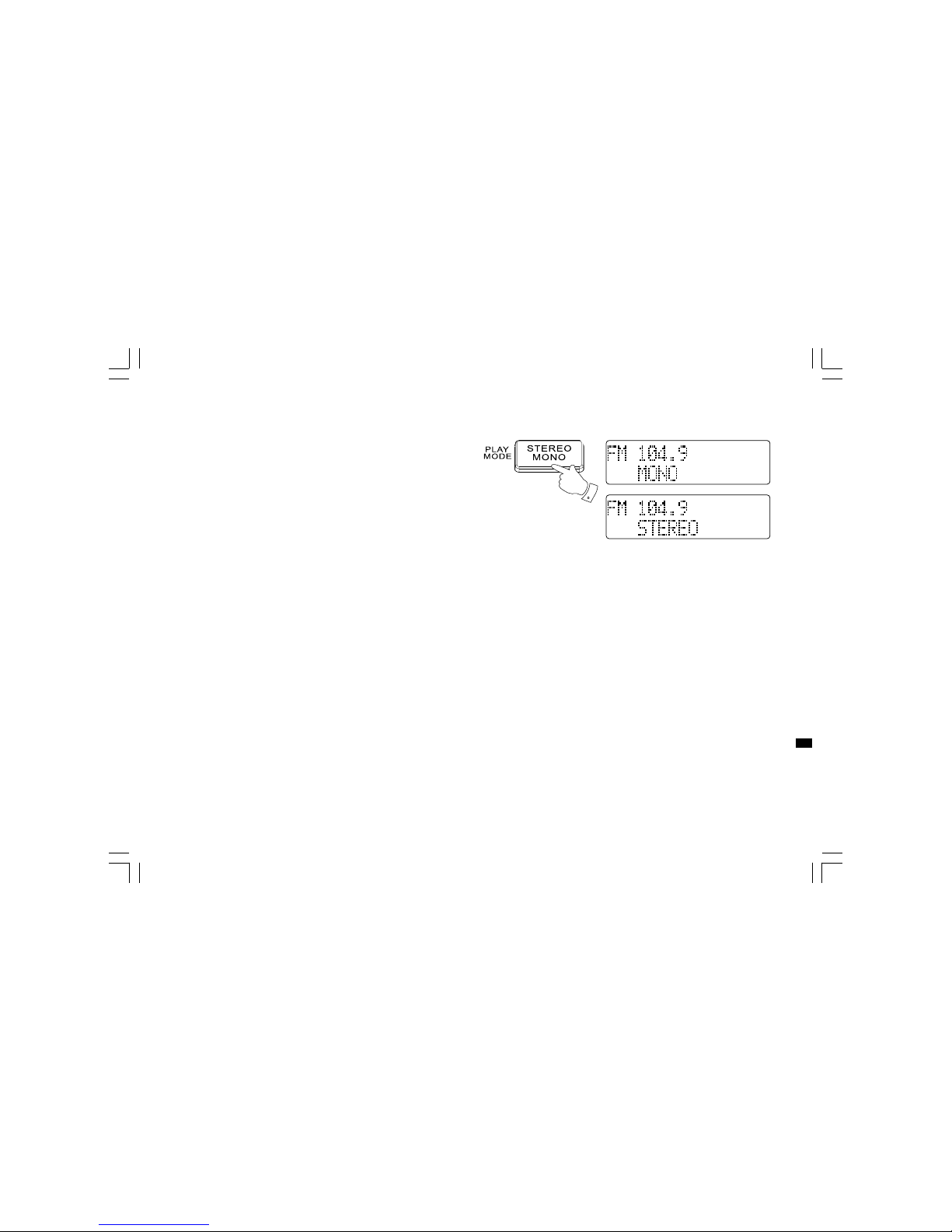

FM stereo / mono
1. If an FM station is received with a weak signal some hiss may
be audible. To reduce the hiss press and release the
STEREO/MONO button so that the Stereo indicator on the
display is cancelled. Your radio will switch to mono mode.
2. To return to stereo mode press and release the STEREO/MONO
button so that Stereo indicator on the display is visible. The radio will
switch to stereo mode.
Note:
This radio will always auto detect if there is stereo signal when you set
the radio in Stereo mode. If there is not a stereo signal, the stereo mark
will be cleared.
Using SD cards or USB memory devices
Secure Digital (SD or SDHC) cards or USB memory devices can be
used with RockPro for playback of MP3 or WMA files. RockPro has
been tested with a range of SD cards and USB memory devices.
SD cards up to 32GB are supported. However, there are many different
card variants available and not all cards can be guaranteed to work
in RockPro. Memory must use the FAT or FAT32 filing system in order
to operate with RockPro.
SD card and USB slots are located at the left hand side of the radio.
1,2

15
Inserting and removing memory devices
1. To insert an SD card into your radio, lift the rubber cover on the left
hand side of the radio up and slid the SD card into the SD card slot.
Press down the rubber cover. To remove the card push the card in
slightly and it will pop out allowing removal.
USB memory devices plug into the middle slot on the left hand side,
under the SD card slot.
2. To select either SD card or USB mode press the Source button until
the desired mode is shown on the display.
Playing MP3 / WMA files – SD / USB
1. Press and release the Tuning control or Play/pause button (Preset 5)
to start playing from the SD card / USB memory device. The display
will show the first folder and file number.
2. To pause playing press the Play/Pause button. To resume playback
press the Play/pause button again.

16
GB
Selecting a file
1. While the SD card / USB memory device is playing, press and
release repeatedly either the Fast Forward or Rewind buttons to
change to the desired file. The file number is updated in the display.
If there is more than one folder, when all files in the current folder
have been played the next folder will be played.
2. Press the Play/Pause button to play the selected file.
Select a specific file
1. Press and hold the Tuning control to move up to the root menu of
your SD card or USB memory device.
2. Rotate the Tuning control to search your desired folder. Press and
release the Tuning control to select the folder, then rotate the Tuning
control to search the desired track.
3. Press and release the Tuning control again to select the desired file,
and the file chosen will be played.
Search function
1. While the SD cards / USB memory device is playing, press and hold
the Fast Forward or Rewind buttons. Release the button when the
desired part of the current file is reached.

17
To skip to another folder
1. With the SD card / USB memory device playing, press and hold the
Tuning control to move up to the root menu of your SD card or USB
memory device.
2. Press the Folder Up / Folder Down buttons repeatedly and the
display will skip to the next or previous folder.
3. Stop when the desired folder is reached, then press and release the
Tuning control to confirm the setting.
Playback repeating modes
RockPro allows you to use several playback options for files. In addition
to Repeat Once and Repeat All options, there is also a Repeat Foler
facility. Press and release the Play Mode button repeatedly with the
SD card / USB memory device is playing to cycle through these various
repeating modes of file playback.

18
GB
Info function – SD card/USB memory device
During the SD card / USB memory device playback, press the Info
button and the LCD display will cycle through the following:
a.
b.
c.
d.
e.
f.
g.
h.
Play time
Folder name
Song title
Album title
Artist name
Total number of files on the SD card/USB stick
Bit rate
Time and date

19
Operating the radio – Aux In
1. Connect a stereo or mono audio source (like CD walkman or
MP3 player) to the Aux In socket, which is located on the side,
behind the rubber cover.
2. Press the SOURCE button to select AUX input. Display will show
AUX IN.
3. Play the files in the CD walkman or MP3 player and adjust their
output level to maximum under without any distortion.
4. Adjust the volume control to the required level.
5. When the radio is in Aux In mode, press the Info button and the LCD
display will show current time and date.
2
4
