PFT HM 6 400V TITAN User manual

OPERATING INSTRUCTIONS
ART.NO 00056896
SCREW MIXER
PFT HM 6 400V TITAN
WE KEEP THINGS MOVING

____________________________________________________________________________________________________________
PFT HM 6 400V TITAN 1
PFT Introduction Version 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________
Dear Customer
Congratulations! You have just made a quality purchase.
The PFT HM 6 is a state-of-the-art machine designed to withstand the tough conditions of construction sites.
Always keep this manual with the machine. The manual provides you with vital information about the ma-
chine’s functions. Read the manual thoroughly before you operate the machine. PFT will not be liable for
accidents and malfunctions that are caused by incorrect operation. Proper operation and maintenance will
make the PFT HM 6 dependable construction aid.
The PFT HM 6 abides by the stringent safety standards of the German Builder’s Guild and has been granted
the Guild’s certification of approval.
This manual is copyright. No part of this manual or its technical specifications and drawings may be repro-
duced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, pho-
tocopying or otherwise, without the express written consent of PFT Putz- und Fördertechnik GmbH & Co.
KG. Unauthorized reproduction will lead to legal action. All rights reserved.
©Knauf PFT GmbH & Co. KG

____________________________________________________________________________________________________________
PFT HM 6 400V TITAN 2
PFT Introduction Version 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________
First inspection after delivery
It is mandatory that all delivery technicians check the machine settings at the end of the first running
operation. Factory settings can change during the initial phase of operation. If necessary, resetting should
take place right after initial run, without which faults are likely to set in.
After handing over the machine and approx. two hours into the initial operation, delivery technicians must
inspect the following items and settings:
1. Water safety switch
2. Solenoid valve
3. Pressure reducing valve
4. Motor safety switch^

____________________________________________________________________________________________________________
PFT HM 6 400 V TITAN 3
Contets Version 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________
Introduction .........................................................................................................................................................1
Contents .............................................................................................................................................................3
Overview HM6 ....................................................................................................................................................3
Overview control unit ..........................................................................................................................................5
Overview water manifold ....................................................................................................................................6
Description of function ........................................................................................................................................7
Basic safety instructions .....................................................................................................................................8
Settings...............................................................................................................................................................9
Check list ..........................................................................................................................................................10
Procedures at end of work and cleaning ..........................................................................................................11
Accessories ......................................................................................................................................................13

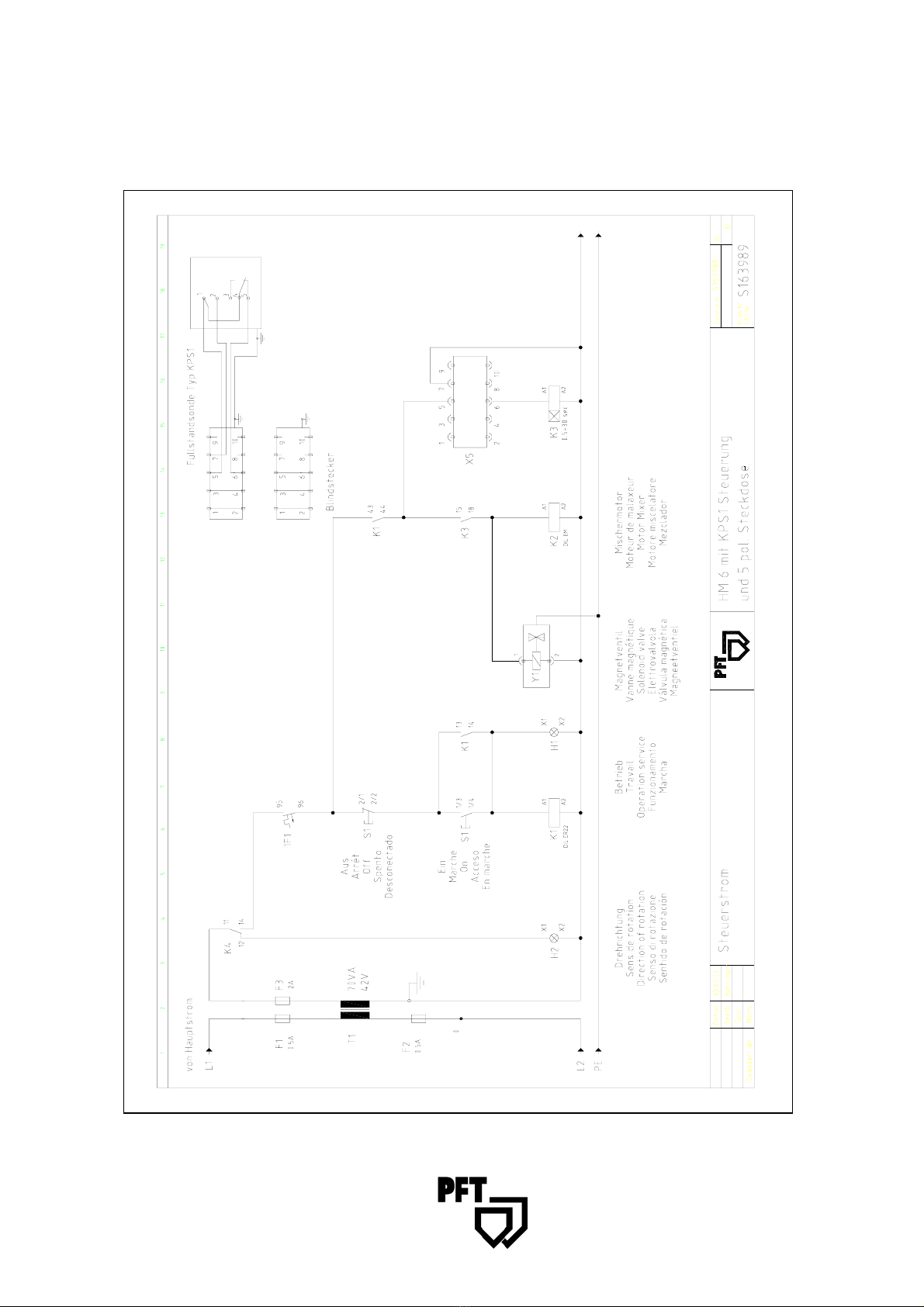

Diagram ............................................................................................................................................................14

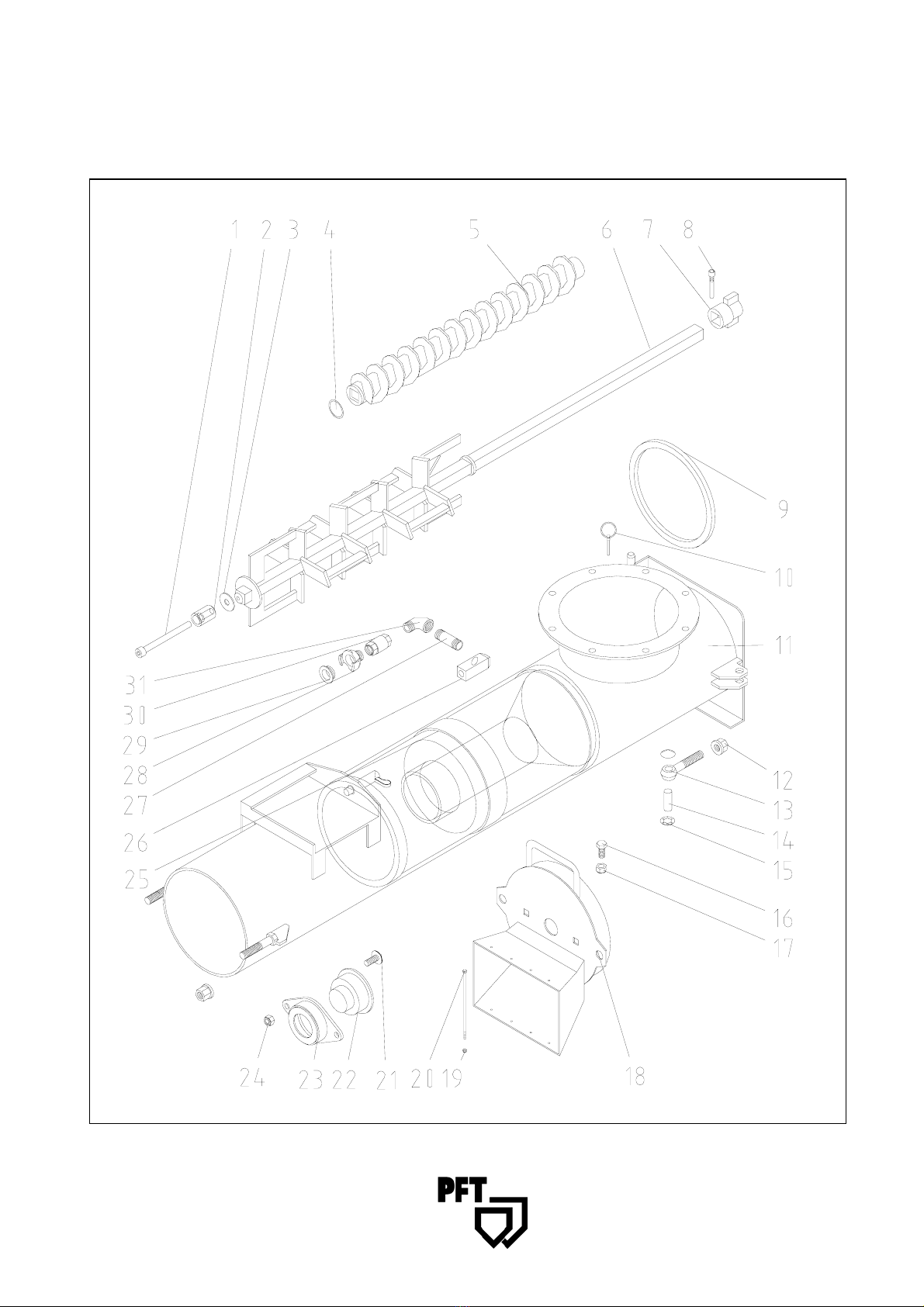

Spare part list....................................................................................................................................................16
Technical data ..................................................................................................................................................29

____________________________________________________________________________________________________________
PFT HM 6 400V TITAN 4
Overview Version 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________

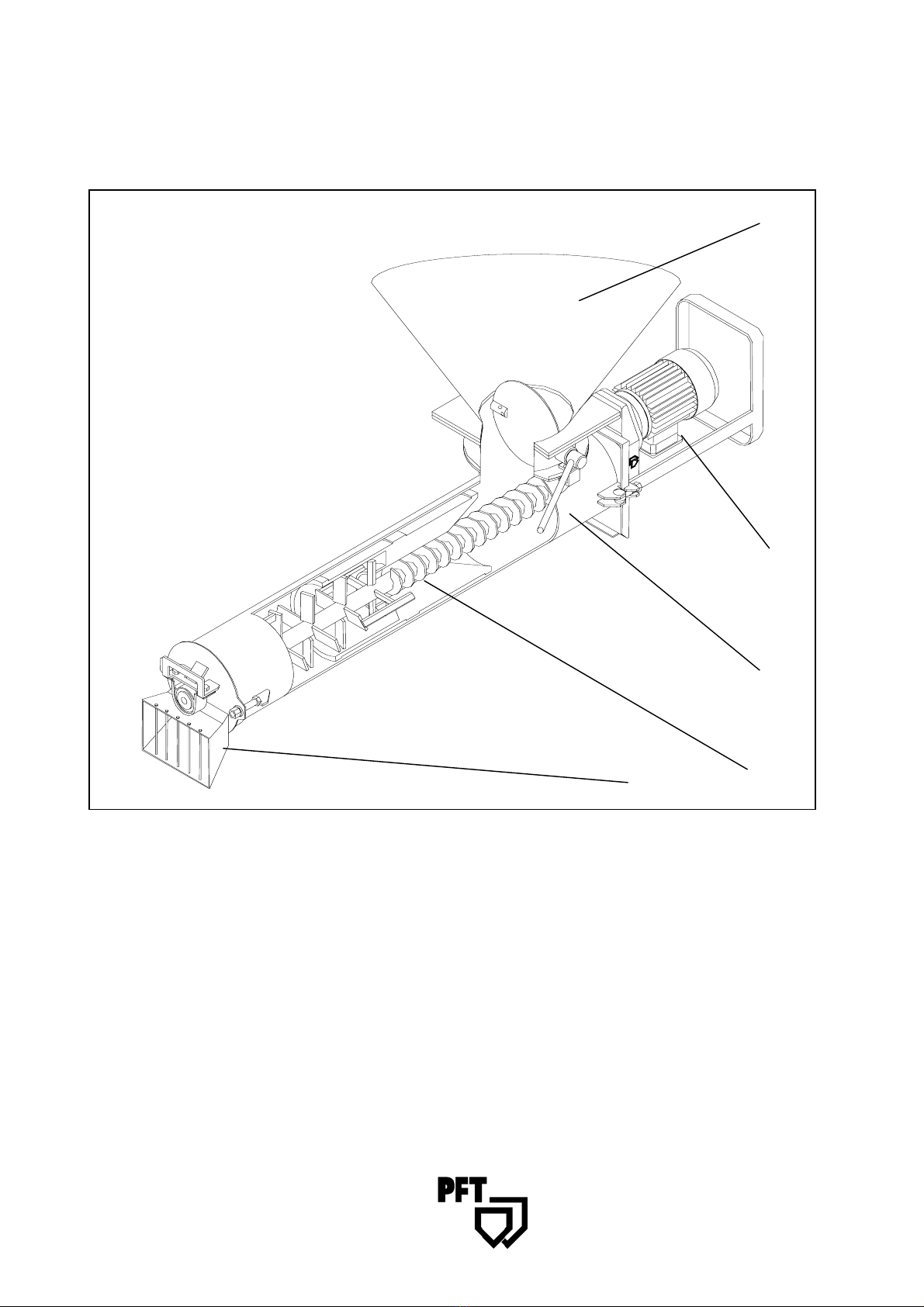

1 Silo with flap
2 Mixing motor
3 Mixing tube
4 Dosing – mixing shaft
5 Mortar flange
5 4
3
2
1

____________________________________________________________________________________________________________
PFT HM 6 400V TITAN 5
Overview control unit Version 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________

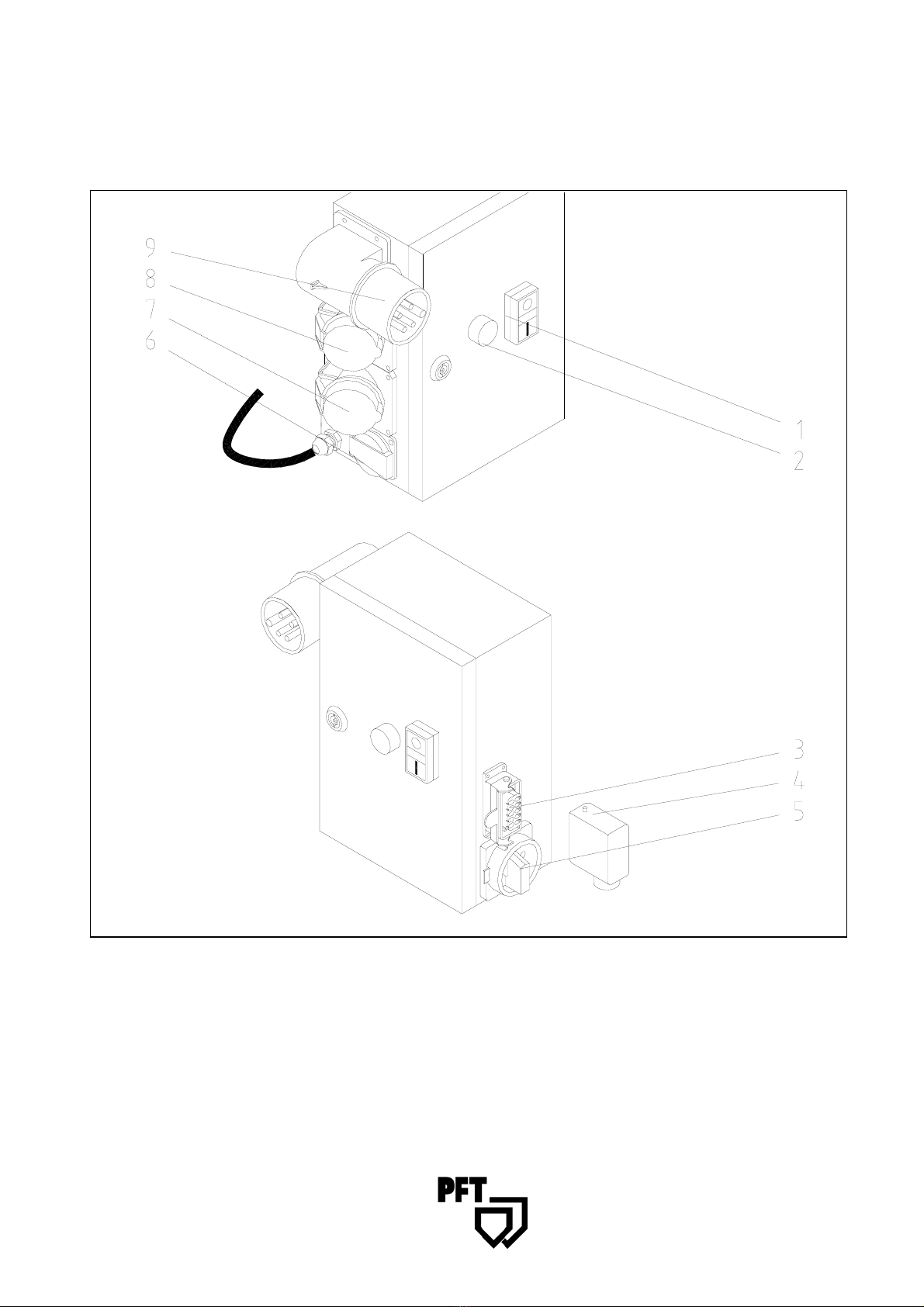

1 Display lamp : on / off 6 Schuko – socket 230V, 16A
2 Display lamp : Direction off rotation 7 Socket : vibrator 16A
3 Socket : KPS 1 probe 8 Socket : mixer 16A
4 Blind plug 10 pin 9 Socket for mains 16A
5 Main reversing switch

____________________________________________________________________________________________________________
PFT HM 6 400V TITAN 6
Overview water manifold Version 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________
1 Water to mixing tube 3 Water to flow meter
2 High pressure pump AV3 4 Water connection from mains or tank

____________________________________________________________________________________________________________
PFT HM 6 400V TITAN 7
Description of functions Version 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________

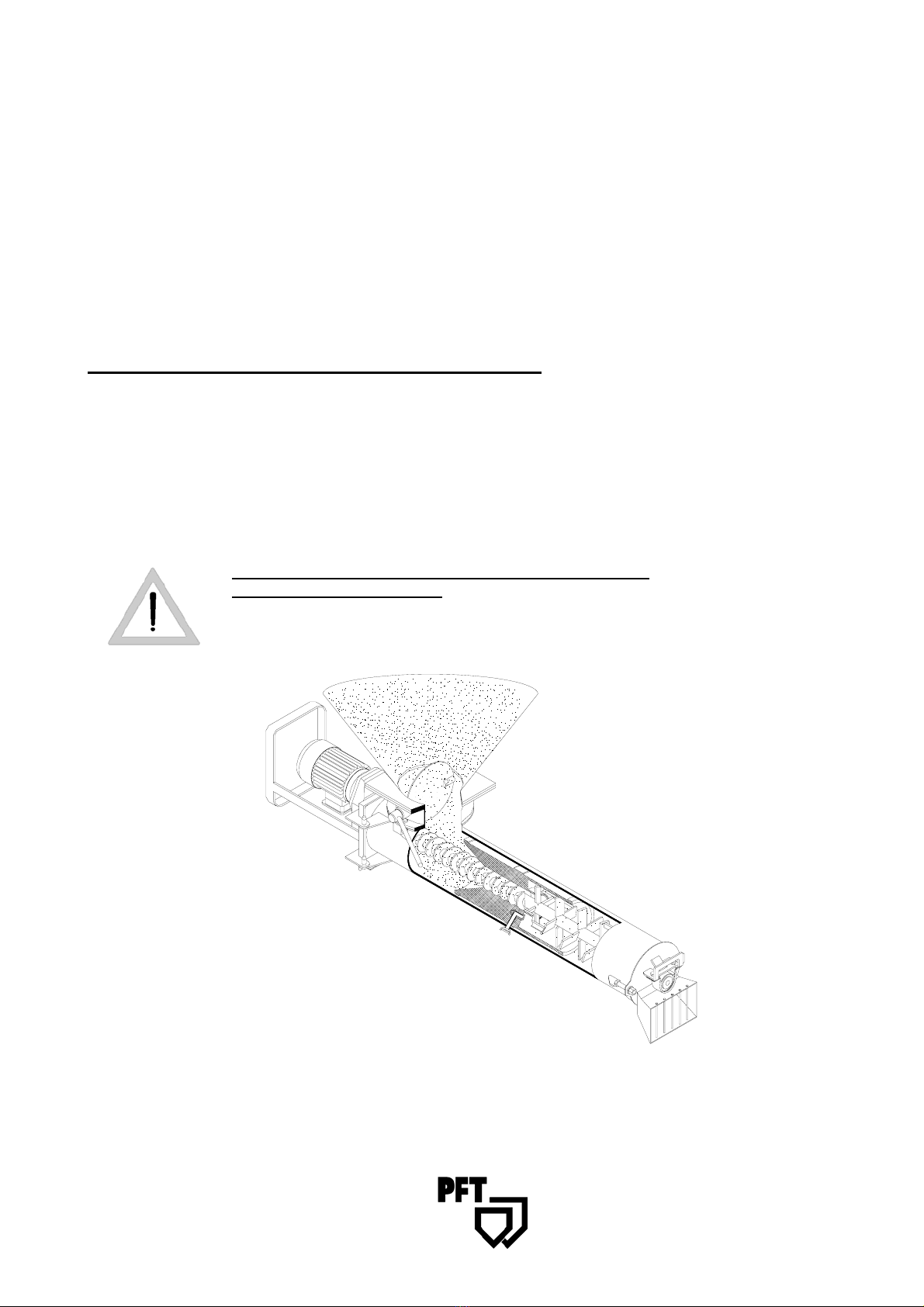

PFT HM 6 is a horizontal continuous screw mixer for factory-blended dry mortars e.g.
masonry mortar
outdoor cement plasters (for rendering)
scratch coat
The PFT HM 6is a silo machine.
The machine consists of individual portable components whose handy dimensions and low weight allow for
quick and easy transportation.
NOTE THE FOLLOWING CONNECTIONS WHILE OPERATING:
1. Electrical Panel - Main Switch
2. Water Mains - Water Manifold
3. Water Manifold - Mixing Tube
The PFT HM 6 is a new generation machine based on a modular concept. Use the snaps to remove or fit on
various dosing mixing shaft easily.
FOLLOW ALL MATERIAL MIXING INSTRUCTIONS FROM
MORTAR MANUFACTURER!

____________________________________________________________________________________________________________
PFT HM 6 400 V TITAN 8
Basic safty instructions Version 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________
The following terms and symbols are used in this manual to highlight important
information:
NOTE:
Information for running the machine efficiently.
WARNING!
Precautionary information for the prevention of accidents.
WARNING!
The machine should only be operated in perfect working conditions. Comply with all safety instructions in this manual!
Rectify all defects and faults immediately. Proper machine operation includes full compliance with all operating in-
structions, carrying out specified inspections, and complying with maintenance instructions.
The most important safety instructions follow. Please read them thoroughly Comply with these instructions in order
to get reliable quality service from the machine.
1. Follow all safety instructions on the machine. Ensure that all instructions are legible
2. Inspect the machine once every shift for visible damages and defects. Stop operating the machine immediately
if you notice any changes in safety or operating behaviour. Notify a supervisor immediately.
3. Do not make any changes to the machine that can jeopardise its safety. Always consult the machine dealer
first. Do not tamper with the machine by equipping it with extra "safety devices."
4. All spare parts must conform to our technical specifications. Only use spare parts manufactured by PFT.
5. Only trained personnel should operate the machine. Clearly designate all lines of responsibility for operation,
equipping maintenance and repairs.
6. Technicians undergoing training in the operation of the machine should be supervised by experienced person-
nel.
7. Only qualified personnel should work on the machine's electrical system. All electrical work should only take
place under the supervision of a qualified electrician and should comply with electors-technical safety regula-
tions.
8. Observe all instructions for switching the machine on and off. Watch display lamps for signals.
9. When the machine is completely switched off for maintenance and repair work, ensure that it cannot switch back
on accidentally. Do this by switching off the main switch, removing the key or by attaching a warning sign to the
main switch.
10. Before cleaning the machine with a water jet, seal all openings that can be damaged through water, e.g. electri-
cal motors and control boxes, thoroughly. After cleaning remove all seals and covers.
11. Use only original fuses with prescribed amps.
12. If work has to be carried out on a voltage-conducting component, a second technician should stand by to switch
off mains in case of an emergency.
13. Disconnect the machine from the mains before you move it, even if you are only moving it a short distance.
Reconnect the machine to the mains properly before starting up again.
14. Set up the machine on stable ground. Secure it from rolling away or moving during operation.
15. Depressor all conveying systems before dismantling them.
16. Have the machine inspected at once a year by a qualified person. The machine should also be inspected other-
wise as required.
17. Use protector for eyes, ears, head, hands, feet’s

____________________________________________________________________________________________________________
PFT HM 6 400V TITAN 9
Setting up the machine Version 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________
Pressure Reducer
1,5 bar at 2500 l/h ( maximum throughput)
Motor safety switch
10 – 16A for mixer and vibrator
Setting Up the Machine
Assemble the machine as follows:
- Set up the HM 6 straight
- Insert the mixing - dosing shaft
- Mount mixing tube and secure it on the hopper with snaps
Power Supply
- As per VDE regulations, connect the machine only to one electrical panel with
FI safety switch
- -Use a power cable 5 x 2,5 mm2with CEE plug 400 V, 5 x 16 A, 6h
(Item no. 20 42 33 50 )
Connect power cable
Connect vibrator (1)
Connect mixer (2)
The PFT HM 6 is equipped with a phase display that will light up if the direction of
rotation is wrong. With the right phase order, the mixing shaft should rotate clockwise.
If the direction of rotation is wrong, follow these instructions:
You can lock the main reversing switch by pushing the direction plate either to the
right or to the left. With that you have chosen the direction of rotation. If the switch is
turned to the left , it can be turned back to O, but not to the right side. The figure
printed on the plate shows you in what position the switch is locked
2
1

____________________________________________________________________________________________________________
PFT HM 6 400V TITAN 10
Setting up the machine Version 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________
KPS1
The HM 6 is created for KPS 1 operation.
To work with KPS 1 connect 10 pin plug.
To work without KPS 1 connect the blind plug.
Water Supply
- Connect a 3/4“ hose to water mains. Open water discharge valve slightly. Let wa-
ter run through the hose to dearest and clean it. Wait till water comes out of the
hose
- Shut off water discharge valve
- Connect water hose to water inlet on the machine (dirt filter)
- Open the water mains.
Connect water
From water tap (tank) to booster pump
From booster pump to water manifold
From water manifold to mixer
WARNING
While using stored water from a tank, connect the suction inlet with a filter
(Item no. 00 00 69 06).
The machine is now on stand by.
After touch the green button the machine works.
For a test rum use the blind plug.
When the machine is working connect the KPS 1 probe.
Mortar Consistency
Adjust the needle valve in such a way that the machine emits trowel-suited mortar at
the mortar outlet.
NOTE:
Follow all material mixing instructions of the mortar manufacturer!
Interrupting Work
The length of a break during operation will depend on the material and on the
conditions at the construction site (e.g. temperature, humidity etc.).
2
1

____________________________________________________________________________________________________________
PFT HM 6 400V TITAN 11
Check List Version 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________
How can you avoid or rectify problems with the PFT HM 6?
Fault Cause Solution
Machine does not start!! Power
- Power connection in order? Check faults and rectify
- Proper connection to electrical
panel?
- FI safety switch activated?
- Main switch on?
Machine does not start! Material
Too much thick material in the hop-
per or mixing area?
Rectify faults. If needed, empty
hopper by half and start mixing
process all over again
- Material too dry in mixing tube? No water supply
Machine does not start! Water
- Solenoid valve (membrane opening)
clogged?
Check and rectify faults
- Solenoid coil faulty?
- Pressure reducing valve shut off?
- Water inlet at mixing tube clogged?
- Needle valve shut off?
- Cable to solenoid valve faulty?
Mixer motor does not start! - Mixer motor faulty? Check and rectify faults
- Connecting cable faulty?
- Plug or mounted socket faulty?
- Motor safety switch faulty or acti-
vated?
Water flow cannot be in-
creased!
- Dirt filter clogged? Clean or replace filters
- Filter on pressure reducer clogged?
- Hose or water connection too small? Increase size of water connection
Attach water booster pump
- Suction connection at water tank too
weak or too long?
Mortar stops flowing! - Poor mortar mix in mixing tube? Add water
- Dosing tube is damp, material is
congealing and blocking the dosing
area?
If this does not help, clean dosing
shaft; dry inlet at mixing tube and
start process all over again
Fluctuation in mortar consis-
tency-"thick/thin"?
- Too little water? Regulate water supply
- Pressure reducing valve adjusted
wrongly or faulty?
Replace faulty parts
- Dosing and/or mixing shafts worn
out?
- Power supply cable too long or too
weak?
- Too little material in hopper?

____________________________________________________________________________________________________________
PFT HM 6 400V TITAN 12
Procedures at End of Work and Cleaning Version 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________
WARNING!
Assembly and maintenance tasks should only take place when the machine has been
switched off completely. Disconnect the machine from the electrical mains.
On a regular working day, clean the HM 6 only once at the end of operation.
Cleaning should take place in the following 3 steps:
1. When you finish work close the butterfly valve.
2. Let the system run till clean water is coming out (approx. 2 min)
3. Clean the hopper on the outside with a brush or dry mop. Use water to clean the
hopper only when it is empty.
4. Clean the hopper on the outside with a brush or dry mop. Use water to clean the
hopper only when it is empty.
WARNING!
No water should enter the bearings or electrical parts ( plug, main switch, motor con-
nections box).
While assembling cleaned parts, make sure they are really dry and clean. Connect
mixing shaft to dosing shaft.
WARNING!
Keep all snap locks and seals clean. Grease bearing tang and connectors regularily.
At subzero temperatures release all water!

____________________________________________________________________________________________________________
PFT HM 6 TITAN 400V 13
Accessories Version 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________
Measures for Power Failure
The PFT HM 6 equipped with a restart lock. After a power failure switch on the ma-
chine at the main switch for operation.
Measures for Water Supply Failure
In case of a water supply failure, the PFT HM 6 will keep on running without mixing
the material. As soon as the fault is rectified, the HM 6 will mix material quite normally
again.
Measures for Subzero Temperatures
Empty the water manifold of the PFT HM 6 completely at subzero temperatures
- Depressure water connection and decouple it
- Open taps on manifold
Transport
- Disconnect power cable
- Depressure water connection and decouple it
- Dismantle machine components and transport them individually
Maintenance
WARNING!
Disconnect all power cables to carry out maintenance or assembly work.
After every operation, check the following parts for defects: bearings, hauling bracket,
all connectors, hose connections and power cable connections.
Remove and clean the dirt filter in the water inlet and in the pressure reducer at least
once every two weeks. Replace them, if necessary.
Accessories
PFT Dosing mixing shaft
Dosing mixing shaft 45 l / min , item no 00 04 62 74
Dosing mixing shaft 60 l / min , item no 00 04 58 45

____________________________________________________________________________________________________________
PFT HM 6 400V TITAN 14
diagram Stand 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________

____________________________________________________________________________________________________________
PFT HM 6 400V TITAN 15
diagram Stand 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________

____________________________________________________________________________________________________________
PFT HM 6 400V TITAN 16
Spare part list Stand 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________
Spare part list: Drive unit ..................................................................................................................................17
Spare part list: Mixing tube unit ........................................................................................................................19
Spare part list: Water manifold unit ..................................................................................................................21
Spare part list: Water booster pump.................................................................................................................23
Spare part list: Control unit ...............................................................................................................................25
Spare part list: Level sensor .............................................................................................................................27

____________________________________________________________________________________________________________
PFT HM 6 400 V TITAN 17
Spare part list : Drive unit Stand 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________

____________________________________________________________________________________________________________
PFT HM 6 400 V TITAN 18
Spare part list : Drive unit Stand 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________
Item Qtl. Art.-No. Description
1 1 20 54 57 01 Hauling bracket HM3/HM5 25 mm boring with ring
2 1 20 20 96 03 Threaded pin hex. socket. M8 x 20 DIN 916 galv.
3 1 20 54 57 02 Sealing ring for gearbox D 107 x 40 x 5
4 1 00 04 65 40 Gear motor 5,5 kw, 286 rpm
5 1 00 04 04 16 Motor connection cable 1,6m CEE 4x16A
6 1 20 42 87 00 Plug CEE 4 x 16A 7h black no. 253
7 1 00 04 65 43 Motor flange
8 1 20 20 78 10 Hex. screw M8 x 25 DIN 933 galv.
9 1 20 20 78 00 Hex. screw M8 x 30 DIN 933 galv.
10 1 20 10 29 05 Guard for hauling bracket HM 3/HM 5
11 1 20 20 72 00 Safety nut M 8 DIN 985 galv.

____________________________________________________________________________________________________________
PFT HM 6 400 V TITAN 19
Spare part list: Mixing tube unit Stand 02.2003
____________________________________________________________________________________________________________
_______________________________________________________________________________________
Knauf PFT GmbH & Co.KG Telefon 09323 / 31-760
Postfach 60 Telefax 09323 / 31-770
D-97343 Iphofen Email [email protected]
_______________________________________________________________________________________
