PFT RITMO L plus User manual

Contents
2020-11-09
Operating manual
Mixing pump RITMO L plus FC-230V
Overview – Operation
Item number of operating manual: 00627846
Read the operating manual prior to beginning any work!

2 2020-11-09
Item number of the parts list machine:
RITMO L FC-230V plus – B 4-2, 1 Ph, 50 Hz, 2.2 kW with AV 3000 and accessories 00640780
RITMO L FC-230V plus – SD 6-3, 1 Ph, 50 Hz, 2,2 kW without accessories 00654331
RITMO L FC-230V plus – B 4-2, 1 Ph, 50 Hz, 2,2 kW without accessories 00654543
RITMO L FC-230V plus - SD 6-3, 1 Ph, 50 Hz, 2,2 kW with accessories 00657443
RITMO L FC-230V plus – B 4-2, 1 Ph, 50 Hz, 2,2 kW with accessories 00659504
RITMO L FC-230V plus – B 4-2, 1 Ph, 50 Hz, 2.2 kW, without compressor, without
accessories 00659513
RITMO L FC-230V plus - SD 6-3 soft, 1 Ph, 50 Hz, 2,2 kW with accessories 00662714
RITMO L FC-230V plus – SD 6-3 soft, 1 Ph, 50 Hz, 2,2 kW without accessories 00662730
RITMO L FC-230V plus - B 4-2, 1 Ph, 50 Hz, 2,2 kW for floor leveling application with
accessories, without air compressor 00669671
RITMO L PLUS SCREED 328U/M 00671444
RITMO L PLUS SCREED 328U/M without compressor, without accessories 00671445
© Knauf PFT GmbH & Co.KG
Postfach 60 97343 Iphofen
Einersheimer Straße 53 97346 Iphofen
Germany
Tel. [phone]
Fax [phone]
Technical hotline: [phone]
[email protected]
www.pft.net

Mixing pump RITMO L plus FC-230V Overview – Operation
Contents
2020-11-09 3
1 EC Declaration of Conformity ......................... 6
2 Testing ............................................................... 7
2.1 Testing by machine operator ................... 7
2.2 Periodic inspection................................... 7
3 General information ......................................... 7
3.1 Information regarding the operating
manual ................................................. 7
4 General information ......................................... 7
4.1 Information regarding the operating
manual ................................................. 7
4.2 Keep the manual for later use.................. 8
4.3 Layout ...................................................... 8
5 Spare part lists.................................................. 8
5.1 Accessories.............................................. 9
6 Technical data................................................... 9
6.1 General specifications ............................. 9
6.2 Electrical data RITMO L plus ................. 10
6.3 Output values RITMO L plus B4-2wf ..... 10
6.4 Output values RITMO L plus SD6-3 ...... 10
6.5 Output values RITMO L plus SD6-3
soft ..................................................... 10
6.6 Compressor DT4.8 ................................ 11
6.7 Operating requirements ......................... 11
6.8 Connection values for water .................. 11
7 Sound power level.......................................... 11
8 Vibrations ........................................................ 11
9 EMC test .......................................................... 11
10 Dimensions ................................................... 12
11 Type plate ...................................................... 12
12 Quality control sticker.................................. 12
13 Structure RITMO L plus ............................... 13

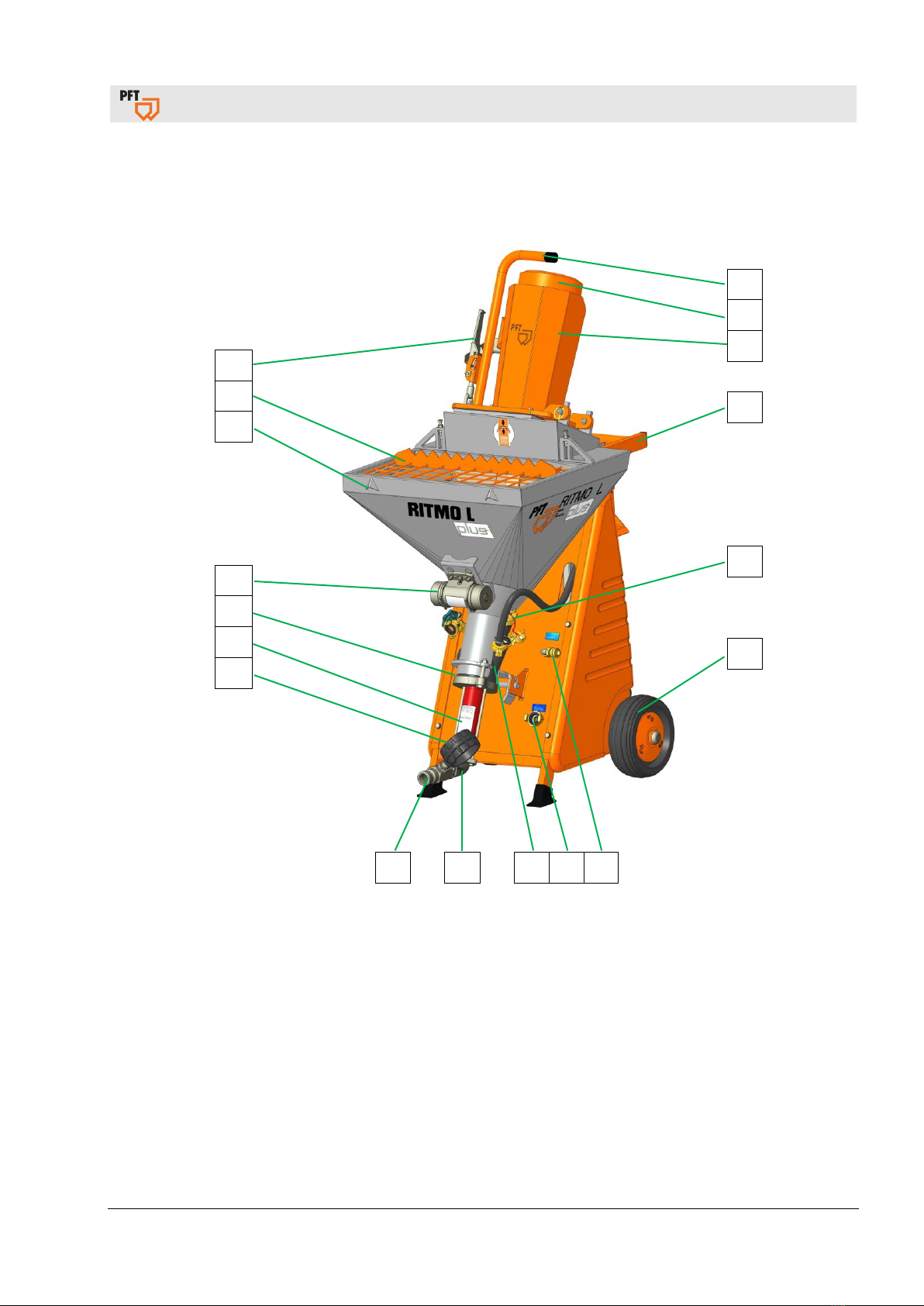

13.1 Overview RITMO L plus....................... 13
13.2 View from rear RITMO L plus .............. 14
14 Assembles RITMO L plus.............................14
14.1 Gear motor with material hopper and
pump unit............................................14
14.2 Gear motor ...........................................14
14.3 Chassis with compressor and control
box......................................................15
15 Description of assemblies ...........................15

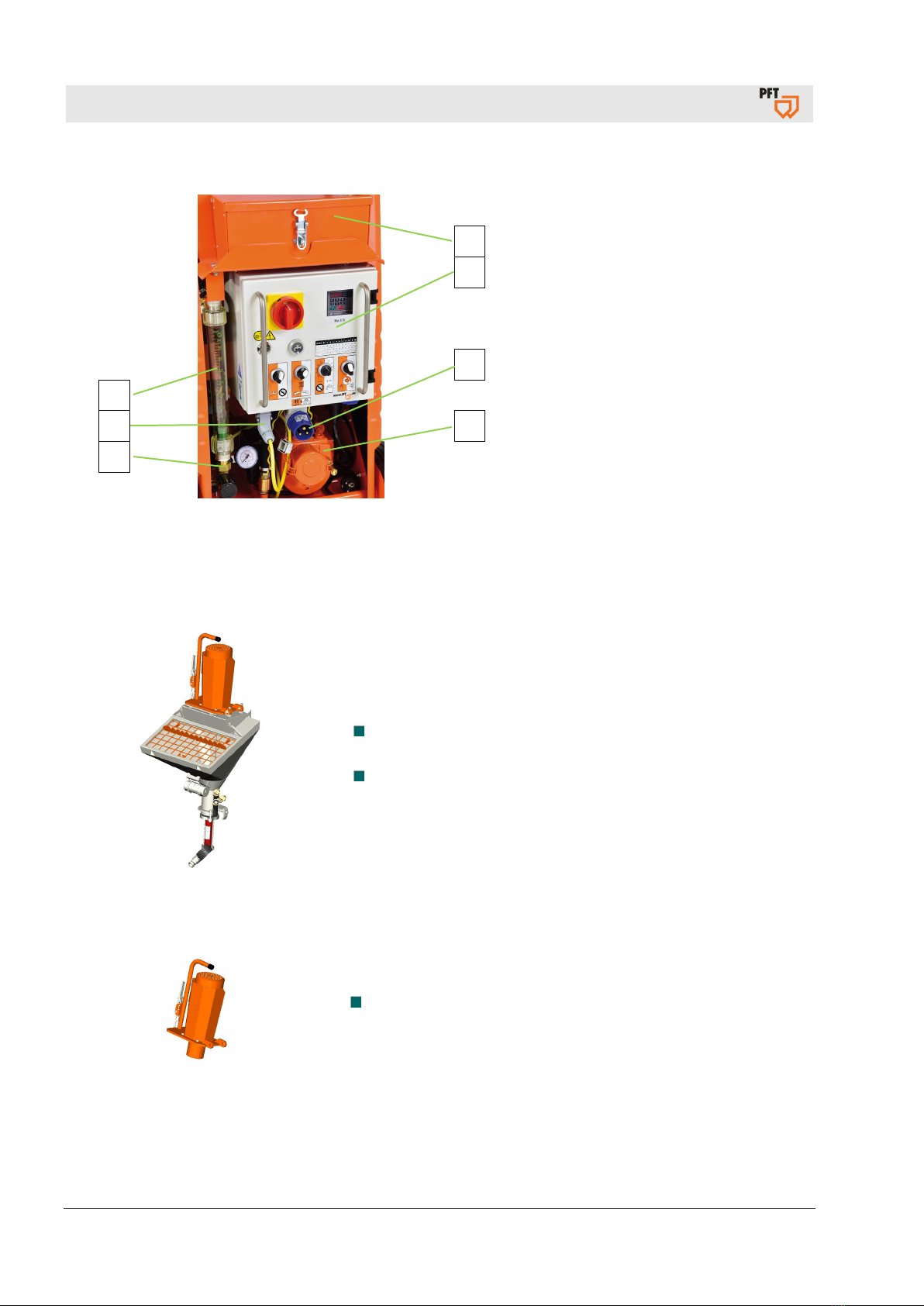

15.1 Overview of control box RITMO L plus 15
15.2 Overview of air compressor DT4.8
230V ...................................................16
15.3 Overview of water manifold RITMO L
plus.....................................................16
16 Connections RITMO L plus ..........................17
16.1 Connections for water, mortar hose
and air ................................................17
17 Operating modes...........................................17
17.1 Pump motor selector switch .................17
17.2 Water selector switch ...........................17
17.3 Potentiometer .......................................17

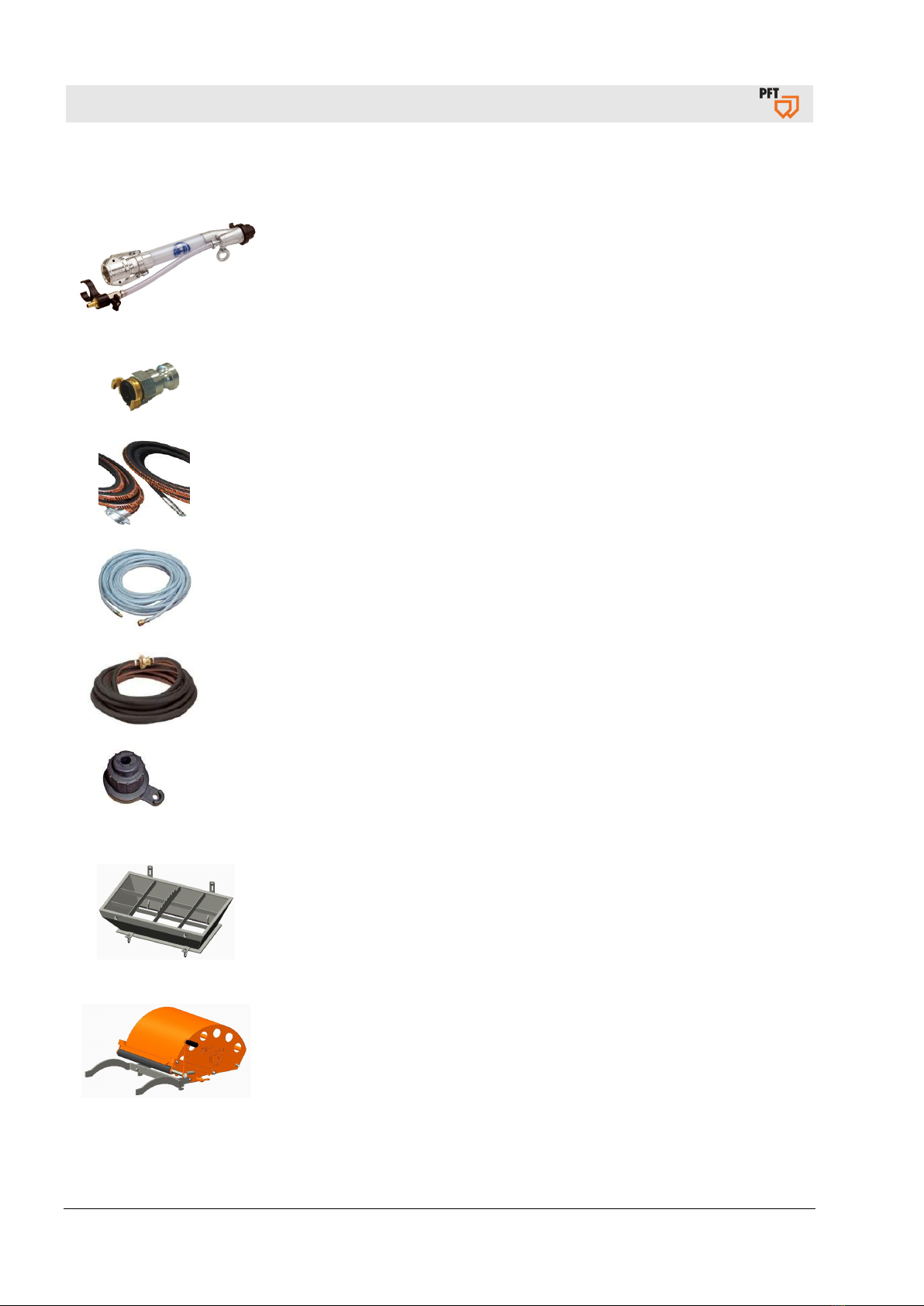

18 Accessories for machine .............................18
18.1 Parts from accessories pack Item no.
00246445 ...........................................20
19 Accessories ...................................................20
20 Intended use of fitting block ........................21
20.1 Purpose of fitting block .........................21
20.2 Purpose of solenoid valve ....................21
20.3 Purpose of flowmeter ...........................21
21 Intended use of air compressor ..................22
21.1 Purpose of air compressor ...................22
21.2 Safety devices of air compressor .........23
21.3 General setup of the air compressor....23
21.4 Hot surface on the air compressor .......23
22 Description of the PFT pressure booster
pump (accessories)....................................24
22.1 Application area of pressure booster
pump ..................................................24
22.2 Proper use of the machine ...................24

Mixing pump RITMO L plus FC-230V Overview – Operation
Contents
4 2020-11-09
23 Preparation of pressure booster pump
(accessories) .............................................. 25
24 Initial operation, filling the pump ................ 25
24.1 Putting the pressure booster pump
into operation ..................................... 25
25 Brief description of RITMO L plus .............. 26
26 Material .......................................................... 27
26.1 Flow characteristics of RITMO L plus .. 27
27 Mortar pressure gauge................................. 27
28 Safety regulations......................................... 27
29 Transport, packaging and storage.............. 28
29.1 Safety instructions for transport ........... 28
29.2 Closing the motor tilt flange ................. 28
29.3 Closing the snap lock before transport 29
29.4 Transport checklist ............................... 29
29.5 Transport in individual parts................. 29
29.6 Transport by car ................................... 30
29.7 Transportation of operational
machines............................................ 30
30 Packaging ...................................................... 30
31 Operation ....................................................... 31
31.1 Safety ................................................... 31
32 Preparation of the machine ......................... 32
33 Connection to the 230V power supply ....... 33
33.1 Connection to power distributor ........... 33
33.2 Motor connecting cable for pump
motor.................................................. 33
33.3 Checking the dirt trap screen ............... 33
33.4 Water supply connection...................... 34
33.5 Water from water barrel connection..... 34
34 Switching on RITMO L plus ......................... 35
34.1 Putting RITMO L plus into operation.... 35
34.2 Presetting the water flow rate .............. 35
34.3 Watering the mixing zone .................... 36
35 Mortar pressure gauge................................. 36
36 Hazardous dust ............................................. 36
37 DUSTCATCHER RITMO L plus SET............ 37
38 DUSTCATCHER attachment RITMO L
plus SET ..................................................... 37
39 Filling the material hopper with dry
material ....................................................... 37
40 Monitoring the machine............................... 37
41 Putting the machine into operation............ 38
41.1 Checking the mortar consistency ........ 38
41.2 Switching on the RITMO L plus with
material.............................................. 38
42 Potentiometer ............................................... 38
43 Mortar hoses ................................................. 39
43.1 Preparing the mortar hoses ................. 39
43.2 Connecting the mortar hose ................ 39
44 Compressed air supply................................ 40
44.1 Connecting the air hose....................... 40
44.2 Connecting the spray gun.................... 40
44.3 Switching on the air compressor ......... 40
44.4 Switching on the vibrator ..................... 40
45 Applying mortar............................................ 41
45.1 Opening the air tap on the spray gun .. 41
45.2 Interruption of work .............................. 42
45.3 In the event of a work stoppage /
pause................................................. 42
45.4 Switching off the air compressor ......... 43
46 Remote control ............................................. 43
46.1 Using the remote control without
spray gun........................................... 43
47 Working with pastes .................................... 43
47.1 Recommended accessories for
pastes ................................................ 43
47.2 Working with pastes............................. 44
48 Measures to be taken in the event of a
water supply failure ................................... 44
49 Shutting down RITMO L plus in an
emergency.................................................. 45
49.1 Emergency OFF switch ....................... 45

Mixing pump RITMO L plus FC-230V Overview – Operation
Contents
2020-11-09 5
50 Measures to be taken in the event of a
power failure............................................... 45
50.1 Turning the main switch to position “0” 45
50.2 Discharging mortar pressure ............... 46
50.3 Switching on the machine again after
a power failure ................................... 46
51 Troubleshooting ........................................... 47
51.1 Dealing with malfunctions .................... 47
51.2 Fault displays ....................................... 47
51.3 Malfunctions......................................... 47
51.4 Safety................................................... 48
51.5 Table of malfunctions........................... 48
52 Pumping stopped / blockage ...................... 50
52.1 Remedying hose blockages / Signs of
blockages........................................... 50
52.2 Causes of clogged hoses: ................... 51
52.3 Pre-existing damage on mortar hose .. 51
53 Clearing hose blockages ............................. 51
53.1 Running pump motor briefly in
reverse............................................... 51
53.2 Risk of injury to due overpressure ....... 52
53.3 Switching on the machine after
removing a blockage ......................... 53
54 End of shift / Cleaning.................................. 53
54.1 Switching off the energy supplies ........ 53
54.2 Cleaning RITMO .................................. 53
54.3 Checking the mortar pressure ............. 54
54.4 Cleaning the mortar hose .................... 54
54.5 Coupling the water hose ...................... 55
54.6 Clean mixing tube. ............................... 55
54.7 Inserting the mixing tube cleaner......... 56
54.8 Cleaning the mixing tube RITMO......... 56
54.9 Placing the machine on its rear ........... 57
54.10 Cleaning the rubber mixing zone....... 57
54.11 Inserting the mixing shaft ...................58
54.12 Cleaning the material hopper .............58
55 Replacing the pump / Cleaning the pump ..58
55.1 Placing the machine on its rear ............58
56 Switching off RITMO L plus .........................59
57 Measures to be taken if there is a risk of
frost..............................................................59
57.1 Blowing the water manifold dry ............60
57.2 Blowing the water manifold RITMO L
plus dry...............................................60
58 Maintenance ..................................................61
58.1 Safety ...................................................61
58.2 Removing the connection cable ...........61
58.3 Environmental protection......................62
58.4 Maintenance plan .................................62
59 Maintenance tasks ........................................63
59.1 Dirt trap screen .....................................63
59.2 Pressure reducing valve.......................63
59.3 Checking the pressure switch ..............64
59.4 Pressure switch on the compressor .....64
59.5 Cleaning the air compressor slide
control / air filter..................................64
59.6 After performing maintenance ..............66
60 Disassembly ..................................................67
60.1 Safety ...................................................67
60.2 Disassembly .........................................68
61 Disposal .........................................................68
62 Index ...............................................................69
63 Notes .............Fehler! Textmarke nicht definiert.

Mixing pump RITMO L plus FC-230V Overview – Operation
Contents
6 2020-11-09
1 EC Declaration of Conformity
Company: Knauf PFT GmbH & Co. KG
Einersheimer Straße 53
97346 Iphofen
Germany
declares, with exclusive responsibility, that the machine
Machine model: RITMO
Device type: Mixer Pump
Serial number:
Guaranteed sound power level: 78 dB
conforms to the following CE regulations:
•Outdoor Noise Directive (2000/14/EC),
•Machine Directive (2006/42/EC),
•Directive on Electromagnetic Compatibility (2014/30/EC).
Applied conformity assessment procedure according to Outdoor Noise Directive 2000/14/EC:
Internal manufacturing inspection as per Article 14, Section 2 in conjunction with Appendix V.
This declaration applies only to the machine in the condition it was in when sold. Components
attached or modifications undertaken by the end customer after purchase remain unconsidered.
This declaration becomes invalid if the product is converted or altered without approval.
Agent responsible for putting together the relevant technical documentation:
Dipl.-Wirtsch.-Ing. Michael Duelli, Einersheimer Straße 53, 97346 Iphofen, Germany.
The technical documentation is held at:
Knauf PFT GmbH & Co.KG, Technische Abteilung, Einersheimer Straße 53, 97346 Iphofen, Germany.
Iphofen, Germany Dr. York Falkenberg
General Manager
Place and date of issue Name and signature Information on signatory

Mixing pump RITMO L plus FC-230V Overview – Operation
Testing
2020-11-09 7
2 Testing
2.1 Testing by machine operator
Before the start of each work shift, the machine operator must test the effectiveness of the control
and safety devices as well as check the proper attachment of all protective devices.
During operation, construction machines must be tested by the machine operator for their
operational safety.
If defects are found in the safety devices or any other area that could impair safe operation, the
supervisor must be notified immediately.
For defects posing a hazard to persons, the operation of the construction machine must be halted
until the defect is eliminated.
2.2 Periodic inspection
Construction machines must be tested for safe operation by a specialist as the usage conditions
and operating circumstances require, but at least once a year.
Pressure vessels must undergo the prescribed inspections by authorised experts.
The inspection results are to be documented and must be stored at least until the next inspection.
3 General information
3.1 Information regarding the operating manual
This manual provides important information and instructions on the correct use of the equipment.
Adherence to all defined safety and handling instructions is a prerequisite for a safe working
environment.
Additionally, the on-site accident prevention regulations and general safety guidelines for the
equipment must be followed at all times.
Read the manual carefully before starting any work! It is an integral part of the product and must be
kept near the machine and accessible to operators at all times.
Always include the operating manual when transferring the machine to third parties.
The diagrams and illustrations shown in the manual are intended for better understanding of tasks
and descriptions. They are not necessarily shown to the correct scale and may vary slightly from
the actual equipment used.
4 General information
4.1 Information regarding the operating manual
This manual provides important information and instructions on the correct use of the equipment.
Adherence to all defined safety and handling instructions is a prerequisite for a safe working
environment.
Additionally, the on-site accident prevention regulations and general safety guidelines for the
equipment must be followed at all times.
Read the manual carefully before starting any work! It is an integral part of the product and must be
kept near the machine and accessible to operators at all times.
Always include the operating manual when transferring the machine to third parties.
The diagrams and illustrations shown in the manual are intended for better understanding of tasks
and descriptions. They are not necessarily shown to the correct scale and may vary slightly from
the actual equipment used.

Mixing pump RITMO L plus FC-230V Overview – Operation
Spare part lists
8 2020-11-09
4.2 Keep the manual for later use
The operating manual must be available during the entire
service life of the product.
4.3 Layout
The operating manual is comprised of two booklets:
Part 1: Safety
General safety instructions for mixing pumps/conveying pumps
Item number: 00172709
Part 2: Overview, operation, servicing and spare part lists
(this booklet).
Both parts must be read and adhered to in order to ensure safe
operation of the equipment. Together, they are valid as one
operating manual.
5 Spare part lists
You can find spare part lists for the machine in the Internet under www.pft.net
1
2

Mixing pump RITMO L plus FC-230V Overview – Operation
Technical data
2020-11-09 9
5.1 Accessories
6 Technical data
6.1 General specifications
Specification Value Unit
Weight RITMO L plus
133
kg
Length with pump
915
mm
Width
600
mm
Overall height
1450
mm
Individual weights
Specification
Value
Unit
Chassis / Frame
64.2
kg
Motor with tilt flange
30
kg
Material hopper
18
kg
Hopper dimensions
Specification
Value
Unit
Filling height
930
mm
Hopper capacity
45
l
3
For recommended accessories/equipment, see PFT Machine and Equipment Catalogue or www.pft.net/plus

Mixing pump RITMO L plus FC-230V Overview – Operation
Technical data
10 2020-11-09
6.2 Electrical data RITMO L plus
Electrical 230V
Specification Value Unit
Voltage, AC current 50 Hz
230
V
Max. current consumption
9
A
Max. power consumption
2.5
kW
Fuse
16
A
Pump motor drive
2.2
kW
Pump motor speed range
74 - 492
Rpm
Pump motor current consumption
8.7
A
Air compressor
0.35
kW
Vibrator
0.045
kW
6.3 Output values RITMO L plus B4-2wf
Pump output B4-2wf
Specification Value Unit
Delivery rate infinitely adjustable
2 -14
l/min
Max. operating pressure 20 bar
Granulation max.
2
mm
Pumping distance*, max. for 25 mm
∅
20
m
* Recommended value, depending on conveying height, condition and version of
pump, mortar quality (composition and consistency)
6.4 Output values RITMO L plus SD6-3
Pump output SD6-3
Specification
Value
Unit
Delivery rate infinitely adjustable 4 -25 l/min
Max. operating pressure
25
bar
Granulation max. 3 mm
Pumping distance*, max. for 25 mm
∅
20
m
* Recommended value, depending on conveying height, condition and version of
pump, mortar quality (composition and consistency)
6.5 Output values RITMO L plus SD6-3 soft
Pump output SD6-3 soft
Specification Value Unit
Delivery rate infinitely adjustable
4 -25
l/min
Max. operating pressure 18 bar
Granulation max.
3
mm
Pumping distance*, max. for 25 mm
∅
20
m
* Recommended value, depending on conveying height, condition and version of
pump, mortar quality (composition and consistency)

Mixing pump RITMO L plus FC-230V Overview – Operation
Sound power level
2020-11-09 11
6.6 Compressor DT4.8
Specification Value Unit
Compressor output 0.080 Nm³/min
6.7 Operating requirements
Ambient conditions
Specification Value Unit
Temperature range 2 - 45 °C
Relative humidity (maximum) 80 %
Operating period
Specification Value Unit
Maximum continuous operating period
8
hours
6.8 Connection values for water
Fig. 1: Water connection
Specification Value Unit
Operating pressure, min. 2.5 bar
Connection 1/2 inches
7 Sound power level
Guaranteed sound power level LWA 78 dB (A)
8 Vibrations
Weighted effective acceleration value to which the upper limbs are exposed = < 2.5 m/s²
9 EMC test
The machine has been EMC tested and complies with the strict requirements of EMC Directive filter class B.
The control box is equipped with a line filter.

Mixing pump RITMO L plus FC-230V Overview – Operation
Dimensions
12 2020-11-09
10 Dimensions
Fig. 2: Dimensions
11 Type plate
Fig. 3: Type plate
The type plate contains the following information:
Manufacturer
Type
Year built
Machine number
Permissible operating pressure
12 Quality control sticker
Fig. 4: Quality control sticker
The quality control sticker contains the following information:
CE confirmed in compliance with EU directives
Serial number
Controlled by / signature
Date of control
600915
1450
930

Mixing pump RITMO L plus FC-230V Overview – Operation
Structure RITMO L plus
2020-11-09 13
13 Structure RITMO L plus
13.1 Overview RITMO L plus
11 10 9 8 7
Fig. 5: Overview RITMO L plus
1 Engine guard
2 Gear motor
3 Motor guard plate
4 Push handle
5 Water supply to mixing tube / rubber mixing zone
6 Wheel
7 Compressed air from air compressor to spray gun
8 Water inlet, water connection from water supply
9 rubber mixing zone
10 Pressure flange
11 Mortar hose connection
12 Mortar pressure gauge
13 Pump unit B4-2wf / SD6-3
14 Suction flange
15 Vibrator
16 Material hopper
17 Protective grille with bag opener
18 quick fastener
1
2
3
4
5
6
18
17
16
15
14
13
12

Mixing pump RITMO L plus FC-230V Overview – Operation
Assembles RITMO L plus
14 2020-11-09
13.2 View from rear RITMO L plus
Fig. 6: View from rear
1. Tool box.
2. Control box.
3. Mains connection 230V.
4. Air compressor DT4.8.
5. Water manifold.
6. Dummy plug / remove control
cable connection.
7. Water flowmeter (water manifold).
14 Assembles RITMO L plus
14.1 Gear motor with material hopper and pump unit
Fig. 7: Material hopper assembly
The mixing pump PFT RTIMO L plus comprises the following
main components:
Gear motor with tilt flange, mixing tube with material hopper,
vibrator and pump unit B4-2wf / SD6-3.
The gear motor with tilt flange can also be removed from
the material hopper for transport.
Weight: 68.6 kg.
14.2 Gear motor
Fig. 8: Gear motor
Gear motor 2.2kW with tilt flange and protective tube.
Weight: 29.8 kg.
4
3
1
2
3
4
7
6
5

Mixing pump RITMO L plus FC-230V Overview – Operation
Description of assemblies
2020-11-09 15
14.3 Chassis with compressor and control box
Fig. 9: Frame
Chassis with water manifold and control box.
Weight: 64.2 kg.
15 Description of assemblies
15.1 Overview of control box RITMO L plus
Fig. 10: Control box module
Fig. 11: Control box connections
1. Sight glass for frequency converter.
2. Potentiometer for motor speed / material volume.
3. Selector switch Vibrator “ON / OFF”.
4. Selector switch Pump.
5. Selector switch Operation with water (as mixing pump),
without water (only as pump).
6. Push button Water supply push
7. Main switch, also functions as Emergency OFF switch
.
8. Connection for air compressor 230 V
(socket blue continuous current).
9. Connector for vibrator 230 V (socket grey controlled).
10. Dummy plug / remote control connection.
11. Connection for main current 230 V, 1Phase, 16 A.
1
2
3
7
6
5
4
8
9
11
10

Mixing pump RITMO L plus FC-230V Overview – Operation
Description of assemblies
16 2020-11-09
15.2 Overview of air compressor DT4.8 230V
1 2 3
Fig. 12: Air compressor
1. Condenser.
2. Air to spray gun.
3. Safety valve to 1.8 bar.
4. Air filter.
5. Counterflow valve.
6. Electrical connection 230 V.
7. Compressor pressure switch
(switches the compressor ON/OFF).
8. Pressure control connection.
9. Air pressure switch
(switches the machine ON/OFF).
15.3 Overview of water manifold RITMO L plus
1 2 3 4 5 6
Fig. 13: Water manifold
1. Pressure reducer
2. Water pressure monitor.
3. Water connection from water supply.
4. Water to mixing tube.
5. Shut-off valve / water outlet.
6. Water outlet for cleaning the mortar
pressure hose.
7. Antifreeze water drain cock.
8. Needle valve for water quantity.
9. Primary water pressure gauge.
10.Solenoid valve.
11.Water flow meter.
11
10
9
8
7
4
5
6
7
9
8

Mixing pump RITMO L plus FC-230V Overview – Operation
Connections RITMO L plus
2020-11-09 17
16 Connections RITMO L plus
16.1 Connections for water, mortar hose and air
Fig. 14: Connections
1. Air connection to spray gun (1).
2. Water connection from water supply (2).
3. Mortar hose connection (3) to mortar pressure gauge.
17 Operating modes
17.1 Pump motor selector switch
Fig. 15:Operating modes of
pump motor
The pump motor has three operating modes:
Selector switch position “0”:
The machine is switched off.
Selector switch (latching):
The machine starts up when the main switch is switched on.
Selector switch left (spring return):
The pump motor goes into reverse, thereby relieving the pump
and locking other functions.
17.2 Water selector switch
Fig. 16:Water selection switch
The RITMO can be used for two application areas:
Selection switch (latching):
The machine is operated without water.
Use as pump.
Selector switch left (latching):
The machine is operated with water.
Use as mixing pump.
17.3 Potentiometer
Fig. 17: Potentiometer
Potentiometer for motor speed / delivery rate:
By turning the potentiometer (1) to the right to a higher number, the
engine speed is increased and thus also the delivery rate.
1
2
3
1

Mixing pump RITMO L plus FC-230V Overview – Operation
Accessories for machine
18 2020-11-09
18 Accessories for machine
Fig. 18
Power cable 3x2.5 mm², 25 m safety socket CEE 16A Art.No.20423420
Fig. 19
Tool bag, mixing pump RITMO Art.No. 00097292
Consisting of:
Double wrench 13x17 Art.No. 00137015, 17x19 Art.No. 20048512
Double wrench 16x18 Art.No. 00262402, 24x30 Art.No. 20048511
Sponge ball 30 mm fixed Art.No. 20210500
Mandrel 4.0 mm diameter Art.No. 00073670
Control box key, double bit 5 mm Art.No. 20444500
Dirt trap screen for Geka coupling (10 items) Art.No. 20152000
Fig. 20
Mixing tube cleaner RITMO L PLUS, zinc-plated Art.No. 00231970
Cleaner shaft BIONIK RITMO D-pump, zinc-plated Art.No. 00588832
Fig. 21
Geka coupling 1" IG (VPE 10) Art.No. 20201100
Fig. 22
Geka coupling 1/2" fitting (VPE 10) Art.No. 20201500
Fig. 23
Cleaner coupling 25 V-part LW24 with Geka Art.No. 20199500
Fig. 24
RONDO 25 mm 20 m hydraulic Art.No. 00021102
RONDO 25 mm 15 m hydraulic Art.No. 00021101
RONDO 25 mm 5 m hydraulic Art.No. 00021103

Mixing pump RITMO L plus FC-230V Overview – Operation
Accessories for machine
2020-11-09 19
Fig. 25
Water/Air hose ½" 40 m Art.No.20212100
Water/Air hose ½" 5 m Art.No.00420433
Fig. 26
Remote control cable with switch - 25 m without support Art.No.00001795
Fig. 27
Rotor remover, complete Art.No.00401188
Fig. 28
Support for remote control switch 2 x D = 36 Art.No. 20190221
Fig. 29
Assembling spray for PFT rotor/stator, 100 ml Art.No. 00588821
Fig. 30
Spray nozzle DN19 (3/4") Geka Art.No. 20215700
Fig. 31
Water pump as suction pump AV 1000 standalone with integrated pressure
switch-off and flow meter, 230 V, 1 Ph, 50 Hz, 0.6 kW Art.No. 00493686

Mixing pump RITMO L plus FC-230V Overview – Operation
Accessories
20 2020-11-09
18.1 Parts from accessories pack Item no. 00246445
Fig. 32
Fine plaster device DN25-360° S10 200 Ewo Art.No. 00111804
Fig. 33
Cleaning piece 25V-part LW24 with Geka Art.No. 20199500
Fig. 34
RONDO 25 mm 15 m hydraulic Art.No. 00021101
RONDO 25 mm 5 m hydraulic Art.No. 00021103
Fig. 35
Air hose DN9 Ewo V-part | Ewo M-part - 16 m Art.No. 00008521
Air hose DN9 Ewo V-part | Ewo M-part - 5 m Art.No. 00077240
Fig. 36
Water hose/air hose DN12 Geka I Geka - 11 m Art.No.20211000
Fig. 37
Spraying cap S12 (packing unit = 10 pcs) (VPE 10) Art.No. 00062382
Spraying cap S14 (packing unit = 10 pcs) Art.No. 00062383
19 Accessories
Fig. 38
Interchangeable hopper RITMO L plus RAL9002 complete Art.No. 00612729
Fig. 39
Bag flattener RITMO L Plus complete Art.No. 00625970
