PhDsolutions SP-1H1C70-KIT User manual

SP-1H1C70-KIT
HDMI over CAT Extender-Splitter
with IR (70m)
VER 1.0

Thank you for purchasing this incredible product
For best performance and safety, please read these
instructions carefully before connecting and operating this
product. Please keep this manual for future reference.
Surge protection device recommended
This product contains This product contains sensitive electrical
components that may be damaged by electrical spikes, power
surges, electrostatic discharge (ESD), lightning strikes or
transients. The use of surge protection systems is highly
recommended in order to protect and extend the life of your
equipment.
Safety and performance Notice
Only use the power supply supplied with the unit, or a PhD
Solutions supplied replacement. Do not disassemble any of
the equipment. This will void the manufacturer’s warranty.

Table of Contents
1. Introduction.............................................................................................1
2. Features.................................................................................................... 1
3. Package Contents............................................................................... 2
4. Specifications.........................................................................................2
5. Operation Controls and Functions................................................ 4
5.1 Transmitter Panel........................................................................... 4
5.2 Receiver Panel............................................................................... 5
5.3 IR Pinout Diagram.......................................................................... 6
6. Application Diagram..................................................................... 7
7. CAT Cable termination..................................................................8
8. Product Warrantee.......................................................................... 9

1
1. Introduction
This HDMI Extender-Splitter can extend 4K30 high-definition
video and audio signals up to 131Ft /40m and 1080P up to 230ft
/ 70m over a single CAT cable. It supports resolutions of up to
4K2K@30Hz 4:4:4 and HDCP 1.4 An HDMI loop output port will
split the HDMI Input to a local Display. The transmitter will power
the receiver over the CAT cable via POC. It is equipped with
one-way IR pass-through which allows for source control from
the display end.
This extenders’ HDMI loop output can be cascaded to the next
extender. It also has an EDID copy function (you can choose local
or remote EDID). Audio formats up to PCM7.1, Dolby True HD, DTS
HD are supported.
2. Features
☆HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
☆Support video resolutions up to 4k2k@30Hz YUV 4:4:4
☆The maximum transmission distance via a single CAT6/5E
cable is as follows:
CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30
CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
☆Support copying EDID from receiver display or loop out display
☆Allow for cascading via additional HDMI loop out port
☆Support one-way POC functionality (from transmitter to receiver)
☆One-way IR signal transmission

2
3. Package Contents
①1 × HDMI Transmitter
②1 × HDMI Receiver
③1 × IR Emitter Cable (1.5 meters)
④1 × IR Receiver Cable (1.5 meters)
⑤1 × 12V/1A DC Power Adapter
⑥1 × User Manual
4. Specifications
Technical
HDMI Compliance
HDMI 1.4
HDCP Compliance
HDCP 1.4
Video Bandwidth
10.2Gbps
Video Resolution
Up to 4K@30Hz
Audio Support
Up to 7.1CH HD audio
Input TMDS Signal
3.3 volts
Input DDC Signal
5.0 volts/P-P
ESD Protection
Human Body model:
+/- 8 kV (air-gap discharge)
+/- 4 kV (contact discharge)

3
Connection
Transmitter
Input: 1 x HDMI Type A [19-pin female]
Outputs:1 x HDMI Type A [19-pin female]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x CAT OUT [RJ45, 8-pin female]
Receiver
Inputs: 1x IR IN [3.5mm Stereo Mini-jack]
1x CAT IN [RJ45, 8-pin female]
Output: 1x HDMI Type A [19-pin female]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
79.5mm[W] x 69mm[D] x 16.5mm[H]
Weight
Transmitter: 132g, Receiver: 130g
Power Supply
12V/1A DC
Power Consumption
Transmitter: 1.86W, Receiver: 0.87W
Operation
Temperature
32 - 104°F / 0 - 40°C
Storage temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)

4
5. Operation Controls and Functions
5.1 Transmitter Panel
No.
Name
Function Description
1
HDMI IN
HDMI signal input port. Connect to HDMI
source device such as DVD or Set-top box.
2
EDID
DIP switch
The switch is used for selecting EDID:
Switch to the right position, the extender will
copy HDMI loop out displays EDID
information for the source to read; Switch to
the left position, the extender will copy
Receiver displayEDID for the source to read.
3
HDMI OUT
HDMI signal loop out port. Connect to a
HDMI display device such as an HDTV.
4
IR OUT
Connect to IR blaster cable, the IR signal is
from the IR IN port of the receiver.
5
Power LED
When the transmitter is powered on, the LED
will be on.
6
CAT
CAT output port. Connect to the CAT input
port of the receiver with CAT5E/6 cable.
Terminated 568B Configuration

5
7
Link LED
When the transmitter is connected to HDMI
source, the LED will be on.
8
DC 12V
DC 12V power supply port.
5.2 Receiver Panel
No.
Name
Function Description
1
HDMI OUT
HDMI signal output port. Connect to HDMI
display device such as HDTV.
2
IR IN
Connect to the supplied IR receiver cable,
the IR signal will emit to the IR OUT port of
the transmitter.
3
Power LED
When the receiver is powered on, the LED
will be on.
4
CAT
CAT input port. Connect to the CAToutput
port of the transmitter with CAT5E/6 cable.
Terminated 568B Configuration
5
Link LED
When the receiver is connected to HDMI
source, the LED will be on.

6

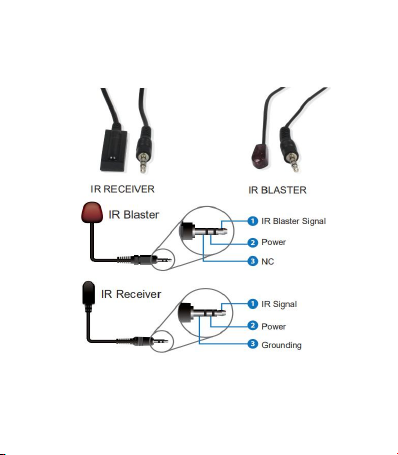

5.3 IR Pinout
IR receiver and emitter pin’s definition is as below:

7
6. Application Diagram
The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI
Logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.

8

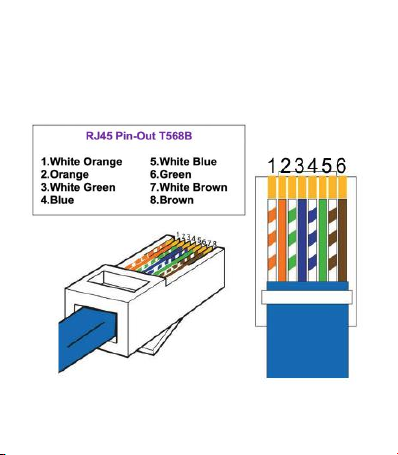

7.CAT Cable Termination Diagram
The CAT cable should be terminated properly with the correct RG45
connectors according to TIA568B termination standard shown below

9
8.Phd Solutions Product Warrantee
IMPORTANT INFORMATION ABOUT YOUR RIGHTS AND OBLIGATIONS, AS
WELL AS LIMITATIONS AND EXCLUSIONS THAT MAY APPLY TO YOU. YOUR
RIGHTS AND THIS LIMITED WARRANTY
This Limited Warranty gives you specific legal rights. You may also have other
legal rights that vary by state, province or jurisdiction. The disclaimers, exclusions,
and limitations of liability under this Limited Warranty will not apply to the extent
prohibited by applicable law. For a full description of your legal rights you should
refer to the laws applicable in your jurisdiction and you may wish to contact a
relevant consumer advisory service. Should you feel your product does not
function adequately due to defects in materials or workmanship, PhD Solutions
(hereby referred to as “the warrantor”) will, for the length of the period indicated
below:
Repair the product with new or refurbished parts. or
Replace it with a new or refurbished product.
1. WHAT THIS LIMITED WARRANTY COVERS; PERIOD OF COVERAGE PHD
Solutions (“PHD Solutions”), 5th Floor, Barkly Wharf, Le Caudan Waterfront, Port
Louis, Mauritius, warrants to the owner of the enclosed product that the product
contained in this box (“Product”) will be free from defects in materials and
workmanship for a period of two years from the date of delivery following the
original purchase (the “Warranty Period”), or if this product has been professionally
installed, the warranty start date is from the date your installer purchased the item,
not your system commissioning date. Please check with your installer for their

10
purchase date. If the Product fails to conform to this Limited Warranty during the
Warranty Period, PHD Solutions will, at its sole discretion, either (a) repair or
replace any defective Product or component; or (b) accept the return of the
Product and refund the money actually paid by the original purchaser for the
Product. Repair or replacement may be made with a new or refurbished product or
components, at PHD Solutions’ sole discretion.
If the Product or a component incorporated within it is no longer available, PHD
Solutions may replace the Product with a similar product of similar function, at
PHD Solutions’ sole discretion. This is your sole and exclusive remedy for breach
of this Limited Warranty. Any Product that has either been repaired or replaced
under this Limited Warranty will be covered by the terms of this Limited Warranty
for the longer of ninety (90) days from the date of delivery or the remaining
Warranty Period. This Limited Warranty is transferable from the original purchaser
to subsequent owners, but the Warranty Period will not be extended in duration or
expanded in coverage for any such transfer.
2.WARRANTY CONDITIONS; HOW TO GET SERVICE IF YOU WANT TO CLAIM
UNDER THIS LIMITED WARRANTY
Before being able to claim under this Limited Warranty, the owner of the Product
must (a) notify PHD Solutions of the intention to claim during the Warranty Period
and providing a description of the alleged failure, and (b) comply with PHD
Solutions’ return shipping instructions, and (c) ship the Product at owner’s cost
(except where prohibited by applicable law) to PHD Solutions for repair or
replacement. PHD Solutions will have no warranty obligations with respect to a
returned Product if it determines, in its reasonable discretion after examination of
the returned Product that the Product is an Ineligible Product (defined below). PHD

11
Solutions will bear all costs of return shipping to owner, except with respect to any
Ineligible Product, for which owner will bear all shipping costs.
3. WHAT THIS LIMITED WARRANTY DOES NOT COVER
This warranty does not cover the following (collectively “Ineligible Products”):
Products marked as “sample” or sold “AS IS”; or Products that have been subject
to: (a) modifications, alterations, tampering, or improper maintenance or repairs;
(b) handling, storage, installation, testing, or use not in accordance with the
Installation Guide or other instructions provided by PHD Solutions; (c) abuse or
misuse of the Product; (d) breakdowns, fluctuations, or interruptions in electric
power or the telecommunications network; or (e) Acts of God, including lightning,
fire, flood, tornado, earthquake, or hurricane. This warranty does not cover
consumable parts, including batteries, unless damage is due to defects in
materials or workmanship of the Product, or software (even if packaged or sold
with the product). PHD Solutions recommends that you use only authorized
service providers for maintenance or repair. Unauthorized use of the Product or
software can impair the Product’s performance and may invalidate this Limited
Warranty. PHD Solutions does not warrant that operation of the Product will be
error-free or uninterrupted or that the Product will in every case process all data
correctly.
4.DISCLAIMER OF WARRANTIES
Except as stated above in this limited warranty, and to the maximum extent
permitted by applicable law, PHD Solutions disclaims all express, implied, and
statutory warranties and conditions with respect to the product, including the

12
implied warranties of merchantability, fitness for a particular purpose. To the
maximum extent permitted by applicable law, also limits the duration of any implied
warranties or conditions to the duration of this limited warranty.
5.LIMITATION OF DAMAGES
In addition to the above warranty disclaimers, in no event will PHD Solutions be
liable for any consequential, incidental, exemplary, or special damages, including
any damages for lost data or lost profits, arising from or relating to this limited
warranty or the product, and PHD Solutions’ total cumulative liability arising from
or related to this limited warranty or the product will not exceed the amount
actually paid for the product by the original purchaser.
6.LIMITATION OF LIABILITY
PHD Solutions disclaims all liability of any kind of PHD Solutions’ suppliers. The
PHD Solutions online services (“services”) may provide you information (“product
information ”) regarding your products performance and/or peripherals connected
to your product (“product peripherals”). The type of product peripherals that may
be connected to your product may change from time to time. Without limiting the
generality of the disclaimers above, all product information is provided for your
convenience, “as is”, and “as available”. PHD Solutions does not represent,
warrant, or guarantee that product information will be available, accurate, or
reliable. You use all product information, the services, and the product at your own
discretion and risk. You will be solely responsible for (and PHD Solutions disclaims)
any and all loss, liability, or damages, including to your hvac system, plumbing,
home, product, product peripherals, computer, mobile device, and all other items
and pets in your home, resulting from your use of the product information, services,

13
or product.
Product information provided by the services is not intended as a substitute for
direct means of obtaining the information.
7.VARIATIONS THAT MIGHT APPLY TO THIS LIMITED WARRANTY
Some jurisdictions do not allow limitations on how long an implied warranty lasts or
exclusions/limitations on incidental or consequential damages, so some of the
limitations set out above may not apply to you.
8.COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed, stored in a
retrieval system, or any of its part translated into any language or computer file, in
any form or by any means (electronic, mechanical, magnetic, optical, chemical,
manual, or otherwise) without express written permission and consent from PHD
Solutions.
© Copyright 2020 PHD Solutions. All Rights Reserved.
Version 1.0 – December 2020
www .phdsolutions.co
