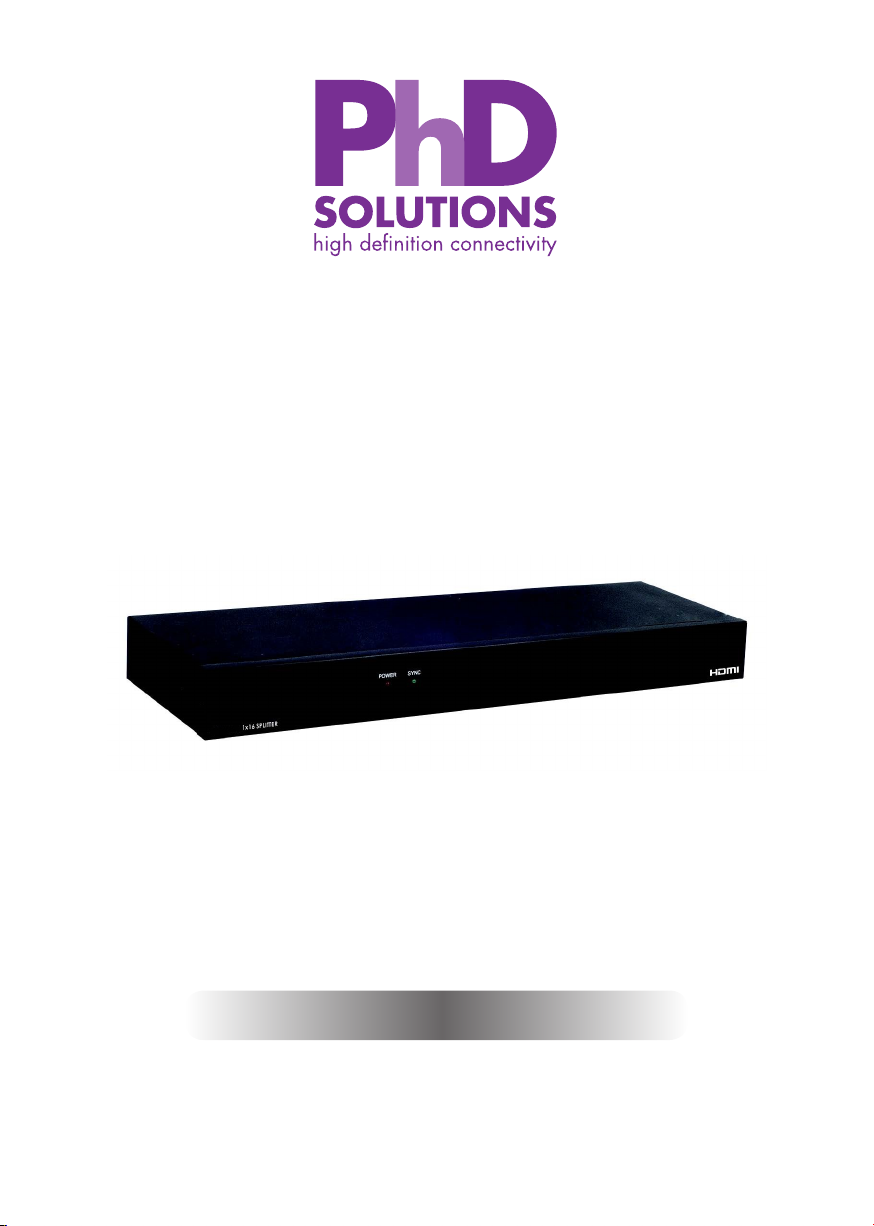

PhDsolutions SP-1x2-HD3D User manual

CLUX-2/4/8/16EN
HDMI 1 by 2 /1 by 4/ 1 by 8/ 1 by 16 Splitter
Operation Manual
Operation Manual
SP-1x2-HD3D/SP-1X4-HD3D/
SP-1X8-HD3D
HDMI 1 by 2 /1 by 4/ 1 by 8/ 1 by 16 Splitter

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
• To prevent fi re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
suffi cient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 29/08/12 Preliminary Release

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 1
6. Operation Controls and Functions....... 2
6.1 Front Panel ........................................2
6.2 Rear Panel.........................................3
7. Connection and Installation................. 4
8. Specifi cations ........................................ 5
9. Acronyms ............................................... 6
1
1. INTRODUCTION
The HDMI splitter series which sends a Hi-Def A/V source to up to
2/4/8/16 HDTV displays simultaneously without any quality or resolution
loss. It support, 3D, 3Gbps bandwidth, 12-bit Deep Color, Hi-Def lossless
audio and other features defi ned by HDMI specifi cations.
2. APPLICATIONS
• Simultaneous display one HDMI source on 2/4/8/16 TVs
• Showroom display
• Education demo
• Commercial usage
• Home entertainment
3. PACKAGE CONTENTS
• 1 x 2 / 1 x 4 / 1 x 8 / 1 x 16 HDMI Splitter
• 5V DC power supply adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
• Source equipment with HDMI output connector(s)
• Displays TV/monitor with HDMI input connector(s)
5. FEATURES
• Support HDTV resolution up to WUXGA
• HDMI compliant
• Support 1080p@60Hz Deep color 12-bit
• Supports 7.1-Ch of LPCM, Dolby TrueHD, and DTS-HD Master Audio
• Dolby Digital Plus, DTS Digital audio transmission (32~192kHz Fs
sample rate)
• Supports 3D
• Cascadable

1
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 1
6. Operation Controls and Functions....... 2
6.1 Front Panel ........................................2
6.2 Rear Panel.........................................3
7. Connection and Installation................. 4
8. Specifi cations ........................................ 5
9. Acronyms ............................................... 6
1
1. INTRODUCTION
The HDMI splitter series which sends a Hi-Def A/V source to up to
2/4/8/16 HDTV displays simultaneously without any quality or resolution
loss. It support, 3D, 3Gbps bandwidth, 12-bit Deep Color, Hi-Def lossless
audio and other features defi ned by HDMI specifi cations.
2. APPLICATIONS
• Simultaneous display one HDMI source on 2/4/8/16 TVs
• Showroom display
• Education demo
• Commercial usage
• Home entertainment
3. PACKAGE CONTENTS
• 1 x 2 / 1 x 4 / 1 x 8 / 1 x 16 HDMI Splitter
• 5V DC power supply adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
• Source equipment with HDMI output connector(s)
• Displays TV/monitor with HDMI input connector(s)
5. FEATURES
• Support HDTV resolution up to WUXGA
• HDMI compliant
• Support 1080p@60Hz Deep color 12-bit
• Supports 7.1-Ch of LPCM, Dolby TrueHD, and DTS-HD Master Audio
• Dolby Digital Plus, DTS Digital audio transmission (32~192kHz Fs
sample rate)
• Supports 3D
• Cascadable

2
2
6. OPERATION CONTROLS AND FUNCTIONS
The following sections describe the hardware components of the unit.

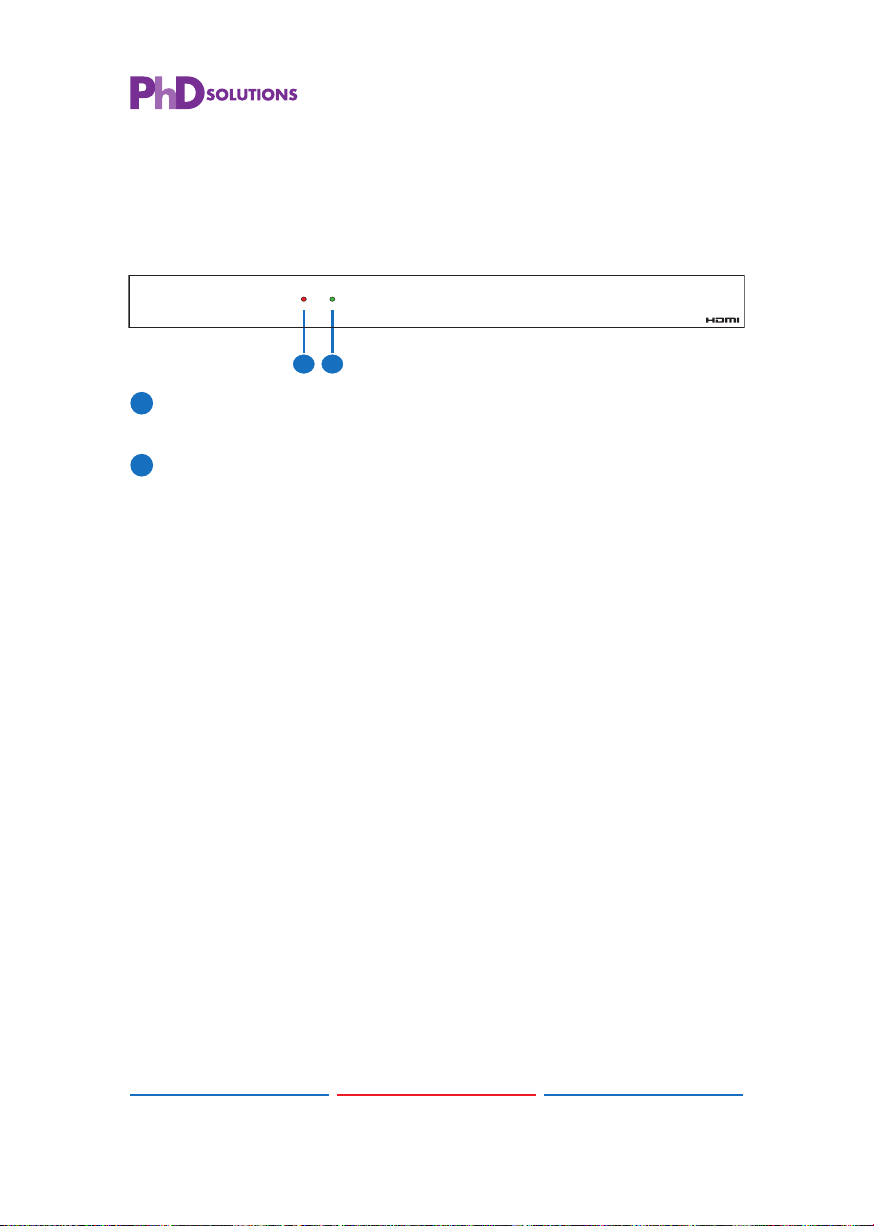

6.1 Front Panel
1 2
POWER SYNC
CLUX-16EN 1x16 SPLITTER
1POWER LED
The power LED will illuminate when power on.
2SYNC LED
The LED will illuminate when the HDMI source signal is connected
to the input port.
3

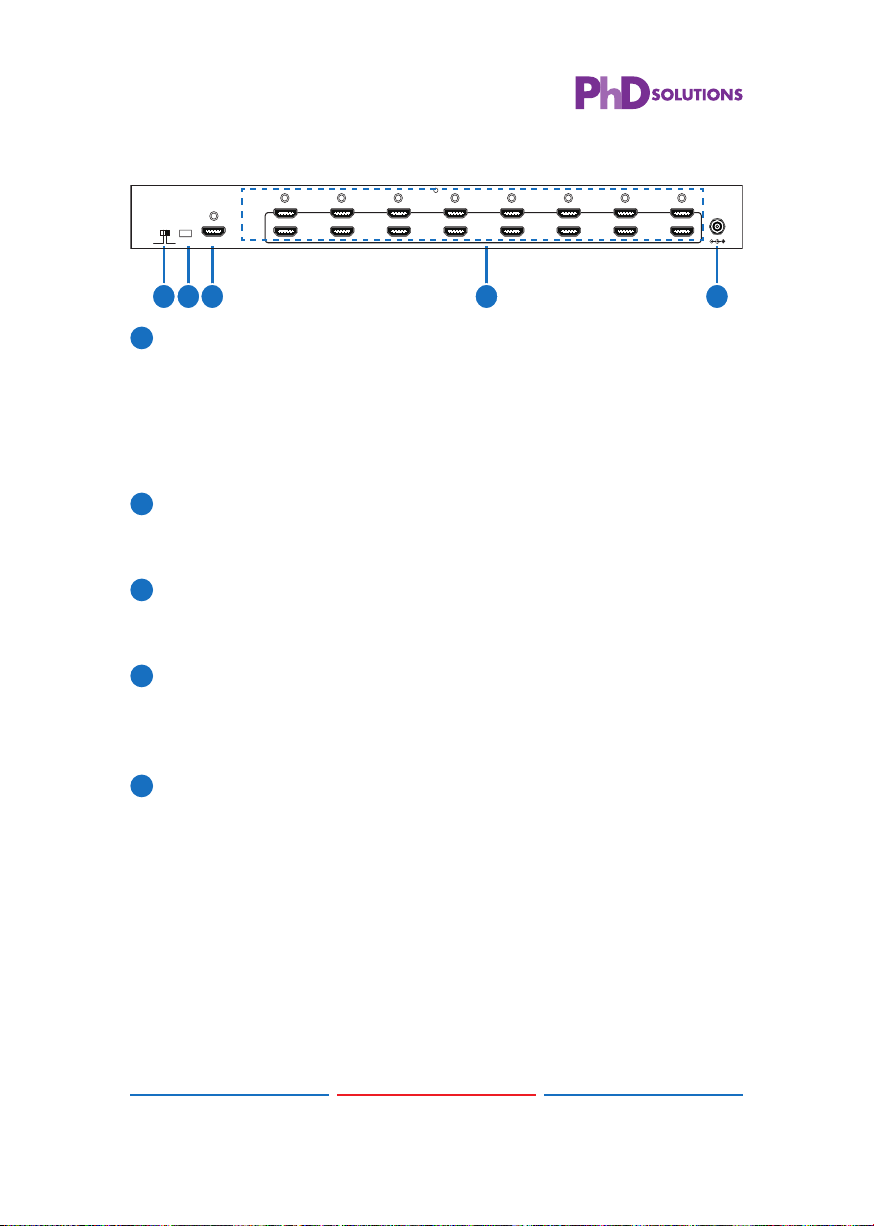

6.2 Rear Panel
1 2 3 4 5
DC 5V
SERVICE
2
1
4
3
6
5
8
7
10
9
12
11
14
13 15
STD TV
INPUT OUTPUT
EDID
16
1EDID STD/TV
Default factory setting is TV, leave as it is if the display is properly.
Switch to STD to use build-in EDID if the display has problems. When
the EDID control switch in TV selection, the unit will detect the fi rst
HDMI output source’s EDID and record in the unit.
Note: This function is not available in 1 by 2’s model
2SERVICE
This slot is to connect with mini USB B type cable for fi rmware
update only.
3HDMI INPUT
Connect input port to the HDMI or DVI output of your source
equipment such as DVD player or set-top-box.
4HDMI OUTPUT
Connect the output ports to the HDMI display. When more than
one output connected, the HDMI outputs play identical video
signal simultaneously.
5DC 5V
Plug the 5V DC power supply into the splitter and connect the
adaptor to AC wall outlet.

3
2
6. OPERATION CONTROLS AND FUNCTIONS
The following sections describe the hardware components of the unit.
6.1 Front Panel
1 2
POWER SYNC
CLUX-16EN 1x16 SPLITTER
1POWER LED
The power LED will illuminate when power on.
2SYNC LED
The LED will illuminate when the HDMI source signal is connected
to the input port.
3
6.2 Rear Panel
1 2 3 4 5
DC 5V
SERVICE
2
1
4
3
6
5
8
7
10
9
12
11
14
13 15
STD TV
INPUT OUTPUT
EDID
16
1EDID STD/TV
Default factory setting is TV, leave as it is if the display is properly.
Switch to STD to use build-in EDID if the display has problems. When
the EDID control switch in TV selection, the unit will detect the fi rst
HDMI output source’s EDID and record in the unit.
Note: This function is not available in 1 by 2’s model
2SERVICE
This slot is to connect with mini USB B type cable for fi rmware
update only.
3HDMI INPUT
Connect input port to the HDMI or DVI output of your source
equipment such as DVD player or set-top-box.
4HDMI OUTPUT
Connect the output ports to the HDMI display. When more than
one output connected, the HDMI outputs play identical video
signal simultaneously.
5DC 5V
Plug the 5V DC power supply into the splitter and connect the
adaptor to AC wall outlet.

4
4
7. CONNECTION AND INSTALLATION
DC 5V
SERVICE
2
1
4
3
6
5
8
7
10
9
12
11
14
13 15
STD TV
INPUT OUTPUT
EDID
16
HDMI
HDMI
Blu-ray or PS3 Player
3D TV/Display
5
8. SPECIFICATIONS
Video Bandwidth 225MHz/6.75Gbps
Input Port 1x HDMI (Female type)
1xUSB (Service only)
Output Port 2 /4/8/16 x HDMI (Female type)
Output Resolution 480i ~1080p 50/60, 1080p24/50/60,
VGA~WUXGA
ESD Protection Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions (mm) 103 mm(W) x 155 mm(D) x 25 mm(H)/2EN
141 mm(W) x 99 mm(D) x 93 mm(H)/4EN
240 mm(W) x 110 mm(D) x 30 mm(H)/8EN
436 mm(W) x 120 mm(D) x 49 mm(H)/16EN
Weight(g) 298/2EN, 388/4EN, 710/8EN, 2000/16EN
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0˚C ~ 40˚C / 32 ˚F ~ 104 ˚F
Storage Temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90% RH (non-condensing)
Power Consumption 3.5W/2EN, 4W/4EN, 9.8W/8EN, W/16EN

5
4
7. CONNECTION AND INSTALLATION
DC 5V
SERVICE
2
1
4
3
6
5
8
7
10
9
12
11
14
13 15
STD TV
INPUT OUTPUT
EDID
16
HDMI
HDMI
Blu-ray or PS3 Player
3D TV/Display
5
8. SPECIFICATIONS
Video Bandwidth 225MHz/6.75Gbps
Input Port 1x HDMI (Female type)
1xUSB (Service only)
Output Port 2 /4/8/16 x HDMI (Female type)
Output Resolution 480i ~1080p 50/60, 1080p24/50/60,
VGA~WUXGA
ESD Protection Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions (mm) 103 mm(W) x 155 mm(D) x 25 mm(H)/2EN
141 mm(W) x 99 mm(D) x 93 mm(H)/4EN
240 mm(W) x 110 mm(D) x 30 mm(H)/8EN
436 mm(W) x 120 mm(D) x 49 mm(H)/16EN
Weight(g) 298/2EN, 388/4EN, 710/8EN, 2000/16EN
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0˚C ~ 40˚C / 32 ˚F ~ 104 ˚F
Storage Temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90% RH (non-condensing)
Power Consumption 3.5W/2EN, 4W/4EN, 9.8W/8EN, W/16EN

6
6
9. ACRONYMS
ACRONYM COMPLETE TERM
HDMI High-Defi nition Multimedia Interface
HDTV High-Defi nition Television
Warranty
Limited Warranty
Premium High Definition Solutions warrants that (a) its products will perform substantially in
accordance with the accompanying written materials for a period of 1 year from the date of receipt
and (b) that the product will be free from defects in materials and workmanship under normal use
and service for a period of 1 year. In the event applicable law imposes any implied warranties, the
implied warranty period is limited to 1 year from the date of receipt.
Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above
limitation may not apply to customers that fall within those areas.
Customer Remedies
Premium High Definition Solutions ’ and its suppliers’ entire liability and Customer’s exclusive
remedy shall be, at Premium High Definition Solutions ’ decision, either return of the price paid for
the product, repair, or replacement of the product that does not meet this Limited Warranty and
which is returned to Premium High Definition Solutions with a copy of the Customer’s receipt.
This Limited Warranty is void if failure of the product has resulted from accident, abuse,
misapplication, or natural occurrence. In example but not limited to: power surges (electrical
storms, local power outage, Electro Static Discharge (ESD), dropping the product (or items on the
product), contact with fluids, and physical misconduct (i.e. kicking or punching). Any replacement
product will be warranted for the remainder of the original warranty period.
No other warranties
To the maximum extent permitted by applicable law, Premium High Definition Solutions and its
suppliers disclaim all other warranties, expressed or implied, including, but not limited to, implied
warranties of merchantability and fitness for a particular purpose, with regard to the product and
any related written materials. This Limited Warranty gives customer specific legal rights.
Customers may have other rights depending on the jurisdiction.
No liability for damages
To the maximum extent permitted by applicable law, in no event shall Premium High Definition
Solutions or its suppliers be liable for any damages arising out of the use of or inability to use this
product, even if Premium High Definition Solutions has been advised of the possibility of such
damages. Such damages include but are not limited to: special, incidental, consequential, or
indirect damages for personal injury, loss of business profits, business interruption, loss of
business information, or any other pecuniary loss. Premium High Definition Solutions’ and its
suppliers’ entire liability under any provision of this agreement shall be limited to the amount
actually paid by you for the product. Some Jurisdictions do not allow may not apply to you in such
jurisdictional cases.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
• To prevent fi re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
suffi cient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 10/02/14 Preliminary Release
PhD Solutions Product Warranty
Should you feel your product does not function adequately due to defects in materials or
workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the period
indicated below:
a) Repair the product with new or refurbished parts.
or
b) Replace it with a new or refurbished product.
Limited Warranty Period
Commencing from the original date of purchase, all PhD Solutions products are covered by a one
year PARTS and LABOUR warranty depending on the product.
Please contact your PhD Solutions dealer for details.
During this period there will be no charge for unit repair, replacement of parts, unit components or
replacement of product if necessary. The decision to repair or replace will be made by the warrantor.
The purchaser must mail-in or return the product to PhD Solutions during the warranty period.
This limited warranty only covers the product purchased as new and is extended to the original
purchaser only. It is non-transferable to subsequent owners, even during the warranty period.
A purchase receipt or other proof of original purchase date is required for the limited warranty service.
IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE PURCHASER WILL BE
REQUIRED TO PRODUCE A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF
PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE.
Please note: THE CUSTOMER WILL BE CHARGED FOR PARTS OR REPAIR OF
ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.
Product Service Provided
1. Damage requiring service
All units should be serviced by a PhD Solutions qualified service person.:
2. Servicing Personnel
Do not attempt to service the unit beyond that described in these operating instructions. Refer all
other servicing to authorised PhD Solutions servicing personnel.
7

8
10
HDMI Supported Resolutions Input Output
640x480@60 V V
640x480@72 V V
640x480@75 V V
720x480@60 V V
720x576p@50 V V
800x600@60 V V
800x600@72 V V
800x600@75 V V
1024x768@60 V V
1024x768@70 V V
1024x768@75 V V
1280x720@50 V V
1280x720@60 V V
1280x720p@60 V V
1280x768@60 V V
1280x800@60 V V
1280x1024@60 V V
1360x768@60 V V
1600x1200@60 V V
1920x1080i@50 V V
1920x1080i@60 V V
1920x1080p@24 V V
1920x1080p@25 V V
1920x1080p@30 V V
1920x1080p@50 V V
1920x1080p@60 V V
1920x1200@60(RB) V V
3840x2160@24/25/30 V V
4096x2160@24 V V
Return to Supplier
When shipping the unit, carefully pack and send it prepaid (preferably in the original packaging) with a
tracking number and adequate insurance. Please include a document or letter detailing the reason for
return and include a daytime telephone number and/or email address where you can be contacted.
If repair is required during the limited warranty period, the purchaser will be required to provide a
sales receipt or other proof of purchase, indicating date and location of purchase as well as the price
paid for the product. The customer will be charged for the repair or replacement of any unit received
unless such information is provided.
Warranty Limits and Exclusions
1. This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship and
DOES NOT COVER normal wear and tear or cosmetic damage.
The limited warranty also DOES NOT COVER damage that occurs in shipment or failures caused by
products not supplied by the warrantor.
Failures resulting from accident, misuse, abuse, neglect, mishandling, misapplication, alteration,
incorrect installation, set-up adjustment, implementation of/to consumer controls, improper
maintenance, power line surge, lightening damage, Electro static discharge (ESD) ,modification,
service by anyone other than a manufacturer-approved service centre or factory-authorised
personnel, or damage attributable to acts of God.
2. There are no express warranties except as listed under “limited warranty coverage.” The warrantor
is not liable for incidental or consequential damage resulting from the use of this product or arising out
of any breach of this warranty.
For example: damage for lost time, the cost of having a person/persons remove or re-install
previously installed equipment, travel to and from service location, loss of or damage to
media, images, data or other recorded/stored content.
ANY PARTS AND SERVICE NOT COVERED BY THIS LIMITED WARRANTY ARE
THE RESPONSIBILITY OF THE CUSTOMER.

Premium High Denion Soluons
Home page: http://www.phdsolutions.co
