PhDsolutions SPC-P3C1H-HDTE User manual
CHDBT-1H3CE
1 by 4 HDMI over HDMI & CAT5e/6/7 with PoE
and Ethernet Splitter
Operation Manual
Operation Manual
SPC-P3C1H-HDTE
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
• To prevent fi re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
suffi cient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 14/01/14 Preliminary Release
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 IR Cable Pin Assignment..................5
7. Connection Diagram ........................... 6
8. Specifi cations ........................................ 7
8.1 CAT5e/6/7 Cable Specifi cation .....8
9. Acronyms ............................................... 8
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
• To prevent fi re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
suffi cient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 14/01/14 Preliminary Release
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 IR Cable Pin Assignment..................5
7. Connection Diagram ........................... 6
8. Specifi cations ........................................ 7
8.1 CAT5e/6/7 Cable Specifi cation .....8
9. Acronyms ............................................... 8
1
1
1. INTRODUCTION
The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute
a single HDMI input, 2-way IR control and LAN serving to up to
three CAT5e/6/7 outputs and includes a simultaneous HDMI bypass
output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D
and multi-channel digital audio formats (such as LPCM 7.1CH, Dolby
TrueHD, Dolby Digital Plus and DTS-HD). The HDMI bypass output can
be connected to an HDMI display or cascaded to another splitter.
The three CAT5e/6/7 outputs can be connected to CAT5e/6/7 to
HDMI Receivers to extend the operating distance up to 100 meters.
Additionally, the LAN connectivity will allow a 100BaseT network to be
served to smart TVs or games consoles. The Power over Ethernet (PoE)
function can power compatible Receivers, providing greater fl exibility
in installations.
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
• HDMI over HDMI & CAT5e/6/7 with PoE and Ethernet Splitter
• IR Receiver x 1
• IR Blaster x 1
• 24V DC Power Adaptor
• Power Cord
• Operation Manual
4. SYSTEM REQUIREMENTS
• Source equipment with HDMI output connector
• Display TV/Monitor with HDMI input connector
• HDMI over CAT5e/6/7 Receivers with industry CAT5e/6/7 cables
2
5. FEATURES
• HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant
• Simultaneous HDMI and CAT5e/6/7 outputs
• Supports data rate from 250Mbps up to 3Gbps
• Supports wide range of PC resolutions from VGA to WUXGA
and HDTV resolutions up to 4Kx2K (3840x2160@30Hz and
4096x2160@24Hz)
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission (32~192kHz sample rate)
• Supports distances up to 100 meters through CAT5e/6/7 cables
• Supports Ethernet network rates up to 100Mbps
• Supports selection of Standard or TV EDID settings
• Supports USB service port
• The 3D signal display follow by display TV’s EDID
• Supports PoE with compatible Receiver units
• Supports Bidirectional IR control
Note:
1. This system was tested with CAT6/23AWG cables, results may vary
with cables of a different specifi cation.
2. The PoE function is designed for powering compatible Receiver
units only non-PoE Receivers will need their own power supply.
Receivers of another brand may not be compatible.
3. Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI
cable and display in order for proper image displaying.
2
1
1. INTRODUCTION
The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute
a single HDMI input, 2-way IR control and LAN serving to up to
three CAT5e/6/7 outputs and includes a simultaneous HDMI bypass
output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D
and multi-channel digital audio formats (such as LPCM 7.1CH, Dolby
TrueHD, Dolby Digital Plus and DTS-HD). The HDMI bypass output can
be connected to an HDMI display or cascaded to another splitter.
The three CAT5e/6/7 outputs can be connected to CAT5e/6/7 to
HDMI Receivers to extend the operating distance up to 100 meters.
Additionally, the LAN connectivity will allow a 100BaseT network to be
served to smart TVs or games consoles. The Power over Ethernet (PoE)
function can power compatible Receivers, providing greater fl exibility
in installations.
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
• HDMI over HDMI & CAT5e/6/7 with PoE and Ethernet Splitter
• IR Receiver x 1
• IR Blaster x 1
• 24V DC Power Adaptor
• Power Cord
• Operation Manual
4. SYSTEM REQUIREMENTS
• Source equipment with HDMI output connector
• Display TV/Monitor with HDMI input connector
• HDMI over CAT5e/6/7 Receivers with industry CAT5e/6/7 cables
2
5. FEATURES
• HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant
• Simultaneous HDMI and CAT5e/6/7 outputs
• Supports data rate from 250Mbps up to 3Gbps
• Supports wide range of PC resolutions from VGA to WUXGA
and HDTV resolutions up to 4Kx2K (3840x2160@30Hz and
4096x2160@24Hz)
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission (32~192kHz sample rate)
• Supports distances up to 100 meters through CAT5e/6/7 cables
• Supports Ethernet network rates up to 100Mbps
• Supports selection of Standard or TV EDID settings
• Supports USB service port
• The 3D signal display follow by display TV’s EDID
• Supports PoE with compatible Receiver units
• Supports Bidirectional IR control
Note:
1. This system was tested with CAT6/23AWG cables, results may vary
with cables of a different specifi cation.
2. The PoE function is designed for powering compatible Receiver
units only non-PoE Receivers will need their own power supply.
Receivers of another brand may not be compatible.
3. Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI
cable and display in order for proper image displaying.
3
3
6. OPERATION CONTROLS AND FUNCTIONS

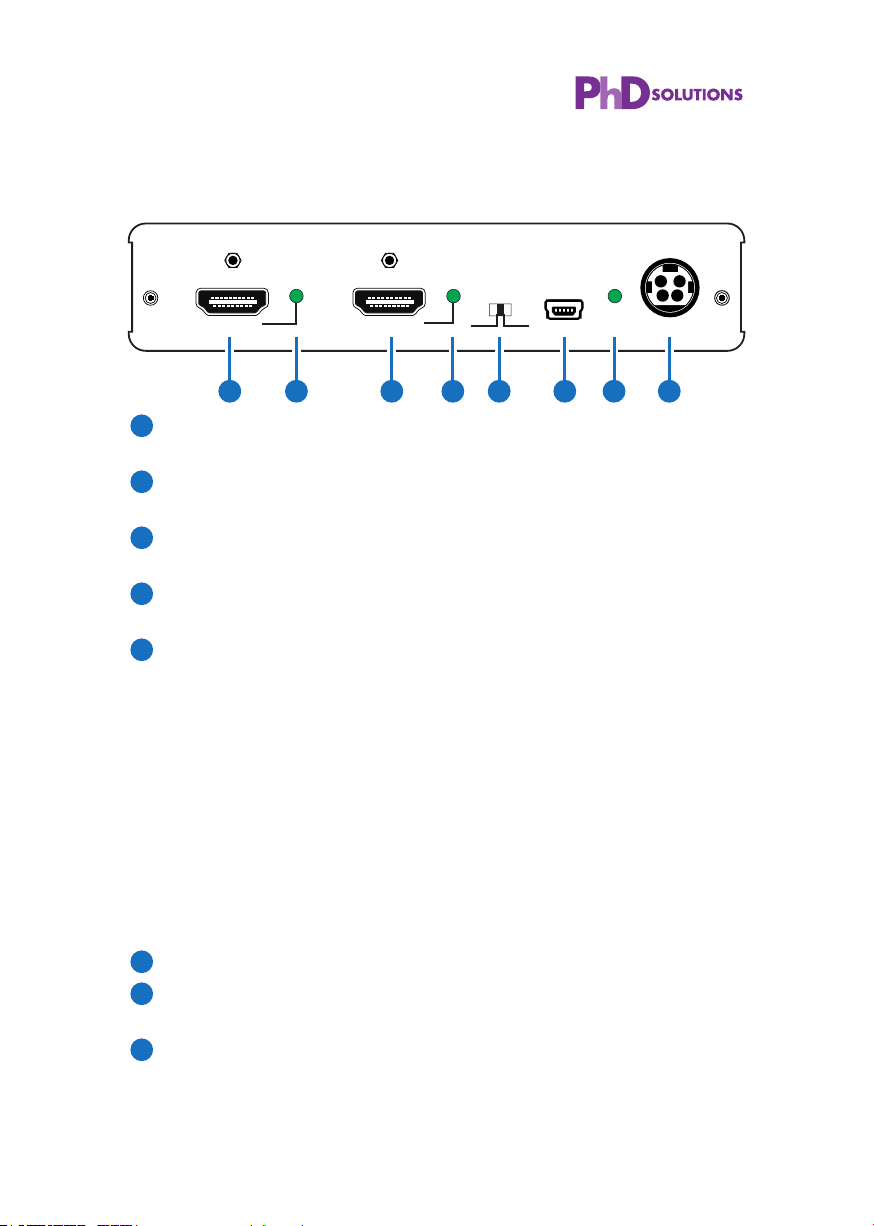

6.1 Front Panel
SYNC LINK EDID SERVICE
HDMI IN POWER
HDMI OUT
DC 24V
STDTV
1 2 3 4 5 6 87
1HDMI IN: Connect with source equipment such as DVD/Blu-ray or
PS3 player.
2SYNC: This LED will illuminate when the HDMI input port connected
to an active source.
3HDMI OUT: Connect to HDMI display for instant image display or
cascade with another family type Transmitter.
4HDMI LINK: This LED will illuminate when HDMI output is connected
to TV or display monitor.
5EDID STD/TV: The default factory setting is on TV, leave as it is
when the display is properly. The unit will detect the 1st CAT5e/6/7
output’s EDID when it obtain a 4Kx2K EDID and send out the signal
accordingly to other output ports. If the 1st CAT5e/6/7 output is
without a 4Kx2K's EDID the unit will detect all output's EDID and
send out the signal that all outputs can accept.
This device obtain the last memory function therefore, the device
will use the last output port 1's EDID when output port 1 is not
connected to a display after power cycling or switch in between
the EDID setting.
Switch to STD to use build-in EDID if the display has problem. STD
EDID's video at 1080p@60Hz and audio at LPCM 2CH.
6SERVICE: This slot is reserved for factory service only.
7POWER LED: Once the power supply is connected the LED will
illuminate
8DC 24V: Plug the 24V DC power supply into the unit and connect
the adaptor to an AC outlet.
4
6.2 Rear Panel
MODE
LINK
MODE
LINK
MODE
LINK
IR IN IR OUT LAN 231
CAT5e/6/7 OUT
1 2 3 4
1IR IN: Connect with IR Extender to receive IR signal from Transmitter
side and blast out at Receiver side. Ensure that remote controller
being used is within he direct line-of-sight of the IR Extender.
2IR OUT: Connect with IR Blaster to blast out the IR signal received
from the Receiver side. Place the IR Baster in direct line-of-sight of
the equipment to be controlled.
3LAN: Connect to intranet or internet service system for a total
sharing rate of 100Mbps within the link of Transmitter.
Warning: DO NOT connect this slot with any of the CAT5e/6/7 port,
doing so may trigger a power shot down and ruin the device.
4CAT5e/6/7 OUT 1~3: Connect these ports to CAT5e/6/7 to HDMI
Receivers (with or without PoE function) with CAT5e/6/7 cable to
extend the signal up to 100m.
4
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
SYNC LINK EDID SERVICE
HDMI IN POWER
HDMI OUT
DC 24V
STDTV
1 2 3 4 5 6 87
1HDMI IN: Connect with source equipment such as DVD/Blu-ray or
PS3 player.
2SYNC: This LED will illuminate when the HDMI input port connected
to an active source.
3HDMI OUT: Connect to HDMI display for instant image display or
cascade with another family type Transmitter.
4HDMI LINK: This LED will illuminate when HDMI output is connected
to TV or display monitor.
5EDID STD/TV: The default factory setting is on TV, leave as it is
when the display is properly. The unit will detect the 1st CAT5e/6/7
output’s EDID when it obtain a 4Kx2K EDID and send out the signal
accordingly to other output ports. If the 1st CAT5e/6/7 output is
without a 4Kx2K's EDID the unit will detect all output's EDID and
send out the signal that all outputs can accept.
This device obtain the last memory function therefore, the device
will use the last output port 1's EDID when output port 1 is not
connected to a display after power cycling or switch in between
the EDID setting.
Switch to STD to use build-in EDID if the display has problem. STD
EDID's video at 1080p@60Hz and audio at LPCM 2CH.
6SERVICE: This slot is reserved for factory service only.
7POWER LED: Once the power supply is connected the LED will
illuminate
8DC 24V: Plug the 24V DC power supply into the unit and connect
the adaptor to an AC outlet.
4
6.2 Rear Panel
MODE
LINK
MODE
LINK
MODE
LINK
IR IN IR OUT LAN
23
1
CAT5e/6/7 OUT
1 2 3 4
1IR IN: Connect with IR Extender to receive IR signal from Transmitter
side and blast out at Receiver side. Ensure that remote controller
being used is within he direct line-of-sight of the IR Extender.
2IR OUT: Connect with IR Blaster to blast out the IR signal received
from the Receiver side. Place the IR Baster in direct line-of-sight of
the equipment to be controlled.
3LAN: Connect to intranet or internet service system for a total
sharing rate of 100Mbps within the link of Transmitter.
Warning: DO NOT connect this slot with any of the CAT5e/6/7 port,
doing so may trigger a power shot down and ruin the device.
4CAT5e/6/7 OUT 1~3: Connect these ports to CAT5e/6/7 to HDMI
Receivers (with or without PoE function) with CAT5e/6/7 cable to
extend the signal up to 100m.
5
5
6.3 IR Cable Pin Assignment
3
1
3
1
2
2
Power 3.3 V
IR Blaster Signal
NC
IR Signal
Power 3.3 V
Grounding
IR Extender
IR Blaster
6
7. CONNECTION DIAGRAM
MODE
LINK
MODE
LINK
MODE
LINK
IR IN IR OUT LAN 231
CAT5e/6/7 OUT
SYNC LINKEDID SERVICE
HDMI IN POWER
HDMI OUT
DC 24V
STD TV
IR BLASTER
1.5m
60°
IR RECEIVER
7m
3m 3m
60°
m
CAT5e/6 In
Link
IR1 Extender
IR2 Blaster
Power
Blu-ray or PS3 Player
3D TV/Display
HDMI
Router (with
Internet
Connection)
HDMI
6
5
6.3 IR Cable Pin Assignment
3
1
3
1
2
2
Power 3.3 V
IR Blaster Signal
NC
IR Signal
Power 3.3 V
Grounding
IR Extender
IR Blaster
6
7. CONNECTION DIAGRAM
MODE
LINK
MODE
LINK
MODE
LINK
IR IN IR OUT LAN 231
CAT5e/6/7 OUT
SYNC LINKEDID SERVICE
HDMI IN POWER
HDMI OUT
DC 24V
STD TV
IR BLASTER
1.5m
60°
IR RECEIVER
7m
3m 3m
60°
m
CAT5e/6 In
Link
IR1 Extender
IR2 Blaster
Power
Blu-ray or PS3 Player
3D TV/Display
HDMI
Router (with
Internet
Connection)
HDMI
7
7
8. SPECIFICATIONS
Video Bandwidth 340Mbps/10.2Gbps
Input ports 1 x HDMI,
1 x IR IN, 1 x LAN,
1 x USB (Service only)
Output ports 1 x HDMI,
3 x CAT5e/6/7
1 x IR OUT,
Resolution Up to 4Kx2K (3840x2160@24/25/30Hz/4096x
2160@24Hz)
HDMI Input & Output
Cable Distance
Up to 10m@1080p 8/12-bit
CAT5e/6/7 Output
Cable Distance
Up to 100m
IR Frequency 30~50kHz
Power Supply 24V / 2.7A DC (US/EU standards, CE/FCC/
UL certifi ed)
Dimensions 145 mm(W) x 190 mm(D) x 30 mm(H)/
Jacks Excluded
145 mm(W) x 199 mm(D) x 30 mm(H)/
Jacks Included
Weight 590 g
Chassis Material Metal
Silkscreen Color Black
ESD Protection Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Operating Temperature 0°C ~ 40°C
Storage Temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90% RH (non-condensing)
Power Consumption 36W
8
8.1 CAT5e/6/7 Cable Specifi cation
Cable
Type
Range Pixel clock
rate
Video Data
Rate
Supported Video
CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps
(HD Video)
Up to 1080p, 60 Hz, 36
bits, 3D (data rates
lower than 5.3 Gbps
or below 225 MHz
TMDS clock).
70 m >225 MHz > 5.3 Gbps
(Ultra HD
Video)
4K2K, 30Hz video
formats
CAT6A/7 100 m >225 MHz > 5.3 Gbps
(Ultra HD
Video)
4K2K, 30Hz video
formats
9. ACRONYMS
ACRONYM COMPLETE TERM
4Kx2K 3840x2160 / 4096x2160
DTS Digital Theater System
EDID Extended Display Identification Data
HDCP High-bandwidth Digital Content Protection
HDMI High-Definition Multimedia Interface
HDTV High-Definition Television
8
7
8. SPECIFICATIONS
Video Bandwidth 340Mbps/10.2Gbps
Input ports 1 x HDMI,
1 x IR IN, 1 x LAN,
1 x USB (Service only)
Output ports 1 x HDMI,
3 x CAT5e/6/7
1 x IR OUT,
Resolution Up to 4Kx2K (3840x2160@24/25/30Hz/4096x
2160@24Hz)
HDMI Input & Output
Cable Distance
Up to 10m@1080p 8/12-bit
CAT5e/6/7 Output
Cable Distance
Up to 100m
IR Frequency 30~50kHz
Power Supply 24V / 2.7A DC (US/EU standards, CE/FCC/
UL certifi ed)
Dimensions 145 mm(W) x 190 mm(D) x 30 mm(H)/
Jacks Excluded
145 mm(W) x 199 mm(D) x 30 mm(H)/
Jacks Included
Weight 590 g
Chassis Material Metal
Silkscreen Color Black
ESD Protection Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Operating Temperature 0°C ~ 40°C
Storage Temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90% RH (non-condensing)
Power Consumption 36W
8
8.1 CAT5e/6/7 Cable Specifi cation
Cable
Type
Range Pixel clock
rate
Video Data
Rate
Supported Video
CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps
(HD Video)
Up to 1080p, 60 Hz, 36
bits, 3D (data rates
lower than 5.3 Gbps
or below 225 MHz
TMDS clock).
70 m >225 MHz > 5.3 Gbps
(Ultra HD
Video)
4K2K, 30Hz video
formats
CAT6A/7 100 m >225 MHz > 5.3 Gbps
(Ultra HD
Video)
4K2K, 30Hz video
formats
9. ACRONYMS
ACRONYM COMPLETE TERM
4Kx2K 3840x2160 / 4096x2160
DTS Digital Theater System
EDID Extended Display Identification Data
HDCP High-bandwidth Digital Content Protection
HDMI High-Definition Multimedia Interface
HDTV High-Definition Television
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
• To prevent fi re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
suffi cient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 10/02/14 Preliminary Release
PhD Solutions Product Warranty
Should you feel your product does not function adequately due to defects in materials or
workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the period
indicated below:
a) Repair the product with new or refurbished parts.
or
b) Replace it with a new or refurbished product.
Limited Warranty Period
Commencing from the original date of purchase, all PhD Solutions products are covered by a one
year PARTS and LABOUR warranty depending on the product.
Please contact your PhD Solutions dealer for details.
During this period there will be no charge for unit repair, replacement of parts, unit components or
replacement of product if necessary. The decision to repair or replace will be made by the warrantor.
The purchaser must mail-in or return the product to PhD Solutions during the warranty period.
This limited warranty only covers the product purchased as new and is extended to the original
purchaser only. It is non-transferable to subsequent owners, even during the warranty period.
A purchase receipt or other proof of original purchase date is required for the limited warranty service.
IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE PURCHASER WILL BE
REQUIRED TO PRODUCE A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF
PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE.
Please note: THE CUSTOMER WILL BE CHARGED FOR PARTS OR REPAIR OF
ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.
Product Service Provided
1. Damage requiring service
All units should be serviced by a PhD Solutions qualified service person.:
2. Servicing Personnel
Do not attempt to service the unit beyond that described in these operating instructions. Refer all
other servicing to authorised PhD Solutions servicing personnel.
9
10
10
HDMI Supported Resolutions Input Output
640x480@60 V V
640x480@72 V V
640x480@75 V V
720x480@60 V V
720x576p@50 V V
800x600@60 V V
800x600@72 V V
800x600@75 V V
1024x768@60 V V
1024x768@70 V V
1024x768@75 V V
1280x720@50 V V
1280x720@60 V V
1280x720p@60 V V
1280x768@60 V V
1280x800@60 V V
1280x1024@60 V V
1360x768@60 V V
1600x1200@60 V V
1920x1080i@50 V V
1920x1080i@60 V V
1920x1080p@24 V V
1920x1080p@25 V V
1920x1080p@30 V V
1920x1080p@50 V V
1920x1080p@60 V V
1920x1200@60(RB) V V
3840x2160@24/25/30 V V
4096x2160@24 V V
Return to Supplier
When shipping the unit, carefully pack and send it prepaid (preferably in the original packaging) with a
tracking number and adequate insurance. Please include a document or letter detailing the reason for
return and include a daytime telephone number and/or email address where you can be contacted.
If repair is required during the limited warranty period, the purchaser will be required to provide a
sales receipt or other proof of purchase, indicating date and location of purchase as well as the price
paid for the product. The customer will be charged for the repair or replacement of any unit received
unless such information is provided.
Warranty Limits and Exclusions
1. This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship and
DOES NOT COVER normal wear and tear or cosmetic damage.
The limited warranty also DOES NOT COVER damage that occurs in shipment or failures caused by
products not supplied by the warrantor.
Failures resulting from accident, misuse, abuse, neglect, mishandling, misapplication, alteration,
incorrect installation, set-up adjustment, implementation of/to consumer controls, improper
maintenance, power line surge, lightening damage, Electro static discharge (ESD) ,modification,
service by anyone other than a manufacturer-approved service centre or factory-authorised
personnel, or damage attributable to acts of God.
2. There are no express warranties except as listed under “limited warranty coverage.” The warrantor
is not liable for incidental or consequential damage resulting from the use of this product or arising out
of any breach of this warranty.
For example: damage for lost time, the cost of having a person/persons remove or re-install
previously installed equipment, travel to and from service location, loss of or damage to
media, images, data or other recorded/stored content.
ANY PARTS AND SERVICE NOT COVERED BY THIS LIMITED WARRANTY ARE
THE RESPONSIBILITY OF THE CUSTOMER.
Premium High Denion Soluons
Home page: http://www.phdsolutions.co
Table of contents
Other PhDsolutions Media Converter manuals
PhDsolutions
PhDsolutions CON-OC-A192 User manual
PhDsolutions
PhDsolutions HDMIDAC1 User manual
PhDsolutions
PhDsolutions HDBaseT Lite User manual
PhDsolutions
PhDsolutions PHD-HDMIDAC-4KDS User manual
PhDsolutions
PhDsolutions SP-1x4-HD4K User manual
PhDsolutions
PhDsolutions CON-TOS-A1 User manual
PhDsolutions
PhDsolutions PHD-DCT-1D User manual
PhDsolutions
PhDsolutions SPC-7C1H-HDTL User manual
PhDsolutions
PhDsolutions SPC-1C1H-HDTL User manual
PhDsolutions
PhDsolutions SPC-P1C1H-HDTE User manual
