Philips BGY685AD User manual

DATA SHEET
Product specification
Supersedes data of 1997 Apr 18 2001 Oct 22
DISCRETE SEMICONDUCTORS
BGY685AD
600 MHz, 18.5 dB gain push-pull
amplifier
b
ook, halfpage
M3D252

2001 Oct 22 2
Philips Semiconductors Product specification
600 MHz, 18.5 dB gain push-pull amplifier BGY685AD
FEATURES
•Excellent linearity
•Extremely low noise
•Silicon nitride passivation
•Rugged construction
•Gold metallization ensures
excellent reliability.
APPLICATIONS
•CATV systems operating over a
40 to 600 MHz frequency range.
DESCRIPTION
Hybrid high dynamic range cascode
amplifier module with Darlington
pre-stage dies operating at a voltage
supply of +24 V in a SOT115J
package.

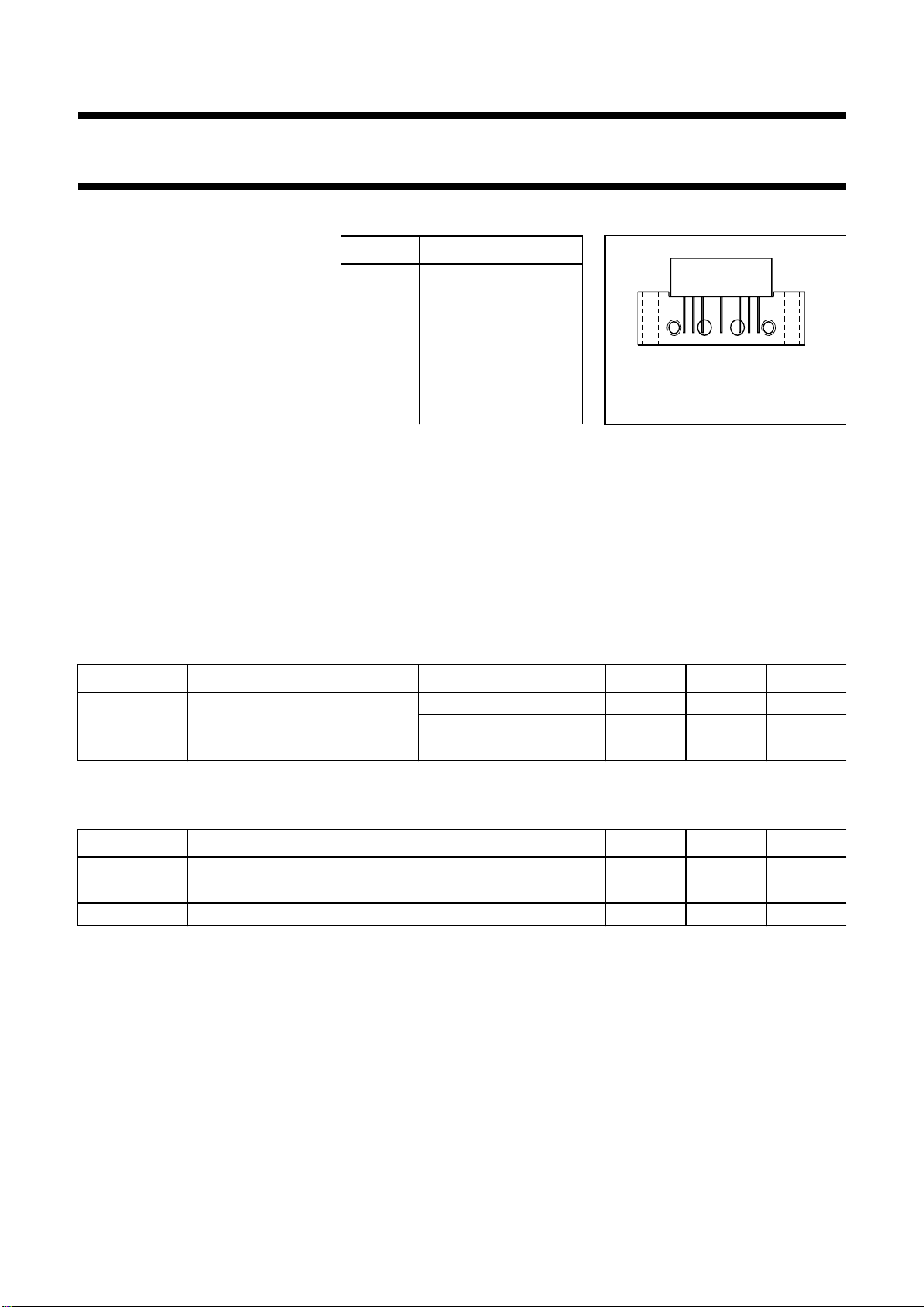

PINNING - SOT115J
PIN DESCRIPTION
1 input
2 common
3 common
5+V
B
7 common
8 common
9 output Fig.1 Simplified outline.
f
page
789
2351
Side view
MSA319
QUICK REFERENCE DATA
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Gppower gain f = 50 MHz 18 19 dB
f = 600 MHz 18.75 −dB
Itot total current consumption (DC) VB=24V −250 mA
SYMBOL PARAMETER MIN. MAX. UNIT
ViRF input voltage −60 dBmV
Tstg storage temperature −40 +100 °C
Tmb operating mounting base temperature −20 +100 °C

2001 Oct 22 3
Philips Semiconductors Product specification
600 MHz, 18.5 dB gain push-pull amplifier BGY685AD
CHARACTERISTICS
Table 1 Bandwidth 40 to 600 MHz; VB= 24 V; Tcase =30°C; ZS=Z
L=75Ω
Notes
1. Vp=V
q= 44 dBmV;
fp= 55.25 MHz; fq= 541.25 MHz;
measured at fp+f
q= 596.5 MHz.
2. Measured according to DIN45004B:
fp= 590.25 MHz; Vp=V
o
;
f
q= 597.25 MHz; Vq=V o−6 dB;
fr= 599.25 MHz; Vr=V
o−6 dB;
measured at fp+f
q−f r= 588.25 MHz.
3. The module normally operates at VB= 24 V, but is able to withstand supply transients up to 30 V.
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Gppower gain f = 50 MHz 18 19 dB
f = 600 MHz 18.75 −dB
SL slope cable equivalent f = 40 to 600 MHz 0.2 2.2 dB
FL flatness of frequency response f = 40 to 600 MHz −±0.3 dB
S11 input return losses f = 40 to 80 MHz 20 −dB
f = 80 to 160 MHz 19 −dB
f = 160 to 600 MHz 18 −dB
S22 output return losses f = 40 to 80 MHz 20 −dB
f = 80 to 160 MHz 19 −dB
f = 160 to 600 MHz 18 −dB
S21 phase response f = 50 MHz −45 +45 deg
CTB composite triple beat 85 channels flat;
Vo= 44 dBmV;
measured at 595.25 MHz
−−62 dB
Xmod cross modulation 85 channels flat;
Vo= 44 dBmV;
measured at 55.25 MHz
−−58 dB
CSO composite second order distortion 85 channels flat;
Vo= 44 dBmV;
measured at 596.5 MHz
−−60 dB
d2second order distortion note 1 −−70 dB
Vooutput voltage dim =−60 dB; note 2 62 −dBmV
F noise figure f = 50 MHz −6dB
f = 600 MHz −8dB
I
tot total current consumption (DC) note 3 −250 mA

2001 Oct 22 4
Philips Semiconductors Product specification
600 MHz, 18.5 dB gain push-pull amplifier BGY685AD
Table 2 Bandwidth 40 to 550 MHz; VB= 24 V; Tcase =30°C; ZS=Z
L=75Ω
Notes
1. Vp=V
q= 44 dBmV;
fp= 55.25 MHz; fq= 493.25 MHz;
measured at fp+f
q= 548.5 MHz.
2. Measured according to DIN45004B:
fp= 540.25 MHz; Vp=V
o
;
f
q= 547.25 MHz; Vq=V o−6 dB;
fr= 549.25 MHz; Vr=V
o−6 dB;
measured at fp+f
q−f r= 538.25 MHz.
3. The module normally operates at VB= 24 V, but is able to withstand supply transients up to 30 V.
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Gppower gain f = 50 MHz 18 19 dB
f = 550 MHz 18.8 −dB
SL slope cable equivalent f = 40 to 550 MHz 0.2 2.2 dB
FL flatness of frequency response f = 40 to 550 MHz −±0.3 dB
S11 input return losses f = 40 to 80 MHz 20 −dB
f = 80 to 160 MHz 19 −dB
f = 160 to 550 MHz 18 −dB
S22 output return losses f = 40 to 80 MHz 20 −dB
f = 80 to 160 MHz 19 −dB
f = 160 to 550 MHz 18 −dB
S21 phase response f = 50 MHz −45 +45 deg
CTB composite triple beat 77 channels flat;
Vo= 44 dBmV;
measured at 547.25 MHz
−−65 dB
Xmod cross modulation 77 channels flat;
Vo= 44 dBmV;
measured at 55.25 MHz
−−60 dB
CSO composite second order distortion 77 channels flat;
Vo= 44 dBmV;
measured at 548.5 MHz
−−62 dB
d2second order distortion note 1 −−72 dB
Vooutput voltage dim =−60 dB; note 2 63 −dBmV
F noise figure f = 50 MHz −6dB
f = 550 MHz −7.5 dB
Itot total current consumption (DC) note 3 −250 mA

2001 Oct 22 5
Philips Semiconductors Product specification
600 MHz, 18.5 dB gain push-pull amplifier BGY685AD
Table 3 Bandwidth 40 to 450 MHz; VB= 24 V; Tcase =30°C; ZS=Z
L=75Ω
Notes
1. Vp=V
q= 46 dBmV;
fp= 55.25 MHz; fq= 391.25 MHz;
measured at fp+f
q= 446.5 MHz.
2. Measured according to DIN45004B:
fp= 440.25 MHz; Vp=V
o
;
f
q= 447.25 MHz; Vq=V o−6 dB;
fr= 449.25 MHz; Vr=V
o−6 dB;
measured at fp+f
q−f r= 438.25 MHz.
3. The module normally operates at VB= 24 V, but is able to withstand supply transients up to 30 V.
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Gppower gain f = 50 MHz 18 19 dB
f = 450 MHz 18.6 −dB
SL slope cable equivalent f = 40 to 450 MHz 0.2 1.8 dB
FL flatness of frequency response f = 40 to 450 MHz −±0.3 dB
S11 input return losses f = 40 to 80 MHz 20 −dB
f = 80 to 160 MHz 19 −dB
f = 160 to 450 MHz 18 −dB
S22 output return losses f = 40 to 80 MHz 20 −dB
f = 80 to 160 MHz 19 −dB
f = 160 to 450 MHz 18 −dB
S21 phase response f = 50 MHz −45 +45 deg
CTB composite triple beat 60 channels flat;
Vo= 46 dBmV;
measured at 445.25 MHz
−−66 dB
Xmod cross modulation 60 channels flat;
Vo= 46 dBmV;
measured at 55.25 MHz
−−58 dB
CSO composite second order distortion 60 channels flat;
Vo= 46 dBmV;
measured at 446.5 MHz
−−67 dB
d2second order distortion note 1 −−75 dB
Vooutput voltage dim =−60 dB; note 2 65 −dBmV
F noise figure f = 50 MHz −6dB
f = 450 MHz −7dB
I
tot total current consumption (DC) note 3 −250 mA

2001 Oct 22 6
Philips Semiconductors Product specification
600 MHz, 18.5 dB gain push-pull amplifier BGY685AD

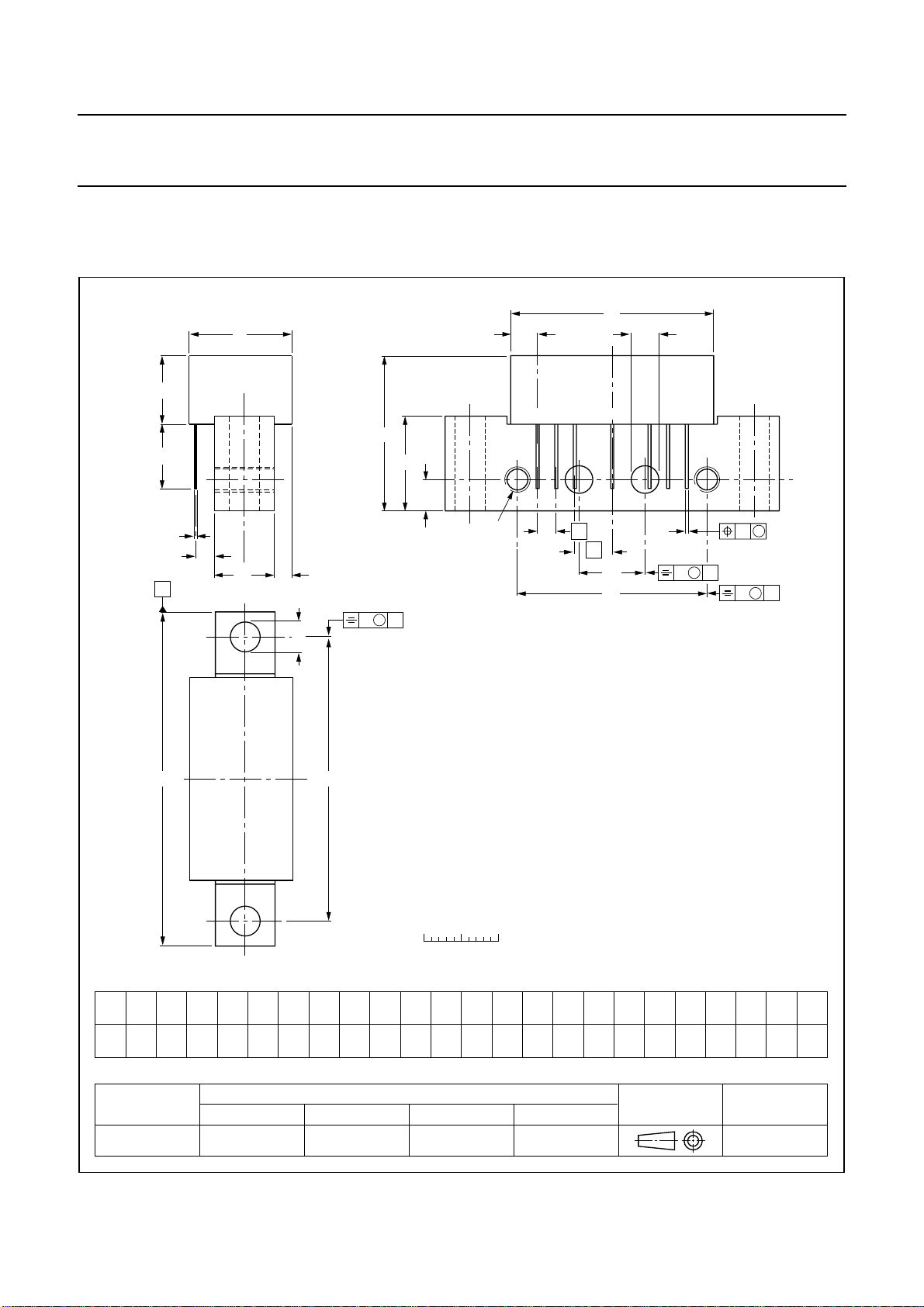

PACKAGE OUTLINE
UNIT A2
max. cee
1q
Q
max. q1q2U1
max. U2W
REFERENCES
OUTLINE
VERSION EUROPEAN
PROJECTION ISSUE DATE
IEC JEDEC EIAJ
mm 20.8 9.1 0.51
0.38 0.25 27.2 2.54 13.75 2.54 5.08 12.7 8.8 4.15
3.85 2.4 38.1 25.4 10.2 4.2 44.75 8 0.25 0.1 3.8
bF
p
6-32
UNC
yw
S
DIMENSIONS (mm are the original dimensions)
SOT115J
0 5 10 mm
scale
A
max. D max. L min.
E
max. Z
max.
Rectangular single-ended package; aluminium flange; 2 vertical mounting holes;
2 x 6-32 UNC and 2 extra horizontal mounting holes; 7 gold-plated in-line leads SOT115J
D
U1q
q2
q1
b
F
S
A
Z p
E
A2
L
c
d
Q
U2
M
w
78923
We
e
1
5
p
1
d
max.
yMB
yMB
B
99-02-06
yMB

2001 Oct 22 7
Philips Semiconductors Product specification
600 MHz, 18.5 dB gain push-pull amplifier BGY685AD
DATA SHEET STATUS
