Philips CED750/51 User manual

Register your product and get support at
www.philips.com/welcome
EN User manual
RU ǝȀǷǻǯǻDZǾǿǯǻ ǼǻǸȉǴǻǯǭǿDzǸȌ
CED750

3
English
EN
Contents
1 Important 4
Safety 4
Notice 4
2 Your in-car entertainment system 6
Introduction 6
What’s in the box 6
Overview of the main unit 7
Overview of the remote control 9
3 Get started 11

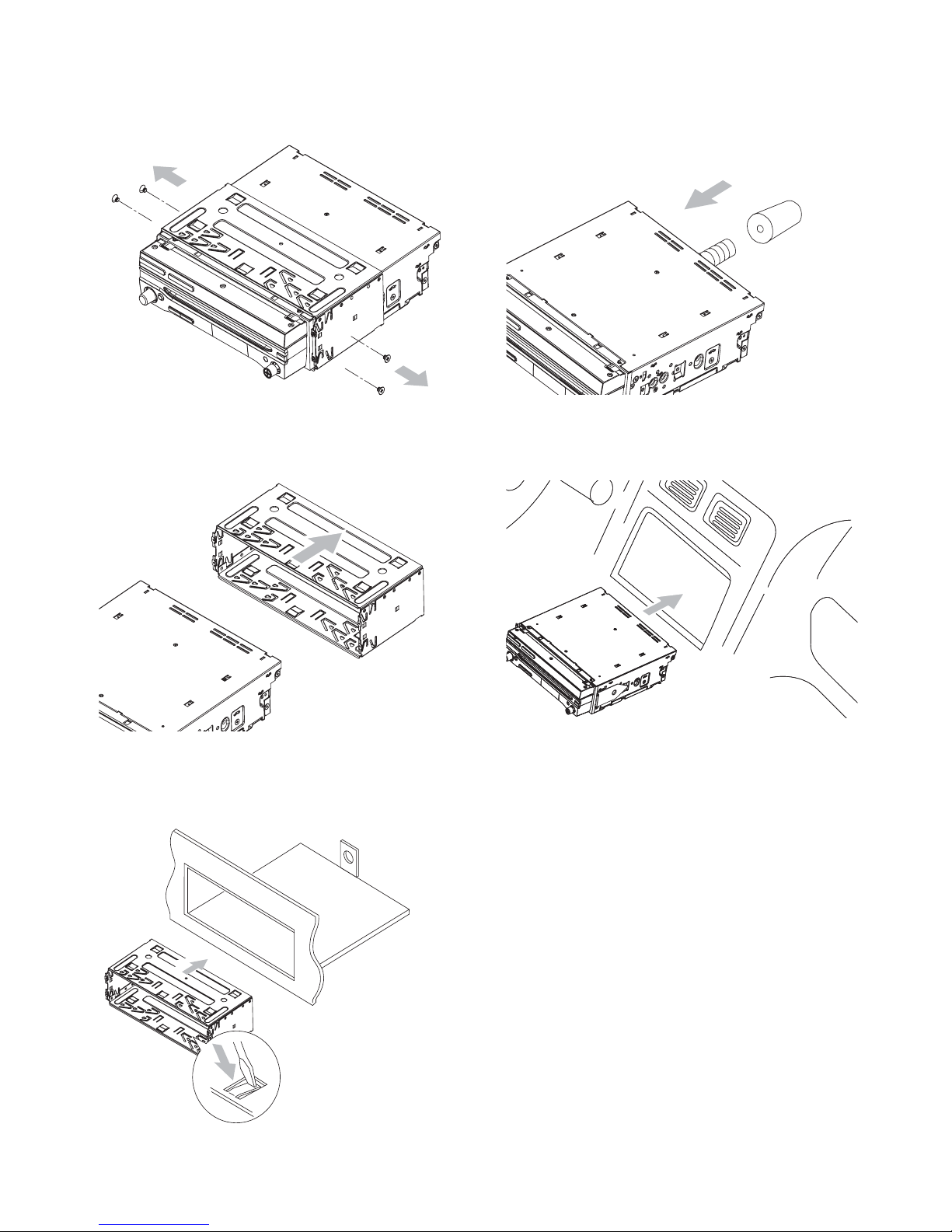

Install the car audio 11
Install remote control battery 17
Turn on 17
Set clock 17
4 Listen to radio 19

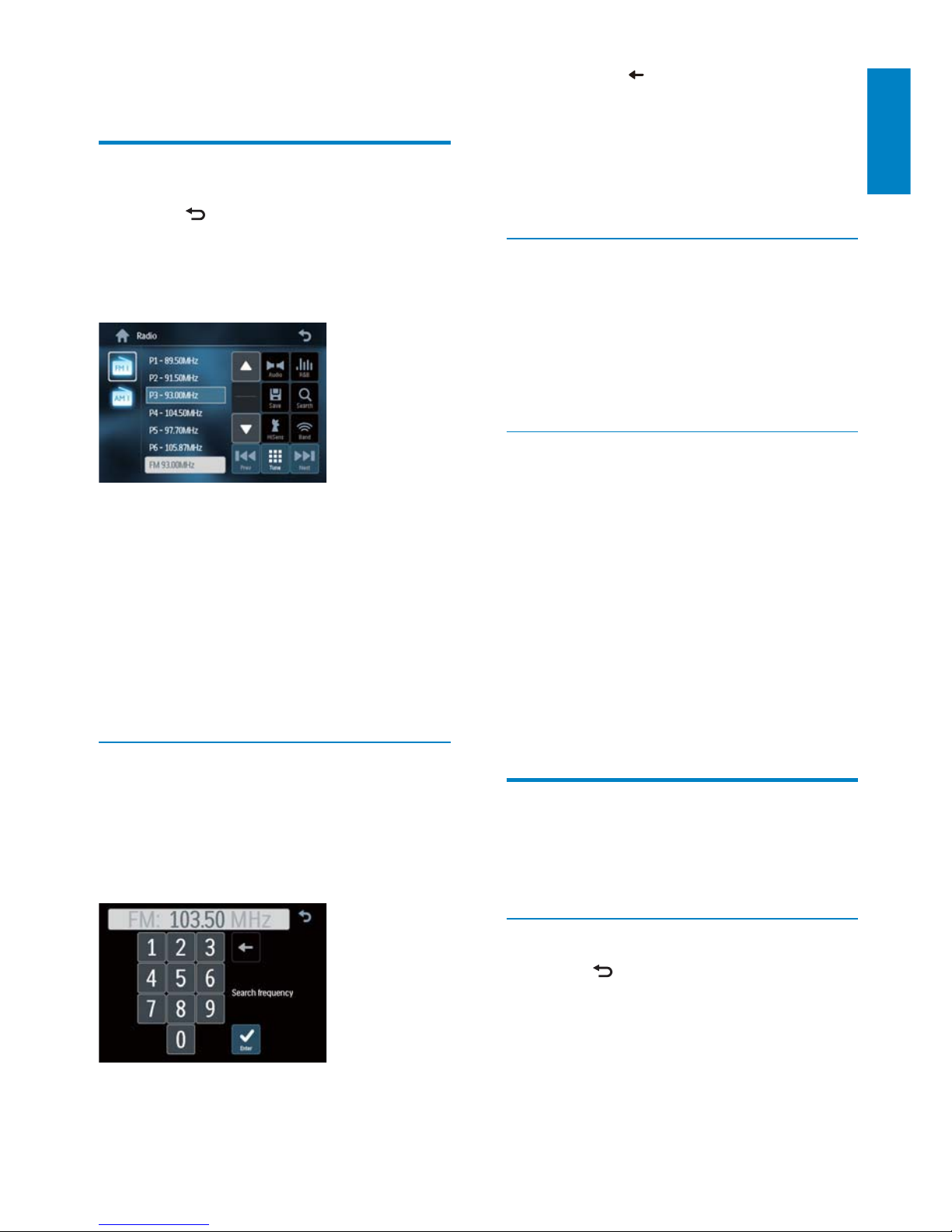

Tune to a radio station 19
Store radio stations in memory 19
Tune to a preset station 20

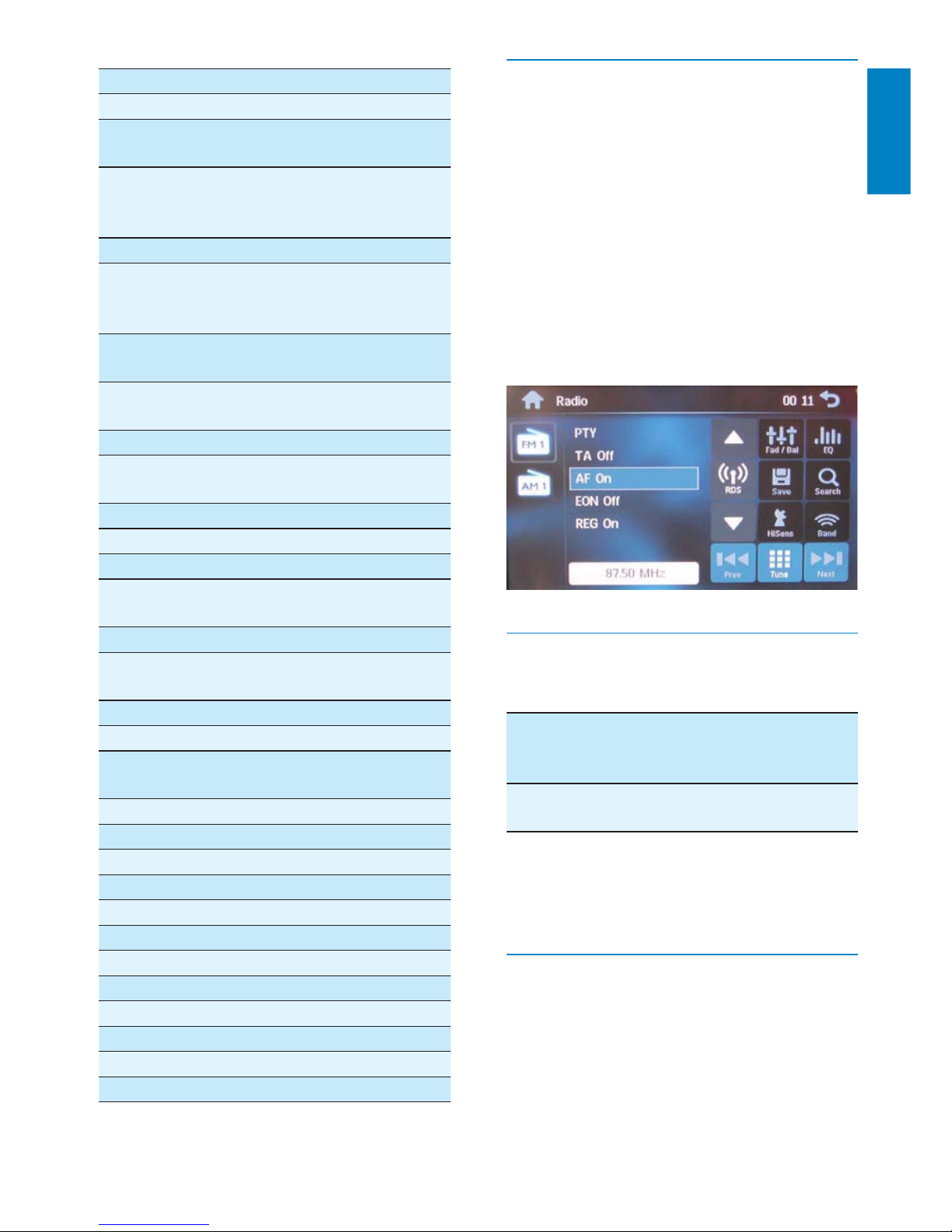

Play with RDS 20
5 Play 23
Load discs 23
Insert USB or SD/MMC card 23
Play/Pause 24
Search for a folder 24
Search within a title/folder 25
Repeat 25
Repeat a section 25
Random play 26
Select audio language 26
Select audio mode 26
Select subtitle language 26
Change view angle 26
Rotate pictures 27
Zoom 27
Select slide show duration 27
6 Play with Bluetooth device 28
Pair the Bluetooth-enabled devices 28
Adjust microphone position 28
Make a call 29
Receive call 29
Switch phone call to the mobile 29
Listen to music from Bluetooth device 30
7 Adjust sound 31
Adjust volume 31
Mute 31
Select preset equalizer 31
Adjut fader/balance 31
8 Adjust settings 32
Adjust general system settings 32
Adjust sound settings 32
Adjust video settings 33
Adjust Bluetooth settings 33
Adjust language settings 34
Adjust volume settings 34
Adjust DVD rating 35
9 Others 36
Listen to other devices 36
Reset 36
Remove the unit 36
Replace fuse 37
10 Product information 38
11 Troubleshooting 40
About Bluetooth device 41
12 Glossary 42

4
Notice
The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
“DivX, DivX” Certified, and associated logos
are trademarks of DivX, Inc. and are used
under license.
Offical DivX®Certified product. Plays all
versions of DivX®video (including DivX®6)
with standard playback of DivX®media files.
The Bluetooth®word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips
is under license.
Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
Other trademarks and trade names are those
of their respective owners.
This product complies with the radio
interference requirements of the European
Community.
This product complies with the requirements
of the following directives and guidelines:
2004/108/EC + 2006/95/EC
1 Important
Safety
Read and understand all instructions•
before you use the apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
Use of controls or adjustments or•
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
This unit is designed for negative ground•
(earth) 12 V DC operation only.
To reduce the risk of traffic accident, do•
no watch video during driving.
To ensure safe driving, adjust the volume•
to a safe and comfortable level.
Improper fuses can cause damage or•
fire. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware•
for a safe and secure installation.
To avoid short circuit, do not expose the•
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation•
slots or other openings on the apparatus.
Never place any objects other than discs•
into the disc tray/slot.
Visible and invisible laser radiation when•
open. Avoid exposure to beam.
Risk of damage to the screen! Never•
touch, push, rub or strike the screen with
any object.
Never use solvents such as benzene,•
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Clean the apparatus with soft, damp•
cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
EN

5
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment
and human health.
2009 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
This apparatus includes this label:
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
English
EN

6

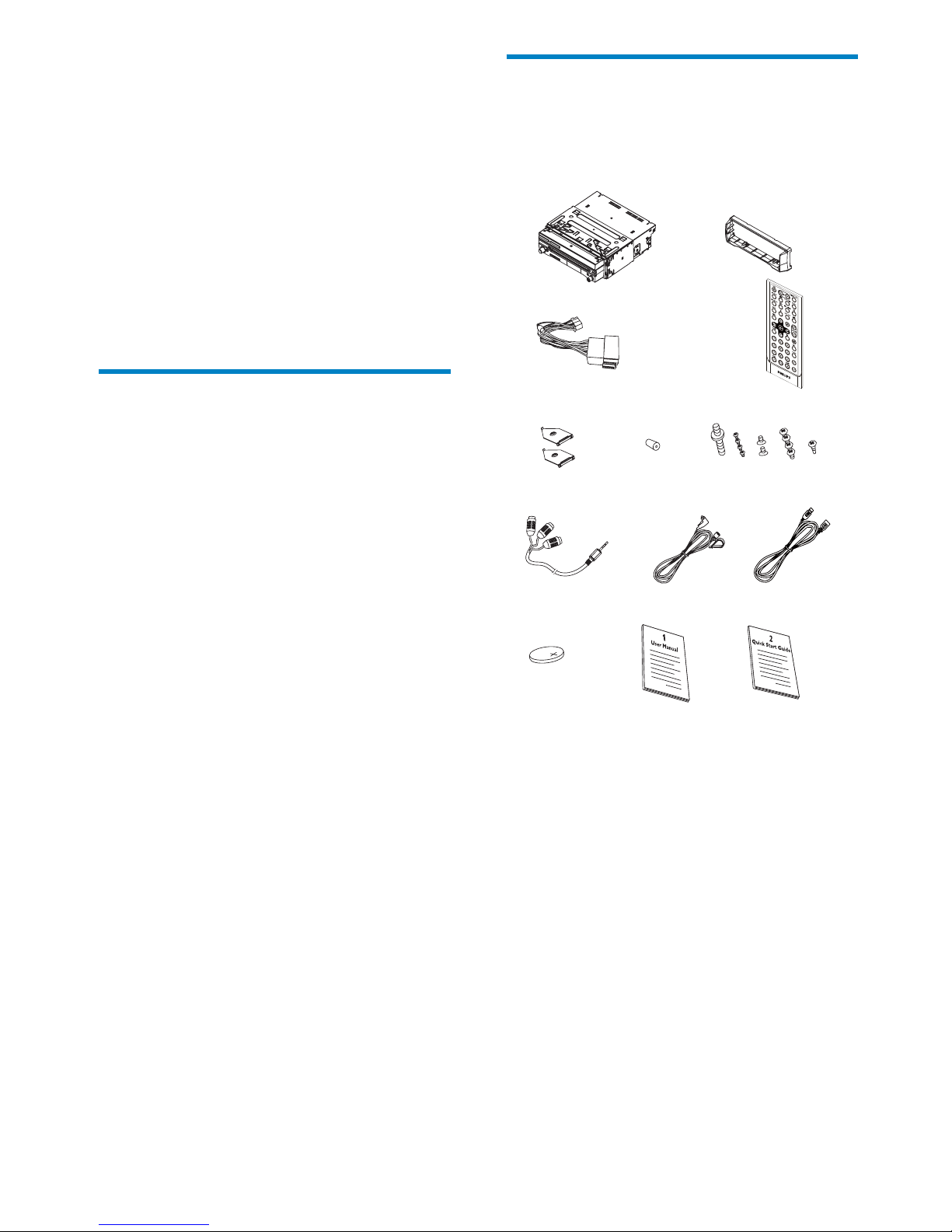

What’s in the box
Check and identify the contents of your
package:
aMain unit
bTrim plate
cStandard connector
dRemote control
eShort mounting bracket x 2 pcs
fRubber cushion
gScrews
- M5x16mm x 1 pcs
- M4x3mm x 4 pcs
- M5x5mm x 2 pcs
- M5x5.5mm x 4 pcs
- M5x6mm x 1 pc
a
c
j
hi
d
egf
b
k l m
2 Your in-car
entertainment
system
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the car entertainment system, you and
your passengers can enjoy:
Audio/video/JPEG pictures from•
DVD, VCD or CD•
USB devices•
SD/SDHC/MMC cards•
External devices•
FM or AM (MW) radio•
Audio from Bluetooth-enabled devices•
You can also make/receive phone calls with
Bluetooth-enabled devices.
EN

7
hAV cable
iMicrophone and holder
jUSB cable
kRemote control battery
lUser manual
mQuick start guide

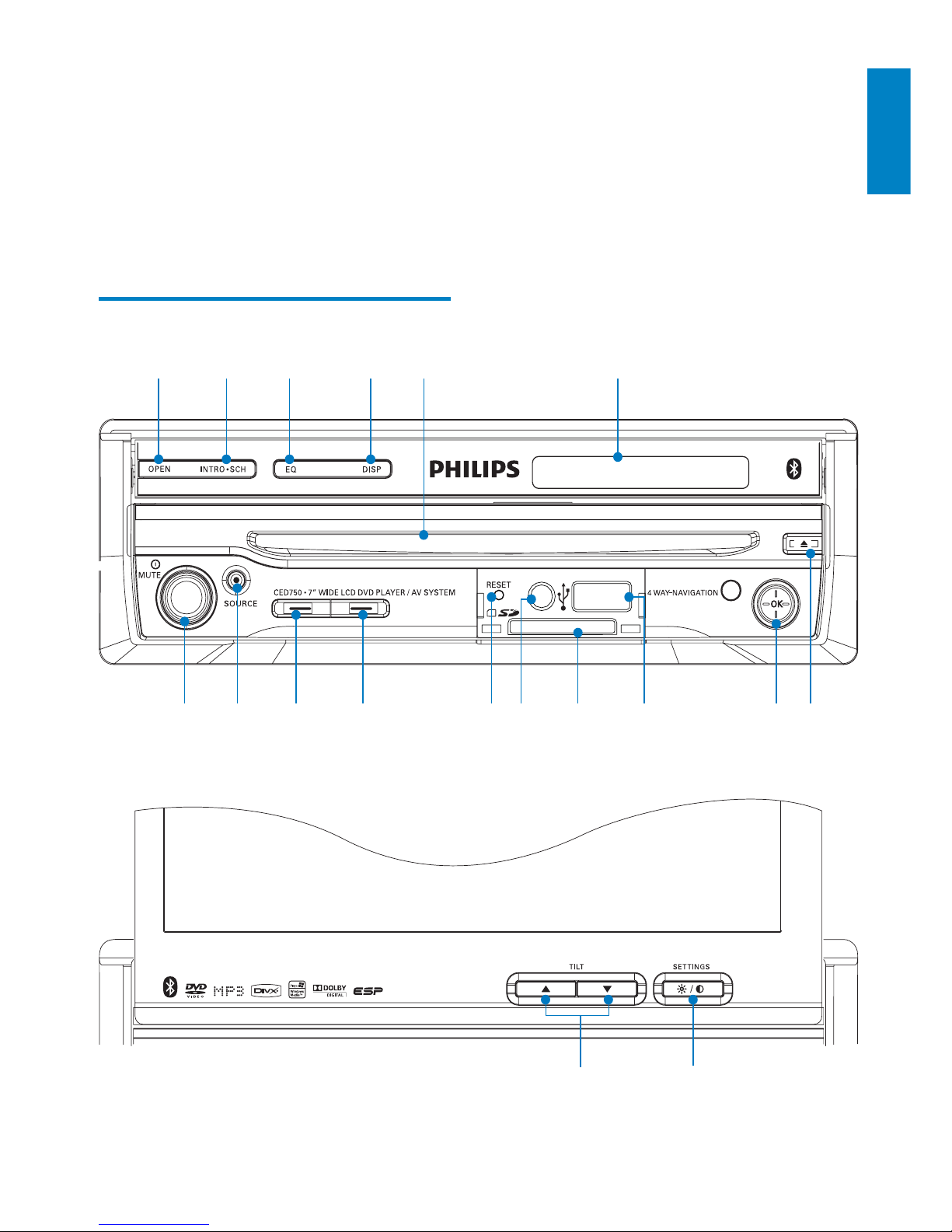

Overview of the main unit
pnmlkjhg i o
abcdef
q r
AV IN
English
EN

8
n(green)
Answer phone.•
Dial number.•
oSOURCE
Select source.•
p
Turn the unit on or off.•
Turn mute on or off.•
Adjust volume.•
q
Adjust screen brightness and•
contrast.
rTILT
Adjust tilt of the screen.•
aOPEN
Open or close the screen.•
bINTRO.SCH
Search for radio station.•
Search for radio station and save the•
top six stations with strong signal
into preset channels automatically.
cEQ
Select equalizer (EQ) setting.•
dDISP
Display play information.•
eDisc slot
fSmall screen
g
Eject disc.•
h4 WAY NAVIGATION
Navigate to left/right•
Tune for radio station.
Skip to the previous/next track/
chapter.
Move cursor to left/right.
Navigate up/down•
Skip to the previous/next preset
station.
Skip to the previous/next folder
Search backward/forward.
Move cursor up/down.
Press•
Start play or pause.
Confirm selection.
i
USB socket•
jSD/SDHC/MMC card slot
kAV IN
External equipment audio/video in•
socket
lRESET
Reset the unit when it hangs up.•
m(red)
Terminate call.•
EN

9
dANGLE
Select a difference angle/version of•
the current DVD scene.
eDISC AUDIO
Select audio language or audio•
channel.
f
Change to wide screen display.•
gREPT A->B
Set A-B repeat play.•
hREPT
Select repeat play mode.•
i
Return to previous menu or exit.•
jVOLUME +/-
Adjust volume.•
kEQ
Select equalizer (EQ) setting.•
l
Mute or unmute audio.•
mDISP
Display play information.•
nCLEAR
Delete entered numbers.•
oNumeric keypad
p(green)
Answer phone.•
Dial number.•
q(red)
Terminate call.•
rSHUFF #
Turn random play on or off.•
# symbol for phone call.•
sINTRO *
Search for radio station and play the•
station for 10 seconds, then search
for next station.
* symbol for phone call.•
Overview of the remote
control
aTILT
Adjust tilt of the screen.•
bOPEN/CLOSE
Open or close the screen.•
cSUBTITLE
Select DVD or DivX subtitle•
language.
s
t
v
w
y
{
}
u
x
z
|
b
a
j
d
c
f
e
h
g
i
k
l
m
n
o
p
q
r
English
EN

10
tAUDIO
Access audio setting menu.•
uNavigation buttons
•/
Tune for radio station.
Skip to previous/next track/chapter.
Move cursor to left/right.
•/
Skip to the previous/next preset
station.
Skip to the previous/next folder.
Search backward/forward for DVD
video.
Move cursor up/down.
•SEL
Start play or pause.
Confirm selection.
vMENU
Access system menu•
wGOTO
Select track/chapter.•
x
Stop play.•
yDISC MENU
Return to DVD main menu.•
z
Adjust brightness/contrast.•
{SOURCE
Select source.•
|TITLE
Access or exit DVD title menu.•
}PWR
Turn the unit on or off.•
EN

11

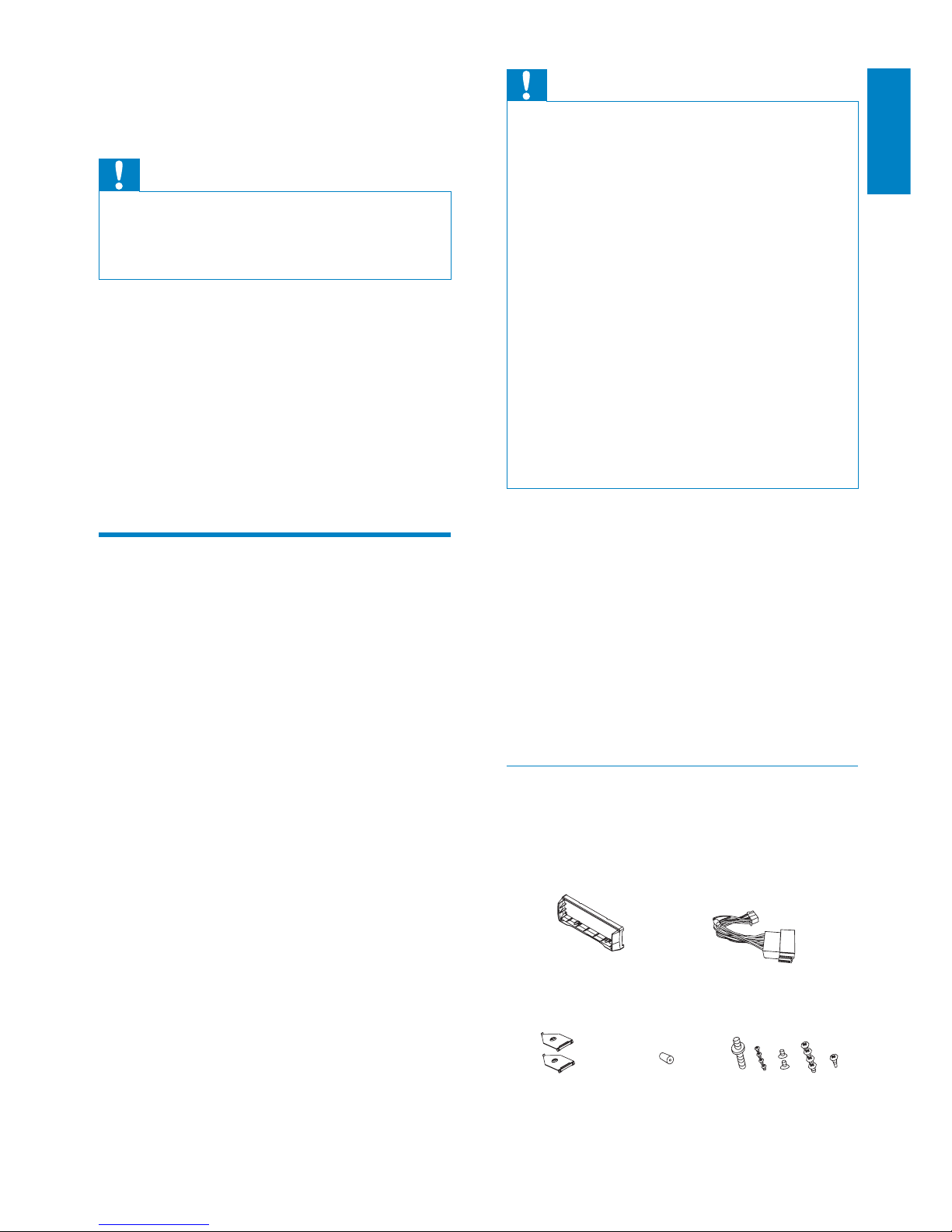

Caution
This unit is designed for negative ground•
(earth) 12 V DC operation only.
Always install this unit in the car dashboard.
•
Other locations can be dangerous as the rear
of the unit heats up during use.
To avoid short-circuit: before you connect,
•
ensure that the ignition is off.
Ensure that you connect the yellow and red
•
power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with
•
electrical tape.
Ensure that the leads do not get caught under
•
screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to
•
a common ground (earth) point.
Use only the supplied mounting hardware for a
•
safe and secure installation.
Improper fuses can cause damage or fire.
•
When you need to change the fuse, consult a
professional.
Note on the power supply lead (yellow)
When you connect other devices to this•
system, ensure that the rating of the car
circuit is higher than the total fuse value
of all the connected devices.
Notes on speaker connection
Never connect speaker wires to the•
metal body or chassis of the car.
Never connect speaker wires with stripes•
to one another.
Overview of parts
These are the supplied parts needed to
connect and install this unit.
a
ced
b
3 Get started
Caution
Use of controls or adjustments or•
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of this apparatus.The
model number and serial number are on the
bottom of the apparatus.Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
English
EN

12
If necessary, connect the following:•
Connector Connect to/with
1BlackcableAntenna
2Yellow
cable
Video out 1
3Yellow
cable
Video out 2
4Yellow
cable
Camera in
5 Green/
white wire
Parking (see
‘Connect parking
brake wire’ on page
14)
6BlackcableBluetooth
microphone
7BluecableSubwoofer
1
2
3
4
5
6
7
8
9
0
!
aTrim plate
bStandard connector
cShort mounting bracket x 2 pcs
dRubber cushion
eScrews
- M5x16mm x 1 pc
- M4x3mm x 4 pcs
- M5x5mm x 2 pcs
- M5x5.5mm x 4 pcs
- M5x6mm x 1 pc
Connect wires: ISO connectors
Caution
Ensure that all loose leads are insulated with•
electrical tape.
1Pull out the ISO connectors from the
car dashboard and connect them to
the bigger end of the supplied standard
connector.
2Connect the other end of supplied
standard connector to the unit.
EN

13
Connector Connect to
1Blue/white
wire
The electric antenna
control lead or power
supply lead of the antenna
booster
If there is no electric
antenna or antenna booster,
or it is manually operated
telescopic antenna, it is not
necessary to connect this
lead.
2 Pink wire Reverse driving (see
‘Connect reverse driving
cable’ on page 14)
3 Yellow wire The +12V car battery
which is live at all times.
4 Blue wire Amp. remote
5Blackwire A metal surface of the car
First connect the black
ground (earth) lead, then
connect the yellow and red
power supply leads.
6Redwire The +12V power terminal
which is live in the
accessory (ACC) position
of the ignition switch
If there is no accessory
position, connect to the
+12V car battery terminal
that is always live. Be sure
to connect the black ground
(earth) lead to a metal
surface of the car first.
7 Green and
green/black
wires
Left speaker (Rear)
8 White and
white/black
wires
Left speaker (Front)
9 Gray and
gray/black
wires
Right speaker (Front)
Purple and
purple/black
wires
Right speaker (Rear)
8 Red cable Front line out L
9White
cable
Front line out R
10 Red cable Rear line out L
11 white cable Rear line out R
Connect wires: without ISO
connectors
Caution
Ensure that all loose leads are insulated with•
electrical tape.
1Cut off the bigger end of the supplied
standard connector.
2Check the car’s wiring carefully, then
connect them to the standard connector.
2
1
3
4
5
6
7
8
9
0
English
EN

14
3Connect the supplied standard connector
to the unit.
If necessary, do the other•
connections. (See the last step
in section Connect wires: ISO
connector)
Connect reverse driving cable
1Refer to the illustration below to connect
reverse driving wire.
EN

15
Since the unit cannot be used if the•
dashboard opening’s slant angle is
above 20 degrees: Ensure that the
horizontal slant of the car dashboard
opening is between 0 and 20 degrees
183 mm
53.5mm
5mm
Connect parking brake wire
1Refer to the illustration below to connect
parking brake wire.
Mount in the dashboard
Note
Check wire connection before you mount the•
unit into a car.
If preset radio stations are lost when the
•
ignition key is turned OFF and then back ON,
reconnect the red leads crosswise to the
yellow ones.
1If the car does not have an on-board
drive or navigation computer, disconnect
the negative terminal of the car battery.
If you disconnect the car battery in•
a car that has an on-board drive or
navigation computer, the computer
may lost its memory.
If the car battery is not disconnected,•
to avoid short-circuit, ensure that
bare wires do not touch each other.
2Ensure that car dashboard opening is
within these measurements:
Green/White
English
EN

16
6Place the rubber cushion over the end of
the bolt.
7Slide the unit into the dashboard until a
click sound is heard.
If the unit cannot fit into the•
dashboard, remove the mounting
bracket on the both side of the unit
and replace them with the supplied
short mounting brackets.

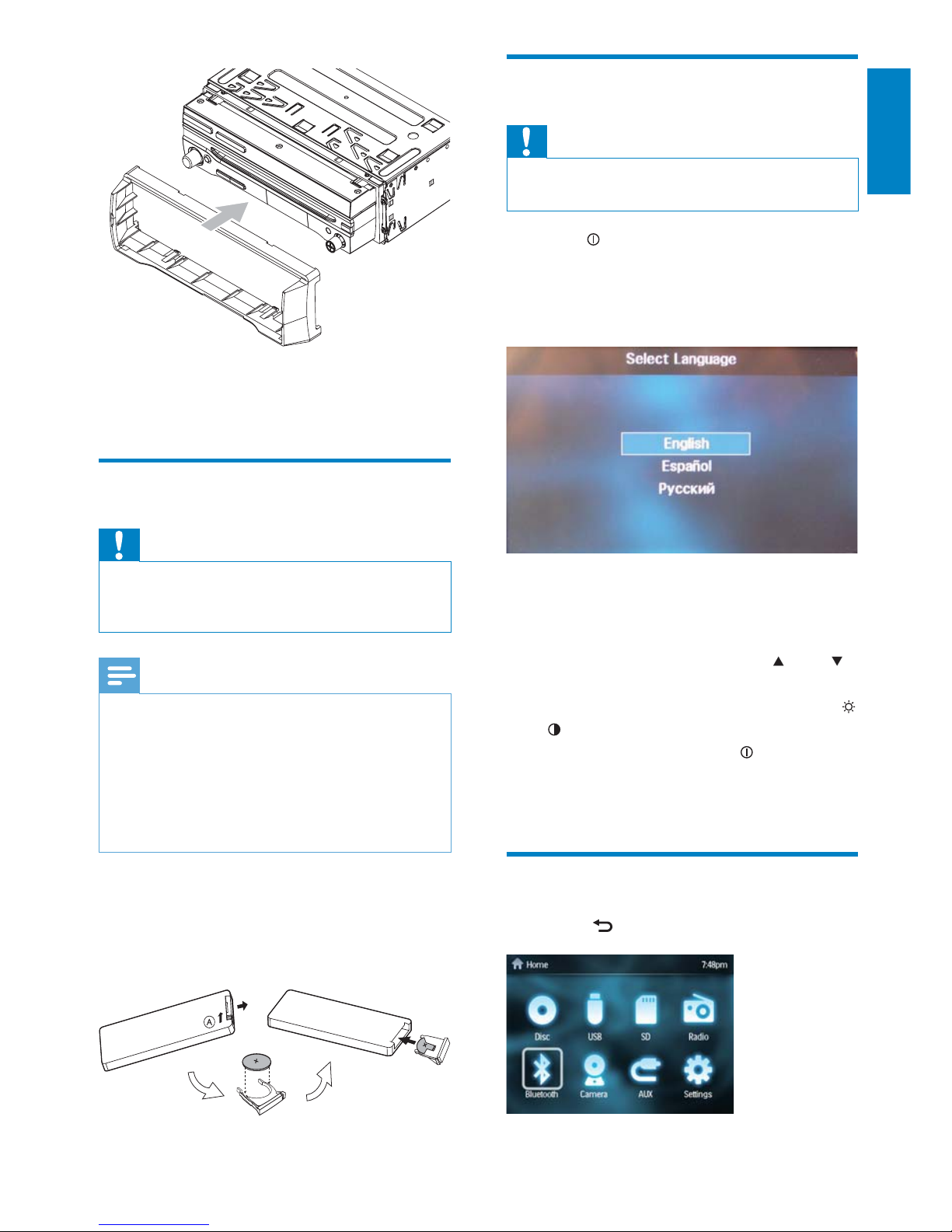

8Attach the trim plate.
3Remove the screws on the both side of
the unit.
4Remove the mounting sleeve.
5Install the sleeve into the dashboard and
bend the tabs outward to fix the sleeve.
EN

17
Turn on
Caution
Risk of road accidents! Never watch video or•
adjust settings while you drive.
1Press to turn on the unit.
The screen opens automatically.»
The available OSD (On-Screen»
Display) languages are displayed.
2Touch a language to select.
The OSD language is changed to the»
selected language immediately.
To adjust the screen tilt, press• TILT .
To close the screen, press• OPEN/CLOSE.
To adjust the brightness/contrast, press•
/ , then adjust 4 WAY NAVIGATION.
To turn off the unit, press• for 3
seconds.
The screen closes automatically.»
Set clock
1Touch to display main menu.
9Reconnect the negative terminal of the
car battery.
Install remote control battery
Caution
Risk of explosion! Keep batteries away from•
heat, sunshine or fire. Never discard batteries
in fire.
Note
Remove batteries if they are exhausted or if•
the remote control is not to be used for a long
time.
Batteries contain chemical substances, they
•
should be disposed of properly.
Perchlorate Material - special handling may
•
apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate.
1Open the battery compartment.
2Insert one CR2025 battery with correct
polarity (+/-) as indicated.
3Close the battery compartment.
English
EN

18
2Touch [Settings].
The setup menu is displayed.»
3Touch [General].
4Touch the [Clock mode] repeatedly to
select:
•[12hr] : 12 hour mode
•[24hr] : 24 hour mode
5Touch the hour digits, then touch or
.
6Touch the minute digits, then touch or
.
7If 12 hour mode is selected, touch or
to select [AM] or[PM].
8Touch to exit.
EN

19
Touch• to clear the last entered
number.
Touch•[Clear] to clear all the entered
numbers.
4Touch [Enter] to save.
The radio station is broadcast.»
Scan search
You can search for a station with intro search,
which broadcasts a 10-second preview of each
detected radio station.
1Touch [Band] to select band.
2Press INTRO.SCH on the main unit.
Select tuner sensitivity
Before you start to search for radio stations,
you can select tuner sensitivity.
•[Normal]: Only stations with strong
signals can be broadcast.
•[HiSens]: Stations with strong and weak
signals can be broadcast.
1Touch [HiSens] to toggle tuner sensitivity
from normal to high sensitivity.
The display is changed.»
To change tuner sensitivity back to»
normal, touch [Normal].
Store radio stations in
memory
You can store up to 6 stations in each band.
Store stations automatically
1Touch to display the main menu.
2Touch [Radio].
3Touch [Band] repeatedly to select band.
4Touch [Search].
Auto search starts.The six strongest»
stations of the selected band are saved
in preset channels 1-6 automatically.
4 Listen to radio
Tune to a radio station
1Touch to display the main menu.
2Touch [Radio].
Band and frequency information is»
displayed.
3Touch [Band] repeatedly to select:
FM band options:•[FM1], [FM2],
[FM3]
AM band options:•[AM1], [AM2]
4Briefly touch [Previous] or [Next] to
tune to a radio station by step.
Touch• [Previous] or [Next] for over
1 seconds to tune to a radio station
automatically.
Tune by frequency
1Touch [Band] to select band.
2Touch [Tune].
The manual tune menu is»
displayed.
3Touch the numbers to enter frequency.
English
EN

20
3Touch [PTY] .
List of available program type is»
displayed.
4Touch or to display the next/
previous screen.
5Touch on the selected program to
activate searching.
Store stations manually
1Tune to the station (see ‘Tune to a radio
station’ on page 19).
2Touch [Save].
The preset stations are displayed.»
3Touch one of the preset stations.
The station is saved in the selected»
preset number.
Tune to a preset station
1Touch [Radio].
2Touch [Band] to select band.
3Touch or to select a preset station.
Play with RDS
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, an RDS icon and information about the
presenter, station or program is displayed.
Select program type
Before tuning to RDS stations, you can select
program type and let the unit search only for
programs of the selected category.
1Touch on FM band to select [FM1] or
[FM2].
2Touch [RDS].
RDS menu is displayed.»
EN

21
Select alternate frequencies
If the radio signal come from the current
station is poor, you can turn on the AF
(Alternate Frequency) function to let the
unit searches for another station with
stronger signal but with the same program
identification as the current station
automatically.
1Touch on FM band to select [FM1] or
[FM2].
2Touch [RDS].
3Touch on [AF] until [AF ON] is displayed.
Set region for AF tuning
You can define AF tuning region:
[REG
ON]
Only stations in the current
region can be tuned to
automatically.
[REG
OFF]
All stations can be tuned to
automatically.
1Touch [RDS] .
2Touch on [REG] (regional radio) until
[REG ON] is displayed.
Receive traffic announcement
If you do not want to miss traffic
announcement during enjoying music, you
can turn on the TA (Traffic Announcement)
function.
1Touch on FM band to select [FM1] or
[FM2].
Item Program type Description
1NEWS News services
2AFFAIRS Politics and
current affairs
3INFO Special
information
programs
4SPORT Sports
5EDUCATE Education
and advanced
training
6DRAMA Radio plays and
literature
7CULTURE Culture, religion
and society
8SCIENCE Science
9VARIED Entertainment
programs
10 POP M Pop music
11 ROCK M Rock music
12 MOR M Light music
13 LIGHT M Light classical
music
14 CLASSICS Classical music
15 OTHER M Special music
programs
16 WEATHER Weather
17 FINANCE Finance
18 CHILDREN Children’s
programs
19 SOCIAL Social Affairs
20 RELIGION Religion
21 PHONE IN Phone In
22 TRAVEL Travel
23 LEISURE Leisure
24 JAZZ Jazz Music
25 COUNTRY Country Music
26 NATION M National Music
27 OLDIES Oldies Music
28 FOLK M Folk Music
29 DOCUMENT Documentary
30 TEST Alarm Test
English
EN
