Philips CID3610/00 User manual

CID3610
Register your product and get support at
www.philips.com/welcome
EN User manual 3
ZH-CNႬ߀൱Ҭ 35

3EN
English
Contents
1 Important 4
Safety 4
Notice 4
2 Your in-car entertainment system 6
Introduction 6
What’s in the box 6
Overview of the main unit 7
3 Get started 8
Install the car audio 8
Turn on 11
Set date and time 11
4 Use map 12
Upgrade the map 12
5 Listen to radio 13
Tune to a radio station 13
Store radio stations in memory 13
Tune to a preset station 14
6 Play 14
Load discs 14
Connect USB device 15
Insert USB or SD/MMC card 15
Play/Pause 15
Skip/search 15
Direct select 16
Repeat 16
Repeat a section 16
Random play 17
Select audio language 17
Select audio mode 17
Select subtitle language 17
Rotate pictures 17
Zoom 17
Select slide show duration 18
7 Play with Bluetooth device 18
Pair the Bluetooth-enabled devices 18
Make a call 19
Receive call 19
Listen to music from Bluetooth device 20
Adjust Bluetooth settings 20
8 Adjust sound 21
Adjust volume 21
Mute 21
Select preset equalizer 21
Adjust fader/balance 21
Set Dynamic Bass Boost (DBB) 22
9 Adjust settings 23
Display system setup menu 23
Adjust general settings 23
Adjust sound settings 24
Adjust video settings 24
Adjust Bluetooth settings 25
Adjust language settings 25
Adjust volume settings 26
Adjust DVD rating 26
10 Others 27
Play from rear displays 27
Remove the unit 29
Replace fuse 29
11 Product information 30
Bluetooth 30
12 Troubleshooting 32
About Bluetooth device 32
13 Glossary 34

4
Do not place any sources of danger on•
the apparatus (e.g. liquid filled objects,
lighted candles).
Notice
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment
and human health.
1 Important
Safety
Read and understand all instructions•
before you use the apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
Use of controls or adjustments or•
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
This unit is designed for negative ground•
(earth) 12 V DC operation only.
To reduce the risk of traffic accident, do•
no watch video during driving.
To ensure safe driving, adjust the volume•
to a safe and comfortable level.
Improper fuses can cause damage or•
fire. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware•
for a safe and secure installation.
To avoid short circuit, do not expose the•
apparatus to rain or water.
Never insert objects into the ventilation•
slots or other openings on the apparatus.
Never place any objects other than discs•
into the disc tray/slot.
Visible and invisible laser radiation when•
open. Avoid exposure to beam.
Risk of damage to the screen! Never•
touch, push, rub or strike the screen with
any object.
Never use solvents such as benzene,•
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Clean the apparatus with soft, damp•
cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
The apparatus shall not be exposed to•
dripping or splashing.
EN

5
The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
2011 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
“DivX, DivX” Certified, and associated logos
are trademarks of DivX, Inc. and are used
under license.
Offical DivX®Certified product. Plays all
versions of DivX®video (including DivX®6)
with standard playback of DivX®media files.
The Bluetooth®word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips
is under license.
Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
Other trademarks and trade names are those
of their respective owners.
This apparatus includes this label:
EN
English

6

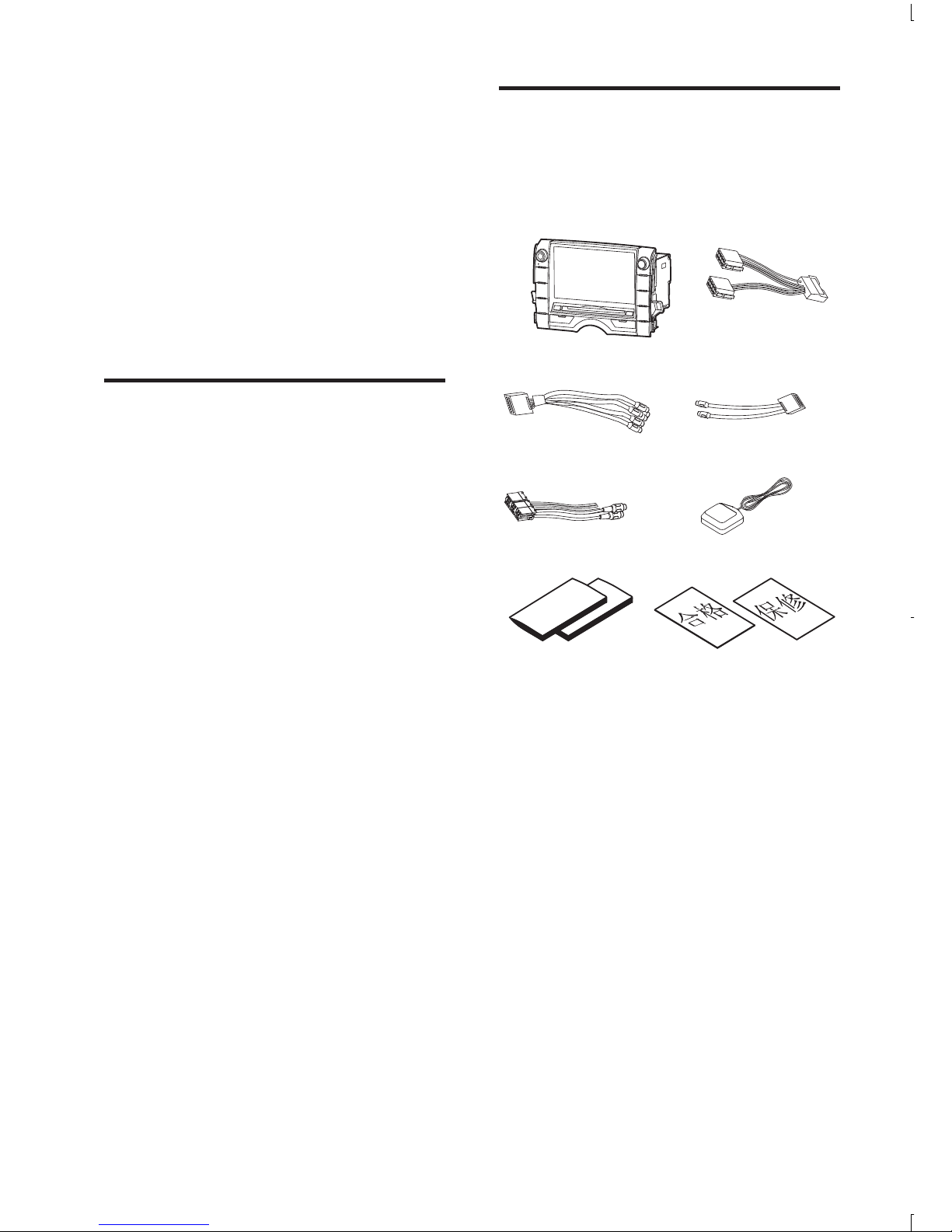

What’s in the box
Check and identify the contents of your
package:
aMain unit
bISO connectors
cAV out cable
dMZ-TFT/Video out 2 cable
eControl/Camera wire
fGPS antenna
gPrinting material (including User manual,
Quick start guide)
hGuarantee card
ab
cd
ef
ij
2 Your in-car
entertainment
system
Congratulations on your purchase, and
welcome to Philips!To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the car entertainment system, you can
Quickly found routine through the•
navigation system
And you can also enjoy:
Audio/video/JPEG pictures from•
DVD, VCD, or CD•
USB devices•
SD/SDHC/MMC cards•
External devices•
FM or AM (MW) radio•
Audio from Bluetooth-enabled devices•
Besides, you can make/receive phone calls with
Bluetooth-enabled devices.
EN

7
iFM/AM
Access the FM/AM source.•
jNAVI
Enter the GPS navigation system or•
exit.
k
Answer phone.•
Dial number.•
lMIC
Built-in microphone for phone calls.•
m/MUTE/VOL+
Turn the unit on or off.•
Turn mute on or off.•
Adjust volume.•
Overview of the main unit
aTUNE/SELECT
Turn it to skip to the previous/next•
title, chapter, or track.
Press it to confirm an entry or•
selection.
Press it to start, pause or resume•
play.
b/
Adjust display brightness.•
cDVD
Select the DVD source.•
dMENU
Access the home menu.•
eDisc slot
fSD/SDHC/MMC card slot
• MAP
Open the cover and insert/remove•
the GPS map card.
gUSB
USB socket•
h
Eject disc.•
m
k
j
i
g
h
a
b
c
d
f
e
TUNE
SELECT
MIC
l
EN
English

8
Notes on speaker connection
Never connect speaker wires to the•
metal body or chassis of the car.
Never connect speaker wires with stripes•
to one another.
Connect wires
Caution
Ensure that all loose leads are insulated with•
electrical tape.
1Check the car’s wiring carefully, then
connect them to the unit.
3 Get started
Caution
Use of controls or adjustments or•
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Always follow the instructions in this chapter in
sequence.
Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
This unit is designed for negative ground•
(earth) 12 V DC operation only.
Always install this unit in the car dashboard.•
Other locations can be dangerous as the rear
of the unit heats up during use.
To avoid short-circuit: before you connect,•
ensure that the ignition is off.
Ensure that you connect the yellow and red•
power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with•
electrical tape.
Ensure that the leads do not get caught under•
screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to•
a common ground (earth) point.
Use only the supplied mounting hardware for a•
safe and secure installation.
Improper fuses can cause damage or fire.•
When you need to change the fuse, consult a
professional.
Note on the power supply lead (yellow)
When you connect other devices to this•
system, ensure that the rating of the car
circuit is higher than the total fuse value
of all the connected devices.
EN

9
&$0(5$9,'(2
&$0(5$*1'
ޮ൮ࣨ܆׌׌჻
ޮ൮ࣨ൮௘ൿೊ
&$0(5$%
ࢨఞӞທ
*HDUER[
5HDUVFUHHQ
ᇓᇆၿ௘ൿԟ
ᇛֲၿൿԟ
%ODFN
7RXFKFRQWUROOHU
$PSOLILHU
5HDUVFUHHQ
*36DQWHQQD
<HOORZ
ᇛֲၿൿԟ
ޮႻၿ௘ൿԟ
ఱႻၿ௘ൿԟ
ޮቔၿ௘ൿԟ ఱቔၿ௘ൿԟ
:LUHOHVVKHDGVHW
<HOORZ
:KLWH
5HG
<HOORZ *UHHQ %OXH
ࢨఞӞ֞Ӟ֫
׌჻ᆢࠢ
5$',2$17

܃٦ᇉ %OXHZKLWH
&$0(5$
3LQN
ޮ൮ࣨ܆׌ֽཐ
֞Ӟࡣҭ
೯Ӟࡣҭ
*UHHQZKLWH
2UDQJHZKLWH
%URZQEODFN
:KLWHEURZQ
ࡳൿೊ%
ࡳൿೊ$
ࡳࢨֽ
ࣥၿࡣҭ
:KLWH
ڧᇽቔၿ௘ൿೊ
ڧᇽႻၿ௘ൿೊ
ڧᇽ൮௘ൿೊ
ޮ෿൮௘ൿԟ
5($59,'(2287
5($52875
5($5287/
ޮ෿Ⴛၿ௘ൿԟ
ޮ෿ቔၿ௘ൿԟ
൮௘ൿԟ
ޮ෿Ԭଇ௤
9,'(2287
0=7)7
:KLWH
5HG
5HG
5HG
:KLWH
൰ၿใཐ
Radio antenna
:KLWH
:KLWH
%URZQ
5HG
5HG
<HOORZ
<HOORZ
EN
English

10

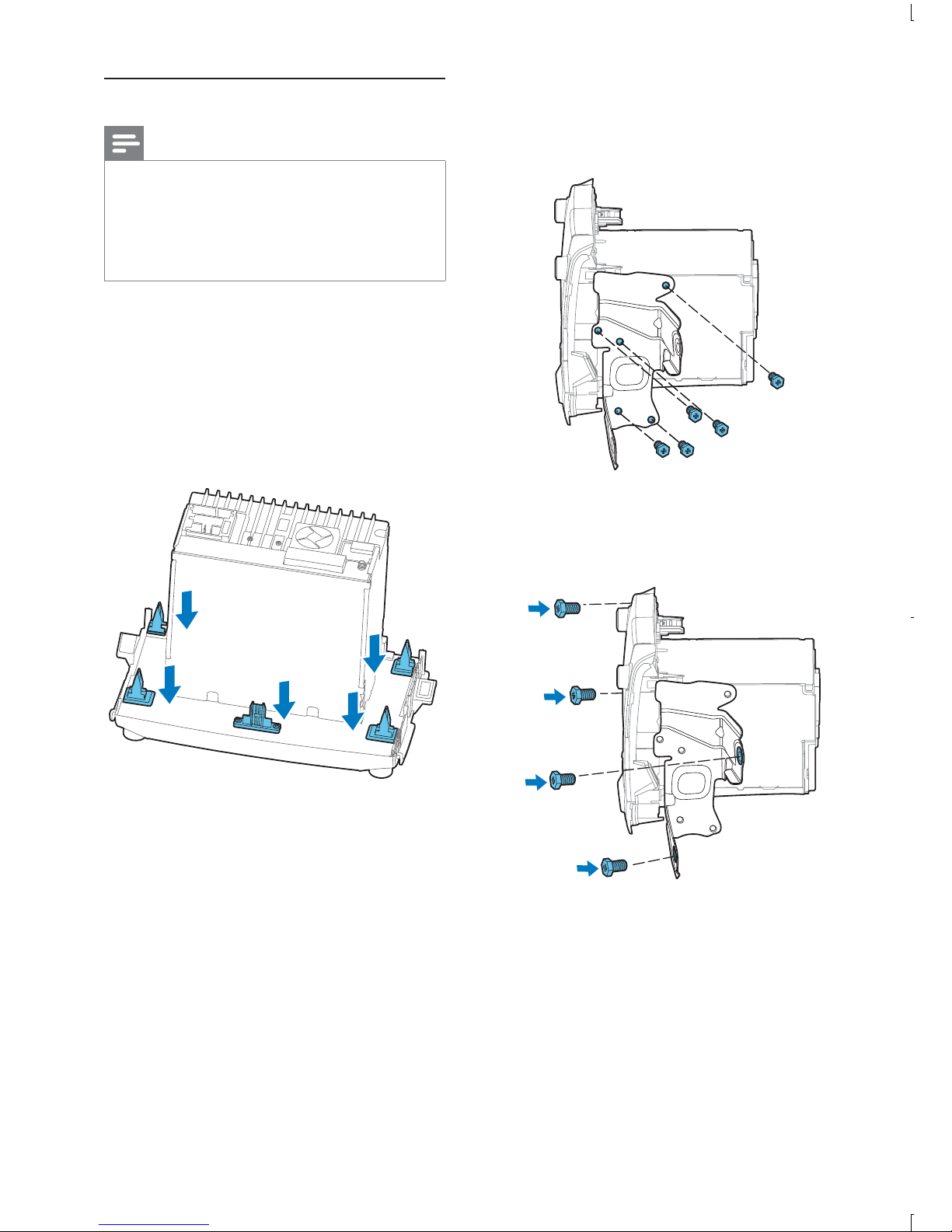

5Fix the mounting brackets to the unit
with screws (removed from the original
in-car system).
6Slide the unit into the dashboard and fix
it to the car with screws (removed from
the original in-car system).
7Reconnect the negative terminal of the
car battery.
Mount in the dashboard
Note
Check wire connection before you mount the•
unit into a car.
If preset radio stations are lost when the
•
ignition key is turned OFF and then back ON,
reconnect the red leads crosswise to the
yellow ones.
1Remove the original in-car system and
the controller panel of air conditioner
from the dashboard.
2Keep the controller panel of air
conditioner and plastic buckles.
3Fix the plastic buckles (removed from the
original in-car system) to the unit.
4Attach the controller panel of the original
air conditioner to the unit.
EN

11

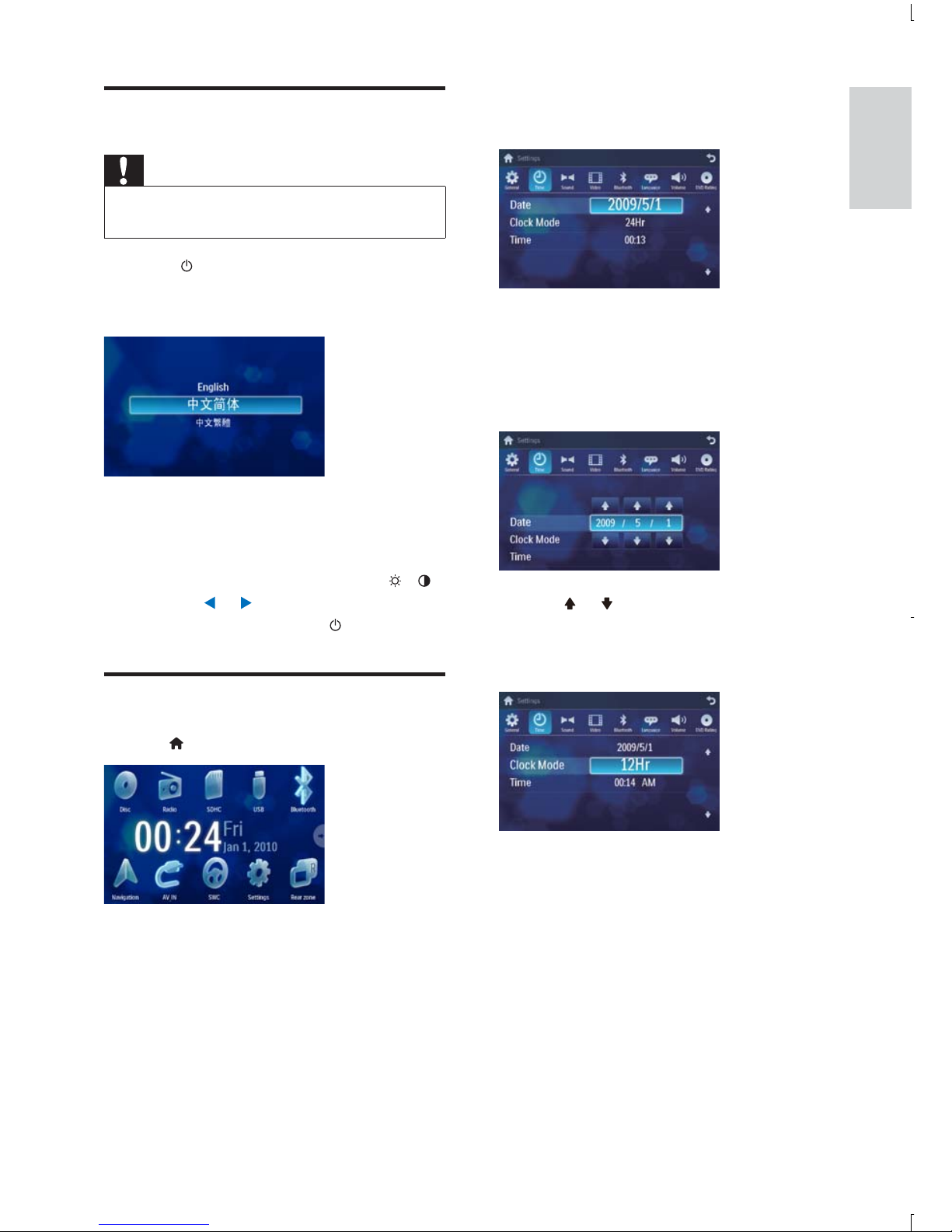

3Tap [Time] .
The date/time setup menu is displayed.»
Set date
1Tap [Date].
2Tap on the displayed date information.
A submenu is displayed.»
3Tap or to set year, month and day.
Set clock mode
1Tap [Clock mode] .
2Tap on [12Hr] or [24Hr] to select clock
mode.
Turn on
Caution
Risk of road accidents! Never watch video or•
adjust settings while you drive.
1Press to turn on the unit.
The available OSD (On-Screen»
Display) languages are displayed.
2Tap a language with fingertip.
The OSD language is changed to the»
selected language immediately.
To adjust screen brightness, press• / ,
then tab or .
To turn off the unit, press• .
Set date and time
1Tap to display main menu.
The main menu is displayed.»
2Tap [Settings].
EN
English

12
4 Use map
Note
You may need to upgrade the map (sold•
separately) before using it (see “Upgrade the
map” section)
1Tap the upper left corner to display home
menu.
2Tap [Navigation].
The navigation menu is displayed in a»
few seconds.
3Refer to the map manual to operate the
navigation tool.
Tip
You can press• NAVI to enter/exit the
navigation system.
Upgrade the map
1Turn off the car audio system.
2Press the map card (sold separately) until
you hear a click sound.
3Take out the card and bring it to the
authorized service center for upgrade.
4Insert the upgraded map card back into
the map card slot.
5Turn on the car audio.
The map upgrades in a few minutes.»
Set time
1Tap [Time].
2Tap on the displayed time.
A submenu is displayed.»
3Tap or to set hour and minute.
Tip
When date/time is set, tap• to return to
main menu.
EN

13
Select radio range
Before you start to search for radio stations,
you can select radio range.
1Tap .
2Tap [Radio range] to toggle tuner
sensitivity from normal to high sensitivity.
• [Distance]: Only stations with strong
signals can be broadcast.
• [Local]: Stations with strong and
weak signals can be broadcast.
Store radio stations in
memory
You can store up to 6 stations in each band.
Store stations manually
1Tune to the station.
2Tap .
3Tap [Save].
4Tap one of the channels 01 to 06 to save
the select band.
5 Listen to radio
Tune to a radio station
1Tap to display home menu.
2Tap [Radio].
Band and frequency information is»
displayed.
3Tap FM or AM to select band:
FM band options:• FM1, FM2, FM3
AM band options:• AM1, AM2
4Briefly tap or to tune to a radio
station by step.
Tap• or for over 1 seconds to
tune to a radio station automatically.
Tune by frequency
1Tap FM or AM to select band.
2Tap .
3Tap [Goto].
4Tap the numbers to enter frequency.
Tap• to clear the last entered
number.
Tap• to clear all the entered
numbers.
5Tap to confirm.
The radio station is broadcast.»
EN
English

14
6 Play
Load discs
You can play video, audio or images stored on
the following discs:
DVD video, DVD-R, DVD-RW•
VCD•
Audio CD, CD-R, CD-RW•
Note
Ensure that the disc contains playable content.•
1Insert the disc into the disc slot with label
side facing up.
Play starts automatically.»
To remove the disc, press the»button.
When the disc is ejected, the unit»
switches to the previous source,
if connected. Otherwise, the
unit switches to [Radio] mode
automatically.
Country Supported DVD region
code
China
Store stations automatically
You can search for a station with intro search,
which broadcasts a 10-second preview of each
detected radio station.
1Select band.
2Tap .
3Tap [Search].
Auto search starts.The six strongest»
stations of the selected band are saved
in preset channels 1-6 automatically.
Tune to a preset station
1Tap [Radio].
2Select band.
3Tap one of the preset channels (01 to 06)
to select a preset station.
EN

15
Play/Pause
1Once a disc, USB or SD/MMC card is
inserted, play starts automatically.
For DVD movie, if a menu appears, press
to start play.
2To pause, tap .
To resume play, tap• again.
Skip/search
1Tap to return to playlist menu.
2Tap one of below icons to select folder/
file:
• : To display all available audio
folders/track.
• : To display all available picture
folders/files.
• : To display all available video
folders/files
3Tap or to select a folder/track.
4Tap to start play.
Connect USB device
Note
Ensure that the device contains playable•
content.
1Open the USB cover.
2Insert your USB device to the USB
socket.
Play starts automatically.»
Insert USB or SD/MMC card
Note
Ensure that the device contains playable•
content.
The unit supports SDHC card.•
1Open the SD/MMC card cover.
2Insert the SD/MMC card into the SD/
MMC card slot.
Play starts automatically.»
EN
English

16
2Touch to display the 2nd menu.
3Touch to select:
• [Repeat chapter]: play the current
chapter repeatedly.
• [Repeat title]: play all chapters in the
title repeatedly.
• [Repeat off]: cancel repeat play.
ForVCD karaoke or audio CD:
1Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Touch to select:
• [Repeat]: play the current track
repeatedly.
• [Repeat off]: cancel repeat play.
For MP3/WMA files:
1Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Touch to select:
• [Repeat]: play the current track
repeatedly.
• [Repeat folder]: play all the tracks in
the current folder repeatedly.
• [Repeat off]: cancel repeat play.
Repeat a section
You can repeat a specific section of video file
(repeat A-B).
1During play, tap anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2Tap to display the 2nd menu, if
necessary.
Direct select
1Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Tap .
The search screen is displayed.»
3Tap the numbers to enter chapter/file
number, then tap .
To clear the previous input, tap• .
To clear all input, tap• .
Repeat
During play, you can select different repeat play
modes.
For DVD/VCD movie disc:
1Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
EN

17

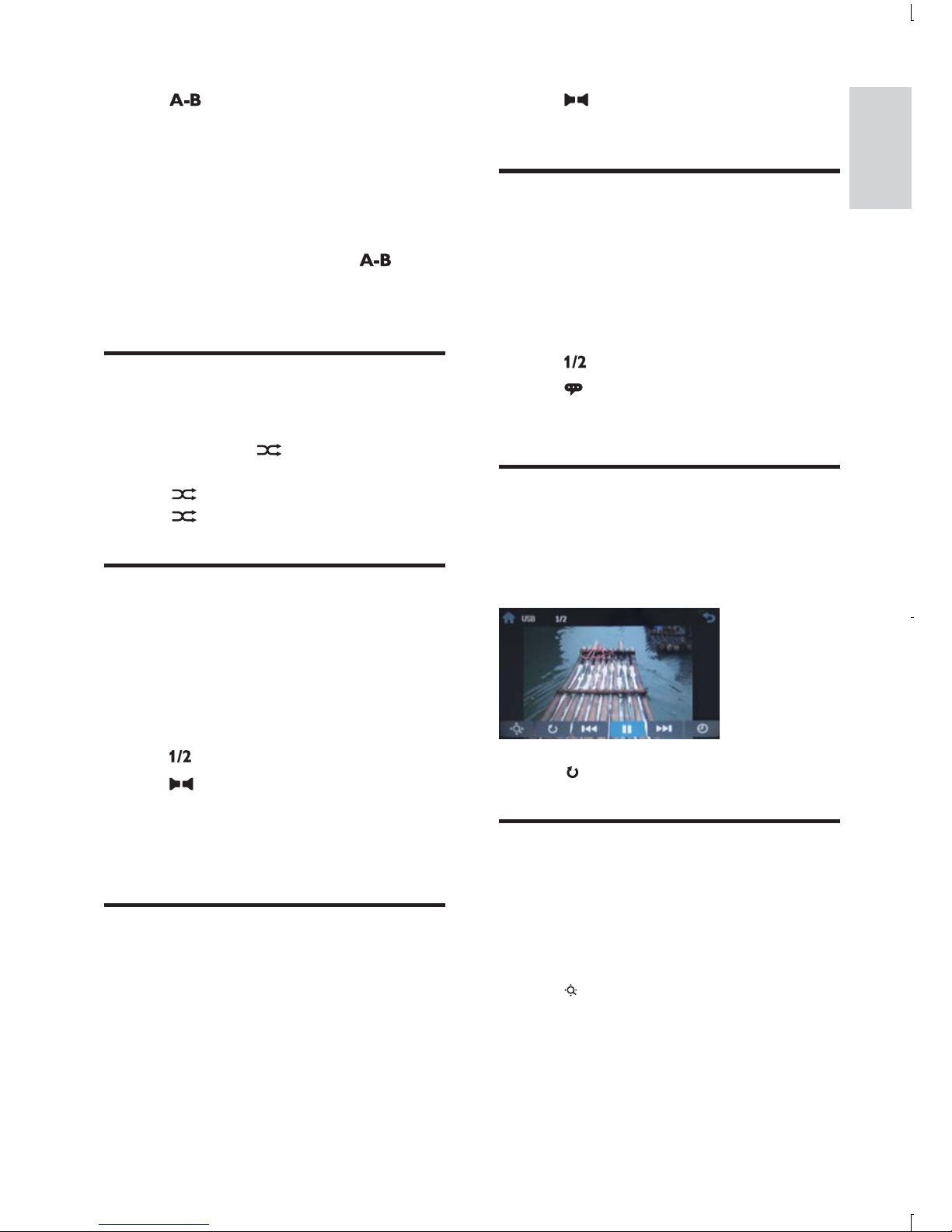

2Tap repeatedly until the audio mode
is selected.
Select subtitle language
For DVD or DivX discs that contain two or
more subtitle languages.
1During play, tap anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2Tap to display the 2nd menu
3Tap repeatedly to select a language.
The selected language is displayed.»
Rotate pictures
1When you view pictures, tap anywhere
except for the upper left corner to display
menu on the screen, if necessary.
2Tap repeatedly to rotate the picture.
Zoom
You can zoom in pictures for a close view.
1During view pictures, tap anywhere
except for the upper left corner to display
menu on the screen, if necessary.
2Tap repeatedly to zoom in the picture.
3Tap repeatedly to mark:
• [Repeat A-]: the start of the section
to repeat.
• [Repeat A-B]: the end of the section
to repeat.
The selected section plays•
repeatedly.
4To exit A-B repeat mode, tap
repeatedly until [Repeat A-B off] is
displayed.
Random play
You can play audio tracks/files in random order.
1During play, tap repeatedly to turn
random play on or off.
• is highlighted : start random play.
• turns gray: cancel random play.
Select audio language
For video discs that contain two or more audio
channels.
1During play, tap anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2Tap to display the 2nd menu.
3Tap repeatedly.
The audio channel information is»
displayed on the upper line of the
screen.
Select audio mode
When you play VCDs, you can select an audio
mode (R/L/Stereo).
1During play, tap anywhere except for the
upper left corner to display menu on the
screen.
EN
English

18

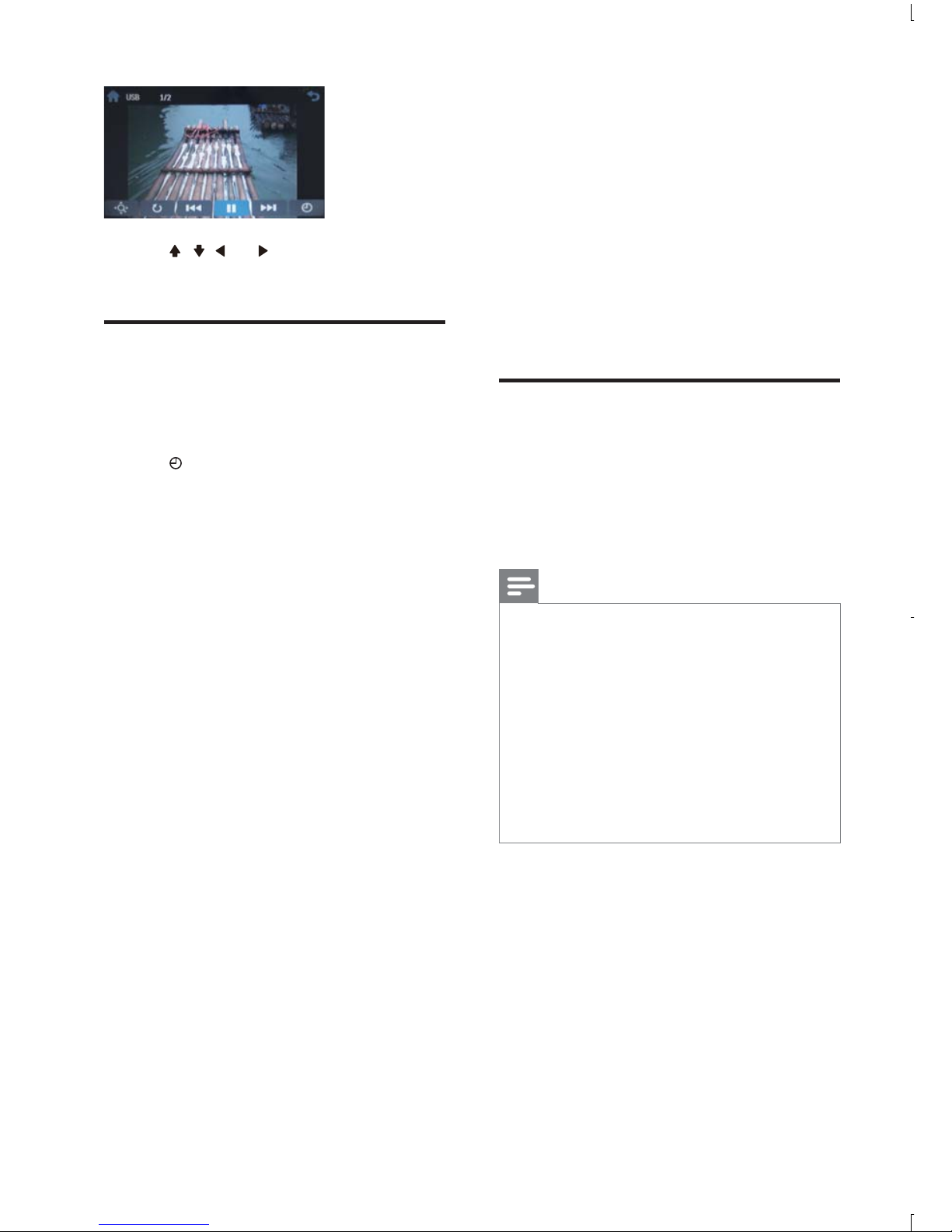

7 Play with
Bluetooth
device
You can make or receive phone calls with
Bluetooth-enabled phones through the unit.
You can also listen to music from a Bluetooth-
enabled device.
Pair the Bluetooth-enabled
devices
To connect your Bluetooth device to the unit,
you need to pair the device to the unit. Pairing
needs only to be done once.
You can pair up to eight devices.
Note
The operational range between this unit and a•
Bluetooth device is approximately 10 meters
(30 feet).
Before you connect a Bluetooth device to this•
unit, familiarize yourself with the Bluetooth
capabilities of the device.
Compatibility with all Bluetooth devices is not•
guaranteed.
Any obstacle between this unit and a•
Bluetooth device can reduce the operational
range.
Keep this unit away from any other electronic•
device that may cause interference.
1Turn on the Bluetooth function on the
device.
2Search for Bluetooth device with the
device.
3Select “CID3610” in the pairing list.
4Enter default password “0000”.
if pairing succeeds. phone call record is»
displayed.
3Tap , , or to pan through the
enlarged picture.
Select slide show duration
1Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Tap repeatedly to select:
• Fast: 3 seconds
• Normal: 5 seconds
• Slow: 8 seconds
EN

19
• [Missed calls]
• [Received calls]
• [Dialed calls]
• [Phone book]
• [Sim phone book]
• [Local phone book]
Or tap to dial number directly, then tap
to dial.
Receive call
By default, all incoming calls are received
automatically.
1If there is incoming call, [Incoming call...]
flashes on the screen. Speak into the
Bluetooth microphone.
2When conversation ends, tap (red)
to terminate the call.
Tip
You can select to receive calls manually by set•
[Auto answer] to [Off] status.
Switch phone call to the mobile
If you do not want your passenger to hear
your incoming call, you can switch the call to
the mobile.
1During talking, tap .
Disconnect Bluetooth devices
1To disconnect one device, tap (red).
»(green) is displayed.
Tip
The device will also be disconnected when the•
device is moved beyond the operational range.
If you want to reconnect the device to the•
unit, place it within the operational range.
If you do not want to reconnect the device to•
the unit automatically, tap >[Auto connect],
then select [Off]. For details, see the “Adjust
Bluetooth settings” section.
Make a call
1Pair the phone with the unit.
2Tap to display the home menu.
3Tap [Bluetooth].
The Bluetooth menu is displayed.»
4Tap or to select the paired phone,
then tap .
5Tap or to search for phone number
from the following list:
EN
English

20
1In Bluetooth menu, tap .
The option menu is displayed.»
2Tap an option to change the setting.
Tip
You can also adjust Bluetooth settings in the•
“Settings” menu.
The voice is transferred from the unit’s»
loudspeaker to the mobile phone.
Listen to music from
Bluetooth device
If the connected Bluetooth device supports
Advanced Audio Distribution Profile (A2DP),
you can listen to the music stored on the device
through the unit. If the device also supports
Audio Video Remote Control Profile (AVRCP)
profile, you can use the control on the unit to
play music stored on the device.
1Pair the phone with the unit.
2Tap to return to home menu.
3Tap [Bluetooth].

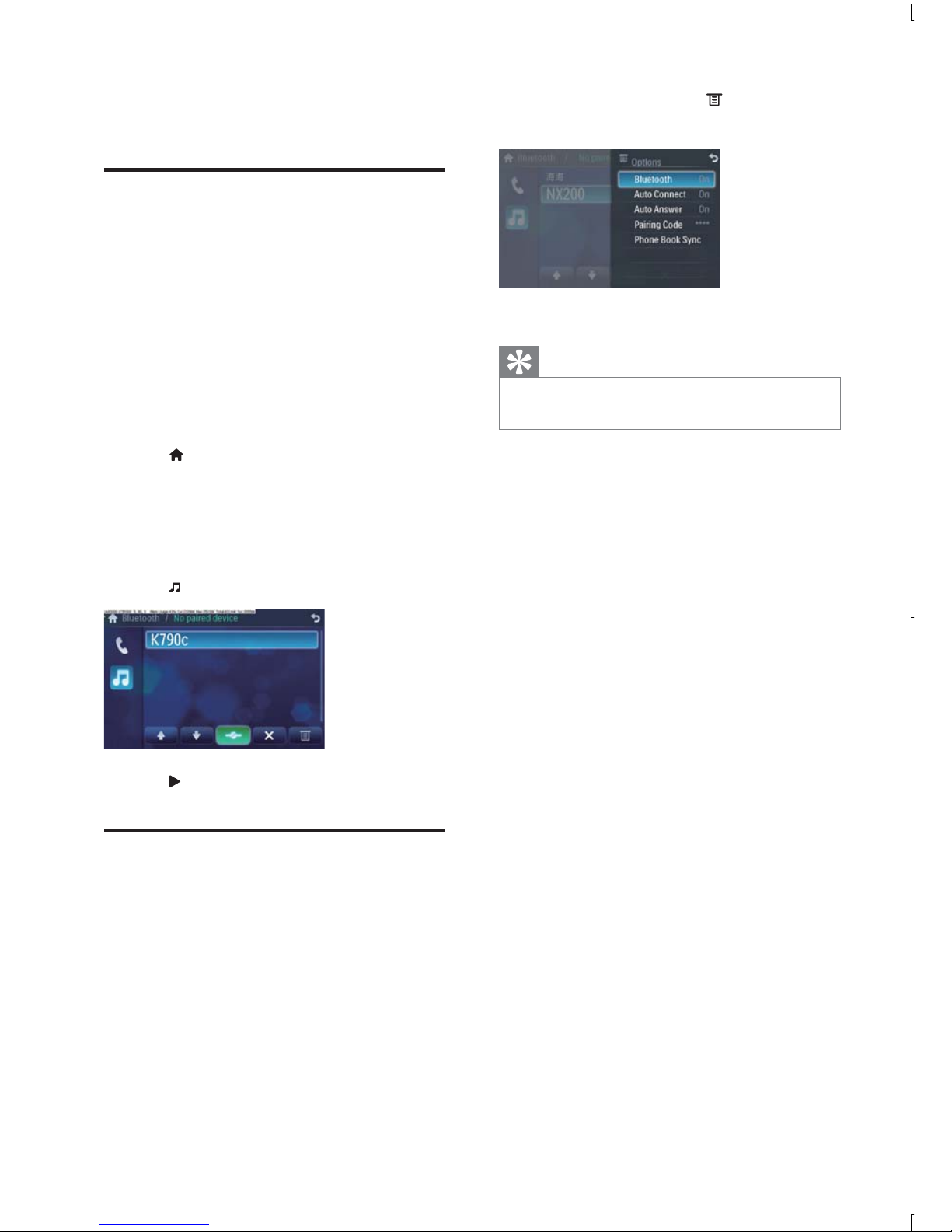

The Bluetooth menu is displayed.»
4Start play music via device.
• If your device support AVRCP,
1Tap .
2Tap to start play.
Adjust Bluetooth settings
You can change below Bluetooth settings:
• [Bluetooth]: to turn on or off
“Bluetooth” function
• [Auto connect]: to turn on or off “Auto
connect” function
• [Auto answer]: to turn on or off “Auto
answer” function
• [Pairing code]: to set paring code
• [Phone Book Sync]: to synchronize
phone book
EN

21
3Tap or to select an EQ.
4Tap or to adjust below settings:
• [Bass] bass range: -14 to +14
• [Mid] middle range: -14 to +14.
• [Treb] treble range: -14 to +14
• [LPH] low pass filter range: 60, 80,
100, 200.
• [MPF] middle pass filter range: 500,
1K, 1.5K, 2.5K.
• [HPF] high pass filter range:10K,
12.5K, 15K, 17.5K.
5Tap to restore the above settings into
default settings.
6Tap to exit.
Adjust fader/balance
You can also adjust the front and rear speaker
balance, the left and right speaker balance, and
subwoofer settings.
1Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Tap .
3Tap
Below options are displayed:»
4Tap or to select subwoofer volume.
• [Sub] subwoofer volume: 0 to 24.
8 Adjust sound
Adjust volume
1Turn /MUTE/VOL+ clockwise to
increase volume.
Turn• /MUTE/VOL+ anti-clockwise to
reduce volume.
Mute
1During play, press /MUTE/VOL+.
To turn the sound back on, press•
/MUTE/VOL+ again.
Tip
You can also turn off sound by tapping• on
the screen.
Select preset equalizer
You can select preset equalizer:
• [User]
• [Techno]
• [Rock]
• [Classic]
• [Jazz]
• [Optimal]
• [Flat]
• [Pop]
1Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Tap .
The current Equalizer setting is»
displayed.
EN
English
