Philips CEM2000/00 User manual

Register your product and get support at
www.philips.com/welcome
EN User manual
ZH-HKԚʹ˫
CEM2000

3
English
EN
Contents
1 Important 4
Safety 4
Notice 4
2 Your car audio system 6
Introduction 6
What’s in the box 6
Overview of the main unit 7
Overview of the remote control 8
3 Get started 10
Install the car audio 10
Install remote control battery 14
Turn on 14
Set clock 15
4 Listen to radio 16
Tune to a radio station 16
Store radio stations in memory 16
Store stations manually 16
Tune to a preset station 16
5 Play with RDS 17
Turn on RDS 17
Select program type 17
Select alternate frequencies 17
Receive traffic announcement 18
Set RDS clock 18
6 Play audio files 19
Play a disc 19
Play from USB 19
Search for an MP3/WMA track 20
View play information 20
Repeat play 20
Shuffle play 20
Intro play 20
Connect external sound source 20
7 Adjust sound 21
Adjust volume 21
Mute 21
Turn DBB and subwoofer on/off 21
Select preset equalizer 21
Other sound settings 21
8 Adjust system settings 22
Select anti-shock setting 22
Turn beep sound on/off 22
Select blackout setting 22
Turn demo mode on/off 22
Reset 23
9 Additional information 24
Detach the front panel 24
Replace fuse 24
Remove the unit 24
10 Product information 25
11 Troubleshooting 26

4
Notice
The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
This apparatus includes this label:
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
1 Important
Safety
Read and understand all instructions•
before you use your apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
This apparatus is designed for negative•
ground (earth) 12 V DC operation only.
To ensure safe driving, adjust the volume•
to a safe and comfortable level.
Improper fuses can cause damage or•
fire. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware•
for a safe and secure installation.
To avoid short circuit, do not expose the•
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation•
slots or other openings on the apparatus.
Clean the apparatus and frame with a•
soft, damp cloth. Never use substances
such as alcohol, chemicals or household
cleaners on the apparatus.
Never place any objects other than discs•
into the apparatus.
Never use solvents such as benzene,•
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Visible and invisible laser radiation when•
open. Avoid exposure to beam.
Risk of damage to the apparatus screen!•
Never touch, push, rub or strike the
screen with any object.
Caution
Use of controls or adjustments or•
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
EN

5
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment
and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
2011 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
English
EN

6
a
f
dec
b
lki
j
h
g
2 Your car audio
system
Congratulations on your purchase, and
welcome to Philips!To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the in-car audio system, you can enjoy
your drive while listening to:
FM or AM (MW) radio•
Audio from CD or MP3 disc•
Audio from a USB device•
Audio from external devices•

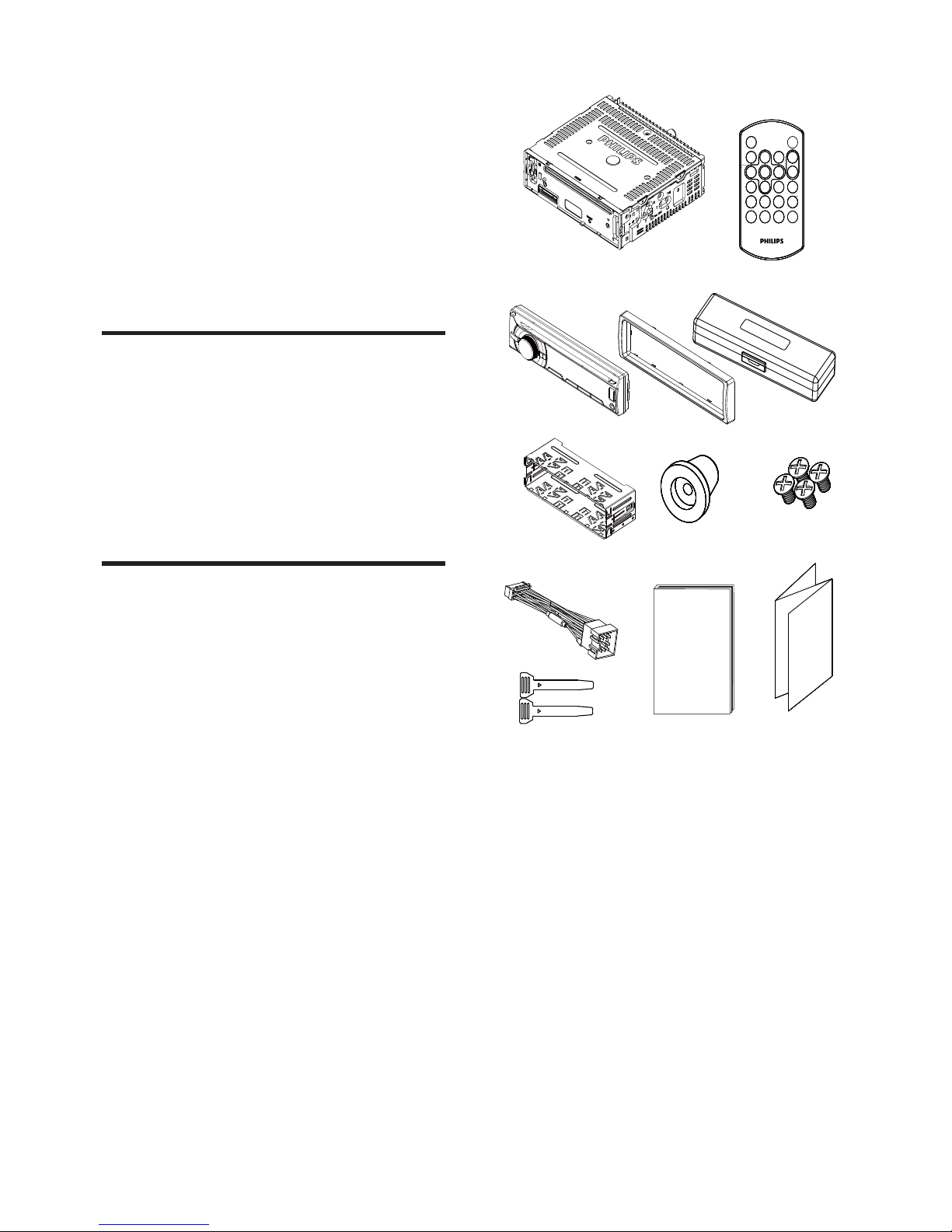

What’s in the box
Check and identify the contents of your
package:
aMain unit
bRemote control
cFront panel
dTrim plate
eCarrying case for front panel
fSleeve
gRubber cushion
hScrews x 4 pcs
iStandard ISO connector
jDisassembly tools x 2 pcs
kUser manual
lQuick start guide
EN

7
c/
Select tuner band.•
Select MP3/WMA folder.•
Scroll up/down menu.•

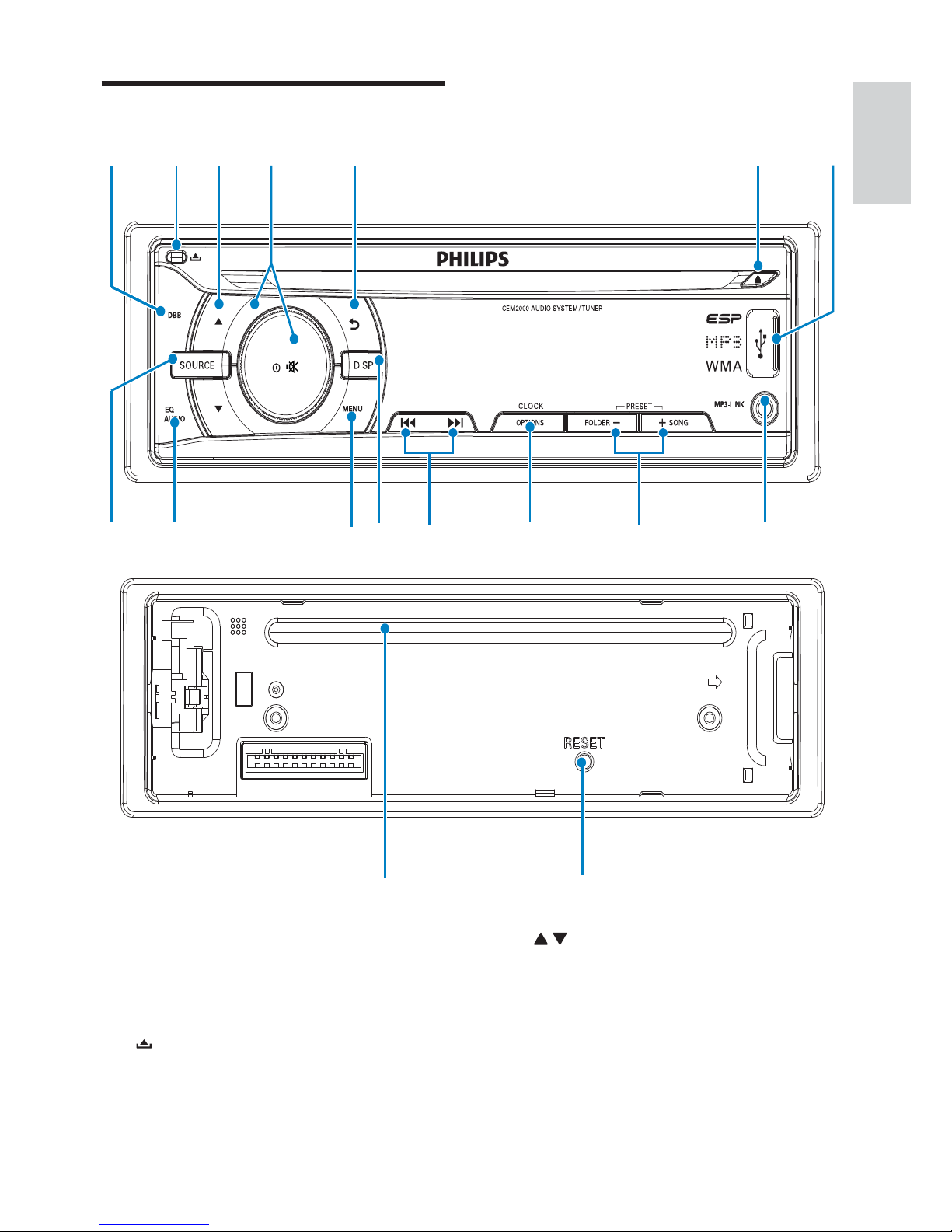

Overview of the main unit
aDBB/SUB-W
Turn on or off Dynamic Bass Boost•
(DBB) sound.
Turn on or off subwoofer.•
b
Unlock the panel.•
SUB-W
ml
n
o
h
j
g
f
ba e d
c
p
q
ki
English
EN

8

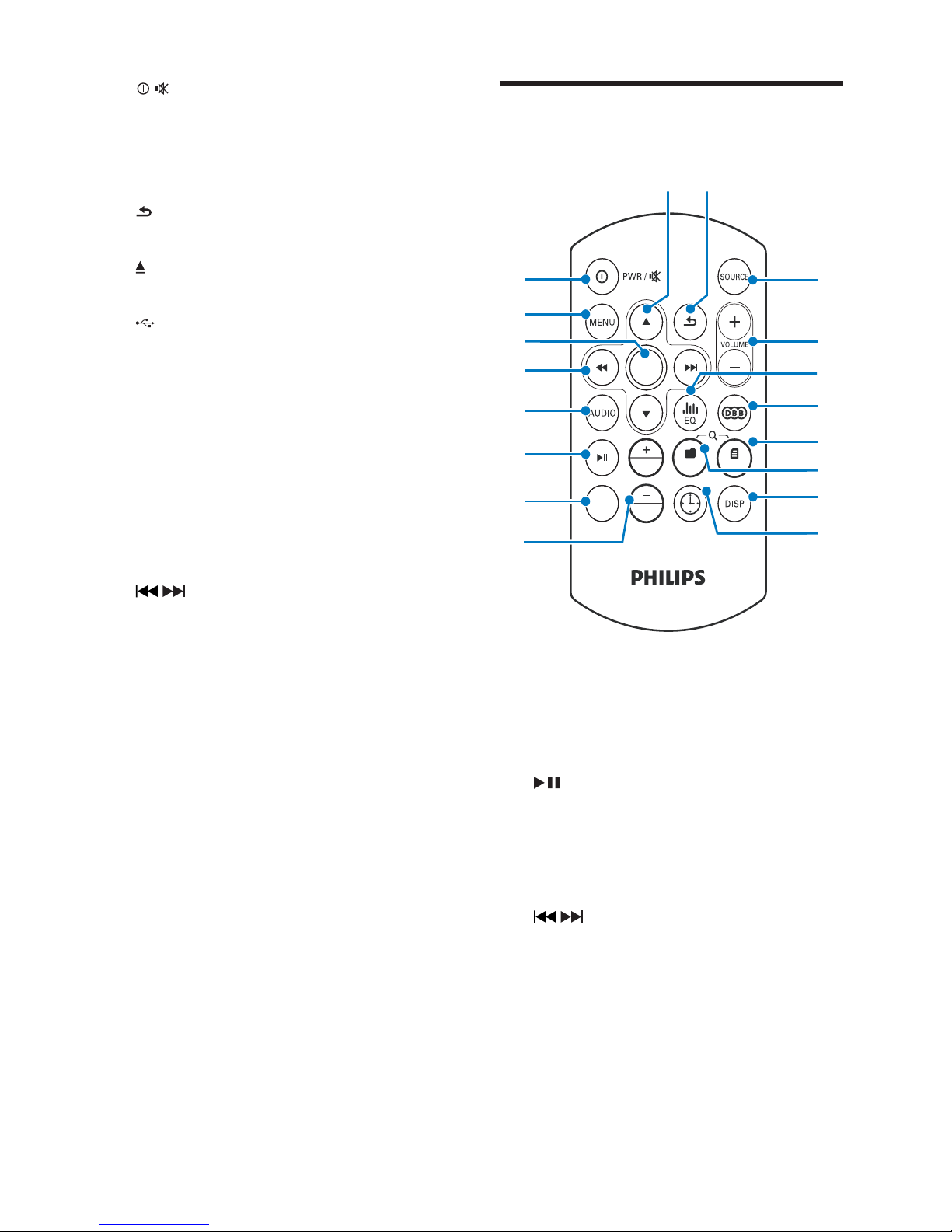

Overview of the remote
control
a+/PRESET/-/PRESET
Select preset radio station.•
bOPT
Access option menu.•
c
Start play.•
Pause or resume play.•
dAUDIO
Access audio setting menu.•
e/
Tune to a radio station•
Skip track.•
Fast backward/forward playback•
fOK
Confirm selection.•
gMENU
Access system menu.•
OPTIONS CLOCK
OK
PRESET
OP T
FOLDER SONG
PRESET
DISPLAY
SUB-W
h
g
d
e
f
c
b
n
o
p
q
r
l
m
k
j
i
a
d/
Turn the unit on or off.•
Confirm selection.•
Mute or unmute sound.•
Rotate to adjust volume.•
e
Return to previous menu.•
f
Eject disc.•
g
USB socket.•
hMP3 LINK
Connect external audio device.•
i+SONG/FOLDER -
Select preset radio station.•
Search for track/folder.•
jOPTIONS/CLOCK
Access option menu.•
View clock.•
k/
Tune for radio station.•
Skip/search for track.•
Fast forward/backward playback.•
lDISP
Display current status.•
mMENU
Access system menu.•
nEQ AUDIO
Select equalizer (EQ) setting.•
Access audio setting menu.•
oSOURCE
Select audio source.•
pRESET
Restore default settings.•
qDisc slot
EN

9
h/PWR/
Turn the unit on or off.•
Mute or restore volume.•
i/
Select tuner band.•
Scroll up/down menu.•
Select MP3/WMA folder.•
j
Return to previous/top menu.•
kSOURCE
Select audio source.•
lVOLUME +/-
Adjust volume.•
mEQ
Select equalizer (EQ) setting.•
nDBB/SUB-W
Turn on or off Dynamic Bass Boost•
(DBB) sound.
Turn on or off subwoofer.•
oSONG
Search for track.•
pFOLDER
Search for folder.•
qDISP
Display current status.•
rCLOCK
View clock.•
English
EN

10
Note on the power supply lead (yellow)
When you connect other devices to this•
apparatus, ensure that the rating of the
car circuit is higher than the total fuse
value of all the connected devices.
Notes on speaker connection
Never connect speaker wires to the•
metal body or chassis of the car.
Never connect speaker wires with stripes•
to one another.
Select country/region
Note
Select correct country/region for this unit,•
otherwise the unit can not work properly.
1Press to turn on the unit.
»[SELECT OPERATING REGION] is
displayed.
2Rotate to select an option:
[USA] (United States)•
[Latin] (Latin America)•
[Europe] (Western Europe)•
[ASIA] (Asia Pacific)•
[Mid-East ] (Middle East)•
[Russia] (Russia)•
3Press to confirm.
Connection: for cars with ISO
connectors
Caution
Ensure that all loose leads are insulated with•
electrical tape.
1Pull out the ISO connectors from car
dashboard and connect them to the
bigger end of the supplied standard
connector.
3 Get started
Caution
Use the controls only as stated in this user•
manual.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of your apparatus.The
model number and serial number are on the
bottom of your apparatus.Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
This unit is designed for negative ground•
(earth) 12 V DC operation only.
Always install this unit in the car dashboard.•
Other locations can be dangerous as the rear
of the unit heats up during use.
To avoid short-circuit: before you connect,•
ensure that the ignition is off.
Ensure that you connect the yellow and red•
power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with•
electrical tape.
Ensure that the leads do not get caught under•
screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to•
a common ground (earth) point.
Use only the supplied mounting hardware for a•
safe and secure installation.
Improper fuses can cause damage or fire.•
When you need to change the fuse, consult a
professional.
EN

11
4 REAR LINE
OUT R (Socket)
Rear right
speaker
5 REAR LINE
OUT L (Socket)
Rear left
speaker
6 SUBWOOFER Subwoofer

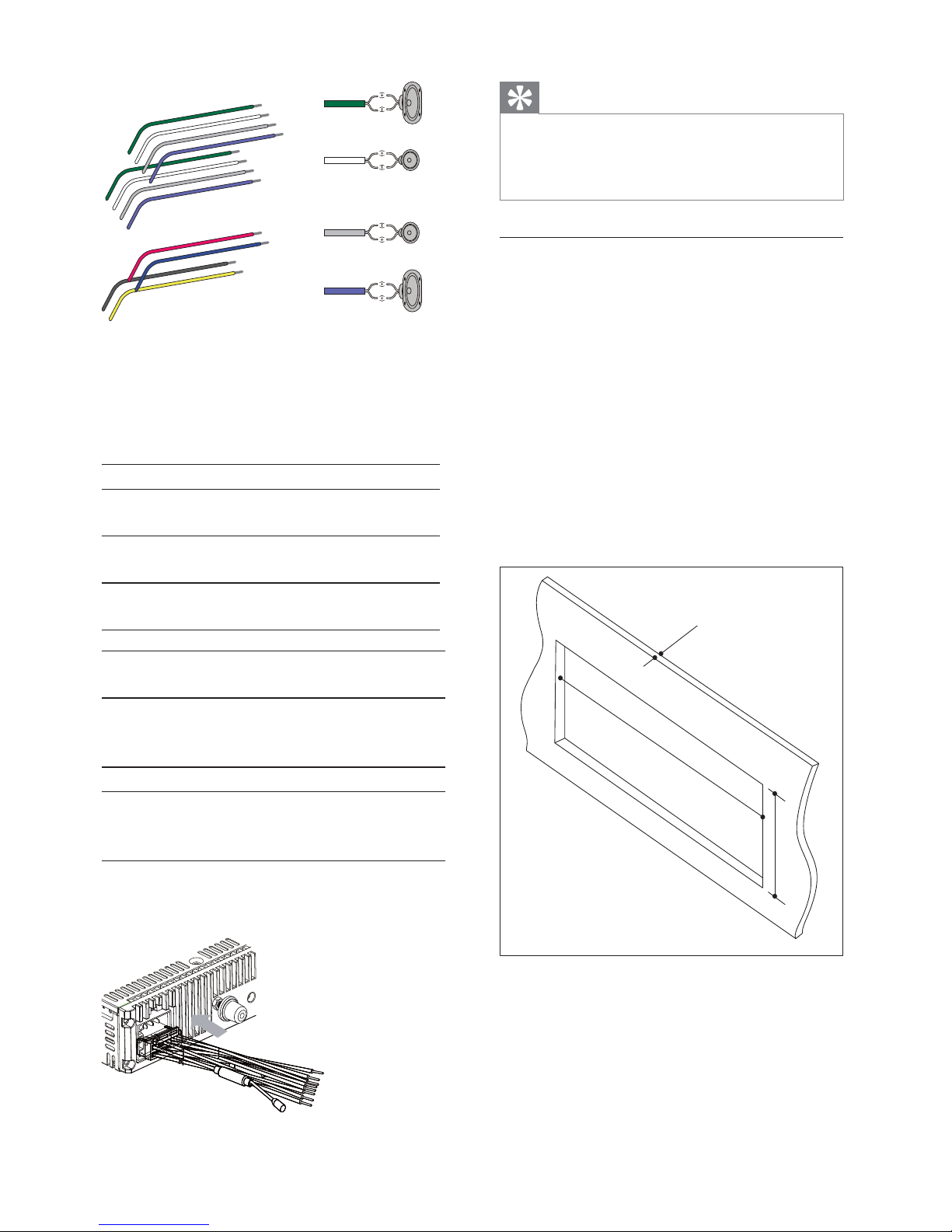

Connection: for cars without ISO
connectors
Caution
Be sure to connect the black ground (earth)•
lead first.
1Connect the antenna and amplifier as
illustrated, if applicable.
Connector Connect to
1 ANTENNA Antenna
2FRONTLINE
OUT R (Socket)
Front right
speaker
3FRONTLINE
OUT L (Socket)
Front left
speaker
4 REAR LINE
OUT R (Socket)
Rear right
speaker
5 REAR LINE
OUT L (Socket)
Rear left
speaker
6 SUBWOOFER Subwoofer
2Connect the other end of the supplied
standard connector to the unit.
3Connect the antenna and amplifier as
illustrated, if applicable. You can connect
the car audio to the amplifier through
RCA-TO-RCA cables (not supplied).
Connector Connect to
1 ANTENNA Antenna
2FRONTLINE
OUT R (Socket)
Front right
speaker
3FRONTLINE
OUT L (Socket)
Front left
speaker
English
EN

12
Tip
The pin arrangement for the ISO connectors•
depends on the type of vehicle you drive. Be
sure to make proper connections to prevent
damage to the unit.
Mount into the dashboard
1If the car does not have an on-board
drive or navigation computer, disconnect
the negative terminal of the car battery.
If you disconnect the car battery in•
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.
If the car battery is not disconnected,•
to avoid short-circuit, ensure that the
bare wires do not touch each other.
2Ensure that car dashboard opening is
within these measurements:
3Remove the two screws on the top of the
unit.
183 mm
53.5mm
5mm
2Cut off the bigger end of the supplied
standard connector.
3Check the car’s wiring carefully and
connect them to the supplied standard
connector.
1 Green/black strip Left speaker (Rear)
2 White/black strip Left speaker
(Front)
3 Gray/black strip Right speaker
(Front)
4 Purple/black strip Right speaker
(Rear)
e RED Ignition key +12V DC when
ON/ACC
f BLUE Motor/electric antenna relay
control lead/Amplifier relay
control lead
gBLACKGround
h YELLOW To the +12V car battery
which is energized at all
times
4Connect the supplied standard connector
to the unit.
b
a
c
d
aa
bcd
ab
ef
cd
gh
b
c
d
EN

13

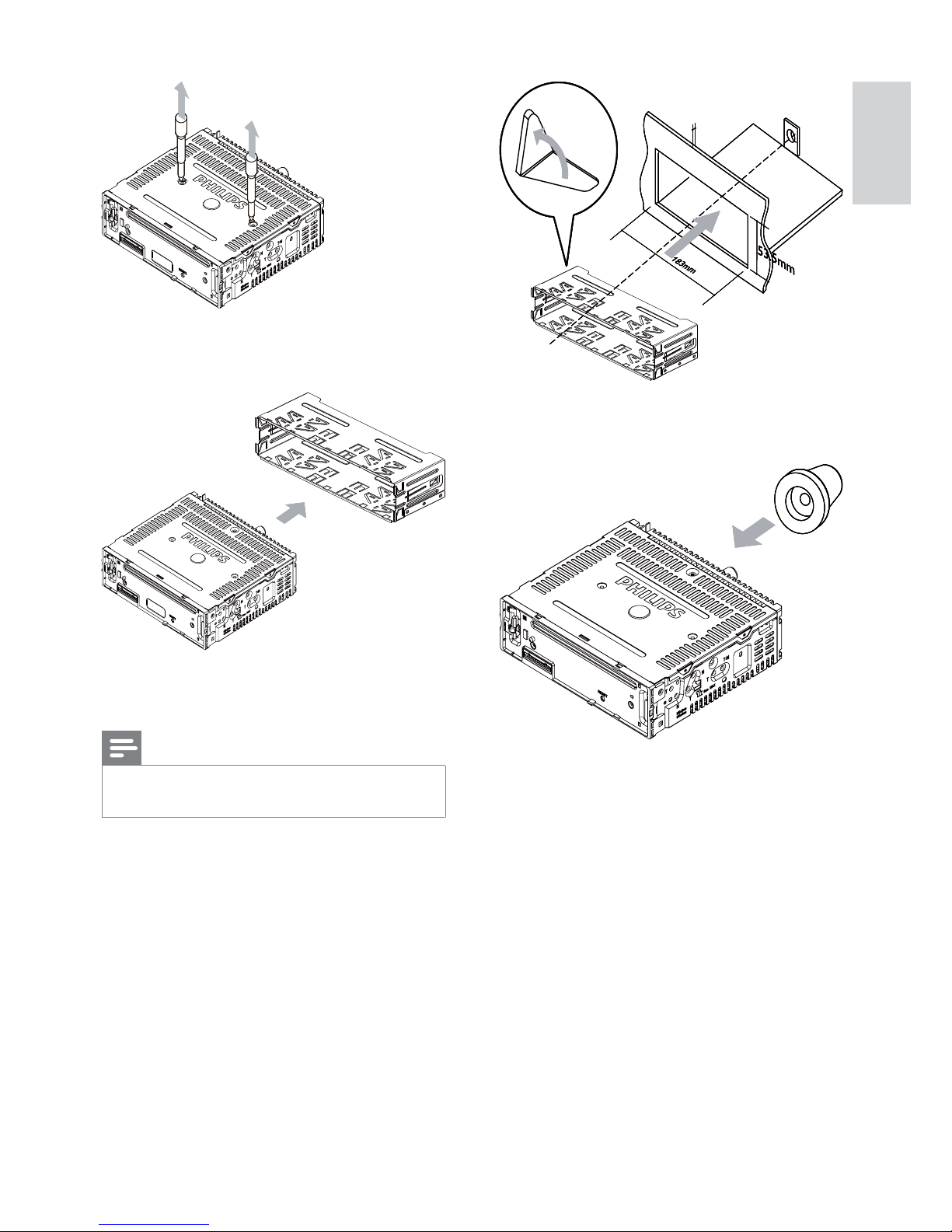

6Place the supplied rubber cushion over
the end of the mounting bolt.
7Slide the unit into the dashboard until you
hear a click sound.
5mm5mm5mm5mm
4Remove the mounting sleeve with the
supplied disassembly tools.
5Install the sleeve into the dashboard and
bend the tabs outward to fix the sleeve.
Note
If the unit is not fixed by sleeve but by the•
supplied screws, skip this step.
English
EN

14
Install remote control battery
Caution
Risk of explosion! Keep batteries away from•
heat, sunshine or fire. Never discard batteries
in fire.
Risk of decreased battery life! Never mix•
different brands or types of batteries.
Risk of product damage! When the remote•
control is not used for long periods, remove
the batteries.
Perchlorate Material - special handling may•
apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate.
For first-time use:
1Remove the protective tab to activate the
remote control battery.
To replace the remote control battery:
1Open the battery compartment.
2Insert one CR2025 battery with correct
polarity (+/-) as indicated.
3Close the battery compartment.
Turn on
1Press to turn on the unit.
To turn off the unit, press• for over
3 seconds.
8Reconnect the negative terminal of the
car battery.
Attach the front panel
1Attach the trim plate.
2Insert the right side of the panel in the
chassis until it is correctly engaged.
3Press the left side of the panel until the
mechanism locks it into place.
5mm
EN

15
Set clock
1Press MENU.
2Press or repeatedly until currently
time is displayed.
3Turn clockwise to set hour.
4Press to confirm.
5Turn anti-clockwise to set minute.
6Press to confirm.
View clock
1Press and hold OPTIONS repeatedly
until the clock is displayed.
English
EN

16
[• LOCAL SEEK OFF] (local seek
off): Stations with strong and weak
signals can be broadcast.
Store radio stations in
memory
You can store up to 6 stations in each band.
Store stations automatically
1Press OPTIONS repeatedly until AUTO-
SCAN is displayed, then press to
confirm.
The six strongest stations of the»
selected band are saved in preset
channel automatically: FM1,FM2,FM3
1-6, AM1, AM2.
Store stations manually
1Tune to a station that you want to
store.(see ‘Tune to a radio station’ )
2Press and hold +/PRESET or -/PRESET
until the preset number blinks on the
screen.
3Press +/PRESET or -/PRESET to select
radio channel.
4Press to confirm.
The station is saved in the selected»
channel.
The preset number on LCD screen»
lights up and remains on.
Tune to a preset station
1Press or to select band.
2Press +/PRESET or -/PRESET to select
the preset station.
4 Listen to radio
Tune to a radio station
1Press SOURCE repeatedly to select
Tuner.
2Press or to select band: [FM1],
[FM2], [FM3], [AM1], or [AM2] .
3Press and hold or for more than
4 seconds to tune to a radio station
manually.
The radio station is broadcasted.»
To search for a radio station»
automatically, press and hold or
for 2 to 4 seconds.
Select tuner region
You can select suitable country/region of the
radio.
1Press SOURCE to select Radio mode.
2Press MENU repeatedly to select region.
3Rotate to select an option:
[USA] (United States)•
[Latin] (Latin America)•
[Europe] (Western Europe)•
[ASIA] (Asia Pacific)•
[Mid-East ] (Middle East)•
[Russia] (Russia)•
4Press to confirm.
Select tuner sensitivity
To receive more radio stations or only
stations with strong signal, you can adjust the
tuner sensitivity.
1Press OPTIONS repeatedly until
[LOCAL] or [DX] is displayed.
2Rotate to select a setting:
[• LOCAL SEEK ON] (local seek on):
Only stations with strong signal can
be broadcast.
EN

17
7CULTURE Culture, religion
and society
8SCIENCE Science
9VARIED Entertainment
programs
10 POP M Pop music
11 ROCK M Rock music
12 EASY M Light music
13 LIGHT M Light classical
music
14 CLASSICS Classical music
15 OTHER M Special music
programs
16 WEATHER Weather
17 FINANCE Finance
18 CHILDREN Children’s
programs
19 SOCIAL Social Affairs
20 RELIGION Religion
21 PHONE IN Phone In
22 TRAVEL Travel
23 LEISURE Leisure
24 JAZZ Jazz Music
25 COUNTRY Country Music
26 NATION M National Music
27 OLDIES Oldies Music
28 FOLK M Folk Music
29 DOCUMENT Documentary
30 TEST Alarm Test
31 ALARM Alarm
Select alternate frequencies
If the radio signal is poor, turn on AF (Alternate
Frequency) to search for another station with
stronger signal.
1Press MENU or OPTIONS.
2Press or repeatedly until [AF] is
displayed.
3Rotate to select a setting:
• [AF ON]: Turn on the AF mode.
5 Play with RDS
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, an RDS icon (AF/TA/LOCAL) and the
station name are displayed.
Turn on RDS
Note
The default setting for RDS is on.•
1Press MENU for over 3 seconds.
2Rotate to select RDS ON:
The RDS function is turned on.»
Select program type
Before tuning to RDS stations, you can select
program type and let the unit search only for
programs of the selected category.
1Press OPTIONS until [PTY] is displayed.
2Turn to select a type, then press to
confirm.
Item Program type Description
1 NEWS News services
2 AFFAIRS Politics and
current affairs
3 INFO Special
information
programs
4 SPORT Sports
5 EDUCATE Education
and advanced
training
6 DRAMA Radio plays and
literature
English
EN

18
Tip
When a traffic announcement cuts in, user•
can short press to terminate the traffic
announcement, and the unit will resume to
previous playback mode.
Set RDS clock
You can use time signal that is broadcast
together with the RDS signal to set the clock of
the unit automatically.
1Press MENU.
2Press or repeatedly until [CT] is
displayed.
3Rotate to select a setting:
• [CT ON]: Turn on the RDS clock.
Time shown on the unit synchronizes
with that on the RDS station.
• [CT OFF]: Turn off the RDS clock.
Tip
The accuracy of the transmitted time depends•
on the RDS station that transmits the time
signal.
• [AF OFF]: Turn off the AF mode.
Set region for AF tuning
You can define AF tuning region:
[REG
ON]
Only stations in current region
can be tuned to automatically.
[REG
OFF]
All stations can be tuned to
automatically.
1Press MENU.
2Press or repeatedly until [REG]
(Regional Radio) is displayed.
3Rotate to select a setting.
Receive traffic announcement
If you do not want to miss traffic
announcement when enjoying music, turn on
the TA (Traffic Announcement) function.
1Press MENU or OPTIONS.
2Press or repeatedly until [TA] is
displayed.
3Rotate to select a setting:
• [TA ON]: When there is traffic
announcement, the unit switches
to the tuner mode (regardless of
the current mode) and begins to
broadcast the traffic conditions.
When the traffic announcement
is over, it returns to the previous
mode.
• [TA OFF]: Traffic announcement
does not cut in.
Note
If the current received TA signal remains weak•
for over 120 seconds, the unit will activate TA
Seek mode automatically. The TA Seek will
seek for other station with good condition of
TA signal.
EN

19

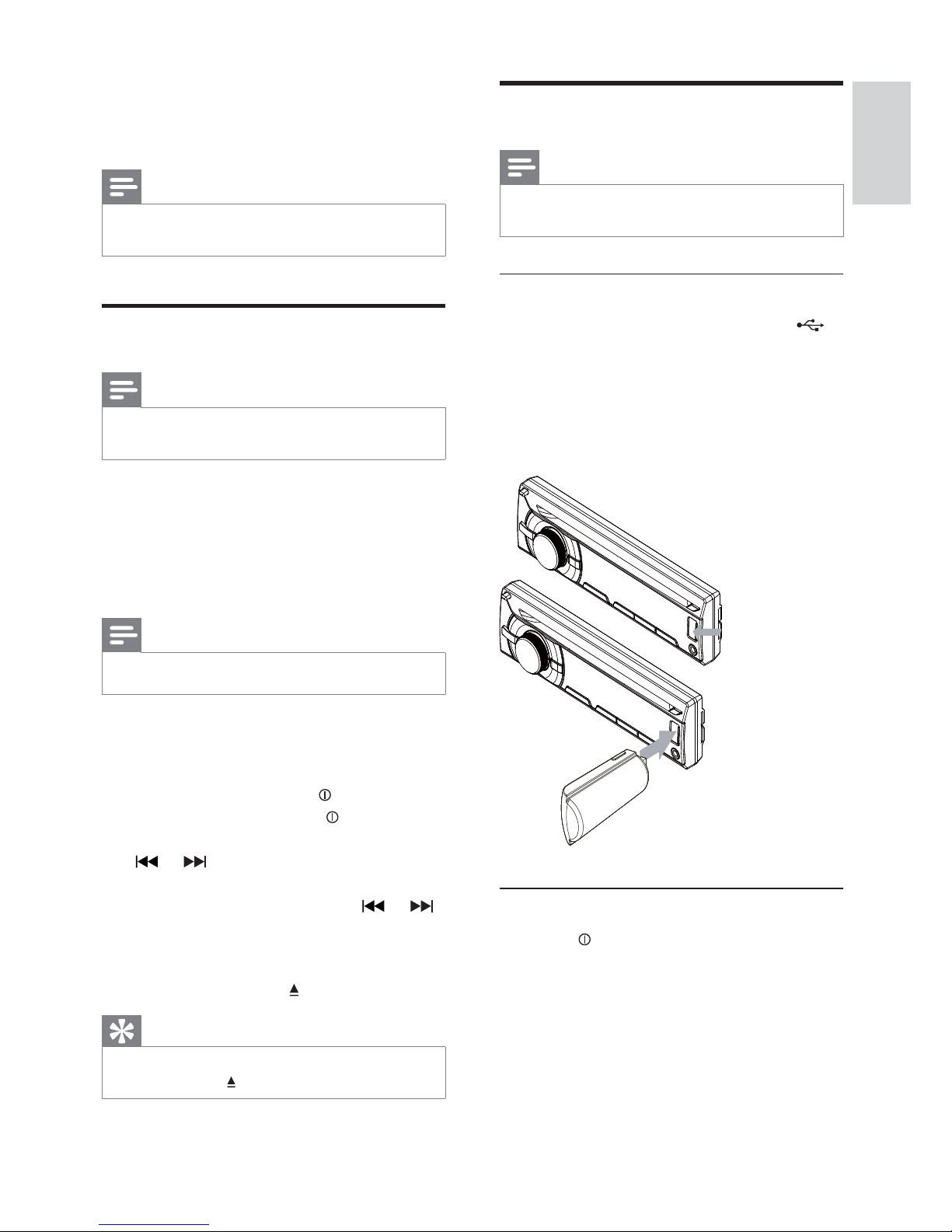

Play from USB
Note
Ensure that the USB device contains playable•
music.
Insert the USB device
1Slide the USB socket cover marked
to the left.
2Insert the USB device into the USB
socket.
The unit starts playing from the USB»
device automatically.
Remove the USB device
1Press to turn off the unit.
2Remove the USB device.
6 Play audio files
Note
Ensure that the disc or device contains playable•
files.
Play a disc
Note
You cannot play CDs encoded with copyright•
protection technologies.
You can play commercially available audio CDs
and these discs:
CD-Recordables (CD-R)•
CD-Re-writables (CD-RW)•
MP3 CDs•
WMA CDs•
Note
Ensure that the disc contains playable content.•
1Insert a CD with the printed side facing
up.
Play starts automatically.»
To pause CD play, press• .
To resume CD play, press• again.
To skip to the previous/next track, press•
or .
To search backward/forward rapidly•
within the current track, press or
for 3 seconds.
Remove the CD
To take out the CD, press on the front panel.
Tip
If the disc is blocked in the disc compartment,•
press and hold until the disc comes out.
English
EN

20
• [RPT TRK] (repeat one track): play
current track repeatedly.
• [RPT DIR] (repeat a folder): play all tracks
in the current folder repeatedly.
• [RPT ALL] (repeat all tracks): play all
tracks repeatedly.
Shuffle play
You can play the tracks in random order:
1During play, press OPTIONS repeatedly
until [SHUF] is displayed.
2Rotate to select a setting:
• [SHUF ON]: start shuffle play for all
tracks.
• [SHUF OFF]: cancel shuffle play.
Intro play
You can play the first 10 seconds of each track.
1During play, press OPTIONS repeatedly
until [INT] is displayed:
2Rotate to select a setting:
• [INT ON] : After the first 10
seconds of each track have been
played, play stops.
• [INT OFF] : Cancel intro play and
start normal play.
Connect external sound
source
1Connect the external sound source to
MP3 LINK socket with a 3.5 mm cable.
2Press SOURCE repeatedly until [MP3
LINK] is displayed.
3Operate the external component (refer
to the instructions supplied with the
external component).
Search for an MP3/WMA
track
Search within the current folder
1Press +SONG.
The name of the current track is»
displayed.
2Turn to select anther track in current
folder
3Press to confirm.
Search in other folder
1Press FOLDER -.
The name of the current folder is»
displayed.
2Rotate to navigate through all folders.
3Press to access the selected folder.
4Rotate to select a track in the folder.
5Press to start play.
Tip
To go back to upper level of a folder, press• .
View play information
1During playing, press DISP repeatedly to
view:
Track number and elapsed play time•
Artist•
Album•
Title•
Folder•
File•
Repeat play
1During play, press OPTIONS repeatedly
until [REP] is displayed.
2Rotate to select a setting.
EN

21
Select preset equalizer
1Press EQ/Audio.
Current Equalizer setting is displayed.»
2Press EQ/Audio again to select a preset
EQ setting:
• [OPTIMAL] (optimal)
• [FLAT] (flat)
• [POP] (pop)
• [USER] (user)
• [TECHNO] (techno)
• [ROCK] (rock)
• [CLASSIC] (classic)
• [JAZZ] (jazz)
Other sound settings
You can also adjust the preset EQ/Audio
settings.
1Press EQ/Audio for 3 seconds.
2Press or repeatedly to select the
item to be adjusted:
• [BAS] (bass) range: -7 to +7.
• [TRE] (treble) range: -7 to +7.
• [BAL] (balance) range: 12L to 12R. (L
= left speaker, R = right speaker)
• [FAD] (fader) range: 12R to 12F. (R =
rear speaker, F = front speaker)
3Rotate to select a value.
7 Adjust sound
Adjust volume
1Turn clockwise/anticlockwise to
increase/decrease volume.
Mute
You can turn off the sound of your audio.
1During play, press .
To resume sound, press• again.
Turn DBB and subwoofer on/
off
1Press DBB, then the current setting is
displayed:
»[DBB ON] :The Dynamic Bass Boost
(DBB) function is on.
»[DBB OFF] :The DBB function is off.
2Press DBB again to change the DBB
setting.
3Press and hold DBB to access subwoofer
settings:
»[SUBWOOFER ON]:The subwoofer
function is on.
»[SUBWOOFER OFF]:The subwoofer
function is off.
English
EN
