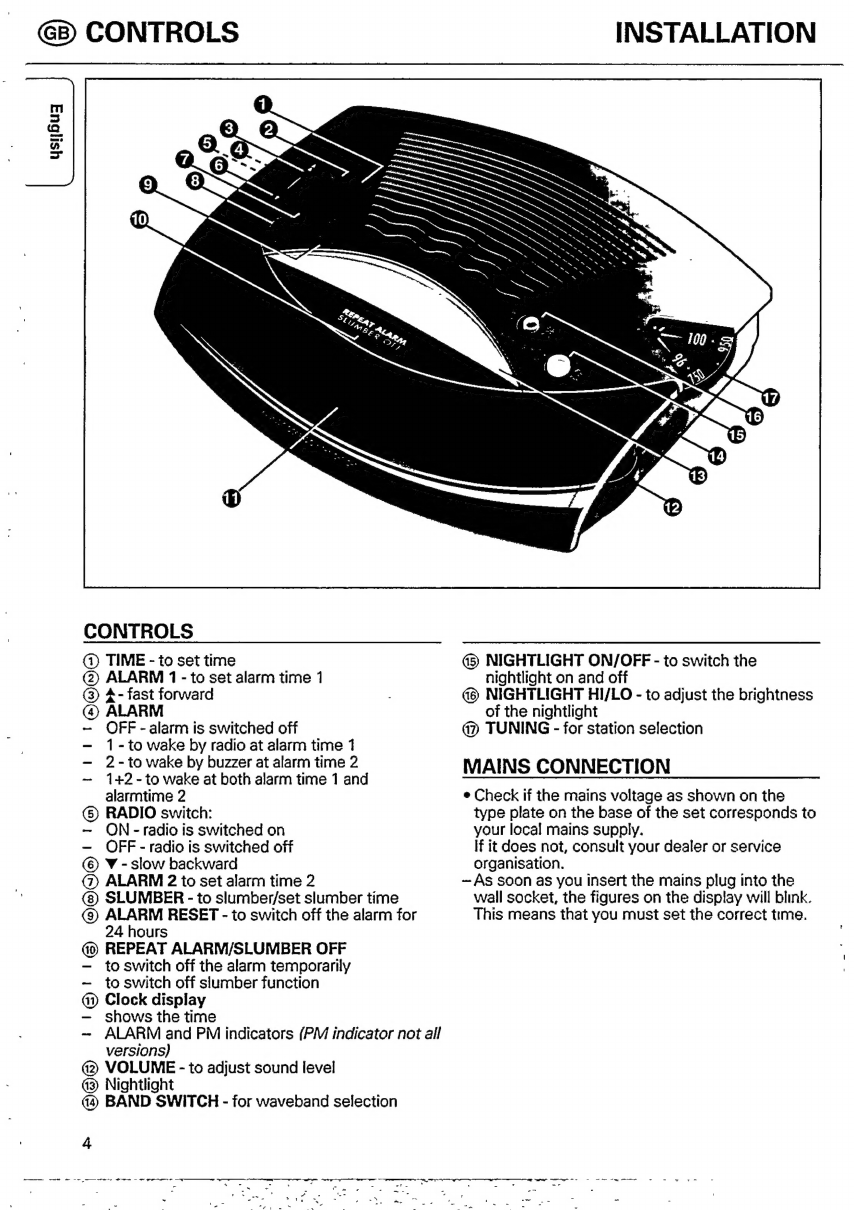

CONTROLS
ysi¡6uz
CONTROLS
(Y) TIME - to set time
© ALARM 1 - to set alarm time 1
© 4 - fast forward
®© ALARM
— OFF -alarm is switched off
— 1-to wake by radio at alarm time 1
— 2-to wake by buzzer at alarm time 2
— 1+2- to wake at both alarm time 1 and
alarmtime 2
(s) RADIO switch:
— ON -radio is switched on
— OFF - radio is switched off
(6) Y - slow backward
@ ALARM 2 to set alarm time 2
SLUMBER - to slumber/set slumber time
(@) ALARM RESET - to switch off the alarm for
24 hours
REPEAT ALARM/SLUMBER OFF
— to switch off the alarm temporarily
— to switch off slumber function
017 Clock display
— shows the time
— ALARM and PM indicators (PM indicator not all
versions)
(42) VOLUME - to adjust sound level
43) Nightlight
BAND SWITCH - for waveband selection
4
INSTALLATION
4 NIGHTLIGHT ON/OFF - to switch the
nightlight on and off
NIGHTLIGHT HI/LO - to adjust the brightness
of the nightlight
47 TUNING - for station selection

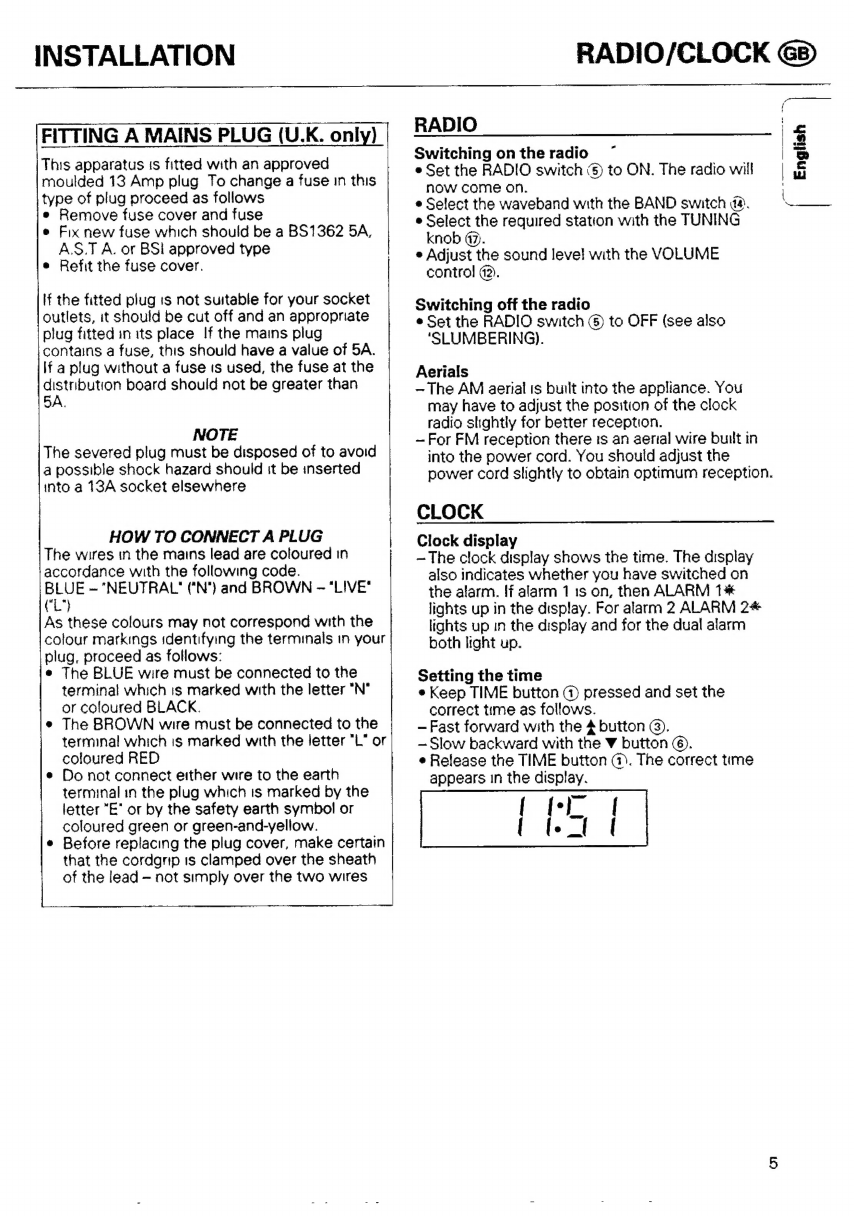

MAINS CONNECTION
e Check if the mains voltage as shown on the
type plate on the base of the set corresponds to
your local mains supply.
If it does not, consult your dealer or service
organisation.
— As soon as you insert the mains plug into the
wall socket, the figures on the display will blink.
This means that you must set the correct time.

INSTALLATION
FITTING A MAINS PLUG (U.K. only)
This apparatus is fitted with an approved
moulded 13 Amp plug To change a fuse in this
type of plug proceed as follows
e Remove fuse cover and fuse
e Fix new fuse which should be a BS1362 5A,
A.S.T A. or BSI approved type
e Refit the fuse cover.
if the fitted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug fitted in its place If the mains plug
contains a fuse, this should have a value of 5A.
If a plug without a fuse is used, the fuse at the
ee board should not be greater than
SA.
NOTE
The severed plug must be disposed of to avoid
a possible shock hazard should it be inserted
into a 13A socket elsewhere
HOW TO CONNECT A PLUG
The wires in the mains lead are coloured in
accordance with the following code.
BLUE ~ “NEUTRAL CN") and BROWN - "LIVE"
CL)
As these colours may not correspond with the
colour markings identifying the terminals in your
plug. proceed as follows:
e The BLUE wire must be connected to the
terminal which is marked with the letter "N"
or coloured BLACK.
e The BROWN wire must be connected to the
terminal which is marked with the letter "L" or
coloured RED
e Do not connect either wire to the earth
terminal in the plug which ts marked by the
letter "E` or by the safety earth symbol or
coloured green or green-and-yellow.
e° Before replacing the plug cover, make certain
that the cordgrip is clamped over the sheath
of the lead — not simply over the two wires
RADIO/CLOCK
RADIO
Switching on the radio ~
e Set the RADIO switch © to ON. The radio will
now come on.
e Select the waveband with the BAND switch de.
e Select the required station with the TUNING
knob 07.
e Adjust the sound level with the VOLUME
control 42.
Switching off the radio
e Set the RADIO switch © to OFF (see also
‘SLUMBERING).
Aerials
-The AM aerial is built into the appliance. You
may have to adjust the position of the clock
radio slightly for better reception.
— For FM reception there ts an aerial wire built in
into the power cord. You should adjust the
power cord slightly to obtain optimum reception.
CLOCK
Clock display
—The clock display shows the time. The display
also indicates whether you have switched on
the alarm. If alarm 1 1s on, then ALARM 1%
lights up in the display. For alarm 2 ALARM 2%
lights up in the display and for the dual alarm
both light up.
Setting the time
e Keep TIME button 7 pressed and set the
correct time as follows.
— Fast forward with the 4 button ©).
— Slow backward with the Y button ©.
e Release the TIME button (4). The correct time
appears in the display.
H
t
|
|
|
|
l
—
English
A B —F—

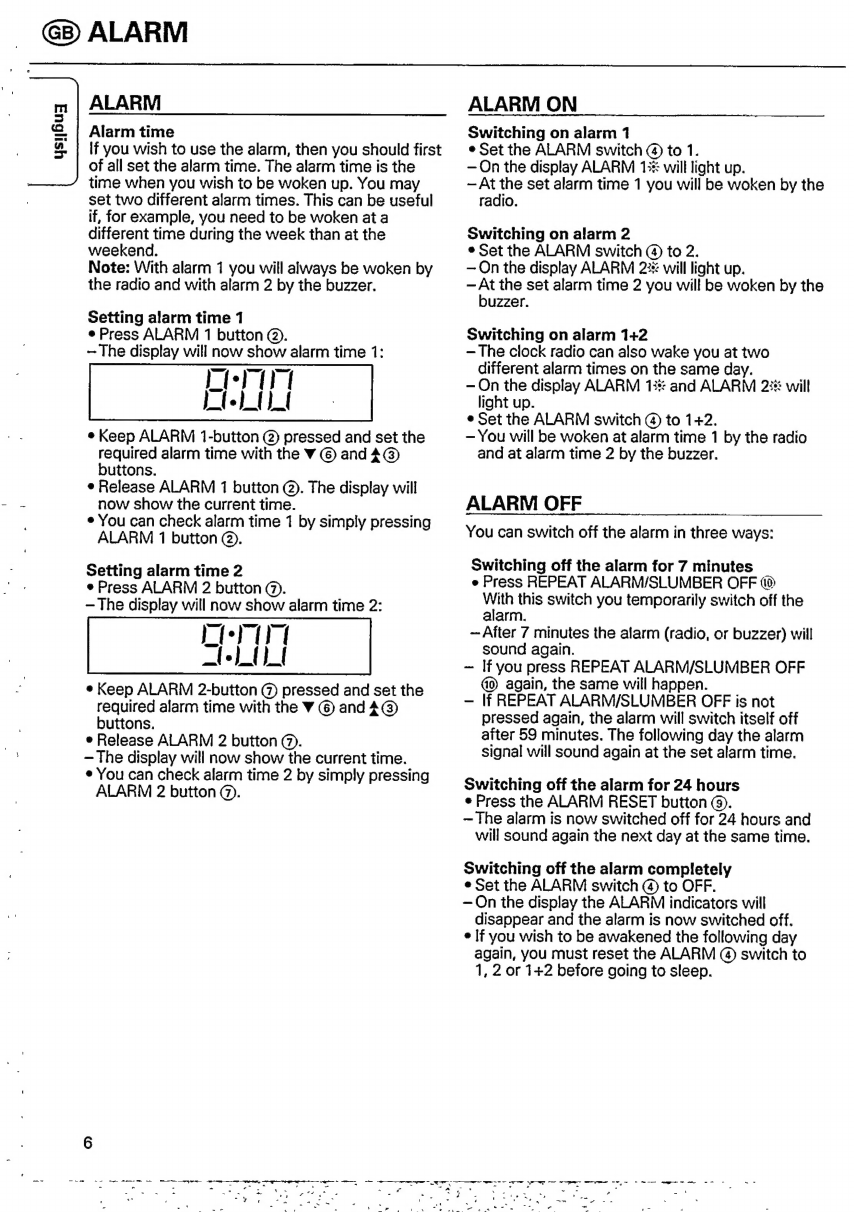

68 ALARM
ysi¡buy
ALARM
Alarm time
if you wish to use the alarm, then you should first
of all set the alarm time. The alarm time is the
time when you wish to be woken up. You may
set two different alarm times. This can be useful
if, for example, you need to be woken ata
different time during the week than at the
weekend.
Note: With alarm 1 you will always be woken by
the radio and with alarm 2 by the buzzer.
Setting alarm time 1
e Press ALARM 1 button ©.
-The display will now show alarm time 1:
e Keep ALARM 1-button @ pressed and set the
required alarm time with the Y © and í @
buttons.
e Release ALARM 1 button ©. The display will
now show the current time.
e You can check alarm time 1 by simply pressing
ALARM 1 button ©.
Setting alarm time 2
e Press ALARM 2 button @).
— The display will now show alarm time 2:
e Keep ALARM 2-button @ pressed and set the
required alarm time with the Y © and 4G)
buttons.
e Release ALARM 2 button @).
— The display will now show the current time.
e You can check alarm time 2 by simply pressing
ALARM 2 button ©.
6
- -æ -= — Bema — ma aE ——— O a I = a = _ yor a a Sd
> ` U ` - ~ m
- ” - - r P ` -
~
i -y f
ALARM ON
Switching on alarm 1
e Set the ALARM switch @ to 1.
— On the display ALARM 13% will light up.
— At the set alarm time 1 you will be woken by the
radio.
Switching on alarm 2
e Set the ALARM switch (a) to 2.
— On the display ALARM 22% will light up.
— At the set alarm time 2 you will be woken by the
buzzer.
Switching on alarm 1+2
— The clock radio can also wake you at two
different alarm times on the same day.
— On the display ALARM 13% and ALARM 23% will
light up.
e Set the ALARM switch @ to 1+2.
— You will be woken at alarm time 1 by the radio
and at alarm time 2 by the buzzer.
ALARM OFF
You can switch off the alarm in three ways:
Switching off the alarm for 7 minutes
e Press REPEAT ALARM/SLUMBER OFF 4
With this switch you temporarily switch off the
alarm.
~ After 7 minutes the alarm (radio, or buzzer) will
sound again.
~ If you press REPEAT ALARM/SLUMBER OFF
again, the same will happen.
— lf REPEAT ALARM/SLUMBER OFF is not
pressed again, the alarm will switch itself off
after 59 minutes. The following day the alarm
signal will sound again at the set alarm time.
Switching off the alarm for 24 hours
e Press the ALARM RESET button ©.
— The alarm is now switched off for 24 hours and
will sound again the next day at the same time.
Switching off the alarm completely
e Set the ALARM switch © to OFF.
— On the display the ALARM indicators will
disappear and the alarm is now switched off.
e If you wish to be awakened the following day
again, you must reset the ALARM @) switch to
1, 2 or 1+2 before going to sleep.
XA a -- -
A. s o--
~

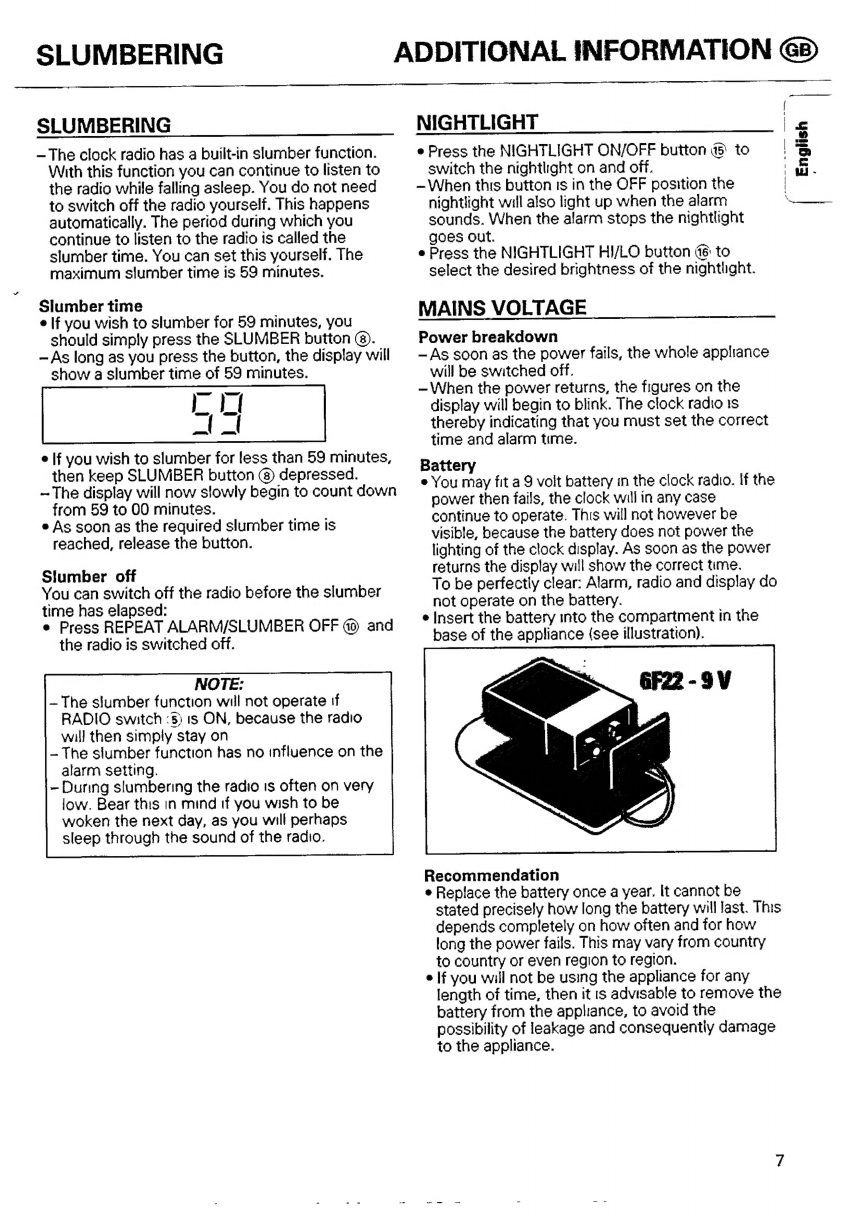

SLUMBERING
SLUMBERING
— The clock radio has a built-in slumber function.
With this function you can continue to listen to
the radio while falling asleep. You do not need
to switch off the radio yourself. This happens
automatically. The period during which you
continue to listen to the radio is called the
slumber time. You can set this yourself, The
maximum slumber time is 59 minutes.
Slumber time
elf you wish to slumber for 59 minutes, you
should simply press the SLUMBER button @.
— As long as you press the button, the display will
show a slumber time of 59 minutes.
e If you wish to slumber for less than 59 minutes,
then keep SLUMBER button (8) depressed.
— The display will now slowly begin to count down
from 59 to 00 minutes.
e As soon as the required slumber time is
reached, release the button.
Slumber off
You can switch off the radio before the slumber
time has elapsed:
e Press REPEAT ALARM/SLUMBER OFF áp and
the radio is switched off.
NOTE:
~The slumber function wil not operate tf
RADIO switch :5) is ON, because the radio
will then simply stay on
- The slumber function has no influence on the
alarm setting.
- During slumbering the radio is often on very
low. Bear this in mind if you wish to be
woken the next day, as you will perhaps
sleep through the sound of the radio.
NIGHTLIGHT
e Press the NIGHTLIGHT ON/OFF button @ to
switch the nightlight on and off.
— When this button is in the OFF position the
nightlight will also light up when the alarm
sounds. When the alarm stops the nightlight
goes out.
e Press the NIGHTLIGHT HI/LO button ás to
select the desired brightness of the nightlight.
MAINS VOLTAGE
Power breakdown
— As soon as the power fails, the whole appliance
will be switched off.
-When the power returns, the figures on the
display will begin to blink. The clock radio ts
thereby indicating that you must set the correct
time and alarm time.
Battery
e You may fit a 9 volt battery in the clock radio. If the
power then fails, the clock will in any case
continue to operate. This will not however be
visible, because the battery does not power the
lighting of the clock display. As soon as the power
returns the display will show the correct time.
To be perfectly clear: Alarm, radio and display do
not operate on the battery.
e Insert the battery into the compartment in the
base of the appliance (see illustration).
Recommendation
e Replace the battery once a year. It cannot be
stated precisely how long the battery will last. This
depends completely on how often and for how
long the power fails. This may vary from country
to country or even region to region.
e If you will not be using the appliance for any
length of time, then it is advisable to remove the
battery from the appliance, to avoid the
possibility of leakage and consequently damage
to the appliance.

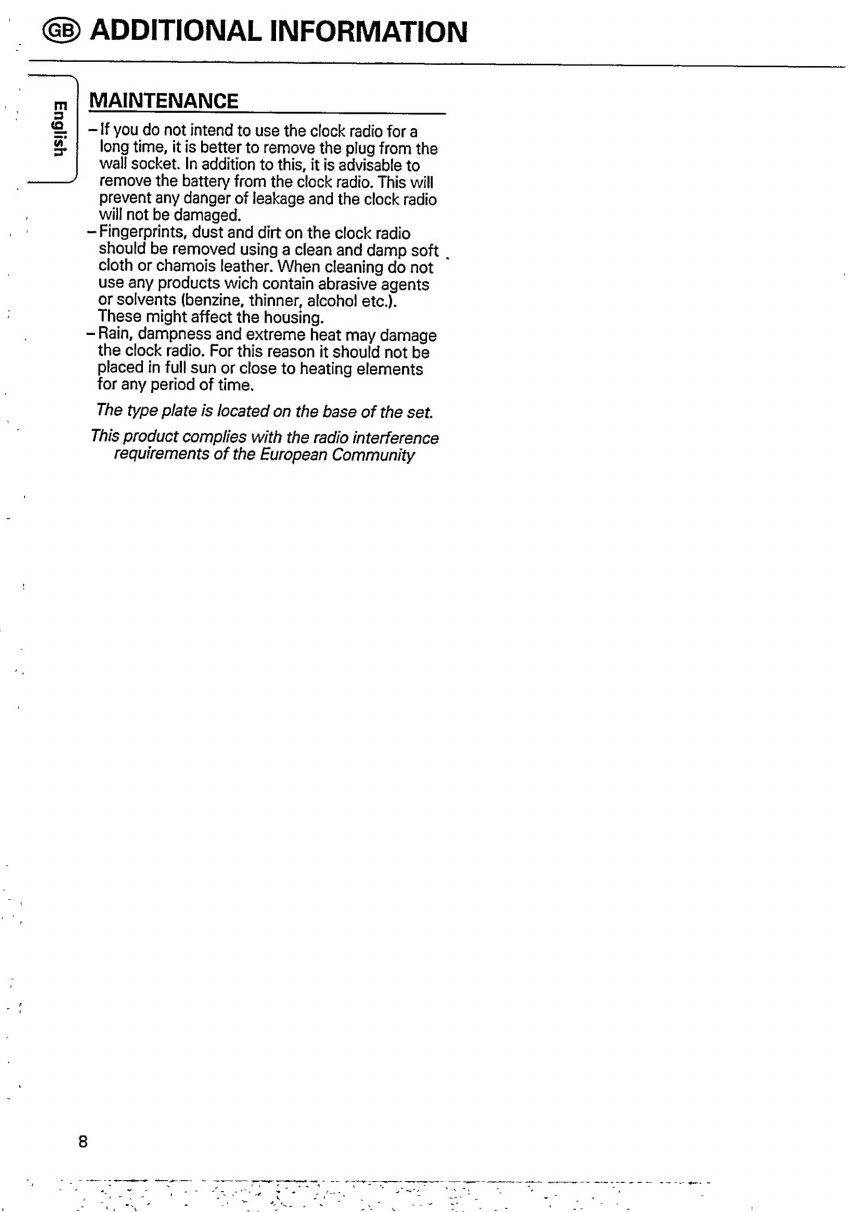

ADDITIONAL INFORMATION
English

7 ADDITIONAL INFORMATION
MAINTENANCE
-İf you do not intend to use the clock radio for a
long time, it is better to remove the plug from the
wall socket. In addition to this, it is advisable to
remove the battery from the clock radio. This will
prevent any danger of leakage and the clock radio
will not be damaged.
- Fingerprints, dust and dirt on the clock radio
should be removed using a clean and damp soft .
cloth or chamois leather. When cleaning do not
use any products wich contain abrasive agents
or solvents (benzine, thinner, alcohol etc.).
These might affect the housing.
- Rain, dampness and extreme heat may damage
the clock radio. For this reason it should not be
placed in full sun or close to heating elements
for any period of time.
The type plate is located on the base of the set.
This product complies with the radio interference
requirements of the European Community
ys!¡6uz
8
- -— -- +—— irr -o a —— T —— - Í +. F - —P J — — — — ee - e = =
<
x
E
1
A
E
imi
79
`
h
Sy
s
`
-
7
z
e ha a= -= OY ` - ada e me t - x.
' `> ` A ' ` = EE ==
w + Ñ - E ~ -
- d. c 5 = .. >
K P".
KK,

TROUBLESHOOTING
SYMPTOM POSSIBLE CAUSE REMEDY |
- The volume is not set to the
proper leve!
- The setting of the ALARM
switch s incorrect
— No sound
e Turn VOLUME 43 to adjust
the sound level.
e Set the ALARM switch @
properly
~ Broadcast cannot be received. | -Insufficient antenna input e Rotate the set for best
reception
- Norse from other electrical
equipment with thermostats
—In FM mode crackling sounds
occur from time to time
(especially in weak signal
areas)
e Adjust the power cord for
best reception
e Rotate the set for best
reception.
- In AM mode continuous
crackling and hiss noises
occur
- These noises are caused by
lightning, fluorescent lamps,
motors or engines,
thermostats and other
electrical equipment
- The set is used near a TV,
computer and so on
e Use the set apart from TV,
computer and so on
e Set the alarm time
e Set the correct time
- The alarm ts not set.
— The current time is not correct
— The alarm does not function

ys!¡6uz
Australia
Guarantee and Service valid for Australia
The benefits given to the purchaser by this
warranty are in addition to all other rights and
remedies, which, under the Trade Practices Act or
other Commonwealth or State law, the purchaser
or owner has in respect of the product.
The Philips product carries the following
warranties:
— C-series HiFi-systems 12 months.
— Compact Disc Players: 12 months.
— Home Audio Systems: 6 months.
— Clock radios, portable radios, cassette
recorders, cassette players and radio recorders:
90 days.
Any defect in materials or workmanship occurring
within the specified period from the date of
delivery, will be rectified free of charge by the
retailer from whom this product was purchased.
Note: Please retain your purchase docket to
assist prompt service.
Conditions of this warranty
1. All claims for warranty service must be made to
the retailer from whom this product was
purchased. All transport charges incurred in
connection with warranty service or
replacement will be paid by the purchaser.
2. These warranties do not cover batteries and
extend only to defects in materials or
workmanship occurring under normal use of
the product where operated in accordance with
our instructions.
Philips Consumer Products Division,
Technology Park,
Figtree Drive, Australia Centre,
Homebush 2140,
New South Wales
New Zealand NZ
Guarantee and Service for New Zwaland
Thank-you for purchasing this quality Philips
product.
Philips New Zealand Ltd guarantees this product
against defective components and faulty
workmanship for a period of 12 months. Any
defect in materials or workmanship occurring
within 12 months from the date of purchase
subject to the following conditions will be
rectified free of charge by the retailer from whom
this product was purchased.
Conditions
1. The product must have been purchased in New
Zealand. As proof of purchase, retain the
original sales docket.
2. The guarantee applies only to faults caused by
defective components, or faulty workmanship
on the part of the manufacturer.
3. The guarantee does not cover failures caused
by misuse, neglect, normal wear and tear,
accidental breakage, use on the incorrect
voltage, use contrary to operating instructions,
or unauthorised modification to the product or
repair by an unauthorised technician.
4. Reasonable evidence (in the form of a sales
docket) must be supplied to indicate that the
product was purchased no more than 12
months prior to the date of your claim.
5. In the event of a failure, Philips shall be under
no liability for any injury, or any loss or damage
caused to property or products other than the
product under guarantee.
This guarantee does not prejudice your rights
under common law and statute, and is in addition
to the normal responsibilities of the retailer and
Philips.
How to claim
Should your Philips product fail within the
guarantee period, please return it to the retailer
from whom it was purchased. In most cases the
retailer will be able to satisfactorily repair or
replace the product.
However, should the retailer not be able to
conclude the matter satisfactorily, or if you have
other difficulties claiming under this guarantee,
please contact
The Guarantee Contro!ler,
Philips New Zealand Ltd.
4 P.O. Box 41.021
Auckland
2109) 84 94 160
fax T'(09) 84 97 858

3140 105 2044 2
.- —- — = —— k — —- A m — — —— = — — o - w r —— -
` s: r ao À
- Pao - E 5 d a Maigi
- = `
N
`
Kwe
x N
“sa
E
Printed in Hong Kong
T ¿ww
tss 4
DI
TC text/RRO793/1
Ga gs,
w— J w o-
