Philips Allegiant LTC 8500 Series User manual

Alle
g
iant
®
Microprocessor-Based Video
Switcher/Control S
y
stems
LTC 8500 Series
LTC 8600 Series
LTC 8800 Series
Philips
Communication &
Securit
y
S
y
stems

This Instruction Book refers to “TC- prefix” model designations. Use this cross-reference to find the new
corresponding “LTC-prefix” model numbers. A revised instruction book will be printed at a later date.
LTC 8900 TC Allegiant®Microprocessor-Based Video Switcher/Control Systems
LTC 8901/00 ---- Equipment Rack, for LTC 8901 Bay
LTC 8905/90 ---- Power Supply, 120/220VAC, 50/60Hz
LTC 8910/00 ---- CPU Module for LTC 8901 Bay
LTC 8917/00 ---- Relay ("Hot Switch") Module, For LTC 8901 Bay
LTC 8901/60 ---- CPU Equipment Bay, 120V, 60Hz. Includes: 1 LTC 8901/00, 2 LTC 8905/90, 2 LTC 8910/00, & 1 LTC 8917/00
LTC 8901/50 ---- CPU Equipment Bay, 220V, 50Hz. Includes: 1 LTC 8901/00, 2 LTC 8905/90, 2 LTC 8910/00, & 1 LTC 8917/00
LTC 8902/00 ---- Equipment Rack, for LTC 8902 Bay
LTC 8916/00 ---- Data Receiver Module, for LTC 8902 Bay
LTC 8902/60 ---- Monitor Output Equipment Bay, 120V, 60Hz. Includes: 1 LTC 8902/00, 1 LTC 8805/60 & 1 LTC 8916/00
LTC 8902/50 ---- Monitor Output Equipment Bay, 220V, 50Hz. Includes: 1 LTC 8902/00, 1 LTC 8805/50 & 1 LTC 8916/00
LTC 8903/00 ---- Equipment Rack, for LTC 8903 Bay
LTC 8918/00 ---- Data Receiver Module, for LTC 8903 Bay
LTC 8903/60 ---- Camera Input Equipment Bay, 120V, 60Hz. Includes: 1 LTC 8903/00, 1 LTC 8805/60 & 1 LTC 8918/00
LTC 8903/50 ---- Camera Input Equipment Bay, 220V, 50Hz. Includes: 1 LTC8 903/00, 1 LTC 8805/50 & 1 LTC 8918/00
LTC 8921/00 ---- Video Input Module, for LTC 8900 System
LTC 8934/00 ---- Video Output Module, for LTC 8900 System
LTC 8941/90 ---- PC Package. Includes 1 LTC 8943/90, 2 LTC 8945/90, 1 Monitor, Misc. Cables, 120/220V, 50/60Hz
LTC 8943/90 ---- PC, Pentium, 120MHz, 40M RAM, 1.6G Drive, Windows NT, 120/220V, 50/60Hz
LTC 8944/60 ---- PC, Pentium, 120MHz, 40M RAM, 1.6G Drive, Windows NT, 120/220V, 50/60Hz
LTC 8945/90 ---- LAN Hub, 12-Port, SNMP, 120/220V, 50/60Hz
LTC 8946/90 ---- Expansion LAN Hub, 12-Port, 120/220V, 50/60Hz
LTC 8800 TC8800 Allegiant®Microprocessor-Based Video Switcher/Control Systems
LTC 8800/00 TC8802R Equipment Rack, for LTC 8801 Bay
LTC 8801/60 TC8801A Main Switching Bay, 120V, 60Hz
LTC 8801/00 TC8801R Equipment Rack, for LTC 8801 Bay
LTC 8801/50 TC8801AX Main Switching Bay, 220V, 50Hz
LTC 8802/60 TC8802A Monitor Expansion Bay, 120V, 60Hz
LTC 8802/50 TC8802AX Monitor Expansion Bay, 220V, 50Hz
LTC 8805/60 TC8805 Power Supply, 120V, 60Hz
LTC 8805/50 TC8805X Power Supply, 220V, 50Hz
LTC 8821/00 TC8821 Video Input Module, for LTC 8800 System
LTC 8834/00 TC8834 Video Output Module, for LTC 8800 System
LTC 8859/00 TC8859 PC Software Package, for LTC 8800 System
LTC 8810/00 TC8810A CPU Module, for LTC 8801 Bay
LTC 8816/00 TC8816A Data Receiver Module, for LTC 8802 Bay
LTC 8808/00 TC8808 Video Interconnect (Patch) Panel
LTC 8809/01 TC8809 16-conductor ribbon cable, 3 ft. length
LTC 8809/00 TC8809-6 16-conductor ribbon cable, 6 ft. length
LTC 8820/00 TC8820SE Service Extender Card, for LTC 8821
LTC 8779/00 TC8779SE Service Extender Card, for LTC 8810, LTC 8816, LTC 8834
LTC 8600 TC8600 Allegiant®Microprocessor-Based Video Switcher/Control Systems
LTC 8601/00 TC8601R Equipment Rack, for LTC 8601 Bay
LTC 8601/60 TC8601A Main Switching Bay, 120V, 60Hz
LTC 8601/50 TC8601AX Main Switching Bay, 220V, 50Hz
LTC 8621/00 TC8621 Video Input Module, for LTC 8600 System
LTC 8834/00 TC8834 Video Output Module, for LTC 8600 System
LTC 8659/00 TC8659 PC Software Package, for LTC 8600 System
LTC 8610/00 TC8610A CPU Module, for LTC 8601 Bay
LTC 8300 TC8300 Allegiant®Microprocessor-Based Video Switcher/Control Systems
LTC 8301/60 TC8301 Main Switching Bay, 120V, 60Hz
LTC 8301/50 TC8301X Main Switching Bay, 220V, 50Hz
LTC 8359/00 TC8359 PC Software Package, for LTC 8300 System
LTC 8500 TC8500 Allegiant®Microprocessor-Based Video Switcher/Control Systems
LTC 8501/00 TC8501R Equipment Rack, for LTC 8501 Bay
LTC 8501/60 TC8501C Main Switching Bay, 120V, 60Hz
LTC 8501/50 TC8501CX Main Switching Bay, 220V, 50Hz
LTC 8521/00 TC8521VIM Video Input Module, for LTC 8500 System
LTC 8532/00 TC8532VOM Video Output Module, for LTC 8500 System
LTC 8505/60 TC8505PS Power Supply, 120V, 60Hz
LTC 8505/50 TC8505PSX Power Supply, 220V, 50Hz
LTC 8511/00 TC8511C CPU Module
LTC 8559/00 TC8559 PC Software Package, for LTC 8500 System

LTC TC Allegiant®System Accessories
LTC 8550/00 TC8550A Keyboard, Joystick Control
LTC 8551/00 TC8551A Keyboard, Push Button Control
LTC 8552/00 TC8553-232 Keyboard, Variable Speed, RS-232, Joystick Control
LTC 8553/00 TC8553 Keyboard, Variable Speed, Joystick Control
LTC 8554/00 TC8554 Keyboard, Compact, Push Button Control
LTC 8555/00 TC8555 Keyboard, Compact, Variable Speed Joystick Control
LTC 8558/00 TC8557HL Keyboard Cable, 100 ft.
LTC 8557/60 TC8557HR Hook-up Kit for Remote Keyboard up to 5,000 ft, 120V.
LTC 8557/50 TC8557HRX Hook-up Kit for Remote Keyboard up to 5,000 ft, 220V
LTC 9050/00 TC8557MK Rack Mount Kit, for LTC 8550, LTC 8551, LTC 8553 Keyboards
LTC 8540/00 TC8540C Alarm Interface Unit
LTC 8568/00 TC8568 Signal Distribution Unit, 32 Outputs
LTC 8768/00 TC8768 Signal Distribution Unit, 64 Outputs
LTC 8569/60 TC8569-2 Code Merger Unit, 2-Channel, 120V, 60Hz
LTC 8569/50 TC8569X-2 Code Merger Unit, 2-Channel, 220V, 50Hz
LTC 8570/60 TC8569-4 Code Merger Unit, 4-Channel, 120V, 60Hz
LTC 8570/50 TC8569X-4 Code Merger Unit, 4-Channel, 220V, 50Hz
LTC 8571/60 TC8769-2 Code Merger Unit, 2-Channel, 120V, 60Hz
LTC 8571/50 TC8769X-2 Code Merger Unit, 2-Channel, 220V, 50Hz
LTC 8572/60 TC8769-4 Code Merger Unit, 4-Channel, 120V, 60Hz
LTC 8572/50 TC8769X-4 Code Merger Unit, 4-Channel, 220V, 50Hz
LTC 8560/60 TC8560-1 Receiver/Driver, 120V Supply, 120V to P/T, No Aux.
LTC 856260 TC8560-2 Receiver/Driver, 120V Supply, 24V to P/T, No Aux.
LTC 8562/50 TC8560X-2 Receiver/Driver, 220V Supply, 220V to P/T, No Aux.
LTC 8560/50 TC8560X-4 Receiver/Driver, 220V Supply, 220V to P/T, No Aux.
LTC 8561/60 TC8561A-1 Receiver/Driver, 120V Supply, 120V to P/T, with Aux.
LTC 8566/60 TC8561A-2 Receiver/Driver, 120V Supply, 24V to P/T, with Aux.
LTC 8566/50 TC8561AX-2 Receiver/Driver, 220V Supply, 220V to P/T, with Aux.
LTC 8561/50 TC8561AX-4 Receiver/Driver, 220V Supply, 220V to P/T, with Aux.
LTC 8563/20 TC8563 Receiver/Driver, 24V Supply, 24V to P/T, No Aux.
LTC 8564/20 TC8564A Receiver/Driver, 24V Supply, 24V to P/T, with Aux.
LTC 8780/60 TC8780 Time/Date Converter Unit, GPS Format, 120V, 60Hz
LTC 8780/50 TC8780X Time/Date Converter Unit, GPS Format, 220V, 50Hz
LTC 8781/60 TC8781 Time/Date Converter Unit, GPS Format, 120V, 60Hz
LTC 8781/50 TC8781X Time/Date Converter Unit, GPS Format, 220V, 50Hz
LTC 8785/60 TC8785 Data Converter Unit, Var. Speed to Fixed Speed Code, 120V, 60Hz
LTC 8785/50 TC8785X Data Converter Unit, Var. Speed to Fixed Speed Code, 220V, 50Hz
LTC 8712/60 TC8712A Console Port Expander, 120V, 60Hz
LTC 8712/50 TC8712AX Console Port Expander, 220V, 50Hz
LTC 8713/60 TC8713A Alarm Port Expander, 120V, 60Hz
LTC 8713/50 TC8713AX Alarm Port Expander, 220V, 50Hz
LTC 8714/60 TC8714A Keyboard Port Expander, 120V, 60Hz
LTC 8714/50 TC8714AX Keyboard Port Expander, 220V, 50Hz
LTC 8715/60 TC8715A LTC 8714 Port Expander, 120V, 60Hz
LTC 8715/50 TC8715AX LTC 8714 Port Expander, 220V, 50Hz
LTC 8059/00 TC8059 PC Software Package, for Satellite
LTC 8850/00 TC8850 Graphical User Interface (GUI) Package

3
IMPORTANT SAFEGUARDS
1. Read Instructions - All the safety and operating instructions should
be read before the unit is operated.
2. Retain Instructions - The safety and operating instructions should
be retained for future reference.
3. Heed Warnings - All warnings on the unit and in the operating
instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be
followed.
5. Cleaning - Unplug the unit from the outlet before cleaning. Do not
use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6. Attachments - Do not use attachments not recommended by the
product manufacturer as they may cause hazards.
7. Water and Moisture - Do not use this unit near water - for example,
near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet
basement, near a swimming pool, in an unprotected outdoor
installation, or any area which is classified as a wet location.
8. Accessories - Do not place this unit on an unstable stand, tripod,
bracket, or mount. The unit may fall, causing serious injury to a
person and serious damage to the unit. Use only with a stand,
tripod, bracket, or mount recommended by the manufacturer, or
sold with the product. Any mounting of the unit should follow the
manufacturer's instructions, and should use a mounting accessory
recommended by the manufacturer.
An appliance and cart combination should be moved with
care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to
overturn.
9. Ventilation - Openings in the enclosure, if any, are provided for
ventilation and to ensure reliable operation of the unit and to protect
it from overheating. These openings must not be blocked or
covered. This unit should not be placed in a built-in installation
unless proper ventilation is provided or the manufacturer's
instructions have been adhered to.
10. Power Sources - This unit should be operated only from the type of
power source indicated on the marking label. If you are not sure of
the type of power supply you plan to use, consult your appliance
dealer or local power company. For units intended to operate from
battery power, or other sources, refer to the operating instructions.
11. Grounding or Polarization - This unit may be equipped with a
polarized alternating-current line plug (a plug having one blade
wider than the other). This plug will fit into the power outlet only one
way. This is a safety feature. If you are unable to insert the plug fully
into the outlet, try reversing the plug. If the plug should still fail to fit,
contact your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.
Alternately, this unit may be equipped with a 3-wire grounding-type
plug, a plug having a third (grounding) pin. This plug will only fit
into a grounding-type power outlet. This is a safety feature. If you
are unable to insert the plug into the outlet, contact your electrician
to replace your obsolete outlet. Do not defeat the safety purpose of
the grounding-type plug.
12. Power-Cord Protection - Power-supply cords should be routed so
that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords and
plugs, convenience receptacles, and the point where they exit from
the appliance.
13. Power Lines - An outdoor system should not be located in the
vicinity of overhead power lines or other electric light or power
circuits, or where it can fall into such power lines or circuits. When
installing an outdoor system, extreme care should be taken to keep
from touching such power lines or circuits as contact with them
might be fatal. U.S.A. models only - refer to the National Electrical
Code Article 820 regarding installation of CATV systems.
14. Overloading - Do not overload outlets and extension cords as this
can result in a risk of fire or electric shock.
15. Object and Liquid Entry - Never push objects of any kind into this
unit through openings as they may touch dangerous voltage points
or short-out parts that could result in a fire or electric shock. Never
spill liquid of any kind on the unit.
16. Servicing - Do not attempt to service this unit yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
17. Damage Requiring Service - Unplug the unit from the outlet and
refer servicing to qualified service personnel under the following
conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the unit.
c. If the unit has been exposed to rain or water.
d. If the unit does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions, as an improper adjustment of other
controls may result in damage and will often require extensive
work by a qualified technician to restore the unit to its normal
operation.
e. If the unit has been dropped or the cabinet has been
damaged.
f. When the unit exhibits a distinct change in performance--this
indicates a need for service.
18. Replacement Parts - When replacement parts are required, be sure
the service technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other
hazards.
19. Safety Check - Upon completion of any service or repairs to this
unit, ask the service technician to perform safety checks to
determine that the unit is in proper operating condition.
20. Coax Grounding - If an outside cable system is connected to the
unit, be sure the cable system is grounded. U.S.A. models only--
Section 810 of the National Electrical Code, ANSI/NFPA No.70-
1981, provides information with respect to proper grounding of the
mount and supporting structure, grounding of the coax to a
discharge unit, size of grounding conductors, location of discharge
unit, connection to grounding electrodes, and requirements for the
grounding electrode.
21. Lightning - For added protection of this unit during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the cable
system. This will prevent damage to the unit due to lightning and
power-line surges.
FCC & ICES INFORMATION
(U.S.A. and Canadian Models Only)
WARNING - This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules and ICES-003 of Industry Canada. These limits are designed to
provide reasonable protection against harmful interference when the
equipment is operated in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Intentional or unintentional changes or modifications not expressly
approved by the party responsible for compliance shall not be made. Any
such changes or modifications could void the user's authority to operate
the equipment.
The user may find the following booklet prepared by the Federal
Communications Commission helpful: "How to Identify and Resolve
Radio-TV Interference Problems". This booklet is available from the U.S.
Government Printing Office, Washington, DC 20402, Stock No.004-000-
00345-4.

4
SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC
SHOCK. DO NOT OPEN!
CAUTION: TO REDUCE THE RISK OF ELECTRICAL
SHOCK, DO NOT OPEN COVERS. NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This label may appear on the bottom of the unit due
to space limitations.
The lightning flash with an arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
Warning
To prevent fire or shock hazard, do not
expose units not specifically designed for
outdoor use to rain or moisture.
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
DEVICES
ATTENTION
WARNING: Electrostatic-sensitive device. Use
proper CMOS/MOSFET handling precautions to
avoid electrostatic discharge.
NOTE: Grounded wrist straps must be worn and
proper ESD safety precautions observed when
handling the electrostatic-sensitive printed
circuit boards.
Power
Power Disconnect. Units with or without
ON-OFF switches have power supplied to
the unit whenever the power cord is
inserted into the power source; however,
the unit is operational only when the ON-
OFF switch is in the ON position. The
power cord is the main power disconnect
for all units.
Disjonction de l'alimentation. Les
appareils avec ou sans commutateurs ON-
OFF sont alimentés à chaque fois que le
cordon d'alimentation est branché à la
source d'alimentation; toutefois, les
appareils disposant de commutateurs ON-
OFF ne fonctionnnent que lorsque le
commutateur ON-OFF est sur la position
ON. Le cordon d'alimentation est la
disjonction d'alimentation principale pour
tous les appareils.
Netzanschluß. Geräte mit oder ohne
Netzschalter haben Spannung am Gerät
anliegen, sobald der Netzstecker in die
Steckdose gesteckt wird. Das Gerät ist
jedoch nur betriebsbereit, wenn der
Netzschalter (EIN/AUS) auf EIN steht.
Wenn man das Netzkabel aus der
Steckdose zieht, dann ist die
Spannungszuführung zum Gerät
vollkommen unterbrochen.
Para Desconectar la Alimentación:
Unidades no equipadas con interruptores
ON/OFF, son alimentadas cuando el cable
de alimentación es conectado a la
corriente eléctrica. Las unidades
equipadas con interruptores son
alimentadas de igual forma, pero
adicionalmente requieren que el
interruptor esté posicionado en ON. El
cable de alimentación es el medio
principal de desconexión del equipo.

5
TABLE OF CONTENTS
UNPACKING .......................................................... 6
SERVICE................................................................ 6
DESCRIPTION ....................................................... 6
ALLEGIANT FEATURE SUMMARY TABLE.......... 7
MAJOR SYSTEM COMPONENTS......................... 9
TC8x01 Main CPU Bay.............................................................9
TC8802 Monitor Expansion Bay................................................9
TC8x21 Video Input Module......................................................9
TC8532, TC8834 Video Output Modules...................................9
System Capabilities..................................................................9
SUPPLEMENTARY SYSTEM COMPONENTS .... 10
TC8550A System Keyboard.................................................... 10
TC8551A & TC8554 System Keyboards .................................10
TC8553 & TC8555 System Keyboards.................................... 10
TC8553-232 System Keyboard...............................................10
TC8557MK Keyboard Racking Kit...........................................10
TC8557HL Keyboard Extension Cable.....................................10
TC8557HR Series Keyboard Extension Kits............................10
TC8568 Signal Distribution Unit ..............................................10
TC8768 Signal Distribution Unit ..............................................10
TC8540C Series Alarm Interface Units.................................... 10
TC8560, TC8561A, TC8563, & TC8564A Series
Receiver/Driver Units........................................................ 10
TC700 Series AutoDomes™...................................................11
TC8569-2, TC8569-4, TC8769-2, TC8769-4 Series................11
TC8770 Switcher Follower Series, TC8770SF, TC8770SG,
TC8770LD, TC8770LG Function Modules......................... 11
TC8770I Interconnect Panel.................................................... 11
TC8712A Series Console Port Expander Units........................11
TC8713A Series Alarm Port Expander Units ..........................11
TC8714A, TC8715A Series Keyboard Port Expander Units ....11
TC8780 Series Data Converter Units ......................................12
TC8781 Series Time/Data Converters..................................... 12
TC8785 Series Code Converters.............................................12
Code Translator Units.............................................................12
TC8808 Video Interconnect Panel...........................................12
TC8579SE Service Extender Card..........................................12
TC8779SE Service Extender Card..........................................13
TC8820SE Service Extender Card..........................................13
TC8x59 Series Allegiant Master Control Software.................... 13
Windows Based Allegiant Software.........................................13
Logging Printer....................................................................... 13
INSTALLATION PROCEDURE ............................ 20
Main CPU Bay Installation....................................................... 20
Video Input Modules............................................................... 20
Video Output Modules ............................................................21
CPU Module........................................................................... 21
Camera and Monitor Connections...........................................21
TC8600 and TC8800 Video Inputs.......................................... 22
Termination Practices.............................................................22
TC8802 Expansion Bay Connections ......................................22
Keyboard Hookup................................................................... 23
Satellite Configuration Installations ..........................................23
Feature Selection.................................................................... 26
Main Power Connections........................................................26
OPTIONAL ACCESSORIES................................. 30
Logging Printer Option Installation........................................... 30
IBM or IBM Compatible Computer Interface Installation............ 30
SYSTEM KEYBOARDS - TC8550A, TC8551A,
TC8553 Series ................................................ 31
Keyboard Displays.................................................................. 31
Keyboard Controls.................................................................. 32
Switcher Control Keys ............................................................32
Function Keys ........................................................................32
Telemetry Controls .................................................................33
SYSTEM KEYBOARDS - TC8554, TC8555.......... 34
Keyboard Displays.................................................................. 35
Keyboard Controls.................................................................. 35
Switcher Control Keys ............................................................36
Function Keys ........................................................................36
Telemetry Controls .................................................................36
VIDEO MONITOR DISPLAY................................. 37
Time/Date ..............................................................................37
Monitor Title/System Status Display........................................37
Monitor Message.................................................................... 39
Broadcast Message................................................................39
Program Prompts...................................................................39
Camera Number.....................................................................39
Camera Title........................................................................... 39
FACTORY DEFAULT SETTINGS ........................ 40
User Selectable DIP Switch Settings For Main CPU Bay .........40
User Selectable DIP Switch Settings for TC8816A Data
Receiver Modules used in TC8802 Monitor Expansion
Bays ................................................................................42
USER INFORMATION.......................................... 43
User Priority Access Table......................................................43
ALARM INFORMATION....................................... 44
Basic Alarm Response Mode..................................................44
Auto-Build Alarm Response Mode........................................... 44
Sequence & Display Alarm Response Mode............................44
Alarm Activated Pre-Position................................................... 44
Sample Alarm Responses....................................................... 45
KEYBOARD OPERATING INSTRUCTIONS........ 47
General.................................................................................. 47
System Commands................................................................47
Switcher Commands ..............................................................48
SEQUENCE INFORMATION................................ 48
General.................................................................................. 48
Sequence Control Instructions................................................51
Lock Commands....................................................................53
Controlling Camera Movement................................................ 54
Alarm Control Commands....................................................... 56
KEYBOARD USER FUNCTIONS ......................... 58
General.................................................................................. 58
MAINTENANCE INFORMATION.......................... 64
CHARACTER ROM TABLES FOR TC8500 ......... 65
CHARACTER ROM TABLES FOR TC8600
AND TC8800 ................................................... 66
QUICK REFERENCE KEYBOARD COMMAND
TABLE............................................................. 70
ERROR MESSAGES............................................ 71
TROUBLESHOOTING GUIDE ............................. 73
GLOSSARY OF TERMS ...................................... 75
APPENDIX A........................................................ 76
Satellite Systems.................................................................... 76
APPENDIX B........................................................ 80
Sample Keyboard Operating Instructions................................. 80
APPENDIX C........................................................ 83
Installation Checklists.............................................................83
APPENDIX D........................................................ 84
Quick Reference Cable Interconnections.................................84
APPENDIX E........................................................ 85
Main Bay Rear Panel Connector Pinouts.................................85
APPENDIX F ........................................................ 86
Pre-Position Controls..............................................................87

6
UNPACKING
Unpack carefully. This is electronic equipment and
should be handled carefully.
If an item appears to have been damaged in
shipment, replace it properly in its carton and notify
the shipper. If any items are missing, notify your
Philips Communication & Security Systems Inc.
Sales Representative or Customer Service.
The shipping carton is the safest container in which
the unit may be transported. Save it for possible
future use.
SERVICE
If the unit ever needs repair service, the customer
should contact the nearest Philips Communication &
Security Systems Service Center for authorization to
return and shipping instructions.
Service Centers
U.S.A. & Canada: 800-366-2283
Mexico & Central America: 52-5-688-1466
Europe & Middle East: 44-1932-765666
South America: 54-1-956-0837
Australia: 61-2-888-9000
New Zealand: 64-4-237-7297
DESCRIPTION
This manual covers the installation and operation of
the Allegiant®TC8500 Series, TC8600 Series, and
TC8800 Series systems. When providing information
that is common to all members of the Allegiant
family, this manual will often use a part number of
the form "TC8x00". The "x" indicates that this
designation applies to all Allegiant systems. For
example, information that refers to the TC8x01 main
CPU bay is applicable to the TC8501, TC8601, and
TC8801. A specific part designation (without the
embedded “x”) like "TC8802 Monitor Expansion Bay"
will usually apply only to that particular series of the
Allegiant family. An exception is that peripherals that
are identical on all systems will often have a TC8500
Series part number. For example, the TC8550A
Keyboard, the TC8568 Signal Distribution Unit, and
the TC8569-2 Series Code Merger are used with all
Allegiant systems even though they have a TC8500
Series part number.
All Allegiant systems can accommodate multiple
keyboards, a computer system console port, and a
logging printer output.

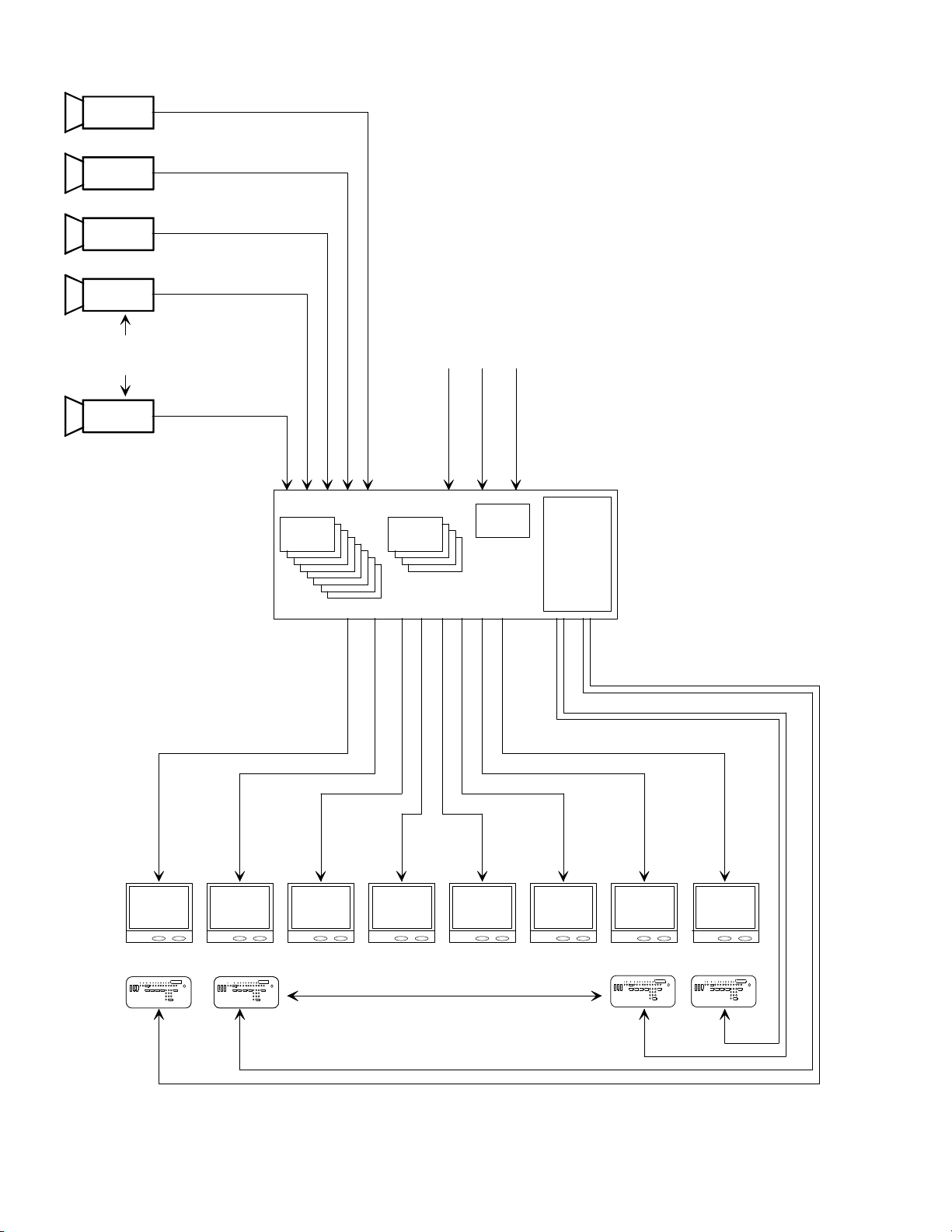

The TC8500 Series Allegiant system can handle up
to 64 cameras and 8 monitors in a full crosspoint
configuration. It can also accommodate 128 alarm
points.
The TC8600 Series handles up to 128 cameras, 16
monitors, and 512 alarms.

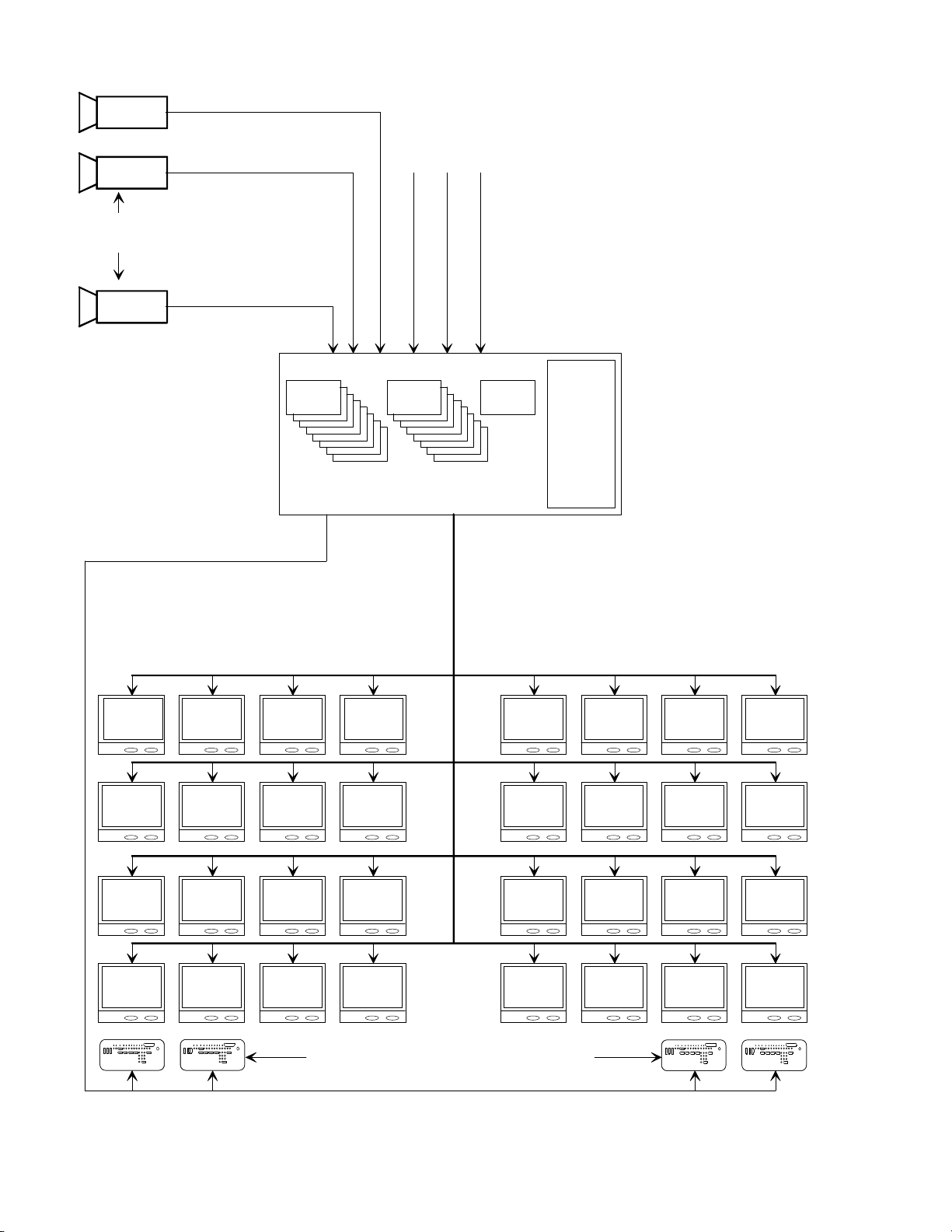

The TC8800 Series handles 256 cameras, 64
monitors, and up to 1024 alarm points.
In addition, the Allegiant series have a "Satellite"
configuration capability through which the system
can communicate with up to 256 remote
combinations of Allegiant systems or TC8112B
Series and TC8124B Series switchers. More
information on this capability is provided later in this
manual.
The system can be operated in the simple default
state (as it leaves the factory) or can be customized
with our optional TC8850 Graphical User Interface
Software package or our optional TC8x59 Master
Control Software using an IBMTM or IBM compatible
personal computer. Despite its sophistication, the
Allegiant system is designed for the novice user. The
ergonomic keyboard design contains many user-
friendly but powerful functions. A user can choose
from up to 60 sequences that are stored in memory,
select any of the cameras to view on any of the
monitors, and take exclusive control of remote
pan/tilt camera functions right from the keyboard.
Each monitor can display a system status overlay
showing alarm status, sequence conditions,
time/date, and camera information.
User passwords can be utilized, providing an added
measure of system security; and through the optional
TC8850 Graphical User Interface Software package
or the optional Master Control Software package,
various lockout tables restricting user access to
cameras, monitors, keyboards, and remote camera
control are easily programmed. The TC8850
Graphical User Interface Software package and the
Master Control Software package also contain up to
64 different time-activated events, providing
automated control of video sequencing, monitor
message broadcasts, receiver/driver functions, alarm
control, and several other functions. The Allegiant
series systems represent a dramatic breakthrough in
CCTV switcher/controllers, and are backed by years
of expertise in designing and manufacturing closed-
circuit video equipment.

7
ALLEGIANT FEATURE
SUMMARY TABLE
The Allegiant system is available in two operating
configurations: a base system and the base system
with an optional PC based software package (either
TC8850 or TC8x59). The base system includes
features required for most switching/controller
systems.
The addition of the optional TC8850 Graphical User
Interface Software package or the optional TC8x59
Master Control Software package enables the user to
customize the system's configuration using a menu
driven program run on an IBM compatible personal
computer.
The following table lists the various features
available with each system:
Feature Base With Optional
Allegiant PC based
System Software
1. Full camera switching/control on all monitors Y Y
2. Multiple keyboards Y Y
(8 with TC8500, 16 with TC8600, 32 with TC8800)
3. Multiple alarm inputs Y Y
(128 with TC8500, 512 with TC8600, 1024 with TC8800)
4. 3 user-selectable pre-defined alarm response modes Y Y
5. Full control of on-site receiver/drivers Y Y
6. SalvoSwitching®Y Y
7. 60 programmable sequences Y Y
8. Alarm call-up of pre-position scenes Y Y
9. RS-232 interface ports for Computer, Logging Printer, etc. Y Y
10. Keyboard Log-on/Log-off function Y Y
11. User-selectable password security Y Y
12. Designate 16-character camera titles and 12-character monitor titles Y Y
13. Select time/date format Y Y
14. Local keyboard test function Y Y
15. Table and Sequence printout feature Y Y
16. Designate RS-232 communication parameters Y Y
17. Integral video loss detection (TC8600 and TC8800) NY
18 Satellite configurations NY
19. Restrict user/keyboard access to cameras NY
20. Restrict user/keyboard access to receiver/drivers NY
21. Restrict user access to keyboard NY
22. Restrict user/keyboard access to monitors NY
23. Designate user name and ID number NY
24. Designate zoned alarm call-ups NY
25. VersAlarmTM alarm feature NY
26. Designate displayed camera number NY
27. Designate receiver/driver functions on alarm NY
28. Program 64 Time Activated Events NY
29. Designate receiver/driver functions in sequences NY
30. Broadcast monitor messages NY
31. Alarm title designation NY
32. Personal computer displayed monitoring of system status NY
33. Personal computer emulation of system keyboard NY

8

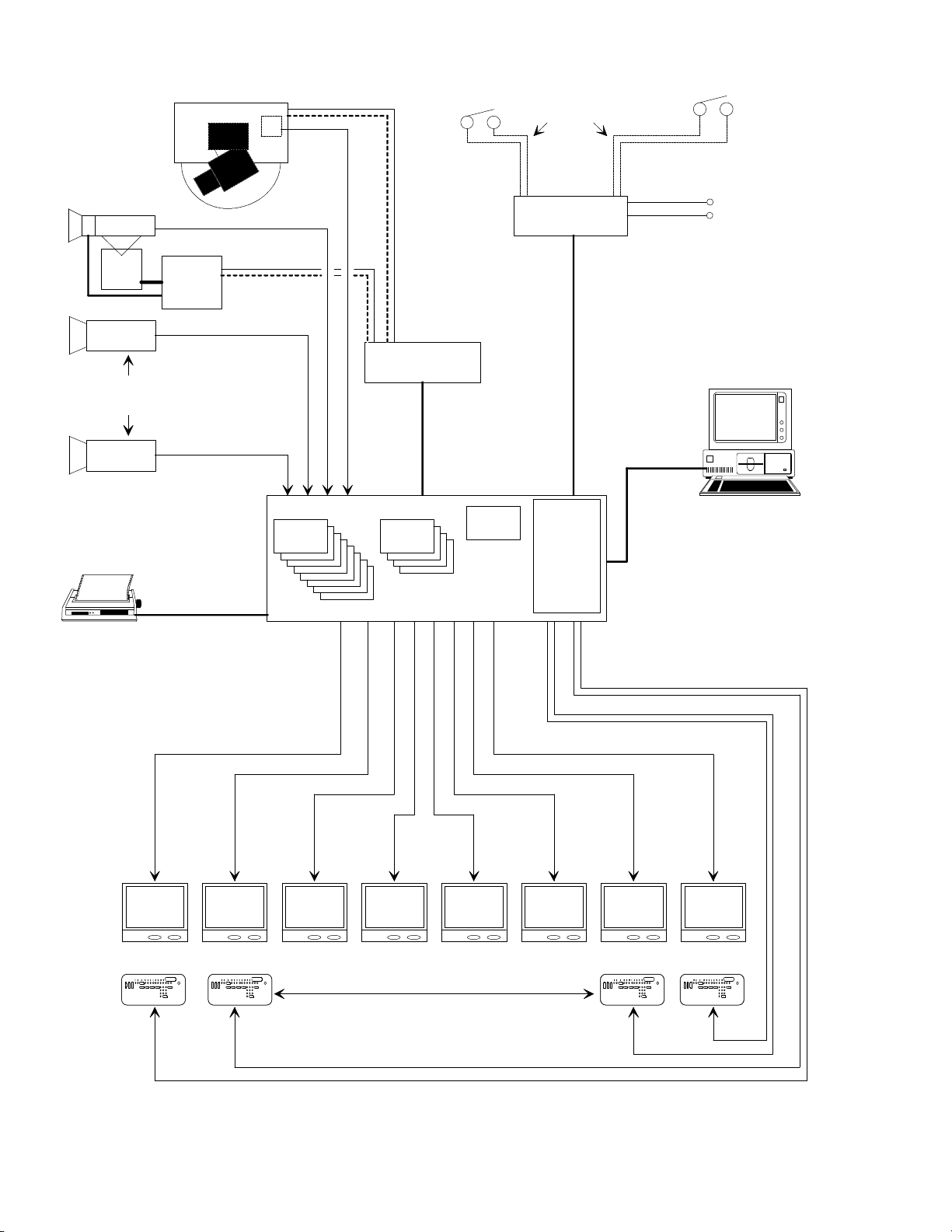

In addition, all systems provide the capability to
control on-site receiver/driver units including the
AutoDome™ series of integral pan/tilt/zoom/camera
dome series.
All systems contain a logging printer output port to
which an inexpensive RS-232 serial printer may be
attached. This provides a permanent record showing
time and date of changes to the system status such
as:
1. Incoming Alarms.
2. Acknowledgment of alarms by users.
3. Loading of sequences.
4. User log-on to keyboard or console port.
5. Console broadcast message.
6. Console transfer of system tables.
7. Activation of Time Event Functions.
8. Power-up reset message.
9. Video loss message (TC8600 and TC8800
systems only).
The printer may also be used to provide a hard copy
of all user programmed system configuration Tables
and Sequences.

9
MAJOR SYSTEM COMPONENTS
TC8x01 Main CPU Bay
A modular equipment bay which contains the
system’s microprocessor module (TC8511C or
TC8x10A), the power supply module (TC8x05), and
several video input and video output modules (see
below). Up to eight TC8550 Series keyboards may
be connected directly to the CPU bay.
TC8802 Monitor Expansion Bay
Required in TC8800 systems having more than 32
monitors. This expansion bay contains a data
receiver module (TC8816A), a power supply
(TC8805), and additional video input and output
modules. The monitor expansion bay can also
accommodate up to eight additional keyboards.
TC8x21 Video Input Module
Individual cards placed in bays to accept inputs from
cameras and other video sources.
TC8532, TC8834
Video Output Modules
Individual cards placed in bays to provide outputs to
monitors and VCRs.
System Capabilities
These tables indicate the maximum number of video
input and output modules that each equipment bay
may hold, as well as the number of individual inputs
or outputs supported by each of these modules.
TC8500
Up to 8 video input modules; 8 inputs per module.
Up to 4 video output modules; 2 outputs per module.
Total: 64 maximum inputs; 8 outputs.
Satellite configuration input capacity: 320.
TC8600
Up to 8 video input modules; 16 inputs per module.
Up to 4 video output modules; 4 outputs per module.
Total: 128 maximum inputs; 16 outputs.
Satellite configuration input capacity: 1152.
TC8800
Main Bay:
Up to 8 video input modules; 32 inputs per module.
Up to 8 video output modules; 4 outputs per module.
Subtotal: 256 inputs and 32 outputs on main bay.
Monitor Expansion Bay:
Up to 8 video input modules (duplicating modules on
main bay).
Up to 8 extra output modules (providing 4 additional
outputs each).
Subtotal: 32 extra outputs added on to the main
bay's outputs.
Total:
256 maximum inputs; 64 maximum outputs.
Satellite configuration input capacity: 2304.

10
SUPPLEMENTARY SYSTEM COMPONENTS
The Allegiant accessory products provide many
optional features to the base system. A brief
description of accessory products is provided below.
Complete specification information can be found in
their respective product data sheets. All accessory
products are designed to be compatible, where
applicable, throughout the Allegiant series.
TC8550A System Keyboard
Full function system keyboard used for system
control, programming, and pan/tilt/zoom operation.
Includes integral pan/tilt joystick and zoom lens
controls. Up to 8 keyboards are permitted on the
TC8500 system. The TC8600 can accommodate up
to 16. TC8800 systems can accommodate up to 32
keyboards. In TC8600 and TC8800 systems,
keyboards above 8 are connected to the systems
using TC8714A/TC8715A keyboard port expander
accessory units described below.
TC8551A & TC8554
System Keyboards
These are function keyboards similar to the TC8550A
except they contain four directional oriented,
nonprotruding push buttons instead of a joystick for
control over any pan/tilt equipped camera sites.
TC8553 & TC8555 System
Keyboards
These are function keyboards similar to the TC8550A
except they contain a proportional joystick for
controlling the variable speed pan/tilt functions of the
AutoDome series of integral pan/tilt/zoom/camera
domes. Rotation of the joystick also provides control
over the lens's zoom functions.
TC8553-232 System Keyboard
The TC8553-232 is a full function keyboard similar to
the TC8550A keyboard except it utilizes RS-232
protocol for data communication. It provides the
capability of remotely locating an Allegiant keyboard
over a conventional RS-232 transmission medium
such as phoneline modems, fiber optics, etc.
Requires a full duplex RS-232 link capable of
operating at 9600 baud. All other specifications are
the same as TC8553 keyboards. The TC8553-232
keyboards connect to the Allegiant’s main CPU bay
via a TC8712A Series Console Port Expander. Up to
four TC8553-232 keyboards may be connected to a
single TC8712A Series unit. When used with dial-up
type phoneline modems, the TC8553-232 keyboard
provides a rudimentary dialing capability.
TC8557MK Keyboard Racking Kit
Rack mounting kit designed to provide vertical,
horizontal or 30° inclined mounting for TC8550A,
TC8551A, or TC8553 keyboards.
TC8557HL Keyboard
Extension Cable
Six conductor extension cable carries data/power for
remote TC8550A, TC8551A, or TC8553 keyboards
up to 30 meters (100 feet) away from main CPU bay.
TC8557HR Series Keyboard
Extension Kits
Interface kit used to remote TC8550A, TC8551A, or
TC8553 keyboards up to 1.6 km (5000 feet) away
from main CPU bay. Customer supplied 24 gage
shielded-twisted pair (Belden 9841 or equivalent)
required between main CPU bay site and keyboard
site. Kit provides two junction boxes, interface cable,
and appropriate keyboard power supply.
TC8568 Signal Distribution Unit
Main site control code distribution and line driver unit
for communicating to Receiver/Drivers, Switcher
Followers, and satellite systems. Provides 32
separate outputs for driving up to 256 remote
devices. Either "star" or "daisy chain" wiring
configurations may be used.
TC8768 Signal Distribution Unit
Same features and specifications as the TC8568
except that it contains twice the number of output
connectors which provide 64 separate outputs for
driving up to 512 remote devices.
TC8540C Series Alarm
Interface Units
Alarm gathering unit which accepts up to 64 dry
contact closures or logic level inputs from remote
sensing devices such as door contacts, PIRs, etc.
and then reports the 'alarm' information to the main
CPU bay. Alarm inputs may be configured in groups
of 32 to accept either normally open or normally
closed contacts. The TC8540C provides eight relay
outputs which can be used to drive external alerting
devices or VCRs.
TC8560, TC8561A,
TC8563, & TC8564A Series
Receiver/Driver Units

11
Decodes data transmitted from TC8568 unit for
camera site control of Pan/Tilt, Zoom Lens, pre-
positions, and auxiliaries. Unit contains integral local
test feature, auto-pan or random scanning, and is
available in several input and output drive voltage
versions.
TC700 Series AutoDomes™
Integral camera, high speed pan/tilt, zoom lens, and
receiver/driver system in compact dome enclosure.
Available in monochrome or color camera models.
Various enclosure mounting options are available for
indoor and outdoor applications.
TC8569-2, TC8569-4, TC8769-2,
TC8769-4 Series
Code Merger Unit
Control code merger and line driver unit used to
combine control code from two systems (up to four
with TC8569-4 version) for communicating to
Receiver/Drivers, Switcher Followers, and satellite
systems. Provides 32 separate outputs capable of
driving up to 256 remote devices. Either "star" or
"daisy chain" wiring configurations may be used. Unit
will accept signal input either from Allegiant main
CPU bay, TC8568 output, or an output from another
TC8569-2, TC8569-4. Multiple units may be
cascaded to obtain additional outputs.
TC8770 Switcher Follower Series,
TC8770SF, TC8770SG, TC8770LD,
TC8770LG Function Modules
Accessory unit which provides relay contact closures
or LED driver outputs corresponding to cameras
displayed on system monitors. The TC8770 may be
configured to follow non-alarmed video, alarmed
video, or both. TC8770 card cage holds any
combination of up to 8 TC8770SF, TC8770SG,
TC8770LD, or TC8770LG modules. Each TC8770SF
or TC8770SG type module contains 16 relay contact
outputs. A single TC8770LD or TC8770LG type
module drives up to 64 low current type LEDs.
TC8770I Interconnect Panel
Accessory for the TC8770 Switcher Follower which
provides convenient screw terminal interface for
external connections. Mates to ribbon cables
supplied with TC8770SF or TC8770LD function
modules.
TC8712A Series Console
Port Expander Units
The TC8712A port expander interfaces to the RS-
232 CONSOLE port of an Allegiant system to permit
up to 4 external PCs or other computing devices to
be connected to the system. This permits multiple
PCs or computing devices to communicate with a
single Allegiant system.
TC8713A Series Alarm
Port Expander Units
The TC8713A interfaces to either a TC8600 or a
TC8800 system’s RS-232 ALARM port to permit
additional TC8540C alarm interface units to be
connected to the system. In a TC8600 system, 2
TC8540C units can be connected to the TC8713A. In
TC8800 systems, up to 4 TC8540C units can be
connected to the TC8713A.
TC8714A, TC8715A Series
Keyboard Port Expander Units
The TC8714A keyboard port expander interfaces to
the COMM PORT 2 of either a TC8600 or a TC8800
system to permit additional keyboards to be
connected to the system. Any combination of up to 8
TC8550A, TC8551A or TC8553 keyboards can be
connected to the system using one TC8714A unit. In
TC8800 systems, typically 3 TC8714A units, each
having 8 keyboards, can be interfaced to the system
using a single TC8715A unit. This would provide a
quantity of 24 "port expanded" keyboards in a
TC8800 system for a total of 32 system keyboards.
Alternatively all 32 keyboards can be connected
using 4 TC8714As and a single TC8715A.

12
TC8780 Series Data Converter Units
The TC8780 Series convert the biphase control code
generated by Allegiant series matrix switchers and
the TC8135 Series controller/followers into standard
RS-232, and converts RS-232 back to biphase code.
This provides the capability of transmitting the
biphase control code over conventional RS-232
transmission media (phone modems, fiber optics,
microwaves, etc.) The TC8780 can also be used to
perform the Satellite Selector functions in Allegiant
satellite system configurations and operate as a 15-
channel remote signal distribution unit.
TC8781 Series Time/Data
Converters
The TC8781 Series are accessory units that decode
the Allegiant system’s encoded time/date information
generated on the biphase control code line and
convert it into an RS-422 format using the GPS
format. This time/date information can be used to
interface into external time/date inserter products
(such as the Kalatel KTS-53-16), which are designed
to be synchronized via a GPS signal. The electrical
and mechanical specifications are the same as the
TC8780 Series units.
TC8785 Series Code Converters
TC8785 Series units are designed for use in existing
Allegiant systems which have been upgraded to
operate the new AutoDome series of cameras. The
TC8785 Code Converters are used to provide the
source for the “fixed speed” control code when the
system is generating the new “variable speed”
control code preferred by the AutoDome cameras.
The TC8785 Series Code Converter receives the
“variable speed” control code from the Allegiant via
its TC8568 Signal Distribution unit and converts it
into the appropriate “fixed speed” control code.
Outputs from the TC8785 Series Code Converter
may be connected to older TC8561 Series
receiver/drivers using existing field cables.
Code Translator Units
Code translators are available which can convert
Allegiant control code to and from other
manufacturer code formats. Contact your Philips
local manufacturer’s representative for additional
information.
TC8808 Video Interconnect Panel
Optional accessory item which provides TC8600 and
TC8800 systems with the capability of looping up to
32 video inputs per panel. This 'patch' panel contains
32 BNC connectors on its front for external video
connections and two 16-contact ribbon connectors on
its rear. Two 16-conductor ribbon cables are included
for interfacing the patch panel to the video looping
connectors on the TC8600, TC8800 equipment bays.
The patch panel is one standard EIA 19-inch rack
unit high and one unit wide.
TC8579SE Service Extender Card
Service extender card used for troubleshooting
TC8500 system CPU, video input, and video output
modules

13
TC8779SE Service Extender Card
Service extender card used for troubleshooting
TC8600 and TC8800 CPU and video output modules
and all TC8700 modules.
TC8820SE Service Extender Card
Service extender card used for troubleshooting
TC8600 and TC8800 system video input modules.
TC8x59 Series Allegiant
Master Control Software
The TC8x59 Series Allegiant Master Control
Software consists of an IBM®or IBM compatible
program which allows quick and easy configuration
of standard system features. An appropriate Allegiant
Master Control Software package exists for each
type of Allegiant system, i.e., the TC8559 is used for
TC8500 Series systems, the TC8659 is used for
TC8600 Series systems, etc. The program provides
advanced alarm and sequence programming in
addition to other features which are not available
using the system keyboard. An on-line real-time
monitoring of system status and a keyboard
emulation mode is also included.
Other standard Master Control Software features
include: user passwords, lockout tables, 64
programmable time event functions, custom alarm
responses using the VersAlarmTM alarm mode, and a
keyboard emulation mode. In addition to the
operational switching sequences normally inputted
from the standard keyboard, much more complex
switching sequences may be programmed which
incorporate remote control commands as part of the
switching sequence. The ability to detect video loss
in TC8600 Series and TC8800 Series systems and to
monitor the system operation in real-time on all
systems is a standard feature of the Allegiant Master
Control Software package.
The TC8x59 Software package includes a 3 1/2-inch
program disk containing Allegiant Master Control
Software program, interface cable, and Users
Manual for custom programming of Allegiant system.
A special version, the TC8059, includes multiple
disks for programming TC8500 Series, TC8600
Series, and TC8800 Series Allegiant systems. The
TC8059 software package is intended to be used for
programming a mix of Allegiant systems operating in
a Satellite configuration.
The master control software program requires an
IBM PC or true IBM compatible PC with at least 640
k bytes of memory, DOS 3.0 or higher, one serial
port, one parallel port, and MDA, Hercules™, CGA,
EGA, or VGA display (or compatible).
Windows Based Allegiant Software
The TC8850 is a software package utilizing a
Graphical User Interface (GUI) to integrate and
control security systems. The GUI interfaces directly
to the Allegiant system and provides complete
control and programming of all system features. The
GUI software program requires an 486DX2-66 MHz
PC or better running Windows 95 or Windows NT
with at least 16Mbytes of memory, one serial port,
one parallel port, 3.5” floppy disk drive, mouse or
trackball, and SVGA display. Refer to the TC8850
data sheet for complete specifications.
_________________
Windows is a registered trademark of Microsoft Corporation.
IBM is a registered trademark of IBM Corporation.
Hercules is a trademark of Hercules Technology.
Logging Printer
An optional RS-232 serial printer may be connected
to the main CPU bay to provide a permanent record
of significant changes in the system's status. Time
and date is printed for system events such as alarms,
start-ups after power failures, sequence loadings,
operators logging-on/off to keyboards, and
downloading of information from the optional Master
Control Software package. The printer may also be
used to obtain hard copies of all system Tables and
Sequences.

14
TC8511A
CPU
Module TC8505PS
Power
Supply
Module
TC8521VIM
8 x 8 CH
Input Cards
TC8532VOM
4 x 2 CH
Output Cards
TC8501B SERIES MAIN CPU BAY
Maximum of 8 TC8550A, TC8551A, or TC8553
Full Function Keyboards Up to 1.5 km (5000 ft)
Away Using Optional Remote Hookup Kit
S9506028AE
Monitor 1 Monitor 2 Monitor 3 Monitor 4 Monitor 5 Monitor 6 Monitor 7 Monitor 8
Up to 8 Monitor Outputs
Video Coax
3 m (10 ft) Interconnect
Cable Supplied With Keyboard
Additional
System Cameras
Up To 64 Video
Inputs Maximum
TC8500 Video Switching System

15
Additional
SystemCameras
UpTo128
Video InputsMaximum
3m(10 ft)InterconnectCable
Supplied WithKeyboard
TC8621
8x16 CH
InputCards
TC8834
4x4CH
OutputCards
TC8610A
CPU
ModuleTC8605
Power
Supply
Module
TC8601 SeriesMainCPUBay
S9506029AE
Video Coax
Monitor1Monitor2Monitor3Monitor4Monitor5Monitor6Monitor7Monitor8
Monitor9Monitor10 Monitor11 Monitor12 Monitor13 Monitor14 Monitor15 Montior16
Maximumof16 TC8550A,TC8551A,orTC8553
Full Function KeyboardsUpto1.5km(5000 ft)
AwayUsing OptionalRemoteHookup Kit
Upto16 MonitorOutputs
TC8600 Series Video Switching System

16
Additional
System Cameras
Up To 256
Video Inputs
Maximum
TC8821
8 x 32 CH
Input Cards
TC8834
8 x 4 CH
Output Cards
TC8810A
CPU
Module TC8805
Power
Supply
Module
Up to 32 Monitor Outputs 3 m (10 ft) Interconnect
Cable Supplied With Keyboard
Multiple Video Coax
TC8801 Series Main CPU Bay
Monitor 1 Monitor 2 Monitor 3 Monitor 4 Monitor 17 Monitor 18 Monitor 19 Monitor 20
Monitor 5 Monitor 6 Monitor 7 Monitor 8 Monitor 21 Monitor 22 Monitor 23 Monitor 24
Monitor 9 Monitor 10 Monitor 11 Monitor 12 Monitor 25 Monitor 26 Monitor 27 Monitor 28
Monitor 13 Monitor 14 Monitor 15 Monitor 16 Monitor 29 Monitor 30 Monitor 31 Monitor 32
S9506030AE
Maximum of 32 TC8550A, TC8551A, or TC8553
Full Function Keyboards Up to 1.5 km (5000 ft)
Away Using Optional Remote Hookup Kit
TC8800 Series Single Bay System
(256 by 32 Configuration)

17
UpTo256 Video
InputsMaximumCoaxRibbon
JumperCables
(Supplied)
TC8805
Power
Supply
Module
TC8805
Power
Supply
Module
TC8821
8x32 CH
InputCards
TC8834
8x4CH
OutputCards
TC8810A
CPU
Module
TC8821
8x32 CH
InputCards
TC8834
8x4CH
OutputCards
TC8816A
Data
Receiver
Module
Monitor1Monitor2Monitor3Monitor4Monitor33 Monitor34 Monitor35 Monitor36
Monitor5Monitor6Monitor7Monitor8Monitor37 Monitor38 Monitor39 Monitor40
Monitor9Monitor10 Monitor11 Monitor12 Monitor41 Monitor42 Monitor43 Monitor44
Monitor13 Monitor14 Monitor15 Monitor16 Monitor45 Monitor46 Monitor47 Monitor48
Monitor17 Monitor18 Monitor19 Monitor20 Monitor49 Monitor50 Monitor51 Monitor52
Monitor21 Monitor22 Monitor23 Monitor24 Monitor53 Monitor54 Monitor55 Monitor56
Monitor25 Monitor26 Monitor27 Monitor28 Monitor57 Monitor58 Monitor59 Monitor60
Monitor29 Monitor30 Monitor31 Monitor32 Monitor61 Monitor62 Monitor63 Monitor64
Maximumof32 TC8550A,TC8551A,orTC8553
Full Function KeyboardsUpto1.5km(5000 ft)
AwayUsing OptionalRemoteHookup Kit
S9506031AE
Control
Data
TC8800 Series Dual Bay System
(256 by 64 Configuration)

18
Typical
AutoDome™
CameraVideo
Coax
Pan/
TiltTC8561A
Receiver/
DriverUpto64 Receiver/
DriverUnits
Additional
SystemCameras
Upto64
Video Inputs
Maximum
TC8568 Signal
Distribution Unit
Video Coax
Video Coax
32 SeparateOutputs
Upto1.5km(5000 ft)
Using 18 gShielded
TwistedPairCable
(Belden8760 orEquivalent)
TC8540CAlarm
InterfaceUnit
Twisted-Pair
Typical
64 Separate
AlarmInputs
2m(6ft)Interconnect
CableSuppliedWith
TC8568 Providing Data
and PowerConnections
2m(6ft)Interconnect
CableSuppliedWith
TC8540CProviding Data
and PowerConnections
RS-232 Data
OptionalTC8559 Master
ControlSoftwareor
GraphicalUsersInterface
(GUI)SoftwarepackageCan
BeRun onIBMorIBMCompatible
RS-232 DataTC8501BSeriesMainCPUBay
TC8521VIM
8x8CH
InputCards
TC8532VOM
4x2CH
OutputCards
TC8511A
CPU
ModuleTC8505PS
PowerSupply
Module
3m(10 ft)InterfaceCable
ProvidedWithTC8500 Series
MainCPUBay
Upto8MonitorOutputs
Video Coax
Monitor1Monitor2Monitor3Monitor4Monitor5Monitor6Monitor7Monitor8
Maximumof8TC8550A,TC8551A,orTC8553
Full Function KeyboardsUpto1.5km(5000 ft)
AwayUsing OptionalRemoteHookup Kit
S9506032AE
3m(10 ft)InterconnectCable
Supplied WithKeyboard
Video Coax
ContactClosure
orActiveLowLogicLevel
TC8500 Full Capacity Configuration
