3User manual
ENGLISH
User manual
1 Welcome 4
1.1 Product highlights 4
1.2 What’s in the box 4
2 Important 5
2.1 Safety 5
2.2 Disposal of your old product 5
2.3 Technical support and warranty 5
3 Get started 6
3.1 Overview 6
3.2 System requirements 6
3.3 Installation 7
3.3.1 Installation using DHCP 7
3.3.2 Installation using the factory default IP
address 8
4 Configuration 9
4.1 Setting up the FTP server 9
4.2 Setting up the file upload directory on
your FTP server 10
4.3 Files stored in the file upload directory 10
4.4 Setting up the file upload user account on
your FTP server 11
4.5 FTP settings 11
4.6 Automatic file upload 12
4.7 Changing the IP address of the LAN
Docking Station 12
4.7.1 Assigning an IP address from DHCP 13
4.7.2 Assigning a static IP address 13
4.8 Changing the LAN Docking Station
administrator password 15
4.9 Assigning a comment to the LAN
Docking Station 15
4.10 Upgrading the LAN Docking Station
firmware 16
4.11 Resetting to factory defaults 17
5 LAN Docking Station
Administration Tool 18
5.1 Obtaining the Administration Tool
software 18
5.2 System requirements 18
5.3 Installation 18
5.4 First-time configuration 18
5.5 Overview of the LAN Docking Stations19
5.6 Using the Initial Setup Installer to install a
LAN Docking Station 21
5.7 Changing the settings of multiple LAN
Docking Stations 22
5.8 Changing the settings of a single LAN
Docking Station 22
5.9 Upgrading the firmware of LAN Docking
Stations 23
6 Troubleshooting 24
lfh9160_ifu_en-de-fr-es.indb 3 2008-09-01 16:31:56

4User manual
Welcome1
Congratulations on your purchase and welcome
to Philips!
To fully benefit from the support that Philips
oers, visit our Website for support information
such as user manuals, software downloads,
warranty information and more:
www.philips.com/dictation.
Product highlights1.1
Simplify the dictation workflow:
Upload the dictation files from your Digital•
Pocket Memo directly to the network
without a PC or upload application
Reduce document creation time, transfer•
dictation files directly to your transcriptionist
Recharge the batteries of your Digital Pocket•
Memo while docked
Guaranteed security throughout the
entire dictation workflow:
Password protection of the LAN Docking•
Station
Support of SFTP file transfer•
Encryption of dictation (.dss) files•
Theft protection by Kensington lock•
Reduce total cost of IT ownership and
maintenance:
Save time by centralized software installation•
for multiple authors
Minimum user training required•
Remote configuration and maintenance of the•
LAN docking station
Platform independent (key components•
function in Windows and Linux environments)
What’s in the box1.2
LAN Docking Station 9160•
Power Supply•
RJ45 network cable•
User manual•
lfh9160_ifu_en-de-fr-es.indb 4 2008-09-01 16:31:56

5User manual
ENGLISH
Important2
Safety2.1
To avoid short circuit, do not expose the•
product to rain or water.
Do not expose the device to excessive•
heat caused by heating equipment or direct
sunlight.
Protect the cables from being pinched,•
particularly at plugs and the point where they
exit from the device.
Back up your files. Philips is not responsible•
for any loss of data.
Disposal of your old product2.2
Your product is designed and manufactured•
with high quality materials and components,
that can be recycled and re-used.
When this crossed-out wheeled bin•
symbol is attached to a product, it
indicates that the product is covered
by the European Directive 2002/96/
EC.
Please become informed about the local•
separate collection system for electrical and
electronic products.
Please act according to your local rules and•
do not dispose of old products with your
normal household waste. The correct disposal
of old products will help prevent potential
negative consequences for the environment
and human health.
Batteries (including built-in rechargeable•
batteries) contain substances that may pollute
the environment. All batteries should be
disposed of at an ocial collection point.
Technical support and warranty2.3
This Philips product was designed and
manufactured to the highest quality standards.
If your Philips product is not working correctly
or is defective, contact your supplying Philips
Speech Processing dealer who will provide
you with the necessary information on how to
proceed.
If you have questions that your dealer cannot
answer or any other related question, visit
www.philips.com/dictation to contact us.
No components are user-serviceable. Do not
open or remove covers and do not insert
objects not suitable for the specific connectors.
Repairs may be made only by Philips service
centers and ocial repair facilities. Failure to do
so will void any warranty, stated or implied. Any
operation expressly prohibited in this manual,
any adjustments, or assembly procedures not
recommended or authorized in this manual will
void the warranty.
lfh9160_ifu_en-de-fr-es.indb 5 2008-09-01 16:31:56

6User manual
Get started3
Overview3.1
1 2 3 4 5 6
1Docking slot for the Digital Pocket Memo
2Green LED indicates that the Digital Pocket Memo batteries are recharging
3Yellow LED indicates that dictation files are being transferred
4Power supply socket
5Socket for Kensington lock
6RJ45 network socket for connection to the Local Area Network
System requirements3.2
10/100 Mbit/s Local Area Network with RJ45 connections•
FTP server with a user account configured for the LAN Docking Station•
DHCP server (recommended)•
lfh9160_ifu_en-de-fr-es.indb 6 2008-09-01 16:31:56

7User manual
ENGLISH
3.3 Installation
When installing one or more new LAN Docking
Stations to your network, you can set it up in
one of two ways:
Use the DHCP service on your network•
to assign IP addresses to the LAN Docking
Stations based on the MAC address of each
LAN Docking Station, or
Set the LAN docking station to a default IP•
address to access the configuration interface
and assign a fixed IP address
The LAN Docking has a default configuration
setting to use the DHCP server to obtain its
IP address. This makes it easier to do a batch
installation of several LAN Docking Stations in
a corporate network. See Installation using DHCP
below for more information.
If your network does not support DHCP,
you can set the LAN Docking Station to use
a default static IP address to get started. See
Installation using the factory default IP address
below for more information.
3.3.1 Installation using DHCP
If your network has a DHCP server, follow
the steps below to install new LAN Docking
Stations:
Make a note of the MAC address of every1
LAN Docking Station that you are about
to install (The MAC address can be found
on the bottom plate of the LAN Docking
Station).
Configure your DHCP server to assign an IP2
address to each LAN Docking Station based
on the MAC address of each LAN Docking
Station. Refer to the documentation of your
DHCP server for more information.
Deploy the LAN Docking Stations3
throughout your organization. Connect each
LAN Docking Station to the main power
supply with the included Philips power
supply. Connect each LAN Docking Station
to a free network socket using the RJ45
network cable.
Open a Web browser on your PC and load4
the LAN Docking Station configuration
interface for each assigned IP address
to configure the LAN Docking Stations
individually. See Configuration on page 9 for
more information.
D Note
The LAN Docking Station is configured by
default to obtain an IP address from your DHCP
server. If this default setting has been changed,
you must reset the device to its factory default
settings before starting. Read Resetting to factory
defaults on page 17 for information on how
to reset the LAN Docking Station to factory
default settings.
ETip
It is good practice to make a note of the
location and network socket number of
each LAN Docking Station before they are
deployed. You can enter this information into
the comment field of the LAN Docking Station
configuration interface, which will make it easier
lfh9160_ifu_en-de-fr-es.indb 7 2008-09-01 16:31:56

8User manual
to troubleshoot and maintain LAN Docking
Stations in your network. See Assigning a
comment to the LAN Docking Station on page 15
for more information about assigning comments.
3.3.2 Installation using the factory default
IP address
If your network does not have a DHCP server,
follow these steps to install a new LAN Docking
Station:
Connect the LAN Docking Station to the1
main power supply with the included Philips
power supply.
Connect the LAN Docking Station to a free2
network socket using the RJ45 network
cable.
Slide a Digital pocket Memo 9600 or 96203
into the docking slot of the LAN Docking
Station.
Press and hold the4 FUNCTION and the
MENU button on the Digital Pocket Memo
simultaneously for 3 seconds. The LAN
Docking Station will be configured to use
the static IP address 192.168.109.1 (subnet
mask 255.255.255.0).
Configure the network connetion settings5
of your PC to use a static IP address
like 192.168.109.xxx and subnet mask
255.255.255.0 for the network socket that is
used to connect the LAN Docking Station.
Open a Web browser on your PC and enter6
http://192.168.109.1 in the address field
Your user name and password is required.7
Leave the USER NAME field empty and enter
‚administrator‘ in the PASSWORD field.
Change the IP address of the LAN Docking8
Station according to your network policy.
See Assigning a static IP address on page 13
for more information.
Make any additional configuration changes as9
you see fit. See Configuration on page 9 for
more information.
DNote
This procedure resets all configuration settings
of the LAN Docking Station to their factory
defaults.
CImportant
If installing several LAN Docking Stations,
be sure to change the IP address of the LAN
Docking Station before connecting the next one
to the network. Failure to do so will result in
IP address conflicts, making the configuration
interface of the LAN Docking Station
inaccessible.
lfh9160_ifu_en-de-fr-es.indb 8 2008-09-01 16:31:56

9User manual
ENGLISH
Once the LAN Docking Station is connected to
the network, it can be configured using a simple
HTML interface from any HTML4-compliant
Web browser.
There is also an Administration Tool that can
be used to manage and update the configuration
settings of several LAN Docking Stations (batch
update). See LAN Docking Station Administration
Tool on page 18 for more information.
To open the LAN Docking Station configuration
interface, follow these steps:
Open a Web browser on your PC.1
Enter the IP address of the LAN Docking2
Station that you want to configure into the
address field of the Web browser.
The Web browser prompts you for a user3
name and password. Leave the user name
field empty and enter the administrator
password. If you are accessing the
configuration interface for the first time, the
default password is ‚administrator‘.
The configuration interface appears with4
the following panels: Status, IP settings, FTP
settings, Automatic file upload, Comments,
Firmware upgrade and Administrator
password.
4 Configuration
lfh9160_ifu_en-de-fr-es.indb 9 2008-09-01 16:31:56

10 User manual
4.1 Setting up the FTP server
The LAN Docking Station can automatically
upload dictation files to an FTP server when a
Digital Pocket Memo is connected.
The LAN Docking Station has been tested with
a number of FTP servers for the Windows and
Linux platforms. It should also function with
any other FTP server conforming to the FTP
protocol specifications standard. The following
FTP servers have been tested with the LAN
Docking Station:
Microsoft Internet Information Server•
WS FTP Server•
WinSSHD•
FileZilla Server•
freeftpd•
OpenSSHD•
DNote
The LAN Docking Station opens FTP data
connections in passive mode. If there is a
firewall between the LAN Docking Station
and your FTP server, make sure that the LAN
Docking Station can connect to port numbers
used for passive data transfer. Refer to the
User Manual of your FTP server for more
information.
Setting up the file upload directory4.2
on your FTP server
Create a directory on the FTP server to store
uploaded dictation files. This dictory will be
referred to as the ‚file upload directory‘ in this
user guide.
If you have multiple LAN Docking Stations
on your network, there is no need to create
a dierent file upload directory for each
installation. The LAN Docking Station was
designed to work more eciently with a single
shared file upload directory.
ETip
It is a good practice to make the file upload
directory available to employees at your
organization as a shared network folder
that they can map to a drive letter on their
computers. This makes it quick and easy for
them to pick up dictation jobs, and allows you
to control access to the uploaded dictation files
using the existing user and group configuration
in your network domain.
Files stored in the file upload4.3
directory
When dictation files are uploaded from a Digital
Pocket Memo, the LAN Docking Station creates
a subdirectory with the serial number of the
Digital Pocket Memo under the file upload
directory and places all uploaded files there. The
file names of the uploaded files are composed of
the name of the author, the sequential number
of the file, and the .DSS file extension.
The LAN Docking Station also creates a
“configuration” subdirectory in the file upload
directory and creates a file named MAC_config.
txt, where MAC is the MAC address of the
LAN Docking Station. These files contain
configuration information for the LAN Docking
lfh9160_ifu_en-de-fr-es.indb 10 2008-09-01 16:31:56

11User manual
ENGLISH
Station and are used by the Administration Tool.
See LAN Docking Station Administration Tool on
page 18 for more information.
Setting up the file upload user4.4
account on your FTP server
Create a user account on your FTP server
that the LAN Docking Station will use to
upload dictation files. This user account needs
the following access rights to the file upload
directory:
Create subdirectories•
Create and write files•
List directory contents•
The user name and password for this user
account must be entered at the LAN Docking
Station configuration interface. See the next
chapter for details.
4.5 FTP settings
Once you have your FTP server set up, you
must configure the LAN Docking Station to use
it. To configure the FTP settings, follow these
steps:
Open the LAN Docking Station1
configuration interface by entering its IP
address in your Web browser or using the
LAN Docking Station Administration Tool.
If your FTP server can accept secure (SFTP)2
connections, check the SFTP radio button
on the FTP settings panel. Otherwise, check
the FTP radio button on the FTP settings
panel.
Enter the domain name or IP address of3
your FTP server into the FTP SERVER field.
The FTP server does not have to be on the
the local area network. If you reference
the FTP server using its domain name,
make sure that at least one DNS server is
configured (see Assigning a static IP address
on page 13) or that you are using DHCP
(see Assigning an IP address from DHCP on
page 13).
Enter the port number of your FTP server4
into the FTP PORT field. The port number
should be 21 for FTP or 22 for SFTP,
unless your FTP server is configured with a
nonstandard port number.
Enter the name of the FTP user account5
into the USERNAME field. This should be
the user account you have set up to receive
dictation file uploads from the LAN Docking
Station. See Setting up the FTP server on page
9 for more information.
Enter the password of the FTP user account6
into the PASSWORD field and confirm
the password by typing it again into the
CONFIRM PASSWORD field.
Enter the path to the directory to receive7
dictation files into the PATH ON SERVER
field. If you want to use the default directory
of the user account, leave the field empty.
Press the8 SUBMIT button at the bottom of
the FTP settings panel in order to save your
changes.
lfh9160_ifu_en-de-fr-es.indb 11 2008-09-01 16:31:56

12 User manual
4.6 Automatic file upload
The automatic file upload settings let you
configure which dictation files are automatically
uploaded to the FTP server when a Digital
Pocket Memo is connected to the LAN Docking
station.
Open the LAN Docking Station1
configuration interface by entering its IP
address in your Web browser or using the
Administration tool.
Choose how the automatic file upload2
settings should be determined:
If you want the configuration settings•
of the connected Digital Pocket Memo
to determine which dictation files
are uploaded, then check the DPM
CONFIGURATION DEFINES FILES TO
UPLOAD radio button and skip to step 5.
Refer to the Digital Pocket Memo User
Manual on configuring automatic file
upload settings.
If you want to configure automatic file•
upload settings here, check the LAN
DOCKING STATION DEFINES UPLOAD
SETTINGS radio button. In this case,
configuration settings of the connected
Digital Pocket Memo will be ignored.
Choose which files should be uploaded3
when a Digital Pocket Memo is connected
to the LAN Docking Station:
Check the• UPLOAD ALL DICTATION FILES
radio button if you want all dictation files
to be uploaded when a Digital Pocket
Memo is connected.
Check the• EOL DICTATION FILES ONLY
radio button if you only want to upload
dictation files that have been marked
finished with the EOL (End-of-Letter)
button.
Check the4 DELETE UPLOADED check box
if you want to delete dictation files from
the Digital Pocket Memo that have been
successfully uploaded to the FTP server.
Clear the check box if you want to leave the
uploaded files on the Digital Pocket Memo.
Press the5 SUBMIT button at the bottom of
the panel to save your changes.
lfh9160_ifu_en-de-fr-es.indb 12 2008-09-01 16:31:56

13User manual
ENGLISH
4.7 Changing the IP address of the LAN
Docking Station
You can assign a static IP address to the LAN
Docking Station or have the LAN Docking
station use the DHCP service on your network
to obtain an IP address automatically.

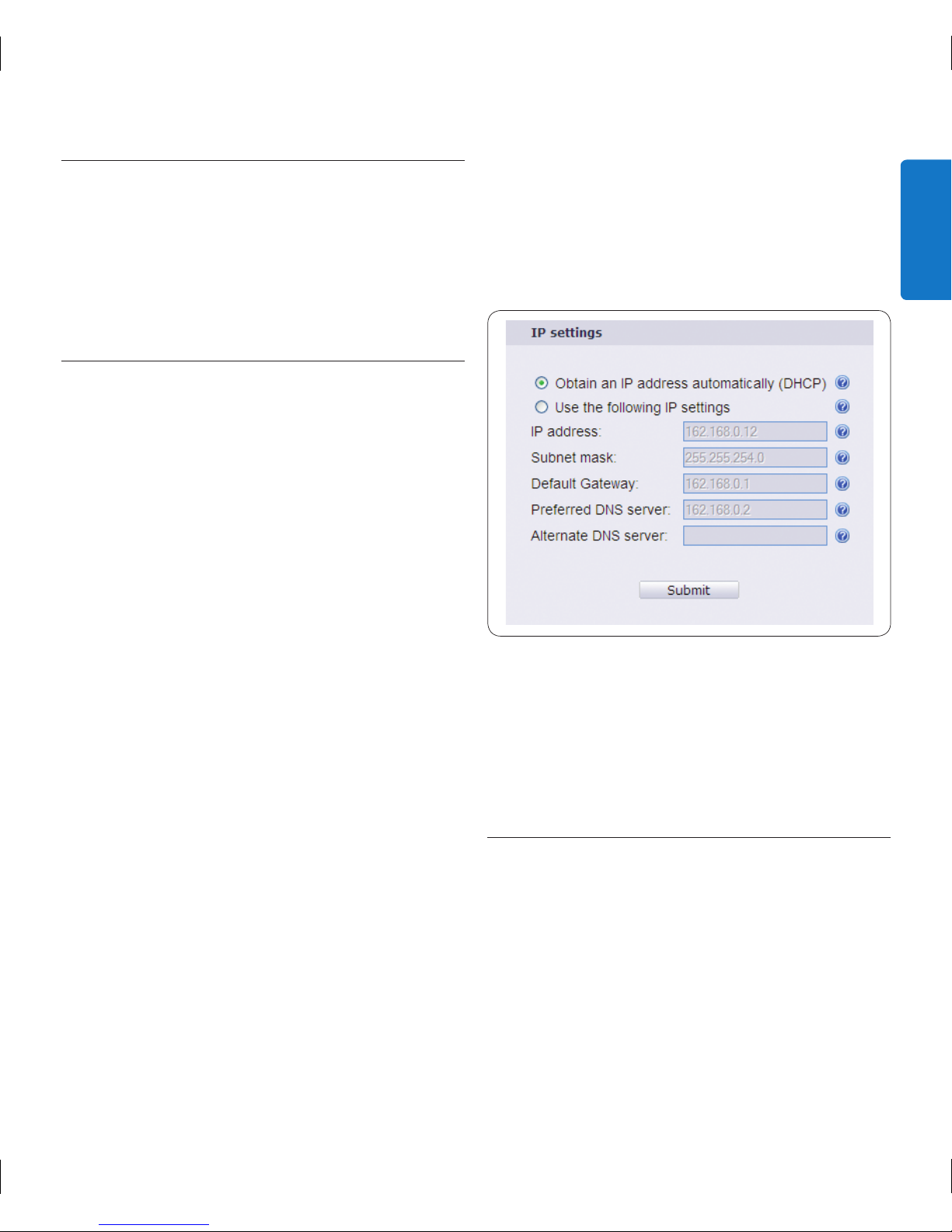

4.7.1 Assigning an IP address from DHCP
DNote
If you are installing the LAN Docking Station for
the first time, please follow the instructions in
the chapter Installation on page 7.
To have the LAN Docking Station obtain an IP
address automatically from the DHCP server on
your network, follow these steps:
Make a note of the MAC address of the1
LAN Docking Station. The MAC address can
be found on the bottom plate of the LAN
Docking Station.
Configure your DHCP server to assign an IP2
address to the LAN Docking Station based
on the MAC address of the LAN Docking
Station. Refer to the documentation of your
DHCP server for more information.
Open the LAN Docking Station3
configuration interface by entering its IP
address in your Web browser or using the
LAN Docking Station Administration Tool.
Check the4 OBTAIN IP ADDRESS
AUTOMATICALLY (DHCP) check box on the
IP Settings panel.
Click the5 SUBMIT button at the bottom of
the IP settings panel in order to save your
changes. The LAN Docking Station will
obtain an IP address from the DHCP server
immediately and every time it is powered
on.
DNote
The IP address of the LAN Docking Station
is updated immediately, so its configuration
interface will no longer be accessible from the
old IP address.
4.7.2 Assigning a static IP address
DNote
If you are installing the LAN Docking Station
for the first time, follow the instructions in the
chapter Installation on page 7.
lfh9160_ifu_en-de-fr-es.indb 13 2008-09-01 16:31:57

14 User manual
ETip
To display the current IP address assigned to a
LAN Docking Station and its MAC address, slide
a Digital Pocket Memo 9600 or 9620 into the
docking slot and press the MENU button and
RIGHT SMART BUTTON on the Digital Pocket
Memo simultaneously.

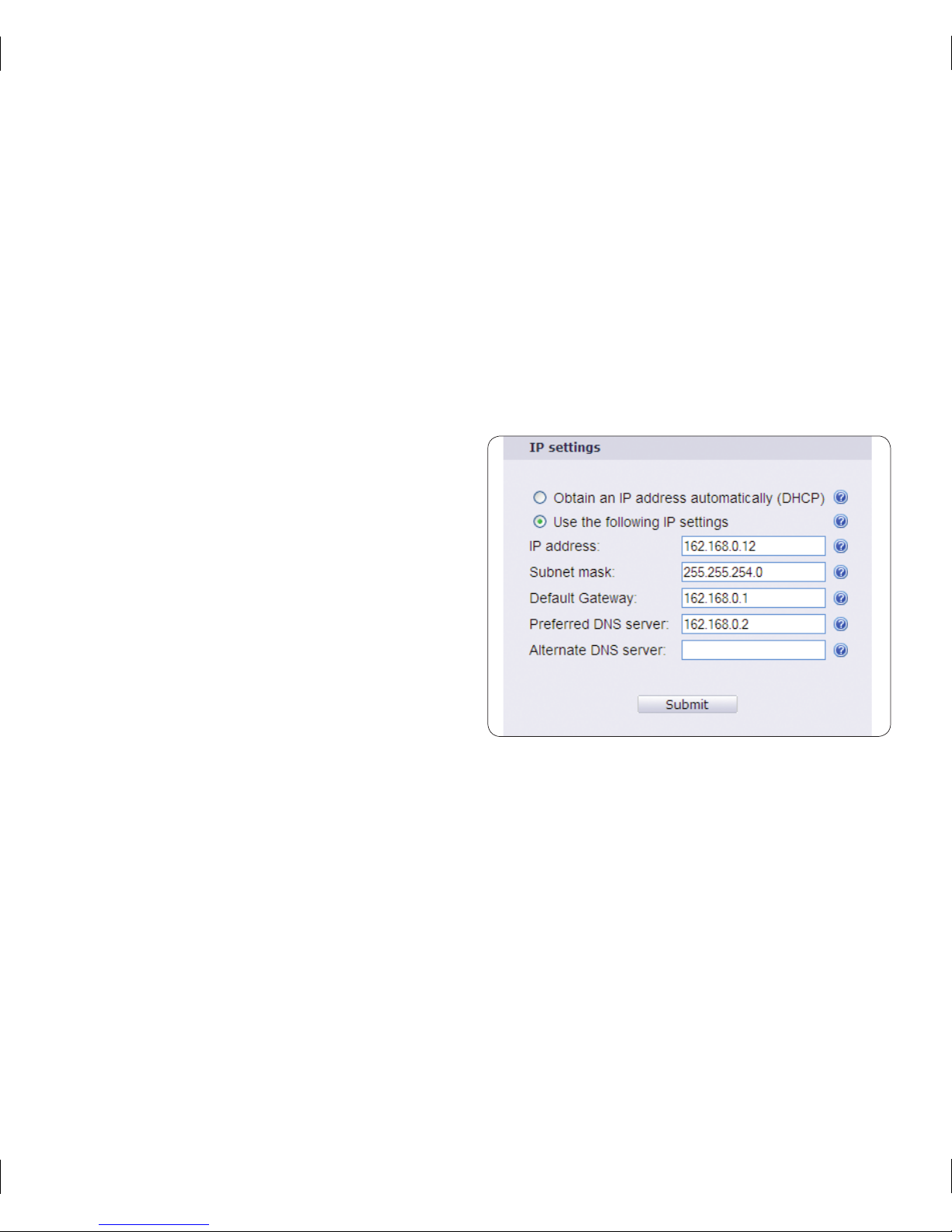

To assign a static IP address to the LAN
Docking Station, follow these steps:
Open the LAN Docking Station1
configuration interface by entering its IP
address in your Web browser or using the
LAN Docking Station Administration Tool.
Check the2 USE THE FOLLOWING IP
SETTINGS check box on the IP settings
panel.
Enter the IP address you want to assign3
to the LAN Docking Station into the IP
ADDRESS field.
Enter the subnet mask for this IP address4
into the SUBNET MASK field.
Enter the IP address of your network5
gateway into the DEFAULT GATEWAY field.
Enter the IP address of a DNS server on6
your network into the PREFERRED DNS
SERVER field. A DNS server is only required
if you reference your FTP server using a
domain name on the FTP settings panel
(see FTP settings on page 11). Leave the field
empty if you do not want to specify a DNS
server.
You can enter the IP address of another7
DNS server into the ALTERNATE DNS
SERVER field. This alternate DNS server will
only be used if the preferred DNS server is
not available. Leave the field empty if you
don‘t want to specify an alternate DNS
server.
Press the8 SUBMIT button at the bottom of
the IP settings panel in order to save your
changes. The LAN Docking Station will
change its IP address immediately and will
attempt to use this static IP address every
time it is powered on.
DNote
The IP address of the LAN Docking Station
is updated immediately, so its configuration
interface will no longer be accessible from the
old IP address.
CImportant
When assigning a static IP address to the LAN
Docking Station, make sure that the address
you assign is available on your network. If the
IP address is already in use on your network,
the configuration interface of the LAN Docking
lfh9160_ifu_en-de-fr-es.indb 14 2008-09-01 16:31:57

15User manual
ENGLISH
DNote
If the password and the confirmation do not
match, you will get an error pop-up message
after pressing the SUBMIT button. If this
happens, start over from step 1.
CImportant
When you access the configuration interface
of the LAN Docking Station, your password is
sent over the network in clear text format. Do
not use your domain administrator password
or any existing network password for the LAN
Docking Station.
ETip
If you have several LAN Docking Stations in
your network, it is advisable to use the same
administrator password for each. This makes
it easier to access them from the LAN Docking
Station Administration Tool (see page 18).
4.9 Assigning a comment to the LAN
Docking Station
You can assign comments to each LAN Docking
Station. Assigning comments is not required, but
it can help you identify individual LAN Docking
Stations within your organization.
Enter the name of the oce (where the1
LAN Docking Station is installed) along
with a comment in the the comments panel.
This will help you identify this LAN Docking
Station.
Press the2 SUBMIT button at the bottom of
the comments panel to save your changes.
Station will not be accessible. You can resolve
this situation by freeing up the IP address on
the network and powering the LAN Docking
Station o then back on, or by resetting the
LAN Docking Station to factory default settings.
See Resetting to factory defaults on page 17 for
more information.
Changing the LAN Docking Station4.8
administrator password
To access the configuration interface of the LAN
Docking Station, you must enter a password.
The factory default password is ‚administrator‘.
The administration password protects the
settings of the LAN Docking Station against
unauthorized access. It is highly recommended
that you change the default password when you
first log on to the configuration interface.
Type the new password into the1
ADMINISTRATOR PASSWORD field on the
password settings panel.
Confirm the password by typing it again into2
the CONFIRM PASSWORD field.
Press the3 SUBMIT button at the bottom of
the password settings panel.
lfh9160_ifu_en-de-fr-es.indb 15 2008-09-01 16:31:57

16 User manual
DNote
The ROOM field is limited to 128 characters;
the COMMENT field is limited to 255
characters.
Upgrading the LAN Docking Station4.10
firmware
Occasionally Philips may release new versions
of the firmware with bug fixes and feature
improvements. Visit the support center at www.
philips.com/dictation to check if a new firmware
version is available for the LAN Docking Station.
The current version of the firmware is displayed
at the top of the configuration interface on the
STATUS panel.

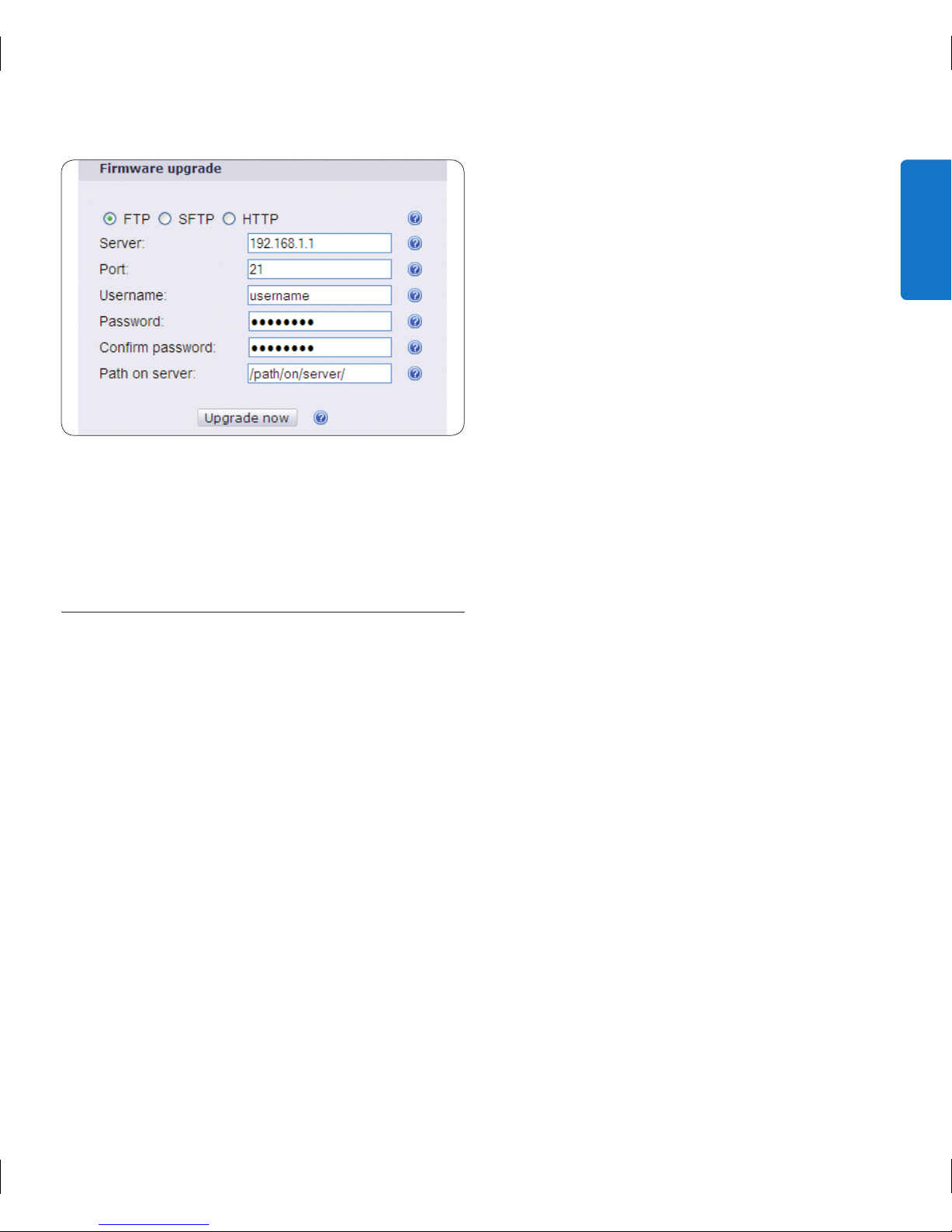

Download the latest firmware (.bcd file)1
from www.philips.com/dictation.
Save the .bcd file to to a network location2
that the LAN Docking Station can access.
This can be either an FTP server or an
HTTP Web server.
Open the LAN Docking Station3
configuration interface by entering its IP
address in your Web browser or using the
LAN Docking Station Administration Tool.
Select the type of server (FTP, SFTP, HTTP)4
where you have saved the .bcd file.
Enter the domain name or IP address of5
the server hosting the firmware file into
the SERVER field (the server does not have
to be on your Local Area Network). If you
reference the server using its domain name,
make sure that at least one DNS server is
configured (see Assigning a static IP address
on page 13) or that you are using DHCP
(see Assigning an IP address from DHCP on
page 13).
Enter the port number of your server6
into the PORT field. Unless your server
is configured to use nonstandard port
numbers, you should use 21 for an FTP
server, 22 for an SFTP connection and 80 for
an HTTP Web server.
If your server requires authentication to7
download the firmware file, enter the name
of the user account, the password, and
confirm the password. Otherwise leave
the USERNAME, PASSWORD and CONFIRM
PASSWORD text fields empty.
Enter the full path and file name to the .bcd8
file of the new firmware into the PATH ON
SERVER text field.
Press the9 UPGRADE NOW button to start
the upgrade process.
lfh9160_ifu_en-de-fr-es.indb 16 2008-09-01 16:31:57

17User manual
ENGLISH
DNote
Once the firmware upgrade is complete, the
LAN Docking Station will restart. You may get
disconnected from the configuration interface.
4.11 Resetting to factory defaults
Follow these steps to reset the LAN Docking
Station to its factory default configuration
settings:
BWarning: When you reset the LAN
Docking Station, all your configuration settings
will be lost.
Make sure that the LAN Docking Station is1
connected to the main power supply using
the Philips power supply.
Slide a Digital pocket Memo 9600 or 96202
into the docking slot of the LAN Docking
Station.
Press and hold the3 FUNCTION and the
MENU button on the Digital Pocket Memo
simultaneously for 3 seconds.
The configuration settings of the LAN4
Docking Station will reset to their factory
defaults, and the LAN Docking Station will
restart. The IP address of the LAN Docking
Station will be set to 192.168.109.1 (subnet
mask 255.255.255.0).
Open the LAN Docking Station5
configuration interface by entering its IP
address in your Web browser.
You will be prompted to enter a user name6
and a password. Leave the user name field
empty and enter ‚administrator‘ in the
PASSWORD field.
Change the IP address of the LAN Docking7
Station according to your network policy.
See Changing the IP address of the LAN
Docking Station on page 13 for more
information.
lfh9160_ifu_en-de-fr-es.indb 17 2008-09-01 16:31:57

18 User manual
5 LAN Docking Station
Administration Tool
The Administration Tool allows the network
administrator to quickly overview the status of
up to 100 LAN Docking Stations connected to
a network and make configuration changes to
them from a centralized user interface.
Obtaining the Administration Tool5.1
software
The Administration Tool is sold separately. Con-
tact your local reseller for more information.
System requirements5.2
Hardware
IBM PC or compatible computer•
Pentium III, 1 GHz, 512 MB RAM•
10 MB hard disk space (350 MB if .NET and•
additional third party software installation is
required)
CD-ROM drive•
LAN connection•
Operating System
Windows 2000 (with service pack 4)•
Windows XP (with service pack 2)•
Windows Vista•
Windows Server 2003•
Software
Microsoft .NET Framework 2.0•
Microsoft Windows Installer 3.1•
Microsoft Core XML Services (MSXML) 6.0•
If a required software cannot not be found on
the target computer, the installer will attempt
to install it.
Installation5.3
To install the Administration tool on your PC:
Insert the Administration Tool CD into your1
CD-ROM drive.
The Administration Tool set-up program2
starts automatically. If not, open the
Administration Tool CD contents in
Windows Explorer and run the setup.exe file.
Follow the on-screen instructions of the3
set-up program to install the Administration
Tool on your PC.
First-time configuration5.4
The Administration Tool collects information
about the LAN Docking Stations in your
network by collecting the LAN Docking
Stations’ identification files from a shared
upload directory on your FTP server. See Setting
up the FTP server on page 10 for information
about setting up your FTP server. Afterwards, a
connection is established to each LAN Docking
Station to read its configuration data.
When you run the Administration Tool for
the first time, you will be prompted to enter
the connection data of the FTP server and
lfh9160_ifu_en-de-fr-es.indb 18 2008-09-01 16:31:57

19User manual
ENGLISH
If the directory is not mapped to a shared network
folder:
Check the1 FTP SERVER radio button.
Enter the2 IP address or domain name of the
FTP server in the SERVER field.
Enter the3 FTP port number in the PORT field.
Unless your FTP server is configured to use
a nonstandard port number, this should be
21.
Enter the4 user name and the password of the
account needed to log on to the FTP server
into the USERNAME and PASSWORD fields.
Click the5 OK button at the bottom of the
configuration dialog.
DNote
You will not be able to administer any LAN
Docking Stations until you provide valid
connection data to the FTP server and a valid
administration password.
CImportant: Remember that you can only
administer LAN Docking Stations sharing the
same FTP settings and administration password
at a time!

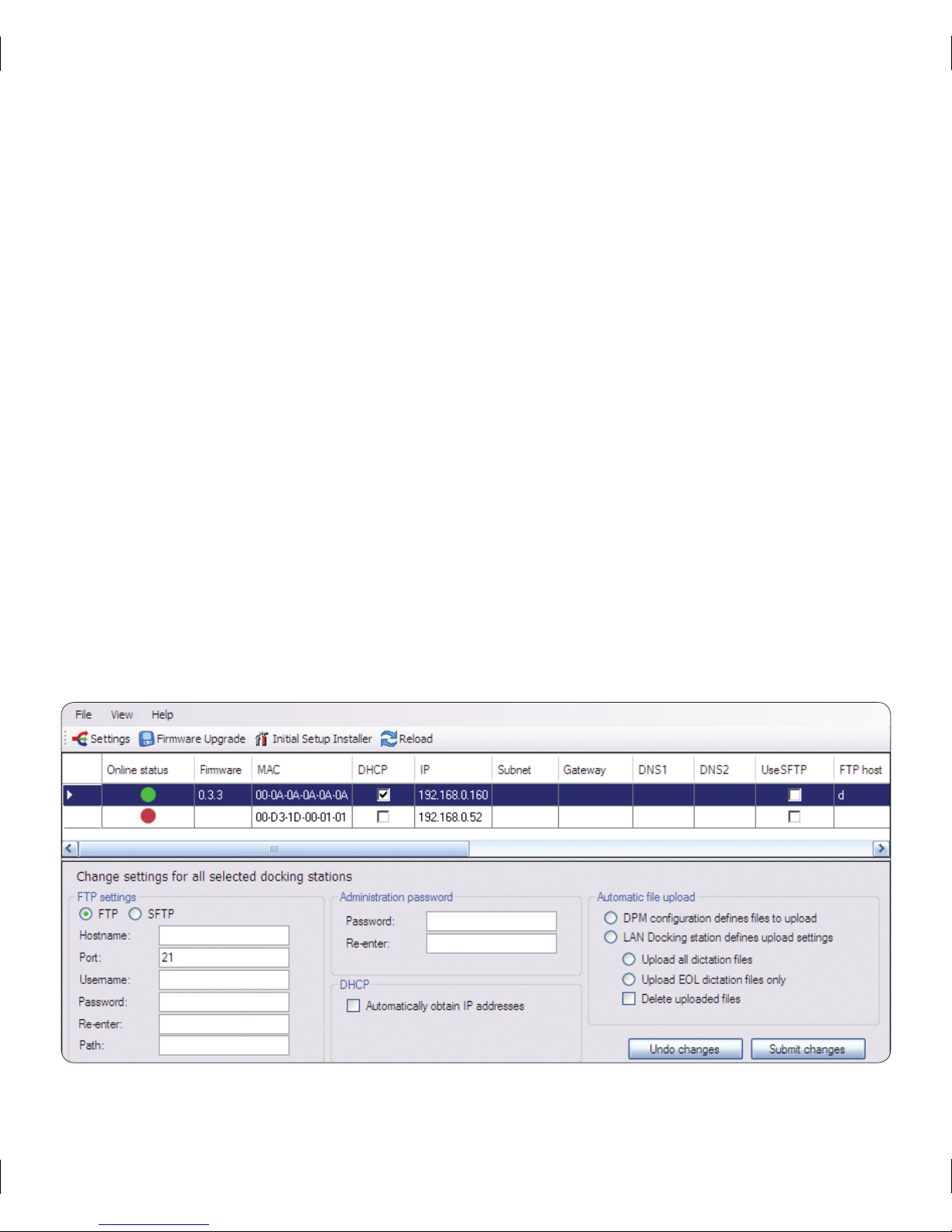

Overview of the LAN Docking5.5
Stations
Upon start-up, the Administration Tool
automatically retrieves configuration data
from any LAN Docking Station, that placed
an identification file within the shared upload
directory on the FTP server, and displays the
data record in the application’s main pane.
the administration password to allow direct
communication with the LAN Docking Stations.
FTP server settings can also be accessed at a
later time by clicking the SETTINGS button in
the file menu.
If the directory is mapped to a shared network
folder:
Check the1 LOCAL NETWORK DRIVE radio
button.
Enter the absolute path to the shared2
upload directory or click the BROWSE
button and select the folder.
Enter an administration password for direct3
connections with LAN Docking Stations in
the PASSWORD field and confirm it in the
RE-ENTER field.
Click4 OK at the bottom of the configuration
dialog.
lfh9160_ifu_en-de-fr-es.indb 19 2008-09-01 16:31:57

20 User manual
Double-clicking on a LAN Docking Station in
the list opens its configuration interface in the
system’s default browser.
A LAN Docking Station is regarded on line
if both the connection to the device was
established and its configuration data could
be retrieved successfully. The on line status
is represented by a green or a red dot in the
ONLINE STATUS column.
Every LAN Docking Station will display the
following information:
Its MAC address•
Its IP address•
The date and time when it was last used•
(or when a Digital Pocket Memo was last
connected).
Additionally, the following settings are displayed
for all online LAN Docking Stations:
The firmware version of the LAN Docking•
Station
The MAC address of the LAN Docking•
Station
A flag that indicates whether the LAN•
Docking Station is configured via a DHCP
server
The IP address settings of the LAN Docking•
Station, including the IP address, the subnet
mask, the gateway address, and any Domain
Name Server addresses
A flag indicates if the LAN Docking Station•
connects to an FTP or an SFTP server for file
upload
The FTP/SFTP server settings of the LAN•
Docking Station, including the hostname and
port of the server, as well as the username,
password and path on the server
A flag that indicates whether the file upload•
settings of the LAN Docking Station are
taken from the Digital Pocket Memo or from
lfh9160_ifu_en-de-fr-es.indb 20 2008-09-01 16:31:57
