Philips DVP3336/94 User manual

DVD PLAYER DVP3336/94 & DVP3336X/94
Published by BU AVM CY–BL Printed in the Netherlands Subject to modification 3141 785 34351
Version 1.1
TABLE OF CONTENTS
Chapter
Technical Specification, PCBs Location………………….. 1
Safety Instruction ……………………………………………… 2
Instruction for Use………………………………………………3
Mechanical and Dismantling Instructions…………………. 4
Troubleshooting ……………………………………………… 5
Overall Block Diagram, ……………………………………… .6
Electrical Diagram……………………………………………… 7
Exploded View Diagram & Service Part List………………..8
Revision List……………………………………………………. 9
©Copyright 2009 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may by reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronics, mechanical, photocopying, or otherwise
without the prior permission of Philips.
Service Manual

1.0 TECHNICAL SPECIFICATION
VIDEO PERFORMANCE
Test equipment：Tektronics VM700T
Test discs：DVD test disc：Philips LVP 10.01（PAL）
/Abex TDV-540（NTSC）
Load Impedance：75Ω
VIDEO FORMAT
DVD，VCD，MP3，JPEG,DivX
USB: 2.0 HS, support MSC, MTP, sector size 4K.
AUDIO PERFORMANCE
Line outputs
Test equipment：Audio Precision System2
Test discs:CDDA:Philips audio signal test disc 1
DVD: Philips LVP 9.01 audio test disc
Load Impedance：100KΩfor Audio
AUDIO FORMAT
CD/MP3,DVD audio
CVBS
Amplitude output:1Vpp± 0.1V/
White bar: 714mV ± 10%/700mVpp ± 10%
Sync. Amplitude: 286mV ± 100mV/300mVpp ± 100mV
Burst/chroma ratio: ± 10%
S/N luminance: ≥52dB
COMPONENT VIDEO RGB
Luminance amplitude output: 700mV ± 10%
RGB unbalance:5%
Sync. Amplitude: 300mV ± 100mV
S/N on RGB outputs: ≥52dB
DC Level: ≤1V
COMPONENT VIDEO YPbP
r
PbPr output unbalance:3%
Sync. Amplitude: 286mV ± 100mV
Video Bandwidth 4.2 MHz:- 5db / 5.8MHz:-8dB
With progressive scan:8.4MHz -5dB
S/N on outputs: YUV: ≥52 dB
POWER CONSUMPTION
Power-Supply:100-280V ac,50/60Hz,standby:310V
Supply voltage:AC 100~280V
Supply Power consumption(AC 100/240V):12W/+10%
Standby Power,230V AC: <1W
GENERAL DESCRIPTION
Optical Pickup: IM S76RFVP
Chip set/Solution:Mediatek MTK1389DE-LA
Disc Size:8cm/12cm
1-1

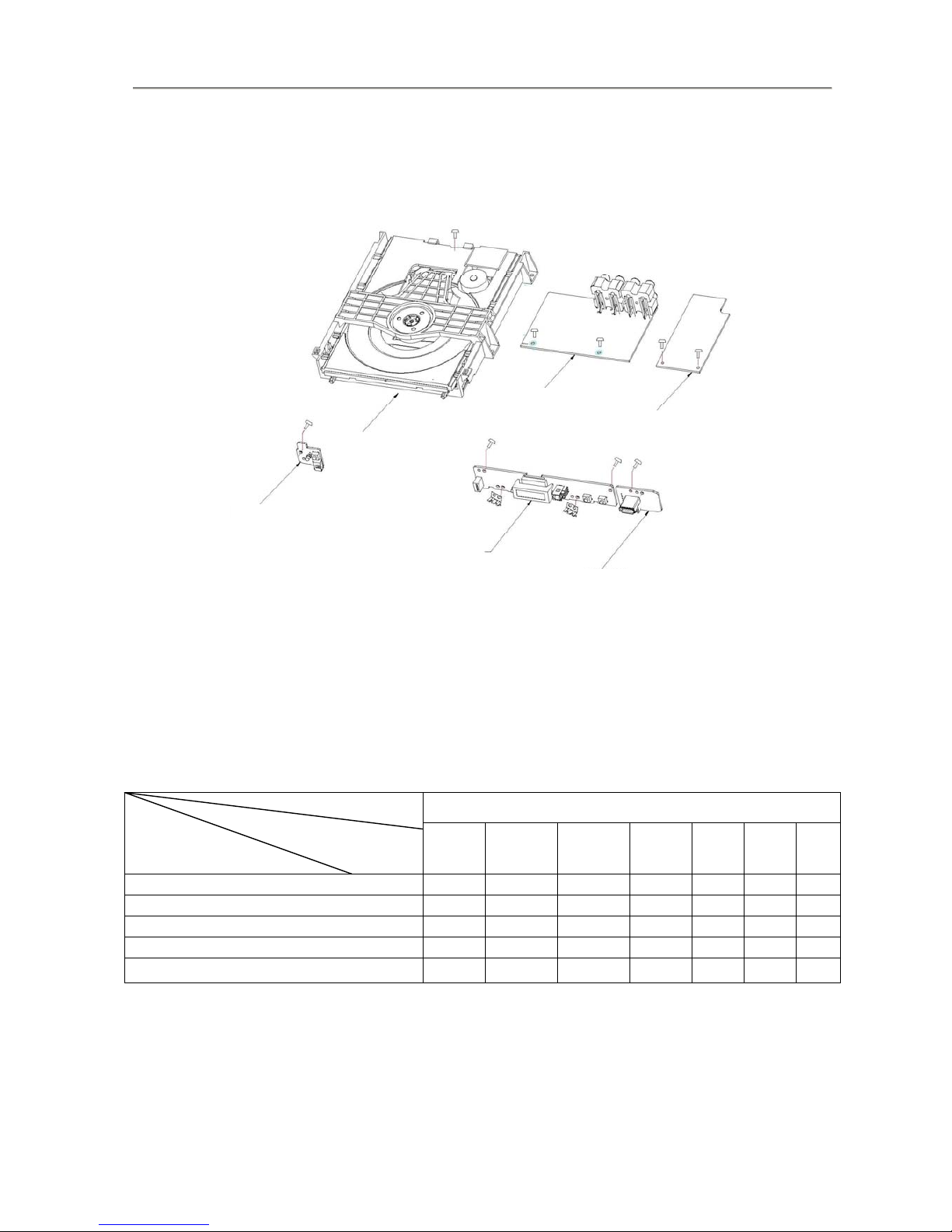

1.1 PCBs LOCATION
VERSION VARIATIONS
Type/Versions:
Service policy
Board in used:
DVP3336
94
MAIN BOARD
8W/2P POWER BOARD
LED DISPLAY BOARD
USB BOARD
POWER SW BOARD
*TIPS: C -- Component Lever Repair.
M -- Module Lever Repair
X – Used
DVD BOARD
LED DISPLAY BOARD
DECK AMI
POWER SW BOARD
USB BOARD
8W/2P POWER BOARD
1-2
M/C
M/C
C
C
C

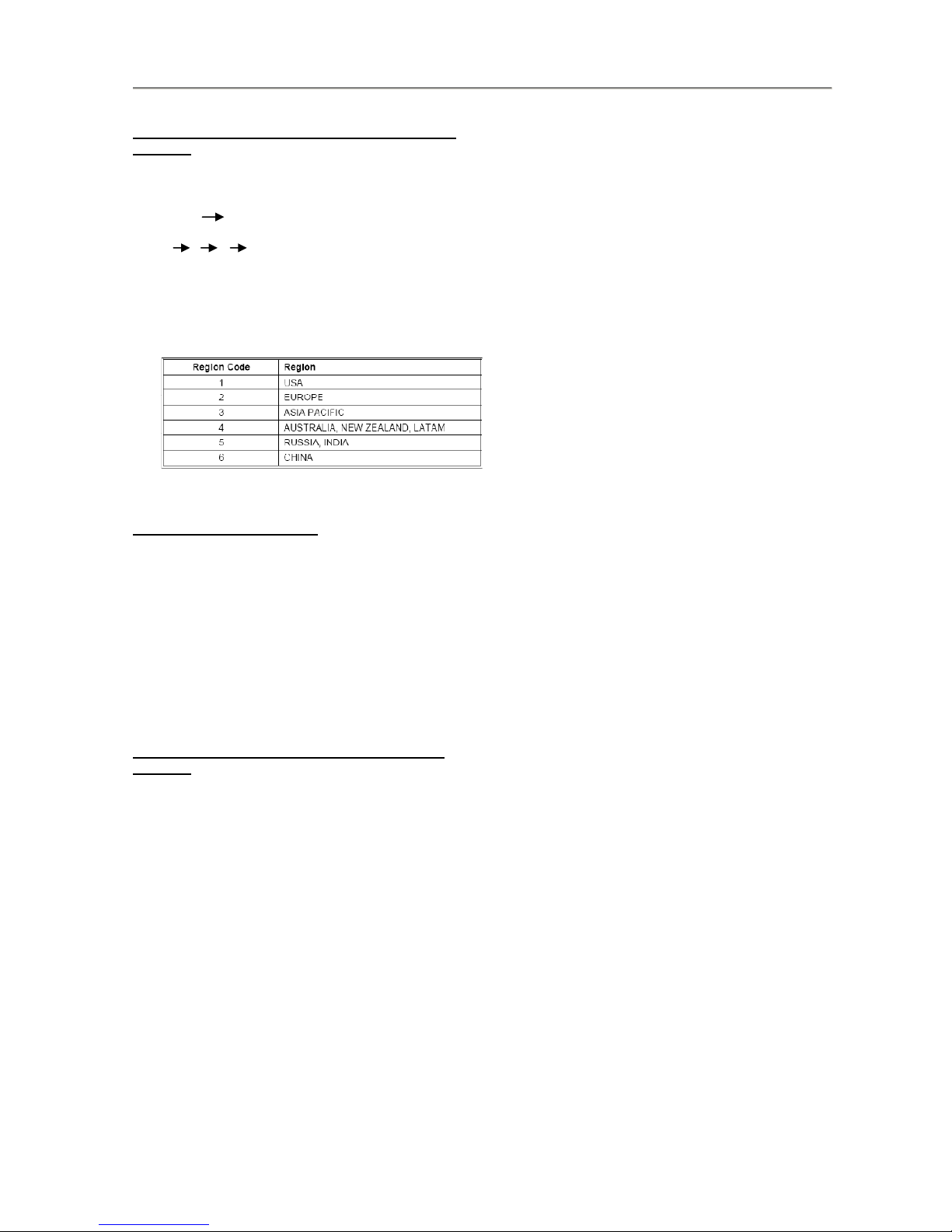

1.2 System, Region Code, etc. Setting Procedure
Procedure to change region code of your DVD
Portable
1. Power ON the DVD player and do not insert
DISC inside player
2. Setup Prefer
Press IR in the sequence as
9 6 5 3
The LCD display showed the existing region
Code
3. Press▲(navigation up)or▼(navigation down)
repeatedly to select the number from 0 to 6.
4. Then press OK to confirm your region code.
5. Refer below table for your region code setting
Select “0” setting = Region Free (confidential)
Procedure for SW upgrade
1. The upgrade
will provide a document
re-named: PHILIPS.BIN
2. “PHILIPS.BIN” copy to USB or CD-ROM into
the data;
3. Reading the USB or CD-ROM，in accordance
with prompt，press ”OK” key to upgrade.
Warning: Do not unplug the AC adapter during
firmware upgrade to prevent flash corrupt of
the set!!
Procedure to check SW version of your DVD
Portable
1. OPEN
2. Press SETUP MENU
3. Select Preferences
4. Select Version Info
5. Press “OK” key
1-3

2.0 Safety instruction
1. General
safety
Safety regulations require that during a repair:
. Connect the unit to the mains via an isolation
transformer.
. Replace safety components indicated by the
symbol
Only by components identical to the original ones.
Any
Other component substitution (other than original
type)
May increase risk of fire or electrical shock hazard.
Safety regulations require that after a repair, you
must
Return the unit in its original condition. Pay, in
particular,
Attention to the following points:
. Route the wires/cables correctly, and fix them with
the
mounted cable clamps
. Check the insulation of the mains lead for external
Damage
. Check the electrical DC resistance between the
mains
Plug and the secondary side:
1) Unplug the mains cord, and connect a wire
between
The two pins of the mains plug.
2) Set the mains switch the “on” position (keep
the
Mains cord unplug).
3) Measure the resistance value between the
mains
plug and the front panel, controls, and chassis
bottom.
4) Repair or correct unit when the resistance
measurement is less than 1M Ω
5) Verify this, before you return the unit to the
customer/user (ref. UL-standard no. 1492).
6) Switch the unit “off”, and remove the wire
between
the two pins of the mains plug.
2. Laser safety
This unit employs a laser. Only qualified service
personnel
May remove the cover, or attempt to service this
device
(due to possible eye injury).
Laser device unit
Type :Semiconductor laser GaAIAs
Wavelength :650nm (DVD)
:780nm (VCD/CD)
Output power :7mW(DVD)
:10mW(DVD/CD)
Beam divergence:60 degree
Note: Use of controls or adjustments or
performance of procedure other than those
specified herein, may result in hazardous
radiation exposure. Avoid direct exposure to
beam.
2-1

3.0 INSTRUCTION FOR USE
You can download this information from the following websites:
http://www.philips.com/support
http://www.p4c.philips.com
3-1

4.0 MECHANICAL AND DISMANTLING INSTRUCTIONS

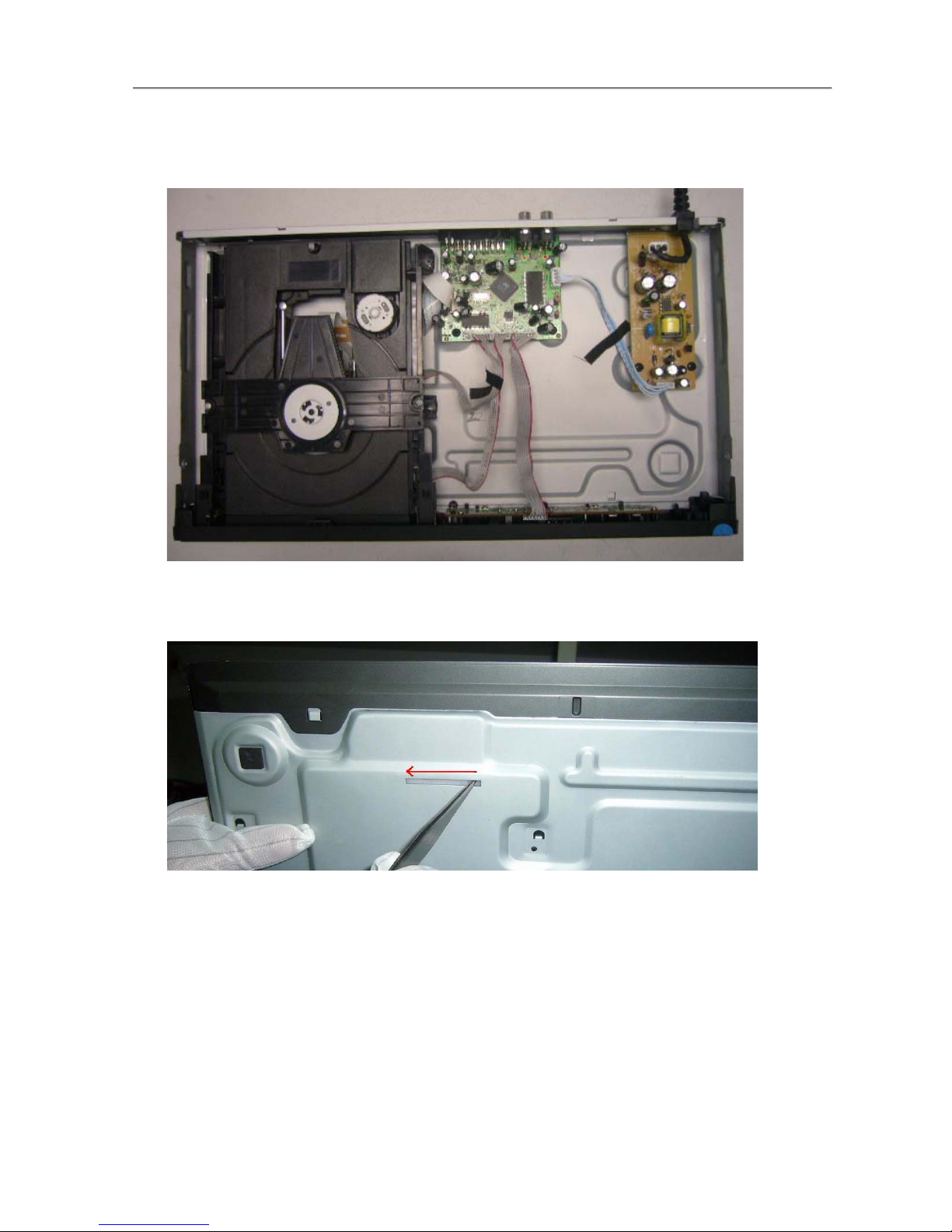

The following guidelines show how to dismantle the player.
Step1: Remove 5 screws around the Top Cover, and then remove the Top Cover(Figure1)
Figure 1
Step2:If the tray can’t open in normal way, you can make it through the instruction as below (Figure2)
Figure 2
Step2: If it is necessary to dismantle Loader or Front Panel, the Front door should be removed first(Figure3)
4-1

Figure3

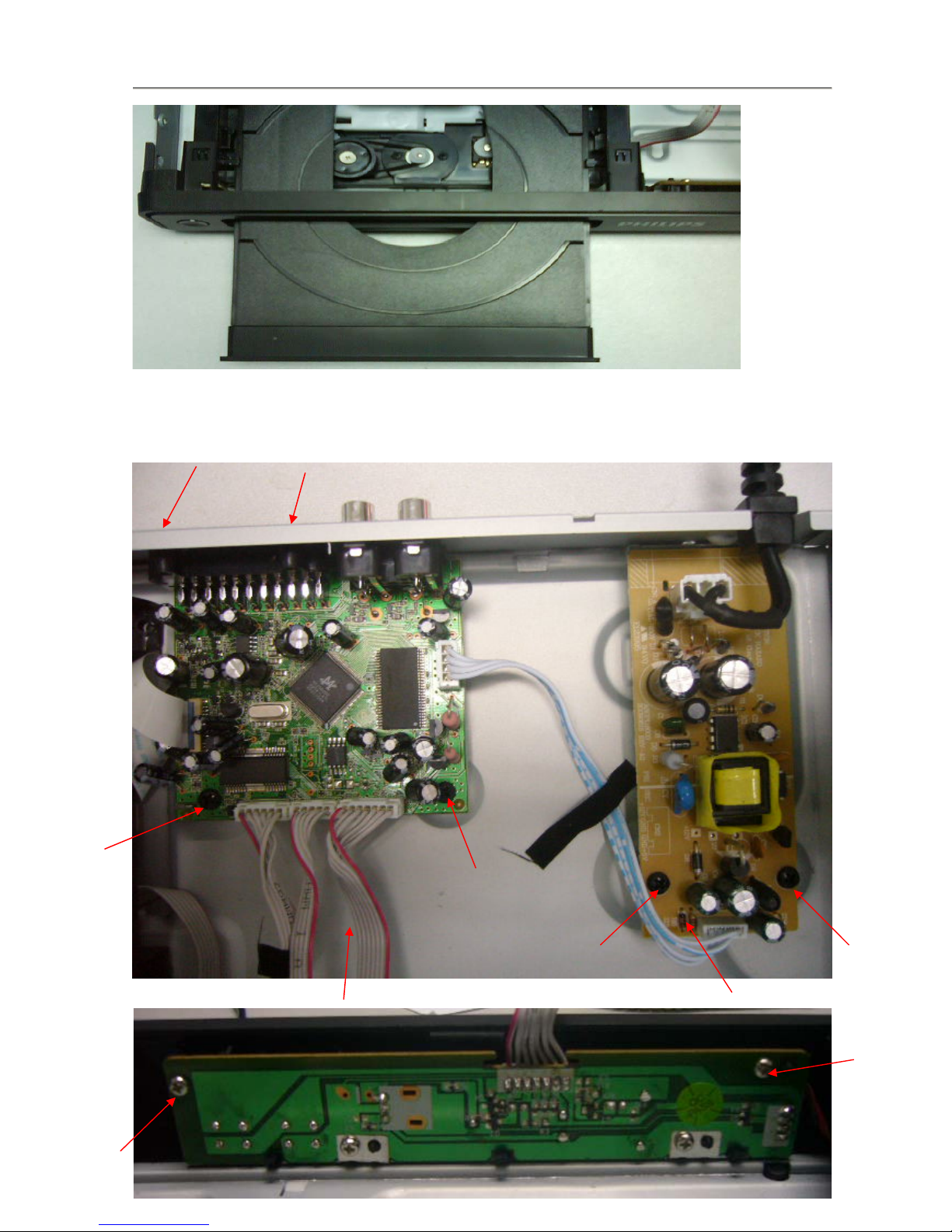

Step4: Remove the 10 screws on board to dismantle the DVD BOARD & POWER BOARD & LED BOARD (Figure 4&5)
Figure4
4-2
4.0 MECHANICAL AND DISMANTLING INSTRUCTIONS

插IC1位置:
DVP3336用
SD4842P.
DVP
3320
/
3326
用
插IC3位置:
CYT431
插IC1位置:
DVP3336用
SD4842P.
DVP3336和
DVP3320/3326共
用此IC
DVP
3320
/
3326
用
SD4841P.
DVP3336和
DVP3320/3326共
用此
PCB
板
插IC1位置:
DVP3320/3326
用SD4841P.
用此
PCB
板

Spindle motor does not move
Yes
Yes
No
No
No
No
Yes
Check whether “MO_VCC”
(VCC) voltage is normal.
Correct connection
Check the MOVCC power
supply
Check/Replace Q10ǃQ11.
Check/ Replace U1.
Check opu focus
1. Check U2 25pin FOO signals
2.If there are F+, F-, T+ and T-
signals output from U1.
Check/Replace the loader
Yes
Yes
No
Go
Check whether laser voltage
(1.9V for CD & 2.3V for DVD)
on L21 & L22
Check the FFC connection
between 24P and the loader.
1. Whether voltage on pin 23 of U2
varies between 0 and 3.3V (3.3V
for CD and 0V for DVD),
2. Whether peripheral components
are eroded or badly soldered.
Trouble shooting chart
Motor not move
5-1

The power can not be on or off
Go
Yes
Yes
No
No
The power can’t be
on or off
Yes
Replace the power board
Check the power supply
on the power board and the connection to
to decoder board is normal.
Check/Correct connection
Whether the connection
to Standby Board is broken. Correct the connection
Replace U1.
No
No
Yes
Yes
Check if the CON2 on the front
board to J 6(7PIN) on the decoder board
is in good contact.
Whether there is 0V or
3.3V voltage difference on
Pin41 of U2
Trouble shooting chart
or correct the connection
5-2

Disc cannot be read.
No
Yes
No
Yes
No
Yes
Yes
No
No
Yes
Disc cannot be read.
Check the loaded circuit
1.Check voltage on pin 23 of U2
varies between 0 and 3.3V:
Æ3.3V for CD
Æ0V for DVD
2.Check whether peripheral
components are eroded or defect
Check the FFC connection
between 24P and the loader.
Check U2 and peripheral components
Re-solder or replace the defective parts
Check the connection
between U2
Correct connection
Replace U2 or loader.
Yes
Check whether there is
laser voltage (1.9V for CD
and 2.3V for DVD) on
Collector of Q11 &Q10
Check if there is RFO signal
on the pin8 of HA1. (The
normal RFO signal is a clear
reticulated wave)
Check U1, U2, and
peripheral components are
eroded or badly soldered.
Trouble shooting chart
5-3

Only DVD disc or only disc except DVD can be played
No
No
Yes
Only DVD disc, or only disc
exce
p
t DVD can be Pla
y
ed.
Check the FFC
connection between
24
p
in and the loader.
Check the loaded circuit
Check the solder status on U2 and
peripheral components
Check whether there
is voltage variance on
p
in 18 of U2.
check if bad solder exist on U2 and
peripheral components
Replace the bad spare parts
Check whether pin 1 - 26 and
pin 125-128 of U2 and peripheral
components are badly
soldered
,
defected
Check Q5, Q6, Q7
whether in good
condition
Yes
Yes
Yes
Go
Correct connection
Change U2 or the loader.
No
No
Yes
Check laser voltage (1.9V)
output on Collector of Q11, if
pin 17 of U2 is at low level.
No
Trouble shooting chart
5-4

Distorted audio and loud noise
Yes
No
Yes
Yes
No
Distorted audio and
loud noise
Replace L2
Replace Q12, Q14
Check he power supply
voltages +12V
to the operation amplifying
L2 are normal
Check whether the
muting transistors Q12,
Q14, are normal
Checking the U2 leads
the feet has no to break
to open
Correct connection
Check whether the U5
or U2 power supply
normal
No
Yes
Yes
Check U2, U5
Replace U2, U5
No
Trouble shooting chart
No
5-5

Abnormal color of video picture
Yes
Abnormal color of
video
p
icture
Check whether the 3.3V
and 1.8V power supply
voltages on the decoder
board are normal.
Check Y1, R17, C21 and C22
Check other of power supply electric
circuit
Correct the connection
Check whether the
video filter network
circuit is normal.
Yes
Yes
No
No
No
Check whether the 27MHz
output signal is normal.
Change U2
Yes
Trouble shooting chart
5-6

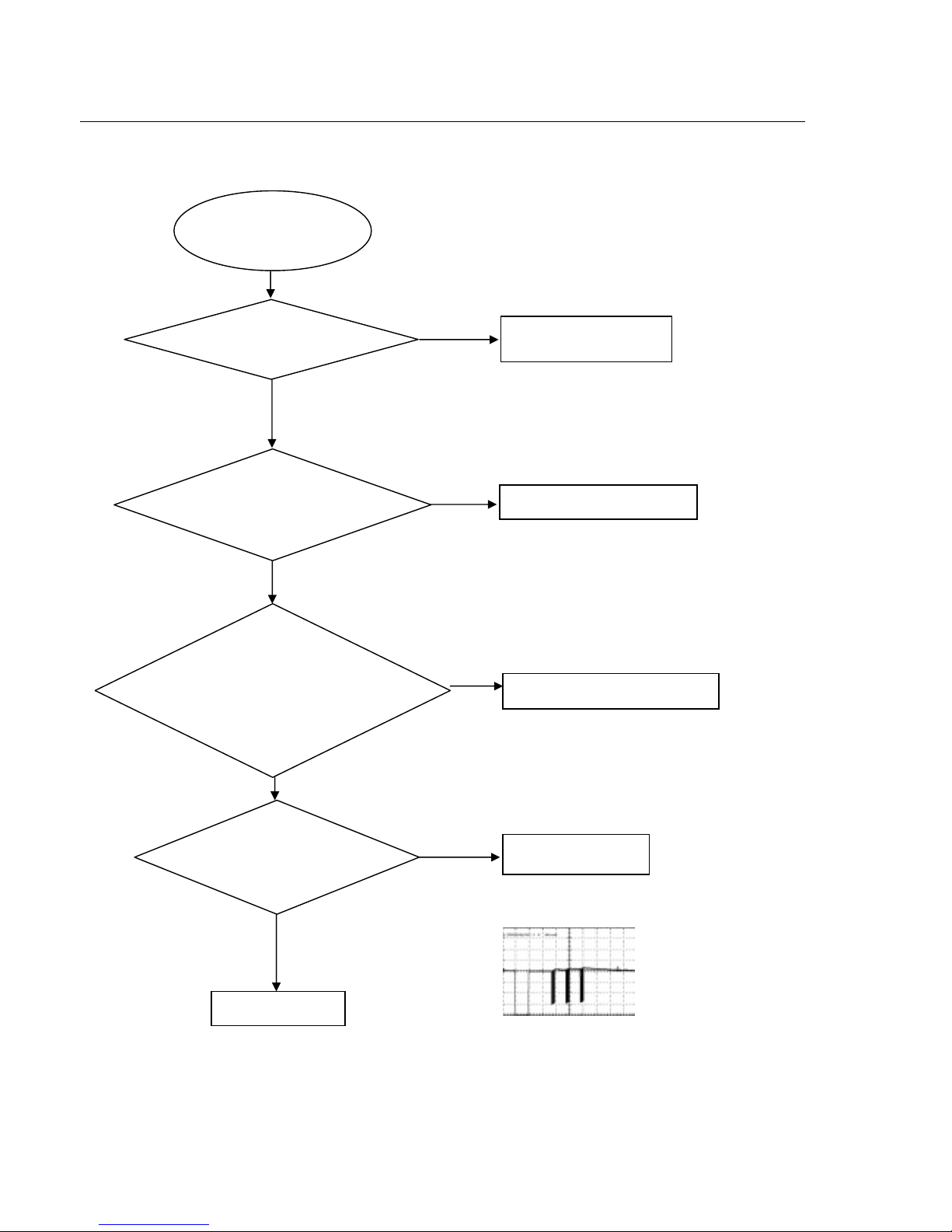

Remote reception is insensitive or fails.
No
Remote reception is
insensitive or fails.
Check if the remote
control works
p
ro
p
erl
y
.
Check battery
Check R1 R2 on front board
Use an oscilloscope to check
if there is output waveform
from the first pin IR of the
remote censor after pressing
button on the remote control.
IR1(PIN 3 - RCwaveform)
Check if there is IR
signal on pin 44 of
U2
Check if the power
supply voltage to the
remote censor is normal
Go
No
No
No
Yes
Yes
Yes
Correct connection
Yes
Change U2
IR waveform

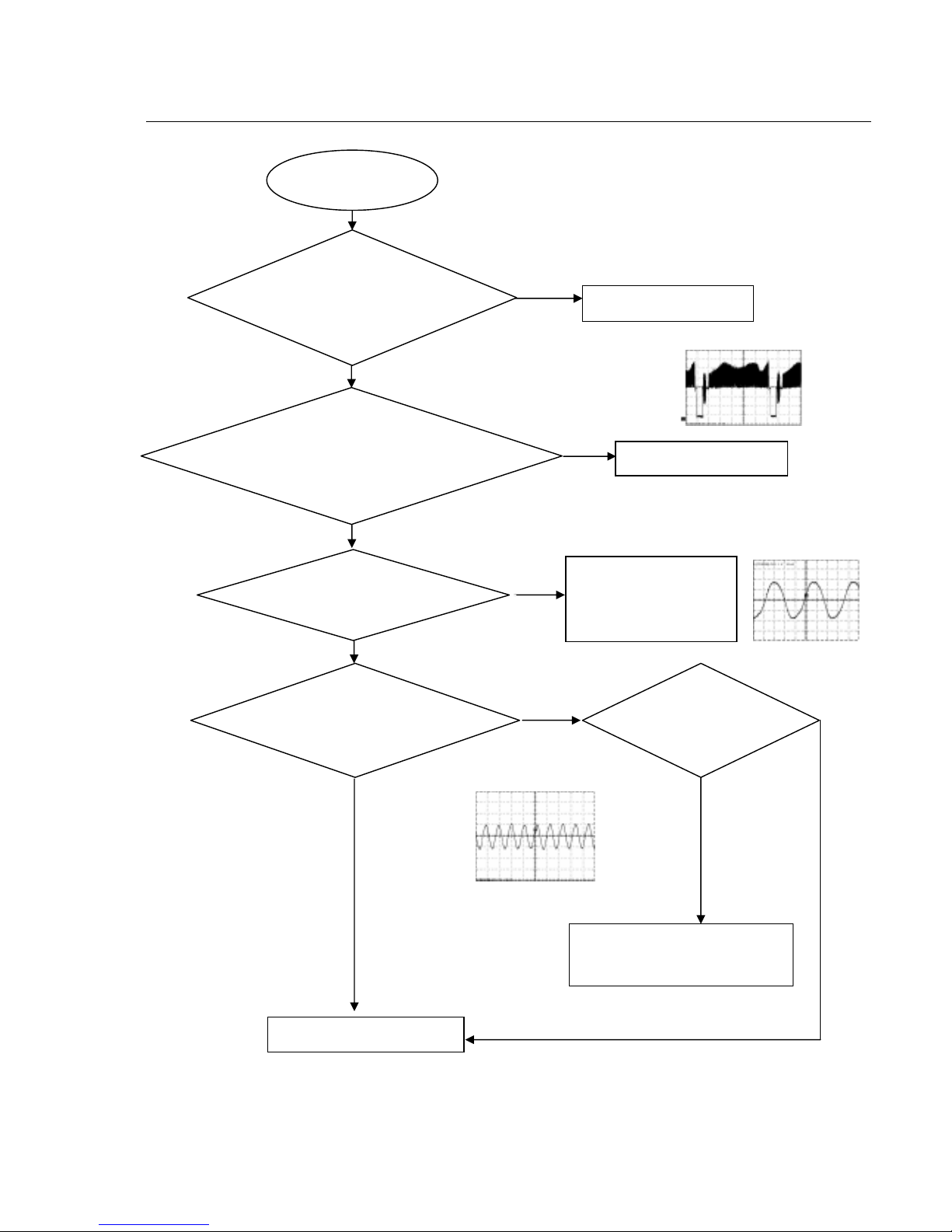

Trouble shooting chart
5-7

No video picture, no sound.
Change C13,Q4,Q3
No video picture,
no sound.
Check if the reset circuit consisting
of C13, Q4, Q3,R11,R12,R13,R15,R16 is normal
(at a high level for tens of milliseconds,
then constantl
y
at 0V
)
.
Check whether there is
27MHz signal output.
Check if there is 128MHz
signal output on R49.
Check the loaded circuit
Crystal oscillator Y1 and
peripheral components
are defected or eroded.
Check whether
short-circuit or bad
solder on U3, U4
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Reconnect the component in
short-circuit
Check U3.
27M waveform
SDRAM(R49 SDCLK) waveform
Check whether all the
voltages from the power
board to the decoder board
are normal. CVBS(L27 point) waveform
Trouble shooting chart
Go
No
5-8

No display on LED, and buttons do not work
No
No
No
LED and
buttons do not work
Check whether there is
correct contact
between CON1 of front board
and J 6 of decoder board
Correct connection
Fix power supply board top
a power supply for should
electric circuit
Check the U2’s pin 33,34,40,41 arrive
the J 6 connect condition
Correct connection
Replace LED or Q1,Q2,Q3,Q4
Yes
Yes
Yes
Check DV33(+3.3V)
voltage on the power
and front board
Check whether there is 0V
or 3.3V on the signals of VPLAY,STB
CLK, DATA
Check whether the circuit
connected to LED & BUTTONS
is broken,
Trouble shooting chart
Yes
Yes
No
Check wether Q1,Q2,Q3,Q4 for 3904
&LED is broken,
5-9

USB
POWER BOARD
SI4702(FM
TUNER)
SDRAM
16*16
DECK(CMS S76R)
FLASH
16M
LED
DISPLAY
SW5888/MOTOR DRIVE&DC-DC
YD4558
MTK1389DE/LA
SPEAKER(8ohm/1W)
G1445RD1D
BLOCK DIAGRAM
YD4558 YD4558
ANALOG
AUDIO
5.1CH
+12V
ANALOG
AUDIO OUT
5.1CH
I2C BUS
YD4558
FM_L FM_R
+12V
FM_L FM_R
DVD_L
DVD_R +5V
+3.3V
+5V
AC 110-220V
Y/U/V
COAXIAL
+3.3V
+1.8V
6-1

SI4702/03
If use 3V3D to power the si4702
chip. must use GPIO to controll the
FM reset
Near phonejack(PT-242)
CIRCUIT DIAGRAM-MAIN BOARD (FM)
GPIOC3
FM_RST
GPIOC3
CLK
CLK
FM_RST
GPIO11
GPIOC2
GPIO21
DV33
ANT
FMINR
GPIO11
FMINL
GPIO21
GPIO11 [2]
GPIOC2 [2]
GPIO21 [2]
DV33 [1,2,3,4,5]
GPIOC2
VCC_FM
VCC_FM
VCC_FM
GND
GND
GND
GND
GND
GND
GND
VCC_FM
GND
DV33 VCC_FM
GND
GND
GND
GND
GND
C109
1000pF
L4 FB600R
L0805
C113
100nF
C114
470pF
C107
22nF
L32
270nH/0603
R57 1K
+
TC1
10uF/16V
C105 22pF
R148 10K
C106 22pF
FM
C5
100P
C110 470P
R149
15K
X1
32.768KHz
C111 470P
Si4702
QFN20
U10
Si4702
1
2
3
4
5
6 7 8 9 10
11
12
13
14
15
16 17 18 19 20 21
NC
FMIP
RFGND
GND
RST
SEN SCLK SDIO
RCLK VIO
VD
GND
ROUT
LOUT
GND
VA
GPIO3 GPIO2
GPIO1
NC
GND
R150 10K
TP4
C112
22nF
C108
22nF
7-1
