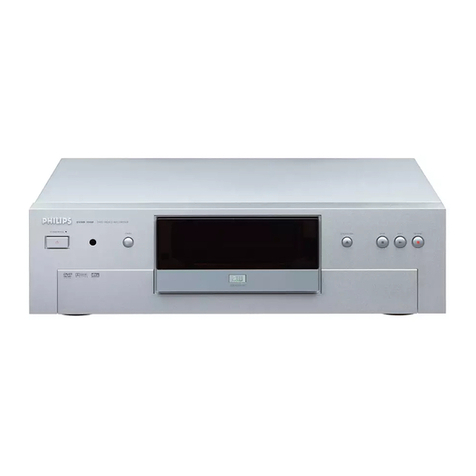

Philips DVDR1000 MkII User manual

Philips DVD Recorder
DVDR1000 / 001
DVDR1000
DVDR1000
• Record fromTV in digital quality on ReWritable DVDs
• Copy your favorite camcorder tapes onto DVD for life
• Digital picture and sound quality for the ultimate viewing experience
• Direct access to your recordings, no more winding or rewinding
• Plays DVD and audio-CD(R/RW)
• Recorded discs play on most DVD-Video players
•Visual overview to instantly find your recordings
• High quality mode for camcorder copying and additional modes
for up to 4 hours recording
• Digital connection (i.LINK) for high-quality copying from digital camcorders
• RGB input for the best quality recording from analog sources
• ShowView /VIDEO Plus+ timer programming

Optical Read/Write System
Laser type Semiconductor AlGaAs
Numerical Aperture 0.60 (DVD)
0.45 (CD)
Wavelength 660 nm (DVD)
780 nm (CD)
Disc Formats Supported
Disc type Playback Recording
DV+RW ●●
DVD-R ●-
DVD-Video ●-
Video CD ●-
SuperVCD ●-
Audio CD ●-
CD-R ●-
CD-RW ●-
DVD+ReWritable Disc Format
Medium Phase-Change Rewritable
Diameter 12cm
Capacity (single side) 4.7 Gbyte
Recording time HQ 60’ 9.72 Mbit/s
SP 120’ 5.07 Mbit/s
LP 180’ 3.38 Mbit/s
EP 240’ 2.54 Mbit/s
TV Standard PAL/SECAM NTSC
Scan Frequency 50Hz 60Hz
Number of lines 625 525
Playback ●●
Recording ●●
Internal tuner ●-
Video Format
Digital Compression DVD, SVCD: MPEG2
VCD: MPEG1
DVD-VIDEO 50Hz 60Hz
DVD+RW (HQ/SP)
Horiz. Resolution 720 pixels1720 pixels1
Vertical Resolution 576 lines 480 lines
DVD+RW (LP/EP) 50Hz 60Hz
Horiz. Resolution 360 pixels2360 pixels2
Vertical Resolution 576 lines 480 lines
VCD 50Hz 60Hz
Horiz. Resolution 352 pixels 352 pixels
Vertical Resolution 288 lines 240 lines
1equivalent to 500 lines on yourTV
2equivalent to 250 lines on yourTV
Video Performance
DA Converter 10 bit
AD Converter 9 bit
Signal handling Components
Video output 1Vpp into 75 ohm
S-Video output Y:1Vpp into 75 ohm
C: 0.300Vpp into 75 ohm
RGB Output 0.7 Vpp into 75 ohm
Audio Format
Compressed digital Playback Recording
• Dolby Digital Multi-channel 2-channel
(AC-3) 16-bit, fs 48 kHz
• DTS Multi-channel -
• MPEG1 2-channel -
• MPEG2 Multi-channel -
Spdif
• PCM 2-channel -
16, 20, 24 bit
fs 48, 96 kHz
• Analog stereo & Dolby Pro Logic
(VCD & downmix from multi-channel sound)
• 3D Sound for virtual 5-channel sound on 2 speakers
Audio Performance
DA Converter 24 bit
AD Converter 16 bit
DVD fs 96 kHz 4 Hz - 44 kHz
fs 48 kHz 4 Hz - 22 kHz
Video CD fs 44.1 kHz 4 Hz - 20 kHz
Audio CD fs 44.1 kHz 4 Hz - 20 kHz
Signal-Noise (1kHz) 105 dB
Dynamic Range (1kHz) 100 dB
Crosstalk (1kHz) 110 dB
Distortion/Noise (1kHz) 90 dB
Reception
Tuner UHF +VHF + Hyperband
Tuning presets PLL, Ch/Freq entry, 99
Tuning/Install Features Guide Channel Mapping,
Manual Search/Store, FollowTV
Audio NICAM,‘German’ stereo
Front Connections
i.LINK DV IEEE 1394 4-pin
S-Video Input Hosiden 4-pin*
Video Input Cinch (yellow)*
Audio Left/Right Input Cinch (white/red)*
* gold-plated
Rear Connections
SCART 1 CVBS, S-Video/RGB
SCART 2 CVBS, S-Video/RGB, Decoder
S-Video Input Hosiden 4-pin
S-Video Output Hosiden 4-pin
Video Input Cinch (yellow)*
Video Output Cinch (yellow)*
Audio Left/Right Input Cinch (white/red)*
Audio Left/Right Output Cinch (white/red)*
Digital Audio Output 1 coaxial*, 1 optical
IEC958 for CDDA / LPCM
IEC1937 for MPEG2, AC-3,DTS
RF Antenna Input Coaxial 75 ohms
RFTV Output Coaxial 75 ohms
Mains Standard (IEC type)
* gold-plated
User Interface
OSD Languages English, French, German, Dutch,
Spanish, Italian, Swedish
Technical Specification DVDR1000/001 DVDR1000
DVDR1000

Programming
Number of events 6; 1 month;Daily/Weekly
Programming mode OTR
Record control and
transmitter identification PDC,VPS
Autom. Sat. Recording From SCART 1/2
Timer programming Manual, ShowView /VIDEO Plus+,nexTView Link
General Functionality
3D sound (SRSTruSurround)
Beep Feedback for Remote Control
Resume (20 discs) after stop/standby
Dim display (3 levels of brightness)
Backup Presets &Timer Events:1 year
Backup Clock & Calendar:7 hrs
Time/Date Download PDC,Text (Time/Date)
Audio Recording Level Automatic, Manual
TV-Related Functions 16:9 (pin 8), FollowTV,
Direct Record
Digital Bus Functions: EasyLink (pin 10)
Disc playback
• Auto Resume (20 discs)
• Play / Stop / Pause
• Fast Forward/Backward (3 speeds)
• Step Forward/Backward
• Slow (3 speeds)
• Title /Track Select
• Next / Previous Title / Track / Chapter
• Repeat (Chapter /Title / All) or (Track /All)
• A-B Repeat
• Intro Scan
• Perfect Still with digital multi-tap filter
• Zoom (1.33x, 2x, 4x) with picture enhancement
• Pan
• Time search
DVD+RW Functionality
• Direct Record
• One-Touch Record (OTR)
• Station ID and Program Name recording
• Append
• Divide
• Erase
• Automatic/Manual Chapter Marker insertion
• Disc write lock
• Favourite Scene Selection
• Index Picture Screen for instant content overview
• Selectable Index Pictures
DVD-Video Functionality
• Multi-angle Selection
• Audio Selection (1 out of max. 8 languages)
• Subtitles Selection (1 out of max. 32 languages)
• Aspect Ratio conversion (16:9,4:3 Letterbox,4:3 Pan Scan)
• Parental Control and Disc Lockout
• Disc Menu support (Title Menu and Root Menu)
Video CD Functionality
• Playback Control forVCD 2.0 discs
• Parental Control and Disc lockout
Audio CD Functionality
• Time Display (Total /Track / RemainingTrackTime)
• Full audio functionality with remote control
Power Supply
Power Inlet 200-240V,50/60 Hz
Power consumption Operation 40W
Low-power 3 W
standby
Cabinet
Dimensions (w x h x d) 435 x 110 x 330 mm
NetWeight 8.8 Kg
Front Panel 3mm Aluminium
Remote Control
• Universal remote for control of mainTV functions
• Aluminium top
• Hard coated keys
• Dome foil for tactile feedback
Package Contents
• DVDVideo Recorder
• Universal Remote Control RC2050 including two R06/AA
batteries
• Directions for use
• DVD+RW disc
• AC power cable
• full SCART cable
• Audio cable*
• Video cable*
• S-Video cable*
• Coax RF antenna cable
* gold-plated plugs
Directions for Use
Version /001 /021 /051
Languages German German English
French Swedish
Spanish Danish
Italian Norwegian
Dutch Finnish
Packaging
Colors black printing on beige box
Languages English (front)
French (rear)
Spanish (right)
German (left)
Size (W x H x D) 516 x 210 x 400 mm
Gross weight appr.10 kg
Buffers Polypropylene
Technical Specification DVDR1000/001 DVDR1000
DVDR1000

Product Highlights
• Two-way compatibility
The Philips DVDVideo Recorder plays your existing library of pre-recorded
DVD and CD discs,while the DVD discs you record play on existing DVDVideo
players.
• Naked disc
With a Philips DVDVideo Recorder there is no hassle with disc cartidges –
neither for recordable nor for pre-recorded discs.
• i.LINK
You can connect DV and D8 camcorders and PCs with digital video editing
facilities via the DigitalVideo input for the best possible video quality.
• RGB input
With RGB video you can record analog video at the highest quality level,
exceeding not only CVBS but also S-Video.
• Disc bar
The display instantly shows you an overview of the disc contents, the current
position and the play mode, so you always know where you are.
• Index Picture Screen
The recorder automatically creates a screen menu with an index picture of each
recording, so you can immediately see what’s on the disc, navigate to the title
you want to see, and start to play – or record.
• Favourite Scene Selection
With FSS, you can select the scenes you want to see and the DVDVideo
Recorder will skip the unwanted scenes at your command.You can view the
selection on existing DVD players,too.Easy, single-disc, single-device editing.
• PC compatibility
The Philips DVDVideo Recorder uses the same discs as DVD+RW drives in
PCs.What’s more, the discs you record will play on existing DVD-ROM drives.
And with the right software/hardware package for your PC, you can make
sophisticated video edits on your DVD+RW discs.
Subject to change without notice
Advance information,version 1.8,April 11, 2001
Dolby Digital and the double-D symbol are trademarks of Dolby Laboratories Licensing,Inc.
DTS is a trademark of DigitalTheater Systems, Inc.
ShowView andVCR Plus+ are trademarks of Gemstar Development Group.
** , , and the symbol are trademarks of SRS Labs,Inc.
Technical Specification DVDR1000/001 DVDR1000
DVDR1000
