EN 5
English
Contents English
Contents
1 Important 6
Safety 6
Notice 6
2 Your product 8
Features highlight 8
Product Overview 9
3 Connect 12
Place the unit 12
Connect antenna or cable 12
Connect video/audio cables 13
Connect other devices 15
4 Get Started 18
Prepare the remote control 18
First Time Settings 19
5 Watch live TV 21
Use your recorder to watch live TV 21
About Time Shift Buffer - temporary
HDD storage 21
Control live TV 22
5 Record 23
Before you record 23
Record settings 23
Record the current TV programme 24
About timer recording 25
Schedule a timer recording 25
Edit a timer recording 26
View history of timer recordings 27
Record from other devices 28
Simultaneous record and play 28
5
6 Play 29
Play from USB 29
Play video 30
Play music 31
View photos 32
Control Play 33
7 Edit Recordings 35
About the recording list 35
Sort titles 35
Edit titles 36
8 Copy Files 41
Copy to USB 41
Copy to HDD 41
9 Adjust Settings 42
Language Settings 42
Tuner Settings 43
Video Settings 45
Recording Settings 46
System settings 47
10 Additional Information 51
Care 51
About Media Files 51
Upgrade software 52
Specifications 53
11 Troubleshooting 54
12 Glossary 57
1_DVR2008_97_eng_wk822.indd 51_DVR2008_97_eng_wk822.indd 5 2008-05-26 10:29:36 AM2008-05-26 10:29:36 AM

6 EN
1 Important
Safety
Warning!
Risk of fire or electric shock!
Ensure that air can circulate freely through the
ventilation holes on this unit. Allow at least 5~10
cm clearance around the unit.
Never expose this unit to direct sunlight, naked
flames or heat.
Never place this unit on another electrical
equipment.
Keep away from this unit during lightning storms.
Never remove the casing of this unit. Please leave
all maintenance work to qualified personnel.
Keep this unit away from water, moisture and
liquid-filled objects.
Install this unit near the AC outlet where the AC
power plug can be easily reached.
•
•
•
•
•
•
•
Caution!
Remove batteries if they are exhausted or if the
remote control is not to be used for a long time.
Do not mix batteries (old and new or carbon and
alkaline, etc.).
Batteries contain chemical substances, they should
be disposed of properly.
Use of controls or adjustments on performance
of procedures other than herein may result in
hazardous radiation exposure or other unsafe
operation.
•
•
•
•
Note
Refer to the type plate at the rear or bottom of the
product for identification and supply ratings.
•
Notice
Recycle notice
Please act according to your local rules and do
not dispose of your old products with your
normal household waste. The correct disposal
of your old product will help prevent potential
negative consequences for the environment
and human health.
Copyright notice
The making of unauthorised copies of copy-
protected material, including computer
programmes, files, broadcasts and sound
recordings, may be infringement of copyrights
and constitute a criminal offence. This unit
should not be used for such purposes.
1_DVR2008_97_eng_wk822.indd 61_DVR2008_97_eng_wk822.indd 6 2008-05-26 10:29:36 AM2008-05-26 10:29:36 AM

EN 7
English
Important
Trademark notice
This product incorporates copyright
protection technology that is protected by US
patents. Use of this copyright protection
technology must be authorised by
Macrovision, and is intended for home and
other limited viewing uses only unless
otherwise authorised by Macrovision. Reverse
engineering or disassembly is prohibited.
Manufactured under license from Dolby
Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories.
DivX Ultra Certified products: “DivX, DivX
Ultra Certified, and associated logos are
trademarks of DivX, Inc. and are used under
license.
1_DVR2008_97_eng_wk822.indd 71_DVR2008_97_eng_wk822.indd 7 2008-05-26 10:29:36 AM2008-05-26 10:29:36 AM

8 EN
2 Your product
Congratulations on your purchase and
welcome to Philips! To fully benefit from the
support that Philips offers, register your
product at www.philips.com/welcome.
This recorder makes recording easy. With the
built-in 160GB Hard Disk Drive, you can
record up to 123 hours of video in SLP
(Super Long Play) recording mode.
On top of that, you can store the DivX
movies, music files and digital camera photos
in the HDD Media Jukebox.
Note
DO NOT disconnect the recorder from the power
supply unless you are not using this product for a
long period of time. Power is needed to enable
the recorder to perform essential tasks like timer
recording.
•
Features highlight
Pause Live TV
You can pause any live TV programme by
pressing the PAUSE LIVE TV button. Resume
play by pressing the PAUSE LIVE TV button
again. You can now continue watching the
remainder of the programme. To return to
the live TV programme, just press the LIVE TV
button.
Instant Replay
You can repeat any scene of a live TV
programme by pressing the left button on the
remote control. To return to live TV
programme, press the STOP button.
FlexTime
With FlexTime, you can watch a TV
programme while it is recorded. You do not
need to wait for the recording to finish to
watch it.
Time Shift Buffer (TSB)
Once you turn on the recorder, the Time
Shift Buffer stores the TV channel it is tuned
to. It can store up to 10 (ten) hours of TV
programmes in SP mode and automatically
removes anything that is older.
Media Jukebox
The media jukebox stores media files (video,
music and photos). These files are stored
according to its media type.
Enhanced USB upgrade
You can get information and upgrade the
software from a USB flash drive.
1_DVR2008_97_eng_wk822.indd 81_DVR2008_97_eng_wk822.indd 8 2008-05-26 10:29:36 AM2008-05-26 10:29:36 AM

EN 9
English
Your Product
HDD
a b c e fd
Main Unit
a2(Standby-on)
Turns on this unit or switches to
standby mode.
Blinks rapidly when receiving
command signals from the remote
control.
bHDD Indicator
cX
Lights up when a timer has been
programmed.
du(Play/Pause)
Starts/ pauses playback or recording.
m M
Press to make a forward/ reverse
search.
LIVE TV
Go to tuner mode.
In time shift mode, go to current
broadcast position.
•
•
•
•
•
•
•
Product Overview
ez(Record)
Starts recording the current TV
channel or the current video source.
Press repeatedly to extend the
recording time.
Indicator lights up during recording.
fUSB
Input for USB device or digital camera.
Only brands and models of digital
cameras and devices which conform
to USB Mass Storage Device class
standard are supported.
•
•
•
•
•
1_DVR2008_97_eng_wk822.indd 91_DVR2008_97_eng_wk822.indd 9 2008-05-26 10:29:37 AM2008-05-26 10:29:37 AM

10 EN
a2
Turns on the recorder or switches to
standby mode.
bUSB
Access the contents of the connected
USB device.
cSOURCE
Selects the recorder video source
(Tuner, CVBS or YPbPr).
dColour coded buttons
Selects the corresponding screen
option.
eHOME
Access/ exits the home menu.
fWX:
Cursor keys for moving to the left/
right.
During viewing of a TV programme,
press and hold to replay or skip
forward.
ST :
Cursor keys for moving up/ down.
gOK
Confirms an entry or selection.
hBACK
Returns to the previous menu.
During play of DivX Ultra files, press
to return to the main DivX menu.
imM
Fast reverse or fast forward search.
jPAUSE LIVE TV u
Starts/ pauses play or recording.
kVOL+/ -
Adjusts the volume of the TV
(compatible TVs only).
MUTE
Mute the volume output from the
recorder.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
HOME
1
2
3
4
5
6
7
8
9
q;
qa
qs
qd
qh
qj
qf
qg
qk
ql
w;
wa
ws
wd
wg
wf

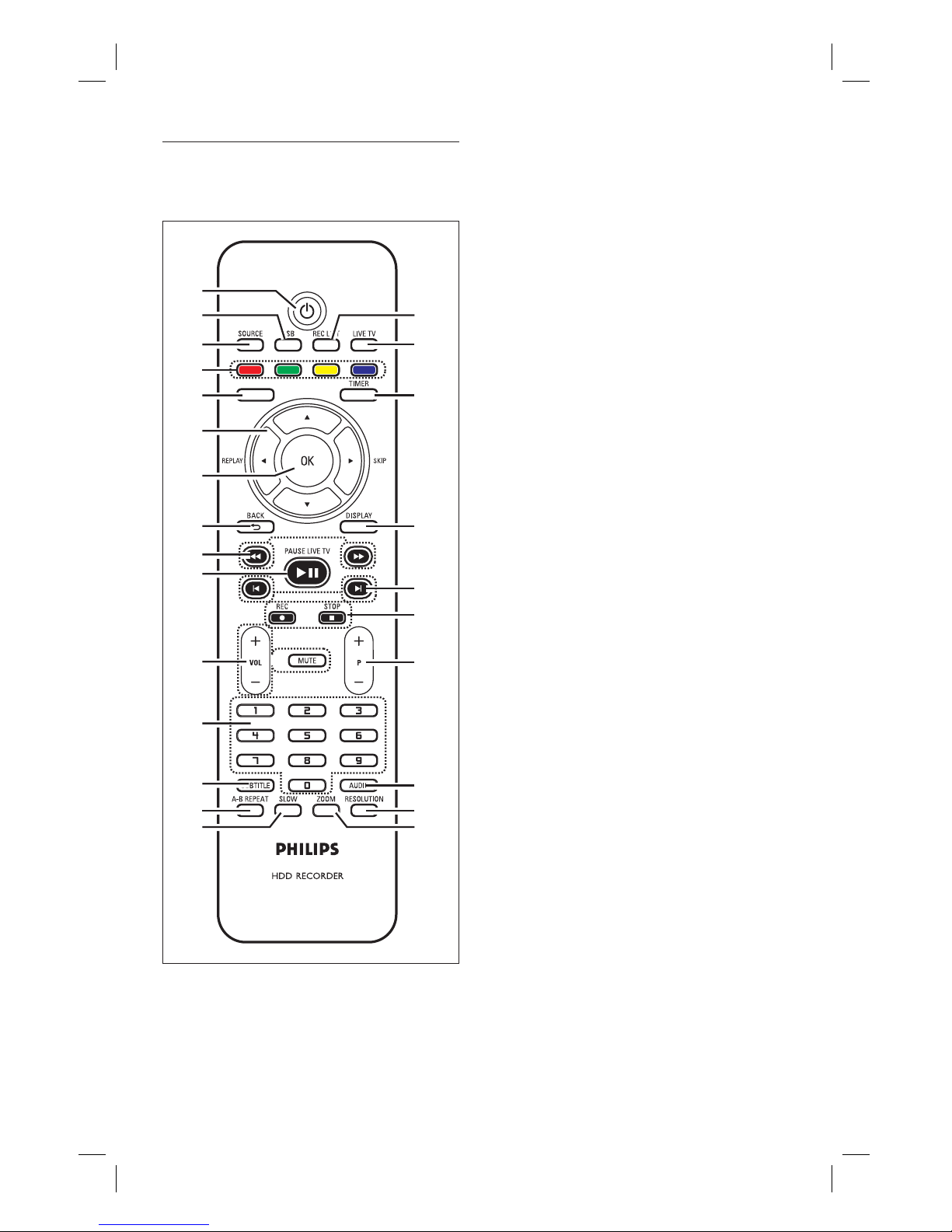

Remote Control
1_DVR2008_97_eng_wk822.indd 101_DVR2008_97_eng_wk822.indd 10 2008-05-26 10:29:37 AM2008-05-26 10:29:37 AM

EN 11
English
Your Product
lNumeric keypad
Selects a chapter/track number to
play.
Selects the recorder’s preset TV tuner
channel.
mSUBTITLE
Selects a subtitle language during play
of DivX Ultra Video content.
nA-B REPEAT
Repeats a specific section of a title.
oSLOW
Starts slow motion play. Press
repeatedly to toggle through various
options.
pREC LIST
Displays the list of recorded titles.
qLIVE TV
Go to tuner mode.
In time shift mode , go to current
broadcast position.
rTIMER
Enters the timer schedule menu.
sDISPLAY
Displays/ hides the on-screen help
text.
tíë
Skips to the previous or next chapter/
track/title.
uREC z
Starts recording the current TV
channel or the current video source.
Press repeatedly to extend the
recording time.
STOP x
Stops play or recording.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
vP +/-
• In tuner mode, select the next or
previous TV channel.
wAUDIO
• Selects an audio language.
xRESOLUTION
• Adjust display resolution.
yZOOM
• Enlarges a picture or recording during
play. Press repeatedly to toggle
through various options.
1_DVR2008_97_eng_wk822.indd 111_DVR2008_97_eng_wk822.indd 11 2008-05-26 10:29:37 AM2008-05-26 10:29:37 AM

12 EN
3 Connect
This section describes the connections for the
recorder.
Basic connections:
Connect antenna or cable
Connect video/audio cables
Optional connections:
Connect other devices
Connect to Cable box/ Satellite receiver
Connect to VCR or other similar device
Connect to DVD player or other similar
device
Connect to analogue camcorder
Place the unit
Place this unit on a flat, hard and stable
surface. Do not place this unit on a carpet.
Install this unit near the AC outlet where
the AC power plug can be easily reached.
•
•
•
•
•
•
•
•
•
Connect antenna or cable
To watch and record TV programmes,
connect this recorder to an antenna or a
cable box/satellite receiver.
Connect to an off-air antenna or
cable TV signals
To get TV reception, connect the recorder
directly to an off-air antenna or cable TV
signals.
TV-OUT ANTENNA-IN
MAIN S
YPr Pb
VIDEO
OUTPUT
AUDIO
LR
CVBS
INPUT
S-VIDEO
YPb Pr
VIDE
AUDIO
L R
CVBS
O
ANTENNA-INTV-OUT
2
??
???
?
??
??
???
?
???
ANTENNA CABLE
3
1 Unplug the existing antenna cable.
2 Connect the antenna cable to the
ANTENNA-IN socket.
3 Connect the supplied RF antenna cable
to the TV OUT socket and to the
antenna input on the TV.
Tip
The antenna input socket on your TV may be
labelled as ANT, ANTENNA IN or RF IN.
•
1_DVR2008_97_eng_wk822.indd 121_DVR2008_97_eng_wk822.indd 12 2008-05-26 10:29:37 AM2008-05-26 10:29:37 AM

EN 13
English
Connect
Connect video/audio cables
To view the playback from this recorder,
connect the recorder to the TV.
Before you start, select the best video
connection.
Option 1: Connect to S-video socket
(for a standard TV).
Option 2: Connect to composite video
sockets (for a standard TV).
Option 3: Connect to component video
sockets (for a Progressive Scan TV).
Option 1: Connect to S-Video
socket
TV-OUT ANTENNA-IN
MAIN S
YPr Pb
VIDEO
OUTPUT
AUDIO
LR
CVBS
INPUT
S-VIDEO
YPb Pr
VIDE
AUDIO
L R
CVBS
O
YPr Pb
VIDEO
OUTPUT
AUDIO
LR
CVBS S-VIDEO
S-VIDEO IN
AUDIO IN
2
21
OUTPUT
1 Connect an S-video cable (not supplied)
from the S-VIDEO OUTPUT socket to
the S-Video input socket on the TV.
2 Connect an audio cable (red/white ends)
from the AUDIO OUTPUT sockets to
the matching audio input sockets on the
TV.
•
•
•
Tips
The S-video input socket on your TV may be
labelled as Y/C or S-VHS.
This connections provides standard picture quality.
•
•
Option 2: Connect to composite
video sockets
TV-OUT ANTE NNA-IN
MAIN S
YPr Pb
VIDEO
OUTPUT
AUDIO
LR
CVBS
INPUT
S-VIDEO
YPb Pr
VIDE
AUDIO
L R
CVBS
O
YPr Pb
VIDEO
OUTPUT
AUDIO
LR
CVBS S-V
1
2
2
OUTPUT
1Connect a composite video cable (yellow
end) from the CVBS OUTPUT socket to
the video input socket on the TV.
2Connect an audio cable (red/white ends)
from the AUDIO OUTPUT sockets to
the matching audio input sockets on the
TV.
Tips
The video input socket on your TV may be
labelled as A/V IN, VIDEO IN, COMPOSITE or
BASEBAND.
This connections provides standard picture quality.
•
•
1_DVR2008_97_eng_wk822.indd 131_DVR2008_97_eng_wk822.indd 13 2008-05-26 10:29:37 AM2008-05-26 10:29:37 AM

14 EN
Option 3: Connect to component
video sockets
TV-OUT ANTENNA-IN
MAIN S
YPr Pb
VIDEO
OUTPUT
AUDIO
LR
CVBS
INPUT
S-VIDEO
YPb Pr
VIDE
AUDIO
L R
CVBS
O
YPBPR
COMPONENT VIDEO INPUT
AUDIO IN
YPr Pb
VIDE
OUTPUT
AUDIO
LR
CVBS S
1
22
1 Connect component video cables (red/
blue/green - not supplied) from the
Y Pr Pb OUTPUT sockets to the
component input sockets on the TV.
2 Connect an audio cable (red/white ends)
from the AUDIO OUTPUT sockets to
the matching audio input sockets on the
TV.
Tip
Select the supported video resolution progressive
scan. See chapter “Adjust Settings – Video settings
– Set video format”,
•
1_DVR2008_97_eng_wk822.indd 141_DVR2008_97_eng_wk822.indd 14 2008-05-26 10:29:38 AM2008-05-26 10:29:38 AM

EN 15
English
Connect
Connect other devices
To connect this recorder to other devices,
you can use these suggested connections for
common used cases. Other solutions may be
possible, depending on the features of the
device.
Connect to cable box/satellite
receiver
1 Ensure that the cable box/ satellite
receiver is connected to the TV with an
antenna cable.
TV-OUT ANTENNA-IN
MAIN S
YPr Pb
VIDEO
OUTPUT
AUDIO
LR
CVBS
INPUT
S-VIDEO
YPb Pr
VIDE
AUDIO
L R
CVBS
O
RF S-VIDEO
IN
AUDIO
R L
VIDEO
OUTPUT
OUTPUT
VIDEO
INPUT
YPb Pr
VIDE
AUDIO
LR
CVBS
O
R L
AUDIO
23
3
INPUT
2 Connect a composite video cable (yellow
end) from the CVBS INPUT socket to
the video output socket on the cable
box/ satellite receiver.
3 Connect an audio cable (red/white ends)
from the AUDIO INPUT sockets to the
matching audio output socket on the
cable box/ satellite receiver.
To view the video input, press
SOURCE repeatedly until ‘CVBS’ is
displayed.
Tips
With this connection, automatic channel search is
not required. See chapter ‘Get Started’.
The CVBS sockets on the device may be labelled as
TV OUT or TO TV.
•
•
•
1_DVR2008_97_eng_wk822.indd 151_DVR2008_97_eng_wk822.indd 15 2008-05-26 10:29:39 AM2008-05-26 10:29:39 AM

16 EN
Connect to VCR or similar device
TV-OUT ANTENNA-IN
MAIN S
YPr Pb
VIDEO
OUTPUT
AUDIO
LR
CVBS
INPUT
S-VIDEO
YPb Pr
VIDE
AUDIO
L R
CVBS
O
VIDEO
IN
OUT IN
VIDEO
OUT
AUDIO
L
R
AUDIO
L
R
VHF/UHF
RF IN
VHF/UHF
RF OUT
OUT
VIDEO
OUT
AUDIO
L
R
INPUT
YPb Pr
VIDE
AUDIO
LR
CVBS
O
1
22
INPUT

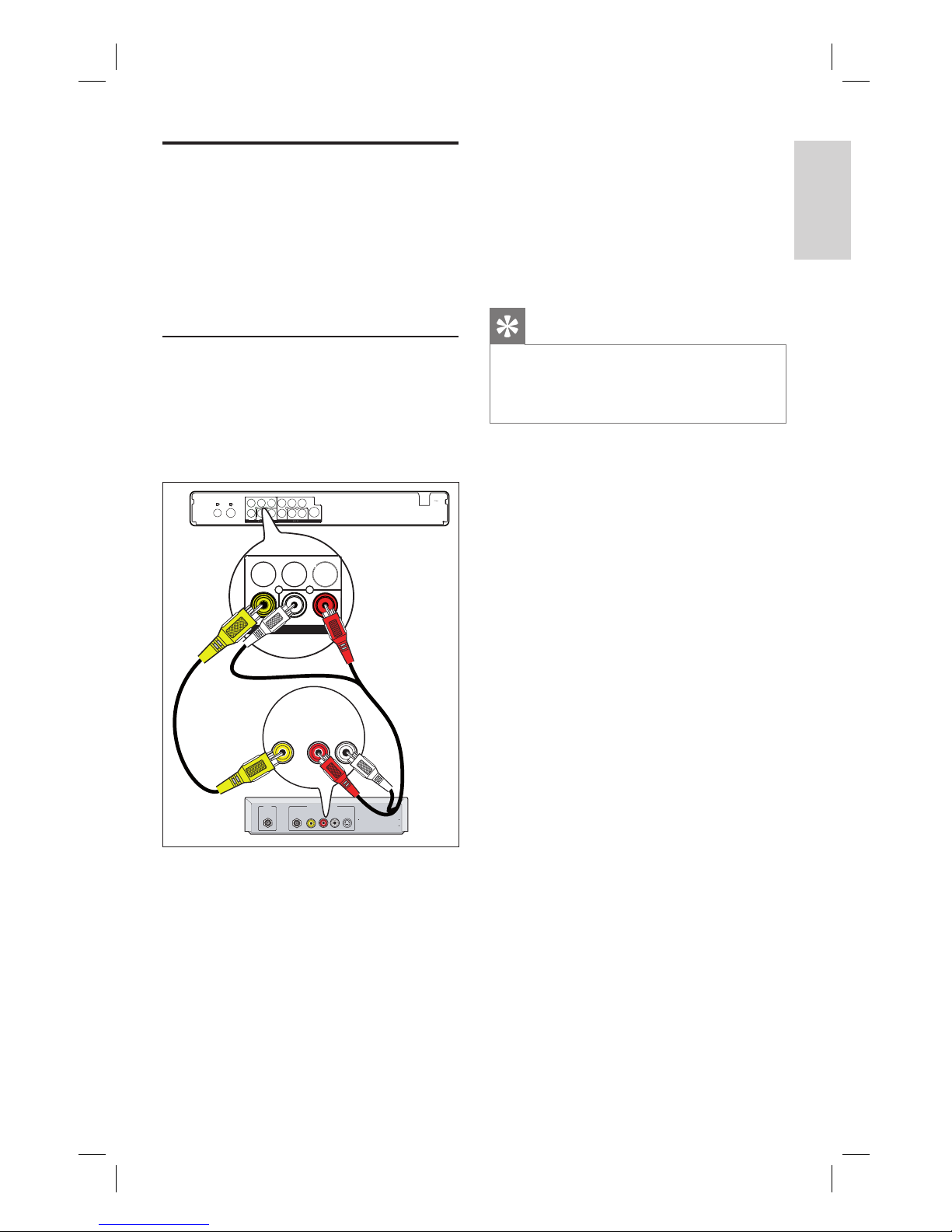

1 Connect a composite video cable (yellow
end) from the CVBS INPUT socket to
the video output socket on the device.
2 Connect an audio cable (red/white ends)
from the AUDIO INPUT sockets to the
matching audio output socket on the
device.
To view the video input, press
SOURCE repeatedly until ‘CVBS’ is
displayed.
Notes
Your new recorder replaces the VCR for all your
recording needs. Just unplug all the connections to
your VCR.
Most commercial video tapes and DVDs are copy-
protected and therefore cannot be recorded.
•
•
•
Connect to DVD player or similar
device
TV-OUT ANTENNA-IN
MAIN S
YPr Pb
VIDEO
OUTPUT
AUDIO
LR
CVBS
INPUT
S-VIDEO
YPb Pr
VIDE
AUDIO
L R
CVBS
O
IN
INPUT
YPb Pr
VIDE
AUDIO
LR
CVBS
O
AUDIO OUT
Component
Video Out
Component
Video Out
AUDIO OUT
1
2
INPUT
1 Connect a component video cable (red/
blue/green ends - not supplied) from the
Y Pb Pr INPUT socket to the
component video output socket on the
device.
2 Connect an audio cable (red/white ends)
from the AUDIO INPUT sockets to the
matching audio output socket on the
device.
To view the video input, press
SOURCE repeatedly until ‘YPbPr’ is
displayed.
Note
Most commercial video tapes and DVDs are copy-
protected and therefore cannot be recorded.
•
•
1_DVR2008_97_eng_wk822.indd 161_DVR2008_97_eng_wk822.indd 16 2008-05-26 10:29:40 AM2008-05-26 10:29:40 AM

EN 17
English
Connect
Connect to an analogue camcorder
TV-OUT ANTENNA-IN
MAIN S
YPr Pb
VIDEO
OUTPUT
AUDIO
LR
CVBS
INPUT
S-VIDEO
YPb Pr
VIDE
AUDIO
L R
CVBS
O
AUDIO OUTVIDEO OUT
INPUT
YPb Pr
VIDE
AUDIO
LR
CVBS
O
1
2
2
INPUT
1 Connect a video cable (yellow end) from
the CVBS INPUT socket and to the S-
VHS or video output socket on the
camcorder.
2 Connect the audio cable (red/white
ends) from the AUDIO INPUT sockets
and to the audio output sockets on the
camcorder.
To view the video input, press
SOURCE repeatedly until ‘CVBS’ is
displayed.
Tip
To record from this device, see chapter ‘Record
from other devices’.
•
•
Connect to a USB device or digital
camera
1 Connect a USB device or digital camera
to the USB socket.
Note
The USB socket does not support a USB hub
device. Only digital cameras and devices which
support USB Mass Storage Device class standard
are supported.
•
Tips
You can copy files from the recorder to your USB
device.
To view the contents of the connected USB device,
see chapter ‘Play – Play from USB’.
•
•
1_DVR2008_97_eng_wk822.indd 171_DVR2008_97_eng_wk822.indd 17 2008-05-26 10:29:40 AM2008-05-26 10:29:40 AM

18 EN
4 Get Started
Prepare the remote control

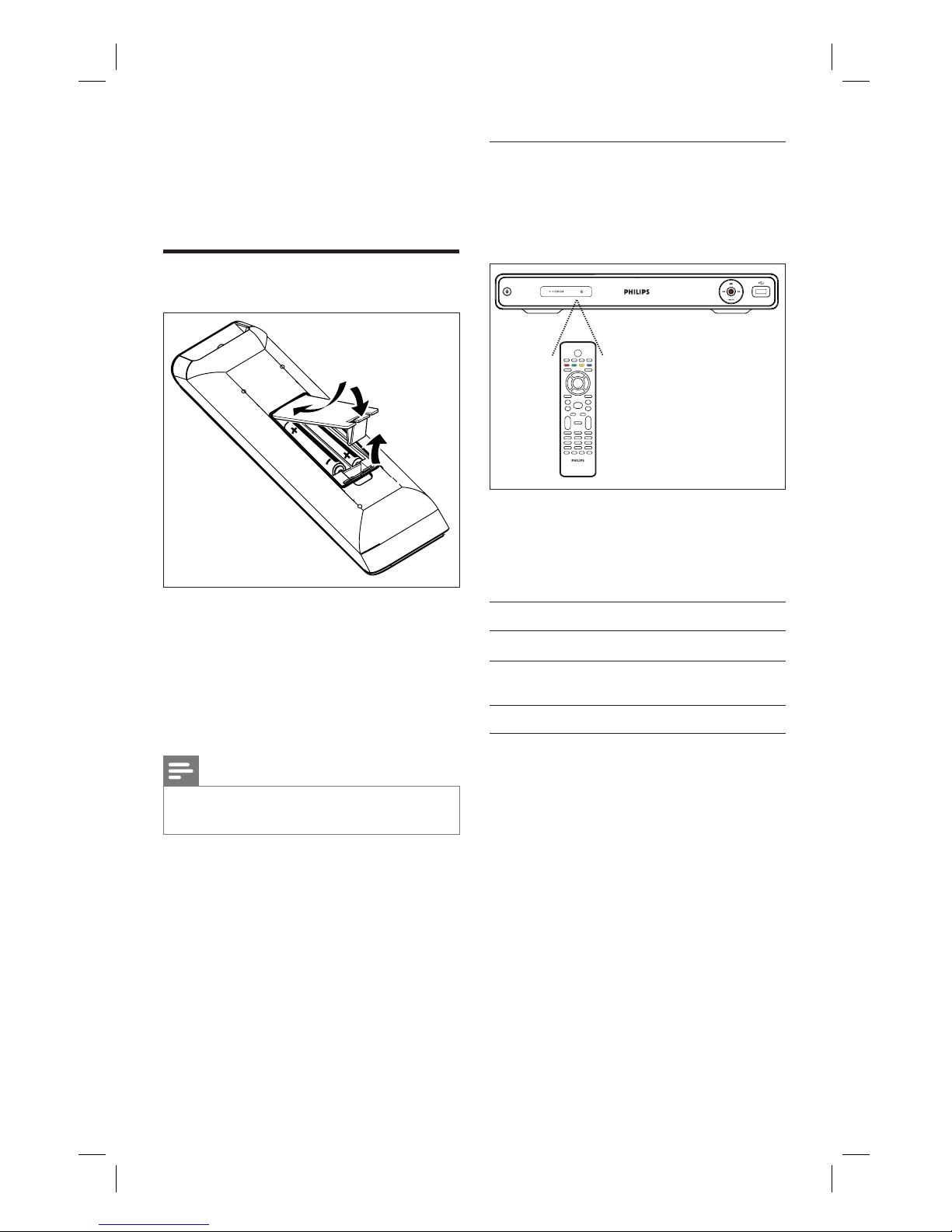

1 Open the battery compartment cover.
2 Insert two batteries type R03 or AAA.
Match the indications (+-) inside the
battery compartment.
3 Close the cover.
Note
If you are not going to use the remote control for a
long time, remove the batteries.
•
Navigate through the menu
1 Point the remote control directly at the
remote sensor on the front panel and
select the desired function.
2 Use the following buttons on the remote
control to navigate through the on-
screen menus, enter numbers and
confirm your selection.
Action Button
Move up or down in a menu. ST
Move left or right in the top
menu.
WX
Confirm a selection. OK
1_DVR2008_97_eng_wk822.indd 181_DVR2008_97_eng_wk822.indd 18 2008-05-26 10:29:41 AM2008-05-26 10:29:41 AM

EN 19
English
Get Started
First Time Settings
When you turn on this recorder for the first
time, follow the instructions on the TV to
complete the initial setup for this recorder.
Notes
Before you start, ensure that you have made all the
required connections.
If a cable box or satellite receiver is connected,
turn it on now.
Complete the initial setup for this recorder before
you record.
•
•
•
1Press 2to turn on the recorder.
2 Turn on the TV to the correct video-in
channel.
Select a channel on your TV, then
press the channel down button on
your TV remote control until you see
the menu language screen. (The
screen options may differ depending
on your country of purchase).
Menu Language
TV Region
TV Shape
Auto Scan
Clock
First Installation

3 Press ST to select an on-screen menu
language and press OK.
The country selection screen is
displayed.
•

Others
China
Hong Kong
India
Malaysia
Singapore
Thailand
First Installation
Menu Language
TV Region
TV Shape
Auto Scan
Clock
4 Press ST to select the country of your
residence and press OK.
The TV aspect selection screen is
displayed.
4:3 Pan Scan
4:3 Letter Box
16:9 Widescreen
First Installation
Menu Language
TV Region
TV Shape
Auto Scan
Clock
[ 4:3 Pan Scan ]
Select this for a full-height picture with
both sides trimmed.
[ 4:3 Letter Box ]
Select this for a ‘wide screen’ display with
black bands on the upper and lower
portions of the TV screen.
[ 16:9 Widescreen ]
Select this for a wide screen TV (frame
ratio16:9).
5 Press ST to select a TV shape option
and press OK.
Auto channel tuning begins.


1_DVR2008_97_eng_wk822.indd 191_DVR2008_97_eng_wk822.indd 19 2008-05-26 10:29:41 AM2008-05-26 10:29:41 AM

20 EN
Cancel
OK
First Installation
Menu Language
TV Region
TV Shape
Auto Scan
Clock
If a cable box or satellite receiver is
connected: select [ Cancel ] to skip
the channel search.
If an off-air antenna is connected:
select [ OK ] to start the channel
search. This process takes a few
minutes. Once complete, press OK.
The time and date entry screen is
displayed.
Year Month Day
2008 1 1
Hour Min. Sec.
00 00 00
First Installation
Menu Language
TV Region
TV Shape
Auto Scan
Clock
6 Press ST (or the numeric keys) to
enter the correct entry. Press OK to go
to the next field.
A confirmation message is displayed.
•
•


7Select [ Confirm ] and press OK.
The installation is complete. The
recorder is now ready for use.
Setup Completed
First Installation
Menu Language
TV Region
TV Shape
Auto Scan
Clock
Tips
To re-install or modify the TV channels, see
chapter ‘Adjust Settings - Tuner settings’.
•

1_DVR2008_97_eng_wk822.indd 201_DVR2008_97_eng_wk822.indd 20 2008-05-26 10:29:42 AM2008-05-26 10:29:42 AM
