Philips HD2178/72 User manual

HD2178
User manual

3EN
Contents
1 Important 4
2 Your All-in-One cooker 8
What’s in the box 8
Product overview 9
Controls overview 10
3 Getting started 11
Before rst use 11
4 Using the All-in-One
cooker 11
Preparations before
cooking 11
Cooking time regulating
range 13
Non-pressure cooking 14
Pressure cooking 15
Preset time for delayed
cooking 17
Setting up child lock 18
Assembling and
disassembling the
pressure regulator 18
5 Specications 19
6 Cleaning and
Maintenance 20
Interior 20
Exterior 20
Accessories 20
7 Notices 21
Electromagnetic elds
(EMF) 21
Recycling 21
8 Guarantee and service 21
9 Troubleshooting 22

4EN
1 Important
Read this safety leaet carefully before
you use the All-in-One cooker and save
it for future reference.
Warning
• The appliance must not be
immersed in water.
• Check if the voltage
indicated on the appliance
corresponds to the local
power voltage before you
connect it.
• The appliance is intended
to be used in household or
similar applications such
as:
• sta kitchen areas in
shops, oces, and
other similar type
environments;
• farm houses;
• by clients in hotels,
motels and other similar
type environments;
• bed and breakfast type
environments.
• This appliance is not
intended for use by
persons (including
children) with reduced
physical, sensory or
mental capabilities,
or lack of experience
and knowledge, unless
they have been given
supervision or instruction
concerning use of the
appliance by a person
responsible for their safety.
• Children should be
supervised to ensure that
they do not play with the
appliance.
• If the supply cord is
damaged, it must
be replaced by the
manufacturer, its service
agent or similarly qualied
persons in order to avoid a
hazard.
• The appliance is not
intended to be operated by
means of an external timer
or a separate remote-
control system.
• The ducts in the pressure
regulator allowing the
escape of steam should be
checked regularly to ensure
that they are not blocked.
Refer to: Assembling and
disassembling the pressure
regulator.
• The container must not be
opened until the pressure
has decreased suciently.

5EN
• Cleaning and user
maintenance should not
be performed by children.
• Keep the appliance and
its cord out of reach of
children.
• WARNING: Always follow
the instructions and use
the appliance properly to
avoid potential injury.
• WARNING: Make sure
to avoid spillage on the
power connector to avoid a
potential hazard.
• CAUTION: The surface of
the heating element is
subject to residual heat
after use.
• Use a clean and soft cloth
to clean the surfaces in
contact with food.
• Only connect the appliance
to a grounded power
outlet. Always make sure
that the plug is inserted
rmly into the power outlet.
• Do not use the appliance
if the plug, the power cord,
the inner pot, the sealing
ring, or the main body is
damaged.
• Do not let the power cord
hang over the edge of the
table or worktop on which
the appliance stands.
• Make sure the heating
element, the temperature
sensor, and the outside of
the inner pot are clean and
dry before you put the plug
in the power outlet.
• Do not plug in the
appliance or press the
buttons with wet hands.
• Make sure the power
socket is clean and dry
before you plug in the
appliance.
• Do not use the appliance
if too much air or steam is
leaking from under the top
lid.
• When cooking soup
or sticky liquid such as
congee, do not release
pressure by turning the
pressure regulator to
the steam vent position,
otherwise liquid might
spurt from the pressure
regulator valve. Wait until
the pressure is naturally
released and the oating

6EN
put the plug in the power
outlet and switch it on.
• Do not place the inner pot
directly over an open re to
cook food.
• Do not use the inner pot if
it is deformed.
• Make sure that the sealing
ring is clean and in good
condition.
• The accessible surfaces
may become hot when
the appliance is operating.
Take extra caution when
touching the surfaces.
• Beware of hot steam
coming out of the oating
valve and pressure
regulator valve during
cooking or when you
open the lid. Keep hands
and face away from the
appliance to avoid the
steam.
• Do not lift and move
the appliance while it is
operating.
• Do not exceed the
maximum water level
indicated in the inner pot
to prevent overow.
• Do not place the cooking
utensils inside the pot
while cooking.
valve has dropped to open
the top lid.
Caution
• Never use any accessories
or parts from other
manufacturers or
that Philips does not
specically recommend. If
you use such accessories
or parts, your guarantee
becomes invalid.
• Do not expose the
appliance to high
temperatures, nor place
it on a working or still hot
stove or cooker.
• Do not expose the
appliance to direct sunlight.
• Place the appliance on a
stable, horizontal, and level
surface.
• Do not use the handle
on the top lid to carry the
appliance, use the side
handles instead.
• When pressure is being
released from the pressure
regulator valve, hot steam
or liquid will be ejected.
Keep hands and face away
from the steam vent.
• Always put the inner pot in
the appliance before you

7EN
this safety leaet, the
guarantee becomes invalid
and Philips refuses liability
for any damage caused.
• Visit www.philips.com/
support to download the
user manual.
• Only use the cooking
utensils provided. Avoid
using sharp utensils.
• To avoid scratches, it is
not recommended to
cook ingredients with
crustaceans, shellsh and
meats with protruding
bones. Remove the hard
shells or excessive bone
before cooking.
• Do not place a magnetic
substance on the lid. Do
not use the appliance near
a magnetic substance.
• Always let the appliance
cool down to room
temperature before you
clean or move it.
• Always clean the appliance
after use. Do not clean the
appliance in dishwasher.
Do not pour water inside
the unit if the inner pot has
been removed.
• Always unplug the
appliance if not used for a
longer period.
• If the appliance is
used improperly or for
professional or semi-
professional purposes, or
if it is not used according
to the instructions in

8EN
2 Your All-in-One cooker
Congratulations on your purchase, and welcome to Philips!
To fully benet from the support that Philips oers, register your product at
www.Philips.com/welcome.

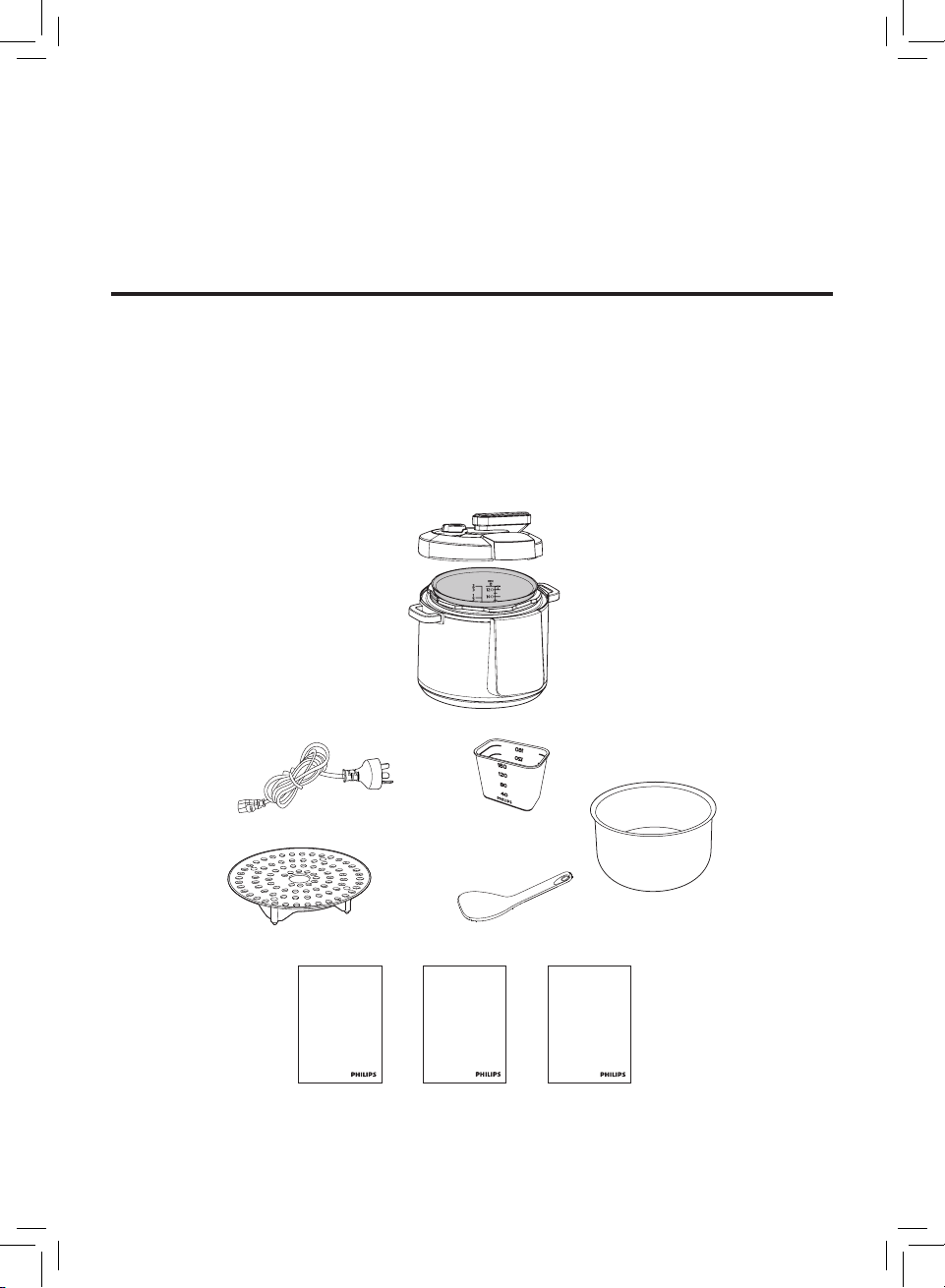

What’s in the box
All-in-One cooker main unit
Inner pot x 2 Rice & soup ladle
Measuring cup Steaming plate
User manual Warranty card
Power cord Recipe Booklet
User manual
http://www.philips.com/welcome
Register your product and get support at
http://www.philips.com/welcome
Warranty
Register your product and get support at
http://www.philips.com/welcome
Recipe
Register your product and get support at

9EN
Product overview
aInner pot gSafety valve
bWater level indication hSealing ring
cControl panel iInner lid
dHeating element jMain unit handle
ePressure regulator kFloating valve
fTop lid lLid handle
h
i
l
k

10 EN
Controls overview
mDisplay screen rPressure Cook button
nSlow cook
Sauté / Sear button sStart/Reheat button
oMulti Cook button tWarm/Cancel button
pPreset Timer and Screen Lock
button uCooking Time button
qDecrease button vIncrease button
m
n
o
p
q
r
s
t
u
v

11EN
4 Using the All-
in-One cooker
Preparations before
cooking
Before using the All-in-One cooker to
cook food, you need to follow below
preparations:
1 Hold the lid handle and turn it anti-
clockwise until the top lid cannot
move any more, then lift up the top
lid.
2 Take out the inner pot from the
All-in-One cooker and put the pre-
washed food in the inner pot.
Note
• Do not ll the inner pot with less than 1/3
or more than 2/3 full of food and liquid.
• For food that expands during cooking,
do not ll the inner pot with more than
1/2 full of food and liquid.
• For rice cooking, follow the water level
indications on the inside of the inner
pot. Water level indication for rice, refer
to cup provided with the product. You
can adjust the water level for dierent
types of rice and your own preference.
Do not exceed the maximum water level
indication.
• Make sure the oating valve falls down
before cooking.
3 Getting started
Before rst use
1 Remove all packaging materials
from the appliance.
2 Take out all the accessories from
the inner pot.
3 Clean the parts of the All-in-One
cooker thoroughly before using
it for the rst time (see chapter
‘Cleaning’).
Note
• Make sure all parts are completely dry
before you start using the All-in-One
cooker.

12 EN
1 Wipe the outside of the inner pot
dry and put it back into the All-in-
One cooker.
2 Place the top lid onto the All-in-
One cooker and turn it clockwise.
You will hear a “click” sound when
the top lid is properly locked.
Note
• Make sure the sealing ring is properly
assembled around the inside of the top
lid.
• Make sure the pressure regulator and
oating valve are clean and not blocked.
• Make sure the outside of the inner pot
is dry and clean, and that there is no
foreign residue on the heating element.
• Make sure the inner pot is in proper
contact with the heating element.

13EN
Cooking time regulating range
Non-pressure cooking programs
Cooking function Cooking
temperature
Default cooking
time
Adjustable
cooking time
Slow cook High Temp 90°C±10°C 6 hrs 2-12 hrs
Slow cook Low Temp 70°C±10°C 6 hrs 2-12 hrs
Sauté/Sear High Temp* 150°C±10°C 2 mins 2 mins-2 hrs
Sauté/Sear Low Temp** 130°C±10°C 2 mins 2 mins-2 hrs
Stew/Curry 90°C±10°C 1 hr 20 mins-10 hrs
Pot Roast 90°C ± 10°C 6 hrs 2-12 hrs
Bake 140°C±10°C 45 mins 10-59 mins
Yogurt 40°C±10°C 8 hrs 6-12 hrs
Warm 65°C-85°C 12 hrs \
Reheat 85°C±10°C 25 mins 8-25 mins
*The preheat time of Saute/Sear Low Temp may take up to 3 minutes.
**The preheat time of Saute/Sear High Temp may take up to 5 minutes.
Pressure cooking programs
Cooking function Default cooking time
(minute)
Adjustable cooking time
(minute)
Rice/Risotto 14 \
Soup 20 20-59
Steam 10 5-59
Meat/ Poultry 15 12-59
Beans/Lentils 30 25-59
Manual 2 2-59

14 EN
5 If you want to set a dierent cooking
time, press the Cooking Time button
( ).
» The cooking time ashes on the
screen.
Note
• Cooking time will start count down once
internal temperature reaches cooking
temperature as outlined in ‘Cooking time
regulating range’.
• There is preheat time for Sauté/Sear
mode (3 minutes for low temp and 5
minutes for high temp). Insert your food
once the “Maintain pressure” status is
reached on the progression bar and the
timer starts to count down. Inserting
food before the correct status is reached
will slow down the process.
• These functions do not build up pressure,
the cooking process is controlled by
temperatures.
6 Press the +/- button to set the
cooking time.
Non-pressure cooking
1 Follow the steps in “Preparations
before cooking”.
2 Turn the pressure regulator to the
Bake or Vent position.
• When choosing Slow cook,
Stew/Curry, Pot Roast, Yogurt
and Reheat turn the pressure
regulator to the Vent position.
• When choosing Bake, turn the
pressure regulator to the Bake
position.
• When using Sauté/Sear mode,
make sure to keep the top lid
open for the entire time.
• To choose the Reheat function,
press Start/Reheat when the
appliance is in standby mode.
3 Put the plug in the power socket.
4 Press the Slow Cook Sauté/Sear
button ( ) or Multi Cook button
( ) to choose a desired
non-pressure cooking function.
» The selected cooking mode
indicator ashes.
» The default cooking time is
displayed on the screen.

15EN
Pressure cooking
Note
• Make sure the oating valve drops down
before closing the lid.
1 Follow the steps in “Preparations
before cooking”.
2 Turn the pressure regulator to the
seal position.
3 Put the plug in the power socket.
4 Press the Pressure Cook button
( ) to choose a desired cooking
function.
» The selected cooking mode
indicator ashes.
» The default cooking time is
displayed on the screen.
7 Press and hold the Start/Reheat
button ( ) for 3 seconds and the
All-in-One cooker starts working in
the selected mode.
» You will hear two beeps after
you press the start button.
8 When the cooking time has
elapsed, you will hear two beeps
and the All-in-One cooker switches
to keep-warm mode automatically.
» The keep warm indicator lights
up.
9 Hold the top lid handle and turn
the lid anti-clockwise until it cannot
move any more, then lift it up.
Tip
• You can adjust the cooking time for
dierent types of food according to your
preference.

16 EN
9 When the cooking time has
elapsed, you will hear two beeps
and the All-in-One cooker switches
to keep-warm mode automatically.
» The keep warm indicator lights
up.
10 Caution: Turn the pressure regulator
to the vent position.
» The All-in-One cooker starts
releasing pressure.
» The oating valve drops
when the pressure is released
suciently.
11 Hold the top lid handle and turn
the lid anti-clockwise until it cannot
move any more, then lift it up.
5 If you want to set a dierent cooking
time, press the Cooking Time
button ( ).
» The cooking time ashes on the
screen.
6 Press the +/- button to set the
cooking time.
7 Press and hold the Start/Reheat
button ( ) for 3 seconds and the
All-in-One cooker starts working in
the selected mode.
» You will hear two beeps after
you press the start button.
8 When the All-in-One cooker
reaches the working pressure, the
cooking time starts to count down.

17EN
Note
• When cooking soup or viscous liquid,
do not release pressure by turning the
pressure regulator to the steam vent
position, otherwise liquid might spurt
from the pressure regulator valve. Wait
until the pressure is naturally released
and the oating valve has dropped to
open the top lid. Some fumes/steam
could rise from the pressure regulator
valve during the pressurizing stage,
this is to be considered normal. If an
excessive amount of steam is released
from the pressure valve, please refer to
the assembly and disassembly steps.
• After the cooking is nished and the
pressure is released, unplug the All-in-
One cooker to turn o the keep warm
function or when not in use.
• You can press the Warm/Cancel button
to cancel the cooking process.
Tip
• You can adjust the cooking time for
dierent types of food according to
your preference. Cooking time is not
adjustable for rice cooking function.
Preset time for delayed
cooking
Note
• The preset time is not available in Sauté/
Sear High Temp, Sauté/Sear Low Temp
and Pot Roast.
You can preset the delayed cooking
time for dierent cooking functions. The
preset timer is available up to 24 hours,
but is not applicable to the cake baking
function.
1 Choose the desired cooking mode,
then press the preset timer button
( ).
2 Press the +/- button to choose the
preset time.
3 Once the preset time is set, press
the start button ( ) to enter preset
mode.
» The remaining preset time is
displayed on the screen.
4 When the preset time is elapsed,
the All-in-One cooker starts working
in the selected cooking mode
automatically.

18 EN
To disassemble the pressure regulator:
1 Turn the lower screw anti-clockwise
until it becomes loose.
2 Pull it up and take out the pressure
regulator.
To assemble the pressure regulator:
1 Assemble the lower screw back to
the regulator.
Setting up child lock
To protect your child from using the
product, you can set up the child lock
function.
• Press and hold the preset timer
button ( ) for 3 seconds to enter
the child lock mode.
» The child lock icon appears on
the display screen.
• To unlock, press and hold the preset
timer button ( ) for 3 seconds
again.
» The child lock icon disappears
from the display screen.
Assembling and
disassembling the
pressure regulator
Caution
• Do not disassemble the pressure
regulator during cooking. Always unplug
the All-in-One cooker and wait until the
pressure has been released suciently.

19EN
5 Specifications
Model Number HD2178
Rated power output 1000W
Rated capacity 6L
Note
• Always unplug the appliance if not used
for a longer period.
2 Make sure the regulator points at
the sealed position and put it back
to the steam valve.
3 Turn the screw clockwise until it is
fastened.

20 EN
Exterior
Surface of the outer lid and outside of
the main body:
• Wipe with a cloth damped with
soap water.
• Only use soft and dry cloth to
wipe the control panel.
• Make sure to remove all the food
residues around the pressure
regulator and oating valve.
Pressure regulator valve and oating
valve:
• Disassemble the pressure
regulator valve, soak it in warm
water, and clean with sponge.
• Remove food residues in the
pressure regulator valve and
oating valve with toothpicks.
Accessories
Rice spoon, soup ladle, steaming plate
and inner pot:
• Soak in hot water and clean with
sponge.
6 Cleaning and
Maintenance
Note
• Unplug the All-in-One cooker before
starting to clean it.
• Wait until the All-in-One cooker has
cooled down suciently before cleaning
it.
Interior
Inside of the outer lid and the main
body:
• Wipe with wrung out and damp
cloth.
• Make sure to remove all the food
residues stuck to the All-in-One
cooker.
Heating element:
• Wipe with wrung out and damp
cloth.
• Remove food residues with
wrung out and damp cloth or
toothpicks.
Sealing ring:
• Soak in warm water and clean
with sponge.
• Do not wash the gasket in
dishwasher as this may deform
it.
