Philips DiamondClean User manual

DiamondClean

1
7
11
98
12
2
3
4
5
6
10
1

English 6
Español Mexicano 23
Français (Canada) 40

English
6
Introduction
Congratulations on your purchase and welcome
to Philips! To fully benet from the support that
Philips oers, register your product at
www.philips.com/welcome.
IMPORTANT
SAFEGUARDS
Warning: READ ALL INSTRUCTIONS
BEFORE USE
When using electrical products, especially when
children are present, basic safety precautions
should always be followed, including the following:
DANGERS
To reduce the risk of electrocution:
1 Always place and store the charging pad at a
safe distance from water.
2 Do not reach for a charging pad that has fallen
into water. Unplug immediately.
3 Never use a charging pad with a damaged cord.
WARNINGS
To reduce the risk of burns, electrocution, re or
physical injury:
1 Do not use attachments other than those
recommended by the manufacturer.
2 Do not plug the adapter into an outlet with a
voltage other than specied on the bottom of
the adapter. This product is designed to operate
within a range of 100 to 240 volts. Voltage
converters do not warrant voltage compatibility.

English 7
3 Never force the adapter into an outlet; if the
adapter does not easily t into the outlet,
discontinue use.
4 Discontinue use if the product appears
damaged in any way (brush head, handle,
charging pad or adapter).
5 The charging pad cord cannot be replaced.
If the cord is damaged, discard the charging pad .
6 Keep the cord away from heated surfaces.
7 Do not use the adapter outdoors.
8 This product contains no user-serviceable parts.
Refer to ‘Warranty and support’ if the product
no longer works properly or needs repair.
9 Use this product only for its intended use as
described in this document or as recommended
by your dental professional.
10 This product is not intended for use by persons
(including children) with reduced physical, sensory,
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
11 Children should be supervised to ensure that
they do not play with the product.
12 Philips Sonicare is a personal care device and is
not intended for use on multiple patients in
a dental oce or institution.
13 Use UL Listed computer, USB Hub or USB
duplex receptacle when charging the
toothbrush handle in the travel case.
14 When using a computer to recharge the
toothbrush handle, the computer should be
located away from sources of water (i.e. sink or
tub) so as to avoid electrical shock.

English
8
15 In order to eectively charge your Philips
Sonicare do not place your charger base on a
magnetic metal surface.
16 The adapter is certied according to the
relevant safety standard UL1310.
17 The adapter is not intended to be repaired
by service personnel in case of failure or
component defect (unit can be thrown away).
18 For connection to a supply not in the U.S.A.,
use an adapter of the proper conguration for
the power outlet.
MEDICAL WARNINGS
1 Consult your dental professional before you use
this product if you have had oral or gum surgery
in the previous 2 months.
2 Contact your dental professional if excessive
bleeding occurs after using this product or
bleeding continues to occur after 1 week of use.
3 Discontinue use of this product and contact
a physician/dentist if discomfort or pain is
experienced.
4 This product complies with the safety standards
for electromagnetic devices. If you have a
pacemaker or other implanted device, contact
your physician or the device manufacturer prior
to use.
5 Consult your physician if you have other
medical concerns.

English 9
Electromagnetic elds (EMF)
This Philips device complies with all applicable
standards and regulations regarding exposure to
electromagnetic elds.
SAVE THESE
INSTRUCTIONS

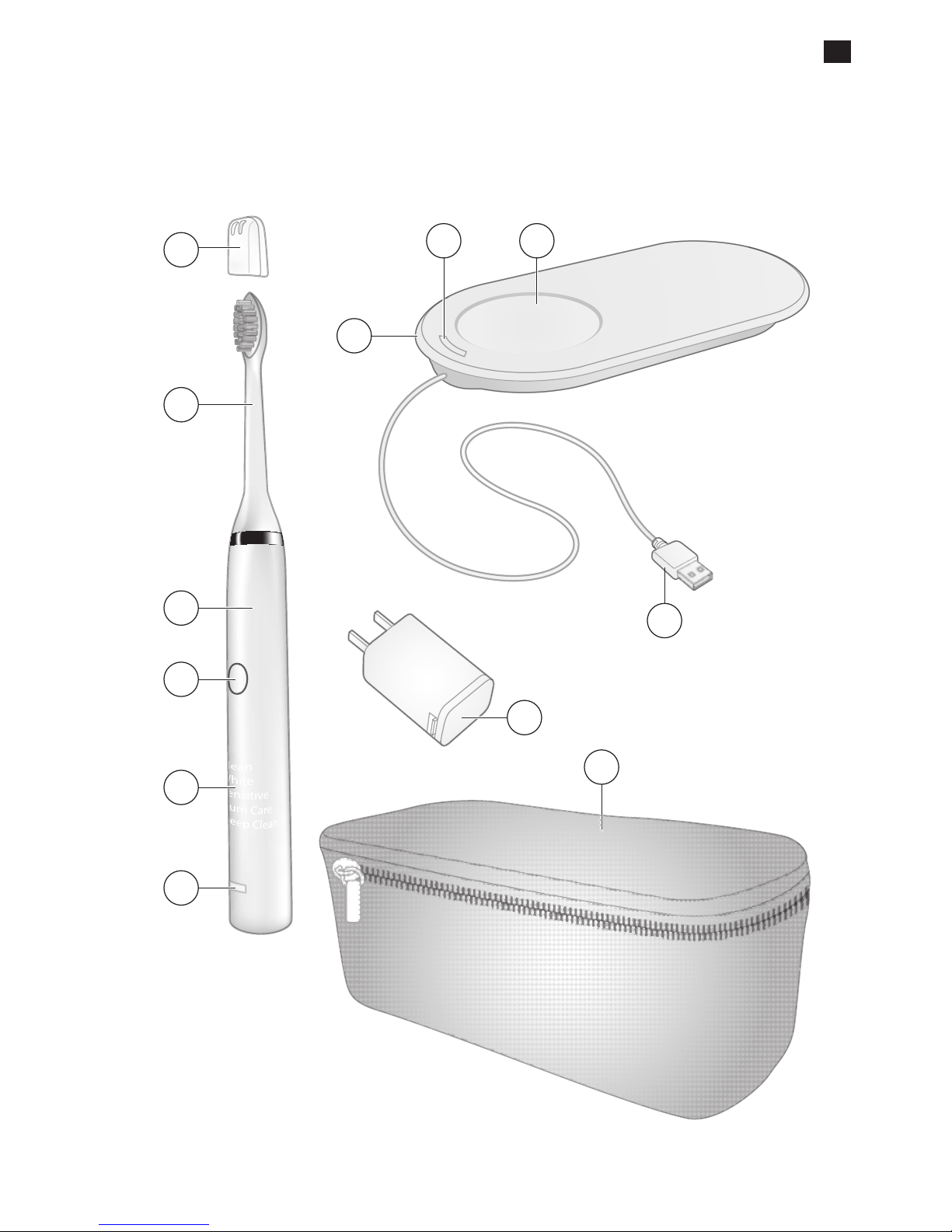

Your Philips Sonicare (Fig. 1)
1 Hygienic travel cap
2 Brush head with unique identier
3 Handle with ergonomic shape
4 Recessed power on/o button
5 Hidden brushing mode display
6 Charge indicator
7 Wireless charging pad
8 Travel pouch (select models)
9 USB wall adapter
Note: The content of the box may vary based on
the model purchased.
Getting started
Attaching the brush head
1 Align the brush head so the bristles point in the
same direction as the front of the handle.
2 Firmly press the brush head down onto the
metal shaft until it stops.

English
10
Note: Philips Sonicare brush heads are imprinted
with icons to easily identify your brush head.
Note: It is normal to see a slight gap between the
brush head and the handle.
Charging your Philips Sonicare
1 Plug the USB of the wireless charging pad into
the wall adapter and plug into the wall socket.
2 Place the handle vertically on the charging
platform (the raised surface of the charger).
-The charging pad beeps when the toothbrush is
correctly placed onto the charging platform.
Note: There may be a delay for the charging
pad to beep while the charging pad
synchronizes with the handle.
-While the toothbrush is charging, the charging
indicator ashes white on the charging pad.
1
2

English 11
3 When the toothbrush is fully charged, the
charging indicator lights up solid white.
4 If the charging indicator ashes red, that
indicates detection of a foreign object or a
communication error between the handle and
charging pad.
-If this occurs remove any foreign objects from
the charging pad and/or try removing and
replacing the handle on the charging pad.

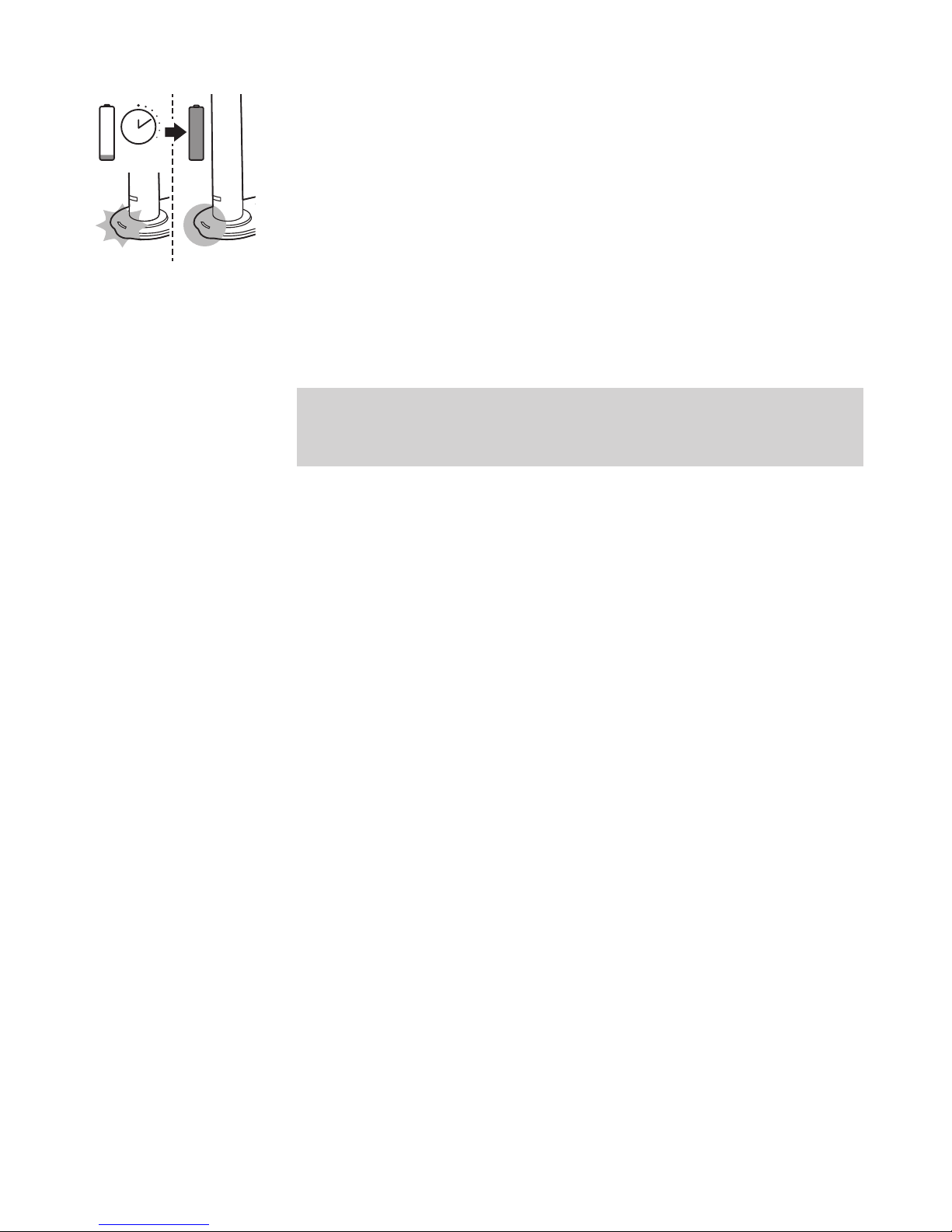

Note: It takes approximately 12 hours to ensure
battery is fully charged. Charging times may vary
if alternative wall adapters are used.
This charger is designed to properly charge only
one handle at a time. Only the handle provided in
this box should be used with this charging system.
12 hrs.

English
12
This charger is not compatible with other models
of Philips Sonicare.
Do not place metallic objects on the charging
pad as handle charging may be aected and may
cause the metallic object to overheat.
Battery status (when handle is not on charger)
When removing the Philips Sonicare from the
charging pad or after a brushing session, a battery
light at the bottom of the toothbrush will indicate
the status of the battery life.
-Solid green LED: Between 2-3 weeks of
brushing sessions left
-Flashing green LED: Approximately 1 week of
brushing sessions left
Only after a brushing is complete
-Flashing orange LED and three beeps: Only a
few brushing sessions left
-Flashing orange LED and two sets of ve beeps:
No brushing sessions left (charge toothbrush)
Note: These indications are based o of using
the device twice per day in Clean Mode.
Other modes or more frequent usage may
decrease the battery life.
Using your Philips Sonicare
Brushing instructions
1 Wet the bristles.

English 13
2 Apply a small amount of toothpaste on the
bristles.
3 Place the toothbrush bristles against the teeth
at a slight angle (45 degrees), pressing rmly to
make the bristles reach the gumline or slightly
beneath the gumline.
Note: Keep the center of the brush in contact
with the teeth at all times.
4 Press the power on/o and mode button to
turn on your Philips Sonicare.
5 Gently keep the bristles placed on the teeth
and in the gumline. Brush your teeth with small
back and forth motion so the bristles reach
between the teeth.
Note: The bristles should slightly are.
Do not scrub.
6 To clean the inside surfaces of the front teeth,
tilt the brush handle semi-upright and make
several vertical overlapping brushing strokes on
each tooth.

English
14

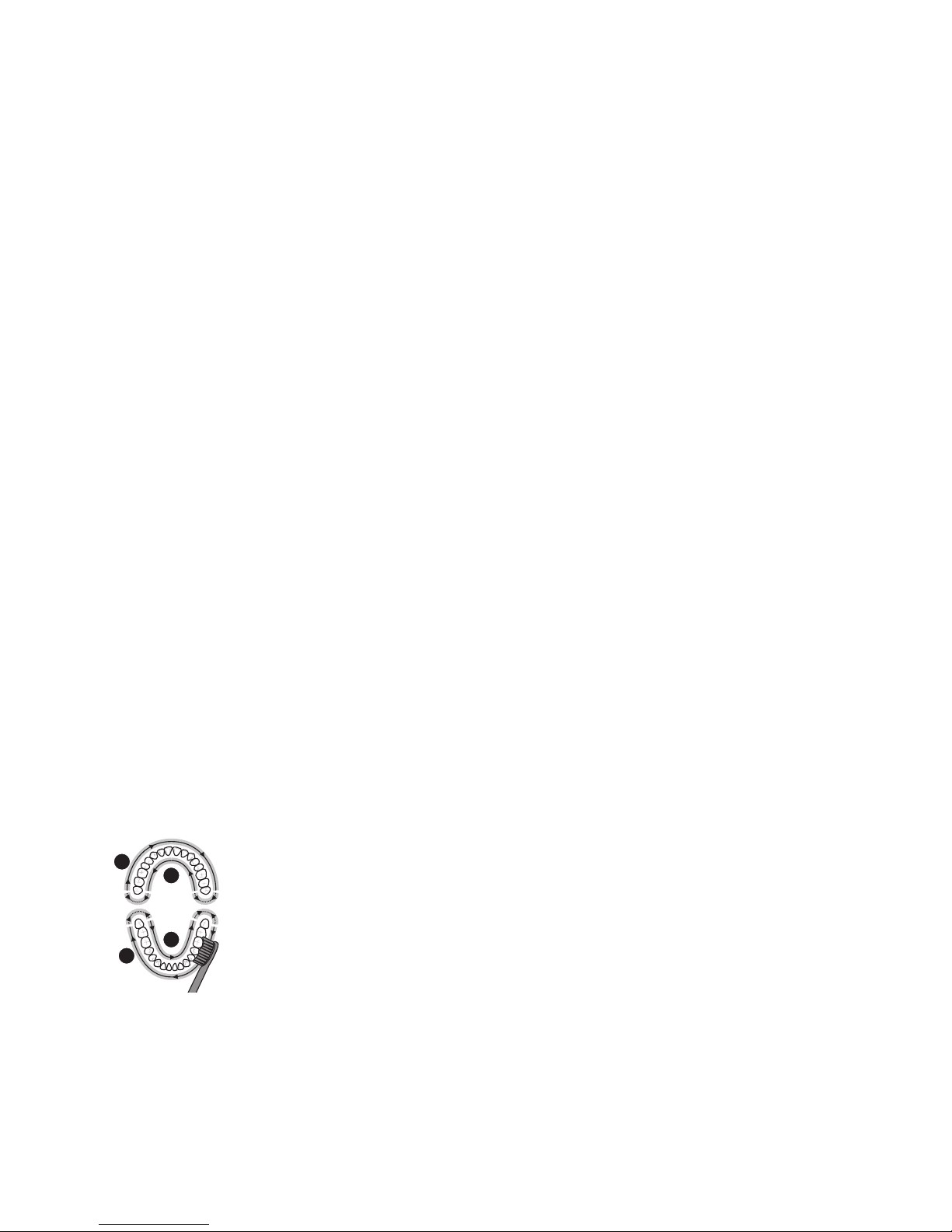

7 Begin brushing in section 1 (outside top teeth)
and brush for 30 seconds (45 seconds in Deep
Clean mode) before moving to section 2 (inside
top teeth). Continue brushing in section 3
(outside bottom teeth) and brush for 30 seconds
(45 seconds in Deep Clean mode) before
moving to section 4 (inside bottom teeth).
Note: To make sure you brush evenly
throughout the mouth, divide your mouth
into 4 sections using the Quadpacer feature
(see chapter ‘Features’).
Note: After you have completed the brushing
cycle, you can spend additional time brushing
the chewing surfaces of your teeth and areas
where staining occurs. You can also brush your
tongue, with the toothbrush turned on or o,
as you prefer.
Your Philips Sonicare is safe to use on:
-Braces (brush heads wear out sooner when
used on braces).
-Dental restorations (llings, crowns, veneers).
Brushing modes
1 To toggle through modes press the on/o
button twice in less than 5 seconds.
2 To turn o your Philips Sonicare press the
on/o button again after 5 seconds.
Your Philips Sonicare comes with the Clean mode
activated.
Note: When the Philips Sonicare is used in clinical
studies, it must be used in the default 2-minute
Clean mode or in the Deep Clean mode with Easy
Start turned o.
1
2
4
3

English 15
Clean mode
The ultimate in plaque removal (default mode).
Clean mode lasts for 2 minutes and includes four
30 second Quadpacer intervals.
White mode
2 minutes to remove surface stains and 30 seconds
to brighten and polish your front teeth.
Sensitive mode
Extra gentle 2 minute mode for sensitive teeth
and gums.
Gum Care mode
Complete whole mouth cleaning (2 minutes) plus
gentle cleaning for problem areas and along the
gumline (1 minute).
Deep Clean mode
Provides an invigorating 3 minutes of alternating
cleaning and massaging to deliver an exceptionally
clean experience.
Features
Quadpacer
The Quadpacer is an interval timer that has a
short beep and pause to remind you to brush
the 4 sections of your mouth. Depending on the
brushing mode you have selected, the Quadpacer
beeps at dierent intervals during the brushing
cycle. The Quadpacer works in all 5 modes.
Smartimer
The Smartimer indicates that your brushing cycle
is complete by automatically turning o the
toothbrush at the end of the brushing cycle.
Dental professionals recommend brushing no less
than 2 minutes twice a day.
1
2
4
3

English
16
Easy-start
The Easy-start feature gently increases the power
over the rst 14 brushings to help you get used
to the brushing with the Philips Sonicare. The
Easy-start feature only works in Clean and White
modes. This Philips Sonicare model comes with
the Easy-start feature activated.
Activating or deactivating the Easy-start
feature
1 Attach the brush head to the handle.
2 Place the handle on the charging platform.
To activate Easy-start:
Press and hold the power on/o and mode button
for 2 seconds. You hear 2 beeps to indicate that
the Easy-start feature has been activated.
To deactivate Easy-start:
Press and hold the power on/o and mode button
for 2 seconds. You hear 1 beep to indicate that the
Easy-start feature has been deactivated.
Note: Using the Easy-start feature beyond the initial
ramp-up period is not recommended and reduces
Philips Sonicare eectiveness in removing plaque.
Note: Each of the rst 14 brushings must be at least
1 minute in length to properly move through the
Easy-start ramp-up cycle.
Traveling with your Philips Sonicare
1 Open the travel case and remove the middle
insert.
2 Place the charger base and wall adapter in the
bottom of the case.

English 17
3 Insert the toothbrush handle underneath the
elastic band in the middle insert to ensure the
handle stays in place while traveling.
4 Place the middle insert back into the travel case .
5 Brush heads can be stored in the netted pouch
of the travel case.
Cleaning
Note: Do not clean the brush head, handle,
charging pad or travel pouch in the dishwasher.
Toothbrush handle
1 Remove the brush head and rinse the metal
shaft area with warm water. Make sure you
remove any residual toothpaste.
Note: Do not push on the rubber seal on the
metal shaft with sharp objects, as this may
cause damage.
2 Wipe the entire surface of the handle with a
damp cloth.
Note: Do not use isopropyl rubbing alcohol,
vinegar or bleach to clean handle as this may
cause discoloration.
Brush head
1 Rinse the brush head and bristles after each use.
2 Remove the brush head from the handle and
rinse the brush head connection with warm
water at least once a week.
Charging Pad & Travel Pouch
1 Unplug the charger.
2 Use a damp cloth to wipe the surface of the
charging pad and travel pouch.

English
18
Storage
If you are not going to use your Philips Sonicare
for an extended period of time, unplug the charger
from the electrical outlet, clean it and store it in a
cool and dry place away from direct sunlight.
Replacement
Brush head
Replace Philips Sonicare brush heads every
3 months to achieve optimal results. Use only
Philips Sonicare replacement brush heads.
Disposal
This appliance contains a rechargeable battery
which must be disposed of properly. Contact your
local town or city ocials for battery disposal
information. You can also call 1-800-8-BATTERY or
visit www.rbrc.com for battery drop-o locations
.
For assistance, visit our website www.philips.com/
support or call 1-800-243-3050 toll free.
Removing the rechargeable battery
Warning: Only remove the rechargeable battery
when you discard the appliance. Make sure the
battery is completely empty when you remove it.
To remove the rechargeable battery, you need
a towel or cloth, a hammer and a at-head
(standard) screwdriver. Observe basic safety
precautions when you follow the procedure
outlined below. Be sure to protect your eyes,
hands, ngers, and the surface on which you work.

English 19
1 To deplete the rechargeable battery of any
charge, remove the handle from the charger,
turn on the Philips Sonicare and let it run until it
stops. Repeat this step until you can no longer
turn on the Philips Sonicare.
2 Remove and discard the brush head.
Cover the entire handle with a towel or cloth.
3 Hold the top of the handle with one hand and
strike the handle housing 0.5 inch above the
bottom end. Strike rmly with a hammer on all
4 sides to eject the end cap.
Note: You may have to hit on the end several
times to break the internal snap connections.
4 Remove the end cap from the toothbrush
handle. If the end cap does not release easily
from the housing, repeat step 3 until the end
cap is released.
5 Holding the handle upside down, press the
shaft down on a hard surface. If the internal
components do not easily release from
the housing, repeat step 3 until the internal
components are released.
6 Remove the rubber battery cover.
1
2

English
20
7 Wedge the screwdriver between the battery
and the black frame at the bottom of the
internal components. Then pry the screwdriver
away from the battery to break the bottom of
the black frame.
8 Insert the screwdriver between the bottom of
the battery and the black frame to break the
metal tab connecting the battery to the green
printed circuit board. This will release the
bottom end of the battery from the frame.
9 Grab the battery and pull it away from the
internal components to break the second metal
battery tab.
Caution: Be aware of the sharp edges of the
battery tabs so as to avoid injury to your
ngers.
10 Cover the battery contacts with tape to prevent
any electrical short from residual battery
charge. The rechargeable battery can now be
recycled and the rest of the product discarded
appropriately.
