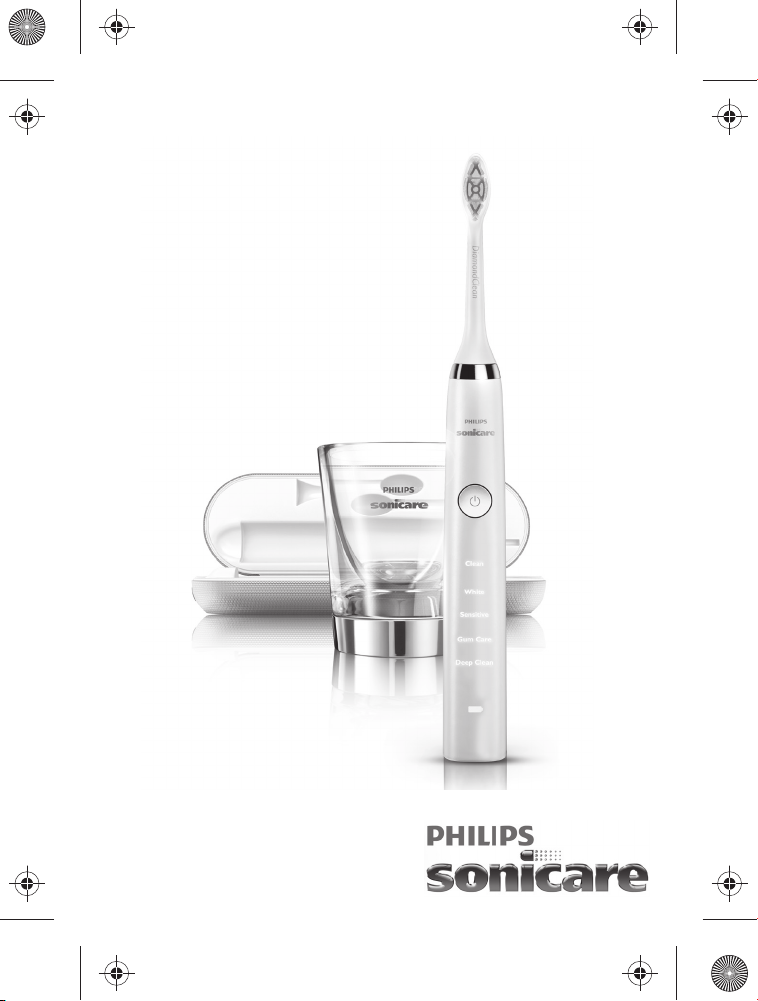

Philips Sonicare DiamondClean Series User manual

DiamondClean
EN: User manual
RU: Руководство пользователя
KZ: Пайдаланушы нұсқаулығы

2
1
7
9
8
3
4
5
611
10
10
1

English 6
Русский 17
Қазақша 28

English
Important safety information
Read this important information carefully before you use the
appliance and save it for future reference.
Danger
-Keep the charger away from water. Do not
place or store it over or near water
contained in a bathtub, washbasin, sink etc.
Do not immerse the charger in water or any
other liquid. After cleaning, make sure the
charger is completely dry before you
connect it to the wall socket.
Warning
-The mains cord cannot be replaced. If the
mains cord is damaged, discard the charger.
-Always have the charger replaced with one
of the original type in order to avoid a
hazard.
-Do not use the charger outdoors or near
heated surfaces.
6English

-If the appliance is damaged in any way
(brush head, toothbrush handle or charger),
stop using it. This appliance contains no
serviceable parts. If the appliance is
damaged, contact the Consumer Care
Center in your country (see chapter
'Warranty and support').
-This appliance can be used by children and
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Cleaning and user
maintenance shall not be made by children
without supervision.
-Children shall not play with the appliance.
Caution
-Do not clean the brush head, the handle or
the charger in the dishwasher.
-If you have had oral or gum surgery in the
previous 2 months, consult your dentist
before you use the toothbrush.
7
English

-Consult your dentist if excessive bleeding
occurs after using this toothbrush or if
bleeding continues to occur after 1 week of
use. Also consult your dentist if you
experience discomfort or pain when you use
the Philips Sonicare.
-The Philips Sonicare toothbrush complies
with the safety standards for
electromagnetic devices. If you have a
pacemaker or other implanted device,
contact your physician or the device
manufacturer of the implanted device prior
to use.
-If you have medical concerns, consult your
doctor before you use the Philips Sonicare.
-This appliance has only been designed for
cleaning teeth, gums and tongue. Do not
use it for any other purpose. Stop using the
appliance and contact your doctor if you
experience any discomfort or pain.
8English

-The Philips Sonicare toothbrush is a
personal care device and is not intended for
use on multiple patients in a dental practice
or institution.
-Stop using a brush head with crushed or
bent bristles. Replace the brush head every
3 months or sooner if signs of wear appear.
Do not use other brush heads than the ones
recommended by the manufacturer.
-If your toothpaste contains peroxide, baking
soda or bicarbonate (common in whitening
toothpastes), thoroughly clean the brush
head with soap and water after each use.
This prevents possible cracking of the
plastic.
Electromagnetic fields (EMF)
This Philips appliance complies with all applicable standards and
regulations regarding exposure to electromagnetic fields.
Introduction
Congratulations on your purchase and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.

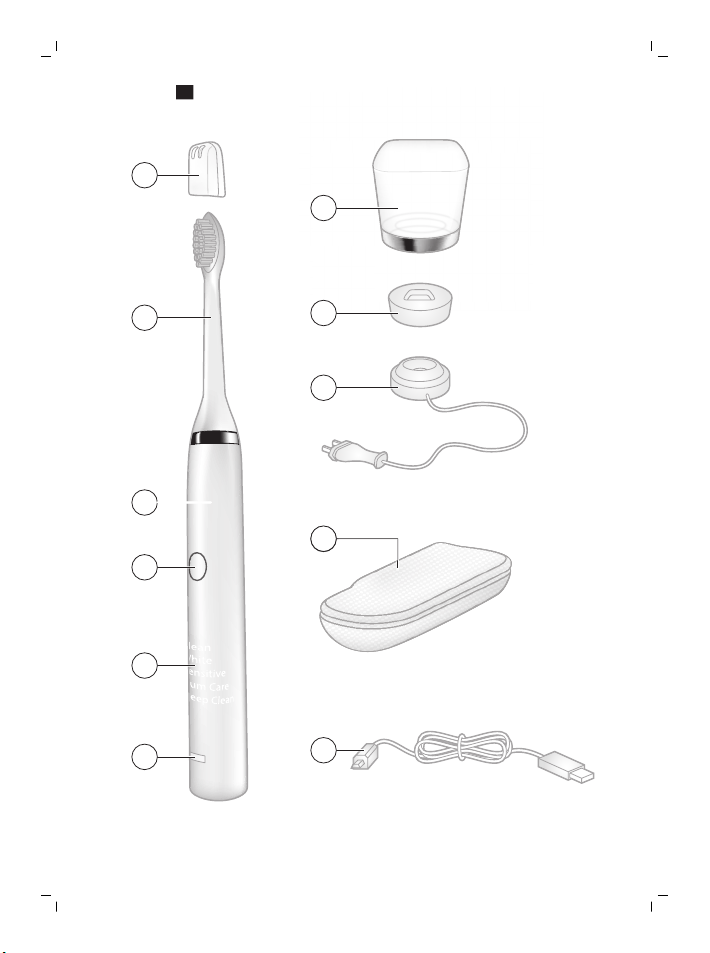

Your Philips Sonicare (Fig. 1)
1 Hygienic travel cap
2 Brush head
3 Handle with ergonomic shape
9
English

4 Recessed power on/off button
5 Hidden brushing mode display
6 Charge indicator
7 Charging glass
8 Charger stand
9 Charging base
10 Charging travel case
11 USB cord
Note: The content of the box may vary based on the model
purchased.
Preparing for use
Attaching the brush head
1Align the brush head so the bristles point in the same direction as
the front of the handle. (Fig. 2)
2Firmly press the brush head down onto the metal shaft until it
stops.
Charging the appliance
1Plug the charger into an electrical outlet.
2Place the charging glass on top of the charging base and place the
handle in the glass (Fig. 3) or place the charger stand on top of the
charging base. Place the handle in the stand (Fig. 4).
-The charge indicator flashes green until fully charged.
-Rapid yellow flashing indicates charge is extremely low (fewer
than 3 uses left).
Note: It takes at least 24 hours to fully charge the battery.
This charger is designed to properly charge only one handle at a time.
This charger is not compatible with other models of Sonicare.
Using the appliance
Brushing instructions
1Wet the bristles (Fig. 5) and apply a small amount of toothpaste
(Fig. 6).
10 English

2Place the toothbrush bristles against the teeth at a slight angle (45
degrees), pressing firmly to make the bristles reach the gumline or
slightly beneath the gumline (Fig. 7).
Note: Keep the center of the brush in contact with the teeth at all
times.
3Press the power on/off and mode button to turn on the Philips
Sonicare. (Fig. 8)
4Gently keep the bristles placed on the teeth and in the gumline.
Brush your teeth with small back and forth motion so the bristles
reach between the teeth (Fig. 9).
Note: The bristles should slightly flare. Do not scrub.
5To clean the inside surfaces of the front teeth, tilt the brush handle
semi-upright and make several vertical overlapping brushing
strokes on each tooth (Fig. 10).
6Begin brushing in section 1 (outside top teeth) and brush for 30
seconds (45 seconds in Deep Clean mode) before moving to
section 2 (inside top teeth). Continue brushing in section 3 (outside
bottom teeth) and brush for 30 seconds (45 seconds in Deep
Clean mode) before moving to section 4 (inside bottom teeth (Fig.
11)).
Note: After you have completed the brushing cycle, you can spend
additional time brushing the chewing surfaces of your teeth and
areas where staining occurs. You can also brush your tongue, with
the toothbrush turned on or off, as you prefer (Fig. 12).
Your Philips Sonicare is safe to use on:
- Braces (brush heads wear out sooner when used on braces).
- Dental restorations (fillings, crowns, veneers).
Brushing modes
1To toggle through modes press the on/off button twice in less
than 5 seconds.
2To turn off your Philips Sonicare press the on/off button again
after 5 seconds.
Your Philips Sonicare comes with the Clean mode activated.
11
English

Note: When the Philips Sonicare is used in clinical studies, it must be
used in the default 2-minute Clean mode or in the Deep Clean mode
with Easy Start turned off.
Clean mode
The ultimate in plaque removal (default mode). Clean mode lasts for 2
minutes and includes four 30 second Quadpacer intervals.
White mode
2 minutes to remove surface stains and 30 seconds to brighten and
polish your front teeth.
Sensitive mode
Extra gentle 2 minute mode for sensitive teeth and gums.
Gum Care mode
Complete whole mouth cleaning (2 minutes) plus gentle cleaning for
problem areas and along the gumline (1 minute).
Deep Clean mode (select models)
Provides an invigorating 3 minutes of alternating cleaning and
massaging to deliver an exceptionally clean experience.
Polish mode (select models)
Quick 1-minute mode to brighten and polish your front teeth.
Getting used to your Philips Sonicare
Easy-start
The Easy-start feature gently increases the power over the first 14
brushings to help you get used to the brushing with the Philips
Sonicare. The Easy-start feature works in all modes other than
TongueCare mode. This Philips Sonicare model comes with the Easy-
start feature activated.
Activating or deactivating the Easy-start feature
1Place the handle in the plugged-in charger.
To activate Easy-start:
12 English

Press and hold the power on/off for 2 seconds. You hear 2 beeps to
indicate that the Easy-start feature has been activated.
To deactivate Easy-start:
Press and hold the power on/off for 2 seconds. You hear 1 beep to
indicate that the Easy-start feature has been deactivated.
Note: Using the Easy-start feature beyond the initial ramp-up period
is not recommended and reduces Philips Sonicare effectiveness in
removing plaque.
Note: Each of the first 14 brushings must be at least 1 minute in length
to properly move through the Easy-start ramp-up cycle.
Traveling with the appliance
Charging with travel case (specific types only)
1Place the handle in the charging travel case.
2Connect the charging travel case to a UL 60950-1 and IEC 60950-1
Listed computer, laptop, USB hub, USB receptacle, or wall adapter.
3The wall adapter you use with this product, shall have an output
marked Class 2 or the limited power source (LPS) requirements
and compatible with the electrical ratings marked on the travel
case.
4The battery indication flashes white until your toothbrush is fully
charged.
Important: The wall adapter must be a safe extra low voltage source,
compatible with the electrical ratings marked on the device.
Important: Only toothbrush models HX9330, HX9340, HX9350,
HX9360, HX9370, HX939W, HX939B, HX939P, HX939V, HX939L can
be charged in the travel case. Other products and batteries are not
compatible with the travel case.
Note: It takes at least 24 hours to fully charge your Philips Sonicare.
You do not have to fully charge your handle before first use, as the
handle is pre-charged for first use. However, it is recommended to
fully charge it after first use.
Note: This charger is designed to properly charge only one handle at
a time. The charging base is not compatible with other models of
Philips Sonicare.
13
English

Note: Do not place metallic objects in the travel case, as handle
charging may be affected and may cause the charger to overheat.
Cleaning
Note: Do not clean the brush head, handle, charging base or USB
travel case in the dishwasher. The glass is dishwasher safe.
Toothbrush handle
1Remove the brush head and rinse the metal shaft area with warm
water. Make sure you remove any residual toothpaste (Fig. 14).
Note: Do not push on the rubber seal on the metal shaft with
sharp objects, as this may cause damage.
2Wipe the entire surface of the handle with a damp cloth.
Note: Do not use isopropyl rubbing alcohol, vinegar or bleach to
clean handle as this may cause discoloration.
Brush head
1Rinse the brush head and bristles after each use (Fig. 15).
2Remove the brush head from the handle and rinse the brush head
connection with warm water at least once a week.
Charging base
Use a damp cloth to wipe the surface of the charging base. Make sure
you remove any toothpaste or other residue from the surfaces.
Storage
If you are not going to use your Philips Sonicare for an extended
period of time, charge the handle fully, unplug the charger from the
electrical outlet, clean both devices and store them in a cool and dry
place away from direct sunlight.
Replacement
Brush head
Replace Philips Sonicare brush heads every 3 months to achieve
optimal results. Use only Philips Sonicare replacement brush heads.
14 English

Recycling
- This symbol means that this product shall not be disposed of with
normal household waste (2012/19/EU) (Fig. 24).
- This symbol means that this product contains a built-in
rechargeable battery which shall not be disposed of with normal
household waste (Fig. 25) (2006/66/EC). Please take your product
to an official collection point or a Philips service center to have a
professional remove the rechargeable battery.
- Follow your country’s rules for the separate collection of electrical
and electronic products and rechargeable batteries. Correct
disposal helps prevent negative consequences for the
environment and human health.
Removing the rechargeable battery
Warning: Only remove the rechargeable battery when you discard the
appliance. Make sure the battery is completely empty when you
remove it.
To remove the rechargeable battery, you need a towel or cloth, a
hammer and a flat-head (standard) screwdriver. Observe basic safety
precautions when you follow the procedure outlined below. Be sure
to protect your eyes, hands, fingers, and the surface on which you
work.
1To deplete the rechargeable battery of any charge, remove the
handle from the charger, turn on the Philips Sonicare and let it run
until it stops. Repeat this step until you can no longer turn on the
Philips Sonicare.
2Remove and discard the brush head. Cover the entire handle with
a towel or cloth (Fig. 16).
3Hold the top of the handle with one hand and strike the handle
housing 0.5 inch above the bottom end. Strike firmly with a
hammer on all 4 sides to eject the end cap (Fig. 17).
Note: You may have to hit on the end several times to break the
internal snap connections.
4Remove the end cap from the toothbrush handle. If the end cap
does not release easily from the housing, repeat step 3 until the
end cap is released (Fig. 18).
15
English

5Holding the handle upside down, press the shaft down on a hard
surface. If the internal components do not easily release from the
housing, repeat step 3 until the internal components are released
(Fig. 19).
6Remove the rubber battery cover.
7Wedge the screwdriver between the battery and the black frame
at the bottom of the internal components. Then pry the
screwdriver away from the battery to break the bottom of the
black frame (Fig. 20).
8Insert the screwdriver between the bottom of the battery and the
black frame to break the metal tab connecting the battery to the
green printed circuit board. This will release the bottom end of the
battery from the frame (Fig. 21).
9Grab the battery and pull it away from the internal components to
break the second metal battery tab (Fig. 22).
Caution: Be aware of the sharp edges of the battery tabs so as to
avoid injury to your fingers.
10 Cover the battery contacts with tape to prevent any electrical short
from residual battery charge. The rechargeable battery can now be
recycled and the rest of the product discarded appropriately (Fig.
23).
Warranty and support
If you need information or support, please visit
www.philips.com/support or read the international warranty leaflet.
Warranty restrictions
The terms of the international warranty do not cover the following:
- Brush heads.
- Damage caused by use of unauthorized replacement parts.
- Damage caused by misuse, abuse, neglect, alterations or
unauthorized repair.
- Normal wear and tear, including chips, scratches, abrasions,
discoloration or fading.
16 English

Русский
Важные сведения о безопасности -
Дополнение к эксплуатационной
документации
Перед началом эксплуатации прибора внимательно
ознакомьтесь с настоящим буклетом и сохраните его для
дальнейшего использования в качестве справочного материала.
Опасно!
- Храните зарядное устройство вдали от воды! Не помещайте и
не оставляйте зарядное устройство над водой или поблизости
от воды, налитой в ванну, раковину ит.д. Не опускайте
зарядное устройство в воду или другие жидкости. После
чистки проверяйте, что зарядное устройство полностью
высохло, прежде чем подключать его к сетевой розетке.
Предупреждение
- Сетевой шнур заменить нельзя. Если он поврежден, зарядное
устройство необходимо заменить полностью.
- Всегда заменяйте зарядное устройство только оригинальным
устройством, чтобы обеспечить безопасную эксплуатацию
прибора.
- Не используйте зарядное устройство вне помещений или
рядом с нагреваемыми поверхностями.
- При повреждении любой части прибора (чистящая насадка-
щетка (далее - насадка), электрическая зубная щетка (далее -
щетка или ручка) или зарядное устройство) не пользуйтесь им.
Данное устройство не содержит деталей, замена и ремонт
которых может выполняться пользователем. Если прибор
поврежден, обратитесь в центр поддержки потребителей в
вашей стране (см. главу «Гарантия и поддержка»).
- Дети и лица с ограниченными физическими или умственными
возможностями, а также лица с недостаточным опытом и
знаниями могут пользоваться этим прибором только под
присмотром или после получения инструкций по безопасному
использованию прибора. Дети могут осуществлять очистку и
уход за прибором только под присмотром взрослых.
- Не позволяйте детям играть с прибором.
17
Русский

Внимание!
- Чистящие насадки, ручку и зарядное устройство нельзя мыть в
посудомоечной машине.
- Если за последние 2 месяца вы перенесли операцию ротовой
полости или десен, перед использованием зубной щетки
проконсультируйтесь со стоматологом.
- Если после использования зубной щетки появляется обильное
кровотечение или если кровоточивость десен не
прекращается через 1 неделю, проконсультируйтесь со
стоматологом. Также обратитесь к стоматологу при появлении
неприятных или болевых ощущений во время использования
щетки Philips Sonicare.
- Зубная щетка Philips Sonicare соответствует стандартам
безопасности для электромагнитных приборов. Если у вас есть
кардиостимулятор или другой имплантированный прибор,
проконсультируйтесь с врачом или производителем
имплантированного прибора перед использованием.
- При необходимости, перед использованием щетки Philips
Sonicare проконсультируйтесь у врача.
- Данное устройство предназначено для чистки зубов, десен и
языка. Не используйте его для других целей. При появлении
ощущения дискомфорта или боли прекратите пользоваться
прибором и обратитесь к врачу.
- Зубная щетка Philips Sonicare — устройство для личной
гигиены, которое не предназначено для коллективного
использования несколькими пациентами стоматологической
клиники или учреждения.
- Не пользуйтесь насадкой-щеткой со смятыми или загнутыми
щетинками. Заменяйте насадку-щетку каждые 3 месяца или
чаще, если появились признаки износа. Используйте только
насадки-щетки, рекомендованные производителем.
- Если зубная паста содержит пероксид, питьевую соду или
другие бикарбонаты (часто используемые в отбеливающих
зубных пастах), тщательно мойте насадку водой с мылом
после каждого использования. Это предотвратит возможное
появление трещин.
18 Русский

Электромагнитные поля (ЭМП)
Этот прибор Philips Sonicare соответствует всем применимым
стандартам и нормам по воздействию электромагнитных полей.
Введение
Поздравляем с покупкой продукции Philips! Чтобы
воспользоваться всеми преимуществами поддержки Philips,
зарегистрируйте изделие на веб-сайте
www.philips.com/welcome.
Щетка Philips Sonicare (рис. 1)
1 Гигиенический защитный колпачок
2 Насадка
3 Ручка эргономичной формы
4 Утопленная кнопка включения/выключения
5 Скрытый дисплей для отображения режима чистки
6 Индикатор степени зарядки
7 Зарядный стакан
8 Подставка зарядного устройства
9 Зарядная база
10 Чехол с зарядным устройством для поездок
11 Кабель USB
Примечание. Комплектация может отличаться в зависимости
от приобретенной модели.
Подготовка прибора к работе
Установка чистящей насадки
1Установите насадку так, чтобы щетинанаходилась напротив
передней части ручки. (Рис. 2)
2Прижмите насадку-щетку к металлическому валу до упора.
Зарядка аккумулятора
1Подключите зарядное устройство к розетке электросети.
19
Русский

2Поместите зарядный стакан на зарядную базу и поместите
ручку в стакан (Рис. 3) или установите подставку зарядного
устройства на зарядную базу. Поместите ручку на подставку
(Рис. 4).
-Индикатор зарядки будет мигать зеленым светом до
полной зарядки прибора.
-Быстрое мигание индикатора желтым светом указывает на
низкий заряд аккумулятора (менее чем на 3чистки).
Примечание. Чтобы зарядить аккумулятор
полностью,понадобится не менее 24 часов.
Это зарядное устройство предназначено для единовременной
зарядки только одной ручки щетки. Данное зарядное устройство
несовместимо с другими моделями Sonicare.
Использование прибора
Рекомендации по чистке
1Намочите чистящую насадку (Рис. 5) и положите на нее
немного зубной пасты (Рис. 6).
2Поднесите чистящую насадку к зубам под углом 45градусов и
прижмите щетинки так, чтобы они касались линии десен или
области под линией десен (Рис. 7).
Примечание. Щетинки в середине насадки должны всегда
соприкасаться с зубами.
3Для включения щетки Philips Sonicare (Рис. 8) нажмите кнопку
включения/выключения.
4Аккуратно прижмите щетинки к зубам и к линии десен.
Передвигайте щетку вперед и назад так, чтобы щетинки
очищали межзубные (Рис. 9) промежутки.
Примечание. Щетинки должны свободно перемещаться. Не
применяйте излишнее усилие во время чистки.
5Для очистки внутренней поверхности передних зубов
наклоните ручку щетки немного вперед. Очищайте каждый
зуб (Рис. 10), перемещая устройство вверх и вниз.
20 Русский
