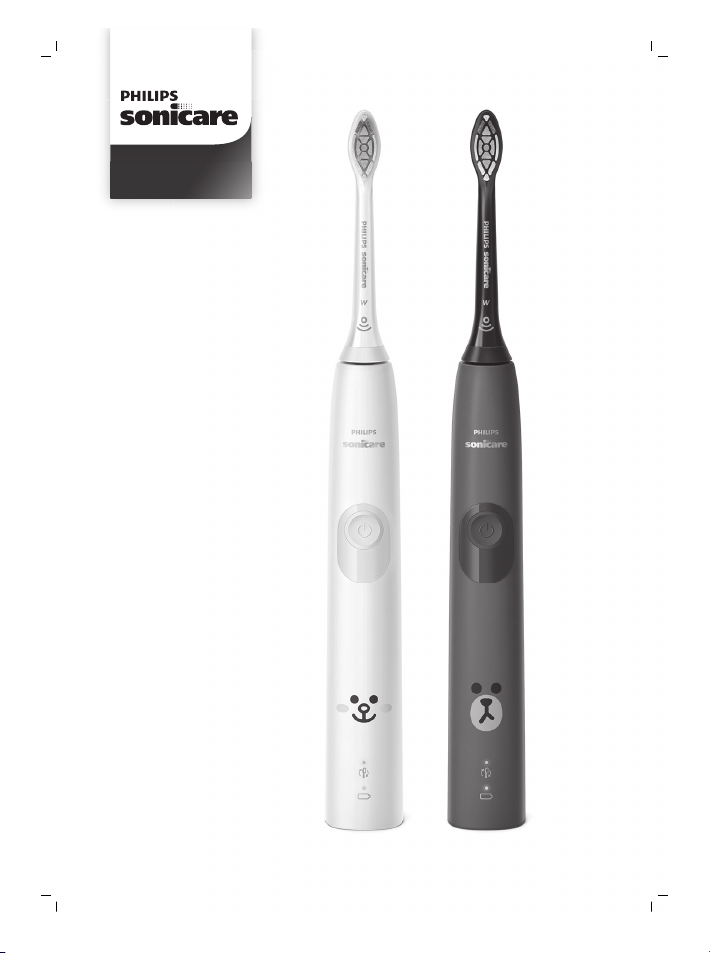

Philips Sonicare 4200 Series User manual

4200 Series

1
8
2
4
3
5
6
7
1

English 6
简体中文 20
繁體中文 36

English
6English
Introduction
Congratulations on your purchase and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
Important safety information
Read this important information carefully before you use the
appliance and save it for future reference.
DANGER
- Keep the charger away from water. Do not place or store the
appliance where it can fall or be pulled into a tub or sink.
- Do not immerse the charger in water or any other liquid.
- After cleaning, make sure the charger is completely dry before you
connect it to the wall socket.
WARNINGS
- This appliance can be used by children and persons with reduced
physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the
hazards involved. Cleaning and user maintenance shall not be
made by children without supervision.
- Children shall not play with the appliance.
- If the appliance is damaged in any way (brush head, toothbrush
handle or charger). Stop using it.
- The mains cord cannot be replaced. If the mains cord is damaged,
discard the charger.
- Always replace the charger with one of the original type in order to
avoid a hazard.
- This appliance contains no user-serviceable parts. If the appliance
is damaged, contact the Consumer Care Center in your country
(see 'Warranty and support').
- Keep the cord away from heated surfaces.
- Do not use the charger outdoors or near heated surfaces.

7
English
CAUTION
- Do not clean the brush head, handle, or charger in the dishwasher.
- If you have had oral or gum surgery in the previous 2 months,
consult your dentist before you use this appliance.
- Consult your dentist if excessive bleeding occurs after using this
appliance or if bleeding continues to occur after 1 week of use.
Also consult your dentist if you experience discomfort or pain
when you use this appliance.
- This Philips appliance complies with the safety standards for
electromagnetic devices. If you have a pacemaker or other
implanted device, contact your doctor or the appliance
manufacturer of the implanted appliance prior to use.
- If you have medical concerns, consult your doctor before you use
this appliance.
- This appliance has only been designed for cleaning teeth, gums
and tongue. Do not use it for any other purpose. Stop using the
appliance and contact your doctor if you experience any
discomfort or pain.
- Do not use other brush heads than the ones recommended by
Philips Sonicare.
- Stop using a brush head with crushed or bent bristles. Replace the
brush head every 3 months or sooner if signs of wear appear.
- Avoid direct contact with products that contain essential oils or
coconut oil. Contact may result in bristle tufts dislodging.
Battery safety instructions
- Only use thisproduct for its intended purpose and follow the
general and battery safety instructions as described in this user
manual. Any misuse can cause electric shock, burns, fire and other
hazards or injuries.
- To charge the battery, only use the detachable supply unit
(HX6100) provided with the appliance.
- Do not use an extension cord to charge the appliance.
- Charge, use and store the product at a temperature between 15°C
and 35°C.
- Always unplug the product when it is fully charged.

8English
- Do not burn products and their batteries and do not expose them
to direct sunlight or to high temperatures (e.g. in hot cars or near
hot stoves). Batteries may explode if overheated.
- If the product becomes abnormally hot, gives off an abnormal
smell, changes color or if charging takes much longer than usual,
stop using and charging the product and contact your local Philips
dealer.
- Do not place products and their batteries in microwave ovens or
on induction cookers.
- This product contains a rechargeable battery that is non-
replaceable. Do not open the product to replace the rechargeable
battery.
- When you handle batteries, make sure that your hands, the
product and the batteries are dry.
- To prevent batteries from heating up or releasing toxic or
hazardous substances, do not modify, pierce or damage products
and batteries and do not disassemble, short-circuit, overcharge or
reverse charge batteries.
- To avoid accidental short-circuiting of batteries after removal, do
not let battery terminals come into contact with metal objects (e.g.
coins, hairpins, rings). Do not wrap batteries in aluminum foil. Tape
battery terminals or put batteries in a plastic bag before you
discard them.
- If batteries are damaged or leaking, avoid contact with the skin or
eyes. If this occurs, immediately rinse well with water and seek
medical care.
Electromagnetic fields (EMF)
This Philips appliance complies with all applicable standards and
regulations regarding exposure to electromagnetic fields.
Radio Equipment Directive
Hereby, Philips declares that electric tootbrushes equipped with a
radio frequency interface (Bluetooth or NFC) are in compliance with
Directive 2014/53/EU.
- The Bluetooth radio frequency interface in applicable products
operates at 2.4 GHz.

9
English
- The maximum radio frequency power of products equipped with
Bluetooth is 3 dBm.
- The NFC radio frequency interface in applicable products operates
at 13.56 MHz.
- The maximum radio frequency power of products equipped with
NFC is 30.16 dBm.
The full text of the EU declaration of conformity is available at the
following internet address: www.philips.com/support
Note: The Features of different models may vary. Some models
may not be equipped with Bluetooth or NFC.
Intended use
4200 Series power toothbrushes are intended to remove adherent
plaque and food debris from the teeth to reduce tooth decay and
improve and maintain oral health. 4200 Series power toothbrushes
are intended for consumer home use. Use by children should be with
adult supervision.
Your Philips Sonicare (Fig. 1) *
1 Hygienic travel cap
2 Smart brush head(s)
3 Handle
4 Power on/off button
5 Brush head replacement reminder light
6 Battery indication
7 Charging base
8 Travel case
*Note: Contents may vary depending on your model purchased.
Refer to your packaging.
Brush heads
Your Philips Sonicare comes with one or more brush heads which are
designed to deliver superior results for your oral care needs.

10 English
Philips Sonicare BrushSync Technology
Your smart brush heads use a microchip to sync with your handle,
enabling brush head replacement reminder. For more information
regarding the brush head replacement reminder, see 'Features'.
This symbol indicates the brush head is equipped with BrushSync
technology. (Fig. 2)
Brushing modes
Your power toothbrush is equipped with clean mode.
Clean mode
Clean is a 2-minute mode. It gives you a thorough and complete
clean and is recommended to be used with the C2 Optimal Plaque
Control brush head.
Intensities
Your power toothbrush gives you the option to choose between low
and high intensity.
Note: When you use the toothbrush for the first time, the default
setting is the low intensity.
- Press the power button once to turn on the toothbrush.
- Press a second time within 2 seconds to change the intensity.
- Press a third time within 2 seconds to pause.
After 2 seconds of brushing, pressing the power button again will also
pause the toothbrush.
Using your Philips Sonicare
Brushing instructions
1Press the brush head onto the handle in such a way that the
bristles will face the front of the handle. (Fig. 3)
2Firmly press the brush head down onto the metal shaft until it
stops.
Note: It is normal to see a slight gap between the brush head and
the handle.

11
English
3Wet the bristles. (Fig. 4)
4Apply a small amount of toothpaste on the bristles. (Fig. 5)
5Place the toothbrush bristles against the teeth at a slight angle (45
degrees), pressing firmly to make the bristles reach the gumline or
slightly beneath the gumline. (Fig. 6) A change in vibration (and a
slight change in sound) alerts you when you apply too much
pressure while brushing.
Note: Keep the center of the brush in contact with the teeth at all
times.
6Press the power on/off button to turn on the Philips Sonicare. (Fig.
7)
7Gently keep the bristles placed on the teeth and in the gumline.
Brush your teeth with small back and forth motion so the bristles
reach between the teeth. (Fig. 8)
Note: The bristles should slightly flare. Do not scrub.
8To clean the inside surfaces of the front teeth, tilt the brush handle
semi-upright and make several vertical overlapping brushing
strokes on each tooth. (Fig. 9)
9To make sure you brush evenly throughout the mouth, divide the
mouth into 4 sections using the Quadpacer feature. (Fig. 10) The
quadpacer feature beeps after 30 seconds.
10 Brush for the full 2 minutes following the Quadpacer. (Fig. 11) After
2 minutes, the toothbrush will automatically shut off.
- After you have completed the brushing cycle, you can spend
additional time brushing the chewing surfaces of your teeth and
areas where staining occurs. (Fig. 12)
Your Philips Sonicare toothbrush is safe to use on:
- Braces (brush heads wear out sooner when used on braces)
- Dental restorations (fillings, crowns, veneers)
Note: When the Philips Sonicare toothbrush is used in clinical studies,
it must be used in the Clean mode (for plaque and gum health claims)
with EasyStart turned off.

12 English
Features
- EasyStart
- Brush head replacement reminder
- Pressure sensor
- Quadpacer
EasyStart
This Philips Sonicare model comes with the EasyStart feature
deactivated. The EasyStart feature gently increases the power over
the first 14 brushings to help you get used to the brushing with the
Philips Sonicare.
To activate EasyStart see 'Activating or deactivating features'.
Brush head replacement reminder
Your Philips Sonicare is equipped with BrushSync technology that
tracks the wear of your brush head. (Fig. 13)
1When attaching a new smart brush head for the first time the
brush head replacement reminder light blinks green three times.
This confirms you have a Philips brush head with BrushSync
technology.
2Over time, based on the pressure you apply and the amount of
time used, the handle will track brush head wear in order to
determine the optimal time to change your brush head. This
feature gives you the guarantee for the best cleaning and care of
your teeth.
3When the brush head replacement reminder light lights up amber,
you should replace your brush head.
To deactivate the brush head replacement reminder see 'Activating or
deactivating features'.
Pressure sensor
Your Philips Sonicare is equipped with an advanced sensor that
measures the pressure you apply while brushing. If you apply too
much pressure, the toothbrush will provide immediate feedback to
indicate that you need to reduce the pressure. This feedback is given
by a change in vibration and therefore brushing sensation.

13
English
To deactivate the pressure sensor see 'Activating or deactivating
features'.
Quadpacer
The Quadpacer is an interval timer that has a short beep and pause
to remind you to brush the different sections of your mouth.
Depending on the brushing mode you have selected (see 'Brushing
modes'), the Quadpacer beeps at different intervals during the
brushing cycle.
Activating or deactivating features
You can activate or deactivate the following features of your
toothbrush:
- EasyStart
- Brush head replacement reminder
- Pressure sensor
To activate or deactivate these features, follow the instructions
below:
EasyStart
1Put the handle on the plugged-in charger.
2Press and hold the power on/off button while the handle remains
on the charger.
3Keep the power on/off button pressed until you hear a single
short beep (after 2 seconds).
4Release the power on/off button.
-Triple tone of low-med-high means the EasyStart feature has
been activated. The brush head replacement light and battery
light will also blink green 2 times in unison to confirm activation.
-Triple tone of high-med-low means the EasyStart feature has
been deactivated. The brush head replacement light and
battery light will also blink amber 2 times in unison to confirm
deactivation.
Note: To achieve clinical efficacy, EasyStart needs to be deactivated.

14 English
Brush head replacement reminder
1Put the handle on the plugged-in charger.
2Press and hold the power on/off button while the handle remains
on the charger.
3Keep the power on/off button pressed until you hear a series of
two short beeps (after 4-5 seconds).
4Release the power on/off button.
-Triple tone of low-med-high means the Brush head
replacement reminder feature has been activated. The brush
head replacement light and battery light will also blink green 2
times in unison to confirm activation.
-Triple tone of high-med-low means the Brush head
replacement reminder feature has been deactivated. The brush
head replacement light and battery light will also blink amber 2
times in unison to confirm deactivation.
Pressure sensor
1Put the handle on the plugged-in charger.
2Press and hold the power on/off button while the handle remains
on the charger.
3Keep the power on/off button pressed until you hear a series of
three short beeps (after 6-7 seconds).
4Release the power on/off button.
-Triple tone of low-med-high means the pressure sensor feature
has been activated. The brush head replacement light and
battery light will also blink green 2 times in unison to confirm
activation.
-Triple tone of high-med-low means the pressure sensor feature
has been deactivated. The brush head replacement light and
battery light will also blink amber 1 time in unison to confirm
deactivation.
If you continue holding the power on/off button after the three short
beeps, the activate/deactivate sequence repeats.

15
English
Battery status and charging
1Put the plug of the charger in an electrical outlet.
2Place the handle on the charger.
-The charger will emit 2 short beeps to confirm that the handle is
placed properly.
-The flashing light of the battery level indicator shows that the
toothbrush is charging.
-When handle is fully charged on the charger, the battery light
shows solid green for 30 seconds and switches off.
Note: Your toothbrush comes pre-charged for first use. After first use,
charge for at least 24 hours.
Battery status (when handle is not on charger)
When removing the Philips Sonicare from the charger, the battery
light at the bottom of the toothbrush will indicate the status of the
battery life.
- Solid green LED: full battery
- Flashing green LED: medium battery
- Flashing amber LED and three beeps: low battery
- Flashing amber LED and two sets of five beeps: No brushing
sessions left (charge toothbrush)
Cleaning
Note: Do not clean the brush head, handle or travel case in the
dishwasher.
Toothbrush handle
1Remove the brush head and rinse the metal shaft area with warm
water. Make sure you remove any residual toothpaste (Fig. 14).
Note: Do not push on the rubber seal on the metal shaft with
sharp objects, as this may cause damage.
2Wipe the entire surface of the handle with a damp cloth.
Note: Do not use isopropyl rubbing alcohol, vinegar or bleach to
clean handle as this may cause discoloration.

16 English
Brush head
1Rinse the brush head and bristles after each use (Fig. 15).
2Remove the brush head from the handle and rinse the brush head
connection with warm water at least once a week.
Charger
1Unplug the charger before you clean it.
2Wipe the surface of the charger with a damp cloth. Make sure you
remove any toothpaste or other residue from the charger surfaces.
Travel case
The travel case can be cleaned with a damp cloth or rinsed with warm
water.
Storage
If you are not going to use your Philips Sonicare for an extended
period of time, unplug the charger from the wall socket, clean it and
store it in a cool and dry place away from direct sunlight.
Troubleshooting
This chapter summarizes the most common problems you could
encounter with the appliance. If you are unable to solve the problem
with the information below, visit www.philips.com/support for a list
of frequently asked questions or contact the Consumer Care Center
in your country.
Problem Possible Cause Solution
I cannot fully attach
the brush head.
There is a gap
between the brush
head and handle.
This gap is normal and
is needed for the brush
head to vibrate
appropriately.

17
English
Problem Possible Cause Solution
My Philips Sonicare
toothbrush vibration
is less powerful than
before.
The Easy-start
function is activated,
the intensity level
has been lowered or
the brush head
needs to be
replaced.
Turn off the Easy-start
function and/or raise
the intensity level. If
this does not resolve
the problem, replace
the brush head. We
recommend you to
replace your Philips
Sonicare brush head
after 3 months of use
(based on brushing
twice a day for 2
minutes each session).
My Philips Sonicare
toothbrush is
missing parts.
The missing parts
are not included
with the model you
purchased.
The accessories and
the number of brush
head attachments are
dependent on the
model number you
have purchased. You
can find the HX model
number at the bottom
of your handle to
identify what comes
with your handle.
Locating the model number
Look on the bottom of the Philips Sonicare toothbrush handle for the
model number (HX68xx).
Recycling
- Do not throw away the product with the normal household waste
at the end of its life, but hand it in at an official collection point for
recycling. By doing this, you help to preserve the environment.
- This product contains a built-in rechargeable battery which shall
not be disposed of with normal household waste. Please take your
product to an official collection point or a Philips service center to
have a professional remove the rechargeable battery.

18 English
- Follow your country’s rules for the separate collection of electrical
and electronic products and rechargeable batteries. Correct
disposal helps prevent negative consequences for the
environment and human health.
Removing the rechargeable battery
Warning: Only remove the rechargeable battery when you discard the
appliance. Make sure the battery is completely empty when you
remove it.
To remove the rechargeable battery, you need a towel or cloth, a
hammer and a flat-head (standard) screwdriver. Observe basic safety
precautions when you follow the procedure outlined below. Be sure
to protect your eyes, hands, fingers, and the surface on which you
work.
1To deplete the rechargeable battery of any charge, remove the
handle from the charger, turn on the Philips Sonicare and let it run
until it stops. Repeat this step until you can no longer turn on the
Philips Sonicare.
2Remove and discard the brush head. Cover the entire handle with
a towel or cloth (Fig. 16).
3Hold the top of the handle with one hand and strike the handle
housing 0.5 inch above the bottom end. Strike firmly with a
hammer on all 4 sides to eject the end cap (Fig. 17).
Note: You may have to hit on the end several times to break the
internal snap connections.
4Remove the end cap from the toothbrush handle. If the end cap
does not release easily from the housing, repeat step 3 until the
end cap is released (Fig. 18).
5Holding the handle upside down, press the shaft down on a hard
surface. If the internal components do not easily release from the
housing, repeat step 3 until the internal components are released
(Fig. 19).
6Remove the rubber battery cover.

19
English
7Wedge the screwdriver between the battery and the black frame
at the bottom of the internal components. Then pry the
screwdriver away from the battery to break the bottom of the
black frame (Fig. 20).
8Insert the screwdriver between the bottom of the battery and the
black frame to break the metal tab connecting the battery to the
green printed circuit board. This will release the bottom end of the
battery from the frame (Fig. 21).
9Grab the battery and pull it away from the internal components to
break the second metal battery tab (Fig. 22).
Caution: Be aware of the sharp edges of the battery tabs so as to
avoid injury to your fingers.
10 Cover the battery contacts with tape to prevent any electrical short
from residual battery charge. The rechargeable battery can now be
recycled and the rest of the product discarded appropriately (Fig.
23).
Warranty and support
If you need information or support, please visit
www.philips.com/support or read the international warranty leaflet.
Warranty restrictions
The terms of the international warranty do not cover the following:
- Brush heads.
- Damage caused by use of unauthorized replacement parts.
- Damage caused by misuse, abuse, neglect, alterations or
unauthorized repair.
- Normal wear and tear, including chips, scratches, abrasions,
discoloration or fading.

20 简体中文
简介
感谢您的惠顾，很高兴您选择飞利浦！为了让您能充分享
受飞利浦提供的支持，请在 www.philips.com/welcome
上注册您的产品。
重要安全信息
使用产品之前，请仔细阅读本重要信息，并妥善保管以供
日后参考。
危险
- 使充电器远离水源。 请勿将本产品放置或保存在可能
掉落或推入浴缸或水槽的地方。
- 不要将充电器浸入水中或其他液体中。
- 清洁后，务必确保充电器完全干燥，再将其连接至电
源插座。
警告
- 本产品适合由儿童和肢体不健全、感觉或精神上有障
碍或缺乏相关经验和知识的人士使用，但前提是有人
对他们使用本产品进行监督或指导，以确保他们安全
使用，并且让他们明白相关的危害。 不要让儿童在无
人监督的情况下对本产品进行清洁和保养。
- 切勿让儿童玩弄本产品。
- 如果本产品受到任何损坏（刷头、牙刷手柄或充电
座）， 请停止使用。
- 不得更换电源线。 如果电源线损坏，请丢弃充电器。
- 务必使用原装型号的充电座进行更换，以免发生危
险。
