Philips Sonicare AirFloss Ultra HX8431 User manual

AirFloss Ultra

HX8331, HX8431, HX8392
4235_020_9191_4_DFU-Luxury_A6_v6.indd 1 17/08/17 09:32

4235_020_9191_4_DFU-Luxury_A6_v6.indd 2 17/08/17 09:32

2
3
4
5
6
8
9
1
7
1
2
6
10
18
14
4235_020_9191_4_DFU-Luxury_A6_v6.indd 3 17/08/17 09:32

1
2
22
3 4 5
6
26
7 8 9
10 11 12 13
19 2118 20
14 15 16 17
4235_020_9191_4_DFU-Luxury_A6_v6.indd 4 17/08/17 09:32

English 6
21
4235_020_9191_4_DFU-Luxury_A6_v6.indd 5 17/08/17 09:32

6English
Introduction
Congratulations on your purchase and welcome to Philips! To fully
benet from the support that Philips oers, register your product at
www.philips.com/welcome.
Use AirFloss with your favorite mouthwash as part of your oral care
routine. In addition to brushing, AirFloss helps reduce the plaque in
between teeth in order to improve your gum health.
Intended use
The device is intended to remove adherent plaque and food debris
from the teeth to reduce tooth decay.
Important
Read this user manual carefully before you use the appliance and
save it for future reference.
Danger
-Keep the charger away from water. Do not
place or store it over or near water
contained in a bathtub, washbasin, sink etc.
Do not immerse the charger in water or any
other liquid. After cleaning, make sure the
charger is completely dry before you
connect it to the mains.
Warning
-The mains cord cannot be replaced. If the
mains cord is damaged, discard the charger.
-Always have the charger replaced with one
of the original type in order to avoid a
hazard.
4235_020_9191_4_DFU-Luxury_A6_v6.indd 6 17/08/17 09:32

-Use only charger type HX6100 provided with
the AirFloss Ultra to recharge the battery.
-If the appliance is damaged in any way
(AirFloss Ultra nozzle, handle and/or
charger), stop using it.
-This appliance contains no serviceable
parts. If the appliance is damaged, contact
the Consumer Care Centre in your country
(see chapter ‘Guarantee and support‘).
-Do not use the charger outdoors or near
heated surfaces.
-This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
-Children should be supervised to ensure
that they do not play with the appliance.
Caution
-Consult your dentist before you use this
appliance if you have had recent oral or
gum surgery, suer from an ongoing dental
condition, had extensive dental work in the
previous 2 months, or have suspected issues
with your dental work (lings, crowns, etc.).
7
English
4235_020_9191_4_DFU-Luxury_A6_v6.indd 7 17/08/17 09:32

-Consult your dentist if excessive bleeding
occurs after using this appliance or if bleeding
continues to occur after 4 weeks of use.
-If you have medical concerns, consult your
doctor before you use this appliance.
-This Philips appliance complies with the
safety standards for electromagnetic
devices. If you have a pacemaker or other
implanted device, contact your physician or
the appliance manufacturer of the
implanted appliance prior to use.
-Do not use attachments other than the ones
recommended by the manufacturer.
-Do not exert excessive pressure on the
nozzle tip of the nozzle.
-To avoid physical injury, do not ll the
reservoir with hot water. Do not put foreign
objects in the reservoir.
-Only use the AirFloss Ultra for its intended
purpose as described in this user manual.
-To avoid physical injury, do not direct the
spray under the tongue or into the ear, nose,
eye or other sensitive area.
-Do not clean the AirFloss Ultra nozzle, the
handle, the charger, the water reservoir and
its cover in the dishwasher or a microwave.
8English
4235_020_9191_4_DFU-Luxury_A6_v6.indd 8 17/08/17 09:32

-To avoid an ingestion hazard, do not put
isopropyl alcohol or other cleaning uids in
the reservoir.
-The AirFloss Ultra is a personal care
appliance and is not intended for use on
multiple patients in a dental practice or
institution.
Electromagnetic elds (EMF)
This Philips appliance complies with all applicable standards and
regulations regarding exposure to electromagnetic elds.
Your Philips AirFloss Ultra (Fig. 1)
1 Nozzle tip
2 AirFloss Ultra nozzle
3 Activation button
4 Reservoir and reservoir door
5 Handle
6 Charge & burst mode indicators
-Single burst: 1 LED
-Double burst: 2 LEDs
-Triple burst: 3 LEDs
7 Power/mode button
8 Removable nozzle holder (select models)
9 Charger
Note: The contents of the box may very based on the model
purchased.
9
English
4235_020_9191_4_DFU-Luxury_A6_v6.indd 9 17/08/17 09:32

Charging
Charge the AirFloss Ultra for 24 hours before rst use.

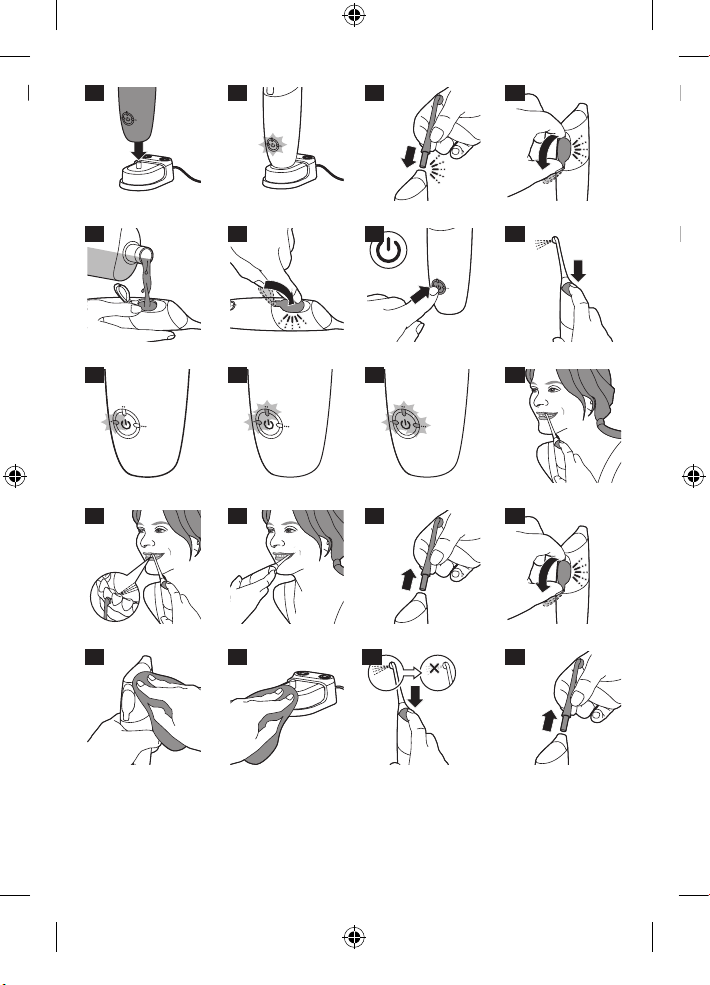

1 Put the plug of the charger in the electrical outlet.
2 Place the handle on the charger. (Fig. 2)
Charging process: (Fig. 3)
-1 green LED: 33% charged.
-2 green LEDs: 66% charged.
-3 green LEDs: 100% charged.
Note: When it is fully charged, AirFloss Ultra has an operating time of
up to 11 days when it is used in triple burst mode, and up to 33 days
when it is used in single burst mode.
Note: When the charge indicators ash yellow, the battery is low and
needs to be recharged (fewer than 3 uses left).
Preparing for use
1 Align the nozzle and press the nozzle down onto the handle
(‘click’) (Fig. 4).
Note: We advise you to place the tip facing the front of the handle
as the illustration shows, but the nozzle can be placed in the
handle either way without aecting the function. You can try both
options and use what works best for you in your oral care routine.
Note: Replace the nozzle (HX8032, HX8033) every 6 months for
optimal results. Also replace the nozzle if it becomes loose or no
longer ‘clicks’ onto the handle.
Note: The AirFloss Ultra only supports AirFloss Ultra nozzles.
Do not attempt to use non-AirFloss Ultra nozzles on the AirFloss
Ultra handle.
2 Open the cover of the reservoir (‘click’) (Fig. 5).
3 Fill the reservoir with mouthwash or water. (Fig. 6)
Tip: For the best result and a fresher experience, we advise you to
use mouthwash with your AirFloss Ultra.
Note: Do not use mouthwash that contains isopropyl myristate
(e.g. Dentyl Active) or high concentrations of essential oils, as it
may damage the appliance. This includes all mouthwash sold in
glass and ceramic packaging.
10 English
4235_020_9191_4_DFU-Luxury_A6_v6.indd 10 17/08/17 09:32

4 Close the cover of the reservoir by pressing (‘click’) (Fig. 7).
5 Press the power/mode button to switch on the appliance. (Fig. 8)
The LEDs illuminate.
6 Press and hold the activation button until spray comes out of the
tip of the nozzle. (Fig. 9)
Using the appliance
1 Make sure the AirFloss Ultra is switched on. If it is o, press and
release the power/mode button to switch on the appliance. (Fig. 8)
You can change the modes to have the desired amounts of bursts
each time you press the activation button (Fig. 9). For optimal
results, use the triple burst mode (the default setting) from both
the outside and inside of your teeth.
To change modes, press the power/mode button to cycle through
the modes until you reach your desired mode. The LEDs show the
selected mode:
-Single burst: 1 LED (Fig. 10)
-Double burst: 2 LEDs (Fig. 11)
-Triple burst: 3 LEDs (Fig. 12)
Note: The AirFloss Ultra remembers what mode was selected last
and it is ready for the next use. If your AirFloss Ultra becomes fully
drained of power, it will go back to the triple burst default mode
once it has been recharged.
2 Place the nozzle tip between two teeth at your gum line. Slightly
close your lips over the nozzle when it is in place, to avoid
splashing. (Fig. 13)
3 Press the activation button to deliver 1-3 bursts (depending on the
selected mode) of air and micro-droplets of mouthwash or water
between the teeth. (Fig. 14)
4 Slide the nozzle tip along the gum line until you feel it settle
between the next two teeth.
5 Continue this procedure for all spaces between your teeth,
including behind your back teeth. (Fig. 15)
Note: Rell the reservoir as needed.
11
English
4235_020_9191_4_DFU-Luxury_A6_v6.indd 11 17/08/17 09:32

Auto-burst function
Hold the activation button to deliver bursts continuously,
approximately one second between set of bursts.
Automatic shut-o function
The AirFloss automatically turns o if it has not been used for one
minute.
Cleaning
If the AirFloss Ultra becomes clogged, or to clean the inside of the
AirFloss, ll the reservoir with warm water and press the activation
button until the reservoir is empty.
Do not clean the nozzle, handle or charger in the dishwasher.
Do not use cleaning agents to clean the appliance. The formulation
or strength of some agents may damage the appliance.
Handle and nozzle
1 Remove the AirFloss Ultra nozzle from the handle. Rinse the
nozzle after each use to eliminate the residue left in it. (Fig. 16)
2 Open the reservoir and rinse it under a faucet to eliminate residue.
(Fig. 17)
Tip: You can also use a cotton swab to wipe the reservoir and
remove the remaining residue.
Note: Do not immerse the handle in water.
Note: Failure to remove residue from the nozzle or reservoir may
result in an unhygienic condition.
3 Wipe the entire surface of the handle with a damp cloth. (Fig. 18)
Charger
1 Unplug the charger before you clean it.
2 Wipe the surface of the charger with a damp cloth. (Fig. 19)
12 English
4235_020_9191_4_DFU-Luxury_A6_v6.indd 12 17/08/17 09:32

Storage
If you are not going to use AirFloss Ultra for an extended period of
time, follow the steps below.
1 Open the cover of the reservoir and empty it.
2 Press the activation button until no more spray comes out of
the nozzle.
3 Unplug the charger.
4 Clean AirFloss Ultra nozzle, handle and charger. Refer to chapter
‘Cleaning’.
5 Store AirFloss Ultra in a cool, dry place away from direct sunlight.
Recycling
-Do not throw away the product with the normal household waste
at the end of its life, but hand it in at an ocial collection point for
recycling. By doing this, you help to preserve the environment.
Removing the rechargeable battery
Please note that this process is not reversible.
1 To deplete the battery, repeatedly press the activation button until
the AirFloss no longer produces any bursts of air. (Fig. 20)
2 Remove the AirFloss nozzle from the handle. (Fig. 21)
3 Firmly grab the handle with one hand at the top and one hand on
the bottom. (Fig. 22)
4 Snap the handle into two parts. (Fig. 23)
Note: This step requires a good amount of physical force.
The top and bottom half of the handle should be separated once
you snap the handle.
5 Remove the bottom half of the handle. (Fig. 24)
6 Cut all 6 wires on the internal component with scissors. (Fig. 25)
7 Completely pull apart the internal component from the top part of
the handle. (Fig. 26)
8
The battery is located inside the top half of the handle. Remove the
battery and dispose of it properly (not in household waste). (Fig. 27)
13
English
4235_020_9191_4_DFU-Luxury_A6_v6.indd 13 17/08/17 09:32

Guarantee and support
If you need information or support, please visit www.philips.com/
support or read the separate worldwide guarantee leaet.
Guarantee restrictions
The terms of the international guarantee do not cover the following:
-AirFloss Ultra nozzle
-Damage caused by use of unauthorized replacement parts.
-Damage caused by misuse, abuse, neglect, alterations or
unauthorized repair.
-Normal wear and tear, including chips, scratches, abrasions,
discoloration or fading.
14 English
4235_020_9191_4_DFU-Luxury_A6_v6.indd 14 17/08/17 09:32



AirFloss 1
)20
)21AirFloss 2
)22 3
)23 4


)24 5
)25 6
)26 7
 8
)27

www.philips.com/support



-AirFloss Ultra
-
-
-

15

4235_020_9191_4_DFU-Luxury_A6_v6.indd 15 17/08/17 09:32

16 

AirFlossAirFloss Ultra




AirFloss Ultra 1
)16
)17 2



)18 3

 1
)19 2

AirFloss Ultra
 1
 2
 3
AirFloss Ultra 4
AirFloss Ultra 5

-

4235_020_9191_4_DFU-Luxury_A6_v6.indd 16 17/08/17 09:32


AirFloss Ultra 1
)8

9


LED
-)10LED1
-)11LED2
-)12LED3
AirFloss Ultra
AirFloss Ultra
 2
)13
1-3 3
)14
 4
 5
)15




AirFloss
17

4235_020_9191_4_DFU-Luxury_A6_v6.indd 17 17/08/17 09:32

18 
11AirFloss Ultra
33

3

4 1



6HX8032, HX8033

AirFloss UltraAirFloss Ultra
AirFloss UltraAirFloss Ultra
5 2
)6 3

AirFloss Ultra
Dentyl Active


7 4
)8 5
LED
)9 6
4235_020_9191_4_DFU-Luxury_A6_v6.indd 18 17/08/17 09:32

)EMF
Philips

)1Philips
 1
AirFloss Ultra 2
 3
 4
 5
 6
-LED1
-LED2
-LED3
 7
 8
 9


24AirFloss Ultra
 1
2 2
)3
-33%LED 1
-66%LED 2
-100%LED 3
19

4235_020_9191_4_DFU-Luxury_A6_v6.indd 19 17/08/17 09:32

20 
-


-

-


-4

-
-Philips


-
-
-

-AirFloss Ultra
-

-AirFloss Ultra

-
-AirFloss Ultra

4235_020_9191_4_DFU-Luxury_A6_v6.indd 20 17/08/17 09:32
