English
Important
Read this user manual carefully before you use the appliance and
save it for future reference.
Danger
- Keep the charger away from water. Do not place or store it over or
near water contained in a bathtub, washbasin, sink etc. Do not
immerse the charger in water or any other liquid. After cleaning,
make sure the charger is completely dry before you connect it to
the mains.
Warning
- The mains cord cannot be replaced. If the mains cord is damaged,
discard the charger.
- Always have the charger replaced with one of the original type in
order to avoid a hazard.
- Do not use the charger outdoors or near heated surfaces.
- If the appliance is damaged in any way (brush head, toothbrush
handle or charger), stop using it. This appliance contains no
serviceable parts. If the appliance is damaged, contact the
Consumer Care Center in your country (see chapter 'Warranty and
support').
- This appliance can be used by children and persons with reduced
physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the
hazards involved. Cleaning and user maintenance shall not be
made by children without supervision.
- Children shall not play with the appliance.
Caution
- Do not clean the brush head, the handle or the charger in the
dishwasher.
- If you have had oral or gum surgery in the previous 2 months,
consult your dentist before you use the toothbrush.
6English

- Consult your dentist if excessive bleeding occurs after using this
toothbrush or if bleeding continues to occur after 1 week of use.
Also consult your dentist if you experience discomfort or pain
when you use the Philips Sonicare.
- The Philips Sonicare toothbrush complies with the safety
standards for electromagnetic devices. If you have a pacemaker or
other implanted device, contact your physician or the device
manufacturer of the implanted device prior to use.
- If you have medical concerns, consult your doctor before you use
the Philips Sonicare.
- This appliance has only been designed for cleaning teeth, gums
and tongue. Do not use it for any other purpose. Stop using the
appliance and contact your doctor if you experience any
discomfort or pain.
- The Philips Sonicare toothbrush is a personal care device and is
not intended for use on multiple patients in a dental practice or
institution.
- Stop using a brush head with crushed or bent bristles. Replace the
brush head every 3 months or sooner if signs of wear appear. Do
not use other brush heads than the ones recommended by the
manufacturer.
- If your toothpaste contains peroxide, baking soda or bicarbonate
(common in whitening toothpastes), thoroughly clean the brush
head with soap and water after each use. This prevents possible
cracking of the plastic.
Electromagnetic fields (EMF)
This Philips appliance complies with all applicable standards and
regulations regarding exposure to electromagnetic fields.
Radio Equipment Directive
- Radio Equipment in this product operates at 13.56 MHz
- Maximum RF power transmitted by the Radio Equipment is
30.16dBm
7
English

Introduction
Congratulations on your purchase and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.

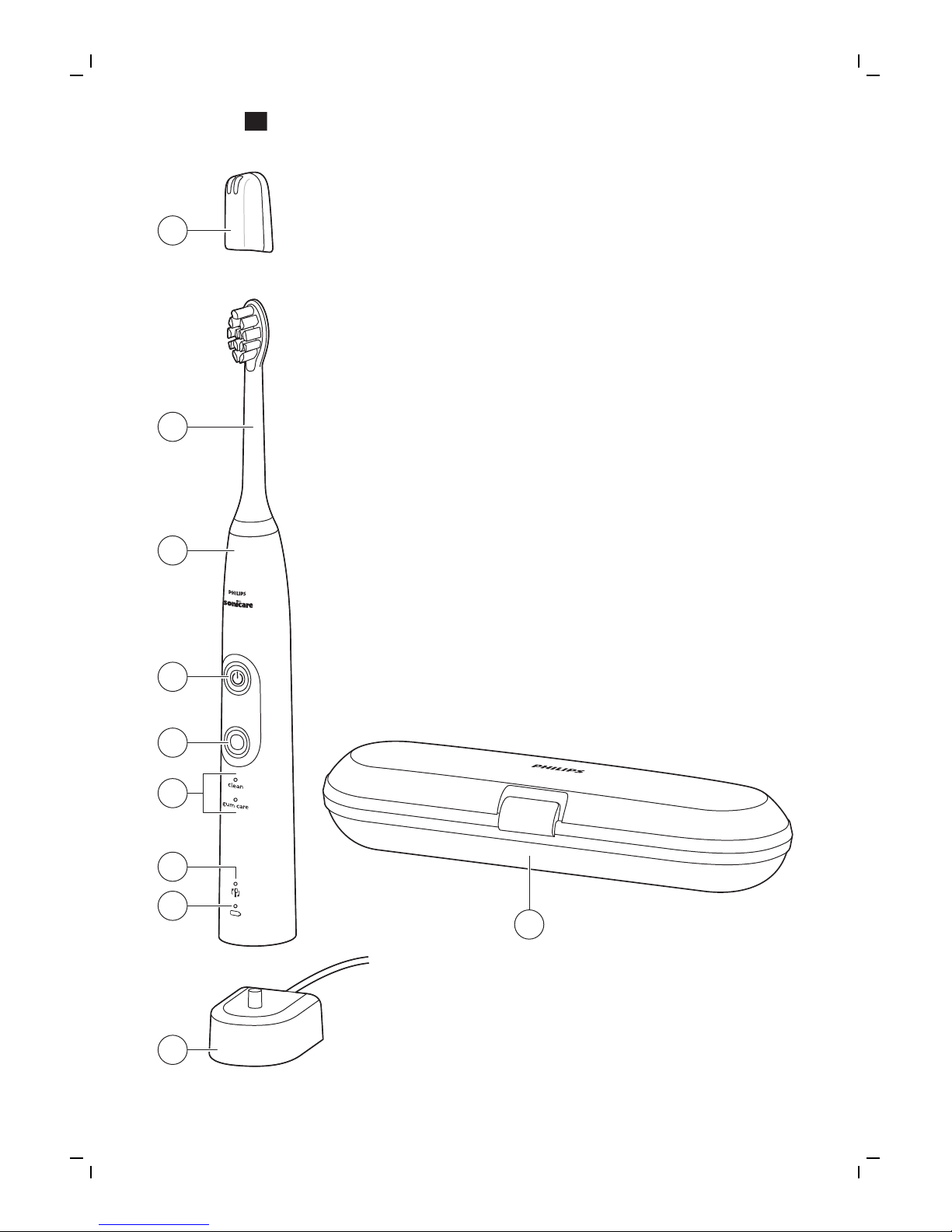

Your Philips Sonicare (Fig. 1)
1 Hygienic travel cap
2 Smart brush head(s)*
3 Handle
4 Power on/off button
5 Mode/intensity button
6 Mode light
7 Brush head replacement reminder light
8 Battery indication
9 Charging base
10 Travel case (specific types only)*
*Note: The content of the box may vary based on the model
purchased.
Brush heads
Your Philips Sonicare comes with one or more brush heads which are
designed to deliver superior results for your oral care needs.
Philips Sonicare BrushSync Technology
Your smart brush heads use a microchip to sync with your handle,
enabling brush head replacement reminder. For more information
regarding the brush head replacement reminder, see 'Features'.
This symbol indicates the brush head is equipped with BrushSync
technology. (Fig. 2)
Brushing modes
To toggle between modes press the mode button located below the
on/off button.
Your power toothbrush is equipped with either 2 or 3 brushing
modes, depending on your model.The following modes are available:
8English

Clean mode
Clean is a 2-minute mode. It gives you a thorough and complete
clean and is recommended to be used with the C2 Optimal Plaque
Control brush head.
White mode
White is a 2-minute 30-seconds mode, recommended to be used
with the W2 Optimal White brush head.
Gum Care mode
Gum Care is a 3-minute mode, recommended to be used with the G2
Optimal Gum Care brush head.
Using your Philips Sonicare
Brushing instructions
1Press the brush head onto the handle in such a way that the
bristles will face the front of the handle. (Fig. 3)
2Firmly press the brush head down onto the metal shaft until it
stops.
Note: It is normal to see a slight gap between the brush head and
the handle.
3Wet the bristles. (Fig. 4)
4Apply a small amount of toothpaste on the bristles. (Fig. 5)
5Place the toothbrush bristles against the teeth at a slight angle (45
degrees), pressing firmly to make the bristles reach the gumline or
slightly beneath the gumline. (Fig. 6) A change in vibration (and a
slight change in sound) alerts you when you apply too much
pressure while brushing.
Note: Keep the center of the brush in contact with the teeth at all
times.
6Press the power on/off button to turn on the Philips Sonicare. (Fig.
7)
7Gently keep the bristles placed on the teeth and in the gumline.
Brush your teeth with small back and forth motion so the bristles
reach between the teeth. (Fig. 8)
9
English

Note: The bristles should slightly flare. Do not scrub.
8To clean the inside surfaces of the front teeth, tilt the brush handle
semi-upright and make several vertical overlapping brushing
strokes on each tooth. (Fig. 9)
9To make sure you brush evenly throughout the mouth, divide the
mouth into 4 sections using the Quadpacer feature. (Fig. 10) The
quadpacer feature beeps after 30 seconds.
10 Brush for the full 2 minutes following the Quadpacer. (Fig. 11) After
2 minutes, the toothbrush will automatically shut off.
In white mode, after 2 minutes the handle will continue to brush
for 30 seconds so that you can brighten and polish your front
teeth.
In gum care mode, after 2 minutes the handle will continue to
brush for an additional minute so you can gently stimulate and
massage your gums.
- After you have completed the brushing cycle, you can spend
additional time brushing the chewing surfaces of your teeth and
areas where staining occurs. (Fig. 12)
Your Philips Sonicare toothbrush is safe to use on:
- Braces (brush heads wear out sooner when used on braces)
- Dental restorations (fillings, crowns, veneers)
Note: When the Philips Sonicare toothbrush is used in clinical studies,
it must be used in the Clean mode (for plaque and gum health claims)
or in White mode (for whitening claims) at high intensity with
EasyStart turned off.
Features
- EasyStart
- Brush head replacement reminder
- Pressure sensor
- Quadpacer
10 English

EasyStart
This Philips Sonicare model comes with the EasyStart feature
activated. The EasyStart feature gently increases the power over the
first 14 brushings to help you get used to the brushing with the Philips
Sonicare. The EasyStart feature works in all modes.
To deactivate EasyStart see 'Activating or deactivating features'.
Brush head replacement reminder
Your Philips Sonicare is equipped with BrushSync technology that
tracks the wear of your brush head. (Fig. 13)
1When attaching a new smart brush head for the first time the
brush head replacement reminder light blinks green three times.
This confirms you have a Philips brush head with BrushSync
technology.
2Over time, based on the pressure you apply and the amount of
time used, the handle will track brush head wear in order to
determine the optimal time to change your brush head. This
feature gives you the guarantee for the best cleaning and care of
your teeth.
3When the brush head replacement reminder light lights up amber,
you should replace your brush head.
To deactivate the brush head replacement reminder see 'Activating or
deactivating features'.
Pressure sensor
Your Philips Sonicare is equipped with an advanced sensor that
measures the pressure you apply while brushing. If you apply too
much pressure, the toothbrush will provide immediate feedback to
indicate that you need to reduce the pressure. This feedback is given
by a change in vibration and therefore brushing sensation.
To deactivate the pressure sensor see 'Activating or deactivating
features'.
Quadpacer
The Quadpacer is an interval timer that has a short beep and pause
to remind you to brush the different sections of your mouth.
11
English

Depending on the brushing mode you have selected (see 'Brushing
modes'), the Quadpacer beeps at different intervals during the
brushing cycle.
Activating or deactivating features
You can activate or deactivate the following features of your
toothbrush:
- EasyStart
- Brush head replacement reminder
- Pressure sensor
To activate or deactivate these features, follow the instructions
below:
EasyStart
1Put the handle on the plugged-in charger.
2Press and hold the power on/off button while the handle remains
on the charger.
3Keep the power on/off button pressed until you hear a single
short beep (after 2 seconds).
4Release the power on/off button.
-Triple tone of low-med-high means the EasyStart feature has
been activated. The brush head replacement light and battery
light will also blink green 3 times in unison to confirm activation.
-Triple tone of high-med-low means the EasyStart feature has
been deactivated. The brush head replacement light and
battery light will also blink amber 3 times in unison to confirm
deactivation.
Note: To achieve clinical efficacy, EasyStart needs to be deactivated.
Brush head replacement reminder
1Put the handle on the plugged-in charger.
2Press and hold the power on/off button while the handle remains
on the charger.
3Keep the power on/off button pressed until you hear a series of
two short beeps (after 4-5 seconds).
12 English

4Release the power on/off button.
-Triple tone of low-med-high means the Brush head
replacement reminder feature has been activated. The brush
head replacement light and battery light will also blink green 3
times in unison to confirm activation.
-Triple tone of high-med-low means the Brush head
replacement reminder feature has been deactivated. The brush
head replacement light and battery light will also blink amber 3
times in unison to confirm deactivation.
Pressure sensor
1Put the handle on the plugged-in charger.
2Press and hold the power on/off button while the handle remains
on the charger.
3Keep the power on/off button pressed until you hear a series of
three short beeps (after 6-7 seconds).
4Release the power on/off button.
-Triple tone of low-med-high means the pressure sensor feature
has been activated. The brush head replacement light and
battery light will also blink green 3 times in unison to confirm
activation.
-Triple tone of high-med-low means the pressure sensor feature
has been deactivated. The brush head replacement light and
battery light will also blink amber 3 times in unison to confirm
deactivation.
If you continue holding the power on/off button after the three short
beeps, the activate/deactivate sequence repeats.
Battery status and charging
1Put the plug of the charger in an electrical outlet.
2Place the handle on the charger.
-The charger will emit 2 short beeps to confirm that the handle is
placed properly.
13
English

-The flashing light of the battery level indicator shows that the
toothbrush is charging.
-When handle is fully charged on the charger, the battery light
shows solid green for 30 seconds and switches off.
Note: Your toothbrush comes pre-charged for first use. After first use,
charge for at least 24 hours.
Battery status (when handle is not on charger)
When removing the Philips Sonicare from the charger, the battery
light at the bottom of the toothbrush will indicate the status of the
battery life.
- Solid green LED: full battery
- Flashing green LED: medium battery
- Flashing amber LED and three beeps: low battery
- Flashing amber LED and two sets of five beeps: No brushing
sessions left (charge toothbrush)
Cleaning
Note: Do not clean the brush head, handle or travel case in the
dishwasher.
Toothbrush handle
1Remove the brush head and rinse the metal shaft area with warm
water. Make sure you remove any residual toothpaste (Fig. 14).
Note: Do not push on the rubber seal on the metal shaft with
sharp objects, as this may cause damage.
2Wipe the entire surface of the handle with a damp cloth.
Note: Do not use isopropyl rubbing alcohol, vinegar or bleach to
clean handle as this may cause discoloration.
Brush head
1Rinse the brush head and bristles after each use (Fig. 15).
2Remove the brush head from the handle and rinse the brush head
connection with warm water at least once a week.
Charger
1Unplug the charger before you clean it.
14 English

2Wipe the surface of the charger with a damp cloth.
Storage
If you are not going to use your Philips Sonicare for an extended
period of time, unplug the charger from the wall socket, clean it and
store it in a cool and dry place away from direct sunlight.
Locating the model number
Look on the bottom of the Philips Sonicare toothbrush handle for the
model number (HX682x/HX683x).
Recycling
- Do not throw away the product with the normal household waste
at the end of its life, but hand it in at an official collection point for
recycling. By doing this, you help to preserve the environment.
- This product contains a built-in rechargeable battery which shall
not be disposed of with normal household waste. Please take your
product to an official collection point or a Philips service center to
have a professional remove the rechargeable battery.
- Follow your country’s rules for the separate collection of electrical
and electronic products and rechargeable batteries. Correct
disposal helps prevent negative consequences for the
environment and human health.
Removing the rechargeable battery
Warning: Only remove the rechargeable battery when you discard the
appliance. Make sure the battery is completely empty when you
remove it.
To remove the rechargeable battery, you need a towel or cloth, a
hammer and a flat-head (standard) screwdriver. Observe basic safety
precautions when you follow the procedure outlined below. Be sure
to protect your eyes, hands, fingers, and the surface on which you
work.
15
English

1To deplete the rechargeable battery of any charge, remove the
handle from the charger, turn on the Philips Sonicare and let it run
until it stops. Repeat this step until you can no longer turn on the
Philips Sonicare.
2Remove and discard the brush head. Cover the entire handle with
a towel or cloth (Fig. 16).
3Hold the top of the handle with one hand and strike the handle
housing 0.5 inch above the bottom end. Strike firmly with a
hammer on all 4 sides to eject the end cap (Fig. 17).
Note: You may have to hit on the end several times to break the
internal snap connections.
4Remove the end cap from the toothbrush handle. If the end cap
does not release easily from the housing, repeat step 3 until the
end cap is released (Fig. 18).
5Holding the handle upside down, press the shaft down on a hard
surface. If the internal components do not easily release from the
housing, repeat step 3 until the internal components are released
(Fig. 19).
6Remove the rubber battery cover.
7Wedge the screwdriver between the battery and the black frame
at the bottom of the internal components. Then pry the
screwdriver away from the battery to break the bottom of the
black frame (Fig. 20).
8Insert the screwdriver between the bottom of the battery and the
black frame to break the metal tab connecting the battery to the
green printed circuit board. This will release the bottom end of the
battery from the frame (Fig. 21).
9Grab the battery and pull it away from the internal components to
break the second metal battery tab (Fig. 22).
Caution: Be aware of the sharp edges of the battery tabs so as to
avoid injury to your fingers.
10 Cover the battery contacts with tape to prevent any electrical short
from residual battery charge. The rechargeable battery can now be
recycled and the rest of the product discarded appropriately (Fig.
23).
16 English

Warranty and support
If you need information or support, please visit
www.philips.com/support or read the international warranty leaflet.
Warranty restrictions
The terms of the international warranty do not cover the following:
- Brush heads.
- Damage caused by use of unauthorized replacement parts.
- Damage caused by misuse, abuse, neglect, alterations or
unauthorized repair.
- Normal wear and tear, including chips, scratches, abrasions,
discoloration or fading.
17
English

注意事项
使用本产品之前，请仔细阅读本使用说明书，并妥善保管以备日后参考。
危险
- 使充电器远离水源。 切勿将它放置或存放在任何有水的容器的上方或附
近，如：浴盆、脸盆、水池等。切勿将充电器浸入水或任何其他液体
中。 清洁后，确保充电器完全干燥，再将其连接至电源。
- 必须安装需要的固定部件，以免它们掉入水中。
警告
- 不得更换电源线。 如果电源线损坏，请丢弃充电器。
- 应始终使用原装型号的充电器进行更换，以免发生危险。
- 切勿在户外或高温表面附近使用充电器。
- 如果本产品受到任何损坏（刷头、牙刷手柄或充电器），请停止使用。
本产品不包含任何可维修零部件。 如果本产品已损坏，请联系您所在国
家/地区的客户服务中心（请参阅“保修和支持”一章）。
- 本产品适合由儿童和肢体不健全、感觉或精神上有障碍或缺乏相关经验
和知识的人士使用，但前提是有人对他们使用本产品进行监督或指导，
以确保他们安全使用，并且让他们明白相关的危害。 不要让儿童在无人
监督的情况下对本产品进行清洁和保养。
- 切勿让儿童玩弄本产品。
警告
- 请勿在洗碗机中清洗牙刷头、牙刷柄或充电器。
- 如果您在前 2 个月中曾做过口腔或牙龈手术，请在使用本产品前先咨询
您的牙医。
- 如果使用本产品后牙龈大量出血或在使用 1 周后仍会出血，请咨询您的
牙医。 如果使用飞利浦 Sonicare 时感觉不适或疼痛，也请咨询您的牙
医。
- 飞利浦 Sonicare 牙刷符合电磁装置的安全标准。 有关任何涉及心脏起
搏器或其他植入装置的问题，请在使用之前咨询医生或相关植入装置的
设备制造商。
- 如果您有医学问题，请在使用飞利浦 Sonicare 前咨询医生。
- 本产品设计仅用于清洁牙齿、牙龈和舌头。 请勿将其用作任何其它用
途。 如果感觉任何不适或疼痛，请停止使用本产品并与医生联系。
- 飞利浦 Sonicare 牙刷为私人用品，不可供牙医诊所或机构对多位患者使
用。
18 简体中文

- 请停止使用变形或刷毛弯曲的牙刷头。 请每 3 个月更换一次牙刷头，如
果出现磨损迹象，应提前更换。 切勿使用非制造商推荐的其他刷头。
- 如果您所用的牙膏中含有过氧化物、碳酸氢钠或其它重碳酸盐（增白牙
膏中的常见成份），则请务必在每次使用后用肥皂和水彻底清洗刷头。
这可以预防可能出现的塑料破裂。
电磁场 (EMF)
本飞利浦产品符合所有有关暴露于电磁场的适用标准和法规。
无线电设备指令
- 本产品中无线电设备的工作频率为 13.56 MHz。
- 无线电设备传输的最大射频功率为 30.16 dBm
简介
感谢您的惠顾，欢迎光临飞利浦！ 为了让您能充分享受飞利浦提供的支
持，请在 www.philips.com/welcome 上注册您的产品。
飞利浦 Sonicare 声波震动牙刷（图 1）
1 旅行用卫生保护盖
2 智能刷头*
3 牙刷手柄
4 开/关按钮
5 模式/强度按钮
6 模式指示灯
7 刷头更换指示灯
8 电量指示灯
9 充电座
10 旅行收纳盒（仅限于特定型号）*
*注意： 包装盒内物品可能会因所购买型号而异。
刷头
飞利浦 Sonicare 声波震动牙刷配有一个或多个刷头，旨在提供更好的口腔
护理效果，满足您的需求。
飞利浦 Sonicare 声波震动牙刷 BrushSync (RFID无线识别）技术
您的智能刷头使用RFID 微芯片与您的牙刷柄同步，可启用刷头更换指示
灯。 有关刷头更换提醒的详细信息，请参阅“功能”。
19
简体中文

此符号表示刷头采用了 BrushSync ( RFID 无线识别) 技术 (图 2)
刷牙模式
按位于开/关按钮下方的模式按钮即可在不同模式之间切换。
这款电动牙刷具有 2 种或 3 种刷牙模式，视您的牙刷型号而定。具体分为
以下几种模式：
清洁模式
清洁模式时长 2 分钟。 该模式可提供全面彻底的清洁，建议与 牙菌斑清除
型 (C2) 刷头配合使用。
净白模式
净白模式时长 2 分 30 秒，建议与钻石亮白型（W) 刷头配合使用，达到理
想效果。
牙龈护理模式
牙龈护理模式时长 3 分钟，建议与牙龈护理型（G2) 刷头配合使用，达到
理想护理效果。
使用飞利浦 Sonicare 声波震动牙刷
刷牙说明
1 将刷毛朝向牙刷柄 (图 3)的正面，把刷头按进牙刷柄。
2 用力将牙刷头向下按到金属轴上，直到按不动为止。
注意： 刷头与刷柄之间会有小间隙，这是正常的。
3 浸湿刷毛 (图 4)。
4 在刷毛 (图 5)上挤少量牙膏。
5 将牙刷的刷毛以小角度（45 度）放在牙齿上，用力按下以使刷毛接触牙
龈或牙龈 (图 6)略下方。 当刷牙太过用力时，将出现振动变化（和声音
细微变化）来提示您。
注意： 始终将牙刷中间与牙齿接触。
6 按电源开/关按钮打开飞利浦 Sonicare 声波震动牙刷 (图 7)。
7 将刷毛轻轻放置于牙齿和牙龈上， 来回小幅度缓慢移动，这样可以让刷
毛刷到牙 (图 8)缝。
注意： 刷毛应稍微呈喇叭形， 请勿过度用力。
20 简体中文
