Philips Sonicare 3 Series User manual

Philips Sonicare
3 Series/系列
Question?
有疑问?
Contact Philips
请联系飞利浦

1

Sonicare 3 Series
ENGLISH 6
繁體中文 14
简体中文 21

6
Introduction
Congratulations on your purchase and welcome to Philips! To fully benet
from the support that Philips offers, register your product at
www.philips.com/welcome.
Important
Read this user manual carefully before you use the appliance and save it
for future reference.
Danger
- Keep the charger away from water. Do not place or store it over or
near water contained in a bathtub, washbasin, sink etc. Do not immerse
the charger in water or any other liquid. After cleaning, make sure the
charger is completely dry before you connect it to the mains.
Warning
- The mains cord cannot be replaced. If the mains cord is damaged,
discard the charger.
- Always have the charger replaced with one of the original type in
order to avoid a hazard.
- Do not use the charger outdoors or near heated surfaces.
- If the appliance is damaged in any way (brush head, toothbrush
handle or charger), stop using it.This appliance contains no
serviceable parts. If the appliance is damaged, contact the Consumer
Care Centre in your country (see chapter ‘Guarantee and support’).
- This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
- Children should be supervised to ensure that they do not play with
the appliance.
ENGLISH

Caution
- Do not clean the brush head, the handle or the charger in the
dishwasher.
- If you have had oral or gum surgery in the previous 2 months, consult
your dentist before you use the toothbrush.
- Consult your dentist if excessive bleeding occurs after using this
toothbrush or if bleeding continues to occur after 1 week of use.
Also consult your dentist if you experience discomfort or pain when
you use the Sonicare.
- The Sonicare toothbrush complies with the safety standards for
electromagnetic devices. If you have a pacemaker or other implanted
device, contact your physician or the device manufacturer of the
implanted device prior to use.
- If you have medical concerns, consult your doctor before you use
the Sonicare.
- This appliance has only been designed for cleaning teeth, gums and
tongue. Do not use it for any other purpose. Stop using the appliance
and contact your doctor if you experience any discomfort or pain.
- The Sonicare toothbrush is a personal care device and is not intended
for use on multiple patients in a dental practice or institution.
- Stop using a brush head with crushed or bent bristles.
Replace the brush head every 3 months or sooner if signs of wear
appear. Do not use other brush heads than the ones recommended
by the manufacturer.
- If your toothpaste contains peroxide, baking soda or bicarbonate
(common in whitening toothpastes), thoroughly clean the brush head
with soap and water after each use.This prevents possible cracking of
the plastic.
Electromagnetic elds (EMF)
This Philips appliance complies with all applicable standards and
regulations regarding exposure to electromagnetic elds.
ENGLISH 7

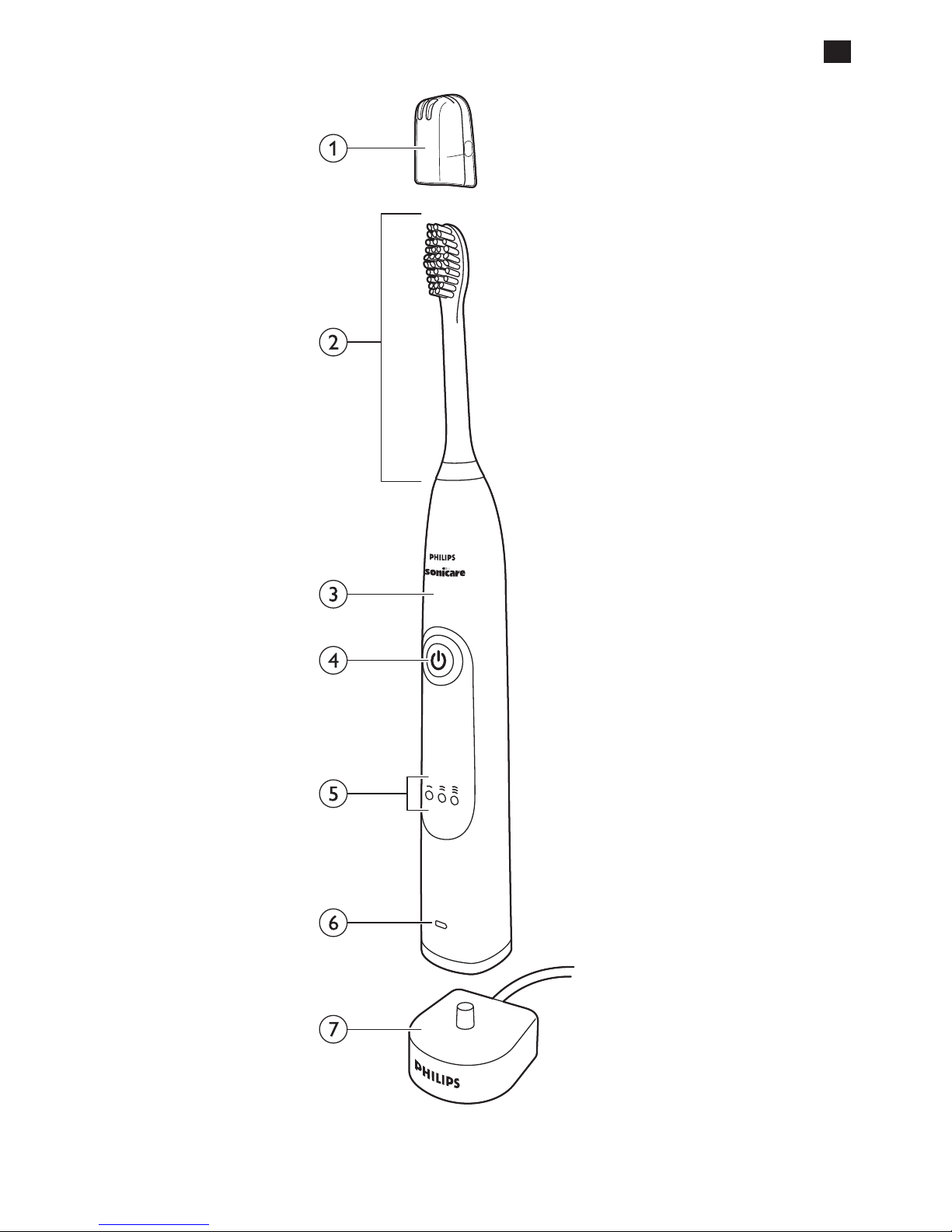

General description (Fig. 1)
1 Hygienic travel cap
2 Brushheadwithuniqueidentier
3 Handle
4 Power on/off button
5 Intensity level LEDs
6 Battery level indicator
7 Charger
Note:The contents of the box may vary based on the model purchased.
Preparing for use
Attaching the brush head
1 Align the brush head so the bristles face the front of the handle (Fig. 2).
2 Firmly press the brush head down on the metal shaft until it stops.
Note: Sonicare brush heads come with easily identiable icons to identify your
brush head.
Charging the appliance
1 Put the plug of the charger in a wall socket.
2 Place the handle on the charger (Fig. 3).
,Thebatterylevelindicatorashestoindicatethatthetoothbrush
is charging (Fig. 4).
Note: It can take up to 48 hours to fully charge the battery, but the Sonicare
may be used before it is fully charged.
ENGLISH8

Using the appliance
Brushing instructions
1 Wet the bristles and apply a small amount of toothpaste.
2 Place the toothbrush bristles against the teeth at a slight angle
towards the gumline (Fig. 5).
3 Press the power on/off button to switch on the Sonicare.
4 Apply light pressure to maximise Sonicare’s effectiveness and let
the Sonicare toothbrush do the brushing for you. Do not scrub.
5 Gently move the brush head slowly across the teeth in a small back
and forth motion so the longer bristles reach between the teeth.
Continue this motion throughout the brushing cycle.
Note:To make sure you brush evenly throughout the mouth, divide the mouth
into 4 sections using the Quadpacer feature (see chapter ‘Features’).
6 Brush each section for 30 seconds for a total brushing time of
2 minutes. Start with section 1 (outside top teeth) and then brush
section 2 (inside top teeth). Continue with section 3
(outsidebottomteeth)andnallybrushsection4
(inside bottom teeth) (Fig. 6).
Note: After you have completed the brushing cycle, you can spend additional
time brushing the chewing surfaces of your teeth and areas where staining
occurs.You may also brush your tongue, with the toothbrush switched on or
off, as you prefer.
The Sonicare is safe to use on:
- Braces (brush heads may wear out more quickly when used on braces)
- Dental restorations (llings, crowns, veneers, implants)
Note:When the Sonicare is used in clinical studies, the handle has to be fully
charged, set to the high intensity level and the Easy-start feature must be
deactivated.
ENGLISH 9

Intensity levels
- Low: 1 LED indicator light (Fig. 7)
- Medium: 2 LED indicator lights (Fig. 8)
- High: 3 LED indicator lights (Fig. 9)
Note:To adjust the intensity level, press the power on/off button to let your Sonicare
cycle through the intensity levels in the following order: High, Medium, Low, High etc.
Each touch of the button allows you to select the next available intensity level.
Battery status (when handle is not on charger)
- A yellow battery level indicator indicates a low charge.
- A green battery level indicator indicates a high charge.
- The battery level indicator turns off when the battery is in between
a low and a high charge.
Note:When you hear 3 beeps and the yellow LED of the battery level
indicator ashes, this means the battery charge is below 10% and the
toothbrush should be recharged.
Note:When you hear 2 sets of 5 beeps, this means the Sonicare will not
operate and needs to be recharged.
Note:To keep the battery fully charged at all times, you may keep the
Sonicare on the charger when not in use.
Features
Quadpacer
- The Quadpacer is an interval timer that has a short beep and pause
to remind you to brush the 4 sections of your mouth.The Quadpacer
feature works at all 3 intensity levels (Fig. 10).
Smartimer
The Smartimer indicates that your brushing cycle is complete when it
automatically switches off the toothbrush at the end of the brushing cycle.
Dentists recommend brushing at least 2 minutes twice a day.
Note: After brushing for 1.5 seconds, pressing the power on/off button causes
the toothbrush to pause. After a pause of 30 seconds, the Smartimer resets.
ENGLISH10

Easy-start
The Easy-start feature gently increases power over the rst 14 brushings
to let you get used to brushing with the Sonicare.
The Easy-Start feature only works at the High intensity level.
This Sonicare model comes with the Easy-start feature deactivated.
To activate or deactivate the Easy-start feature:
1 Attach your brush head to the handle.
2 Place the handle in the plugged-in charger.
3 Activate or deactivate Easy-start:
,To activate Easy-start: Press and hold the power on/off button for
2seconds.Youhear2beepsandthebatterylevelindicatorashes
green to indicate that the Easy-start feature has been activated.
,To deactivate Easy-start: Press and hold the power on/off button for
2seconds.Youhear1beepandthebatterylevelindicatorashes
yellow to indicate that the Easy-start feature has been deactivated.
Note: Each of the rst 14 brushings must be at least 1 minute in length to
properly move through the Easy-start ramp-up cycle.
Note: Using the Easy-start feature beyond the initial ramp-up period is not
recommended and reduces Sonicare’s effectiveness in removing plaque.
Cleaning
Do not clean the brush head, handle or charger in the dishwasher.
Toothbrush handle
1 Remove the brush head and rinse the metal shaft area with warm
water (Fig. 11).
Do not push on the rubber seal on the metal shaft with sharp objects,
as this may cause damage.
2 Use a damp cloth to wipe the entire surface of the handle.
ENGLISH 11

Brush head
1 Rinse the brush head and bristles after each use (Fig. 12).
2 Remove the brush head from the handle and rinse the brush head
connection at least once a week with warm water.
Charger
1 Unplug the charger.
2 Use a damp cloth to wipe the surface of the charger.
Storage
If you are not going to use the appliance for an extended period of time,
remove the mains plug from the wall socket.Then clean the appliance and
store it in a cool and dry place away from direct sunlight.
Replacement
Brush head
Replace Sonicare brush heads every 3 months to achieve optimal results.
Only use genuine Philips Sonicare replacement brush heads that are
suitable for this model.
Ordering accessories
To buy accessories or spare parts, visit www.shop.philips.com/
service or go to your Philips dealer.You can also contact the Philips
Consumer Care Centre in your country (see the worldwide guarantee
leaet for contact details).
Recycling
Do not throw away the appliance with the normal household waste at
the end of its life, but hand it in at an ofcial collection point for recycling.
By doing this, you help to preserve the environment.
ENGLISH12

Removing the rechargeable battery
Please note that this process is not reversible.
To remove the rechargeable battery, you need a small standard screwdriver and
tape. Observe basic safety precautions when you follow the procedure below.
1 To deplete the rechargeable battery of any charge, remove the handle
from the charger, turn on the Sonicare and let it operate until it stops.
Repeat this step until you can no longer turn on the Sonicare.
2 Insert a small standard screwdriver into the bottom of the handle
and turn it counter-clockwise to remove the screw. Pull the end
cap off of the handle (Fig. 13).
3 Insert the screwdriver between the handle and the internal frame.
Tilt the screwdriver to loosen the handle (Fig. 14).
4 Remove the internal frame from the handle. (Fig. 15)
5 Remove the rubbers that are on top and below the battery (Fig. 16).
6 Insert the screwdriver between the battery and the frame.
Tilt the screwdriver to pop the battery out of the frame (Fig. 17).
7 Place some tape over the ends of the battery to avoid any short-
circuiting due to residual energy in the battery (Fig. 18).
The rechargeable battery can now be recycled or disposed of and the
rest of the product discarded appropriately.
Guarantee and support
If you need information or support, please visit www.philips.com/
support or read the separate worldwide guarantee leaet.
Guarantee restrictions
The terms of the international guarantee do not cover the following:
- Brush heads.
- Damage caused by use of unauthorised replacement parts.
- Damage caused by misuse, abuse, neglect, alterations or unauthorised repair.
- Normal wear and tear, including chips, scratches, abrasions,
discolouration or fading.
ENGLISH 13

14
簡介
恭喜您購買本產品並歡迎加入飛利浦！請於 www.philips.com/
welcome 註冊您的產品，以善用飛利浦提供的支援。
重要事項
在使用本產品前，請先仔細閱讀本使用手冊，並保留使用手冊以
供日後參考。
危險
-請勿讓充電器沾到水。請勿放置或存放於盛水的澡盆、洗臉盆、
洗手槽等區域的上方或附近。請勿將充電器浸入水中或其他液
體中。完成清潔程序後，請先確定充電器已完全乾燥，再連接
到主電源。
警示
-本電線無法更換。如果電線損壞，請棄置充電器。
-請務必以原型號的充電器更換，以免發生危險。
-充電器不可在室外或高熱表面附近使用。
-本產品 (含刷頭、牙刷握柄或充電器) 若有任何破損跡象，請立即
停止使用。本產品未包含可維修的零件。萬一損壞，請與您所在
國家/地區的客戶服務中心聯繫 (請參閱「保固與支援」單元)。
-本產品不適合供下列人士 (包括孩童) 使用：身體官能或心智能
力退化者，或是經驗與使用知識缺乏者。他們需要有負責其安
全的人員在旁監督，或指示產品的使用方法，方可使用。
-請勿讓孩童使用本產品或將本產品當成玩具。
警告
-請勿將刷頭、握柄或充電器放入洗碗機中清洗。
-如果您的口腔或牙齦在過去 2 個月內曾動過手術，請在使用本
牙刷前諮詢您的牙醫。
-如果您在使用本牙刷後有出血狀況，或者出血狀況持續超過
1 星期，請諮詢您的牙醫。若使用 Sonicare 電動牙刷之後感到
任何不適或疼痛，也請諮詢您的牙醫。
-Sonicare 電動牙刷符合電磁裝置之安全標準。若您身上裝有心
律調整器或曾植入其他裝置，請於使用前詢問您的醫師或植入
裝置的製造商。
繁體中文

-若您有醫療方面的顧慮，使用 Sonicare 之前請先諮詢您的醫師。
-本產品只適用於清潔牙齒、牙齦與舌頭，請勿用作其他用途。
用後若感到任何不適或疼痛，請停止使用並尋求醫生協助。
-Sonicare 電動牙刷為個人保健用品，不宜在牙醫診所或醫療機
構供多名病患使用。
-刷頭的刷毛若傾倒彎曲，請停止使用。請每 3 個月更換一次刷頭，
其間出現老化現象時則提早更換。請勿使用非製造商推薦的刷頭。
-如果牙膏內含過氧化氫、小蘇打或重碳酸鹽 (常見於美白用牙膏)，
請在刷牙完畢後以肥皂及清水徹底清洗牙刷刷頭。如此可預防
塑膠部分龜裂。
電磁波 (EMF)
本飛利浦產品符合所有電磁波暴露的相關適用標準和法規。
一般說明 (圖 1)
1 旅行用衛生保護蓋
2 具獨特識別標記的刷頭
3 握柄
4 電源開關按鈕
5 強度等級LED燈
6 電池電量指示燈
7 充電器
注意：包裝內容視購買型號而定。
使用前準備
安裝刷頭
1 將刷頭對齊，使刷毛朝向握柄正面。(圖2)
2 將刷頭用力下壓到金屬軸上，至到底為止。
注意：Sonicare刷頭附有容易辨識的圖示，方便您辨識自己的刷頭。
繁體中文 15

為產品充電
1 將充電器插頭插入牆上插座。
2 將握柄放到充電器上。(圖3)
,電池電量指示燈會閃爍，表示牙刷正在充電。(圖4)
注意：產品充飽電需要長達48小時的時間，但是在充飽電之前即
可使用Sonicare。
使用本產品
刷牙方法
1 沾濕刷毛，擠上少量牙膏。
2 將刷毛放置於牙齒表面，刷毛角度微微傾向牙齦。(圖5)
3 按下電源開關按鈕，開啟Sonicare電源。
4 略為施力即可充分發揮Sonicare的效能，將刷牙的工作交由
Sonicare牙刷為您代勞。請勿用力刷洗。
5 將刷頭以輕柔緩慢的小動作在牙齒表面來回移動，讓較長的刷
毛能深入牙齒間細縫。刷牙週期當中，請全程維持此方式。
注意：為確保牙刷能均衡地清潔牙齒，請利用Quadpacer功能將
牙齒劃分為4個區域(請參閱「功能」單元)。
6 清潔每個區域30秒，全口清潔總計為2分鐘的刷牙時間。
由第1區(上排外側牙齒)開始，接著清潔第2區(上排內側牙齒)。
然後繼續刷洗第3區(下排外側牙齒)，最後則是清潔第4區
(下排內側牙齒)。(圖6)
注意：完成刷牙週期後，可多花些時間刷洗牙齒咬合面及齒垢堆
積處。也可隨個人喜好，在牙刷電源啟動或關閉之下刷洗舌頭。
Sonicare 電動牙刷能在以下狀態安全使用：
-牙齒矯正器 (如果您有裝矯正器，則會加速刷頭的磨損)
-牙齒補綴物 (填補、牙套、牙面鑲嵌、植牙)
注意：在臨床研究中使用Sonicare時，握柄必須充飽電、設定為
高強度且Easy-start功能必須關閉。
繁體中文16

強度等級
-低：1 個 LED 指示燈 (圖 7)
-中：2 個 LED 指示燈 (圖 8)
-高：3 個 LED 指示燈 (圖 9)
注意：要調整強度等級，請按下電源開關按鈕，讓您的Sonicare
以下列順序循環強度等級：高、中、低、高。每次觸碰按鈕可選
擇下一個可用的強度等級。
電池狀態 (若握柄不在充電器上)
-黃色電池電量指示燈表示電力不足。
-綠色電池電量指示燈表示電力充足。
-當電池電量處於電力不足與電力充足之間時，電池電量指示燈
會關閉。
注意：如果您聽見3聲嗶聲，並且看到電池電量指示燈的黃色LED
燈在閃爍，這表示電池充電低於10%且牙刷應該要重新充電。
注意：如果您聽到2次5聲連續嗶聲，表示Sonicare將無法使
用，且必須重新充電。
注意：若要讓電池隨時保持完全充電狀態，可在不用的時候，
將Sonicare放在充電器上。
功能
Quadpacer 四分象限計時器
-Quadpacer 是區間計時器，它會發出短嗶聲並暫停，以提醒您
刷洗口腔的 4 個區域。Quadpacer 功能共有 3 種強度等級。
(圖 10)
智慧型計時器
智慧型計時器會在刷牙週期結束時自動關閉牙刷電源，表示您的
刷牙週期已經完成。
牙醫師建議每日至少刷牙 2 次，每次 2 分鐘。
注意：刷牙1.5秒後，按下電源開關按鈕以暫停牙刷運作。
智慧型計時器將於暫停30秒後重設。
繁體中文 17

Easy-start 循序漸進功能
Easy-start 功能在前 14 次的使用中會緩慢增加力道，讓您能逐漸
適應 Sonicare。
Easy-Start 功能僅以高強度運作。
本型號的 Sonicare 原已關閉 Easy-start 功能。
若要啟動或關閉 Easy-start 功能：
1 將刷頭裝上握柄。
2 將握柄放進插入式充電器。
3 啟動或關閉Easy-start：
,若要啟動Easy-start：按住電源開關按鈕2秒鐘。如果聽到
2次嗶聲且電池電量指示燈閃爍綠光，就表示Easy-start功能
已經啟動。
,若要關閉Easy-start：按住電源開關按鈕2秒鐘。如果聽到
1次嗶聲且電池電量指示燈閃爍黃光，就表示Easy-start功能
已經關閉。
注意：為確實完成Easy-start的循序漸進週期，前14次刷洗時
間皆須維持至少1分鐘。
注意：我們不建議在最初循序漸進週期以外的時間使用
Easy-start功能，這會降低Sonicare清除牙菌斑的效果。
清潔
請勿將噴嘴、握柄或充電器放入洗碗機清洗。
牙刷握柄
1 取下刷頭，用溫水沖洗金屬軸部分。(圖11)
請勿使用尖銳物品按壓金屬軸的橡膠套，這可能會造成牙刷毀壞。
2 請用濕布擦拭握柄的整個表面。
繁體中文18

刷頭
1 請於每次使用完畢後，沖洗刷頭與刷毛。(圖12)
2 請至少每週一次，將刷頭從握柄取下，再用溫水沖洗刷頭連接
部位。
充電器
1 將充電器的插頭拔掉。
2 用濕布擦拭充電器的表面。
收納
如果您將有很長一段時間不會使用本產品，請將電源插頭從電源插座
拔下，再將產品清潔之後，收藏在遠離陽光直射的乾燥陰涼處所。
更換
刷頭
至少每隔 3 個月更換一次 Sonicare 刷頭，以獲得最佳的清潔效果。
僅限使用適合本型號的原廠飛利浦 Sonicare 替換刷頭。
訂購配件
若要購買配件或備用零件，請造訪 www.shop.philips.com/service，
或洽詢您的飛利浦經銷商。您也可以聯絡您所在國家/地區的飛利
浦客戶服務中心 (聯絡詳細資料請參閱全球保證書)。
回收
本產品使用壽命結束時，請勿與一般家庭廢棄物一併丟棄。
請將本產品送至政府指定的回收站，此舉能為環保盡一份心力。
繁體中文 19

取出充電式電池
請注意，本程序是不可回復的。
如要取出充電式電池，您需要備妥小型標準螺絲起子及膠帶。
在進行下列步驟之前，請採取基本安全防護措施。
1 若要將充電式電池的電力完全耗盡，請將握柄從充電器取下，
開啟Sonicare電源，讓它運轉至停為止。重複此步驟，
直至您無法再開啟Sonicare電源。
2 把小型標準螺絲起子插入握柄底部，並以逆時鐘方向旋轉，
即可取下螺絲。卸下握柄的底蓋。(圖13)
3 把螺絲起子卡進握柄和內框之間。微傾螺絲起子，即可鬆開握柄。
(圖14)
4 卸下握柄的內框。(圖15)
5 取下電池上方和下方的橡膠。(圖16)
6 把螺絲起子卡進電池與固定框之間。微傾螺絲起子，即可從固
定框撬出電池。(圖17)
7 將膠帶貼在電池兩端上，避免因電池內的剩餘電力造成短路。
(圖18)
充電式電池目前可進行回收或棄置處理，而產品其餘零件則可已
妥善方式報廢處理。
保固與支援
如果您需要資訊或支援，請造訪：www.philips.com/support，
或另行參閱全球保證書。
保固限制
下列項目不在全球保固範圍內：
-刷頭。
-使用未經授權之更換零件所造成的損害。
-因不當使用、濫用、疏忽、改裝或未經授權的維修所造成之損害。
-一般磨損與破損，包括剝落、刮痕、磨損、變色或褪色。
繁體中文20
