Philips Sonicare User manual

UV Sanitizer Edition
Optimal Clean
Optimal Clean

1
2
4
3
5
6
7
8
9
10
11

empty page before TOC

English 6
Español 32
Français (Canada) 60

English
6English
IMPORTANT
SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE USE
When using electrical products, especially when children are
present, basic safety precautions should always be followed,
including the following:
DANGERS
To reduce the risk of electrocution:
-Do not place or store product where it can fall or be pulled
into a tub or sink.
-Do not place in or drop into water or other liquid.
-Do not use while bathing.
-Do not immerse the charger and/or sanitizer in water or any
other liquid.
-After cleaning, make sure the charger and/or sanitizer is
completely dry before you connect it to a power outlet.
-Do not reach for a product that has fallen into water. Unplug
immediately.
WARNINGS
To reduce the risk of burns, electrocution, fire or physical injury:
-Do not clean the brush head, the handle, the sanitizer or the
charger in the dishwasher.
-Do not use attachments other than those recommended by
Philips Sonicare.
-Never use a charger with a damaged cord or plug.

7
English
-Always have the charger and/or sanitizer replaced with one
of the original type in order to avoid a hazard.
-Do not plug into an outlet with a voltage other than specified
on the bottom of the product. This product is designed to
operate within a range of 100 to 240 volts. Voltage converters
do not warrant voltage compatibility.
-Never force the plug into an outlet; if the plug does not easily
fit into the outlet, discontinue use.
-Discontinue use if the product appears damaged in any way
(brush head, handle, charger or sanitizer etc.).
-The power cord cannot be replaced. If the mains cord is
damaged, discard the charger.
-Keep the power cord away from heated surfaces.
-This product contains no user-serviceable parts. Refer to
‘Warranty and support’ if the product no longer works
properly or needs repair.
-Do not use the charger and/or sanitizer outdoors.
-Do not use the charger if dropped into water
-Do not operate the sanitizer without the protective screen in
place to avoid contact with a hot bulb.
-Discontinue use of the sanitizer if the UV light bulb remains
on when the door is open. UV light can be harmful to the
human eye and skin. Keep the sanitizer out of the reach of
children at all times.
-If you have used the sanitizer for 3 UV clean cycles in a row,
switch off the appliance for at least 30 minutes before you
start another UV clean cycle.
-This product is designed to clean your teeth, gums and
tongue only. Use this product only for its intended use as
described in this booklet. Discontinue use of this product and
contact a physician/dentist if discomfort or pain is
experienced.

8English
-This product is not intended for use by persons (including
children) with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
-Children should be supervised to ensure that they do not
play with the product.
-Philips Sonicare is a personal care device and is not intended
for use on multiple patients in a dental office or institution.
-The product is not intended to be repaired by service
personnel in case of failure or component defect (unit can be
thrown away).
-For connection to a supply not in the U.S.A., use a charger of
the proper configuration for the power outlet.
-Avoid direct contact with products that contain essential oils
or coconut oil. Contact may result in bristle tufts dislodging.
MEDICAL WARNINGS
1Consult your dental professional before you use this product
if you have had oral or gum surgery in the previous 2 months.
2Contact your dental professional if excessive bleeding occurs
after using this product or bleeding continues to occur after 1
week of use.
3Discontinue use of this product and contact a
physician/dentist if discomfort or pain is experienced.
4This product complies with the safety standards for
electromagnetic devices. If you have a pacemaker or other
implanted device, contact your physician or the device
manufacturer prior to use.
5Consult your physician if you have other medical concerns.

9
English
SAVE THESE
INSTRUCTIONS
Electromagnetic fields (EMF)
This Philips appliance complies with all
applicable standards and regulations
regarding exposure to electromagnetic fields.
FCC & ISED Compliance
Changes or modifications not expressly
approved by Philips could void the user's FCC
authorization to operate the toothbrush.
For the United States
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two
conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,

10 English
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment (handle) off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna
(of the radio or television).
-Increase the separation between the
equipment (handle) and receiver.
-Connect the equipment (charger) into an
outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced
radio/TV technician for help.
For Canada
This device contains license-exempt
transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic
Development Canada’s license-exempt RSS(s).
Operation is subject to the following two
conditions: 1.This device may not cause
interference. 2. This device must accept any
interference, including interference that may
cause undesired operation of the device.

11
English
Introduction
Congratulations on your purchase and
welcome to Philips! To fully benefit from the
support that Philips offers, register your
product at www.philips.com/welcome.
Intended use
Optimal series power toothbrushes are
intended to remove adherent plaque and food
debris from the teeth to reduce tooth decay
and improve and maintain oral health.
Your Philips Sonicare (Fig. 1)
1 Hygienic travel cap
2 Smart brush head(s)*
3 Handle
4 Power on/off button
5 Mode/intensity button*
6 Modes
7 Brush head replacement reminder light
8 Battery indication
9 Charging base
10 Travel case
11 UV Sanitizer
*Note: The content of the box may vary
based on the model purchased.
Brush heads
Your Philips Sonicare comes with one or more
brush heads which are designed to deliver
superior results for your oral care needs.

12 English
Philips Sonicare BrushSync Technology
Your smart brush heads use a microchip to
sync with your handle, enabling brush head
replacement reminder. For more information
regarding the brush head replacement
reminder, see 'Features'.

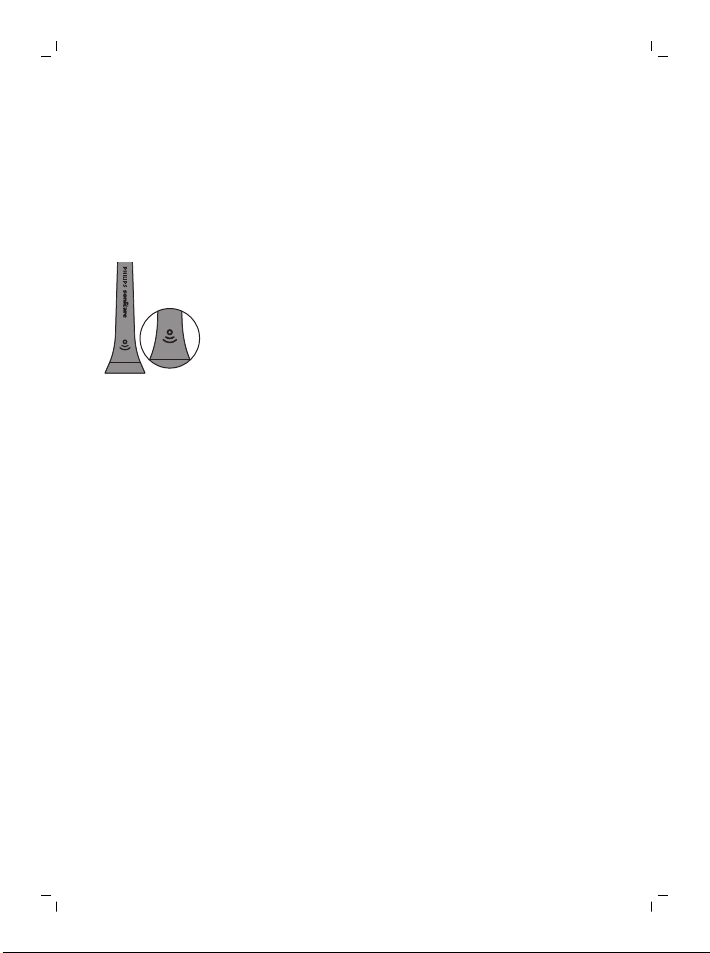

This symbol indicates the brush head is
equipped with BrushSync technology.
Brushing modes
To toggle between modes press the mode
button located below the on/off button.
Your power toothbrush is equipped with either
2 or 3 brushing modes, depending on your
model. The following modes are available:
Clean mode
Clean is a 2-minute mode. It gives you a
thorough and complete clean and is
recommended to be used with the C2 Optimal
Plaque Control brush head.
White mode
White is a 2-minute 30-seconds mode,
recommended to be used with the W
DiamondClean brush head.

13
English
Gum Care mode
Gum Care is a 3-minute mode, recommended
to be used with the G2 Optimal Gum Care
brush head.
Intensities
Your power toothbrush gives you the option to
choose between low and high intensity.
Note: When you use the toothbrush for the
first time, the default setting is the low
intensity.
The intensity can be changed by pressing the
mode/intensity button while brushing. The
intensity cannot be changed as long as the
handle is powered off or paused.
Using your Philips Sonicare
Brushing instructions
1Press the brush head onto the handle in
such a way that the bristles will face the
front of the handle.
2Firmly press the brush head down onto the
metal shaft until it stops.
Note: It is normal to see a slight gap
between the brush head and the handle.
3Wet the bristles.

14 English
4Apply a small amount of toothpaste on the
bristles.
5Place the toothbrush bristles against the
teeth at a slight angle (45 degrees), pressing
firmly to make the bristles reach the
gumline or slightly beneath the gumline. A
change in vibration (and a slight change in
sound) alerts you when you apply too much
pressure while brushing.
Note: Keep the center of the brush in
contact with the teeth at all times.
6Press the power on/off button to turn on
the Philips Sonicare.
7Gently keep the bristles placed on the teeth
and in the gumline. Brush your teeth with
small back and forth motion so the bristles
reach between the teeth.
Note: The bristles should slightly flare. Do
not scrub.
8To clean the inside surfaces of the front
teeth, tilt the brush handle semi-upright
and make several vertical overlapping
brushing strokes on each tooth.

15
English
2
4
3
1
9To make sure you brush evenly throughout
the mouth, divide the mouth into 4 sections
using the Quadpacer feature. The
quadpacer feature beeps after 30 seconds.
30
sec.
30
sec.
1 2
10 Brush for the full 2 minutes following the
Quadpacer. After 2 minutes, the toothbrush
will automatically shut off.
-In white mode, after 2 minutes the handle
will continue to brush for 30 seconds so
that you can brighten and polish your front
teeth.
3 4
30
sec. 30 sec.
-After you have completed the brushing
cycle, you can spend additional time
brushing the chewing surfaces of your teeth
and areas where staining occurs. You may
also brush your tongue, with the toothbrush
turned on or off, as you prefer.
Your Philips Sonicare toothbrush is safe to
use on:
-Braces (brush heads wear out sooner when
used on braces)
-Dental restorations (fillings, crowns,
veneers)
Note: When the Philips Sonicare toothbrush is
used in clinical studies, it must be used in the
Clean mode (for plaque and gum health
claims) or in White mode (for whitening claims)
at high intensity with EasyStart turned off.

16 English
Features
-EasyStart
-Brush head replacement reminder
-Pressure sensor
-Quadpacer
EasyStart
Note: This Philips Sonicare model comes with
the EasyStart feature deactivated. To activate
EasyStart see 'Activating or deactivating
features'.
The EasyStart feature gently increases the
power over the first 14 brushings to help you
get used to brushing with the Philips Sonicare.
The EasyStart feature works in all brushing
modes.
Brush head replacement reminder
Your Philips Sonicare is equipped with
BrushSync technology that tracks the wear of
your brush head.
1When attaching a new smart brush head for
the first time the brush head replacement
reminder light blinks green three times. This
confirms you have a Philips brush head with
BrushSync technology.

17
English
2Over time, based on the pressure you apply
and the amount of time used, the handle
will track brush head wear in order to
determine the optimal time to change your
brush head. This feature gives you the
guarantee for the best cleaning and care of
your teeth.
3When the brush head replacement
reminder light lights up amber, you should
replace your brush head.
Note: The brush head replacement reminder
comes activated with your product. To
deactivate the brush head replacement
reminder see 'Activating or deactivating
features'.
Note: The brush head replacement reminder
only works in combination with Sonicare smart
brush heads (see 'Brush heads').
Pressure sensor
Your Philips Sonicare is equipped with an
advanced sensor that measures the pressure
you apply while brushing. If you apply too
much pressure, the toothbrush will provide
immediate feedback to indicate that you need
to reduce the pressure. This feedback is given
by a change in vibration and therefore
brushing sensation.

18 English
Note: The Pressure Sensor comes activated
with your product. To deactivate the pressure
sensor see 'Activating or deactivating features'.
Quadpacer
The Quadpacer is an interval timer that has a
short beep and pause to remind you to brush
the different sections of your mouth.
Depending on the brushing mode you have
selected (see 'Brushing modes'), the
Quadpacer beeps at different intervals during
the brushing cycle.
Activating or deactivating features
You can activate or deactivate the following
features of your toothbrush:
-EasyStart
-Brush head replacement reminder
-Pressure sensor
To activate or deactivate these features, follow
the instructions below:
EasyStart
1Put the handle on the plugged-in charger.
2Press and hold the power on/off button
while the handle remains on the charger.
3Keep the power on/off button pressed until
you hear a single short beep (after 3
seconds).
4Release the power on/off button.

19
English
-Triple tone of low-med-high means the
EasyStart feature has been activated.
The brush head replacement light and
battery light will also blink green 2 times
in unison to confirm activation.
-Triple tone of high-med-low means the
EasyStart feature has been deactivated.
The brush head replacement light and
battery light will blink amber once in
unison to confirm deactivation.
Note: To achieve clinical efficacy, EasyStart
needs to be deactivated.
Brush head replacement reminder
1Put the handle on the plugged-in charger.
2Press and hold the power on/off button
while the handle remains on the charger.
3Keep the power on/off button pressed until
you hear a series of two short beeps (up to
5 seconds).
4Release the power on/off button.
-Triple tone of low-med-high means the
Brush head replacement reminder
feature has been activated. The brush
head replacement light and battery light
will also blink green 2 times in unison to
confirm activation.

20 English
-Triple tone of high-med-low means the
Brush head replacement reminder
feature has been deactivated. The brush
head replacement light and battery light
will blink amber once in unison to
confirm deactivation.
Note: The brush head replacement reminder
only works in combination with Sonicare smart
brush heads (see 'Brush heads').
Pressure sensor
1Put the handle on the plugged-in charger.
2Press and hold the power on/off button
while the handle remains on the charger.
3Keep the power on/off button pressed until
you hear a series of three short beeps (up
to 7 seconds).
4Release the power on/off button.
-Triple tone of low-med-high means the
pressure sensor feature has been
activated. The brush head replacement
light and battery light will also blink
green 2 times in unison to confirm
activation.
-Triple tone of high-med-low means the
pressure sensor feature has been
deactivated. The brush head
replacement light and battery light will
also blink amber 1 time in unison to
confirm deactivation.
