Philips Germicidal T5 User manual

Ideal for waste water treatment
◗Fast, Effective Disinfection
UVC 254 nm output
◗Long, Useful Life
9000 hour rated average life2
◗Special Inner Bulb Coating
Maintains 85% of UVC output over life
◗TCLP1-Compliant
–Cost-effective and environmentally responsible
disinfection alternative to chemical treatment
–Philips supports the EPA’s commitment to
reduce, reuse and recycle
1) The TCLP is the US EPA’s Toxicity Characteristic Leaching Procedure.
2) Rated average life when burned at 8 hours per start and under
IES/ANSI test conditions.
Actual photo of Ojai Waste Water Treatment Plant–Ojai, CA.
Photography courtesy of UVDI of Valencia, CA.
Philips Germicidal T5 Sterilamp®
featuring ALTO®Lamp Technology
TCLP1-Compliant, Low Mercury Level Technology
Lamp Lamp UV-C Rated
Product Diameter Current 100h Depreciation Avg. Life
Number Type Base (mm) Volts (mA) Watts W 9000h (%) (Hrs.)1
29269-8 TUV 64 T5 SP Single-Pin 16 176* 425* 75* 31 15 9000
36217-8 TUV 64 T5 4P-SE 4-Pin Single-Ended 16 176* 425* 75* 31 15 9000
1) Rated average life when burned at 8 hours per start and under IES/ANSI test conditions.
*These results are based upon operation on 25kHz HF electronic ballast.
LAMP CONTAINS MERCURY, Manage in Accord with Disposal Laws, See: www.lamprecycle.org or call 1-800-555-0050.
Electrical,Technical and Ordering Data (Subject to change without notice)
Philips Germicidal T5 Sterilamp® Featuring ALTO®Lamp Technology
X
Y
Z
Ø 0.75" 0.35"1.31"
0.31"
Type X Y Z
single-pin
TUV 64 T5 SP 57.99" 61.17" ±.12" 61.87" ±.14"
X
Y
Z
Ø 0.75" 0.29"1.31"
0.25"
0.31"
Ø
0.09'
Type X Y Z
4-pin single-ended
TUV 64 T5 4P-SE 57.99" 61.17" ±.12" 61.46" ±.14"
Lamp Dimensions
Hg
Recommended Warnings, Cautions and Operating Instructions
WARNING: “These lamps can cause serious skin burn and eye inflammation
from short wave ultraviolet radiation. Radiation from these lamps is harmful to
the eyes and skin. Do not use where people will remain for more than a few
minutes unless adequate shielding or other safety precautions are used.
The UV-C radiation output of these lamps is
indicated by the following warning sign:
CAUTION:To reduce the risk of personal injury, wear protective
eyewear when you are in close proximity to these lamps. Failure
to do so may result in severe burns and long-term injury to eyes.
Installations with these lamps are to be screened off completely.
Philips Germicidal T5 Sterilamp®TCLP-Compliant,
Featuring ALTO®Lamp Technology
The Philips Germicidal T5 G64 Sterilamp is the first germicidal lamp in the
industry to pass the federal EPA’s TCLP test for low mercury level and can be
characterized as non-hazardous waste.
Philips pioneered the low mercury technology for general lighting T8 fluorescent
lamps under the designation of ALTO. As an ongoing initiative to reduce
mercury levels in arc-discharge lamps, Philips has expanded the ALTO family of
lamps to include the popular low pressure G64 T5 germicidal types commonly
used in air and water disinfection applications.
R
UV-C
Maintenance: Relation Between UV-C Output
and Burning Time
100
80
60
40
20
253.7 313.0 365.5 404.7 435.8 546.1 578.0
Wavelength nm
%
75
80
85
90
95
100
0 1000 2000 3000 4000 5000 6000 7000 8000 9000
Burning time in hours
UV-C output in %
TUV Spectral Power Distribution
Philips Lighting Company
200 Franklin Square Drive
P.O. Box 6800
Somerset, NJ 08875-6800
1-800-555-0050
A Division of Philips Electronics North America Corporation
Printed in the USA 6/05 P-5648
Philips Lighting
281 Hillmount Road
Markham, Ontario
Canada L6C 2S3
1-800-555-0050
A Division of Philips Electronics Ltd.
www.philips.com

This manual suits for next models

1

Other Philips Light Bulb manuals

Philips MASTERline ES User manual

Philips

Philips MASTERline ES User manual

Philips Alto Plus Slimline 8 User manual

Philips

Philips Alto Plus Slimline 8 User manual

Philips TL-D User manual

Philips

Philips TL-D User manual

Philips Slimline T 12 User manual

Philips

Philips Slimline T 12 User manual

Philips TL-X XL User manual

Philips

Philips TL-X XL User manual

Philips HPL 4 Pro User manual

Philips

Philips HPL 4 Pro User manual

Philips Master Colour CDM-R User manual

Philips

Philips Master Colour CDM-R User manual

Philips Halogen Lamp User manual

Philips

Philips Halogen Lamp User manual

Philips 800 series User manual

Philips

Philips 800 series User manual

Philips ecoMOODS 40399 User manual

Philips

Philips ecoMOODS 40399 User manual

Philips Reflector PAR 20-E User manual

Philips

Philips Reflector PAR 20-E User manual

Philips MasterColor CDM/T6 3000K User manual

Philips

Philips MasterColor CDM/T6 3000K User manual

Philips T8 Lamps P-5338-G User manual

Philips

Philips T8 Lamps P-5338-G User manual

Philips Halogen Lamps User manual

Philips

Philips Halogen Lamps User manual

Philips MasterColor 404953 User manual

Philips

Philips MasterColor 404953 User manual

Philips COLORBLAZE 72 User manual

Philips

Philips COLORBLAZE 72 User manual

Philips HalogenA PAR 38 User manual

Philips

Philips HalogenA PAR 38 User manual

Philips TuffGuard P-5812 User manual

Philips

Philips TuffGuard P-5812 User manual

Philips ALUline Pro 37mm and 56mm User manual

Philips

Philips ALUline Pro 37mm and 56mm User manual

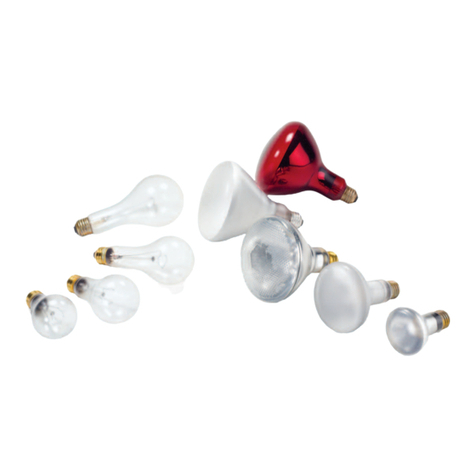

Philips TuffGuard P-5811 User manual

Philips

Philips TuffGuard P-5811 User manual

Philips MASTER TL-D Super 80 HF User manual

Philips

Philips MASTER TL-D Super 80 HF User manual

Philips PLUS T8 U-Bent User manual

Philips

Philips PLUS T8 U-Bent User manual

Philips CAPSULEline Pro MV B15 User manual

Philips

Philips CAPSULEline Pro MV B15 User manual

Philips SOX User manual

Philips

Philips SOX User manual

Popular Light Bulb manuals by other brands

Sony LSPX-102E26 Help guide

Sony

Sony LSPX-102E26 Help guide

Satco Products Halogen Lamps Catalog

Satco Products

Satco Products Halogen Lamps Catalog

Awox SLm-B3 user manual

Awox

Awox SLm-B3 user manual

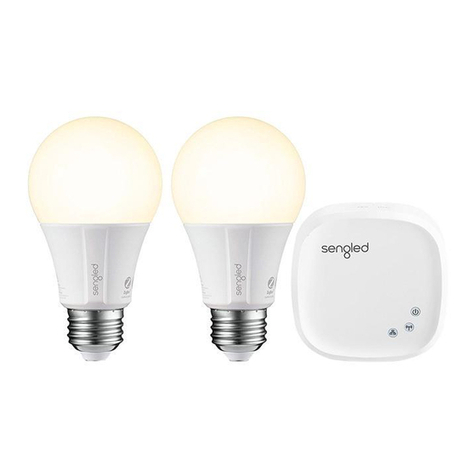

Sengled Element E11-G13 user manual
