Philips 4SB124 User manual

4SB124 (28) (35) (42)
Decorative, Pendalux Suspension, Basic Canopy
Page 1 of 2
Job Information Type:
Job Name:
Cat. No.:
Notes:
Complete Luminaire consists of Body and Suspension. Order each separately.
Single Stem Suspension, with Swivel, Basic Canopy.
Catalog No. Nominal Overall Length (A)* Suspension (Stem) and Canopy Finish
4SB124PB 17 ⅞" Polished Brass
4SB124SB 17 ⅞" Satin Brass
4SB124SN 17 ⅞" Satin Nickel
4SB124WH 17 ⅞" White
4SB128PB 21 11 ⁄16"Polished Brass
4SB128SB 21 11 ⁄16"Satin Brass
4SB128SN 21 11 ⁄16"Satin Nickel
4SB128WH 21 11 ⁄16"White
4SB135PB 27 5⁄16"Polished Brass
4SB135SB 27 5⁄16"Satin Brass
4SB135SN 27 5⁄16"Satin Nickel
4SB135WH 27 5⁄16"White
4SB142PB 32 ⅝" Polished Brass
4SB142SB 32 ⅝" Satin Brass
4SB142SN 32 ⅝" Satin Nickel
4SB142WH 32 ⅝" White
*Add this length (A) to Body length (C) from Body Spec Sheet(s) to get Total Luminaire Nominal OAL.
5
4
3
45º
Nominal OAL

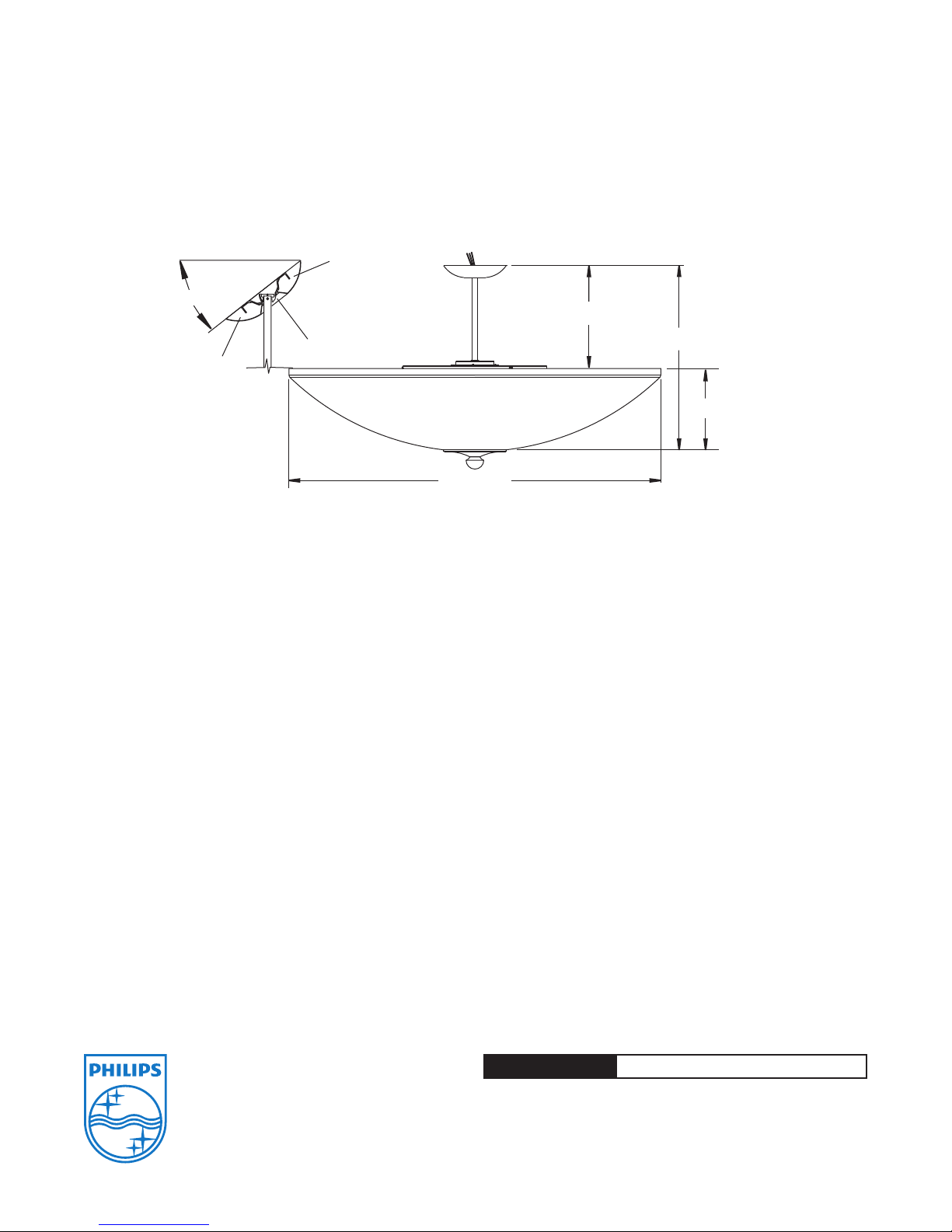

Body Diagram
A
C

4SB124 (28) (35) (42)
Decorative, Pendalux Suspension, Basic Canopy
Page 2 of 2
Philips Lightolier
e: [email protected]
t: [phone]
w: www.lightolier.com
4SB124 July 21, 2011
Specifications are subject to change without notice.
© Koninklijke Philips Electronics N.V., 2011.All rights reserved.
Job Information Type:
Specifications
1. Suspension Size: For optimum performance, testing
recommends luminaire total OAL (overall length) in
proportion to the body diameter. For close-to-ceiling
mounting, it is suggested to use shorter single stems as noted
on Spec Sheet SB115. Total luminaire OAL is defined from the
bottom of the diffuser to ceiling plane.
2. Stem Wires: Equipped with 120" of leads with keyed
connectors for quick connection to body wiring.
3. Suspension: Swivel (central) stem, ⅝" steel tube. Die-cast
ball hanger standard.
4. Mounting Strap (Cross Bar): Die-formed galvanized steel.
5. Canopy: Steel, 7" diameter, fastened internally, no exposed
hardware. Ball hanger on stem that fits into cross bar allows
installation on ceilings with slope up to 45 degrees. Complies
with California Earthquake Code.
6. Cutting Jig: All suspensions are equipped with a cutting jig
that simplifies cutting of center stem pipe in the field .
Options & Accessories
If a longer overall length is desired, use a suspension paired with
a larger body.
If an overall length of greater than 42" is desired, use an
extension stem. Order as a third additional component to make
complete fixture. Please see Spec Sheet No. 4SXT.
Mounting
Mounts directly to 4" outlet box, using crossbar hanger, supplied.
Note: Additional luminaire support plate provided with 35/42"
diameter body to allow luminaire to be supported independent of
the outlet box.
Labels
cULus. Suitable for damp locations.
5
4
3
45º
Nominal OAL
Body Diagram
A
C
