Philips ProSpec 26000 User manual

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0910
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
ProSpec Track Lighting 26000
Page 1 of 4 Track
6
8 Plain Track
7 Feed Track
47-5/8"
95-5/8"
143-5/8"
13/64"
13/64"
10
11
12
13
Feed
Feed
Feed
See Detail A ( pg 4)
2
5
1
3
4
1 3/16"
9
1 9/16" 1 5/8"
3/8"
13/64"
48"
96"
144"
1/16"
Features
1. Track: 6063T-5 structural aluminum extrusion; average wall thickness .08.
2. Flush Mounting Clips: spring steel. Black or white nylon coated to prevent
rusting and marking ceiling. Furnished with track unit.
3. Conductors: “U” shaped copper conductor, increases contact surface area
minimizes contact resistance provides reliable positive connection.
4. Insulated liner: .040” wall, high temperature extruded thermoplastic.
5. Toggle Bolts and Screws: furnished with track unit.
6. Dead End Cap: molded thermoplastic.
7. Feed Track.
8. Plain Track.
9. Standoff Mounting Clip: 1/16” extruded aluminum, one screw mounting,
one screw tightening. 3/8” gap helps to compensate for ceiling irregularities.
Provides rigid support for dense loading of track.
10. Feed-in Connector Module: included with feed track.
11. Removable Hole Plug: for surface feed 3/8” or 1/2” trade size connector.
12. KO: accepts, 3/8” or 1/2” trade connector for feed.
13. Wire Cover: molded thermoplastic.
Mechanical
Track units plug together and lock securely to prevent accidental separation.
ProSpec track fixtures can be attached at any point along the track. Track units
may be field cut.
Electrical
(2) circuits. Each circuit is 120V, 60Hz, 20 AMP compatible. Each circuit has
dedicated neutral for maximum control flexibility. Track units are continuously
grounded throughout. Electrical conductors are concealed in an insulated liner
in the track. Intended for wiring to branch circuit building wire with ground, in
accordance with National and local codes.
Mounting
Surface: ProSpec track can be surface mounted either flush to a surface or
with clips
1/16” clips are provided with the track and space the track 1/16” from the
ceiling.
3/8” standoff clips can be ordered separately. These space the track 3/8” from
the ceiling, provide a rigid support and a pleasing appearance on uneven ceilings.
Stem: ProSpec track can also be suspended from horizontal surfaces or sloped
surfaces. Stems can be field cut to provide any length from a surface with a
maximum length of 3”.
A sloped surface (ceiling) adapter is available to allow the track to hang verti-
cally with the track opening horizontal to the floor.
Finish
All painted finishes are baked enamel.
Label
UL, I.B.E.W
Catalog No.
Plain Track Feed Track
Finishes: 4’ 8’ 12’ 4’ 8’ 12’
Matte White 26004WH 26008WH 26012WH 26001WH 26002WH 26013WH
Matte Black 26004BK 26008BK 26012BK 26001BK 26002BK 26013BK

Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0910
ProSpec Track Lighting 26000
Page 2 of 4 Track
Track Mounting Clips
3/8” Standoff Clips, order separately. Recommended
2 clips per 4’, 3 clips per 8’, 4 clips per 12’ track units.
Use additional clips for more support in high load
applications. Toggle bolts are included.
Not recommended for wall mounting.
26478WH Matte White (4) per pack.
26478BK Matte Black (4) per pack.
Direct Mounting
Toggle bolts and nylon insulators are furnished with
Track, two per 2’ and 4’ track, three per 8’ and (4) for
12’ track. Mount through existing holes in track. Top
of track sits flush to ceiling.
Recommended for wall and ceiling mounting.
1/16” Flush Mount Clips
Nylon coated spring steel included with track units.
Spaces track 1/16” from ceiling. Recommended 2 per
4’, 3 per 8’, and 4 per 12’ track sections. Use addi-
tional clips for more support when track is heavily
loaded. Clips may be ordered separated.
Not recommended for wall mounting.
56451WH Matte White (set of 10)
56451BK Matte BK (set of 10)
Grid Ceiling Mounting Clips
Square Edge Panels and 9/16” - 15/16” T-Bars Clip
is supplied assembled. Mounts easily onto T-Bars by
rotating clips. Use two per 4’ track, three per 8’ and
12” track.
6089 (9) Clips
Regressed Edge Panels
9/16” - 15/16” T-Bars
Clips os supplied assembled. Mounts easily onto
T-Bars by rotating clips. Use two per 4’ track, three
per 8’ and 12’ track.
Grid Ceiling Canopy Kit (End & Floating)
For mounting the track to grid suspended ceilings.
Mounts to ceiling types shown above using clips
6087, 6088, or 6089 which are ordered separately.
Includes a special outlet box to fit onto runners.
Power can be fed to Feed Track, Live End, “L”, “T”,
“X”, and In-Line connectors. Mounts along runner or
at the intersection of runners.
26096WH Matte White
Surface Canopy Kit (End & Floating Feed)
Canopy can be mounted directly over the end of the
feed track, power extension, in-line, ‘L’, ‘T’, and ‘X’
connectors. Canopy also can be positioned anywhere
on the track up to 4’ from the edge of the track extru-
sion (floating feed, wire cover included). Power can
be fed into feed track, power extension, in-line, ‘L’,
‘T’, and ‘X’ connectors when utilizing the floating
feed option. Canopy mounts to a 4” octagonal outlet
box. Use 1/16” flush mounting clips (supplied with
track) or direct mount to ceiling or wall.
26060WH Matte White
26060BK Matte Black
Standoff Canopy Kit (End & Floating Feed)
For use with 26478WH, BK 3/8” standoff mounting
clips (ordered separately). Canopy can be mounted
directly over the end of the feed track, power
extension, in-line ‘L’, ‘T’, and ‘X’ connectors. Canopy
also can be positioned anywhere on the track up
to 4’ from the edge of the track extrusion (floating
feed, wire cover included). Power can be fed into
feed track, power extension, in-line, ‘L’, ‘T’, and ‘X’
connectors when utilizing the floating feed option.
Canopy mounts to a 4” octagonal outlet box.
26061WH Matte White
26061BK Matte Black

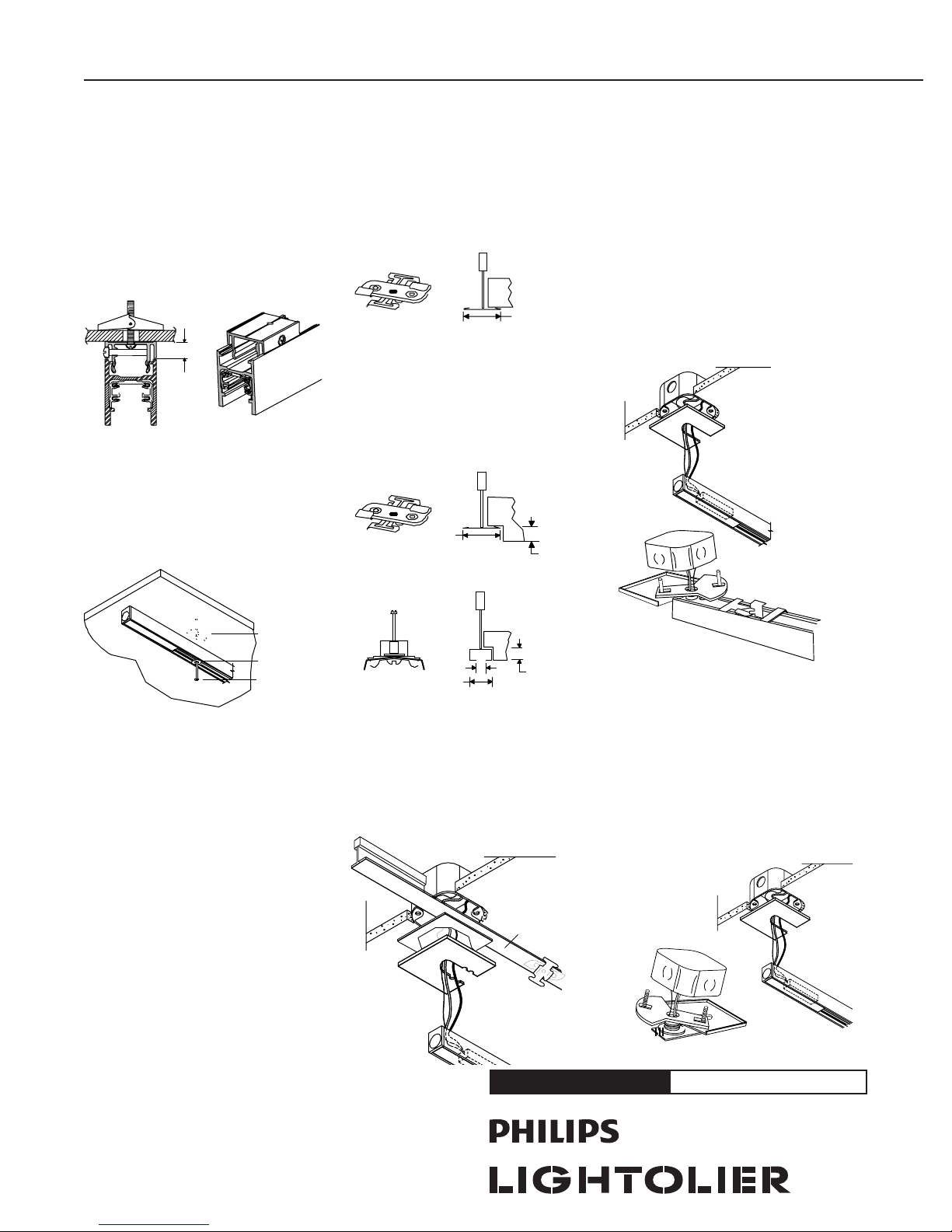

Track Mounting and Power Feed Systems
3/8"
Toggle Bolt
Nylon Spacer
Screw
T-Runner
Square
Edge Panel
9/16" - 15/16"
6088 (9) Clips
9/16" -
15/16"
1/4" -
9/16" 5/16"
Slotted Grid
Runner
T-Runner
Regressed
Edge Panel
6087 (9) Clips
4" Octagon
Outlet Box
(by others)
T-Bar
T-Bar Mounting
Clip
Feed Track
4" Octagon
Outlet Box
(by others)
Square Canopy
Feed Track
or Connector
1/16" Flush
Mounting Clip

Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0910
ProSpec Track Lighting 26000
Page 3 of 4 Track
Stem Mounting Kits
Mounts to a 4” Octagon outlet box. Use two per 4’
track, three per 8’ and 12’ track. When making a run
of track do not exceed 4’ between stems. Use addi-
tional stems for additional support. Power is fed to
the track with the stem closest to the track feed-in
point. For power feed to Feed Track and Live End, “L”,
“T”, “X”, In-line connectors. Stem can be field cut.
Not recommended for wall mounting.
18” Stem 48” Stem
Actual length for ceiling to top of track:
17 3/8” 47 3/8”
Matte White 7584 7586
Matte Black 7683 7681
Swivel Stem Mounting Kits
Adjusts from 0° to 90°. Can be field cut. 48” stem.
7480 Matte White
7481 Matte Black
Floating Invisible Feed
Can be mounted anywhere along the track at a
maximum distance of 4’ from edge of track extrusion.
Accepts conduit or cable with 3/8” or 1/2” electrical
connector (by others). Can be used with Feed Track,
Live End, “L”, “T”, “X”, and In-line connectors. Use
Track Mounting Clips to mount the track.
26082 Zinc Plated
Stem Extension Kit
Mounts to any system kit to extend its length to 48”.
Cannot be field cut.
7582 Matte White
7680 Matte Black
Power Extension Connector (Live End)
Replaces Dead End Cover at end of track to permit
power continuity around structural obstructions to
another track section. Not polarized. Can be fed
directly from surface or from ceiling using a 3/8”
or 1/2” electrical connector (by others).
26046WH Matte White
26046BK Matte Black
Over Beam or Through Beam
Through Wall or Column
Track Mounting and Power Feed Systems
3" or 4" Octagon
Outlet Box
(by others)
This end may be
field cut.
Stem 1/4"-18
NPSM Thread
Clamp Set
Feed Track
3" or 4" Octagon
Outlet Box
(by others)
0ϒ - 90ϒ Ceiling
Slope
This end may be
field cut.
Stem 1/4"-18
NPSM Thread
Clamp Set
Feed Track
Clamp Set
Feed Track
Wire Cover
Electrical
Fitting
(by others)
Stem Extension
1/2" O.D. Steel
Tube
1/4 - 18 NPSM
Thread.
Clamp Set
Line
Joint
See Detail A
(pg. 4)
Power Ext.
(Live End)
5-7/8"
1-3/16"
4-3/16" 3-1/8"
3/8"
Connector
Beam
Jump
Track Track
Power Extention
Connector
Wall
Power Extention
Connector
3/8" Connector
Jump (Conduit)
Track Track
Power Extention
Connector
Power Extention
Connector
Wall
Line
Joint
See Detail A
(pg. 4)
Power Ext.
(Live End)
5-7/8"
1-3/16"
4-3/16" 3-1/8"

Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0910
ProSpec Track Lighting 26000
Page 4 of 4 Track
“L” Connector
The “L” connector is pre-wired.
Not polarized.
26050WH Matte White
26050BK Matte Black
“T” Connector
The “T” connector is not pre-wired
or polarized. Used to make “T” pattern
with track. 12ga. copper jumper
wires supplied to make all
necessary connections.
26051WH Matte White
26051BK Matte Black
“X” Connector
The “X” connector is not pre-wired.
Used to make “X” pattern with track.
12ga. copper jumper wires supplied
to make all necessary connections.
Not polarized.
26052WH Matte White
26052BK Matte Black
In-Line Connector
Permits power feed-in between
track units in a straight run of track.
The “In-Line” connector is pre-wired.
Not polarized.
26054WH Matte White
26054BK Matte Black
Mini-Coupler
Used to connect two pieces of track together
mechanically and electrically. Power cannot
be feed into the mini-coupler.
26049WH Matte White
26049BK Matte Black
Detail A
Use 12ga. solid copper wire for
feed connections including ground.
See Detail A
Typ. for all Track
Connections
4.18"
3.59"
5 1/4"
Extruded Aluminum Housing
3 7/16"
Line Joint
No Space
Two wires may be
attached to one
screw terminal.
Feed Connections for Surface and Stem Mounted Patterns
All connectors can be fed directly from above using a 3/8” or 1/2” electrical connector (by others).
NEUT
Extruded Aluminum Housing
10 9/16"
3.59"
3.59"
5
1/4" 7 3/16"
NEUT
See Detail A
Typ. for all
Track
Connections
7 3/16"
3.59"
See Detail A
Typ. for all Track
Connections
Extruded Aluminum Housing
10 9/16"
6.44"
Extruded
Aluminum
Housing 6 3/16"
3 3/32" See Detail A
Typ. for all Track
Connections
NEUT
NEUT
