We hope you enjoy your product
Please visit www.philips.com/support and enter your product name to view:
- FAQ, Frequently Asked Questions
- Latest user manuals
- Latest PC software downloads
- Firmware upgrade files
Since it is possible for you to upgrade your product,
we recommend that you register your product on
www.philips.com/register
so we can inform you as soon as new free upgrades become available.
The model and production numbers can be found on the label close to the USB connector.
About your new product
With your newly purchased product, you can enjoy the following:
- MP3 and WMA playback (see MUSIC MODE section)
- FM radio*** (see RADIO MODE section)
- Recording: FM*** and voice (see MAKING RECORDINGS section)
***FM radio is only available to some regional versions. FM radio is currently not available in Europe.

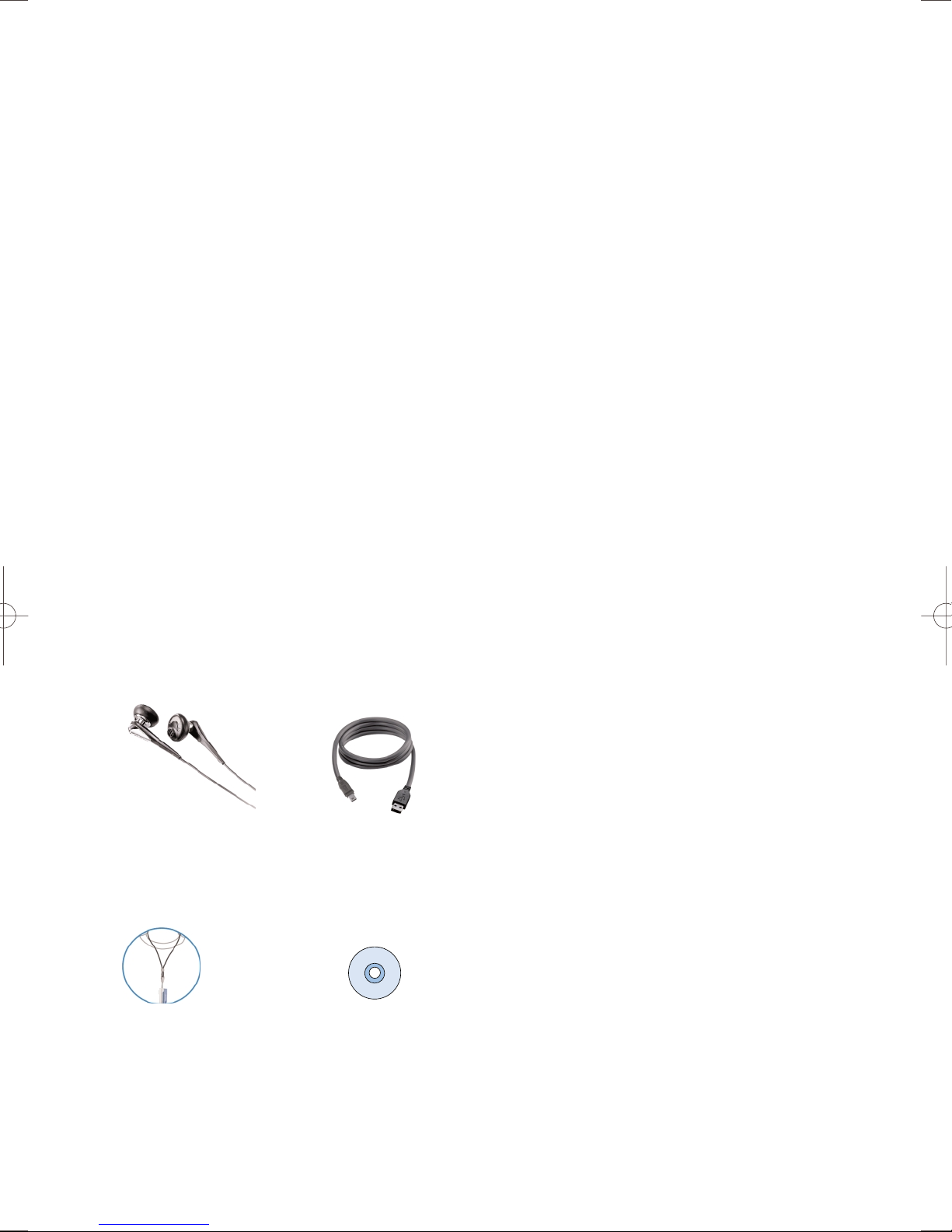

Included accessories
Headphones USB cable
Neck-strap CDROM with user manual, drivers,
FAQ, music management softwares
SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 1

2
MIC
16/18
Overview of controls and connections
1MIC Microphone
2pHeadphones jack
3+ / - Volume control
4A-B /0Start or Stop Voice / FM recording***; Repeat or loop a sequence
MENU For menu options
J( / )K Rewind / Fast forward; Up / Down to 1 level
2; Power on / off and Play / Pause; confirms a menu setting
5Display Dynamically displays menu, options and track information
6USB USB cable connector
7HOLD Disable key press
8Battery door Open to insert battery
***FM radio is only available to some regional versions. FM radio is currently not available in Europe.
SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 2

3
Preparations
Install software
1Insert the supplied CD into your computer's CD-ROM drive.
If the CD does not autorun, please click the .exe file from the root directory of the CD.
2Select your language and follow screen instructions to complete installation of
MusicmatchRJukebox and Firmware Manager.
Organize and transfer your music
Your player will appear as a new USB mass storage in Windows Explorer.
You can organize files and transfer music to your device during USB connection.
1Click and highlight one or more music track to transfer between your player and your computer.
2Use drag and drop actions to complete your transfer.
3You can also transfer your digital music collection from your computer to your device through
MusicmatchRJukebox.
Safely disconnect your device
Exit any active application working with your player. Safely remove your device by clicking from
your task tray.
WINDOWS98SE USERS:There is no icon.
Simply disconnect your device after file transfer completes.
(File transfer completes when stops animating.)
ATTENTION!
WINDOWS 98SE USERS:
To avoid installation problems, DO NOT CONNECT your device to the computer
until AFTER installation completes.
SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 3

4
About Batteries
You can use the following batteries with your device:
- normal batteries type LR03, UM4 or AAA (preferably Philips); or
- alkaline batteries type LR03, UM4 or AAA (preferably Philips); or
- rechargeable batteries type LR03, UM4 or AAA (preferably Philips)
Note: Remove batteries if they are empty or if the player is not going to be used for a long time.
Inserting batteries
Open the battery compartment. Insert batteries with correct polarity.
Powering on / off
Power on: Press and hold 2; until the PHILIPS splash screen appears.
Power off: Press and hold 2; again until there is no display on the screen.
TIP
Your device automatically powers down if there is no operation and no music played for
the duration defined in SETTINGS > TIME OUT.
✔
Indication of power level
You can see the approximate power level of your batteries on the display.
Battery full Battery two-thirds full
Battery half full Battery low
Battery empty
TIP
When the batteries are nearly empty, the battery low screen blinks.
Your device will power down in less than 60 seconds.
Your device will save all settings and un-finished recordings before it powers down.
✔
SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 4

5
Root menu
When your device powers up, you will see the Root menu. Otherwise, press MENU, select 'source' to go
to the root menu.
Navigation
Your device has an intuitive menu navigation system to guide you through various settings
and operations. Use J(,)K to browse through menus. Press 2; to confirm your selection.
Music enter to play your digital music tracks
Radio*** enter to listen to your radio presets
Recordings enter to play and manage recordings
Settings enter to customize settings for your device
***FM radio is only available to some regional versions. FM radio is currently not available in Europe.
SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 5

6
MUSIC mode: Playback (also applicable to playback
of recordings)
From the root menu, select M to enter the MUSIC library. Your device will play all your music alpha-
betically in the music library as you press 2;.
Go to next track Press )K
Go to previous track Press J(
Pause music Press 2; during playback
Forward search Press and hold )K
Backward search Press and hold J(
Volume control + / -
Basic Operation Controls to press
SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 6

7

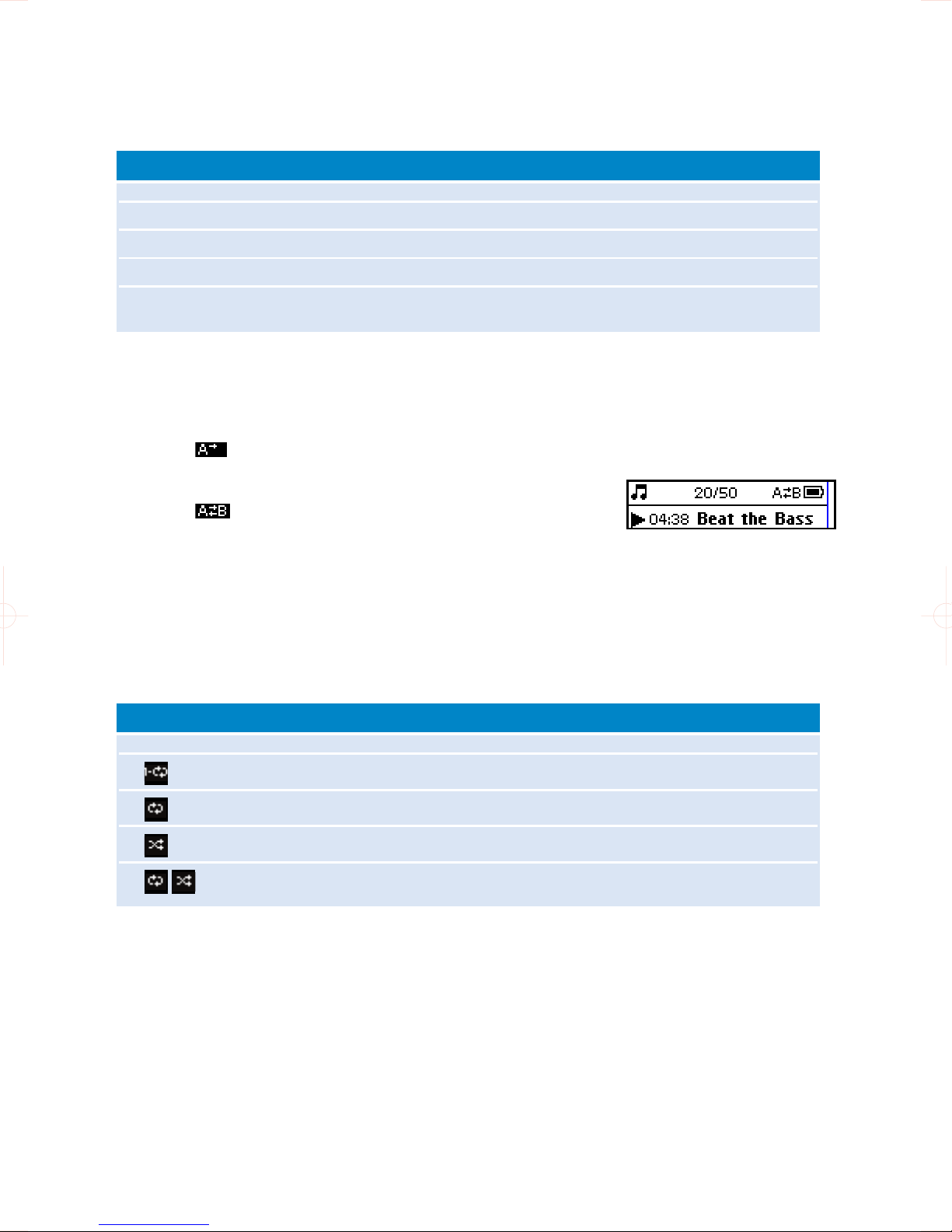

A-B REPEAT
To repeat or loop a sequence in a track:
1During playback mode, press A-B /0at your chosen starting point;
➔appears on the screen.
2Press A-B /0again at your chosen end point;
➔appears on the screen, and the repeat sequence begins.
Advanced features in playback
PLAY MODES
Changing play modes
1Press MENU . Select Play modes.
2Use scroll controls to select the following options.
Off Normal playback
Repeat 1 Play one track repeatedly
Repeat all Play all tracks repeatedly
Shuffle Play all tracks randomly
Shuffle repeat Play all tracks randomly and repeatedly
Icon Meaning
Source Go to root menu
Playmodes Off / Repeat 1 / Repeat all / Shuffle / Shuffle repeat
Equalizer Rock / Funk / Jazz / Classic / Hip Hop / Dance / Off
Scroll speed Normal / Slow / Fast / Off
Delete
Setting Options
EQUALIZERS
You can set your device to play music tracks with different EQ (equalizers).
Changing equalizers
1Press MENU . Select EQUALIZER.
2Use scroll controls to select Rock,Funk,Jazz,Classic,Hip Hop, Dance or Off.
Press MENU. Use scroll controls to select the following options:
SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 7

8
Radio mode***
***FM radio is only available to some regional versions. FM radio is currently not available in Europe.

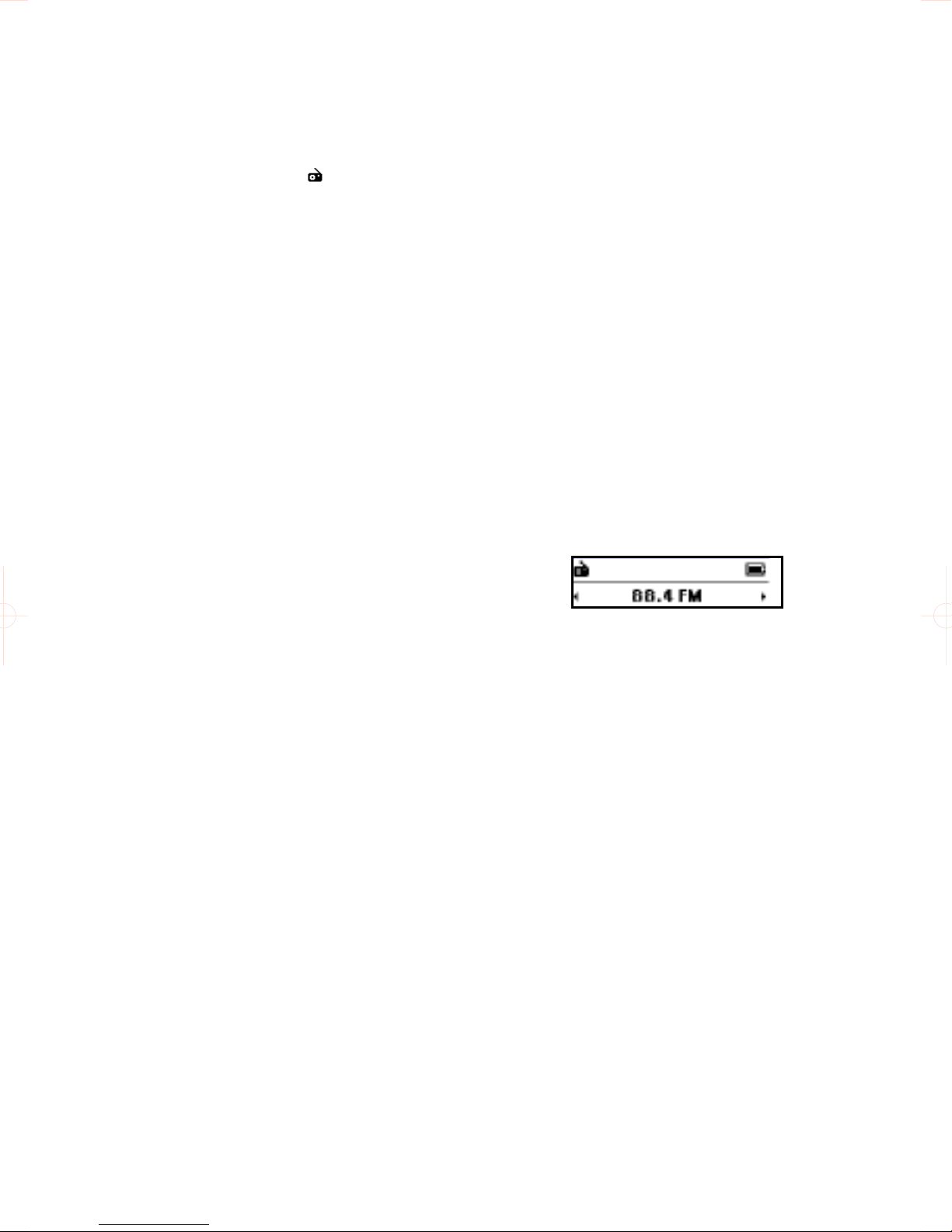

From the root menu, select to enter the radio mode.
Manual tune
1Press MENU . Select Manual Tune. Press 2; to confirm.
2Press J( and )K to search the station or press and hold )K to search for the
next available station.
3Press 2; to save your preset.
Auto tune
1Press MENU. Select Autotune. Press 2; to confirm.
➔Your device will automatically select up to 30 strongest available stations.
Playing a preset station
1From the root menu, select RADIO to enter the radio mode
and tune to your preferred station.
2Press J( to scroll up or )K to scroll down for your preset.
3The preset will be automatically played.
2/30
SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 8

9
Making recordings
When your device is not connected to the computer, you can make voice or radio recordings.
Making voice recording
1Make sure you are not in the radio mode and music or recordings is in stop or pause status.
2Press A-B /0to start voice recording.
➔Device shows the recording state.
3Press A-B /0again to stop voice recording.
➔Device shows the saving state. Your voice recording will be saved on your device
(filename = VOICE REC > MIC-xxx.wav; xxx = track number).
Making FM recording***
1In the radio mode, tune to your preset station.
2Press A-B /0to start FM recording.
➔Device shows the recording state.
3Press A-B /0again to stop FM recording.
➔Device shows the saving state. Your FM recording will be saved on your device
(filename = FM REC > FM-xxx.wav; xxx = track number).
***FM radio is only available to some regional versions. FM radio is currently not available in Europe.
Playing recordings
Searching for your desired recording
1From the root menu, select to enter the recording library.
Your device will play all your recordings alphabetically in the recording library as you press 2;.
2Press 2; to pause the currently playing recording.
3Press )K for next or J( for previous recordings.
TIP
Playback of recordings functions the same way as in the MUSIC library.
See MUSIC library: Playback for more information.
✔
SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 9

10
Customizing settings
1 From the root menu, select to enter the settings mode.
2Press J( to scroll up or )K to scroll down for your option.
3Press 2; to confirm your selection.
4Press MENU or J( to exit the existing settings screens.
Time out 3 minutes / 5 minutes / 10 minutes / 30 minutes / Off
Sleep timer 15 minutes / 30 minutes / 45 minutes / 60 minutes / Off
Resume On / Off
Backlight
Colour White / Red / Yellow / Green / Blue / Purple / Cobalt / Random
Time 10 sec / 30 sec / 60 sec / Always on / Off
Contrast Levels 1-6
Language English / French / German / Spanish / Italian / Dutch / Portuguese
Swedish / Polish
Information FW version / Memory available
Factory settings Restore Factory settings
Setting Options
SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 10

11
About Firmware Manager
Your device is controlled by an internal program called firmware. With Firmware Manager, you can
update and restore your device with a few simple clicks.
Install Firmware Manager
1Insert the supplied CD into your computer’s CD-ROM drive.
2Follow screen instructions to begin and complete installation.
Update and restore firmware
1Insert the supplied CD into your computer’s CD-ROM drive.
2Install Firmware Manager from the supplied CD to your computer.
3Connect to the Internet. Launch Firmware Manager.
4Follow on screen instructions to complete firmware restore.
SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 11

12

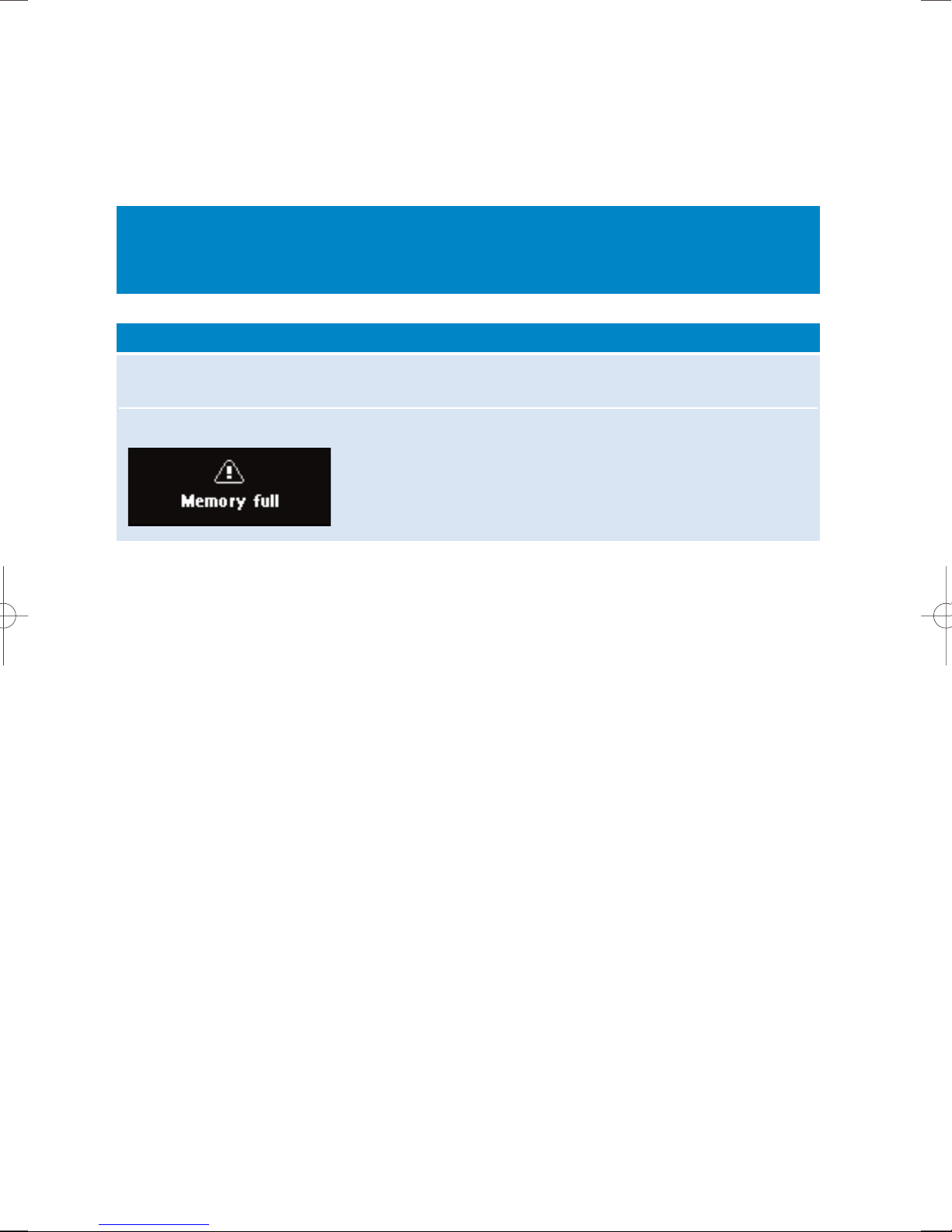

Cannot power up Insert new batteries. Press 2; and power up the device.
In case of device error, connect your device to the
computer. Use Firmware Manager to restore your device.
Device shows "Memory Full" Connect your device to the computer. Delete unwanted files.
Unplug safely. Record again.
Symptom Solution
Troubleshooting
If a fault occurs, first check the points listed in the following pages. For further help and other
troubleshooting tips, please also check out FAQs at www.philips.com/support.
If you are unable to find a solution by following these hints, consult your dealer or service center.
WARNING:
Under no circumstances should you try to repair the set yourself, as this will invalidate
the warranty.
SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 12

13
Safety and Maintenance
General maintenance
To avoid damage or malfunction:
- Do not expose to excessive heat caused by heating equipment or direct sunlight.
- Do not drop your player or allow objects to fall on your player.
- Do not allow your player to be submersed in water. Do not expose earphone socket or
USB connector to water as water entering the set may cause major damage.
- Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives as
these may harm the set.
- Active mobile phones in the vicinity may cause interference.
- Backup your files. Please ensure that you retain the original files that you have downloaded to your
device. Philips is not responsible for any loss of content if the product becomes damaged or not
readable / legible.
About operating and storage temperatures
- Operate in a place where the temperature is always between 0 and 35oC (32 to 95oF).
- Store in a place where the temperature is always between -20 and 45oC (-4 to 113oF).
- Battery life may shorten in low temperature conditions..
Take care when using headphones
Hearing safety
Listen at a moderate volume. Using headphones at high volume can impair your hearing. We recommend
headphone no. SHE775 for this product.
Important (for models with bypacked headphones):
Philips guarantees compliance with the maximum sound power of its audio players as determined by
relevant regulatory bodies only with the original model of provided headphones.
In case this one needs replacement, we recommend that you contact your retailer to order a model
identical to that of the original provided by Philips.
Traffic safety
Do not use headphones while driving or cycling as you may cause an accident.
SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 13

14
Copyright information
- All other brand and product names are trademarks of their respective companies or organizations.
- Unauthorized duplication of any recordings downloaded from the internet or made from audio
CDs is a violation of copyright laws and international treaties.
Environmental information
We have reduced the packaging to its minimum and made it easy to separate into materials: cardboard,
PS, PE, PET.
Your set consists of material which can be recycled if disassembled by a specialized company
Please observe the local regulations to dispose of packaging, exhausted batteries and old equipment.
Disposal of your old product
Your product is designed and manufactured with high quality materials and components, which can be
recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means the product
is covered by the European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for electrical and
electronic products.
Please act according to your local rules and do not dispose of your old products with your normal
household waste.
The correct disposal of your old product will help prevent potential negative consequences for the
environment and human health.
Modifications
Modifications not authorized by the manufacturer may void user authority to operate this device.
SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 14

15
Notice for the USA
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful
interference in a residential installation.This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
- Relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
Notice for Canada
This Class B digital apparaatus complies with Canadian ICES-003.
The set complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10.
Operation is subject to the following two conditions:
1.This device may not cause harmful interference, and
2.This device must accept any interference received, including interference that may cause undesired
operation.
Notice for the European Union
This product complies with the radio interference requirements of the European Union.
Philips
SA160
Philips
SA164
Philips
SA165
Philips
SA167
Philips
SA168
SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 15

Technical Data
Power supply 1 x AAA
Battery playtime 15 hours using 1 x AAA alkaline
Display 7 backlight LCD, 128 x 32 pixels
Sound Channel separation 40 dB
Equalizer settings Rock / Funk / Jazz / Classic / Hip Hop / Dance / Off
Frequency response 40-18 000 Hz
Signal to noise ratio >85 dB
Output Power (RMS) 2 x 4 mW
Audio Playback
Compression format MP3 (8-320 kbps and VBR; Sample rate: 8, 11.025, 16, 22.050, 24, 32,
44.1, 48 kHz)
WAV
WMA (5-192 kbps)
ID3-tag support Title name
Audio Capturing Built-in microphone Mono
Voice recording WAV
FM recording*** WAV
***FM radio is only available to some regional versions.
FM radio is currently not available in Europe.
Storage Media SA160 128 MB NAND Flash*
SA164 256 MB NAND Flash*
SA165 256 MB NAND Flash*
SA167 512 MB NAND Flash*
SA168 512 MB NAND Flash*
*available storage capacity will be less
Tuner / Reception / Transmission Auto store / Tuner band: FM***
***FM radio is only available to some regional versions.
FM radio is currently not available in Europe.
Connectivity Headphone 3.5 mm, USB
Music transfer via MusicmatchRJukebox or Windows Explorer
Data transfer via Windows Explorer
System Requirements WindowsR98 SE/Me/2000(SP3 or above) or XP(SP1 or above)
Mac OS 9.2.2 or above
Pentium Class MMX 166 MHz processor or better
96 MB RAM
50 MB hard drive space
Internet connection
Microsoft Internet Explorer 5.5 or later
Video display card
Soundcard
USB port
PHILIPS reserves the right to make design and specification changes for product improvement
without prior notice. 16
SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 16

Printed in China
http://www.philips.com
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V.
or their respective owners
2005 © Koninklijke Philips Electronics N.V. All rights reserved.
SA160 COVER 1 3/6/05 12:49 Page 2
