Contents
1 Important 4
Important Safety Instructions 4
Notice 6
2 Your portable DVD player 9
Introduction 9
What’s in the box 9
Overview of the main unit 10
Overview of the remote control 12
3 Get started 14
Install remote control batteries 14
Connect additional equipment 15
Charge the battery 16
4 Play 18
Turn on 18
Select OSD language 18
Play discs 18
Play options 19
5 Watch TV 21
Set up your TV 21
6 Adjust settings 22
7 Product information 24
8 Troubleshooting 25
PD7007_98_UM_V1.0.indd Sec1:3PD7007_98_UM_V1.0.indd Sec1:3 2010-2-3 17:16:002010-2-3 17:16:00

4
1 Important
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
h Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
i Only use attachments/accessories specified by the manufacturer.
j Unplug this apparatus during lightning storms or when unused for
long periods of time.
k Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
l Battery usage CAUTION – To prevent battery leakage which may
result in bodily injury, property damage, or damage to the unit:
Install all batteries correctly, + and - as marked on the unit.•
Do not mix batteries (old and new or carbon and alkaline, etc.).•
Remove batteries when the unit is not used for a long time.•
m Batteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, fire or the like.
n Apparatus shall not be exposed to dripping or splashing.
EN
PD7007_98_UM_V1.0.indd Sec1:4PD7007_98_UM_V1.0.indd Sec1:4 2010-2-3 17:16:012010-2-3 17:16:01

5
o Do not place any sources of danger on the apparatus (e.g. liquid
filled objects, lighted candles).
p Where the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keep this apparatus away from direct sunlight, naked flames or heat.•
Never look into the laser beam inside this apparatus.•
Ensure that you always have easy access to the power cord, plug or adaptor to•
disconnect this apparatus from the power.
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can impair your hearing. This•
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute. The
higher decibel ranges are offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’•
adapts to higher volumes of sound. So after prolonged listening, what
sounds ‘normal’ can actually be loud and harmful to your hearing. To
guard against this, set your volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting.•
Slowly increase the sound until you can hear it comfortably and•
clearly, without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally ‘safe’ levels, can also•
cause hearing loss.
Be sure to use your equipment reasonably and take appropriate•
breaks.
English
EN
PD7007_98_UM_V1.0.indd Sec1:5PD7007_98_UM_V1.0.indd Sec1:5 2010-2-3 17:16:012010-2-3 17:16:01

6
Be sure to observe the following guidelines when using your
headphones.
Listen at reasonable volumes for reasonable periods of time.•
Be careful not to adjust the volume as your hearing adapts.•
Do not turn up the volume so high that you can’t hear what’s around•
you.
You should use caution or temporarily discontinue use in potentially•
hazardous situations. Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a traffic
hazard and is illegal in many areas.
Caution
Use of controls or adjustments or performance of procedures other than herein•
may result in hazardous radiation exposure or other unsafe operation.
Notice
Any changes or modifications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
This product complies with the radio interference requirements of the
European Community.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
EN
PD7007_98_UM_V1.0.indd Sec1:6PD7007_98_UM_V1.0.indd Sec1:6 2010-2-3 17:16:012010-2-3 17:16:01

7
Recycling
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a product, it
means the product is covered by the European Directive 2002/96/EC:
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical
and electronic products. The correct disposal of your old product helps
prevent potentially negative consequences on the environment and human
health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed of with normal household waste.
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Always bring your product to a professional to remove the built-in battery.
The making of unauthorized copies of copy-protected material, including
computer programs, files, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a criminal offence. This
equipment should not be used for such purposes.
Recording and playback of material might require consent. See Copyright
Act 1956 and The Performer’s Protection Acts 1958 to 1972.
This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other intellectual
property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized
by Macrovision Corporation, and is intended for home and other
limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
English
EN
PD7007_98_UM_V1.0.indd Sec1:7PD7007_98_UM_V1.0.indd Sec1:7 2010-2-3 17:16:022010-2-3 17:16:02

8
“DivX, DivX” Certified, and associated logos are trademarks of DivX, Inc.
and are used under license.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
This apparatus includes this label:
EN
PD7007_98_UM_V1.0.indd Sec1:8PD7007_98_UM_V1.0.indd Sec1:8 2010-2-3 17:16:022010-2-3 17:16:02

9
2 Your portable DVD player
Congratulations on your purchase, and welcome to Philips! To fully benefit
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
Your portable DVD player plays digital video discs that conform to the
universal DVD Video standard.With it, you can play movies with true cinema
picture quality and stereo or multi-channel sound (depending on disc and
playback set-up).
You can also select sound track, subtitle languages, and different angle of view
(again depending on DVD disc). Besides, you can restrict the play of discs that
are not suitable for children.
You can play the following discs on the DVD player (including CD-R, CD-
RW, DVD±R and DVD±RW):
DVD-Video•
Video CD•
Audio CD•
MP3 CD•
DivX•
Discs with JPEG files•
What’s in the box
Check and identify the contents of your package:
1 x Portable DVD player•
1 x Remote control and 2 AAA batteries•
1 x AC power adaptor - AY5806, AY5808 or ASCU12E-090080•
(Philips)
1 x Car adaptor•
1 x AV cable•
1 x Antenna•
1 x User manual•
1 x Quick start guide•
English
EN
PD7007_98_UM_V1.0.indd Sec1:9PD7007_98_UM_V1.0.indd Sec1:9 2010-2-3 17:16:032010-2-3 17:16:03

10
Overview of the main unit
a Display panel
b DC IN
Power supply socket.•
c
Headphone jack.•
d AV OUT
Audio/video output jack.•
e + VOL -
Increases or decreases volume.•
f POWER ON/OFF (CHR)
Turns on/off DVD player.•
g IR/CHR/PWR
Remote control sensor/Charging indicator/Power indicator.•
h OPEN
Opens the disc compartment.•
b
a
c
d
e
f
i
j
k
l
m
g
h
n
EN
PD7007_98_UM_V1.0.indd Sec1:10PD7007_98_UM_V1.0.indd Sec1:10 2010-2-3 17:16:032010-2-3 17:16:03

11
i (CH+), (CH-), ,
Navigates menus.•
(CH+), (CH-)
Switches to the next or previous channel.•
,
Searches backward/forward at different speeds.•
/OK
Confirms an entry or selection.•
Starts, pauses or resumes disc play.•
j ,
Skips to the previous or next title, chapter, or track.•
k
Stops disc play.•
l MENU
For DVD, accesses or exits disc menu.•
For VCD, turns on or off PBC (Playback Control) mode.•
For VCD version 2.0 or SVCD with PBC turned on, returns to•
the menu.
For TV, turns on the TV setup menu.•
For data discs, goes to the file manager screen.•
m DVD/TV
Switches between DVD and TV.•
n ANTENNA
Antenna jack.•
English
EN
PD7007_98_UM_V1.0.indd Sec1:11PD7007_98_UM_V1.0.indd Sec1:11 2010-2-3 17:16:032010-2-3 17:16:03

12
Overview of the remote control
a SOURCE
Switches between DVD and TV.•
b MENU
Accesses or exits the disc/TV menu.•
c DISPLAY
Adjusts the display value of the system.•
d
, , ,
Navigates menus.•
SOURCE
SETUP
MUTE
SUBTITLE REPEAT
AUDIO
ZOOM
TV AUDIO
CH+
123
456
78
0
9
OK
DISPLAY
MENU
p
o
n
l
mi
h
j
k
c
b
a
f
d
e
g
EN
PD7007_98_UM_V1.0.indd Sec1:12PD7007_98_UM_V1.0.indd Sec1:12 2010-2-3 17:16:042010-2-3 17:16:04

13
,
Searches backward/forward at different speeds.•
OK
Confirms an entry or selection.•
e
,
Skips to the previous or next title, chapter, or track.•
f
Stops disc play.•
g CH+/CH-
Switches to the next or previous channel.•
h 0-9
Numeric keypad.•
i REPEAT
Repeats a chapter/track/title.•
j ZOOM
Zooms into a video scene or picture.•
k A-B
Marks the section for repeat play.•
l AUDIO/TV AUDIO
For DVD, selects an audio language.•
For VCD, selects an audio mode.•
For TV, selects the audio system.•
m SUBTITLE
Selects DVD subtitle language.•
n
Starts or resumes disc play.•
o MUTE
Mutes or restores volume.•
p SETUP
Accesses or exits the setup menu.•
English
EN
PD7007_98_UM_V1.0.indd Sec1:13PD7007_98_UM_V1.0.indd Sec1:13 2010-2-3 17:16:052010-2-3 17:16:05

14
3 Get started
Caution
Use the controls only as stated in this user manual.•
Always follow the instructions in this chapter in sequence.•
If you contact Philips, you will be asked for the model and serial number of
your player.The model number and serial number are on the bottom of your
player.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Install remote control batteries
Caution
Risk of explosion! Keep batteries away from heat, sunshine or fire. Never discard•
batteries in fire.
Risk of decreased battery life! Never mix different brands or types of batteries.
•
Risk of product damage! When the remote control is not used for long periods,•
remove the batteries.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or
•
equivalent type.•
Batteries contain chemical substances, they should be disposed of properly.•
1 Open the battery compartment.
2 Insert 2 AAA batteries with correct polarity (+/-) as indicated.
3 Close the battery compartment.
EN
PD7007_98_UM_V1.0.indd Sec1:14PD7007_98_UM_V1.0.indd Sec1:14 2010-2-3 17:16:062010-2-3 17:16:06

15
Connect additional equipment
Connect a TV
Caution
Turn off your player before connecting to any additional equipment.•
You can connect the player to a TV or an amplifier to enjoy DVDs.
Match the color of the AV cables (the AV cable connected to the TV is not
supplied) with the jacks:
the yellow cable is for the yellow video jack.•
the red/white cable is for the red/white audio jacks.•
Note
You cannot output the TV content from the player to a TV.•
Connect TV antenna
You can connect your player to the supplied antenna or home antenna to
receive digital TV program.
1 Connect the antenna to the ANTENNA jack.
TV
English
EN
not supplied
PD7007_98_UM_V1.0.indd Sec1:15PD7007_98_UM_V1.0.indd Sec1:15 2010-2-3 17:16:062010-2-3 17:16:06

16
Tip
For better reception, connect the player to home antenna.•
Charge the battery
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the•
voltage printed on the bottom of the player.
Use only the supplied AC adaptor to charge the battery.
•
Note
The type plate is located on the bottom of the player.•
You can only charge the player when it is in power-off mode.•
1 Slide the POWER ON/OFF (CHR) switch to OFF position.

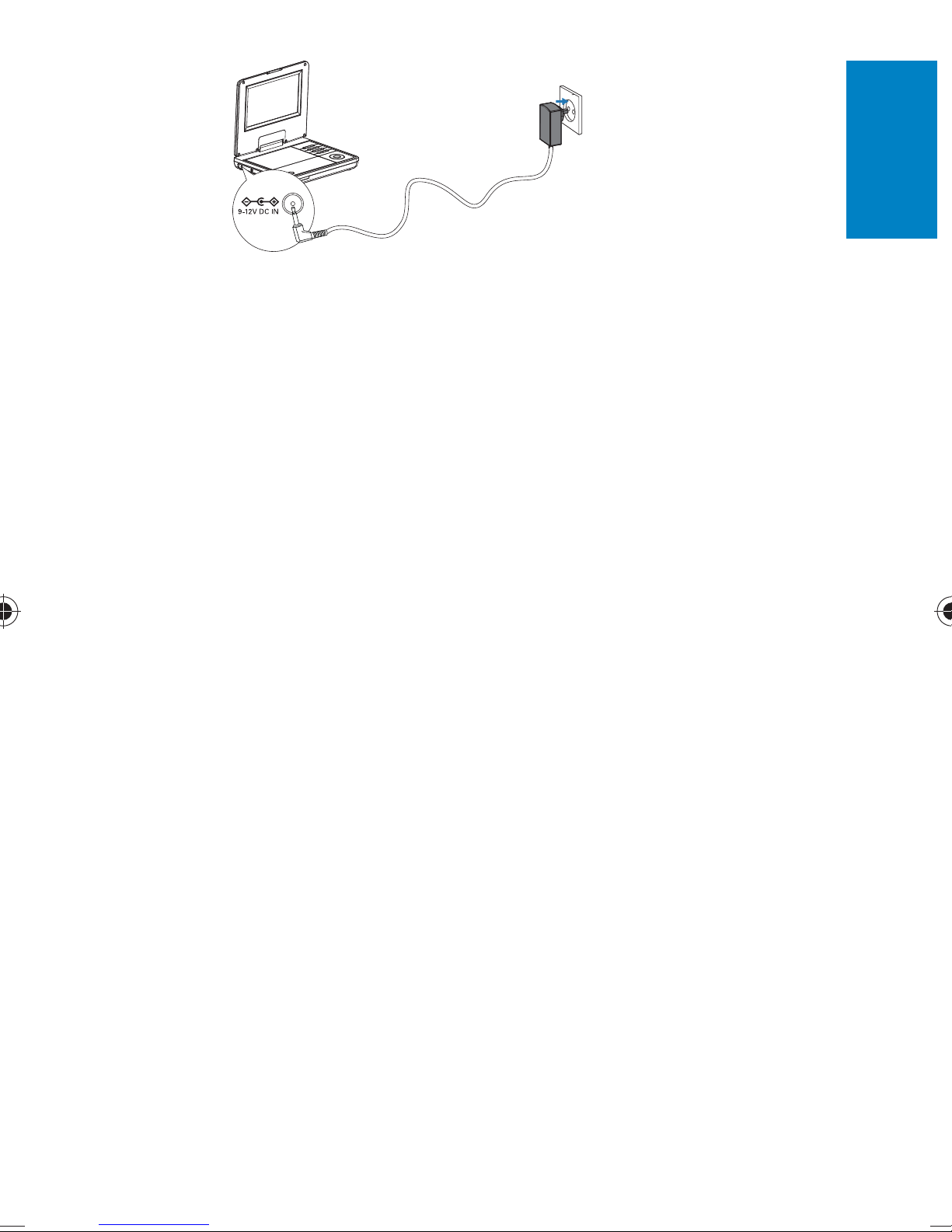

2 Connect the supplied AC adaptor to the player and to the AC outlet.
Cable
EN
PD7007_98_UM_V1.0.indd Sec1:16PD7007_98_UM_V1.0.indd Sec1:16 2010-2-3 17:16:062010-2-3 17:16:06

17
The charge indicator turns on. It takes about 7 hours to fully charge»
the battery.
When the battery is fully charged, the charge indicator turns off.»
English
EN
PD7007_98_UM_V1.0.indd Sec1:17PD7007_98_UM_V1.0.indd Sec1:17 2010-2-3 17:16:072010-2-3 17:16:07

18
4 Play
Turn on
Slide the POWER ON/OFF (CHR) switch to the ON position.
The»PWR indicator turns on.
Select OSD language
You can choose a different language for the on-screen display text.
1 Press SETUP.
The setup menu appears.»
2 Go to [-- General Setup Page --] > [OSD Language].
3 Press to select an option.
4 Press /OK to confirm.
5 Press SETUP to exit.
Play discs
1 Press SOURCE to switch to disc mode.
2 Press OPEN on the main unit to open the disc compartment.
3 Insert a disc with the label side facing up.
4 Push down to close the disc compartment.
Play starts automatically.»
If a menu appears, select an item, then press• /OK to start
play.
To pause, pres• /OK. Press again to resume play.
To stop, press• .
French
German
EN
PD7007_98_UM_V1.0.indd Sec1:18PD7007_98_UM_V1.0.indd Sec1:18 2010-2-3 17:16:082010-2-3 17:16:08

19
To select the previous/next item, press• or .
To start search within video/audio, press and hold• or .
Briefly press or during search to adjust search speed.
Play options
Select audio language
For DVDs that contain two or more audio languages.
During play, press• AUDIO repeatedly until the language is selected.
Select subtitle language
For DVDs that contain two or more subtitle languages.
During play, press• SUBTITLE repeatedly until the language is
selected.
Repeat
During play, press• REPEAT repeatedly to select different repeat
options.
Tip
For VCDs, if PBC is on, you cannot repeat items.•
Repeat a section
You can repeat a specific section of audio/video within a title/chapter/track
(repeat A-B).
1 During play, at the chosen start point, press A-B.
»[A] is displayed.
2 At the chosen end point, press A-B again.
»[AB] is displayed.
The selected section plays repeatedly.»
3 Press A-B to cancel.
English
EN
PD7007_98_UM_V1.0.indd Sec1:19PD7007_98_UM_V1.0.indd Sec1:19 2010-2-3 17:16:082010-2-3 17:16:08

20
Zoom
For DVDs, VCDs and JPEG CDs, you can zoom in and out for video
images or pictures.
1 Press ZOOM repeatedly to zoom in and out.
2 When the video image or picture is enlarged, press , , , to pan
through it.
Rotate pictures
For JPEG CDs only. While the JPEG is displayed:
Press• to rotate counter-clockwise.
Press• to rotate clockwise.
Press• to flip up/down.
Press• to flip left/right.
EN
PD7007_98_UM_V1.0.indd Sec1:20PD7007_98_UM_V1.0.indd Sec1:20 2010-2-3 17:16:092010-2-3 17:16:09

21
5 Watch TV
Note
Before you start, ensure that you have connected the antenna to the player.•
Make sure you are in an area with sufficient signal coverage. You can check the signal•
coverage with the TV broadcast authority of your country or visit www.philips.com/
support.
Set up your TV
1 Press SOURCE to select TV mode.
2 Press MENU.
The TV menu is displayed.»

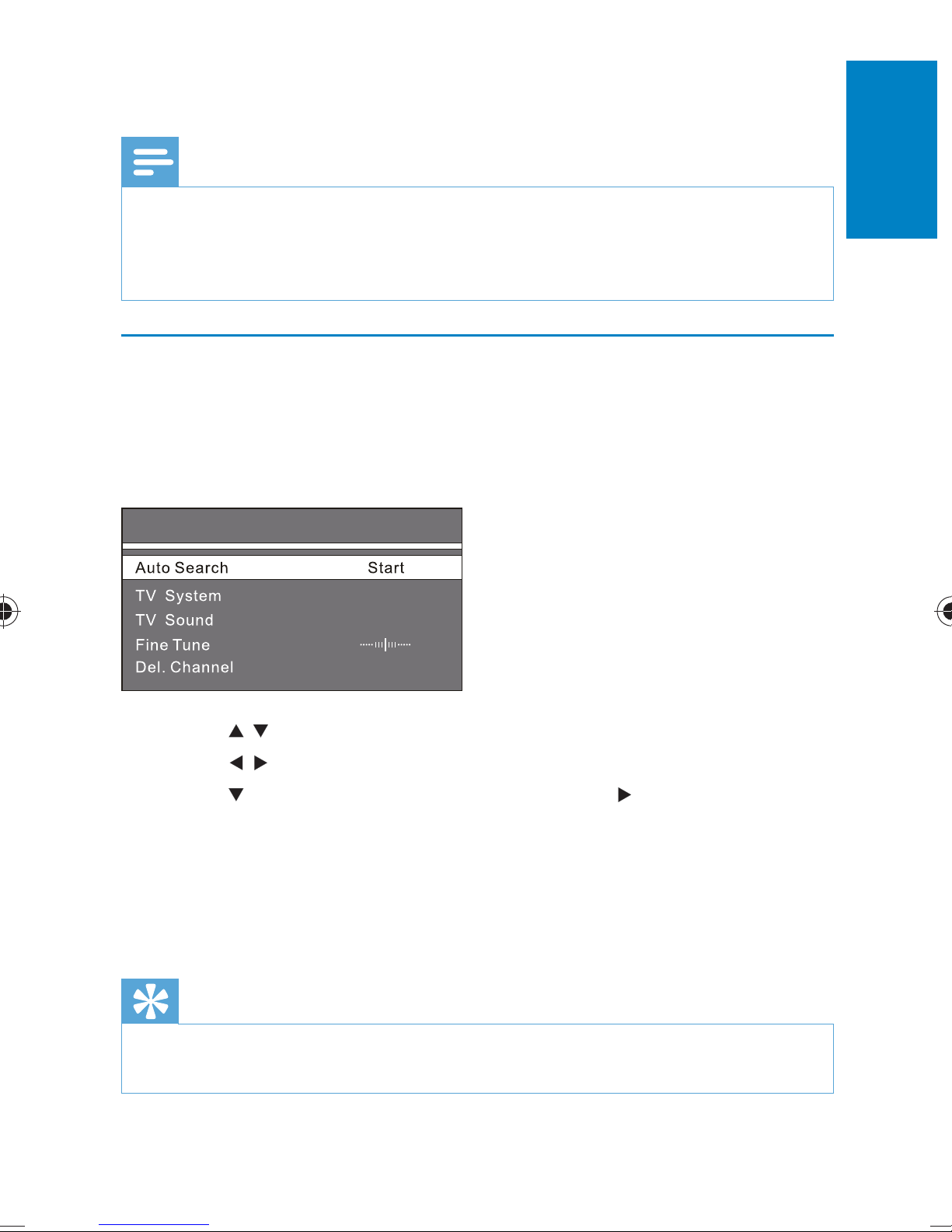

3 Press / to switch to an item.
4 Press / to select an option.
5 Press to switch to [Auto Search], and press to start.
Auto search starts.»
All available TV channels will be searched and stored.»
To watch another channel, press• CH+/CH-.
To delete a channel, switch to the channel, and select• [TV
Menu] > [Del. Channel].
Tip
Check with local TV broadcast authorities for TV system and TV sound•
configurations.
PAL
DK
TV Menu
English
EN
PD7007_98_UM_V1.0.indd Sec1:21PD7007_98_UM_V1.0.indd Sec1:21 2010-2-3 17:16:102010-2-3 17:16:10
