Contents
1 Important 4
Important safety instructions 4
Notice 6
2 Your portable DVD player 8
Introduction 8
What’s in the box 9
Overview of the main unit 9
Overview of the second screen 11
3 Get started 12
Preparation 12
Connect the second screen 13
Connect power 14
4 Use your player 15
Turn on 15
Select OSD language 15
Play discs 15
Play options 16
5 Adjust settings 17
Set the main unit 17
Set the second screen 18
6 Use more of your player 19
Connect additional equipment 19
Connect power from household source 20
7 Product information 21
8 Troubleshooting 22
English
EN
PET7402_05_DFU_ENG.indd Sec1:3PET7402_05_DFU_ENG.indd Sec1:3 1/15/2009 1:33:29 PM1/15/2009 1:33:29 PM

4
1 Important
Important safety instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
h Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
i Protect the power cord from being walked on or pinched, particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
j Only use attachments/accessories specified by the manufacturer.
k Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
l Unplug this apparatus during lightning storms or when unused for
long periods of time.
m Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
n Battery usage CAUTION – To prevent battery leakage which may
result in bodily injury, property damage, or damage to the unit:
Install all batteries correctly, + and - as marked on the unit.
•
Do not mix batteries (old and new or carbon and alkaline, etc.).
•
Remove batteries when the unit is not used for a long time.
•
EN
PET7402_05_DFU_ENG.indd Sec1:4PET7402_05_DFU_ENG.indd Sec1:4 1/15/2009 1:33:29 PM1/15/2009 1:33:29 PM

5
o Apparatus shall not be exposed to dripping or splashing.
p Do not place any sources of danger on the apparatus (e.g. liquid filled
objects, lighted candles).
q This product may contain lead and mercury. Disposal of these
materials may be regulated due to environmental considerations. For
disposal or recycling information, please contact your local authorities
or the Electronic Industries Alliance: www.eiae.org.
Warning
Never remove the casing of this apparatus.
•
Never lubricate any part of this apparatus.
•
Never place this apparatus on other electrical equipment.
•
Keep this apparatus away from direct sunlight, naked flames or heat.
•
Never look into the laser beam inside this apparatus.
•
Ensure that you always have easy access to the power cord, plug or adaptor to
•
disconnect this apparatus from the power.
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can impair your hearing.This
•
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute.The
higher decibel ranges are offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’ adapts
•
to higher volumes of sound. So after prolonged listening, what sounds
‘normal’ can actually be loud and harmful to your hearing.To guard
against this, set your volume to a safe level before your hearing adapts
and leave it there.
To establish a safe volume level:
Set your volume control at a low setting.
•
Slowly increase the sound until you can hear it comfortably and clearly,
•
without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally ‘safe’ levels, can also
•
cause hearing loss.
Be sure to use your equipment reasonably and take appropriate breaks.
•
English
EN
PET7402_05_DFU_ENG.indd Sec1:5PET7402_05_DFU_ENG.indd Sec1:5 1/15/2009 1:33:30 PM1/15/2009 1:33:30 PM

6
Be sure to observe the following guidelines when using your headphones.
Listen at reasonable volumes for reasonable periods of time.
•
Be careful not to adjust the volume as your hearing adapts.
•
Do not turn up the volume so high that you can’t hear what’s around
•
you.
You should use caution or temporarily discontinue use in potentially
•
hazardous situations. Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a traffic
hazard and is illegal in many areas.
Notice
Environmental information
All unnecessary packaging has been omitted.We have tried to make the
packaging easy to separate into three materials: cardboard (box), polystyrene
foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if
disassembled by a specialized company. Please observe the local regulations
regarding the disposal of packaging materials, exhausted batteries and old
equipment.
Any changes or modifications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
Recycling
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to
a product, it means the product is covered by the European
Directive 2002/96/EC:
Never dispose of your product with other household waste. Please
inform yourself about the local rules on the separate collection of
electrical and electronic products.The correct disposal of your old
product helps prevent potentially negative consequences on the environment
and human health.
EN
PET7402_05_DFU_ENG.indd Sec1:6PET7402_05_DFU_ENG.indd Sec1:6 1/15/2009 1:33:30 PM1/15/2009 1:33:30 PM

7
The making of unauthorized copies of copy-
protected material, including computer programs,
files, broadcasts and sound recordings, may be an
infringement of copyrights and constitute a criminal offence.This equipment
should not be used for such purposes.
Recording and playback of material might require consent. See Copyright Act
1956 and The Performer’s Protection Acts 1958 to 1972.
“DivX, DivX” Certified, and associated logos are trademarks of
DivX, Inc. and are used under license.
This apparatus includes this label:
English
EN
PET7402_05_DFU_ENG.indd Sec1:7PET7402_05_DFU_ENG.indd Sec1:7 1/15/2009 1:33:31 PM1/15/2009 1:33:31 PM

8
2 Your portable DVD player
Congratulations on your purchase, and welcome to Philips! To fully benefit
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
Your portable DVD player plays digital video discs that conform to the
universal DVD Video standard.With it, you can play movies with true cinema
picture quality and stereo or multi-channel sound (depending on disc and
playback set-up).
You can also select sound track, subtitle languages, and different angle of view
(again depending on DVD disc). Besides, you can restrict the play of discs that
are not suitable for children.
You can play the following discs on the DVD player (including CD-R, CD-RW,
DVD±R and DVD±RW):
DVD-Video
Video CD
Audio CD
MP3 CD
DivX
Discs with JPEG files
EN
PET7402_05_DFU_ENG.indd Sec1:8PET7402_05_DFU_ENG.indd Sec1:8 1/15/2009 1:33:31 PM1/15/2009 1:33:31 PM

9
What’s in the box
Check and identify the contents of your package:
Main unit x 1
•
Second screen x 1
•
AC power adaptor x 1, DSA-9W-09 F (DVE) or AY4132 (Philips)
•
Car adaptor x 1
•
AV cable x 2
•
Fastening strap x 2
•
User Manual x 1
•
Quick Start Guide x 1
•

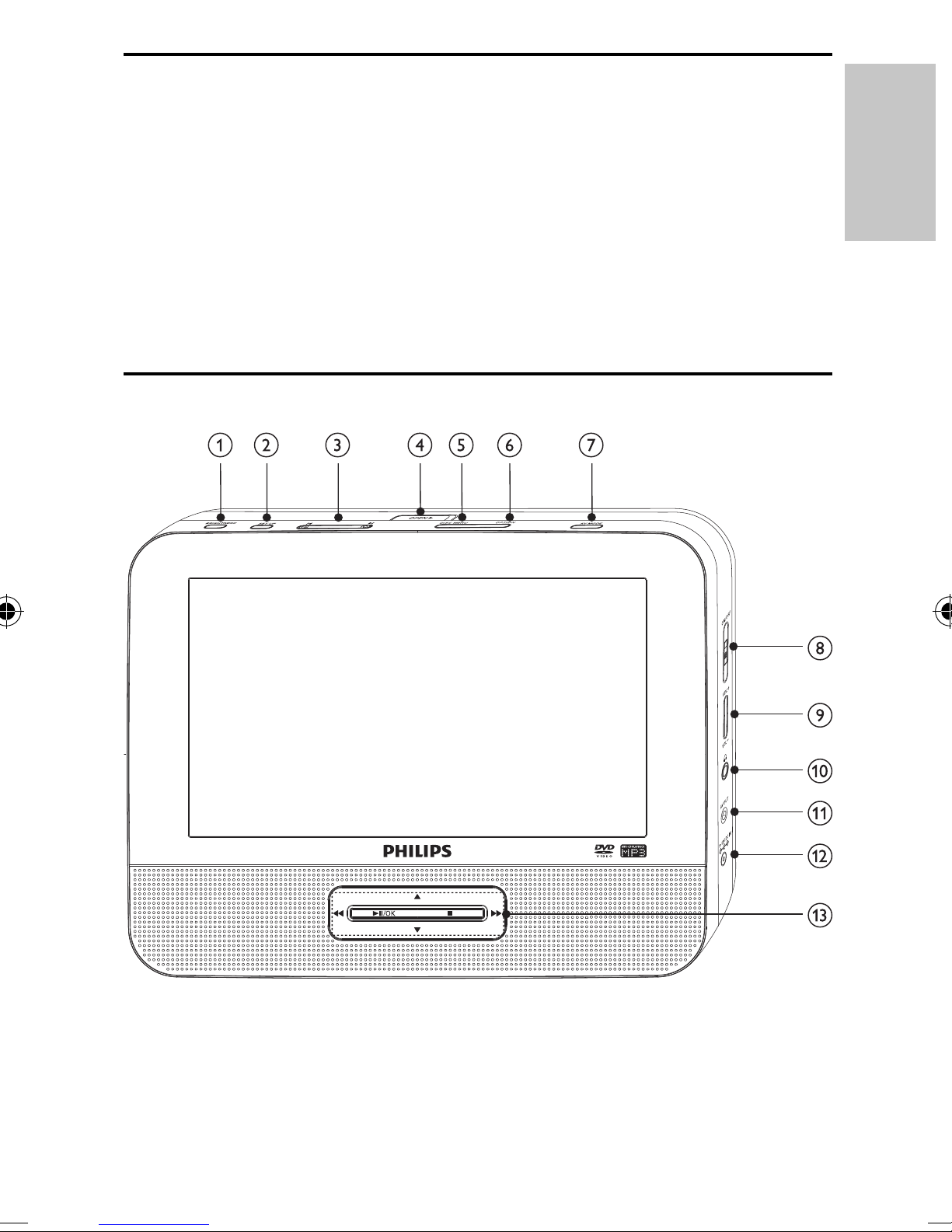

Overview of the main unit
a BRIGHTNESS
Adjusts screen brightness.
•
b
SETUP
Accesses or exits the setup menu.
•
English
EN
PET7402_05_DFU_ENG.indd Sec1:9PET7402_05_DFU_ENG.indd Sec1:9 1/15/2009 1:33:32 PM1/15/2009 1:33:32 PM

10
c,
Skips to the previous or next title, chapter, or track.
•
d
OPEN
Opens the disc compartment.
•
e
DISC MENU
For DVD, accesses or exits disc menu.
•
For VCD, turns on or off PBC (Playback Control) mode.
•
For VCD version 2.0 or SVCD with PBC turned on, returns to the
•
menu.
f OPTION
Accesses options relating to the current activity or selection.
•
g
AV MODE
Turns off the front panel display when the player is connected to
•
TV.
h ON/OFF
Turns on/off DVD player.
•
i
VOL +/-
Increases or decreases volume.
•
j
Headphone jack.
•
k
AV OUT
Audio/video output jack.
•
l
DC IN
Power supply socket.
•
m , , ,
Navigates through the menus.
•
,
Searches backward/forward at different speeds.
•
/OK
Confirms an entry or selection.
•
Starts, pauses or resumes disc play.
•
Stops disc play.
•
EN
PET7402_05_DFU_ENG.indd Sec1:10PET7402_05_DFU_ENG.indd Sec1:10 1/15/2009 1:33:33 PM1/15/2009 1:33:33 PM

11
Overview of the second screen
a DC IN
Power supply socket.
•
b
AV IN
Audio/video input jack.
•
c
Headphone jack.
•
d VOL -/+
Decreases or increases volume.
•
e
BRIGHTNESS -/+
Adjusts screen brightness.
•
f
OFF/ON
Turns off/on the second screen.
•
English
EN
PET7402_05_DFU_ENG.indd Sec1:11PET7402_05_DFU_ENG.indd Sec1:11 1/15/2009 1:33:34 PM1/15/2009 1:33:34 PM

12
3 Get started
Caution
Use the controls only as stated in this user manual.
•
Always follow the instructions in this chapter in sequence.
•
If you contact Philips, you will be asked for the model and serial number of
your apparatus.The model number and serial number are on the back of the
apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Preparation

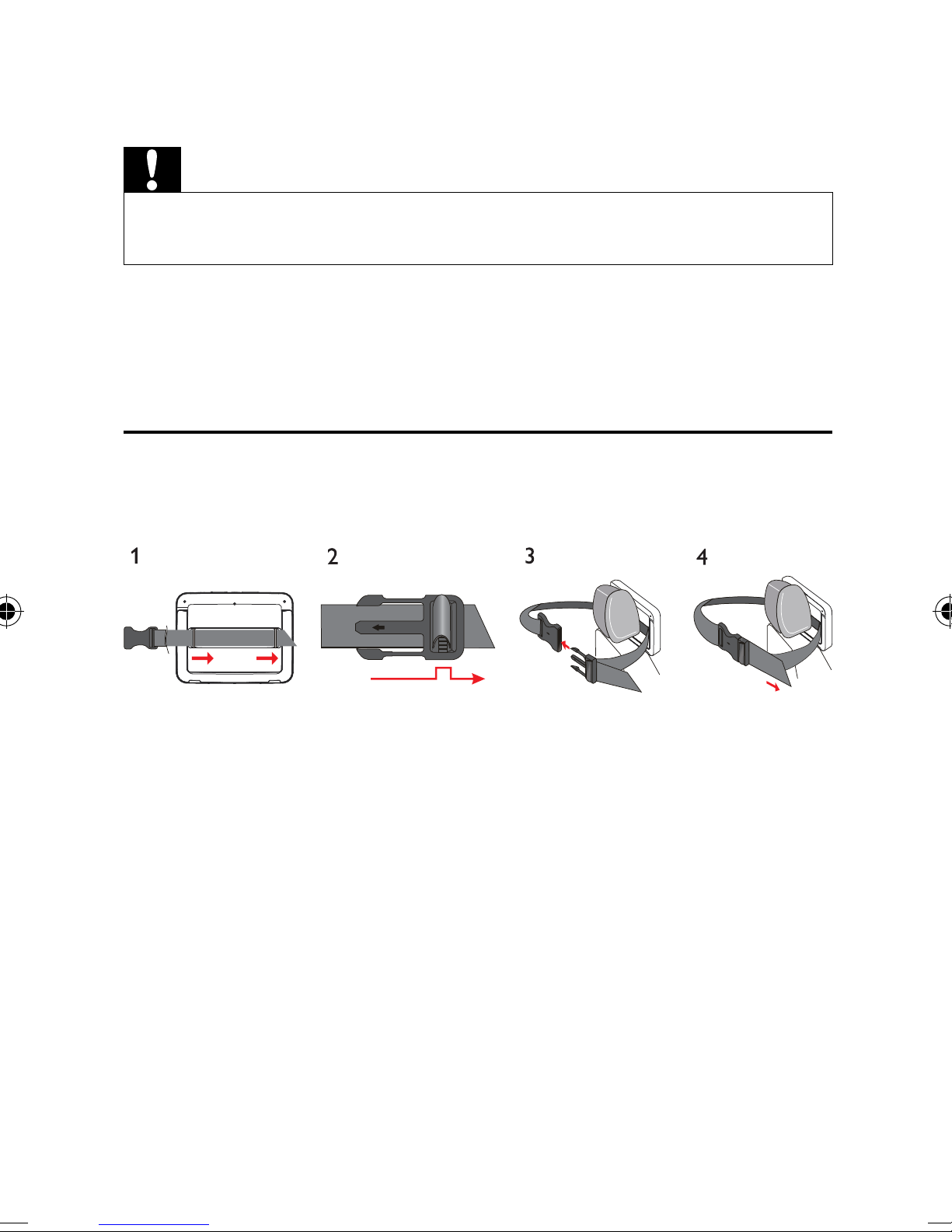

To use the player in a car, attach the main unit and the second screen to the
back of the front seat headrests.
1 Pull the strap through the loops on the back of the main unit.
2 Hold the buckle with the marked arrow facing you, then attach the
buckle to the strap.
3 Position the main unit at the back of the headrest, then fasten the
buckle.
4 Pull the strap to secure the main unit to the headrest.
To attach the second screen, repeat the above steps.
•
EN
PET7402_05_DFU_ENG.indd Sec1:12PET7402_05_DFU_ENG.indd Sec1:12 1/15/2009 1:33:35 PM1/15/2009 1:33:35 PM

13
Connect the second screen
Caution
Turn off your player before you connect the second screen.
•

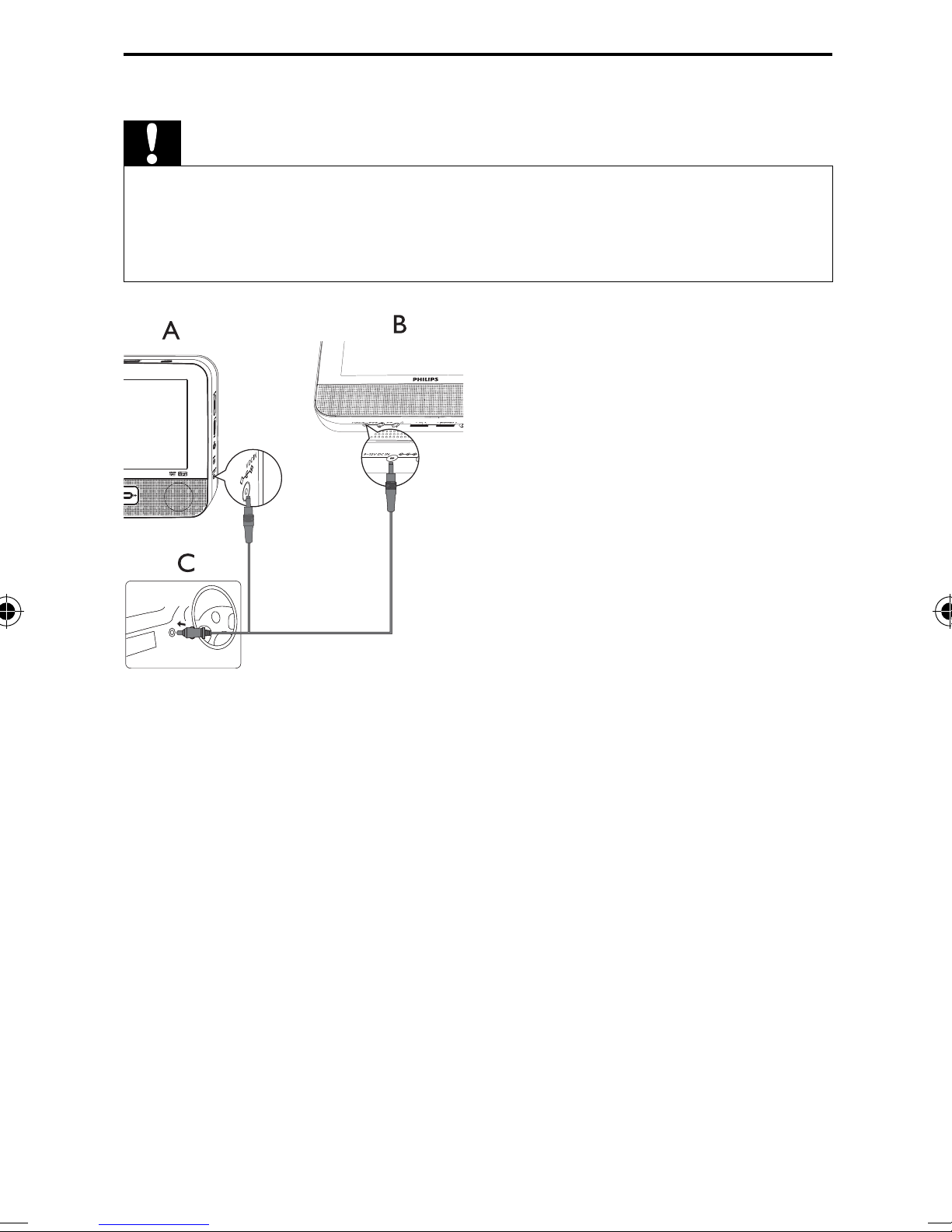

A: main unit; B: second screen
1 Connect the supplied AV cable to:
the
• AV OUT jack on the main unit.
the
• AV IN jack on the second screen.
English
EN
PET7402_05_DFU_ENG.indd Sec1:13PET7402_05_DFU_ENG.indd Sec1:13 1/15/2009 1:33:36 PM1/15/2009 1:33:36 PM

14
Connect power
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the
•
voltage pointed on the back or the underside of the player.
Risk of electric shock! When you unplug the AC adapter, always pull the plug from the
•
socket. Never pull the cable.

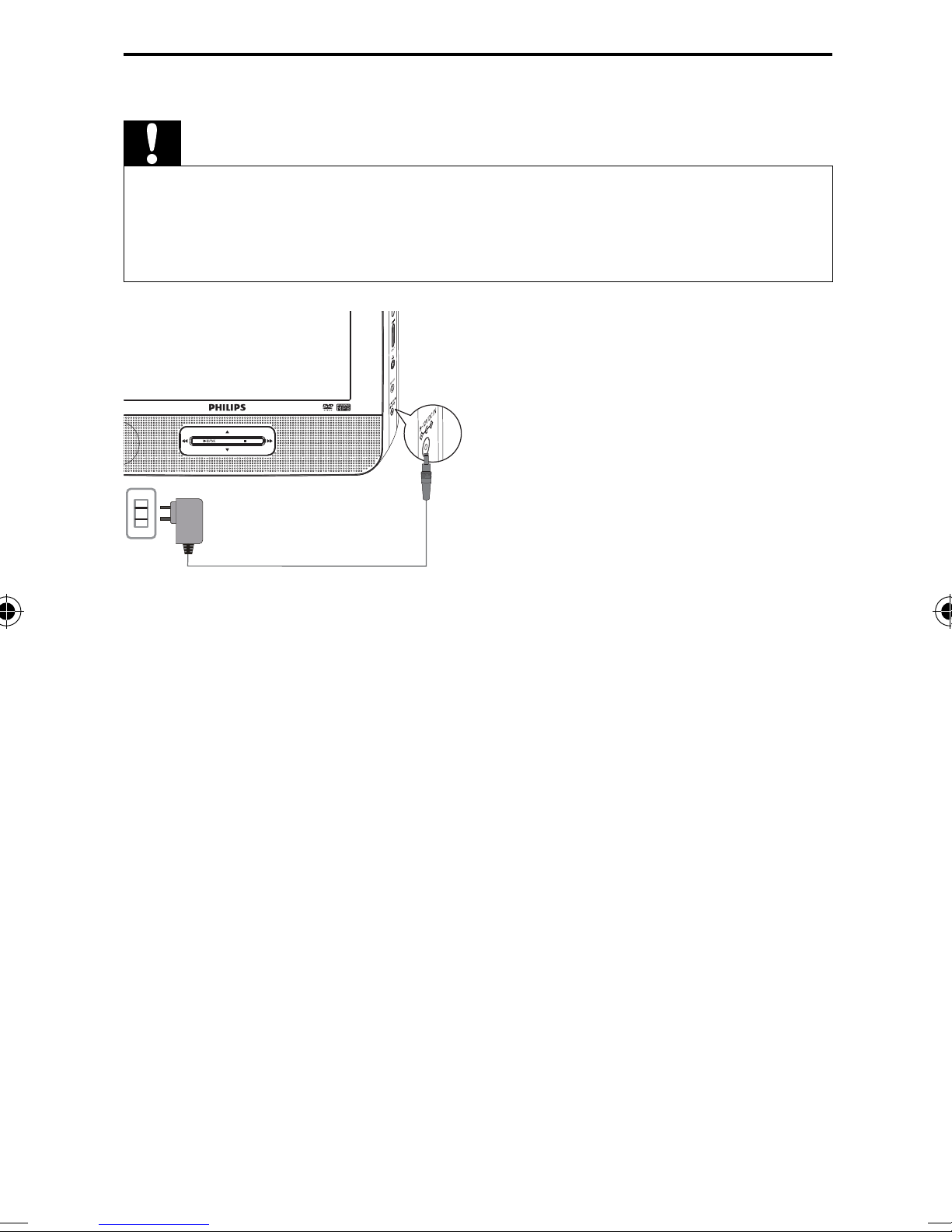

A: main unit; B: second screen; C: car cigarette lighter
1 Connect one end of the double-connector end of the AC cable to the
DC IN jack on the main unit.
2 Connect the other end of the double-connector end of the AC cable to
the DC IN jack on the second screen.
3 Connect the one-connector end to the car cigarette lighter socket.
EN
PET7402_05_DFU_ENG.indd Sec1:14PET7402_05_DFU_ENG.indd Sec1:14 1/15/2009 1:33:37 PM1/15/2009 1:33:37 PM

15
4 Use your player
Turn on
1 Slide the ON/OFF switch on the main unit to the ON position.
To turn on the second screen, slide the
• OFF/ON switch on the
second screen to the ON position.
Select OSD language

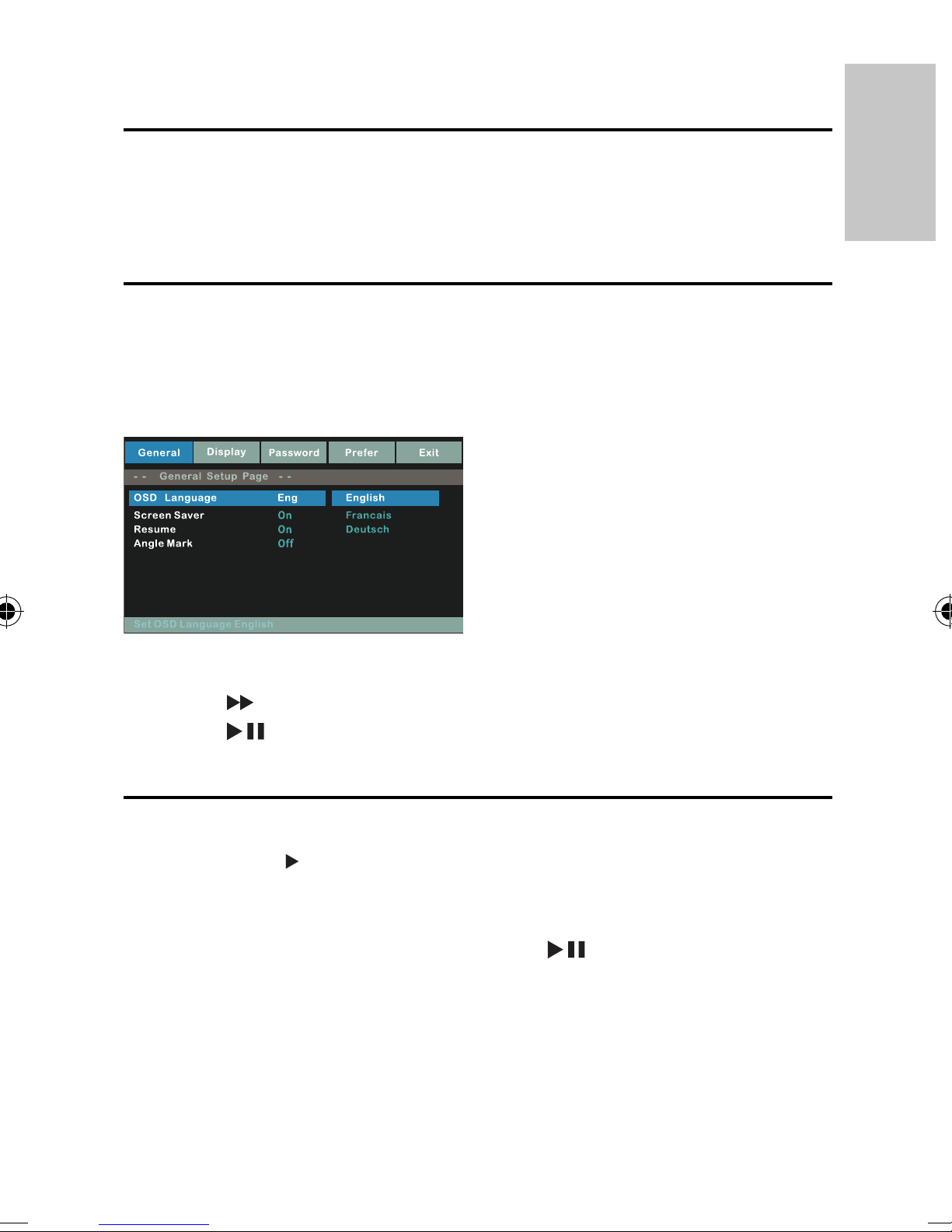

You can choose a different language for the on-screen display text.
1 Press SETUP.
The setup menu appears.
»
2 Select [-- General Setup Page --] > [OSD Language].
3 Press to select an option.
4 Press /OK to confirm.
5 Press SETUP to exit.
Play discs
1 Slide OPEN on the main unit.
2 Insert the disc with label side facing up.
3 Push down to close the disc compartment.
Play starts automatically. If not, press
»/OK.
English
EN
PET7402_05_DFU_ENG.indd Sec1:15PET7402_05_DFU_ENG.indd Sec1:15 1/15/2009 1:33:39 PM1/15/2009 1:33:39 PM

16
If a menu appears, select an item, then press
• /OK to start play.
To pause, press
• /OK. Press again to resume play.
To stop, press
• twice.
To select the previous/next item, press
• or .
To start search within video/audio, press
• or once or more.
Play options
1 During play, press OPTION to select some play options.
For DVD
• [Audio]
• [Subtitle]
• [Repeat]
• [Time Disp.]
For VCD
• [Audio]
• [Repeat]
• [Time Disp.]
For audio CDs
• [Repeat One]
• [Repeat Folder]
• [Repeat Off]
For JPEG CDs
• [Repeat One]
• [Repeat Folder]
2 Follow the on-screen instructions.
EN
PET7402_05_DFU_ENG.indd Sec1:16PET7402_05_DFU_ENG.indd Sec1:16 1/15/2009 1:33:40 PM1/15/2009 1:33:40 PM

17
5 Adjust settings
Set the main unit
To maximize your play experience, use SETUP to fine tune your settings.
1 Press SETUP.
The setup menu is displayed.
»
2 Press to select an option and press /OK to confirm.
[-- General Setup Page --]
[OSD Language] Select on-screen display language.
[Screen Saver] Activate/deactivate screen saver.
[Resume] Select whether to start play from the
point where it was last stopped.
[Angle Mark] select angle mark display options.
[-- Display Setup Page --]
[Brightness] Adjust screen brightness.
[Contrast] Adjust screen contrast.
[Screen Display] Select display ratio.
[-- Password --]
[Password] Change password (3308 by default).
[-- Preference Page --]
[Audio] Select audio language.
[DVD Subtitle] Select DVD subtitle language.
[DivX Subtitle] Select DivX subtitle language.
[Disc Menu] Select disc menu language.
[Parental] Select parental level.
[DivX VOD] Get DivX registration code.
[Default] Restore original settings.
3 Press to go back to previous menu level.
4 Press SETUP to exit.
English
EN
PET7402_05_DFU_ENG.indd Sec1:17PET7402_05_DFU_ENG.indd Sec1:17 1/15/2009 1:33:41 PM1/15/2009 1:33:41 PM

18
Set the second screen
You can also set the second screen.
To adjust volume level for the second screen, rotate
• VOL -/+ on the
second screen.
To adjust the brightness of the second screen, rotate
• BRIGHTNESS -/+
on the second screen.
EN
PET7402_05_DFU_ENG.indd Sec1:18PET7402_05_DFU_ENG.indd Sec1:18 1/15/2009 1:33:41 PM1/15/2009 1:33:41 PM

19
6 Use more of your player
Connect additional equipment
Caution
Turn off your player before connecting to any additional equipment.
•
You can connect the player to a TV or an amplifier to enjoy DVDs or
Karaoke.
Match the color of the AV cables (the AV cable connected to TV is not
supplied) with the jacks: the yellow cable is for the yellow video jack, the red/
white cable is for the red/white audio jacks.
Tip
To conserve energy, press
• AV MODE to turn off the front panel display.
TV
English
EN
PET7402_05_DFU_ENG.indd Sec1:19PET7402_05_DFU_ENG.indd Sec1:19 1/15/2009 1:33:42 PM1/15/2009 1:33:42 PM

20
Connect power from household source
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the
•
voltage pointed on the back or the underside of the player.
Risk of electric shock! When you unplug the AC adaptor, always pull the plug from the
•
socket. Never pull the cable.
1 Connect the AC adaptor cable to:
the
• DC IN jack on the main unit.
the power outlet.
•
EN
PET7402_05_DFU_ENG.indd Sec1:20PET7402_05_DFU_ENG.indd Sec1:20 1/15/2009 1:33:42 PM1/15/2009 1:33:42 PM

21
7 Product information
Note
Product information is subject to change without prior notice.
•
Dimensions
- Main unit
- Second screen
200 x 155 x 39 mm
200 x 155 x 21 mm
Weight
- Main unit
- Second screen
0.7 kg
0.4 kg
Power supply Input: 100-240V 50/60Hz 0.3A
Output: DC 9V 1A
Power consumption 9 W
Operating temperature range 0-45°C
Laser wavelength 650 nm
Video system NTSC & PAL
Frequency response 20Hz-20KHz ± 1dB
Signal/noise ratio 80 dB
Audio distortion + noise -80 (1KHz)
Channel separation 80 dB
Dynamic range 80 dB
Audio out (analog audio) Output level: 2V ± 10%
Load impedance 10 K
Video out Output level: 1Vp - p ± 20%
Load impedance 75
English
EN
PET7402_05_DFU_ENG.indd Sec1:21PET7402_05_DFU_ENG.indd Sec1:21 1/15/2009 1:33:43 PM1/15/2009 1:33:43 PM
