3EN
Contents
1 Important 5
Safety and notice 5
Safety 5
Compliance 6
Copyright 7
Warranty 7
2 Your portable DVD player 9
What's in the box 9
Overview 10
Use the remote control (for PD9048 only) 14
3 Get started 15
Charge power 15
Switch the player on or off 17
Select the language for onscreen instructions 17
4 Play music or movies 18
Play from discs 18
Play from USB 21
Connect additional equipment 22
English
PD9028_9048_51_UM_V1.0.indb 3 5/11/2012 5:14:01 PM

4EN
5 Watch TV 23
Connect TV antenna 23
Tune in toTV channels 24
6 Adjust settings 26
7 Specications 27
8 Troubleshooting 29
PD9028_9048_51_UM_V1.0.indb 4 5/11/2012 5:14:01 PM

5EN
1 Important
Safety and notice
Read and understand all instructions before you use this product. If damage is
caused by failure to follow the instructions, the warranty does not apply.
Safety
Only use attachments/accessories specied by the manufacturer.
The product shall not be exposed to dripping or splashing.
Do not place any sources of danger on the product (e.g. liquid lled objects,
lighted candles).
Batteries (battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, re or the like.
Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type.
Risk of swallowing batteries! (for PD9048 only)
• The product or remote control may contain a button cell battery, which is
possible to be swallowed. Keep the battery out of reach of children at all
times! If swallowed, the battery can cause serious injury or death. Severe
internal burns can occur within two hours of ingestion.
• If you suspect that a battery has been swallowed or placed inside any part of
the body, seek immediate medical attention.
• When you change the batteries, always keep all new and used batteries out
of reach of children. Ensure that the battery compartment is completely
secure after you replace the battery.
• If the battery compartment cannot be completely secured, discontinue use
of the product. Keep out of reach of children and contact the manufacturer.
English
PD9028_9048_51_UM_V1.0.indb 5 5/11/2012 5:14:01 PM

6EN
Modication of the product could result in hazardous radiation of EMC or
other unsafe operation.
Warning
•Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operable.
Warning
•Never remove the casing of this product.
•Never lubricate any part of this product.
•Never place this product on other electrical equipment.
•Keep this product away from direct sunlight, naked ames or heat.
•Never look into the laser beam inside this product.
•Ensure that you always have easy access to the power cord, plug or adaptor to disconnect the
product from the power.
Compliance

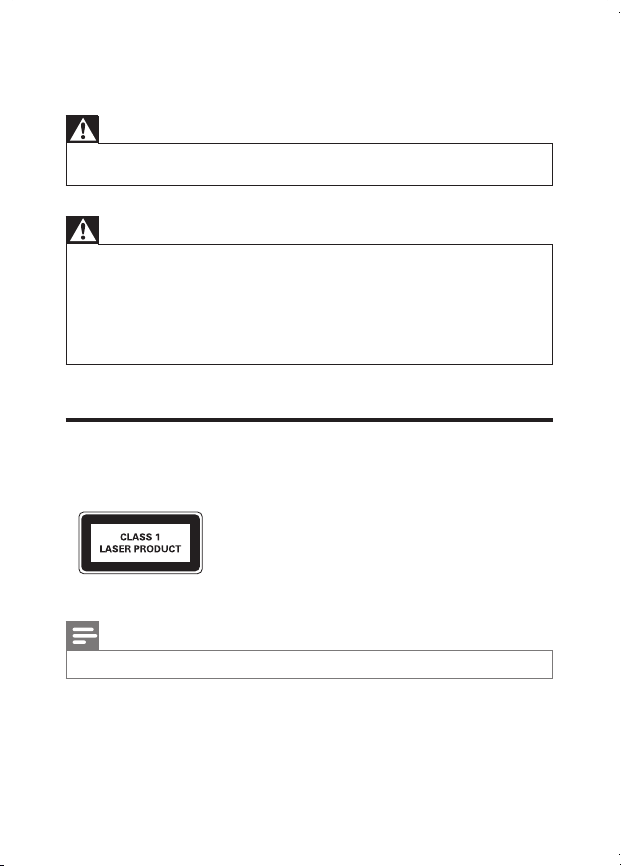

This apparatus includes this label:
Note
•The type plate is located on the bottom of the product.
PD9028_9048_51_UM_V1.0.indb 6 5/11/2012 5:14:01 PM

7EN
Copyright
This item incorporates copy protection technology that is protected by U.S.
patents and other intellectual property rights of Rovi Corporation. Reverse
engineering and disassembly are prohibited.
Specications are subject to change without notice. Trademarks are the property
of Koninklijke Philips Electronics N.V or their respective owners. Philips reserves
the right to change products at any time without being obliged to adjust earlier
supplies accordingly.
Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are trademarks of Dolby Laboratories.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc, a
subsidiary of Rovi Corporation. This is an ofcial DivX Certied® device that plays
DivX video.Visit divx.com for more information and software tools to convert
your les into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be
registered in order to play purchased DivXVideo-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete your
registration.
Warranty
• Risk of injury, damage to the player or void of warranty! Never attempt to
repair the player yourself.
English
PD9028_9048_51_UM_V1.0.indb 7 5/11/2012 5:14:02 PM

8EN
• Use the player and accessories only as intended by the manufacturer.The
caution sign printed on the back of the player indicates risk of electric shock.
• Never remove the player cover. Always contact Philips Customer Support
for service or repairs.
• Any operation expressly prohibited in this manual, or any adjustments and
assembly procedures not recommended or authorized in this manual shall
void the warranty.
PD9028_9048_51_UM_V1.0.indb 8 5/11/2012 5:14:02 PM

9EN
2 Your portable DVD player
Congratulations on your purchase, and welcome to Philips! To fully benet from
the support that Philips offers, register your product at www.philips.com/welcome.
What's in the box
Check and identify the contents of your package:
• Portable DVD player
• Remote control (for PD9048 only)
• AC power adaptor - ASCU12E-090080 (Philips)
• Car adaptor
• AV cable
• Antenna
• Mounting bag (for PD9048 only)
• Printing materials
English
PD9028_9048_51_UM_V1.0.indb 9 5/11/2012 5:14:02 PM

10 EN
Overview

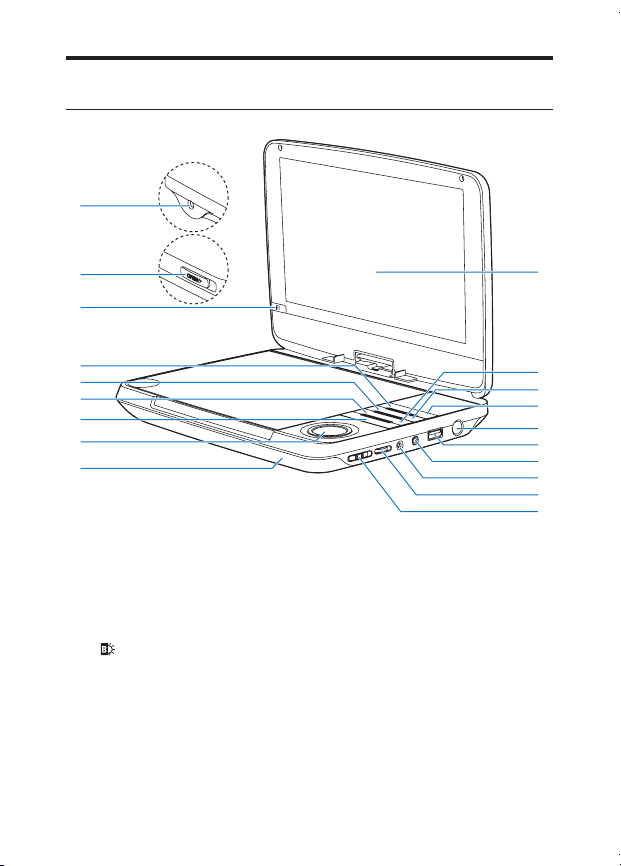

Main unit
a Display panel
b STOP
• Stops disc play.
• Press and hold to exit theTV search menu
c
• Adjusts brightness of the screen backlight.
d SETUP
• Accesses or exits the setup menu.
e ANTENNA
• Antenna jack.
o
p
n
m
r
s
l
k
i
j
h
g
f
e
a
d
c
b
q
PD9028_9048_51_UM_V1.0.indb 10 5/11/2012 5:14:03 PM

11EN
f
• Connects USB device.
g AV OUT
• Audio/video output jack.
h
• Headphone jack.
i + VOL -
• Increases or decreases volume.
j (CHR)OFF•POWER•ON
• Turns on/off DVD player.
k CHR/
• Charging indicator/Power indicator.
l (CH+), (CH-), ,
• Navigates menus.
(CH+), (CH-)
• Switches to the next or previous channel.
,
• Searches backward/forward at different speeds.
/OK
• Conrms an entry or selection.
• Starts, pauses or resumes disc play.
m PREV/NEXT
• Skips to the previous or next title, chapter, or track.
n DISC MENU
• For DVD, accesses or exits disc menu.
• ForVCD, turns on or off PBC (Playback Control) mode.
• ForVCD version 2.0 or SVCD with PBC turned on, returns to the
menu.
• For data discs, goes to the le manager screen.
o OPTIONS
• Accesses options relating to the current activity or selection.
p SOURCE
• Switches between DVD, USB and TV.
English
PD9028_9048_51_UM_V1.0.indb 11 5/11/2012 5:14:05 PM

12 EN
q IR (for PD9048 only)
• Remote control sensor.
r OPEN
• Opens the disc compartment.
s DC IN
• Power supply socket.
Remote control (for PD9048 only)
a
• Adjusts brightness of the screen backlight.
b DISC MENU
• For DVD, accesses or exits disc menu.
• ForVCD, turns on or off PBC (Playback Control) mode.
• ForVCD version 2.0 or SVCD with PBC turned on, returns to the
menu.
• For a USB device, accesses or exits the le menu.
OPTIONS
SOURCE
DISC
MENU
SUBTITLE
m
k
j
h
b
c
d
e
f
g
na
i
l
PD9028_9048_51_UM_V1.0.indb 12 5/11/2012 5:14:05 PM

13EN
c A-B
• Marks the section for repeat play.
d OPTIONS
• Accesses options relating to the current activity or selection.
e SUBTITLE
• Selects a DVD subtitle language.
f AUDIO
• For DVD, selects an audio language.
• ForVCD, selects an audio mode.
g ZOOM
• Zooms into a video scene or picture.
h 0-9
• Inputs numbers.
i
• Stops disc play.
• Press and hold to exit theTV search menu.
j SETUP
• Accesses or exits the setup menu.
k , , ,
• Navigates menus.
• Searches backward/forward at different speeds.
/OK
• Conrms an entry or selection.
• Starts, pauses or resumes disc play.
l /
• Skips to the previous or next title, chapter, or track.
m SOURCE
• Switches between DVD, USB and TV.
n DISPLAY
• Displays play information.
English
PD9028_9048_51_UM_V1.0.indb 13 5/11/2012 5:14:06 PM

14 EN
Use the remote control (for PD9048 only)

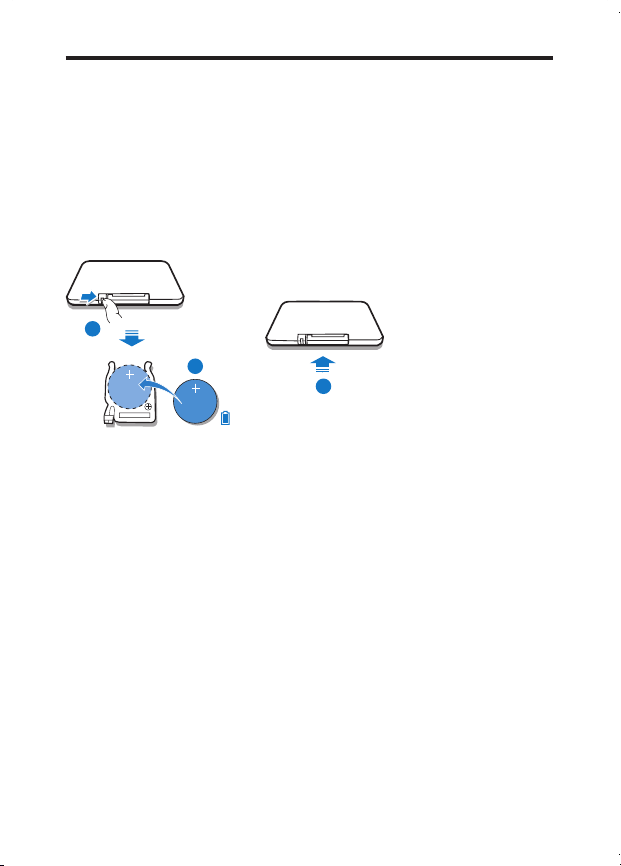

For rst-time use:
• Remove the protective tab to activate the remote control battery.
To replace the remote control battery:
1 Open the battery compartment.
2 Insert one CR2025 battery with correct polarity (+/-) as indicated.
3 Close the battery compartment.
1
2
3
PD9028_9048_51_UM_V1.0.indb 14 5/11/2012 5:14:07 PM

15EN
3 Get started
Caution
•Use the controls only as stated in this user manual.
•Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of your
player.The model number and serial number are on the bottom of your player.
Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Charge power
Charge through the AC power adaptor
Caution
•Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed
on the bottom of the player.
Note
•The type plate is located on the bottom of the player.
•You can only charge the player when it is in power-off mode.
1 Push the (CHR)OFF•POWER•ON slider to (CHR)OFF.
English
PD9028_9048_51_UM_V1.0.indb 15 5/11/2012 5:14:07 PM

16 EN
2 Connect the supplied AC adaptor to the player and to the AC outlet.
» The charge indicator turns on.
» When the battery is fully charged, the charge indicator turns off.
Tip
•To maximize battery life, recharge the battery immediately once the battery is fully discharged. If
you do not use the player for a long time, recharge the battery once every two months.
PD9028_9048_51_UM_V1.0.indb 16 5/11/2012 5:14:07 PM

17EN
Charge through car adaptor
Connect the supplied car adaptor to the player and car cigarette lighter.
Switch the player on or off
1 To switch on, push the (CHR)OFF•POWER•ON slider to ON.
» The indicator turns on.
2 To switch off, push the slider to (CHR)OFF.
Select the language for onscreen instructions
You can choose a different language for the on-screen display text.
1 Press SETUP.
» The setup menu appears.
TV
Русский
Українська
English
PD9028_9048_51_UM_V1.0.indb 17 5/11/2012 5:14:08 PM

18 EN
2 Go to [-- General Setup Page --] > [OSD Language].
3 Press to select an option.
4 Press /OK to conrm.
5 Press SETUP to exit.
4 Play music or movies
Play from discs
1 Press SOURCE repeatedly to switch to the disc mode.
2 Press OPEN on the main unit to open the disc compartment.
3 Insert a disc with the label side facing up.
4 Push down to close the disc compartment.
» Play starts automatically.
• If a menu appears, select an item, then press /OKto start play.
• To pause, press /OK. Press again to resume play.
• To stop, press STOP twice.
• To select the previous/next item, press PREVorNEXT.
• To start search within video/audio, press or once or more.
Play options
Select audio language
You can select an audio language on DVDs or DivX discs.
1 Press OPTIONS.
» The option menu is displayed.
2 Press / to select an audio language.
3 Press /OK to conrm.
PD9028_9048_51_UM_V1.0.indb 18 5/11/2012 5:14:09 PM

19EN
Alternatively,
• During disc play, press AUDIO repeatedly on the remote control to select
a language.
Select subtitle language
For DVDs that contain two or more subtitle languages.
1 Press OPTIONS.
» The option menu is displayed.
2 Press navigation keys to select a subtitle.
3 Press /OK to conrm.
Alternatively,
• During disc play, press SUBTITLE repeatedly on the remote control to
select a language.
Repeat
During play, you can select different repeat options.
1 Press OPTIONS.
» The option menu is displayed.
2 Press navigation keys to select a repeat option.
For DVD
• Repeat Off: switch off the repeat mode
• Chapter: repeat the current chapter
• Title: repeat the current title or track
• All: repeat all titles on the disc
For VCD/MP3/CD/DivX
• Repeat Off: switch off the repeat mode
• Repeat One: repeat the current track
• Repeat Folder: repeat all the tracks in current folder
3 Press /OK to conrm.
4 Press OPTIONS to exit.
Tip
•For VCDs, if PBC is on, you cannot repeat items.
Repeat a section (on the remote control)
You can repeat a specic section of audio/video within a title/chapter/track (repeat
A-B).
English
PD9028_9048_51_UM_V1.0.indb 19 5/11/2012 5:14:09 PM

20 EN
1 During play, at the chosen start point, press A-B on the remote control.
» [ A] is displayed.
2 At the chosen end point, press A-B on the remote control again.
» [ AB] is displayed.
» The selected section plays repeatedly.
3 Press A-B on the remote control to cancel.
Zoom (on the remote control)
For DVDs,VCDs and JPEG CDs, you can zoom in and out for video images or
pictures.
1 Press ZOOM on the remote control repeatedly to zoom in and out.
2 When the video image or picture is enlarged, press
, to pan through it.
Rotate pictures
For JPEG CDs only. While the JPEG is displayed:
• Press to rotate counter-clockwise.
• Press to rotate clockwise.
• Press to ip up/down.
• Press to ip left/right.
Display play time
1 Press OPTIONS.
» The option menu is displayed.
2 Press navigation keys to select a time display option.
Option Action
Off Display off
Title Elapsed Displays DVD title elapsed play time.
Title Remain Displays DVD title remaining play time.
Chapter Elapsed Displays DVD chapter elapsed play time.
Chapter Remain Displays VCD chapter remaining play time.
3 Press / OK to conrm.
PD9028_9048_51_UM_V1.0.indb 20 5/11/2012 5:14:09 PM

21EN
Adjust brightness of screen backlight
Note
•You can adjusts brightness of the screen backlight to match lighting conditions.
During play, press repeatedly to select an option.
• High
• Normal
• Dim
Tip
•For the longest playtime, select Dim.
•For the best view, select High.

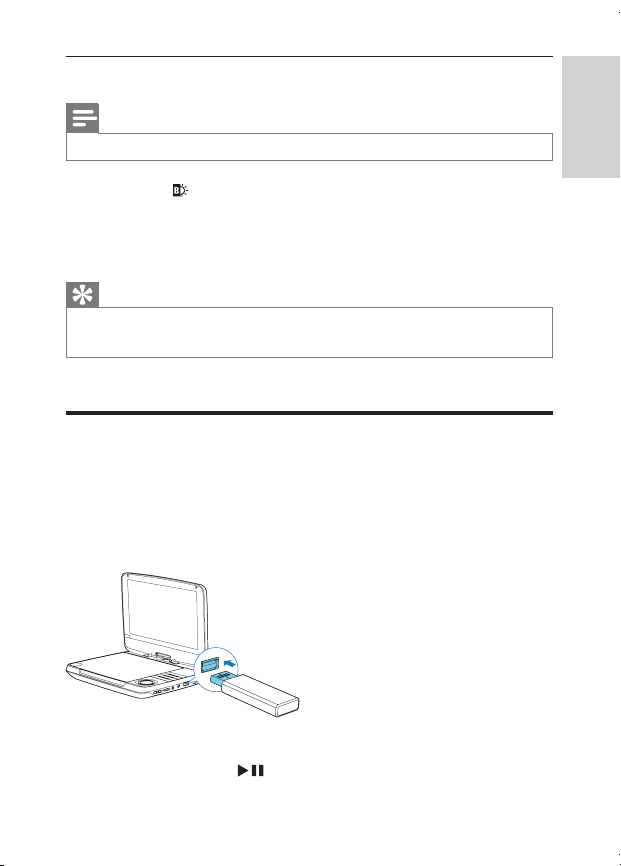

Play from USB
You can play DivX, VOB, MP3, or JPEG les that are stored on a USB mass storage
device.
1 Connect the USB device to the player.
» The content menu is displayed.
2 Press SOURCE to switch to USB mode.
3 Select a le, then press /OK.
English
PD9028_9048_51_UM_V1.0.indb 21 5/11/2012 5:14:10 PM
