Phonak Q90 User manual

User Guide
Phonak Naída Q
(Q90/Q70/Q50/Q30)

2
Contents
1. Welcome 5
2. Important safety information:
Please read before operating your hearing
aid for the rst time 6
Hazard warnings 6
Information on product safety 10
3. Hearing aid description 13
4. Step-by-step instructions for using
the hearing aid 17
Step 1. Getting to know your hearing aid 17
Step 2. Battery preparation 20
Step 3. Inserting the battery 21
Step 4. Turning on the hearing aid 22
Step 5. Inserting the hearing aid 23
Step 6. Adjusting the volume control
behind the ear 29
Step 7. Selecting the hearing program
behind the ear 31
Step 8. Removing the hearing aid 33
Step 9. Turning off the hearing aid 35
Step 10. Changing the battery 36

3
Step 11. Changing the battery in hearing aid
with a secured battery compartment 37
Step 12. Using a design-integrated Roger receiver 41
Step 13. Attaching the audio shoe to the
hearing aid 43
Step 14. Attaching the universal receiver to
the audio shoe 44
Step 15. Remove the audio shoe from the
hearing aid 45
5. Care and maintenance 46
6. Troubleshooting 49
7. Conversation in noise or over distance 51
7.1 Communication in noise and over
distance with Roger 51
7.2 Making phone calls with Phonak DECT CP1 53
7.3 Connecting to audio sources and
remote control 54
8. Service and warranty 55
9. Compliance information 57
10. Information and description of symbols 60

4
This user guide is valid for:
Wireless models CE mark applied
Phonak Naída Q90-UP 2013
Phonak Naída Q90-SP 2013
Phonak Naída Q90-RIC 2013
Phonak Naída Q70-UP 2013
Phonak Naída Q70-SP 2013
Phonak Naída Q70-RIC 2013
Phonak Naída Q50-UP 2013
Phonak Naída Q50-SP 2013
Phonak Naída Q50-RIC 2013
Phonak Naída Q30-UP 2013
Phonak Naída Q30-SP 2013
Phonak Naída Q30-RIC 2013

5
Your new hearing aid is a premium Swiss quality product.
It was developed by Phonak, one of the world‘s leading
companies in hearing technology. Your hearing aid offers
the most modern digital hearing technology currently
available on the market.
Please read these user instructions thoroughly in order to
benefit from all the possibilities your new hearing aid has
to offer. With proper use and care, you will be able to
enjoy your hearing aid for many years to come.
If you have any questions, please consult your hearing
care professional.
Phonak - life is on www.phonak.com
1. Welcome

6
Please read the information on the following pages
before using your hearing aid.
A hearing aid will not restore normal hearing and will not
prevent or improve a hearing impairment resulting from
organic conditions. Infrequent use of a hearing aid does
not permit a user to attain full benefit from it. The use of
a hearing aid is only part of hearing habilitation and may
need to be supplemented by auditory training and
instruction in lipreading.
2.1 Hazard warnings
!The intended use of hearing aids is to amplify and
transmit sound to the ears and hereby compensate
for impaired hearing. The hearing aids (specially
programmed for each hearing loss) must only be used
by the intended person. They should not be used by
any other person as they could damage hearing.
2. Important safety information

7
!Changes or modifications to the hearing aid that
were not explicitly approved by Phonak are not
permitted. Such changes may damage your ear or the
hearing aid.
!Do not use the hearing aids in explosive areas (mines
or industrial areas with danger of explosions).
!Hearing aid batteries are toxic if they are swallowed!
Keep out of reach of children and mentally challenged
people or pets. If batteries are swallowed, consult
your physician immediately!
!Tamperproof solutions for the battery door, ear hook
and integrated Roger/FM receiver (if used) must be
attached for children younger than 36 months to
prevent accidental swallowing of the battery or small
parts of the device. In case one of these secured
mechanisms is damaged by applying too much force
or using an inappropriate tool, the device should be
brought to your hearing care professional for repair or
exchange.

8
!If you feel pain in or behind your ear, if it is inflamed
or if skin irritation and accelerated accumulations
of ear wax occur, please check with your hearing care
professional or physician.
!In very rare cases, the dome can remain in your ear
canal when removing the hearing tube from the ear.
In the unlikely case that the dome does get stuck in
your ear canal, it is strongly recommended to see a
physician for safe removal.
!Hearing programs in the directional microphone mode
reduce background noises. Please be aware that
warning signals or noises coming from behind, e. g.
cars, are partially or entirely suppressed.
!The hearing aid contains small parts that can cause
choking, if swallowed by children. Keep out of reach
of children and mentally challenged people or pets.
If swallowed, consult a physician or hospital
immediately.
2. Important safety information

9
!External devices may only be connected if they have
been tested in accordance with corresponding
IECXXXXX standards. Only use accessories approved
by Phonak AG, to avoid any electrical shock.
!The following is only applicable for persons with
active implantable medical devices (i.e. pacemakers,
defibrillators, etc.):
SKeep the wireless hearing aid at least 15 cm
(6 inches) away from the active implant. If you
experience any interference, do not use the wireless
hearing aids and contact the manufacturer of the
active implant.
Please, note that interference can also be caused by
power lines, electrostatic discharge, airport metal
detectors etc.
SKeep magnets (i.e. battery handling tool, EasyPhone
magnet, etc.) at least 15 cm (6 inches) away from
the active implant.
SYou are not permitted to use wireless accessories
for your hearing aids. Ask your hearing care
professional for details.

10
2.2 Information on product safety
IPhonak hearing aids are water resistant and not
waterproof. They are designed to withstand normal
activities and occasional accidental exposure to
extreme conditions. Never immerse your hearing aids
in water. Phonak hearing aids are not specifically
designed for extended periods of water submersion
on a continual basis, that is worn in activities such as
swimming or bathing. Always remove your hearing
aid before these activities, as the hearing aid contains
sensitive electronic parts.
INever wash the microphone inputs. Doing so could
cause it to lose its special acoustic features.
IProtect your hearing aid from heat (never leave it
near a window or in the car.) Never use a microwave
or other heating devices to dry your hearing aid. Ask
your hearing care professional about suitable drying
methods.
2. Important safety information

11
IWhen you are not using your hearing aid, leave the
battery compartment open so that any moisture can
evaporate. Make sure that you always completely dry
your hearing aid after use. Store the hearing aid in a
safe, dry and clean place.
IDo not drop your hearing aid! Dropping onto a hard
surface can damage your hearing aid.
IAlways use new batteries for your hearing aid. In case
a battery is leaking, replace it immediately with a
new one to avoid any skin irritation.You can return
used batteries to your hearing care professional.
IThe batteries used in these hearing aids should not
exceed 1.5 Volts. Please do not use silver-zinc or
Li-ion (lithium-ion) rechargeable batteries as these
may cause severe damage to your hearing aids. The
table in chapter 3 explains exactly which type of
battery your particular hearing aids require.
IRemove the battery if you are not using your hearing
aid for a long period of time.

12
2. Important safety information
ISpecial medical or dental examination including
radiation described below, may adversely affect the
correct functioning of your hearing aids. Remove and
keep them outside the examination room/area before
undergoing:
SMedical or dental examination with X-ray (also CT
scan)
SMedical examinations with MRI/NMRI scans,
generating magnetic fields
Hearing aids don’t need to be removed when passing
security gates (airports etc.). If X-ray is used at all, it
will be in very low doses, and will not affect the hearing
aids.
IDo not use your hearing aid in areas where electronic
equipment is prohibited.

13
The following user instructions describe three hearing aid
models: The UltraPower (UP), SuperPower (SP) and the
Receiver-In-Canal Technology (RIC) hearing aid.
The different hearing aids can be adapted with a variety
of earmolds.
On the following pages use the labeled drawings to
identify the hearing aid and the earmold that you use.
The following table shows what battery you need for your
hearing aid model.
Model Zinc air battery size IEC ANSI
(marking on package) code code
UP 675 (blue) PR44 7003ZD
SP 13 (orange) PR48 7000ZD
RIC 13 (orange) PR48 7000ZD
Please ensure you use the correct type of battery in your
hearing aids (zinc-air). Please also read chapter 2.2 for
further information on product safety.
3. Hearing aid description

14
c
d
e f
g
h
b
a
UltraPower and SuperPower model
Option A: with classic earmold
a Right or left indicator (right=red, left=blue)
b Battery compartment with ON / OFF switch
c Volume control
d Program button
e Microphone inputs with Wind and Weather Protector
f Hook / sound output
g Hearing tube
h Classic earmold (detachable)
3. Hearing aid description

15
c
d
e f
g
b
a
UltraPower and SuperPower model
Option B: Power SlimTube with classic earmold
a Right or left indicator (right=red, left=blue)
b Battery compartment with ON / OFF switch
c Volume control
d Program button
e Microphone inputs with Wind and Weather Protector
f Power SlimTube
g Classic earmold (detachable)

16
g
b
a
ee
dd
cc
f
f

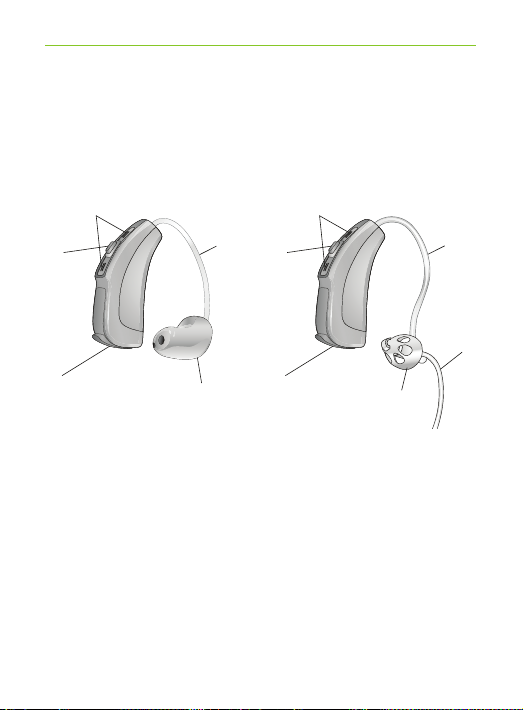

RIC model
Option A: with cShell Option B: with Dome
a cShell
b Dome (detachable)
c Battery compartment with ON/OFF switch
d Push button
e Microphone inputs with microphone protection
f External receiver
g Retention
3. Hearing aid description

17
The following chapter provides step-by-step instructions
on how to use your hearing aid. Please follow these steps
carefully. In the drawings, the parts that are particularly
important for each step are shown in green.
Step 1. Getting to know your hearing aid
Take the hearing aid in your hand and try out the hearing
aid controls. This will make it easier for you to feel and
operate the controls later on when wearing the hearing
aid.
4. Step-by-step instructions for using
the hearing aid

18
Fig. 1a
Fig. 1b
Decrease volume
Increase volume
UltraPower and SuperPower model
To increase the volume, press the volume control
upwards. To decrease the volume, press the volume
control downwards (Fig. 1a).
In order to change a hearing program, press the program
button displayed (Fig. 1b).
4. Using the hearing aid

19
Fig. 1c
Increase
volume
Decrease
volume
Left hearing aid Right hearing aid
RIC model
Your hearing care professional can configure the push
button as either a volume control or a program selector
(not for Q30 models).
To increase the volume, press the button on your
right hearing aid. To decrease the volume, press the
button on your left hearing aid (Fig. 1c).

20
Fig. 2
Fig. 1d
In order to change a
hearing program, press
the button displayed
(Fig. 1d).
Step 2. Battery preparation
Remove the protective foil from the new battery (Fig. 2).
Wait for two minutes before inserting to activate the
battery.
4. Using the hearing aid
