PIAGGIO Beverly Tourer 125 Guide

SERVICE STATION MANUAL
664602 IT-664603 EN-664604 FR-664605 DE-664606
ES-664607 PT-664608 OL-664609 EL
Beverly 125

SERVICE STATION
MANUAL
Beverly 125
The descriptions and illustrations given in this publication are not binding. While the basic specifications
as described and illustrated in this manual remain unchanged, PIAGGIO-GILERA reserves the right, at
any time and without being required to update this publication beforehand, to make any changes to
components, parts or accessories, which it considers necessary to improve the product or which are
required for manufacturing or construction reasons.
Not all versions/models shown in this publication are available in all countries. The availability of single
versions should be checked at the official Piaggio sales network.
"©Copyright2007-PIAGGIO&C.S.p.A.Pontedera.Allrightsreserved.Reproductionofthispublication
in whole or in part is prohibited."
PIAGGIO & C. S.p.A. - After-Sales
V.le Rinaldo Piaggio, 23 - 56025 PONTEDERA (Pi)

SERVICE STATION MANUAL
Beverly 125
This service station manual has been drawn up by Piaggio & C. Spa to be used by the workshops of
Piaggio-Gilera dealers. This manual is addressed to Piaggio service mechanics who are supposed to
have a basic knowledge of mechanics principles and of vehicle repairing techniques and procedures.
Any significant changes made to the vehicle characteristics or to specific repair operations will be
promptly communicated by updates to this manual. Nevertheless, no work can be satisfactory if the
necessary equipment and tools are not available. It is therefore advisable to read the sections of this
manual relating to special tools as well as the tool catalogues.
N.B. Provides key information to make the procedure easier to understand and carry out.
CAUTION Refers to specific procedures to carry out for preventing damages to the vehicle.
WARNING Refers to specific procedures to carry out to prevent injuries to the repairer.
Personal safety Failure to completely observe these instructions will result in serious risk of personal
injury.
Safeguarding the environment Sectionsmarked with this symbol indicatethe correct use of thevehicle
to prevent damaging the environment.
Vehicle intactness The incomplete or non-observance of these regulations leads to the risk of serious
damage to the vehicle and sometimes even the invalidity of the guarantee.

INDEX OF TOPICS
CHARACTERISTICS CHAR
TOOLING TOOL
MAINTENANCE MAIN
TROUBLESHOOTING TROUBL
ELECTRICAL SYSTEM ELE SYS
ENGINE FROM VEHICLE ENG VE
ENGINE ENG
SUSPENSIONS SUSP
BRAKING SYSTEM BRAK SYS
COOLING SYSTEM COOL SYS
CHASSIS CHAS
PRE-DELIVERY PRE DE
TIME TIME

INDEX OF TOPICS
CHARACTERISTICS CHAR

Rules
This section describes general safety rules for any maintenance operations performed on the vehicle.
Safety rules
- If work can only be done on the vehicle with the engine running, make sure that the premises are well-
ventilated, using special extractors if necessary; never let the engine run in an enclosed area. Exhaust
fumes are toxic.
- The battery electrolyte contains sulphuric acid. Protect your eyes, clothes and skin. Sulphuric acid is
highly corrosive; in the event of contact with your eyes or skin, rinse thoroughly with abundant water
and seek immediate medical attention.
- The battery produces hydrogen, a gas that can be highly explosive. Do not smoke and avoid sparks
or flames near the battery, especially when charging it.
- Fuel is highly flammable and it can be explosive given some conditions. Do not smoke in the working
area, and avoid open flames or sparks.
- Clean the brake pads in a well-ventilated area, directing the jet of compressed air in such a way that
you do not breathe in the dust produced by the wear of the friction material. Even though the latter
contains no asbestos, inhaling dust is harmful.
Maintenance rules
- Use original PIAGGIO spare parts and lubricants recommended by the Manufacturer. Non-original or
non-conforming spares may damage the vehicle.
- Use only the appropriate tools designed for this vehicle.
- Always use new gaskets, sealing rings and split pins upon refitting.
- After removal, clean the components using non-flammable or low flash-point solvents. Lubricate all
the work surfaces except the tapered couplings before refitting.
- After refitting, make sure that all the components have been installed correctly and work properly.
- For removal, overhaul and refit operations use only tools with metric measures. Metric bolts, nuts and
screws are not interchangeable with coupling members with English measurement. Using unsuitable
coupling members and tools may damage the scooter.
- When carrying out maintenance operations on the vehicle that involve the electrical system, make
suretheelectricconnectionshavebeenmadeproperly,particularlythegroundandbatteryconnections.
Beverly 125 Characteristics
CHAR - 7

Vehicle identification
VEHICLE IDENTIFICATION
Specification Desc./Quantity
Chassis prefix ZAPM 28900 ÷ 1001
Engine prefix M28FM

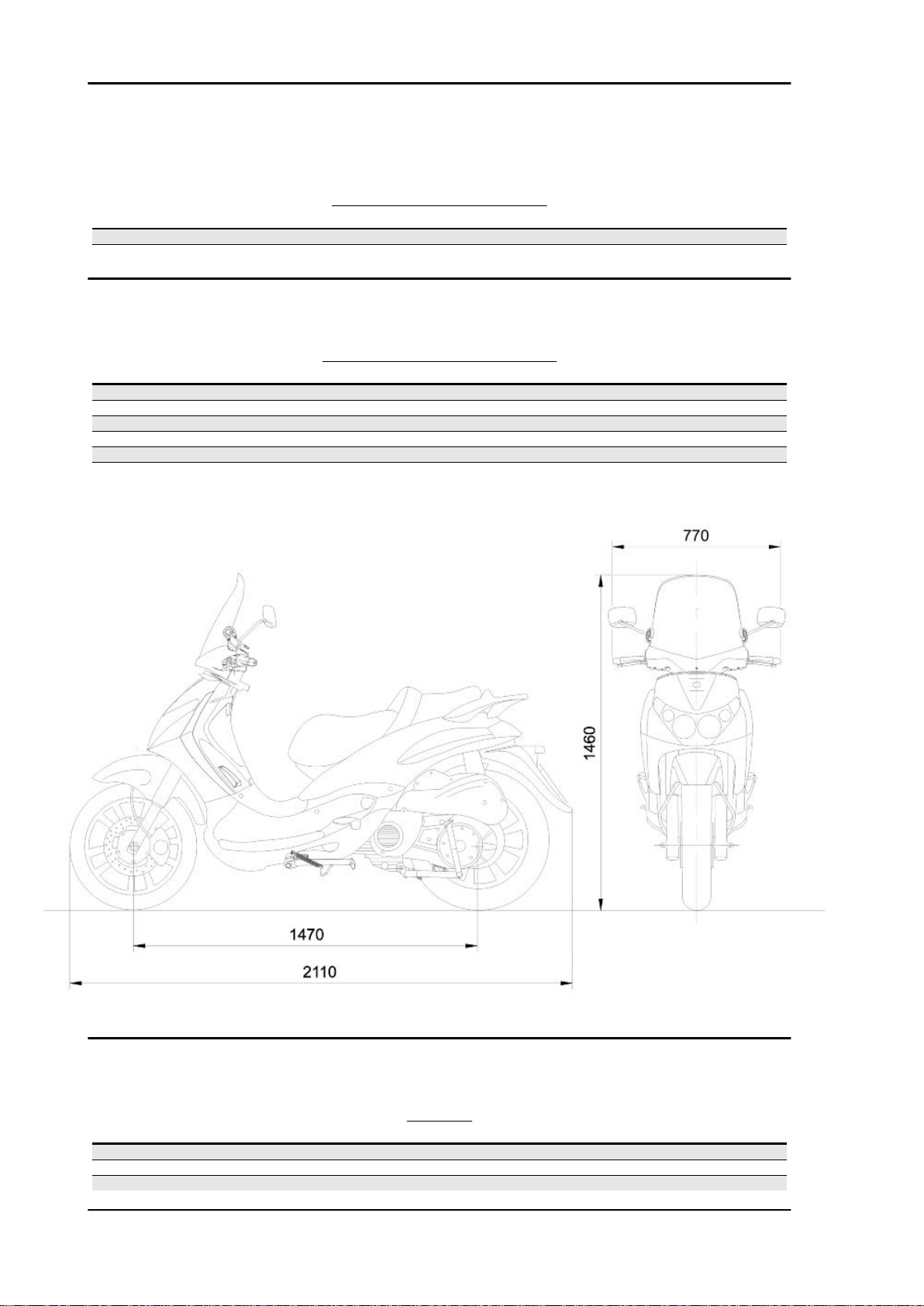

Dimensions and mass
WEIGHTS AND DIMENSIONS
Specification Desc./Quantity
Kerb weight 161 ± 5 kg
Maximum weight allowed 350 kg
Width 770 mm
Length 2110 mm
Wheelbase 1470 mm
Height 1460 mm
Engine
ENGINE
Specification Desc./Quantity
Type Single-cylinder, 4-stroke
Timing system 4 valves, single overhead camshaft, chain-driven.
Bore x stroke 57.0 x 48.6 mm
Characteristics Beverly 125
CHAR - 8

Specification Desc./Quantity
Cubic capacity 124 cm³
Compression ratio 12 ± 0.5: 1
Idle speed 1,650 ± 100 rpm
Air filter sponge, impregnated with mixture (50% oil and 50% unleaded
petrol).
Lubrication Enginelubricationwithlobepump(insidecrankcase)controlled
by a chain with double filter: mesh and paper.
Fuel supply KEIHIN CVEK 30 carburettor and electrical fuel pump.
Max. Power 11 kW at 9,750 rpm
MAX. torque 12 Nm at 8,000 rpm
Transmission
TRANSMISSION
Specification Desc./Quantity
Main drive Automatic expandable pulley variator with torque server, V-
belt, automatic self-ventilating centrifugal dry clutch
Final reduction Gear reduction unit in oil bath.
Capacities
CAPACITY
Specification Desc./Quantity
Engine oil 1.10 l
Transmission oil 250 cm³
Cooling system fluid 1.75 l
Fuel tank (reserve) ~ 10 l (2 l)
Electrical system
ELECTRICAL SYSTEM
Specification Desc./Quantity
Ignition type Electronic capacitive discharge ignition (CDI) and variable ad-
vance, with separate HV coil.
Ignition advance 10° ± 1° at 2,000 rpm
Spark plug CHAMPION RG4HC
Alternative spark plug NGK CR8EB
Battery Sealed, 12 V / 10 Ah
Fuses Three 15A fuses, two 10A fuses, three 7.5A, one 4A fuse, one
3A fuse
Generator alternating current
Frame and suspensions
FRAME AND SUSPENSIONS
Specification Desc./Quantity
Type of chassis Welded tubular steel chassis with stamped sheet reinforce-
ments.
Front suspension Hydraulic telescopic fork with advanced wheel pin and Ø 35
mm stem
Front fork max. stroke 104 mm
Rear suspension Two double-acting shock absorbers, adjustable to four posi-
tions at preloading.
Rear shock absorber max. travel 95.5 mm
Beverly 125 Characteristics
CHAR - 9

Brakes
BRAKES
Specification Desc./Quantity
Front brake Ø 260-mm disc brake with hydraulic control activated by han-
dlebar right-side lever.
Rear brake Ø 260-mm disc brake with hydraulic control activated by han-
dlebar left lever.
Wheels and tyres
WHEELS AND TYRES
Specification Desc./Quantity
Wheel rim type Light alloy rims.
Front rim 16 x 3.50''
Rear rim 16 x 3.50''
Front tyre Tubeless, 110/70 - 16'' 52P
Rear tyre Tubeless, 140/70 - 16'' 65P
Front tyre pressure (with passenger) 2 bar (-)
Rear tyre pressure (with passenger) 2.5 bar (-)
N.B.
CHECK AND ADJUST TYRE PRESSURE WITH TYRES AT AMBIENT TEMPERATURE. REGU-
LATE PRESSURE ACCORDING TO THE WEIGHT OF THE RIDER AND ACCESSORIES
Secondary air
The SAS for 125cc leader engines operates in a similar manner to the SAS for 2T engines.
The differences are the following:
insteadofenteringthroughthemufflerasfor2Tengine,thesecondaryairentersdirectlyinthedischarge
pipe on the head.

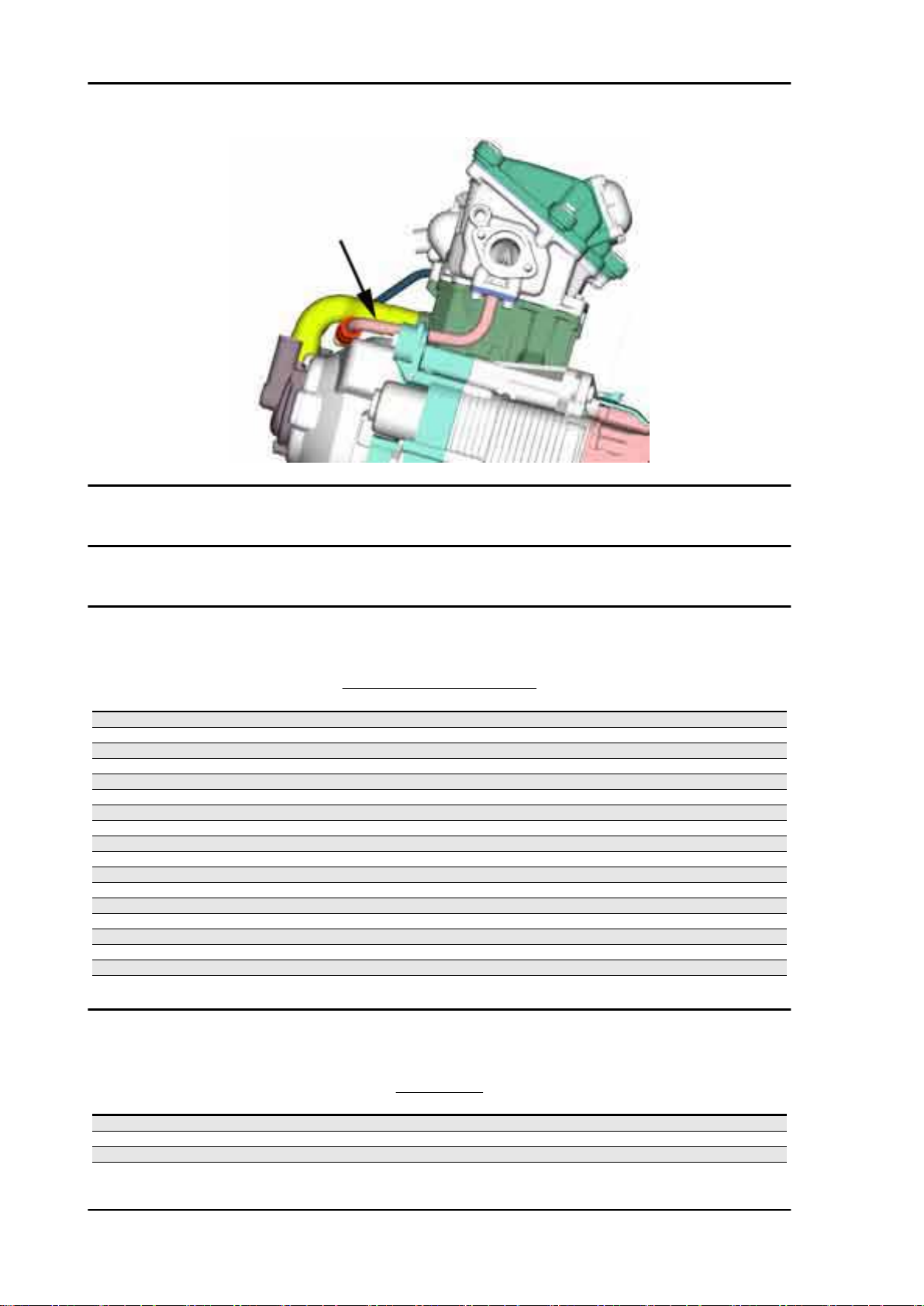

The2Treed valvehasadiaphragm.Theunit,indicatedbyanarrowinthefigure,hasacut-off connected
to the depression intake on the inlet manifold that cuts the air inlet in deceleration, to avoid explosions
in the muffler.
Characteristics Beverly 125
CHAR - 10

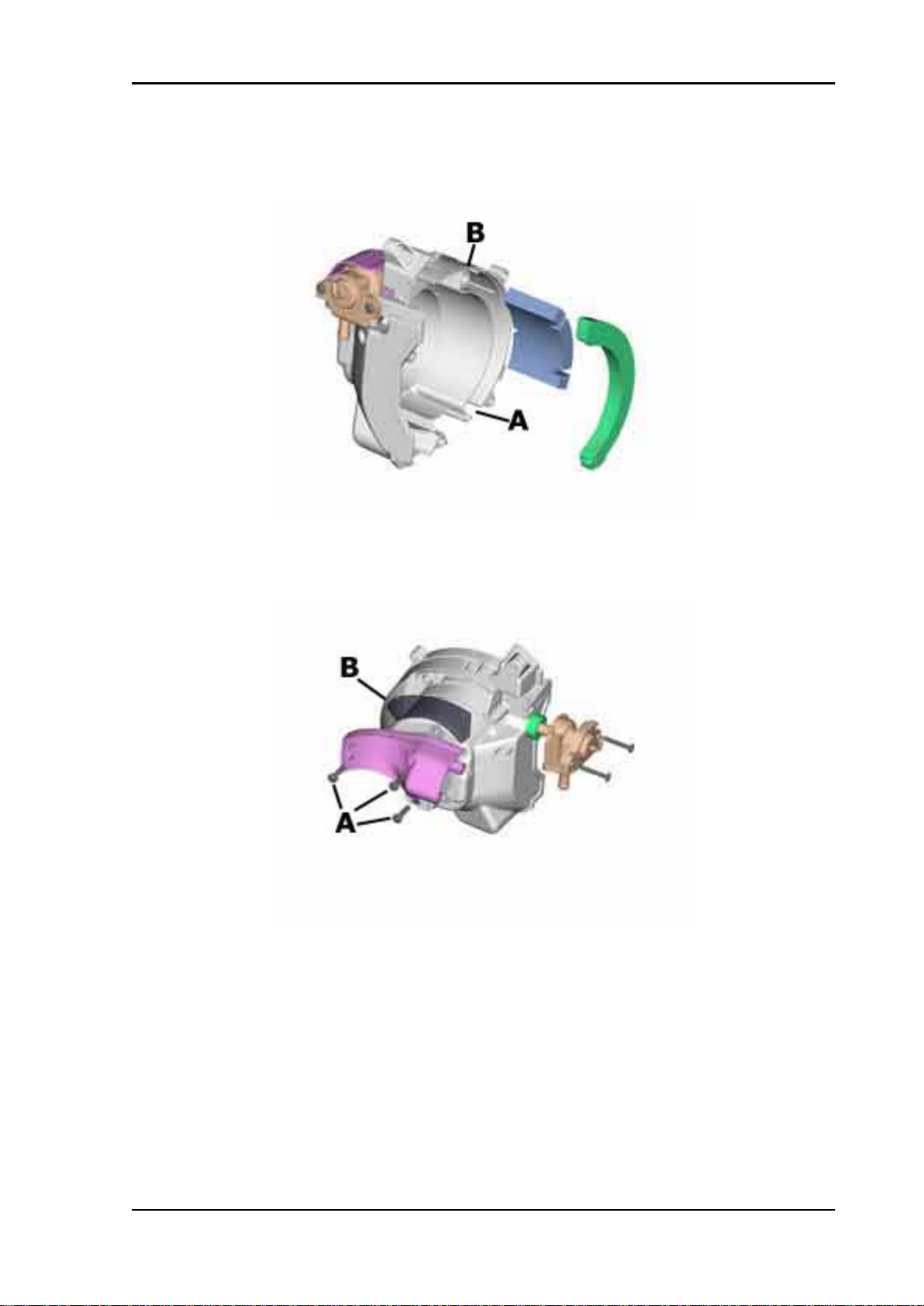

Air is drawn through the opening «A», goes through the first filter and is channelled through the opening
«B».
Air gets to the second filter «B» through the opening shown in the figure. Now, the filtered air enters
the diaphragm device, and then is channelled to the head.
The air passes through a rigid pipe connected to the head and reaches a discharge joint in order to
supply oxygen to the unburned gases before the catalytic converter, thus favouring an improved reac-
tion of the catalytic converter.
Beverly 125 Characteristics
CHAR - 11

Carburettor
125cc Version
Kehin
KEIHIN CARBURETTOR
Specification Desc./Quantity
Type Depression carburettor
Model CVK 30
Body stamping CVK
Tapered pin stamping 304D
CUT-OFF device Not present
Diffuser Ø 29
Maximum jet 105
Minimum jet 35
Max. air jet 70
Minimum air jet 130
Throttle valve spring 100 ÷ 160 g
Minimum mixture set screw initial opening 2
Tapered pin Ø 2.45
Diffuser nozzle Ø 2.8
Starter air jet Ø 1.5
Starter jet 42
Starter device resistance ~ 20 Ω
Starter pin travel 10
Tightening Torques
STEERING
Name Torque in Nm
Upper steering ring nut 30 ÷ 36
Steering lower ring nut 10 ÷ 13 then loosen by 90°
Handlebar fixing screw (*) 45 ÷ 50
Fixing screws for handlebar control assembly U-bolts 7 ÷ 10
Characteristics Beverly 125
CHAR - 12

FRAME ASSEMBLY
Name Torque in Nm
Engine-swinging arm bolt 64 - 72
Chassis-swinging arm pin nut 64 - 72
Spacer locking threaded bushing 13 ÷ 17
Spacer locking threaded bushing lock nut 90 ÷ 110
Frame arm-engine arm coupling pin nut 33 ÷ 41
Bolt of the Silent block support plate 64 - 72
Centre stand bolt 25 ÷ 30
Side stand fixing bolt 35 ÷ 40
Side stand switch screw 5 ÷ 7
FRONT SUSPENSION
Name Torque in Nm
Fixing screw for pumping elements to lower fork plate 20 ÷ 25
Front wheel axle 45 ÷ 50
Fork leg screw 6 ÷ 7
front mudguard to plate fixing screw 4.5 ÷ 7
Fixing screw for mudguard plate to fork 9 ÷ 11
FRONT BRAKE
Name Torque in Nm
Brake fluid pump-hose fitting 16 ÷ 20
Brake fluid pipe-calliper fitting 16 ÷ 20
Calliper to fork tightening screw 20 ÷ 25
Disc tightening screw (°) 5 - 6
Oil bleed screw 12 - 16
Pad fastening pin 19.6 ÷ 24.5
REAR SUSPENSION
Name Torque in Nm
Left lower shock absorber support bolt 20 ÷ 25
Upper shock absorber clamp 33 ÷ 41
Lower shock absorber clamp 33 ÷ 41
Rear wheel axle 104 ÷ 126
Fixing screw for wheel rim to hub 34 ÷ 38
Muffler support arm to engine screws (*) 20 ÷ 25
REAR BRAKE
Name Torque in Nm
Brake fluid pump-hose fitting 16 ÷ 20
Brake fluid pipe-calliper fitting 16 ÷ 20
Flexible/ rigid oil pipe coupling 9 ÷ 11
Rear disc tightening bolt 11 ÷ 13
Oil bleed screw 12 - 16
Screw tightening calliper to the support 20 ÷ 25
Screw fixing rear brake calliper support to engine 20 ÷ 25
Pad fastening pin 20 ÷ 25
MUFFLER
Name Torque in Nm
Screw fixing manifold to muffler 15.5 ÷ 18.5
Muffler heat guard fixing screw 5 - 6
Exhaust fumes inlet screw 22 ÷ 26
Screw fixing muffler support arm to crankcase 33 ÷ 41
Nuts fixing muffler to support arm 27 ÷ 30
Nut fixing muffler to cylinder head 16 ÷ 18
LUBRICATION
Name Torque in Nm
Hub oil drainage plug 15 ÷ 17
Beverly 125 Characteristics
CHAR - 13

Name Torque in Nm
Oil filter on crankcase fitting 27 ÷ 33
Engine oil drainage plug/mesh filter 24 ÷ 30
Oil filter 4 ÷ 6
Oil pump cover screws 0.7 ÷ 0.9
Screws fixing oil pump to crankcase 5 - 6
Oil pump control crown screw 10 ÷ 14
Oil pump cover plate screws 4 ÷ 6
Oil sump screws 10 ÷ 14
Minimum oil pressure sensor 12 ÷ 14
CYLINDER HEAD
Name Torque in Nm
Spark plug 12 ÷ 14
Nuts fixing head to cylinder (1) (^) 9 ÷ 11 + 180°
Head fixing side screws 11 ÷ 12
Starter ground screw 7 ÷ 8.5
M5 side screw locking washers on camshaft 7 ÷ 8.5
Tappet set screw lock nut 6 ÷ 8
Timing chain tensioner slider screw 10 ÷ 14
Starter ground support screw 11 ÷ 15
M6 central screw locking washers on camshaft 11 ÷ 15
Timing chain tensioner support screw 11 ÷ 13
Timing chain tensioner central screw 5 - 6
Camshaft retention plate screw 4 ÷ 6
TRANSMISSION
Name Torque in Nm
Belt support roller screw 11 ÷ 13
Clutch unit nut on driven pulley 45 ÷ 50
Drive pulley nut 75 ÷ 83
Transmission cover screws 11 ÷ 13
Driven pulley shaft nut 54 ÷ 60
Rear hub cover screws 24 ÷ 27
FLYWHEEL
Name Torque in Nm
Flywheel cover fixing screws 5 - 6
Stator assembly screws (°) 3 ÷ 4
Flywheel nut 52 ÷ 58
Pick-Up clamping screws 3 ÷ 4
Screw fixing freewheel to flywheel 13 ÷ 15
CRANKCASE AND CRANKSHAFT
Name Torque in Nm
Internal engine crankcase bulkhead (transmission-side half
shaft) screws 4 ÷ 6
Engine-crankcase coupling screws 11 ÷ 13
Starter motor screws 11 ÷ 13
Crankcase timing system cover screws (°) 3.5 ÷ 4.5
COOLING
Name Torque in Nm
Water pump rotor cover 3 ÷ 4
Screws for water pump rotor driving link 3 ÷ 4
Thermostat cover screws 3 ÷ 4
Bleed screw: 3
(°) Apply LOCTITE 242 medium-strength threadlock
(*) The two screws must be tightened to the prescribed torque after having done so with the rear wheel
axle nut. Safety locks: see "Pre-delivery operations".
(^) Fasten the nuts in two crossed passes.
Characteristics Beverly 125
CHAR - 14

(1) Before fitting the nuts lubricate them with engine oil
Overhaul data
Assembly clearances

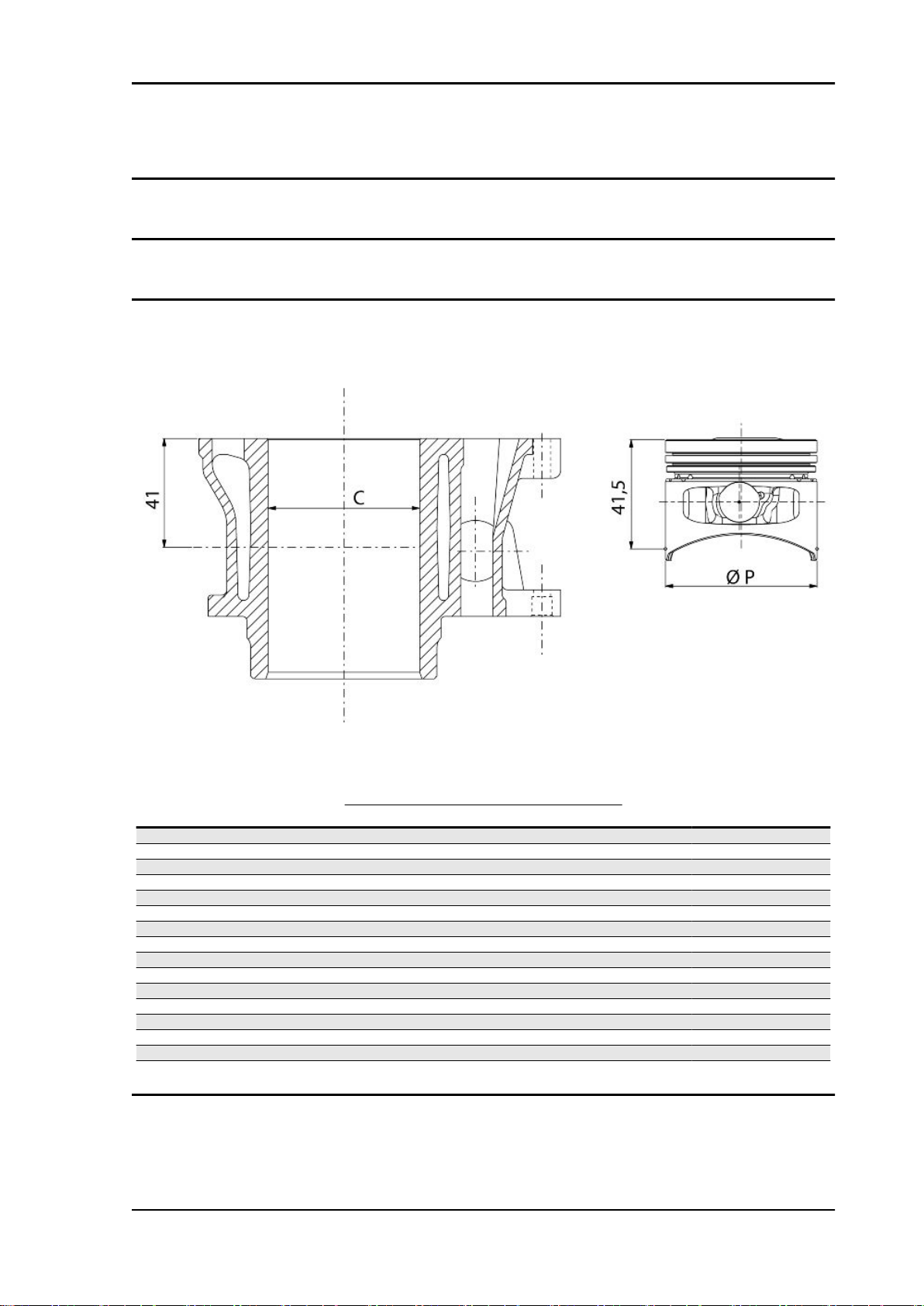

Cylinder - piston assy.
ENGINE COUPLING CATEGORIES
Name Initials Cylinder Piston Play on fitting
Cylinder A 56.997 ÷ 57.004 56.945 ÷ 56.952 0.045 - 0.059
Cylinder B 57.004 ÷ 57.011 56.952 ÷ 56.959 0.045 - 0.059
Piston C 57.011 ÷ 57.018 56.959 ÷ 56.966 0.045 - 0.059
Piston D 57.018 ÷ 57.025 56.966 ÷ 56.973 0.045 - 0.059
Cylinder 1st Oversize A1 57.197 ÷ 57.204 57.145 ÷ 57.152 0.045 - 0.059
Cylinder 1st Oversize B 1 57.204 ÷ 57.211 57.152 ÷ 57.159 0.045 - 0.059
Piston 1st Oversize C 1 57.211 ÷ 57.218 57.159 ÷ 57.166 0.045 - 0.059
Piston 1st Oversize D 1 57.218 ÷ 57.225 57.166 ÷ 57.173 0.045 - 0.059
Cylinder 2nd Oversize A2 57.397 ÷ 57.404 57.345 ÷ 57.352 0.045 - 0.059
Cylinder 2nd Oversize B 2 57.404 ÷ 57.411 57.352 ÷ 57.359 0.045 - 0.059
Piston 2nd Oversize C 2 57.411 ÷ 57.418 57.359 ÷ 57.366 0.045 - 0.059
Piston 2nd Oversize D 2 57.418 ÷ 57.425 57.366 ÷ 57.373 0.045 - 0.059
Cylinder 3rd Oversize A 3 57.597 ÷ 57.604 57.545 ÷ 57.552 0.045 - 0.059
Cylinder 3rd Oversize B 3 57.604 ÷ 57.611 57.552 ÷ 57.559 0.045 - 0.059
Piston 3rd Oversize C 3 57.611 ÷ 57.618 57.559 ÷ 57.566 0.045 - 0.059
Piston 3rd Oversize D 3 57.618 ÷ 57.625 57.566 ÷ 57.573 0.045 - 0.059
Beverly 125 Characteristics
CHAR - 15

Piston rings
ENGINE SEALING RINGS
Name Description Dimensions Initials Quantity
Compression ring 57 x 1 A 0.15 ÷ 0.30
Oil scraper ring 57 x 1 A 0.10 ÷ 0.30
Oil scraper ring 57 x 2.5 A 0.15 ÷ 0.35
Crankcase - crankshaft - connecting rod
CRANKCASE - CRANKSHAFT- CRANKSHAFT HALF-BEARINGS
Name Description Dimensions Initials Quantity
Crankshaft half-bearing Type A - red 1.970 ÷ 1.973
Crankshaft half-bearing Category B - blue 1.973 ÷ 1.976
Crankshaft half-bearing Type C - yellow 1.976 ÷ 1.979
Crankshaft class 1 -
Crankcase class 1 C - C
Crankshaft class 1 -
Crankcase class 2 B - B
Crankshaft class 2 -
Crankcase class 1 B - B
Crankshaft class 2 -
Crankcase class 2 A - A
Crankshaft Category 1 28.998 ÷ 29.004
Crankshaft Class 2 29.004 ÷ 29.010
Crankcase Category 1 32.959 ÷ 32.965
Crankcase Class 2 32.953 ÷ 32.959
Fitting clearance
Crankshaft/ crankcase axial clearance 0.15 - 0.40 mm (when cold)
Characteristics Beverly 125
CHAR - 16

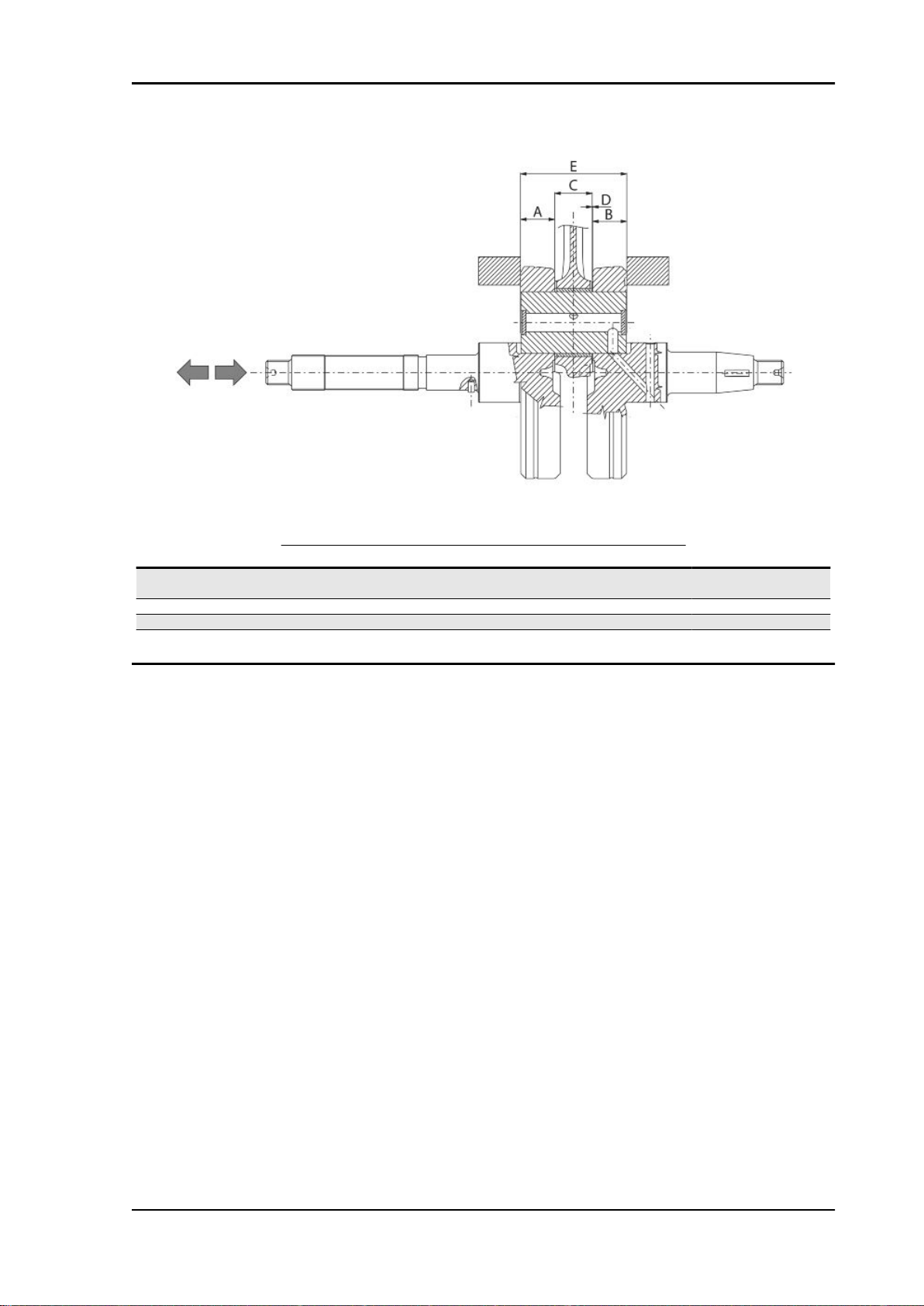

CRANKSHAFT/ CRANKCASE AXIAL CLEARANCE
Name Description Dimensions Initials Quantity
Half-shaft, transmission
side 16.6 +0-0.05 A D = 0.20 - 0.50
Flywheel-side half-shaft 16.6 +0-0.05 B D = 0.20 - 0.50
Connecting rod 18 -0.10 -0.15 C D = 0.20 - 0.50
Spacer tool 51.4 +0.05 E D = 0.20 - 0.50
Slot packing system
Characteristic
Compression ratio
12 ± 0.5: 1
Beverly 125 Characteristics
CHAR - 17

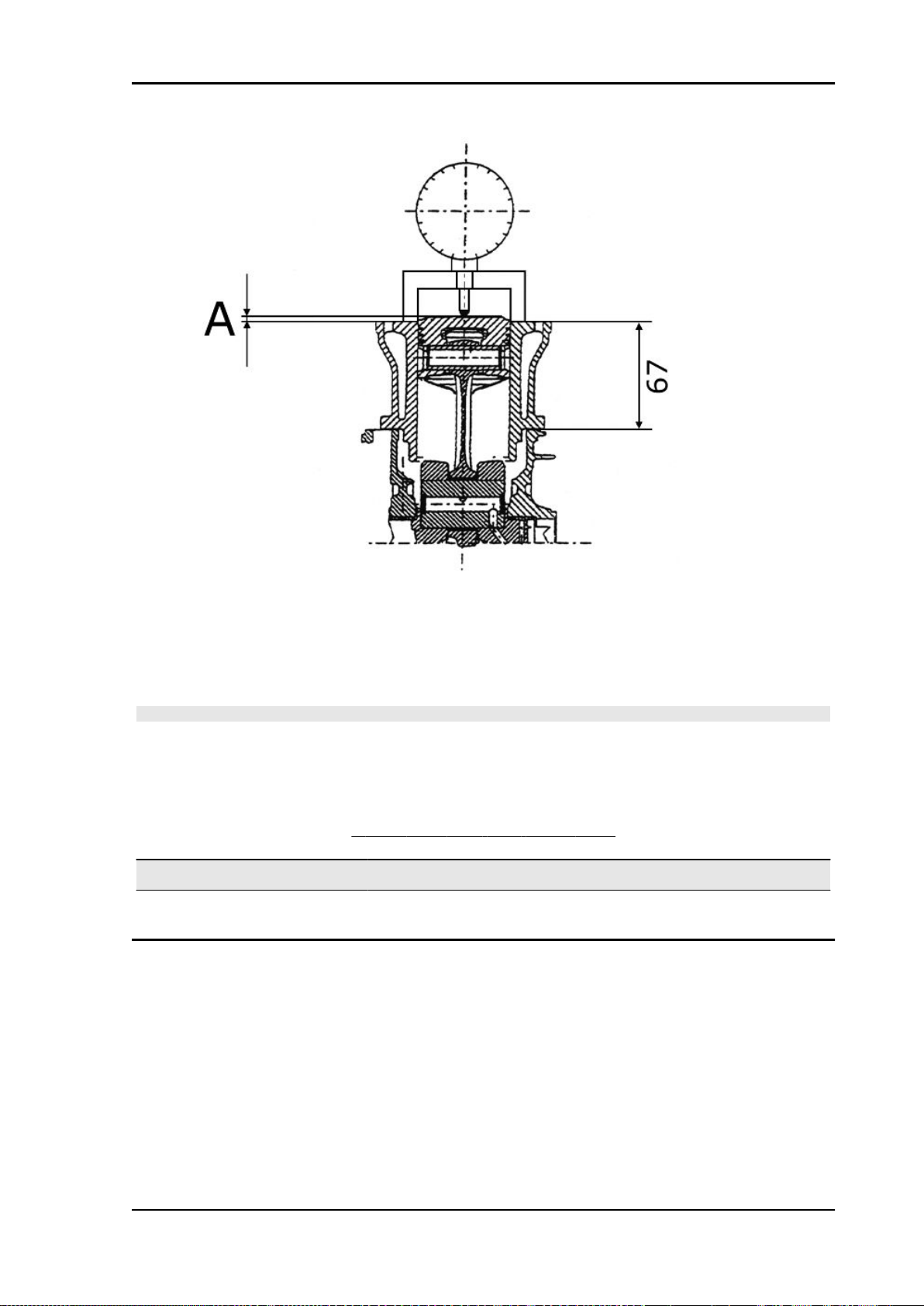

Measurement«A»tobe taken,isavalueof pistonprotrusion.Itindicatesby howmuchtheplaneformed
by the piston crown protrudes from the plane formed by the upper part of the cylinder. The further the
piston protrudes from the cylinder, the thicker the base gasket to be used (to restore the compression
ratio) and vice versa.
N.B.
NO GASKETS AND SEALS SHOULD BE ASSEMBLED BETWEEN THE CRANKCASE AND CYL-
INDER AND THE DIAL GAUGE EQUIPPED WITH SUPPORT SHOULD BE SET TO ZERO FOR
MEASUREMENT «A» TO BE TAKEN WITH THE PISTON AT TOP DEAD CENTRE POSITION AND
ON A RECTIFIED PLANE.
MODELS WITH METAL HEAD GASKET (0.3)
Name Measure A Thickness
Shimming - Cylinder 67.8 - Head gasket
0.3 - Base gasket 0.4 1.40 ÷ 1.65 0.4 ± 0.05
Shimming - Cylinder 67.8 - Head gasket
0.3 - Base gasket 0.6 1.65 ÷ 1.90 0.6 ± 0.05
Characteristic
Compression ratio
12 ± 0.5: 1
Characteristics Beverly 125
CHAR - 18

Measurement«A»tobe taken,isavalueof pistonprotrusion.Itindicatesby howmuchtheplaneformed
by the piston crown protrudes from the plane formed by the upper part of the cylinder. The further the
piston protrudes from the cylinder, the thicker the base gasket to be used (to restore the compression
ratio) and vice versa.
N.B.
NO GASKETS AND SEALS SHOULD BE ASSEMBLED BETWEEN THE CRANKCASE AND CYL-
INDER AND THE DIAL GAUGE EQUIPPED WITH SUPPORT SHOULD BE SET TO ZERO FOR
MEASUREMENT «A» TO BE TAKEN WITH THE PISTON AT TOP DEAD CENTRE POSITION AND
ON A RECTIFIED PLANE.
MODELS WITH FIBRE HEAD GASKET (1.1)
Name Measure A Thickness
Shimming-Cylinder67 -Headgasket1.1
- Base gasket 0.4 2.20 ÷ 2.45 0.4 ± 0.05
Shimming-Cylinder67 -Headgasket1.1
- Base gasket 0.6 2.45 ÷ 2.70 0.6 ± 0.05
Beverly 125 Characteristics
CHAR - 19

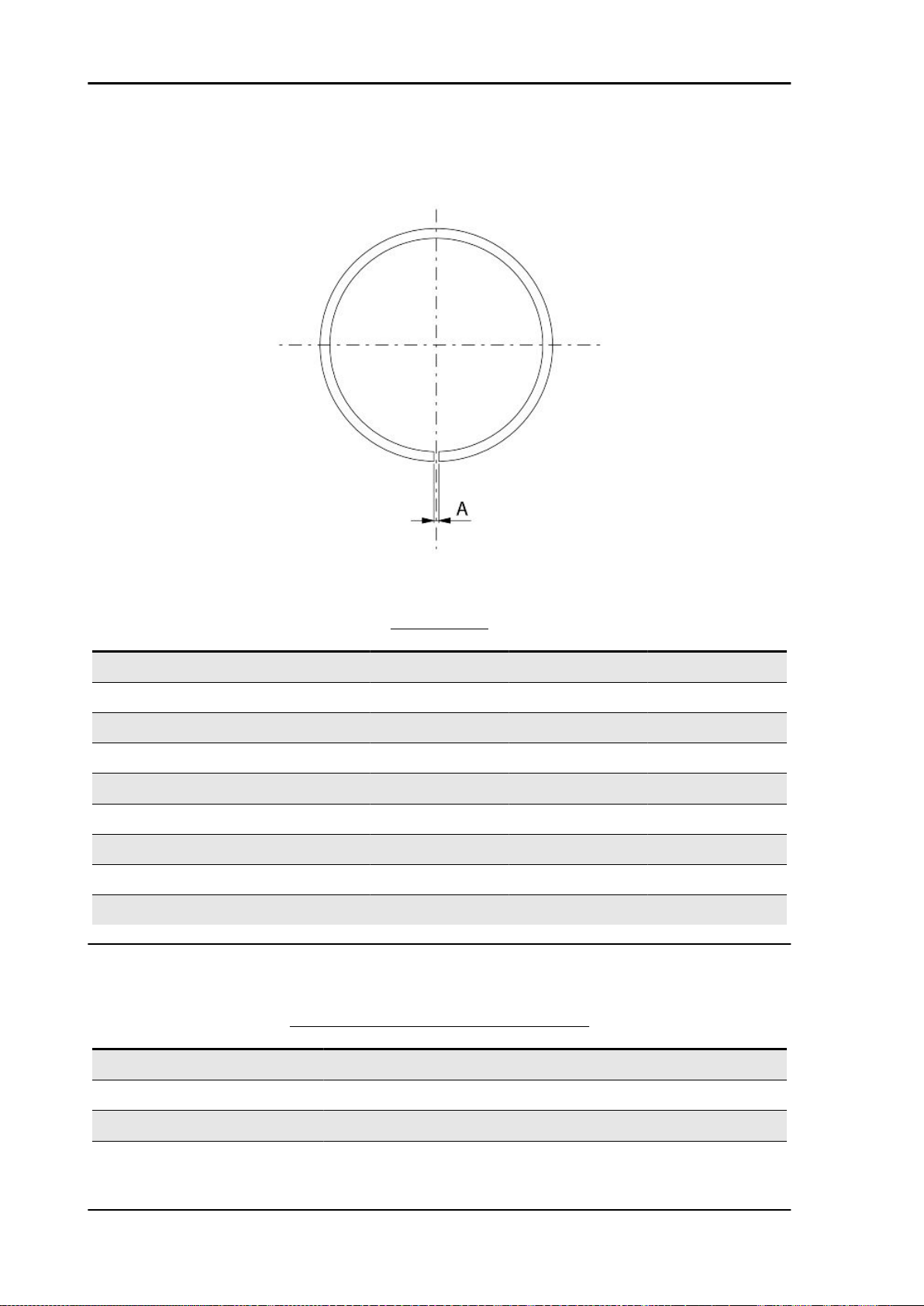

Oversizes
OVERSIZES
Name Description Dimensions Initials Quantity
Compression ring 1st
oversize 57.2 x 1 A 0.15 ÷ 0.30
Oil scraper ring 1st
Oversize 57.2 x 1 A 0.10 ÷ 0.30
Oil scraper ring 1st
Oversize 57.2 x 2.5 A 0.15 ÷ 0.35
Compression ring 2nd
Oversize 57.4 x 1 A 0.15 ÷ 0.30
Oil scraper ring 2nd
Oversize 57.4 x 1 A 0.10 ÷ 0.30
Oil scraper ring 2nd
Oversize 57.4 x 2.5 A 0.15 ÷ 0.35
Compression ring 3rd
Oversize 57.6 x 1 A 0.15 ÷ 0.30
Oil scraper ring 3rd
Oversize 57.6 x 1 A
Oil scraper ring 3rd
Oversize 57.6 x 2.5 A 0.15 ÷ 0.35
Products
RECOMMENDED PRODUCTS TABLE
Product Description Specifications
AGIP ROTRA 80W-90 Rear hub oil SAE 80W/90 Oil that exceeds the re-
quirements of API GL3 specifications
AGIP CITY HI TEC 4T Oil to lubricate flexible transmissions
(throttle control) Oil for 4-stroke engines
AGIP FILTER OIL Oil for air filter sponge Mineral oil with specific additives for in-
creased adhesiveness
AGIP GP 330 Grease for brake levers, throttle White calcium complex soap-based
spraygrease withNLGI 2;ISO-L-XBCIB2
Characteristics Beverly 125
CHAR - 20
