PXI 75 Ω SPDT RF Switch 40-830
ISSUE 4.1 JUN 2021
y2.7 GHz RF Single-Pole Changeover Switch
yTriple and Hex Versions
ySMB or MCX Connector Versions
yHigh Performance, Low Cost
yVISA, IVI & Kernel Drivers Supplied for Windows
ySupported by PXI or LXI Chassis
y3 Year Warranty
5.1
5.2
6.1
6.2
C1
RF Switch
1.1
1.2
2.1
2.2
3.1
3.2
4.1
4.2
C2
C3
C4
C5
C6

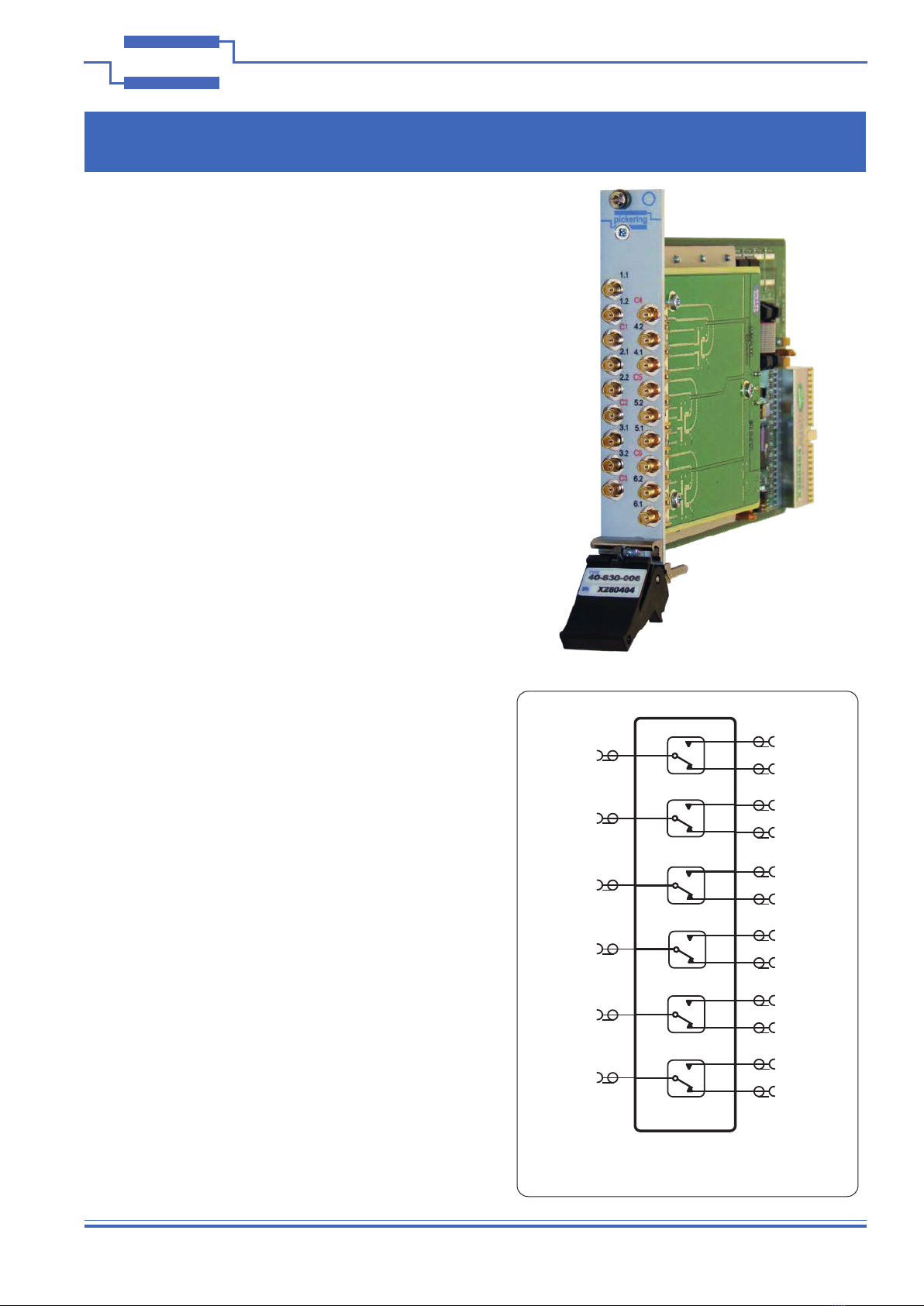

40-830 Hex SPDT RF Switch Functional Diagram
(Default Switch Paths Shown)
The 40-830 is a 75 Ω RF Switch available with 3 or 6
separate SPDT relays in a single PXI slot.
The module has low insertion loss and VSWR through
the use of modern RF relay technology at an affordable
cost. The switch banks have excellent and repeatable RF
characteristics to 3 GHz with each path having a nominally
equal insertion loss. The 40-830 minimizes the injection of
noise and unwanted signals into the signal path by careful
attention to the mechanical and electrical design.
Versions with MCX or SMB connectors are available,
allowing users to simplify cabling issues by matching them
to other connectors in their test system.
The 40-830 is supplied with drivers that allow users
to support the module in all popular PXI software
environments. It can also be supported in all Pickering’s
LXI Modular Switching chassis, allowing the use of a PXI
or LAN controlled switching solution with the same high
levels of performance.
A 50 Ω version of the 40-830 is also available, the 40-870.

Page 1.2 RF 75Ω SWITCHING MODULES 40-830 / 832 / 834 / 835 / 837
pickering
SECTION 1 - TECHNICAL SPECIFICATION
75 Ω SPDT RF Switch, 40-830
pickeringtest.com
Specifications
40-830 Typical Insertion Loss Plot For Each Signal Path 40-830 Typical VSWR Plot For Each Signal Path
40-830 Typical Isolation Plot Between Signal Paths
40-830 Typical Crosstalk Plot Between Adjacent Teminals
40-830 RF Perfomance Plots
(Plots taken from typical sample showing all connecting paths for parameter)
40-830 Typical Crosstalk Plot Between Relay Inputs

Page 1.3
RF 75Ω SWITCHING MODULES 40-830 / 832 / 834 / 835 / 837
pickering SECTION 1 - TECHNICAL SPECIFICATION
75 Ω SPDT RF Switch, 40-830
pickeringtest.com

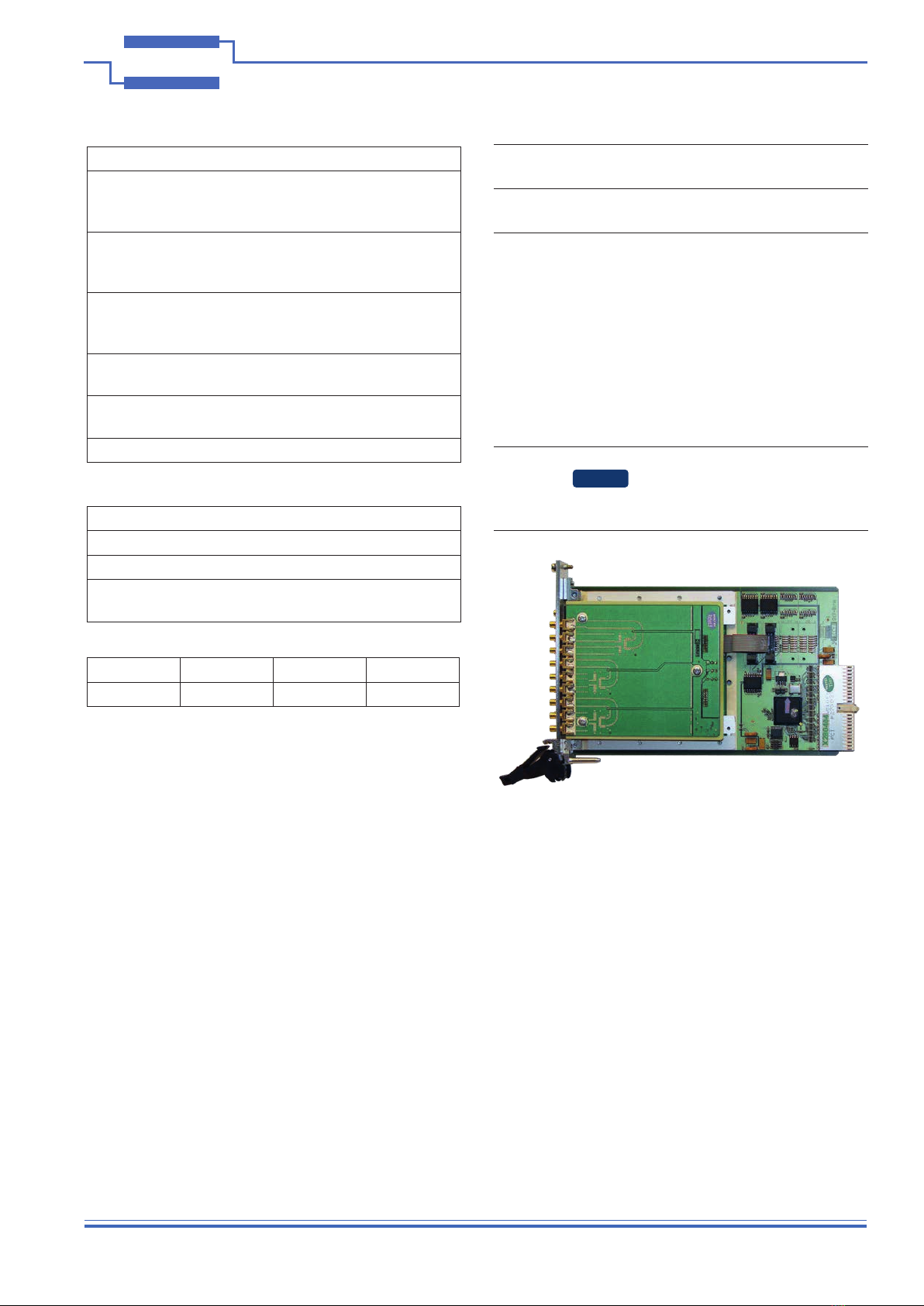

Specifications & Ordering Information
RF Specification
RF Frequency Range: DC to 3 GHz
Insertion Loss: Typically <0.25 dB to 1 GHz
Typically <0.5 dB to 2 GHz
Typically <0.9 dB to 2.7 GHz
VSWR: Typically <1.3:1 to 1 GHz
Typically <1.4:1 to 2 GHz
Typically <1.6:1 to 2.7 GHz
Note: VSWR measurements were carried out for each
selected input with a 75 Ω load fitted to the common
terminal of the multiplexer.
Isolation: Typically >46 dB to 1 GHz
Typically >42 dB to 3 GHz
Crosstalk: Typically <-47 dB to 1 GHz
Typically <-42 dB to 3 GHz
Maximum RF Power: 10 W at 3 GHz
Power Requirements
+3.3 V +5 V +12 V -12 V
0.03 A 0.15 A 0 0
Operating/Storage Conditions
Operating Conditions
Operating Temperature:
Humidity:
Altitude:
0 °C to +55 °C
Up to 90 % non-condensing
5000 m
Storage and Transport Conditions
Storage Temperature:
Humidity:
Altitude:
-20 °C to +75 °C
Up to 90 % non-condensing
15000 m
PXI & CompactPCI Compliance
The module is compliant with the PXI Specification
2.2. Local Bus, Trigger Bus and Star Trigger are not
implemented.
Uses a 33 MHz 32-bit backplane interface.
Safety & CE Compliance
All modules are fully CE compliant and meet applicable
EU directives: Low-voltage safety EN61010-1:2010,
EMC Immunity EN61326-1:2013,
Emissions EN55011:2009+A1:2010.
Mechanical Characteristics
Single slot 3 U PXI (CompactPCI card).
3D models for all versions in a variety of popular file
formats are available on request.
Connectors
PXI bus via 32-bit P1/J1 backplane connector.
Signals via front panel SMB or MCX connectors.
Other Switching Specifications
Maximum DC Voltage: 100 V
Maximum DC Current: 1 A
Operating Time: 3 ms typical
Life Expectancy: 10 million operations at
<100 mW
Mating Connectors & Cabling
For connection accessories for the 40-830 range please
refer to the 90-011D RF Cable Assemblies data sheet
where a complete list and documentation can be found for
accessories, or refer to the Connection Solutions catalog.
Product Order Codes
Triple SPDT RF Switch, SMB
Hex SPDT RF Switch, SMB
40-830-003
40-830-006
Triple SPDT RF Switch, MCX
Hex SPDT RF Switch, MCX
40-830-103
40-830-106
Product Customization
Pickering PXI modules are designed and manufactured
on our own flexible manufacturing lines, giving complete
product control and enabling simple customization to meet
very specific requirements.
All customized products are given a unique part number,
fully documented and may be ordered at any time in the
future. Please contact your local sales office to discuss.

Page 1.4 RF 75Ω SWITCHING MODULES 40-830 / 832 / 834 / 835 / 837
pickering
SECTION 1 - TECHNICAL SPECIFICATION
PXI 75 Ω 4-Channel RF Multiplexer 40-832
pickeringtest.com
ISSUE 4.1 JUN 2021
y3 GHz RF Multiplexer
ySingle, Dual and Quad Versions
ySMB or MCX Connector Versions
yHigh Performance, Low Cost
yVISA, IVI & Kernel Drivers Supplied for Windows
ySupported by PXI or LXI Chassis
y3 Year Warranty
1
2
3
4
C1
R.F. MUX
BANK 1
1
2
3
4
C2
BANK 2
1
2
3
4
C3
BANK 3
1
2
3
4
C4
BANK 4
40-832 Quad 4 to 1 RF MUX Functional Diagram
(Default Switch Paths Shown)
The 40-832 is a 75 Ω 4 to 1 RF MUX available with 1, 2 or 4
banks in a single PXI slot.
The module has low insertion loss and VSWR through
the use of modern RF relay technology at an affordable
cost. The multiplexers have excellent and repeatable RF
characteristics to 3 GHz with each path having a nominally
equal insertion loss. The 40-832 minimizes the injection of
noise and unwanted signals into the signal path by careful
attention to the mechanical and electrical design.
Versions with MCX or SMB connectors are available,
allowing users to simplify cabling issues by matching them
to other connectors in their test system.
The 40-832 is supplied with drivers that allow users
to support the module in all popular PXI software
environments. It can also be supported in all Pickering’s
LXI Modular Switching chassis, allowing the use of a PXI
or LAN controlled switching solution with the same high
levels of performance.
A 50 Ω version of the 40-832 is also available, the 40-872.

Page 1.5
RF 75Ω SWITCHING MODULES 40-830 / 832 / 834 / 835 / 837
pickering SECTION 1 - TECHNICAL SPECIFICATION
75 Ω 4-Channel RF MUX, 40-832
pickeringtest.com
Specifications
40-832 Typical Insertion Loss Plot For Each Signal Path 40-832 Typical VSWR Plot For Each Signal Path
40-832 Typical Isolation Plot Between Signal Paths
40-832 Typical Crosstalk Plot Between MUX Banks
40-832 RF Perfomance Plots
(Plots taken from typical sample showing all connecting paths for parameter)
40-832 Typical Crosstalk Plot Between Signal Paths

Page 1.6 RF 75Ω SWITCHING MODULES 40-830 / 832 / 834 / 835 / 837
pickering
SECTION 1 - TECHNICAL SPECIFICATION
75 Ω 4-Channel RF MUX, 40-832
pickeringtest.com
Specifications & Ordering Information
RF Specification
RF Frequency Range: DC to 3 GHz
Insertion Loss: Typically <0.4 dB to 1 GHz
Typically <1.0 dB to 2 GHz
Typically <1.1 dB to 2.5 GHz
Typically <1.6 dB to 3 GHz
VSWR: Typically <1.25:1 to 1 GHz
Typically <1.5:1 to 2 GHz
Typically <1.6:1 to 3 GHz
Note: VSWR measurements were carried out for each
selected input with a 75 Ω load fitted to the common
terminal of the multiplexer.
Isolation: Typically >43 dB to 1 GHz
Typically >40 dB to 3 GHz
Crosstalk: Typically <-52 dB to 1 GHz
Typically <-40 dB to 3 GHz
Maximum RF Power: 10 W at 3 GHz
Power Requirements
+3.3 V +5 V +12 V -12 V
0.03 A 0.27 A 0 0
Operating/Storage Conditions
Operating Conditions
Operating Temperature:
Humidity:
Altitude:
0 °C to +55 °C
Up to 90 % non-condensing
5000 m
Storage and Transport Conditions
Storage Temperature:
Humidity:
Altitude:
-20 °C to +75 °C
Up to 90 % non-condensing
15000 m
PXI & CompactPCI Compliance
The module is compliant with the PXI Specification
2.2. Local Bus, Trigger Bus and Star Trigger are not
implemented.
Uses a 33 MHz 32-bit backplane interface.
Safety & CE Compliance
All modules are fully CE compliant and meet applicable
EU directives: Low-voltage safety EN61010-1:2010,
EMC Immunity EN61326-1:2013,
Emissions EN55011:2009+A1:2010.
Mechanical Characteristics
Single slot 3 U PXI (CompactPCI card).
3D models for all versions in a variety of popular file
formats are available on request.
Connectors
PXI bus via 32-bit P1/J1 backplane connector.
Signals via front panel SMB or MCX connectors.
Other Switching Specifications
Maximum DC Voltage: 100 V
Maximum DC Current: 1 A
Operating Time: 3 ms typical
Life Expectancy: 10 million operations at
<100 mW
Mating Connectors & Cabling
For connection accessories for the 40-832 range please
refer to the 90-011D RF Cable Assemblies data sheet
where a complete list and documentation can be found for
accessories, or refer to the Connection Solutions catalog.
Product Order Codes
Single 4:1 RF MUX, SMB
Dual 4:1 RF MUX, SMB
Quad 4:1 RF MUX, SMB
40-832-001
40-832-002
40-832-004
Single 4:1 RF MUX, MCX
Dual 4:1 RF MUX, MCX
Quad 4:1 RF MUX, MCX
40-832-101
40-832-102
40-832-104
Product Customization
Pickering PXI modules are designed and manufactured
on our own flexible manufacturing lines, giving complete
product control and enabling simple customization to meet
very specific requirements.
All customized products are given a unique part number,
fully documented and may be ordered at any time in the
future. Please contact your local sales office to discuss.

Page 1.7
RF 75Ω SWITCHING MODULES 40-830 / 832 / 834 / 835 / 837
pickering SECTION 1 - TECHNICAL SPECIFICATION
pickeringtest.com
PXI 75 Ω 8-Channel RF Multiplexer 40-834
ISSUE 4.1 JUN 2021
y3 GHz RF Multiplexer
ySingle and Dual Versions
ySMB or MCX Connector Versions
yHigh Performance, Low Cost
yVISA, IVI & Kernel Drivers Supplied for Windows
ySupported by PXI or LXI Chassis
y3 Year Warranty
40-834 Dual 8 to 1 RF MUX Functional Diagram
(Default Switch Paths Shown)
1
2
3
4
C2
5
6
7
8
1
2
3
4
C1
5
6
7
8
R.F. MUX
BANK 1
BANK 2
The 40-834 is a 75 Ω 8 to 1 RF MUX available with 1 or 2
banks in a single PXI slot.
The module has low insertion loss and VSWR through
the use of modern RF relay technology at an affordable
cost. The multiplexers have excellent and repeatable RF
characteristics to 3 GHz with each path having a nominally
equal insertion loss. The 40-834 minimizes the injection of
noise and unwanted signals into the signal path by careful
attention to the mechanical and electrical design.
Versions with MCX or SMB connectors are available,
allowing users to simplify cabling issues by matching
them to other connectors in their test system.
The 40-834 is supplied with drivers that allow users
to support the module in all popular PXI software
environments. It can also be supported in all Pickering’s
LXI Modular Switching chassis, allowing the use of a PXI
or LAN controlled switching solution with the same high
levels of performance.
A 50 Ω version of the 40-834 is also available, the 40-874.

Page 1.8 RF 75Ω SWITCHING MODULES 40-830 / 832 / 834 / 835 / 837
pickering
SECTION 1 - TECHNICAL SPECIFICATION
75 Ω 8-Channel RF MUX, 40-834
pickeringtest.com
Specifications
40-834 Typical Insertion Loss Plots For Each Channel 40-834 Typical VSWR Plots For Each Channel
40-834 Typical Isolation Plots For Each Input Channel
40-834 RF Perfomance Plots
(Plots taken from typical sample showing all connecting paths for parameter)
40-834 Typical Crosstalk Between MUX Banks (these
are measurements of crosstalk between the same paths
through neighboring multiplexers).
40-834 Typical Crosstalk Between Channels (these are
measurements of crosstalk within each multiplexer for
neighboring channels).

Page 1.9
RF 75Ω SWITCHING MODULES 40-830 / 832 / 834 / 835 / 837
pickering SECTION 1 - TECHNICAL SPECIFICATION
75 Ω 8-Channel RF MUX, 40-834
pickeringtest.com
Specifications & Ordering Information
RF Specification
RF Frequency Range: DC to 3 GHz
Insertion Loss: Typically <0.4 dB to 1 GHz
Typically <0.9 dB to 2 GHz
Typically <1.2 dB to 2.5 GHz
Typically <2.1 dB to 3 GHz
VSWR: Typically <1.3:1 to 2 GHz
Typically <1.5:1 to 3 GHz
Note: VSWR measurements were carried out for each
selected input with a 75 Ω load fitted to the common
terminal of the multiplexer.
Isolation: Typically >52 dB to 1 GHz
Typically >39 dB to 3 GHz
Crosstalk: Typically <-49 dB to 1 GHz
Typically <-42 dB to 3 GHz
Maximum RF Power: 10 W at 2 GHz
Power Requirements
+3.3 V +5 V +12 V -12 V
0.03 A 0.21 A 0 0
Operating/Storage Conditions
Operating Conditions
Operating Temperature:
Humidity:
Altitude:
0 °C to +55 °C
Up to 90 % non-condensing
5000 m
Storage and Transport Conditions
Storage Temperature:
Humidity:
Altitude:
-20 °C to +75 °C
Up to 90 % non-condensing
15000 m
PXI & CompactPCI Compliance
The module is compliant with the PXI Specification
2.2. Local Bus, Trigger Bus and Star Trigger are not
implemented.
Uses a 33 MHz 32-bit backplane interface.
Safety & CE Compliance
All modules are fully CE compliant and meet applicable
EU directives: Low-voltage safety EN61010-1:2010,
EMC Immunity EN61326-1:2013,
Emissions EN55011:2009+A1:2010.
Mechanical Characteristics
Single slot 3U PXI (CompactPCI card).
3D models for all versions in a variety of popular file
formats are available on request.
Connectors
PXI bus via 32-bit P1/J1 backplane connector.
Signals via front panel SMB or MCX connectors.
Other Switching Specifications
Maximum DC Voltage: 100 V
Maximum DC Current: 1 A
Operating Time: 3 ms typical
Life Expectancy: 10 million operations at
<100 mW
Mating Connectors & Cabling
For connection accessories for the 40-834 range please
refer to the 90-011D RF Cable Assemblies data sheet
where a complete list and documentation can be found for
accessories, or refer to the Connection Solutions catalog.
Product Order Codes
Single 8:1 RF MUX, SMB
Dual 8:1 RF MUX, SMB
40-834-001
40-834-002
Single 8:1 RF MUX, MCX
Dual 8:1 RF MUX, MCX
40-834-101
40-834-102
Product Customization
Pickering PXI modules are designed and manufactured
on our own flexible manufacturing lines, giving complete
product control and enabling simple customization to meet
very specific requirements.
All customized products are given a unique part number,
fully documented and may be ordered at any time in the
future. Please contact your local sales office to discuss.

Page 1.10 RF 75Ω SWITCHING MODULES 40-830 / 832 / 834 / 835 / 837
pickering
SECTION 1 - TECHNICAL SPECIFICATION
pickeringtest.com
PXI 75 Ω 16-Channel RF Multiplexer 40-835
ISSUE 4.1 JUN 2021
y3 GHz RF Multiplexer
ySingle 16 Channel Multiplexer
ySMB or MCX Connector Versions
yHigh Performance, Low Cost
yVISA, IVI & Kernel Drivers Supplied for Windows
ySupported by PXI or LXI Chassis
y3 Year Warranty

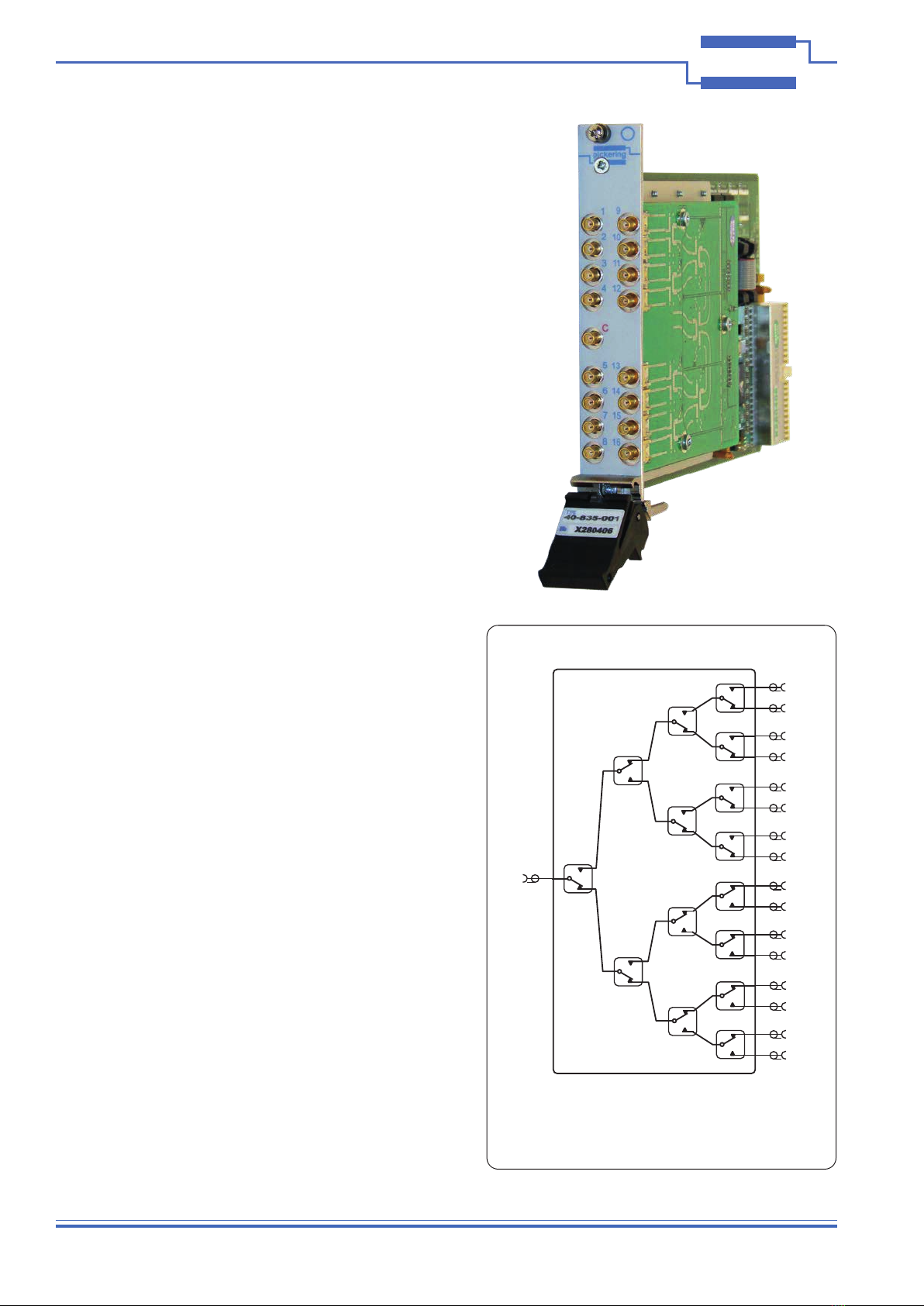

40-835 16 to 1 RF MUX Functional Diagram
(Default Switch Paths Shown)
9
10
11
12
C
13
14
15
16
R.F. MUX
1
2
3
4
5
6
7
8
The 40-835 provides a single 75 Ω 16-channel RF MUX in a
single PXI slot.
The module has low insertion loss and VSWR through
the use of modern RF relay technology at an affordable
cost. The multiplexer has excellent and repeatable RF
characteristics to 3 GHz with each path having a nominally
equal insertion loss. The 40-835 minimizes the injection of
noise and unwanted signals into the signal path by careful
attention to the mechanical and electrical design.
Versions with MCX or SMB connectors are available,
allowing users to simplify cabling issues by matching
them to other connectors in their test system.
The 40-835 is supplied with drivers that allow users
to support the module in all popular PXI software
environments. It can also be supported in all Pickering’s
LXI Modular Switching chassis, allowing the use of a PXI
or LAN controlled switching solution with the same high
levels of performance.
A 50 Ω version of the 40-835 is also available, the 40-875.

Page 1.11
RF 75Ω SWITCHING MODULES 40-830 / 832 / 834 / 835 / 837
pickering SECTION 1 - TECHNICAL SPECIFICATION
75 Ω 16-Channel RF MUX, 40-835
pickeringtest.com

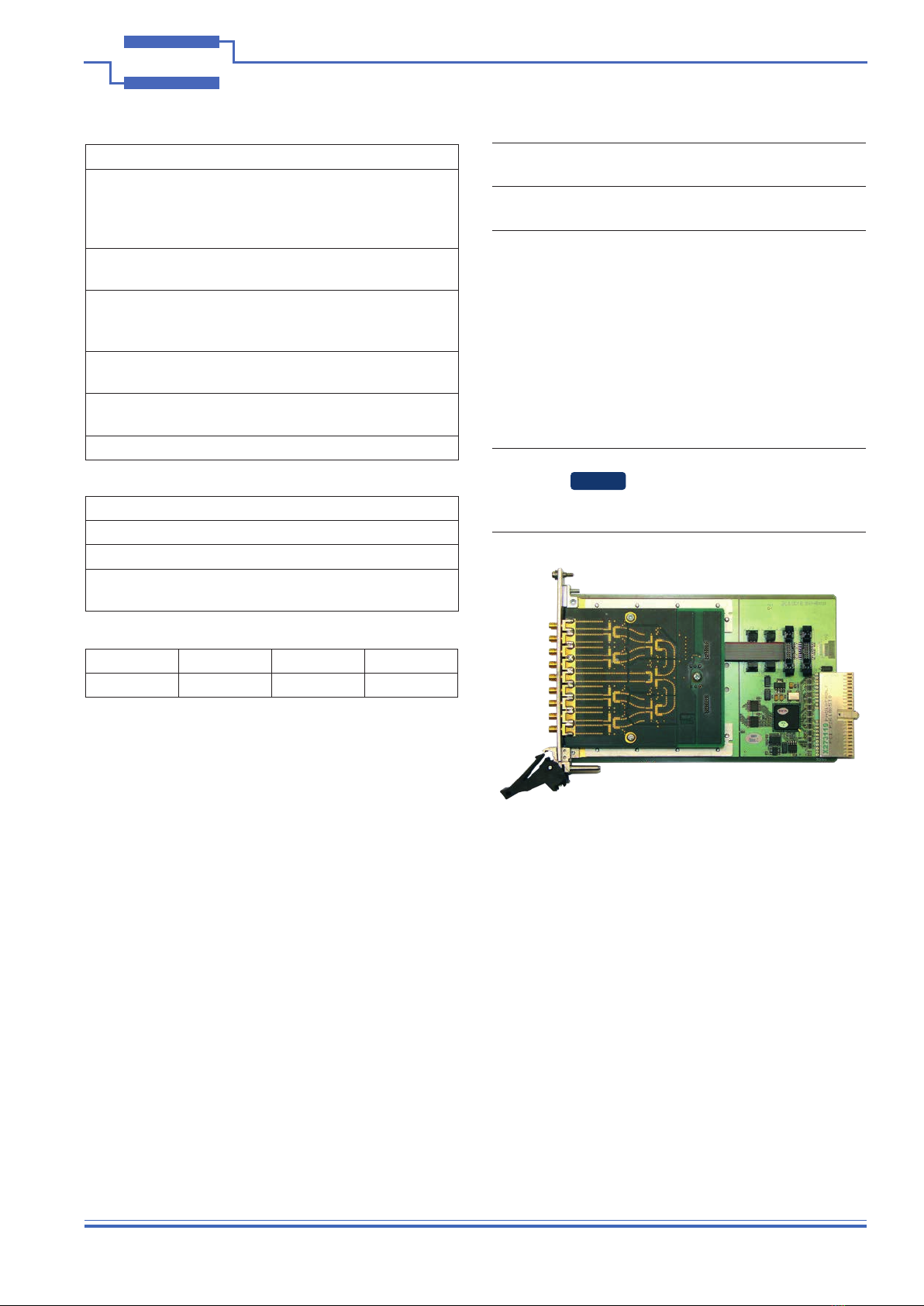

Specifications
40-835 Typical Insertion Loss Plots For Each Channel 40-835 Typical VSWR Plots For Each Channel
40-835 Typical Isolation Plots For Each Input Channel
40-835 RF Perfomance Plots
(Plots taken from typical sample showing all connecting paths for parameter)
40-835 Typical Crosstalk Between Adjacent Channels. 40-835 Typical crosstalk on adjacent channels between
daughter cards (e.g. 1 & 9, 2 & 10 etc.)

Page 1.12 RF 75Ω SWITCHING MODULES 40-830 / 832 / 834 / 835 / 837
pickering
SECTION 1 - TECHNICAL SPECIFICATION
75 Ω 16-Channel RF MUX, 40-835
pickeringtest.com
Specifications & Ordering Information
RF Specification
RF Frequency Range: DC to 3 GHz
Insertion Loss: Typically <0.5 dB to 1 GHz
Typically <0.9 dB to 2 GHz
Typically <1.4 dB to 2.5 GHz
Typically <1.9 dB to 3 GHz
VSWR: Typically <1.4:1 to 1 GHz
Typically <1.6:1 to 3 GHz
Note: VSWR measurements were carried out for each
selected input with a 75 Ω load fitted to the common
terminal of the multiplexer.
Isolation: Typically >56 dB to 1 GHz
Typically >55 dB to 2 GHz
Typically >38 dB to 3 GHz
Crosstalk: Typically <-49 dB to 1 GHz
Typically <-45 dB to 2 GHz
Typically <-42 dB to 3 GHz
Maximum RF Power:
10 W at 2.5 GHz, useable to 3 GHz
Power Requirements
+3.3 V +5 V +12 V -12 V
0.03 A 0.18 A 0 0
Operating/Storage Conditions
Operating Conditions
Operating Temperature:
Humidity:
Altitude:
0 °C to +55 °C
Up to 90 % non-condensing
5000 m
Storage and Transport Conditions
Storage Temperature:
Humidity:
Altitude:
-20 °C to +75 °C
Up to 90 % non-condensing
15000 m
PXI & CompactPCI Compliance
The module is compliant with the PXI Specification
2.2. Local Bus, Trigger Bus and Star Trigger are not
implemented.
Uses a 33 MHz 32-bit backplane interface.
Safety & CE Compliance
All modules are fully CE compliant and meet applicable
EU directives: Low-voltage safety EN61010-1:2010,
EMC Immunity EN61326-1:2013,
Emissions EN55011:2009+A1:2010.
Mechanical Characteristics
Single slot 3U PXI (CompactPCI card).
3D models for all versions in a variety of popular file
formats are available on request.
Connectors
PXI bus via 32-bit P1/J1 backplane connector.
Signals via front panel SMB or MCX connectors.
Other Switching Specifications
Maximum DC Voltage: 100 V
Maximum DC Current: 1 A
Operating Time: 3 ms typical
Life Expectancy: 10 million operations at
<100 mW
Mating Connectors & Cabling
For connection accessories for the 40-835 range please
refer to the 90-011D RF Cable Assemblies data sheet
where a complete list and documentation can be found for
accessories, or refer to the Connection Solutions catalog.
Product Order Codes
Single 16:1 RF MUX, SMB 40-835-001
Single 16:1 RF MUX, MCX 40-835-101
Product Customization
Pickering modules are designed and manufactured on our
own flexible manufacturing lines, giving complete product
control and enabling simple customization to meet very
specific requirements.
All customized products are given a unique part number,
fully documented and may be ordered at any time in the
future. Please contact your local sales office to discuss.
