PIEPS iPROBE BT 220 User manual

ENGLISH
08 20

Table of Content..................................................................................................................................................................... I
1. Introduction............................................................................................................................................................. 3
1.1 Markings .......................................................................................................................................................................... 4
1.2 Liability............................................................................................................................................................................. 4
1.3 Warranty conditions........................................................................................................................................................ 5
1.4 Manufacturer address & support .................................................................................................................................... 5
1.5 Intended use.................................................................................................................................................................... 5
1.6 Target group and previous knowledge............................................................................................................................ 5
1.7 Essentials ......................................................................................................................................................................... 6
1.8 Technical specifications ................................................................................................................................................... 6
2. Safety....................................................................................................................................................................... 6
2.1 Signal words used in the safety instructions ................................................................................................................... 6
2.2 General safety rules and obligations ............................................................................................................................... 7
2.3 Residual risks | Warnings ................................................................................................................................................ 7
3. Packaging................................................................................................................................................................. 8
4. General description.................................................................................................................................................. 8
4.1 Structure.......................................................................................................................................................................... 8
4.2 Switching on | Self-Check................................................................................................................................................ 9
4.2.1 Self-check......................................................................................................................................................................... 9
4.3 Functionality during operation...................................................................................................................................... 10
4.3.1 Check A: Search mode | Proximity indicator | Hit indicator .......................................................................................... 10
4.3.2 Check B: Transmitter deactivation –Sleep-mode .......................................................................................................... 11
4.4 Switching off & Correct folding...................................................................................................................................... 12
4.5 In case of emergency..................................................................................................................................................... 13
4.5.1 Pinpointing..................................................................................................................................................................... 14
4.5.2 Combination of fine search and pinpointing.................................................................................................................. 14
5. Device management with the PIEPS APP................................................................................................................ 15
6. Troubleshooting, maintenance, storage, disposal .................................................................................................. 16
6.1 Troubleshooting............................................................................................................................................................. 16
6.2 Battery replacement...................................................................................................................................................... 16
6.3 Cleaning ......................................................................................................................................................................... 17
6.4 Storage........................................................................................................................................................................... 17
6.5 Disposal.......................................................................................................................................................................... 17
7. Conformity............................................................................................................................................................. 17

Manual PIEPS iPROBE BT | 08/2020 3 / 17
1. INTRODUCTION
Thank you for purchasing a PIEPS iPROBE BT!
Register your PIEPS device in the PIEPS APP (iOS, Android) or at my.pieps.com and get:
-Important information about your product
-Important information about software updates
With the following functionalities, the PIEPS iPROBE BT offers inexperienced beginners and trained professional
rescuers maximum support at pinpointing and in multiple burials scenarios. It also saves valuable time when
rescuing companions and at organized rescue operations:
•Optical and acoustic hit-indicator
•PIEPS SAFETY MARKER (with PIEPS 100cm and 40cm marker)
•Auto-Switch ON/OFF
•Wireless device management with Bluetooth and PIEPS APP
•Multiple burials support through automatic sleep-mode of PIEPS beacons with iPROBE support
•Centimeter scale
•Easy and fast assembly of the probe
•Speed-Cone system for quick extension
•Quick-closing-latch for reliable locking of the probe
•Elastic closure buckle
•Software updates
With the PIEPS iPROBE BT, you have a product that is state of the art in terms of safety and user-friendliness.
Despite this, the PIEPS iPROBE BT can pose risks if used inappropriately or incorrectly. We refer to possible
hazards in chapter Error! Reference source not found.. and with safety notes placed throughout the operating
manual.
This operating manual is intended to ensure the safe use of the PIEPS iPROBE BT. The safety instructions in this
document must be followed at all times. Before you use the PIEPS iPROBE BT, you must have read and
understand this operating manual.
Pieps GmbH is not liable for technical or printing errors in this operating manual, neither is any liability accepted
for damage caused directly or indirectly by the delivery, performance or use of this operating manual.
Copyright © Pieps GmbH, 08/2020
This translation of the original manual is protected by copyright. All rights, especially the rights of reproduction,
distribution and translation, are reserved. No part of this document may be reproduced or stored, processed,
duplicated or distributed using electronic systems in any form (photocopy, microfilm or other method) without
the written consent of Pieps GmbH. Violations may incur criminal penalties.

Manual PIEPS iPROBE BT | 08/2020 4 / 17
MARKINGS
In accordance with applicable regulations, the following marks may be found on the PIEPS iPROBE BT or/and on
the packaging:
CE mark of conformity: indicating the fulfilment of the following standards: EMV 2014/30/EU,
RED 2014/53/EU, RoHS 2011/65/EU.
Dustbin symbol: advising users to dispose of waste electrical and electronic equipment
separately from unsorted municipal waste.
FCC ID
FCC ID: indicating the compliance with Part 15 of the FCC Rules.
IC ID
IC ID: indicating the compliance with Industry Canada’s licence-exempt RSS standard(s).
Bluetooth® logo: The Bluetooth® word mark and logos are registered trademarks owned by the
Bluetooth SIG, Inc. and any use of such marks by Pieps GmbH is under license. Other
trademarks and trade names are those of their respective owners.
SN
12-digit serial number: identifying the device and is used for device registration.
Recycling symbol.
Battery symbol: indicating battery type and correct position.
Instruction pictogram: advising users to read the instructions and warnings.
PIEPS brand name.
PIEPS logo.
iPROBE BT
Technology / System name
iPROBE BT 260
Example of the model name
LIABILITY
The information contained in this operating manual describes but does not guarantee the features of the product.
No liability is accepted for damage caused by:
•improper use,
•failure to follow the operating manual,
•unauthorized modifications of the PIEPS iPROBE BT,
•improper work on and with the PIEPS iPROBE BT,
•continuing to use the PIEPS iPROBE BT despite evidence of wear and tear,
•unauthorized, improperly carried out repairs,
•emergencies, external influences or force majeure.
NOTICE
Alterations or modifications not explicitly approved by the manufacturer will result in you no
longer being allowed to use the device.

Manual PIEPS iPROBE BT | 08/2020 5 / 17
WARRANTY CONDITIONS
The manufacturer provides a 2-year warranty covering manufacturing and material defects of the PIEPS iPROBE
BT from the date of purchase. Exceptions are the battery, probe bag as well as any damage caused by improper
use or dismantling of the device by unauthorized persons. Any other warranties and liability for consequential
damage are expressly excluded. For warranty claims, please take proof of purchase and a description of the fault
to the point of sale.
MANUFACTURER ADDRESS & SUPPORT
Pieps GmbH, Parkring 4, 8403 Lebring, Austria
For technical problems, please contact the support: [email protected]om
INTENDED USE
The PIEPS iPROBE BT is an electronic avalanche probe with an optical and acoustic hit indicator to every
transmitting beacon (according to standard EN300718), as well as an automatic sleep-mode of beacons with
iPROBE-Support. In practice, the PIEPS iPROBE BT is used for the pinpointing of a person buried by an avalanche
and must be used for this intended purpose only. Detailed knowledge of avalanche prevention is as indispensable
as regularly practicing victim searches in an emergency. The following procedures and tips relate only to special
usage in conjunction with the PIEPS iPROBE BT. The basic line of action in an emergency –as explained in
specialist publications and material from avalanche courses –must be followed. The PIEPS iPROBE BT must always
be folded away on descents and stowed securely in the backpack (e.g. emergency pocket).
The PIEPS iPROBE BT is an electronic avalanche probe with a number of automatic functions –for this reason, the
PIEPS iPROBE BT may only be commissioned after having read and understood the documentation. Failure to use
the device as intended will result in all liability and warranty claims being rejected. The PIEPS iPROBE BT is to be
operated only under the conditions of use described in the documentation.
TARGET GROUP AND PREVIOUS KNOWLEDGE
An avalanche probe should be part of the avalanche emergency equipment of everyone who ventures off from
the secured piste into open, unsecured terrain (e.g. ski touring, freeriding, mountain rescue operations, etc.).
Users of the PIEPS iPROBE BT must meet the following conditions:
•Read and understand this operating manual.
•Users with impaired vision must ensure that they can read the multi-coloured optical display (LED-lights)
and displays on the device as well as the instructions in the documentation without problem.
•If users with impaired hearing are unable to hear the acoustic signal, they must ensure that they can
correctly interpret the display indications in accordance with the instructions in the operating manual.
•Regular training ensures safe and efficient use of the PIEPS iPROBE BT.

Manual PIEPS iPROBE BT | 08/2020 6 / 17
ESSENTIALS
The PIEPS iPROBE BT meets the current state of technology and the applicable health and safety regulations.
However, incorrect operation or misuse can give rise to hazards for:
•the life and health of the users or third parties,
•the PIEPS iPROBE BT and property of the user,
•the efficient use of the PIEPS iPROBE BT.
TECHNICAL SPECIFICATIONS
Name
PIEPS iPROBE BT 220 | 260 | 300
Transmission frequency
457 kHz
Bluetooth transmission frequency
2.402 - 2.480 GHz
Bluetooth transmission power
0 dBm
Probe length total
220 cm | 260 cm | 300 cm
Probe pack length
47,6 cm
Weight incl. battery
380 g | 420 g | 460 g
Power supply
1x Alkaline, AA, LR6, 1,5V
Battery lifetime
100 h
Temperature range
-20° C to +45° C (-4° F to +113° F)
Approaching range
2 m
Targeting range
approx. 50 to 0 cm
Probing length (mechanical)
220 cm | 260 cm | 300 cm
Probing length (mechanical + electronical)
270 cm | 310 cm | 350 cm
2. SAFETY
This operating manual is structured in accordance with the applicable EU regulations and contains safety
instructions. Each individual is personally responsible for complying with the safety instructions. This chapter
contains all safety-related information.
Should anything be unclear or difficult to understand, please contact our support team.
SIGNAL WORDS USED IN THE SAFETY INSTRUCTIONS
DANGER
Imminent threat to the life of individuals
A safety instruction with the signal word DANGER indicates an imminent threat to the life and
health of individuals!
WARNING
Risk of personal injury (serious injuries) and possible material damage
A safety instruction with the signal word WARNING indicates a dangerous situation which
could affect the health of individuals.
CAUTION
Risk of material damage and possible minor risk of injury
A safety instruction with the signal word CAUTION indicates a possibly dangerous situation
which could primarily result in material damage.
NOTICE
This symbol with the text NOTICE indicates supporting information.

Manual PIEPS iPROBE BT | 08/2020 7 / 17
GENERAL SAFETY RULES AND OBLIGATIONS
The following safety rules and obligations apply in general for using the PIEPS iPROBE BT:
•The PIEPS iPROBE BT must only be used in perfect condition.
•It is forbidden to change the PIEPS iPROBE BT without the written permission of Pieps GmbH.
•Do not attempt to repair damage or malfunctions without authorization. Instead, contact our support,
who will tell how to proceed. The PIEPS iPROBE BT must not be used until the damage/malfunction has
been repaired.
•The safety and operating instructions in the operating manual must be followed at all times.
RESIDUAL RISKS | WARNINGS
Even though the PIEPS iPROBE BT has been designed with maximum care and all safety-related facts have been
taken into consideration, residual risks may exist and must be evaluated by means of a risk assessment. All
residual risks and warnings from the risk assessment are listed in this chapter.
DANGER
Risk of electric shock when touching the unit with electrical conductors.
Keep yourself and the unit at a safe distance from energized conductors.
WARNING
Risk of puncture injures from the metal tip of the probe.
Be aware of puncture injuries in the area of the tip. Never point the tip towards people, with
the exception of the buried person.
WARNING
Risk of hearing damage due to the high noise level.
Never hold the device directly next to your ear! A minimum distance of 50 cm is recommended.
CAUTION
Risk of accidental folding up of the probe.
Transport the unit in a folded and secured condition only (by means of a closure buckle or in
the backpack emergency pocket). Ensure that the unit is stored properly in the backpack and is
secured against being lost.
CAUTION
Risk of crushing from assembling and locking the probe tubes
During tension, be aware of any possible risk of crushing when locking the individual probe
tubes. Always hold the probe by the handle and push it into soft ground (snow). Lock the probe
with the quick-closing latch.
CAUTION
Risk of crushing when fixing the quick-closing system
Beware of crushing risks when fixing the quick-closing system.
WARNING
Risk of falling and slipping during operation with snow gloves
When using the probe while wearing snow gloves, there is a risk of slipping on the probe tube,
which can result in a loss of balance. The probe tube must not be used as a walking aid.
DANGER
Risk of battery explosion due to improper battery types or damaged batteries.
Risk of incorrect battery capacity reading due to improper battery types.
Use only batteries of type “Alkaline AA, LR6, 1,5V“!
CAUTION
Risk of device malfunction or damage due to extreme temperatures
Do not expose the device to extreme temperatures outside of the operating limits! Store the
device protected from direct sunlight! Extreme temperatures can result in malfunction or
damage.
NOTICE
If the PIEPS iPROBE BT is defect (system error self-test), no electronic functionalities are
available, and any electronic support will lapse. In this case, use the PIEPS iPROBE BT like a
classic avalanche probe.
NOTICE
The user must read the operating manual!

Manual PIEPS iPROBE BT | 08/2020 8 / 17
3. PACKAGING
1x PIEPS iPROBE BT
1x battery (in battery compartment)
1x storage bag
1x Quick Start Guide
Check that the contents are complete and undamaged after unpacking. If necessary, contact your point of sale or
our support team. A correct disposal of the packaging is an environmentally friendly manner (paper to paper,
plastic to plastic, etc.).
CAUTION
Risk of damages due to inefficient packaging at transport.
It is recommended to keep the packaging after unpacking and keep it to use it in case of warranty
issues.

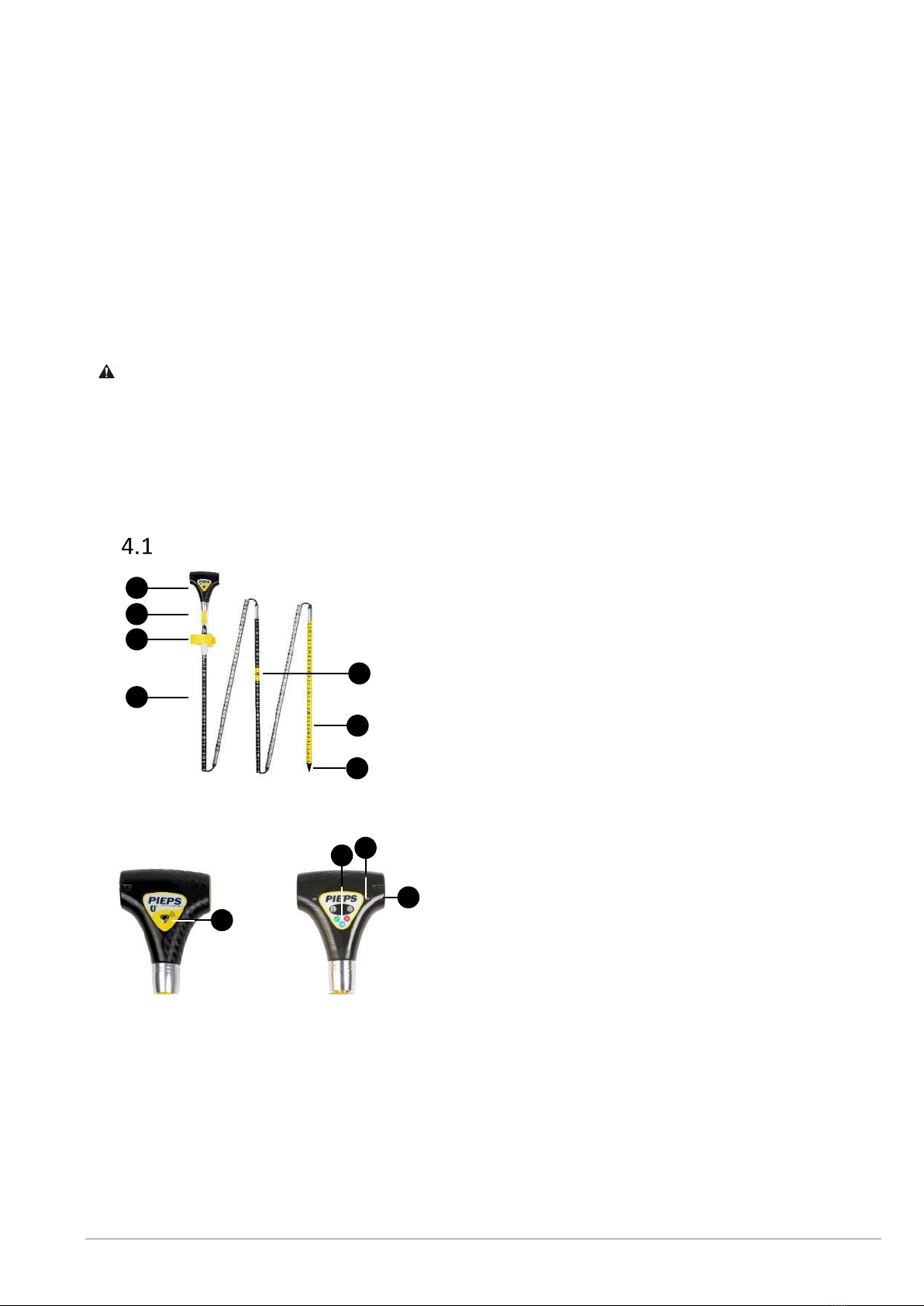

4. GENERAL DESCRIPTION
STRUCTURE
(1A)
Probe handle with LED display and loudspeaker for
optical and acoustic indication of system status
(1B)
Quick-closing latch for reliable locking of the probe
(1C)
Elastic closure buckle for secure closure
(1D)
Probe tube with centimeter scale for reading burial
depth and as centimeter measurement for snow
profiles
(1E)
PIEPS Safety Marker: 100 cm marking
(1F)
PIEPS Safety Marker: last 40 cm marking
(1G)
Probe tip with integrated receiver localizes any
standard avalanche beacon
(1H)
Loudspeaker for acoustic indication of system status
(1J)
LED-lights in green, red and blue for optical indication
of system status
(1K)
Battery symbol with polarity indication
(1L)
Battery compartment access
1A
1B
1C
1D
1G
1E
1F
1J
1K
1L
1H

Manual PIEPS iPROBE BT | 08/2020 9 / 17
SWITCHING ON | SELF-CHECK
To switch on the PIEPS iPROBE BT go through these steps:
•Open the elastic closure buckle (1C).
•Eject the PIEPS iPROBE BT into soft ground (snow) and tension the probe. To do so, hold the top part of
the probe tube with one hand and with the other hand pull the probe handle (1A) until the quick-closing
latch (1B) clicks into place and a beep from the loudspeaker (1H) indicates that the PIEPS iPROBE BT is
switched on.
4.2.1 Self-check
When switching on the PIEPS iPROBE BT an extensive self-check is performed, and all relevant system
components are tested.
PIEPS iPROBE BT Status
Optical signal indication (LEDs)
Acoustic signal indication
Switching on
Continuous tone for 1 s (piiiiiiiiiiep)
Self-check
Self-check
„OK“
Both LEDs lit GREEN for 1 second
No acoustic signal
Self-check
„Low battery
capacity“
Both LEDs flash RED for 3 seconds
Warning tone for 3 seconds (5x piiiep),
see Replacing the battery
Self-check
„System error“
Both LEDs lit RED as long as the PIEPS
iPROBE BT is switched on
Warning tone for 3 seconds (5x piiiep),
see Troubleshooting
•If the PIEPS iPROBE BT is OK (self-check “OK”), a green LED-light lits for 1 second.The LED-light of the
Check A1 then starts flashing and the PIEPS iPROBE BT can be used.
•If the battery needs to be replaced (low battery capacity self-check), a red flashing LED light and an
acoustic warning signal will be indicated for 3 seconds. The LED-light of the Check A1 then starts flashing
and the PIEPS iPROBE BT can be used. In this case, replace the battery.
•If the PIEPS iPROBE BT shows an error (system error self-test), a permanent red LED-light and an acoustic
warning signal will be indicated for 3 seconds. The optical warning will continue as long as the PIEPS
iPROBE BT is activated. The electronic functionalities are not available. In this case, perform
troubleshooting.
NOTICE
If the PIEPS iPROBE BT is defect (system error self-check), no electronic functionalities are available,
and any electronic support will lapse. In this case, use the PIEPS iPROBE BT like a classic avalanche
probe.
NOTICE
The switching on of the electronic is confirmed with an acoustic (Piep-tone) signal.
Continuous signal for 1 second (piiiiiiiiiiep)

Manual PIEPS iPROBE BT | 08/2020 10 / 17
FUNCTIONALITY DURING OPERATION
CHECK A
Check A1
Search mode
Check A2
Proximity indicator
Check A3
Hit indicator

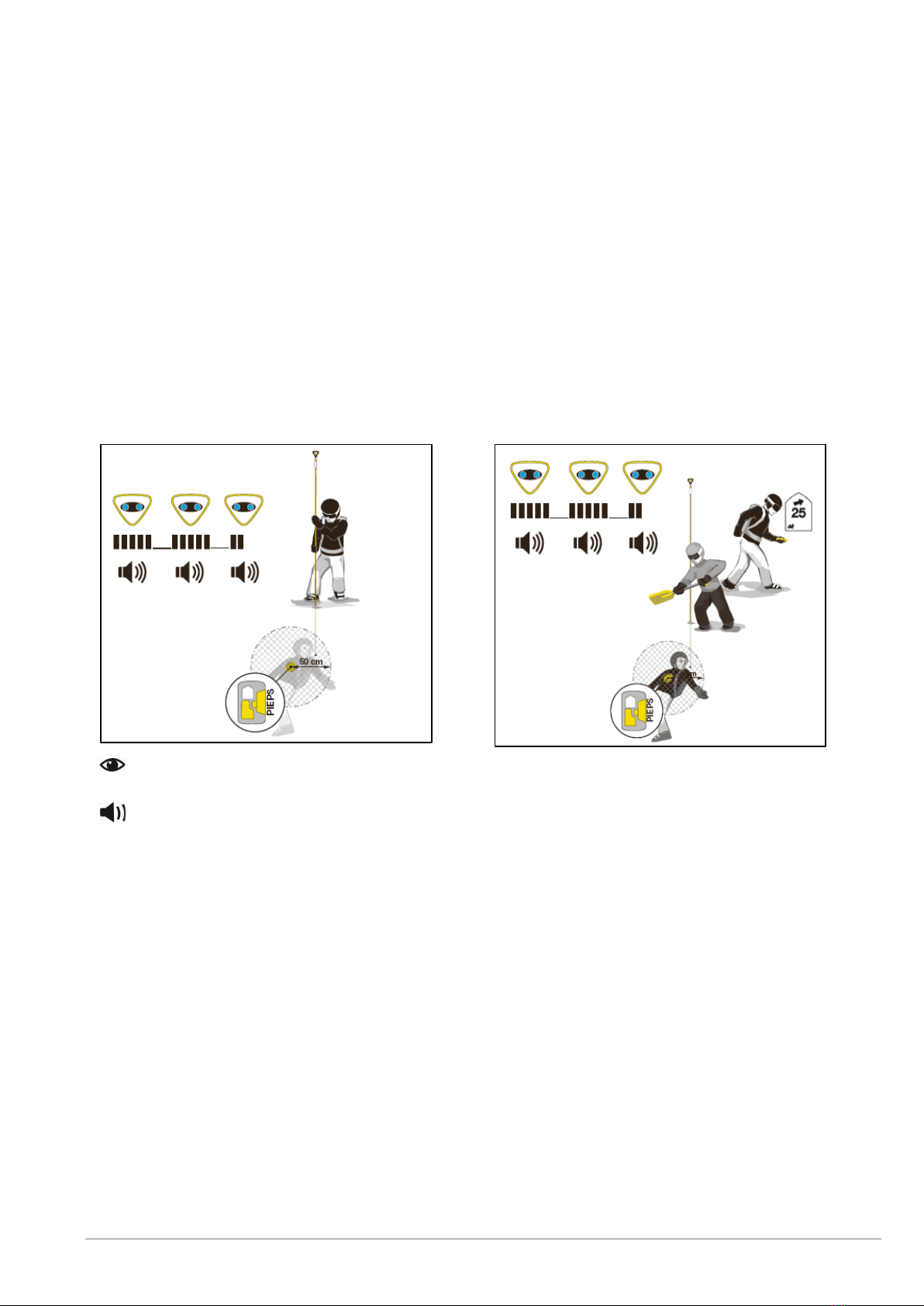

CHECK B
Check B
Transmitter deactivation (sleep-mode)
4.3.1 Check A: Search mode | Proximity indicator | Hit indicator
The optical and acoustic hit indicator gives you maximum support and saves valuable time at pinpointing!
In search mode (Check A1), the PIEPS iPROBE BT searches for a transmitting beacon. From a distance of approx. 2
to 0.5 m between probe tip and transmitting beacon, the proximity indicator (Check A2) is indicated. From a
distance of approx. 0.5 –0 m, the PIEPS iPROBE BT signals a hit (Check A3).
NOTICE
The proximity and hit indicators operate for each transmitting beacon that transmits according
to standard EN300718.
Check A1: Search mode, no active transmitting
beacon within < 2 m
Check A2: Proximity indicator, active transmitting
beacon within approx. 2 - 0.5 m
LEDs flash GREEN
No acoustic signal output
both LEDs flash BLUE with the interval of the
transmitting beacon
acoustic signal with the interval of the
transmitting beacon (piep_piep_piep_etc.)
Check A3: Hit indicator, active transmitting
beacon within < 0.5 m
Both LEDs lit BLUE
Continuous tone (piiiiiiiiiie...)
