Pifco P28046 User manual

MODEL P28046
www.pifco.co
2 in 1 Cyclonic Upright
& Handheld
Vacuum Cleaner
YOUR SAFETY & INSTRUCTION MANUAL
PLEASE READ CAREFULLY
Need help?
For advice, spares & returns.
Call: [phone]
8:30am to 6:00pm Monday - Friday
Visit: www.pifco.co

2
Customer support team: [phone]
Technical data
Description: 2 in 1 Cyclonic Upright & Handheld Vacuum Cleaner
Model: P28046
Input: 220-240V ~50/60Hz
Product Rating: 600W
Documentation
We declare that this product conforms to the following product legislation in accordance with the
following directive(s):
2014/30/EU Electromagnetic Compatibility Directive.
2014/35/EU Low Voltage Directive.
2011/65/EU Restriction of Hazardous Substances Directive.
2009/125/EC Eco-Design of Energy Related Products.
RK Wholesale LTD Quality Assurance, United Kingdom
Warranty
This product is guaranteed for 12 months from the date of original purchase. If any defect arises
due to faulty materials of workmanship, the faulty products must be returned to the place of
purchase. Refund or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this
instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• RK Wholesale LTD has limited liability for incidental or consequential loss or damage.
• This guarantee is only Valid in the UK and Eire Only.
An extended warranty is available for this appliance.
See back page for details.

3
www.pifco.co
WARNING:
This appliance is double insulated.
Do not connect any wire to the earth terminal.
WIRING SAFETY FOR UK USE ONLY
IMPORTANT
As the colours in the mains lead of this
appliance may not correspond with the
coloured markings identifying the terminals in
your plug, please proceed as follows:
The wires in the mains lead are coloured in
accordance with the following code:
Blue neutral [N] Brown live [L]
Plug Fing Details (Where Applicable).
The wire coloured blue is the neutral and must
be connected to the terminal marked [N] or
coloured black.
The wire coloured brown is the live wire and
must be connected to the terminal marked [L]
or coloured red.
On no account must either the brown or
the blue wire be connected to the [EARTH]
terminal .
Always ensure that the cord grip is fastened
correctly.
The plug must be fitted with a fuse of the
same rating already fitted and conforming to
BS 1362 and be ASTA approved.
If in doubt consult a qualified electrician who
will be pleased to do this for you.
Non-Rewireable Mains Plug.
If your appliance is supplied with a non-
rewireable plug fitted to the mains lead and
should the fuse need replacing, you must use
an ASTA approved one (conforming to BS
1362 of the same rating).
If in doubt, consult a qualified electrician who
will be pleased to do this for you.
If you need to remove the plug – disconnect
it from the mains – and then cut it off of the
mains lead and immediately dispose of it in a
safe manner. Never attempt to reuse the plug
or insert it into a socket outlet as there is a
danger of an electric shock.
Fuse
Neutral
(Blue)
Live
(Brown)

4
Customer support team: [phone]
• Check that the voltage of the
main circuit corresponds with
the rating of the appliance
before operating.
• If the supply cord or
appliance is damaged,
stop using the appliance
immediately and seek advice
from the manufacturer, its
service agent or a similarly
qualified person.
• DO NOT let the cord hang
over the edge of a table
or counter or let it come
into contact with any hot
surfaces.
• DO NOT carry the appliance
by the power cord.
• The use of accessory
attachments is not
recommended by the
appliance manufacturer apart
from those supplied with
this product. DO NOT use
extension cords with the
appliance.
• DO NOT pull the plug out by
the cord as this may damage
the plug and/or the cable.
• Switch off at the wall socket
then remove the plug from
the socket when not in use or
before cleaning.
• Switch off and unplug before
fitting or removing tools/
attachments, after use and
before cleaning.
• Close supervision is
necessary when any
appliance is used by or near
children.
• Children should not play with
the appliance.
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use of
the appliance in a safe way
and understand the hazards
involved.
• Cleaning and user
maintenance should not
be undertaken by children
without supervision.
• Take care when any appliance
is used near pets.
• Not suitable for carpets with
long fibres as the bristles will
damage the fibres.
PRODUCT SAFETY
When using any electrical appliance, basic safety precautions should
always be followed including the following:

5
www.pifco.co
• Keep the vacuum cleaner
moving over the carpet
surface at all times to avoid
damaging the carpet fibres.
• DO NOT use this product
for anything other than its
intended use.
• DO NOT immerse cords,
plugs or any part of the
appliance in water or any
other liquid.
• This appliance is for
household use only.
• DO NOT use the appliance
outdoors.
• Keep hair, loose clothing,
fingers and all body parts
away from moving parts.
• DO NOT use to pick up
flammable liquids such as
gasoline or use in an area
where they might be present.
• DO NOT use the appliance
without the dust container
filter in place.
• DO NOT pick up anything
that is burning or smoking
such as cigarettes, matches
or hot ashes.
• Use extra care when cleaning
on stairs.
• Use only manufacturer’s
recommended accessories.
• DO NOT pull cord, use cord
as a handle, close a door on
cord, or pull cord around
sharp edges or corners.
• DO NOT run vacuum cleaner
over the cord. Keep cord
away from heated surfaces.
• In the unlikely event the
appliance develops a fault,
stop using it immediately
and seek advice from the
Customer Support Team.
HIGH VOLTAGE ROTATING PARTS

6
Customer support team: [phone]
What’s in the box & details:
Instruction Manual
2 in 1 Vacuum Cleaner
1. Floor Brush
2. Crevice Tool
3. Dust Container
4. Filter
5. Dust Container Release Button
6. Power On/Off
7. Handle
8. Handheld Release Button
9. Handle Release Button
10. Handle
Before your first use:
1. Remove the product from the box.
2. Remove any packaging from the product.
3. Please retain all packaging until you have checked and counted all the parts and the contents
against the parts list.
Dispose of the packaging in a responsible manner.
1 3 4 5 6 72
8910

7
www.pifco.co
Assembly of your vacuum:
1. Insert the body into the floor brush slot.
2. Push the two parts together until you hear
them click in place.
3. To detach the handle, simply push the
button and pull out the upper part.
Using your vacuum:
• You can use the handle to clean floors and
carpets.
• When you use the vacuum with the body
attached to the floor brush, always make
sure the dust compartment is attached
properly.
Using the vacuum as an upright:
1. Place the handheld vacuum cleaner into
the floor brush.
2. Press the on/off button on the handle to
switch on the appliance.
3. If you want to leave the appliance for
a while or if you want to remove the
handheld vacuum cleaner during use, you
can use the parking position. Push the
handle towards the floor brush to put it in
parking position.
4. After use, press the on/off button to switch
off the appliance.
Using the handheld vacuum
cleaner:
You can use the handheld vacuum cleaner
without the handle to vacuum small and hard-
to-reach areas, such as tables, furniture, car seats
etc.
1. If the handheld vacuum cleaner is fixed into
the floor brush, press the on/off button to
switch off the appliance before you remove
the handheld vacuum cleaner.
2. Press the handheld release button and
remove the handheld vacuum cleaner from
the handle.
3. Press the on/off button to switch on the
switch off the handheld vacuum cleaner.
4. After use, press the on/off button again to
switch off the handheld vacuum cleaner.
Accessories:
The handheld vacuum cleaner comes complete
with a crevice tool, for vacuuming corners or
narrow gaps.

8
Customer support team: [phone]
Cleaning and care:
In order to achieve the best performance, empty
the dust container and clean the filters after
each use.
1. Always remove the plug from the wall
socket before you clean the unit.
2. Push the dust cup release button to
separate the cup from the body.
3. Shake the contents of the dust
compartment into a dustbin.
4. Remove the filter unit from the dust
compartment.
5. Clean the inner filter and the outer filter
band. If necessary, you can clean the filters
in cold or lukewarm water. Dry the filters
thoroughly before you use the filter unit
again.
Cleaning the Dust Tank and Filter:
• This unit is equipped with a removable
dust tank and filter, which can be cleaned
separately.
• To clean the dust cup, begin by separating
the handheld unit from the main floor
unit. To do this, first press the Lock button
on the main unit’s handle and pull the
handheld unit firmly away from the main
body of the unit until it detaches.
• Once the handheld is detached from the
main unit, press down on the small grey tab
above the dust tank and pull the tank firmly
away from the main body of the unit until
it detaches.
• Once the dust tank has detached, remove
the filter from inside and tap it against a
bin or rinse it under running water to clean
it. Leave the filter to dry thoroughly before
attempting to place it back into the unit.
• Once the filter is thoroughly dry, place it
back inside the dust tank, ensuring it is in
the correct position. When the filter has
been correctly positioned inside the dust
tank, place it back in its slot on the body of
the handheld unit and push down on the
small grey tab to release the dust tank lock.
• When the tank lock has been released,
push the dust tank into the main body of
the unit until it clicks into place. When the
tank is in place, release the grey tab to lock
it into position.
• Once the dust tank is securely in place,
push the handheld unit into the main body
of the vacuum until it clicks into place.
• The unit is now ready for normal use.
Storage:
• When the appliance is not in use, store in a
safe, dry place, out of reach of children.
• DO NOT store the vacuum in direct
sunlight.
Note:
This vacuum sweeper works best on
smooth surfaces such as wood, ceramic,
tiles and marble. It will also perform well
on hard, short-haired carpet. It should
NOT be used on long-haired carpets as
the fibres will damage the system.

9
www.pifco.co
WARNING:
DO NOT immerse any electrical part of the appliance in water such as motor units or plugs.
Please see cleaning secon for further instrucons.
Troubleshoong:
Problem Possible Soluon
The vacuum does not work. This vacuum cleaner is equipped with a motor
protective thermostat. If for some reason
your vacuum overheats, the thermostat will
automatically turn the suction motor off.
Should this occur, allow it to cool for 1 hour,
then empty the dust container and clean all of
the filters.
The vacuum will not pick up or the suction
power is weak.
The dust container may be full, or the filters
may require cleaning.
Empty the dust container and clean the filters.
Check to make sure the brush roller is clear of
fibres.
Dust is escaping from the vacuum. The filter may not be installed correctly, or the
dust container may be full.
Empty the dust container and reassemble the
filter system
DISPOSAL OF THE UNIT
Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are
required to dispose of old electrical and electronic appliances like this separately.
Please visit www.recycle-more.co.uk or www.recyclenow.co.uk
for access to information about the recycling of electrical items.
Please visit www.weeeireland.ie for access to information about the recycling of electrical items
purchased in Ireland.
The WEEE directive, introduced in August 2006, states that all electrical items must be recycled,
rather than taken to landfill.
Please arrange to take this appliance to your local Civic Amenity site for recycling,
once it has reached the end of its life.

10
Customer support team: [phone]

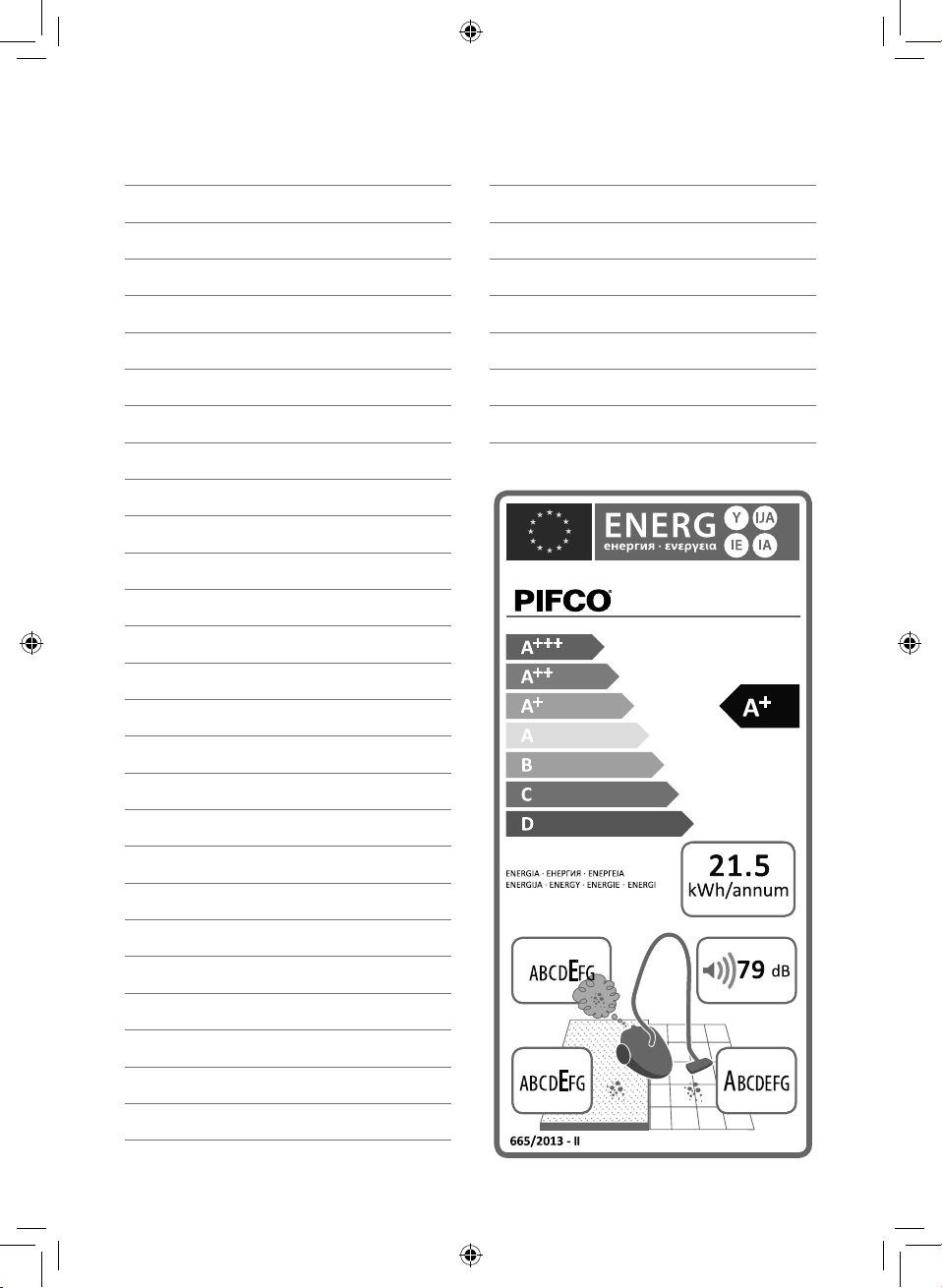

Notes
P28046

11
www.pifco.co
Notes

0220.V6
We hope you enjoy your appliance for many years.
As a thank you for purchasing one of our fantasc products,
we are oering you an extra 1 year peace of mind.
*To receive your extra guarantee period, register your appliance online
within 28 days of purchase by vising:
www.pifco.co
Make sure to retain your original receipt.
Should you have a problem with your appliance
or need any spare parts please call our
Customer Support Team on:
[phone]
Distributed throughout the UK by RK Wholesale LTD
