PSSu2 ES 4DO SR 0.5A
Operating Manual-1004553-EN-01
}Control system PSS u2
}Remote I/O system PSS u2

Preface
This document is the original document.
All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made
for the user's internal purposes. Suggestions and comments for improving this documenta-
tion will be gratefully received.
Source code from third-party manufacturers or open source software has been used for
some components. The relevant licence information is available on the Internet on the Pilz
homepage.
Pilz®, PIT®, PMI®, PNOZ®, Primo®, PSEN®, PSS®, PVIS®, SafetyBUS p®,
SafetyEYE®, SafetyNET p®, the spirit of safety® are registered and protected trademarks
of Pilz GmbH & Co. KG in some countries.
SD means Secure Digital

Contents
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 3
Section 1 Introduction 5
1.1 Validity of documentation 5
1.1.1 Retaining the documentation 5
1.2 Using the documentation 5
1.3 Definition of symbols 5
Section 2 Overview 7
2.1 Module features 7
Section 3 Safety 8
3.1 Intended use 8
3.2 System requirements 8
3.3 Safety regulations 8
3.3.1 Use of qualified personnel 8
3.3.2 Warranty and liability 9
3.3.3 Disposal 9
Section 4 Function description 10
4.1 Block diagram 10
4.2 Supply 10
4.3 Integrated protection mechanisms 10
4.4 Outputs 10
4.5 Reaction times 11
4.6 Energy-saving functions 11
Section 5 Address assignment 12
Section 6 Installation 13
6.1 General installation guidelines 13
6.1.1 Dimensions 13
6.2 Inserting and removing an electronic module 14
6.2.1 Inserting an electronic module 14
6.2.2 Removing an electronic module 16
6.2.3 Changing an electronic module during operation 16
Section 7 Wiring 18
7.1 General wiring guidelines 18
7.1.1 Connection mechanism for terminal blocks 18
7.2 Terminal configuration 19
Section 8 Operation 20
8.1 Display elements and messages 20
Section 9 Technical Details 22
9.1 Service life graphs 24

Contents
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 4
Section 10 Order reference 25
10.1 Product 25
10.2 Accessories 25

Introduction
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 5
1 Introduction
1.1 Validity of documentation
This operating manual explains the function and operation, describes the installation and
provides guidelines on how to connect the product.
This documentation is valid for the product PSS u2 ES 4DO SR 0.5A. It is valid until new
documentation is published.
1.1.1 Retaining the documentation
This documentation is intended for instruction and should be retained for future reference.
1.2 Using the documentation
This document is intended for instruction. Only install and commission the product if you
have read and understood this document. The document should be retained for future ref-
erence.
Please refer to the PSS u2 Installation Manual.
1.3 Definition of symbols
Information that is particularly important is identified as follows:
DANGER!
This warning must be heeded! It warns of a hazardous situation that poses
an immediate threat of serious injury and death and indicates preventive
measures that can be taken.
WARNING!
This warning must be heeded! It warns of a hazardous situation that could
lead to serious injury and death and indicates preventive measures that can
be taken.
CAUTION!
This refers to a hazard that can lead to a less serious or minor injury plus
material damage, and also provides information on preventive measures
that can be taken.

Introduction
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 6
NOTICE
This describes a situation in which the product or devices could be dam-
aged and also provides information on preventive measures that can be
taken. It also highlights areas within the text that are of particular import-
ance.
INFORMATION
This gives advice on applications and provides information on special fea-
tures.

Overview
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 7
2 Overview
Module structure:
A module consists of
}An electronic module
}A terminal block with cage clamp terminals and
}A backplane
The electronic modules are plugged into the backplane and determine the function. The
backplane is used for communication between the head module and the electronic modules
and forms the carrier unit for the electronic modules. The terminal block is plugged into the
electronic modules and is used to connect the field wiring.
Details of the terminal blocks that can be used are available under "Intended Use".
2.1 Module features
Application of the product PSS u2 ES 4DO SR 0.5A:
Electronic module with changeover contacts for standard applications
The product has the following features:
}Energy-saving functions
}LEDs for:
– Switch status of each output
– Module error
}4 relay contacts
– N/O contact
– Volt-free
– Current load capacity per output: See chapter Service life graphs [ 24]

Safety
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 8
3 Safety
3.1 Intended use
The module provides relay outputs with changeover contacts. It may be used to switch ex-
tra low voltages of up to 30 V DC.
The module PSS u2 ES 4DO SR 0.5A may be used in conjunction with the following ter-
minal block:
}16-pin terminal block
Intended use includes making the electrical installation EMC-compliant. The module is de-
signed for use in an industrial environment. Interference may occur if used in other areas.
The following is deemed improper use in particular
}Any component, technical or electrical modification to the module,
}Use of the module outside the areas described in this manual,
}Any use of the module that is not in accordance with the technical details.
3.2 System requirements
INFORMATION
The module is supported by
}PASconfig from version 2.0.0
– We recommend that you always use the latest version (download
from www.pilz.com).
3.3 Safety regulations
3.3.1 Use of qualified personnel
The products may only be assembled, installed, programmed, commissioned, operated,
maintained and decommissioned by competent persons.
A competent person is someone who, because of their training, experience and current pro-
fessional activity, has the specialist knowledge required to test, assess and operate the
work equipment, devices, systems, plant and machinery in accordance with the general
standards and guidelines for safety technology.
It is the company’s responsibility only to employ personnel who
}Are familiar with the basic regulations concerning health and safety / accident preven-
tion,
}Have read and understood the information provided in this description under "Safety",
}And have a good knowledge of the generic and specialist standards applicable to the
specific application.

Safety
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 9
3.3.2 Warranty and liability
All claims to warranty and liability will be rendered invalid if
}The product was used contrary to the purpose for which it is intended,
}Damage can be attributed to not having followed the guidelines in the manual,
}Operating personnel are not suitably qualified,
}Any type of modification has been made (e.g. exchanging components on the PCB
boards, soldering work etc.).
3.3.3 Disposal
}When decommissioning, please comply with local regulations regarding the disposal of
electronic devices (e.g. Electrical and Electronic Equipment Act).

Function description
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 10
4 Function description
4.1 Block diagram
O0.14
K0
O0.11
O0.11
Module
Supply
Data
(FS)
Periphery
Supply
+24 V DC
Module Bus
3
O0.12
. . .
124
. . .
Fig.: Block diagram PSS u2 ES 4DO SR 0.5A
4.2 Supply
}The module supply provides the module with voltage.
4.3 Integrated protection mechanisms
}The module has temperature monitoring.
The module provides the following diagnostic data:
}Start-up error
}Configuration error
}ST communication error
}Temperature error: too warm
}Temperature error: too hot
4.4 Outputs
The module has 4 relay outputs with a changeover contact.
Outputs
}The head module sets the output status via the module bus.
If the module does not receive a process image of outputs from the head module, then sub-
stitute values are used for the process data. The value that is to be used as the substitute
value can be configured.
Substitute values may be:
}Output switched off (default value)
}Output switched on

Function description
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 11
}Last valid value
4.5 Reaction times
You can find information about the reaction times in the operating manual for the head
module PSSu2P0 F/S PN.
4.6 Energy-saving functions
The energy-saving levels are controlled by the head module and are not configurable. The
module supports the following energy-saving levels:
}Switching off the LEDs
The LEDs have two energy-saving levels:
– Switching off the LEDs that display the terminal status
– Switching off the LEDs that display the module and terminal status
}Switching off the relay coils
}Standby mode
– All module functions are inactive.
– The LEDs for displaying the module and terminal status are switched off.

Address assignment
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 12
5 Address assignment
The module occupies 1 Byte in the process image of outputs.
PIO Meaning State
Bit 0 Output data O0
Changeover contact O0.12/
O0.11
Changeover contact O0.14/
O0.11
0: Changeover contact O0.12 and O0.11 is
closed
1: Changeover contact O0.14 and O0.11 is
closed
Bit 1 Output data O1
Changeover contact O1.22/
O1.21
Changeover contact O1.24/
O1.21
0: Changeover contact O1.22 and O1.21 is
closed
1: Changeover contact O1.24 and O1.21 is
closed
Bit 2 Output data O2
Changeover contact O2.32/
O2.31
Changeover contact O2.34/
O2.31
0: Changeover contact O2.32 and O2.31 is
closed
1: Changeover contact O2.34 and O2.31 is
closed
Bit 3 Output data O3
Changeover contact O3.42/
O3.41
Changeover contact O3.44/
O3.41
0: Changeover contact O3.42 and O3.41 is
closed
1: Changeover contact O3.44 and O3.41 is
closed
Bit 4-7 None Permanently "0"

Installation
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 13
6 Installation
6.1 General installation guidelines
NOTICE
Damage due to electrostatic discharge!
Electrostatic discharge can damage components. Ensure against discharge
before touching the product, e.g. by touching an earthed, conductive sur-
face or by wearing an earthed armband.
6.1.1 Dimensions
12,5
50,1
54.4
88,37
6
51,1 60
111,1
(95.3)
51,7
Fig.: Dimensions in mm, including backplane, electronic module and terminal block

Installation
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 14
6.2 Inserting and removing an electronic module
Please note:
}Backplane must be installed first.
}Electronic modules may only be plugged or unplugged if the terminal block has been
removed first.
}The mechanics of the electronic modules are designed for 20 plug in/out cycles.
}On electronic modules with outputs, the terminal block may only be inserted and re-
moved when the load is switched off. Unforeseeable error reactions may be triggered if
modules are inserted and removed under load.
6.2.1 Inserting an electronic module

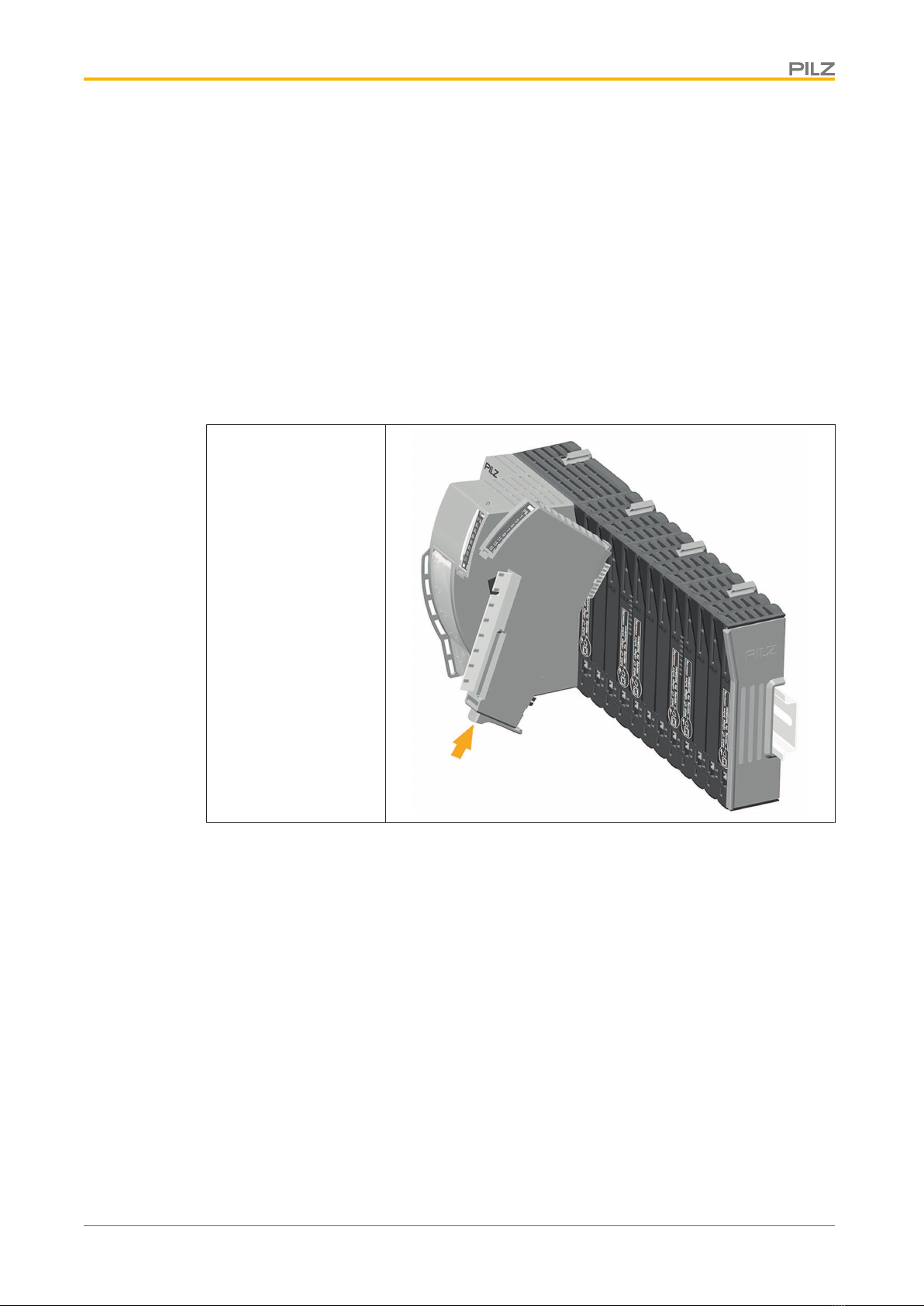

1. Insert the electronic
module into the suspen-
sion lug on the back-
plane.

Installation
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 15

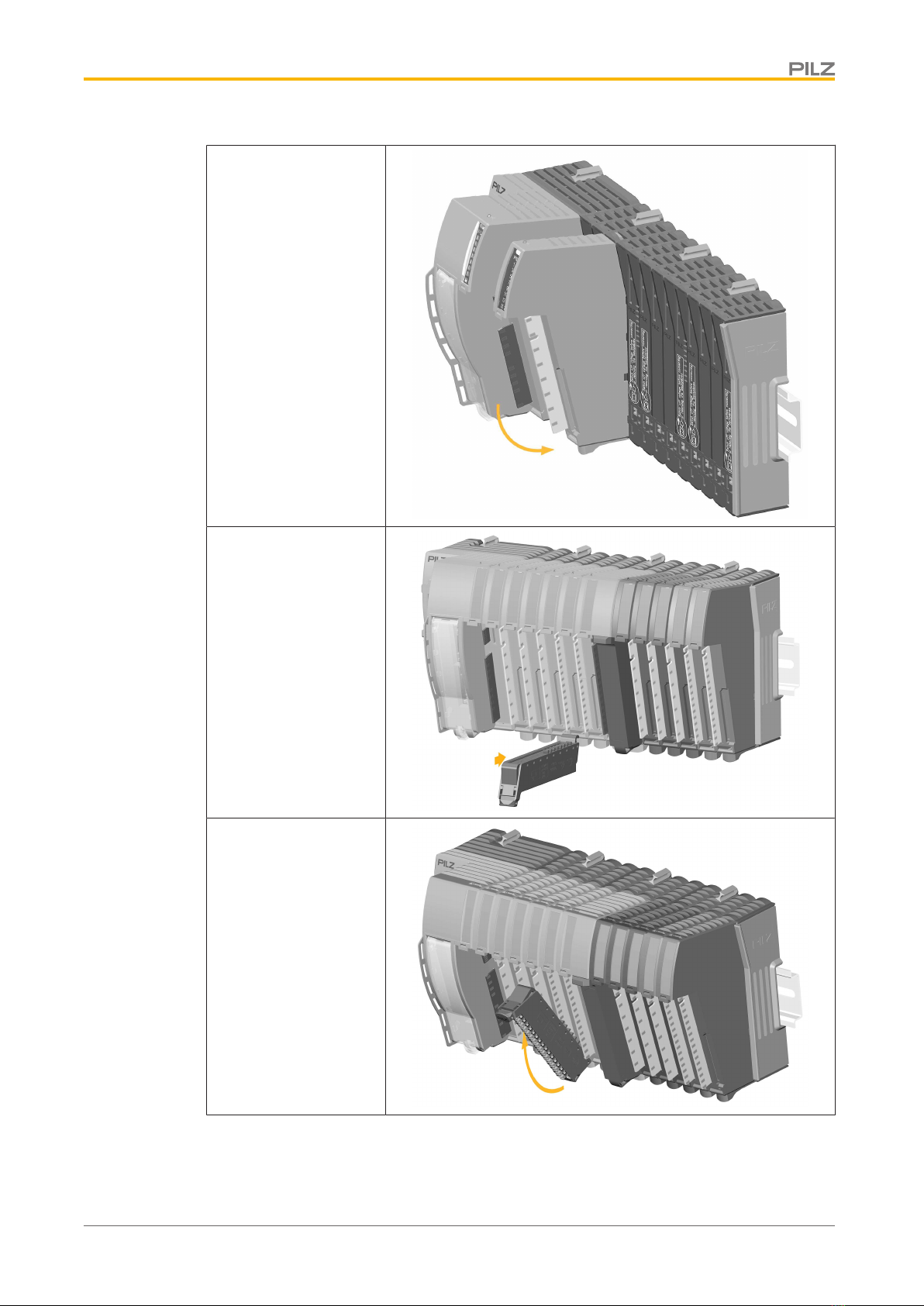

2. Swivel the electronic
module downwards until
you hear it click into
place.
3. Insert the terminal
block into the suspen-
sion lug on the module.
4. Swivel the terminal
block downwards until
you hear it click into
place.

Installation
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 16
6.2.2 Removing an electronic module
1. Press the unlocking
mechanism on the ter-
minal block that is
shown by the arrow and
pull off the terminal
block upwards.
2. Press the unlocking
mechanism that is
shown by the arrow and
pull off the electronic
module upwards.
6.2.3 Changing an electronic module during operation
An electronic module can be hot swapped.
Effects:
}Module bus communication between the other modules is not interrupted.
}The configuration data is retained.
}The module is detected automatically as soon as the module is re-inserted.
A new electronic module can be inserted during operation.
Effects:
}Module bus communication between the other modules is not interrupted.
}The head module may need to be configured and restarted in order for the new module
to be detected.

Installation
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 17
}On electronic modules with outputs, the terminal block may only be inserted and re-
moved when the load is switched off. Unforeseeable error reactions may be triggered if
modules are inserted and removed under load.

Wiring
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 18
7 Wiring
7.1 General wiring guidelines
Please note:
}The actuators may be connected using unshielded cables.
}To prevent contact welding, a fuse should be connected before the output contacts (see
Technical details).
}Use copper wiring.
7.1.1 Connection mechanism for terminal blocks
Procedure:
}Use a flat head screwdriver.
}Strip the wire back 9 mm.
}Feed the stripped cable as far as it will go into the opening for the spring-loaded ter-
minal.
}Check that the cable is firmly seated.
Please note:
}The minimum cable cross section for field connection terminals on the terminal blocks
is 0.15mm2 (AWG26).
}The maximum cable cross section for field connection terminals on the terminal blocks
is 1.5mm2 with ferrules (AWG14)
}Use copper wiring.

Wiring
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 19
7.2 Terminal configuration
Terminal configuration Connection examples
Output O0
Terminal 1: O0.14
Terminal 2: O0.11
Terminal 3: O0.12
Terminal 4: O0.11
Changeover contact 1: O0.12 -
O0.11
Changeover contact 2: O0.14 -
O0.11
Output O1
Terminal 5: O1.24
Terminal 6: O1.21
Terminal 7: O1.22
Terminal 8: O1.21
Changeover contact 1: O1.22 –
O1.21
Changeover contact 2: O1.24 –
O1.21
Output O2
Terminal 9: O2.34
Terminal 10: O2.31
Terminal 11: O2.32
Terminal 12: O2.31
Changeover contact 1: O2.32 –
O2.31
Changeover contact 2: O2.34 –
O2.31
Output O3
Terminal 13: O3.44
Terminal 14: O3.41
Terminal 15: O3.42
Terminal 16: O3.41
Changeover contact 1: O3.42 –
O3.41
Changeover contact 2: O3.44 –
O3.41
}Switching between a process signal at terminal 1 and a test signal
at terminal 3.
}A signal lamp at terminal 4 displays the signal
16
24 V
0 V

Operation
Operating Manual PSSu2 ES 4DO SR 0.5A
1004553-EN-01 20
8 Operation
The status of the module is displayed via the "Module status display" and "Terminal status
display"; this is signalled to the head module and any error is entered in the head module's
diagnostic log.
8.1 Display elements and messages
Only the LEDs at the terminals 1, 3, 5, 7, 9, 11, 13, 15 are active. The terminal On.x2 lights
in switched-off state and terminal On.x4 lights in switched-on state.
[1]
[2]
Legend
[1] Module status display
[2] Terminal status display
The module can detect the following errors:
[1]
Col-
our
[1] [2]
Col-
our
[2] Meaning Further information
-- -- Module not ready for operation
Green -- Module ready for operation
Green Green Terminal status display at the terminals 3,
7, 11, 15 lights up green when the
changeover contact On.x1 / On.x2 is open
and the module is in operation.
Terminal status display at the terminals 1,
5, 9, 13 lights up green when the
changeover contact On.x1 / On.x2 is open
and the module is in operation.
Green -- Module in operation and the changeover
contacts are open
Red -- Configuration error: Module was inserted in
the wrong slot.
Red -- Internal error/firmware update See module's diagnostic log
