1.1 Validity of documentation
1 Introduction
11000IntroductionIntroduction1-1.1Validity of documentation1100Validity of documentation1-
This documentation is valid for the product PSSu WB S IDN. It is valid
until new documentation is published.
This operating manual explains the function and operation of the pro-
grammable safety system, describes the installation and provides
guidelines on how to connect the product PSSu WB S IDN.
Using the product PSSu WB S IDN:
Base station to connect the PSSuniversal system to InduraNET p for
standard data
1.1.1 Retaining the documentation
Retaining the documentation1-
This documentation is intended for instruction and should be retained
for future reference.

1.2 Overview of documentation
1 Introduction
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [email protected]
1-2
1.2Overview of documentation1200Overview of documentation1-
1 Introduction
The introduction is designed to familiarise you with the contents, struc-
ture and specific order of this manual.
2 Overview
This chapter provides information on the module's most important fea-
tures.
3 Safety
This chapter must be read as it contains important information on in-
tended use.
4 Function Description
This chapter describes the module's individual components.
5 Installation
This chapter explains how to install the module.
6 Wiring
This chapter describes the module's wiring.
7 Operation
This chapter explains the display elements and advises on what to do if
a fault occurs.
8 Technical Details

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [email protected] 1-3
1.3 Definition of symbols
1 Introduction
1.3Definition of symbols1300Definition of symbols1-
Information in this manual that is of particular importance can be identi-
fied as follows:
DANGER!
This warning must be heeded! It warns of a hazardous situation
that poses an immediate threat of serious injury and death and
indicates preventive measures that can be taken.
WARNING!
This warning must be heeded! It warns of a hazardous situation
that could lead to serious injury and death and indicates preven-
tive measures that can be taken.
CAUTION!
This refers to a hazard that can lead to a less serious or minor
injury plus material damage, and also provides information on
preventive measures that can be taken.
NOTICE
This describes a situation in which the unit(s) could be damaged
and also provides information on preventive measures that can
be taken.
INFORMATION
This gives advice on applications and provides information on
special features, as well as highlighting areas within the text that
are of particular importance.

1 Introduction
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [email protected]
1-4

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [email protected] 2-1
2.1 Module structure
2 Overview
22000OverviewOverview2-2.1Module structure2100Module structure2-
A module consists of
`Electronic module and
`Base module with
– Screw terminals or
– Cage clamp terminals
The base modules are the carrier units for the electronic modules and
are used to connect the field wiring. The electronic modules are inserted
on to the base modules and determine the module's function.
Details of the base modules that can be used are available in the
“Wiring” chapter.
The PSSu WB S IDN module is supplied with a chip card for storing the
configuration data. Additional chip cards are available as an accessory.
An antenna is required in order to operate the module. Two antenna
types are available:
`For remote and base stations:
PSS ANT 1 IDN
`For base stations only:
PSS ANT 2 IDN
The antenna is supplied with an SMA antenna cable which is 2 m long
and has an impedance level of 50 Ohm. A suitable 2 m long extension
cable is available as an accessory.
The chip card reader SCR 335 USB with USB cable is available as an
accessory.
CAUTION!
The radio approval will be rendered invalid if a third-party
antenna is used.
`InduraNET p devices should only be used with the antennas
PSS ANT 1 IDN and PSS ANT 2 IDN.

2.1 Module structure
2 Overview
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [email protected]
2-2
2.1.1 Module features
Module features2-
The module has the following features:
`The module terminates a PSSu system and extends the ST data bus
across an InduraNET p radio link.
`As a base station the module supports up to four remote stations
PSSu WR S IDN
`Antenna connection for InduraNET p
`The module provides connections for external supplies. The external
supplies are galvanically isolated from the module bus supplies.
`LEDs for:
–InduraNET p status per remote station
–Moduleerror
2.1.2 Features of InduraNET p
Features of InduraNET p2-
InduraNET p enables wireless communication on the PSSuniversal.
Data from the standard section is transmitted via radio instead of the
module bus. Wireless communication via InduraNET p does not need to
be considered in the user program.
The module bus cycle is recreated in the remote system. This will in-
crease the input/output reaction times of a remote system.
Each InduraNET p device is given an ID, which ensures that all subscrib-
ers are uniquely identified. Up to ten InduraNET p networks can coexist
within one environment. All the settings for wireless communication are
stored within the module on a chip card, which is written via a chip card
reader.

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [email protected] 2-3
2.1 Module structure
2 Overview

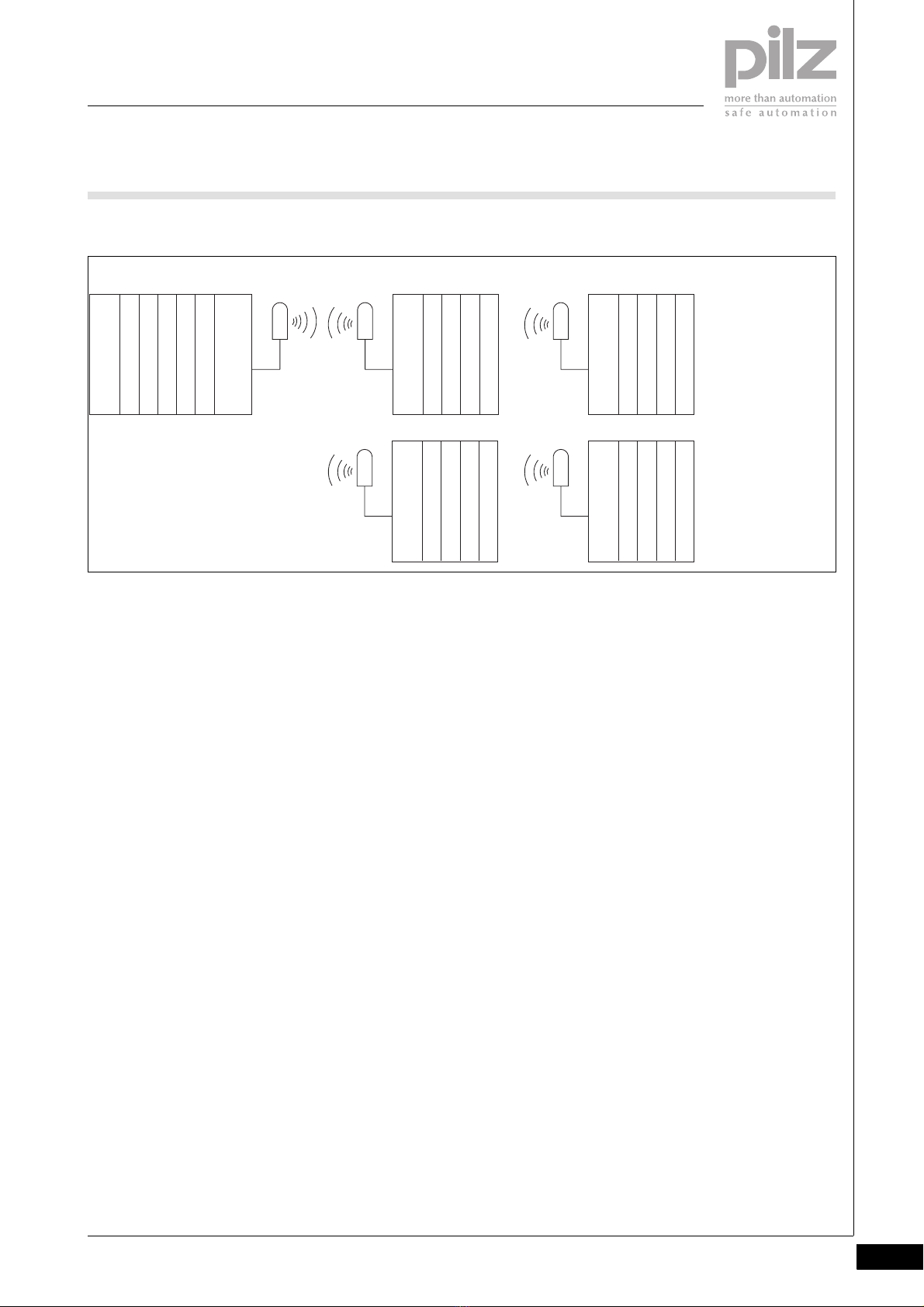

Schematic representation of InduraNET p
Head module (FS/ST)
I/O module (FS/ST) I/O module (FS/ST) I/O module (FS/ST) I/O module (FS/ST) IDN base station
ANT
Supply
I/O module (ST) IDN remote station
ANT
I/O module (ST) I/O module (ST) I/O module (ST)
I/O module (ST) IDN remote station
ANT
I/O module (ST) I/O module (ST) I/O module (ST)
I/O module (ST) IDN remote station
ANT
I/O module (ST) I/O module (ST) I/O module (ST)
I/O module (ST) IDN remote station
ANT
I/O module (ST) I/O module (ST) I/O module (ST)
Base system Up to remote systems
InduraNET p

2.2 Front view
2 Overview
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [email protected]
2-4
2.2Front view2200Front view2-
Key:
`A: Electronic module PSSu WB S IDN
`B: Base module
`1: LED for module diagnostics
`2: Chip card slot
`3: Antenna connection (SMA)
`4: Labelling strip with:
– Name of electronic module
–Ordernumber
– Serial number
– Hardware version number
–2Dcode
`5: LEDs for the status of the remote stations
`6: Name of electronic module
`7: Connection level 1
`8: Connection level 2
`9: Connection level 3
`10: Connection level 4
2111
2212
2414
4131
4232
4434
2313 4333
Err
PSSu
WB S IDN
312095
000000
000
R1
R2
R3
R4
CHIP ANT
PSSu
WB S IDN
13
1
3
7
8
9
2A
B
4
12
11
5
6
10

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [email protected] 2-5
2.2 Front view
2 Overview
`11: Square mounting holes (connection levels 1, 2, 3 and 4)
– With screw to loosen/tighten the screw terminal on base modules
with screw terminals
– With mechanism to operate the cage clamp on base modules with
cage clamp terminals
`12: Round connection holes (connection levels 1, 2, 3 and 4) for con-
necting the cables
`13: Mounting slot for colour marker to label the connection level (con-
nection levels 1, 2, 3 and 4)

2 Overview
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [email protected]
2-6

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [email protected] 3-1
3.1 Intended use
3 Safety
33000SafetySafety3-3.1Intended use3100Intended use3-
The module may be used as a base station in InduraNET p, for the wire-
less communication of ST data. It can be operated with up to four re-
mote stations of type PSSu WR S IDN.
The module may be used to feed and extract external supplies to and
from the connection terminals.
Intended use includes making the electrical installation EMC-compliant.
Please refer to the guidelines stated in the “PSSuniversal Installation
Manual”. The module is designed for use in an industrial environment. It
is not suitable for use in a domestic environment, as this can lead to in-
terference.
The following is deemed improper use in particular:
`Any component, technical or electrical modification to the module
`Use of the module outside the areas described in this manual
`Use of the module outside the technical details (see chapter entitled
“Technical Details”)
The PSSu WB S IDN module may be used in conjunction with the fol-
lowing base modules:
`PSSu BP 2/16S
`PSSu BP 2/16C
`PSSu BP-C 2/16S
`PSSu BP-C 2/16C
INFORMATION
The module is supported by the PSSuniversal Configurator and
the PSSuniversal Assistant from Version 1.5.
The module is supported by PSSuniversal head modules from
ST Firmware Version 12.

3.2 Safety regulations
3 Safety
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [email protected]
3-2
3.2Safety regulations3200Safety regulations3-
3.2.1 Use of qualified personnel
Use of qualified personnel3-
The products may only be assembled, installed, programmed, commis-
sioned, operated, maintained and decomissioned by qualified person-
nel. Qualified personnel are people who, because they are:
`Qualified electrical engineers or
`Have received training from qualified electrical engineers
are suitably experienced to operate devices, systems, plant and ma-
chinery in accordance with the general standards and guidelines for
safety technology.
It is the company's responsibility only to employ personnel who:
`Are familiar with the basic regulations concerning health and safety /
accident prevention
`Have read and understood the safety guidelines given in this descrip-
tion
`Have a good knowledge of the generic and specialist standards appli-
cable to the specific application.
3.2.2 Warranty and liability
Warranty an d liability3-
All claims to warranty and liability will be rendered invalid if, among other
things:
`The product was used contrary to the purpose for which it is intended
`Damage can be attributed to not having followed the guidelines in the
manual
`Operating personnel are not suitably qualified
`Any type of modification has been made (e.g. exchanging compo-
nents on the PCB boards, soldering work etc.).
3.2.3 Disposal
Disposal3-
The product must be disposed of properly when it reaches the end of its
service life.

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [email protected] 3-3
3.3 Approvals for wireless operation
3 Safety
3.3Approvals for wireless operation3300Approvals for wireless operation3-][Gertebesch reibung Funkzulassung
InduraNET p devices meet the requirements and specifications of the
EU directive 1999/5/EU and may be operated in the following European
Union countries:
`Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Esto-
nia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Roma-
nia, Slovakia, Slovenia, Spain, Sweden, United Kingdom
InduraNET p devices may also be operated in the following countries:
`Andorra, British Virgin Islands, Gibraltar, Greenland, Jersey, Monaco,
Montserrat, Netherlands Antilles, Pitcairn, San Marino, Svalbard and
Jan Mayen, Vatican City
`Iceland, Liechtenstein, Norway, Switzerland
`Australia, Canada, Japan, New Zealand, United States of America
Other countries: On request

3.3 Approvals for wireless operation
3 Safety
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [email protected]
3-4

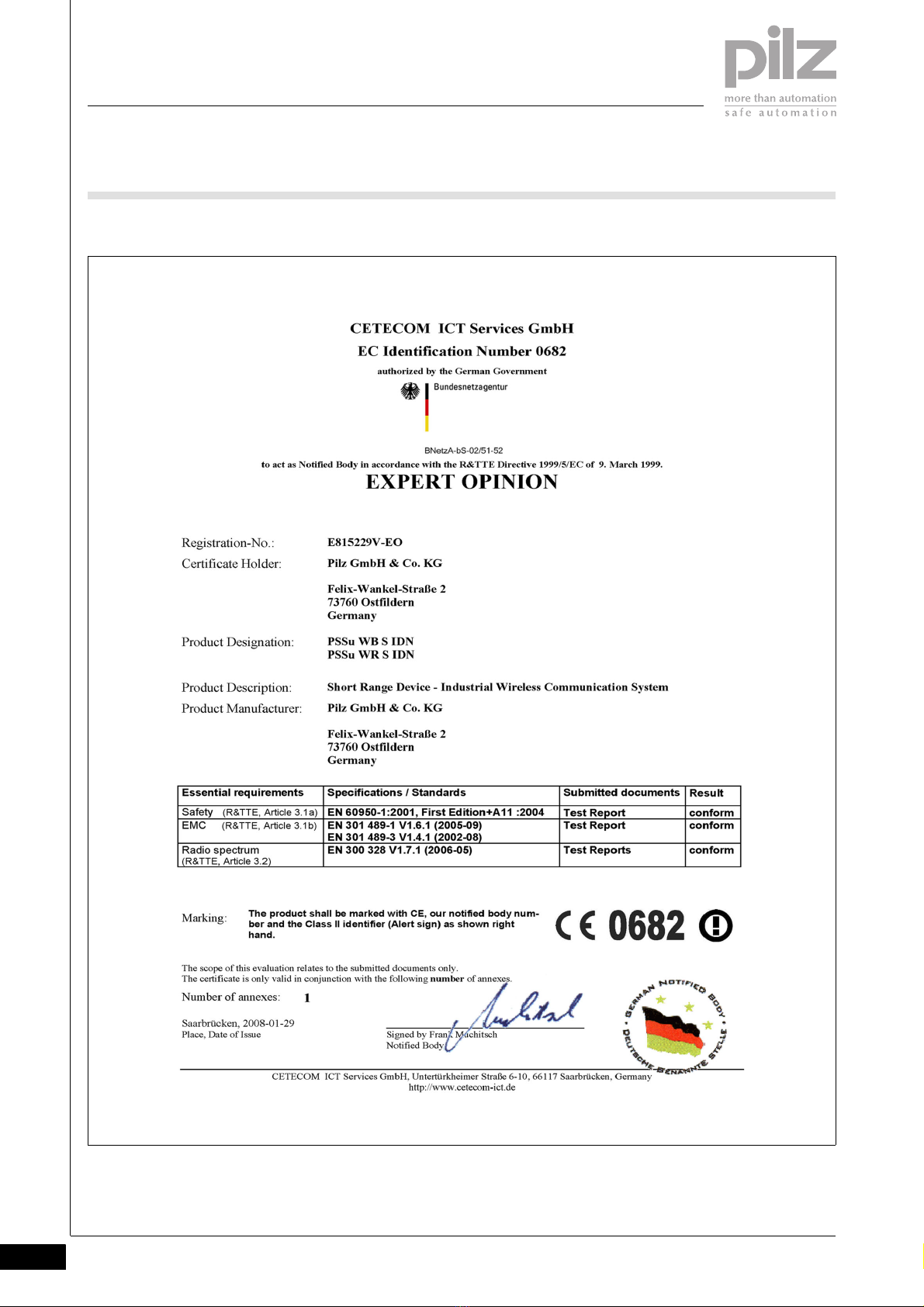

3.3.1 European approval
European approval3-

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [email protected] 3-5
3.3 Approvals for wireless operation
3 Safety

3.3 Approvals for wireless operation
3 Safety
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [email protected]
3-6
3.3.2 FCC approval
FCC approval3-
Please note the following when operating the device in the USA and
Canada:
Installation by professionals only!
This device complies with Part 15 of the FCC Rules and with RSS-210
of Industry Canada. Operation is subject to the following two conditions:
`(1) This device may not cause harmful interference, and
`(2) This device must accept any interference received, including inter-
ference that may cause undesired operations.
This Class B digital apparatus complies with Canadian ICES-003.
Changes or modifications made to this equipment not expressly ap-
proved by Pilz may void the FCC authorisation to operate this equip-
ment.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful in-
terference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a par-
ticular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the inter-
ference by one or more of the following measures:
`Reorient or relocate the receiving antenna.
`Increase the separation between the equipment and receiver.
`Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
`Consult the dealer or an experienced radio/TV technician for help.
