INSTALLATION INSTRUCTIONS: CL-WLS7000-3CCT | 7000 LUMEN ULTRA SLIM WALL PACK
Power Drill
Silicone Sealant
NOT INCLUDED
Electrical
Tape
Wire Stripper
Phillips Screwdriver
Ladder
Safety Glasses
Level
PRECAUTIONS:
Please read and understand this entire manual before installing or operating this light xture.
• Read all instructions before installation, then store in a safe place for
future reference. Failure to do so may result in faulty assembly
and potential injury.
• Thislightxtureshouldbeinstalledoutdoorstoawall.
• Do not immerse components in liquid.
• Your light is water-resistant.
• Never look directly into the light when illuminated.
• This product is designed to operate in temperatures ranging from
-40oF to 113oF (-40oC to 45oC).
• If you are unfamiliar with electrical installation contact a qualied
electrician.
WARNING: Before installation or servicing, turn the power OFF at the circuit breaker or fuse. Place tape over the circuit breaker switch
andverifypowerisOFFatthelightxture.
CAUTION:Burnhazard.Allowthelightxturetocoolbeforetouching.
CAUTION:Donotmountthextureupsidedown.
WARNING:Riskofre.Keepthelampheadsatleast3in.fromcombustiblematerials.
1/8” Drill Bit
NOT INCLUDED
TOOLS REQUIRED:
WARNING:
RISK OF ELECTRICAL SHOCK.
TO AVOID ELECTRICAL SHOCK, MAKE SURE TO TURN
OFF THE MAIN POWER SOURCE OR DISCONNECT POWER
DURING THE INSTALLATION OR SERVICE
OF THIS PRODUCT
HARDWARE:
1 X Light 4xMountingScrews 3xLargeWireNuts 2xSmallWireNuts
6 x Wall plugs
6 x Mounting Screws
Please read these instructions thoroughly prior to installation, then store in a safe place for future reference.
1 x Solar Panel
1 x Motion Light
1
1 X Mounting Plate
SOLAR MOTION LIGHT
4xWallAnchors
6 x Wall plugs
6 x Mounting Screws
Please read these instructions thoroughly prior to installation, then store in a safe place for future reference.
1 x Solar Panel
1 x Motion Light
1
1 X Mounting Plate
SOLAR MOTION LIGHT
If you have questions or are missing parts, please contact customer service at 1-888-745-4837

2
Fig 2
COVER
Male/Female Connector
BASE
LEVEL
INSTALLATION INSTRUCTIONS: CL-WLS7000-3CCT | 7000 LUMEN ULTRA SLIM WALL PACK
INSTALLATION
If you are unfamiliar with electrical
installation contact a qualied electrician.
Make sure the power is OFF from the circuit
breaker.
Open the cover (A) by unscrewing the 2x
screws on the xtures right side as show in
Fig 1.
WARNING:
RISK OF ELECTRICAL SHOCK.
TO AVOID ELECTRICAL SHOCK, MAKE SURE TO TURN
OFF THE MAIN POWER SOURCE OR DISCONNECT POWER
DURING THE INSTALLATION OR SERVICE
OF THIS PRODUCT
Fig 1 1
3
Fig 3 METHOD 1 (JUNCTION BOX):
Align the base (A) with the junction box. On
the base (A), mark where the junction box
screw holes align with the base (A). Drill (4)
holes in the base (A) using a 1/8" drill bit,
then screw the base (A), onto the junction
box using (4) screws (B) as shown in Fig 3.
Use the level included in the base (A) of the
light (see Fig 2) to make sure the unit is level.
Seal the screw heads silicon sealant (not
included).
Disconnect the male/female connector as
shown in Fig 2. Then remove the cover by
lifting up.
2
If you have questions or are missing parts, please contact customer service at 1-888-745-4837

3
INSTALLATION INSTRUCTIONS: CL-WLS7000-3CCT | 7000 LUMEN ULTRA SLIM WALL PACK
Use the level included in the base (A) of the
light (see Fig 2 on page 2) to make sure the
unit is level. Use (4) wall anchors (C), insert
into each drilled hole, then use (4) screws
(B) to fasten the base (A) to the surface as
shown in Fig 5. Seal the screw heads with
silicon sealant (not included).
WARNING:
RISK OF ELECTRICAL SHOCK.
TO AVOID ELECTRICAL SHOCK, MAKE SURE TO TURN
OFF THE MAIN POWER SOURCE OR DISCONNECT POWER
DURING THE INSTALLATION OR SERVICE
OF THIS PRODUCT
Fig 4 4
5
Fig 5
METHOD 2 (WALL MOUNT):
Drill holes through the base (A) using a 1/8"
drill bit at the required four mounting points
as shown in Fig 4.
If you have questions or are missing parts, please contact customer service at 1-888-745-4837

4
INSTALLATION INSTRUCTIONS: CL-WLS7000-3CCT | 7000 LUMEN ULTRA SLIM WALL PACK
WARNING:
RISK OF ELECTRICAL SHOCK.
TO AVOID ELECTRICAL SHOCK, MAKE SURE TO TURN
OFF THE MAIN POWER SOURCE OR DISCONNECT POWER
DURING THE INSTALLATION OR SERVICE
OF THIS PRODUCT
If you have questions or are missing parts, please contact customer service at 1-888-745-4837
Unscrew the desired cap for the wiring
location (F) on the base (A) of the light as
shown in Fig 6. The three options are:
Middle/back
Bottom
Left
Run the 5 wires through the corresponding
hole (F) (Black, White, Green, Purple, and
Pink).
Connect the wires as shown in Fig 7.
Live (Black)
Neutral (White)
Ground (Yellow/Green)
Dim+ (Purple)
Dim- (Pink)
If you are not using a dimmer, use (2) wire
nuts (E) or electric tape to cap the purple
and pink wires so they are not left exposed.
Use wire nuts (D) to cap the connected wires.
If desired, you can use electrical tape for
extra security as shown in Fig 7A (Ground/
(Yellow/Green) connection).
Fig 6
Fig 7
6
7
Fig 7A
L(Black)
N(White)
G(Yellow/Green)
Dim+(Purple)
Dim-(Pink)
LNG P
uPi

5
COVER
BASE
LEVEL
INSTALLATION INSTRUCTIONS: CL-WLS7000-3CCT | 7000 LUMEN ULTRA SLIM WALL PACK
WARNING:
RISK OF ELECTRICAL SHOCK.
TO AVOID ELECTRICAL SHOCK, MAKE SURE TO TURN
OFF THE MAIN POWER SOURCE OR DISCONNECT POWER
DURING THE INSTALLATION OR SERVICE
OF THIS PRODUCT
Reconnect the cover to the left hinges of
the base (A) as shown in Fig 8. Reconnect
the male/female connector.
Close the cover (A) and tighten the (2)
screws on the right side of the light as
shown in Fig 9.
NOTE: Make sure the (2) screws are
on tight and the rubber washers are
between the two metal screw posts.
Remove the (2) black rubber plugs from
the bottom of the light (A) as shown in
Fig 10. Turn the power back on.
OPTIONAL: Add silicon sealant (not
included) around the xture and wall to
create a waterproof seal.
Fig 10
8
9
10
Fig 8
Fig 9
Male/Female Connector
If you have questions or are missing parts, please contact customer service at 1-888-745-4837

6
Switch for
CCT
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation.
INSTALLATION INSTRUCTIONS: CL-WLS7000-3CCT | 7000 LUMEN ULTRA SLIM WALL PACK
TROUBLESHOOTING:
Problem Possible Cause Solution
The xture does The power is o. Check the power supply and make sure it is ON.
not light. There is a bad wire connection. Check the wiring.
The switch is defective. Test and/or replace the switch.
Too much ambient light for dusk Check surroundings or relocate light.
to dawn activation.
Circuit breaker Incorrect wire connections, or hot Ensure wires are connected correctly.
trips when the wires are grounded out. Contact an Electrician.
power is sent
to the light.
WARNING:
RISK OF ELECTRICAL SHOCK.
TO AVOID ELECTRICAL SHOCK, MAKE SURE TO TURN
OFF THE MAIN POWER SOURCE OR DISCONNECT POWER
DURING THE INSTALLATION OR SERVICE
OF THIS PRODUCT
CARE AND MAINTENANCE:
The light should be cleaned with a damp cotton cloth regularly.

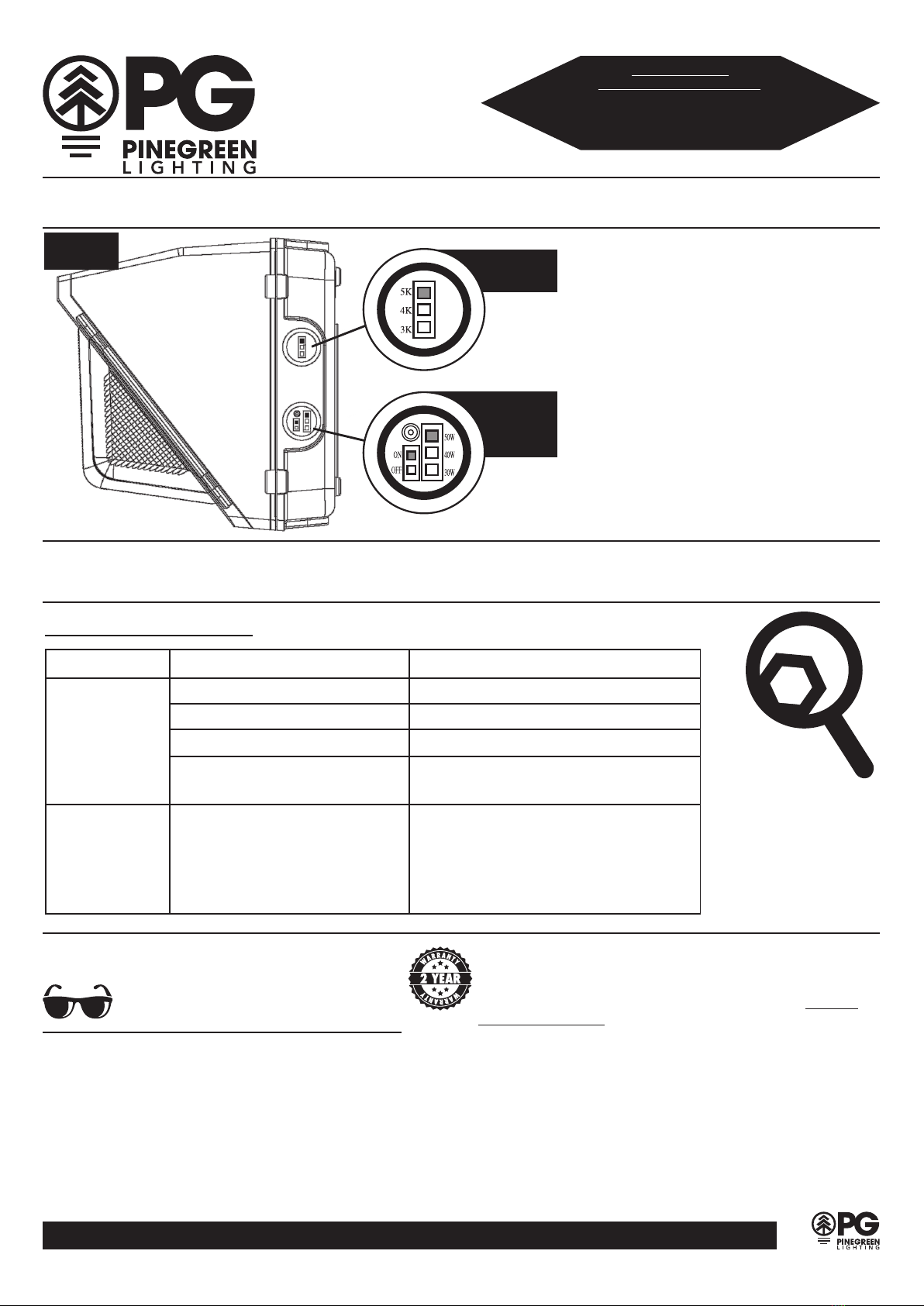

To adjust the settings, unscrew the (2) caps
on the right side of the light to access the
CCT / Photocell and the Wattage, as shown
in Fig 11. Select the desired CCT, Photo-
sensor, and Watts function, then screw the
caps back on. Make sure the clear cap is
screwed back on the bottom access point.
Failure to do so will cause the Photocell not
detect dusk/dawn and will fail to activate
the light.
LUMEN: 50W = 7000 Lumen CCT: 5000K PHOTOCELL:
40W = 5400 Lumen 4000K ON/OFF
30W = 4050 Lumen 3000K
Switch for
Photocell
& Watts
If you have questions or are missing parts, please contact customer service at 1-888-745-4837
This product has a two-year limited warranty from the date of
purchase. This guarantees against failure due to factory defects,
whether caused by materials or workmanship. The warranty is non-
transferable and only pertains to the original purchaser. Proof of
purchase is required for any repair or replacement, so please
keep your proof of purchase receipt. This warranty does not cover
normal wear and tear or damage due to misuse. Misuse of this
product includes but is not limited to:
• Using outdoors in extreme weather conditions.
• Opening the product’s housing.
• Any attempts to update, remodel or x the unit yourself.
EYES:
• DO NOT look directly at the LED lights.
• DO NOT remove the LED lights
protective covering.
Fig 11
