Pioneer AVIC-F20BT User manual

INSTALLATION MANUAL
MANUEL D’INSTALLATION
NAVIGATION AV SYSTEM
SISTEMA DE NAVEGACIÓN AV
NAVIGATIONS-/AV-SYSTEM
SYSTEME DE NAVIGATION AV
SISTEMA DI NAVIGAZIONE AV
AV NAVIGATIESYSTEEM
AVIC-F20BT
AVIC-F920BT
English NederlandsItalianoFrançaisDeutschEspañol

IMPORTANT INFORMATION
ABOUT YOUR NEW NAVIGATION SYSTEM
AND THIS MANUAL 3
IMPORTANT SAFEGUARDS
PLEASE READ ALL OF THESE
INSTRUCTIONS REGARDING YOUR
NAVIGATION SYSTEM AND RETAIN THEM
FOR FUTURE REFERENCE 4
Connecting the System
Precautions before connecting the
system 5
Before installing this product 5
To prevent damage 6
–Notice for the blue/white lead 6
Parts supplied 7
–AVIC-F20BT 7
–AVIC-F920BT 7
Connecting the system 8
Connecting the power cord (1) 10
Connecting the power cord (2) 12
When connecting to separately sold power
amp 14
When connecting a rear view camera 16
When connecting the external video
component 17
–Using “AV1 Input”(AV1) 17
–Using “AV2 Input”(AV2) 18
When connecting the rear display 18
–When using a rear display connected to
rear video output 18
When connecting the external unit featuring
video source 19
Installation
Precautions before installation 20
To guard against electromagnetic
interference 20
Before installing 20
–For AVIC-F20BT users 21
Installing this navigation system 21
–Installation notes 21
–Parts supplied 22
–Before installing this navigation
unit 23
–Installation with the holder and side
bracket 23
–Installation using the screw holes on
the side of the navigation unit 24
Installing the GPS aerial 25
–Installation notes 25
–Parts supplied 25
–When installing the aerial inside the
vehicle (on the dashboard or rear
shelf) 26
Installing the microphone 27
–Parts supplied 27
–Mounting on the sun visor 27
–Installation on the steering column 28
–Adjusting the microphone angle 28
Contents
Engb
2

ABOUT YOUR NEW
NAVIGATION SYSTEM AND
THIS MANUAL
!The navigation features of this product
(and rear view camera option if purchased)
are intended solely to aid you in the opera-
tion of your vehicle. It is not a substitute for
your attentiveness, judgement and care
when driving.
!Never use this navigation system to route
to hospitals, police stations, or similar facil-
ities in an emergency. Please call the ap-
propriate emergency number.
!Do not operate this navigation system (or
the rear view camera option if purchased) if
doing so will divert your attention in any
way from the safe operation of your vehicle.
Always observe safe driving rules and fol-
low all existing traffic regulations. If you ex-
perience difficulty in operating the system
or reading the display, park your vehicle in
a safe location and apply the handbrake be-
fore making the necessary adjustments.
!This manual explains how to install this na-
vigation system in your vehicle. Operation
of this navigation system is explained in
the separate manuals for the navigation
system.
!Do not install this product where it may (i)
obstruct the driver’s vision, (ii) impair the
performance of any of the vehicle’s operat-
ing systems of safety features, including
airbags, hazard lamp buttons or (iii) impair
the driver’s ability to safely operate the vehi-
cle. In some cases, it may not be possible
to install this product because of the vehi-
cle type or the shape of the vehicle inter-
ior.
Engb 3
English
Section
01
IMPORTANT INFORMATION

WARNING
Pioneer does not recommend that you install
your navigation system yourself. We recom-
mend that only authorised Pioneer service
personnel, who have special training and ex-
perience in mobile electronics, set up and in-
stall this product. NEVER SERVICE THIS
PRODUCT YOURSELF. Installing or servi-
cing this product and its connecting cables
may expose you to the risk of electric shock
or other hazards, and can cause damage to
the navigation system that is not covered by
warranty.
PLEASE READ ALL OF THESE
INSTRUCTIONS REGARDING
YOUR NAVIGATION SYSTEM
AND RETAIN THEM FOR
FUTURE REFERENCE
1 Read this manual fully and carefully before in-
stalling your navigation system.
2 Keep this manual handy for future reference.
3 Pay close attention to all warnings in this
manual and follow the instructions carefully.
4 This navigation system may in certain circum-
stances display erroneous information regard-
ing the position of your vehicle, the distance
of objects shown on the screen, and compass
directions. In addition, the system has certain
limitations, including the inability to identify
one-way streets, temporary traffic restrictions
and potentially unsafe driving areas. Please
exercise your own judgement in the light of
actual driving conditions.
5 As with any accessory in your vehicle’s inter-
ior, the navigation system should not divert
your attention from the safe operation of your
vehicle. If you experience difficulty in operat-
ing the system or reading the display, please
make adjustments while safely parked.
6 Please remember to wear your seat belt at all
times while operating your vehicle. If you are
ever in an accident, your injuries can be con-
siderably more severe if your seat belt is not
properly fastened.
7 Certain country and government laws may
prohibit or restrict the placement and use of
this system in your vehicle. Please comply
with all applicable laws and regulations re-
garding the use, installation and operation of
your navigation system.
Engb
4
Section
02 IMPORTANT SAFEGUARDS

Precautions before
connecting the system
CAUTION
!If you decide to perform the installation
yourself, and have special training and ex-
perience in the mobile electronics instal-
lations, please carefully follow all of the
steps in the installation manual.
!Secure all wiring with cable clamps or
electrical tape. Do not allow any bare wir-
ing to remain exposed.
!Do not directly connect the yellow lead of
this product to the vehicle battery. If the
lead is directly connected to the battery,
engine vibration may eventually cause
the insulation to fail at the point where
the wire passes from the passenger com-
partment into the engine compartment. If
the yellow lead’s insulation tears as a re-
sult of contact with metal parts, short-cir-
cuiting can occur, resulting in
considerable danger.
!It is extremely dangerous to allow the
cables to become wound around the steer-
ing column or gearstick. Be sure to install
this product, its cables, and wiring away
in such a way that they will not obstruct
or hinder driving.
!Make sure that the cables and wires are
routed and secured so they will not inter-
fere with or become caught in any of the
vehicle’s moving parts, especially the
steering wheel, gearstick, handbrake, slid-
ing seat tracks, doors, or any of the vehi-
cle’s controls.
!Do not route wires where they will be ex-
posed to high temperatures. If the insula-
tion heats up, wires may become
damaged, resulting in a short circuit or
malfunction and permanent damage to
the product.
!Do not cut the GPS aerial cable to shorten
it or use an extension to make it longer.
Altering the aerial cable could result in a
short circuit or malfunction.
!Do not shorten any leads. If you do, the
protection circuit (fuse holder, fuse resis-
tor or filter, etc.) may fail to work properly.
!Never feed power to other electronic pro-
ducts by cutting the insulation of the
power supply lead of the navigation sys-
tem and tapping into the lead. The current
capacity of the lead will be exceeded,
causing overheating.
Before installing this product
!Use this unit with a 12-volt battery and ne-
gative earthing only. Failure to do so may
result in a fire or malfunction.
!To avoid shorts in the electrical system, be
sure to disconnect the (–) battery cable be-
fore beginning installation.
Engb 5
English
Section
03
Connecting the System

To prevent damage
WARNING
!Use speakers over 50 W (output value)
and between 4 Wto 8 W(impedance value).
Do not use 1 Wto 3 Wspeakers for this
unit.
!The black lead is earth. Please earth this
lead separately from the earth of high-cur-
rent products such as power amps. Do not
earth more than one product together
with the earth from another product. For
example, you must separately earth any
amp unit away from the earth of this navi-
gation system. Connecting earths to-
gether can cause a fire and/or damage the
products if their earths became detached.
!When replacing the fuse, be sure to only
use a fuse of the rating prescribed on this
product.
!When disconnecting a connector, pull the
connector itself. Do not pull the lead, as
you may pull it out of the connector.
!This product cannot be installed in a vehi-
cle without ACC (accessory) position on
the ignition switch.
A
C
C
O
N
S
T
A
R
T
O
F
F
O
N
S
T
A
R
T
O
F
F
ACC position No ACC position
!To avoid short-circuiting, cover the discon-
nected lead with insulating tape. It is espe-
cially important to insulate all unused
speaker leads, which if left uncovered may
cause a short circuit.
!Attach the connectors of the same colour
to the corresponding coloured port, i.e.,
blue connector to the blue port, black to
black, etc.
!Refer to the owner’s manual for details on
connecting the power amp and other units,
then make connections accordingly.
!Since a unique BPTL circuit is employed,
do not directly earth the *side of the
speaker lead or connect the *sides of the
speaker leads together. Be sure to connect
the *side of the speaker lead to the *
side of the speaker lead on this navigation
system.
!If the RCA pin jack on this product will not
be used, do not remove the caps attached
to the end of the connector.
Notice for the blue/white lead
!When the ignition switch is turned on (ACC
ON), a control signal is output through the
blue/white lead. Connect to an external
power amp’s system remote control term-
inal, the auto-aerial relay control terminal,
or the aerial booster power control terminal
(max. 300 mA 12 V DC). The control signal
is output through the blue/white lead, even
if the audio source is switched off.
!Be sure not to use this lead as the power
supply lead for the external power amps.
Such connection could cause excessive
current drain and malfunction.
!Be sure not to use this lead as the power
supply lead for the auto-aerial or aerial
booster. Such connection could cause ex-
cessive current drain and malfunction.
Engb
6
Section
03 Connecting the System

Parts supplied
AVIC-F20BT
The navigation unit Power cord
RDS-TMC tuner USB and mini-jack
connector
RCA connector GPS aerial
Microphone
AVIC-F920BT
The navigation unit Power cord
RDS-TMC tuner USB and mini-jack
connector
RCA connector GPS aerial
Microphone
Engb 7
English
Section
03
Connecting the System

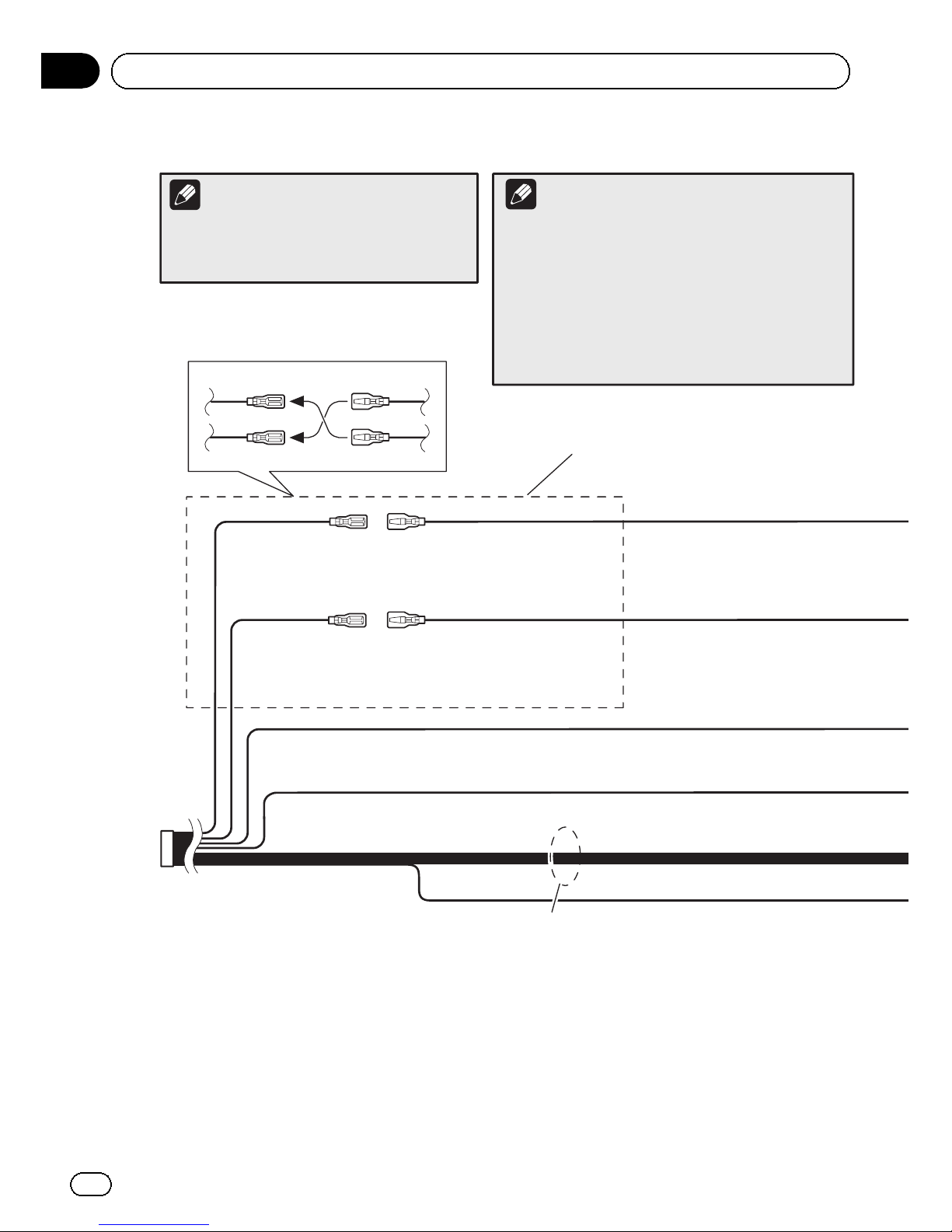

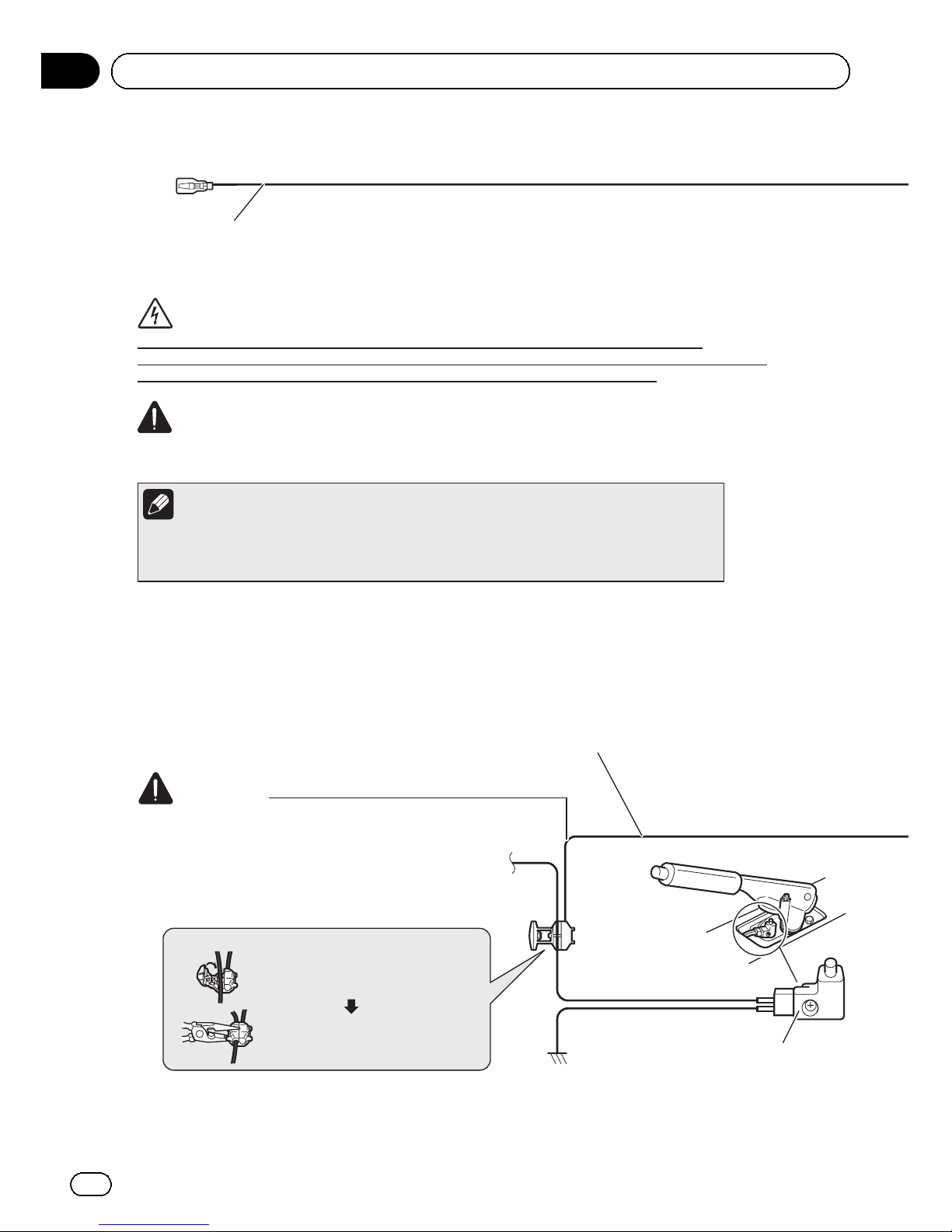

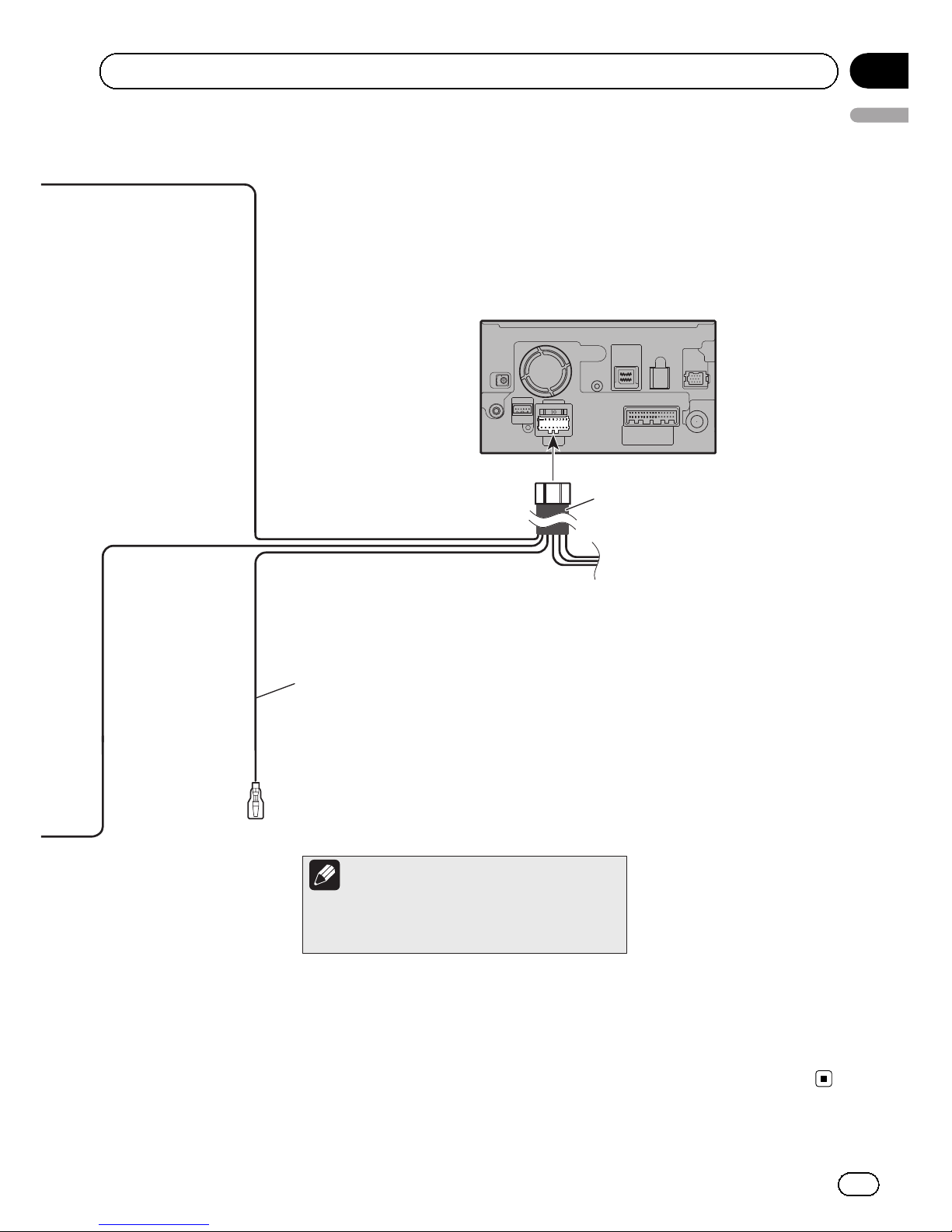

Connecting the system
WIRED REMOTE INPUT
Please see the Instruction
Manual for the Wired Remote
Control Adapters (sold separately).
The navigation unit
USB and mini-jack
connector
(*2)
— When connecting your iPod, both connections are necessary.
— It is necessary to set “AV1 Input” in “AV System Settings” to “iPod”
when connecting the iPod. (For details, refer to Operation Manual.)
(*2)
Green
3.55 m
Aerial
jack
RDS-TMC tuner
Vehicle
aerial
2 m
30 cm
1 m
IP-BUS connector
(IP-BUS connector is
available for AVIC-F20BT.)
(*1)
Connect either the
USB Interface Cable
for iPod or an
appropriate USB
storage device.
(*1)
Engb
8
Section
03 Connecting the System

Dock
connector
port
WARNING
· To avoid the risk of accident and the potential violation of applicable laws, this
product should never be used while the vehicle is being driven except for
navigation purposes. And, also Rear Displays should not be in a location where it
is a visible distraction to the driver.
· In some countries, the viewing of images on a display inside a vehicle even by
persons other than the driver may be illegal. Where such regulations apply they
must be obeyed and this product’s video source should not be used.
USB Interface Cable for iPod
(CD-IU50V) (sold separately)
iPod with
Dock Connector(*3)
(*3)
For details concerning
operations and compatibility ,
refer to Operation Manual.
4 m
Microphone
GPS aerial
Engb 9
English
Section
03
Connecting the System

Connecting the power cord (1)
ISO connector
*1
*3
*2
*4
Speaker leads
White: Front left 
White/black: Front left 
Grey: Front right 
Grey/black: Front right 
Green: Rear left or Subwoofer (*5)
Green/black: Rear left or Subwoofer (*5)
Violet: Rear right or Subwoofer (*5)
Violet/black: Rear right or Subwoofer (*5)
Depending on the kind of vehicle, the function
of *2 and *4 may be different. In this case, be
sure to connect *1 to *4 and *3 to *2.
Connect leads of the
same colour to each other.
Yellow (*2)
Back-up
(or accessory)
Red (*4)
Accessory
(or back-up)
Yellow (*1)
To terminal always supplied
with power regardless of
ignition switch position.
Red (*3)
To electric terminal controlled by
ignition switch (12 V DC) ON/OFF.
Orange/white
To lighting switch terminal.
Black (earth)
To vehicle (metal) body.
Note Notes
· When a subwoofer (*5) is connected to this
navigation system instead of a rear speaker, change
the rear output setting in the Initial Setting. (Refer to
Operation Manual.) The subwoofer output of this
navigation system is monaural.
· When using a subwoofer of 70 W (2 Ω), be sure to
connect with violet and violet/black leads of this
navigation system. Do not connect anything with
green and green/black leads.
Engb
10
Section
03 Connecting the System

The navigation unit
Blue/white (*6) Blue/white (*7)
To auto-aerial relay control
terminal (max. 300 mA 12 V DC).
The pin position of the ISO connector will differ
depending on the type of vehicle. Connect *6 and
*7 when Pin 5 is an aerial control type. In other
types of vehicle, never connect *6 and *7.
Yellow/black
If you use an equipment with mute function, connect that equipment to the
Audio Mute lead. If not, keep this lead free of any connections.
Power cord
Audio source will be set to mute or attenuate, while the following sounds
will not be muted or attenuated. For details, see Operation Manual.
— voice guidance of the navigation
— incoming ringtone and incoming voice of the mobile phone that is
connected to this navigation system via Bluetooth wireless technology
15 cm
Note
RCA connector
Fuse (10 A)
Engb 11
English
Section
03
Connecting the System

Connecting the power cord (2)
Pink (CAR SPEED SIGNAL INPUT)
The mobile navigation system is connected here to detect the distance the vehicle travels. Always
connect the vehicle’s speed detection circuit. Failure to make this connection will increase errors in
the location display.
LIGHT GREEN LEAD AT POWER CONNECTOR IS
DESIGNED TO DETECT PARKED STATUS AND MUST
BE CONNECTED TO THE POWER SUPPLY SIDE OF THE
HANDBRAKE SWITCH. IMPROPER CONNECTION OR
USE OF THIS LEAD MAY VIOLATE APPLICABLE LAW
AND MAY RESULT IN SERIOUS INJURY OR DAMAGE.
Light green (PARKING BRAKE)
Used to detect the ON/OFF status of the handbrake. This lead must be connected to the power supply side
of the handbrake switch.
If this connection is made incorrectly or omitted, certain functions of your navigation system will be
unusable.
Power supply side
Earth side
Handbrake switch
Connection method
Clamp the handbrake switch
power supply side lead.
Clamp firmly with needle-nosed
pliers.
The position of the speed detection circuit and the position of the handbrake switch vary
depending on the vehicle model. For details, consult your authorised Pioneer dealer or an
installation professional.
Note
WARNING
CAUTION
It is strongly suggested that the speed pulse wire be connected for accuracy of navigation
and better performance.
IMPROPER CONNECTION MAY RESULT IN SERIOUS DAMAGE OR INJURY INCLUDING
ELECTRICAL SHOCK, AND INTERFERENCE WITH THE OPERATION OF THE VEHICLE´S ANTILOCK
BRAKING SYSTEM, AUTOMATIC GEARBOX AND SPEEDOMETER INDICATION.
WARNING
Engb
12
Section
03 Connecting the System

Power cord
Violet/white (REVERSE GEAR SIGNAL INPUT)
This is connected so that the navigation system can detect
whether the vehicle is moving forwards or backwards.
Connect the violet/white lead to the lead whose voltage
changes when the reverse gear is engaged. Unless
connected, the sensor may not detect your vehicle
travelling forward/backward properly, and thus the position
of your vehicle detected by the sensor may be misaligned
from the actual position.
When you use a rear view camera, please make
sure to connect this lead. Otherwise you cannot
switch to rear view camera picture.
The navigation unit
Note
Engb 13
English
Section
03
Connecting the System

When connecting to separately sold power amp
The navigation unit
30 cm (*1)
15 cm (*2)
RCA connector
Subwoofer output
(SUBWOOFER OUTPUT)
Power cord
To system control terminal of the power amp
(max. 300 mA 12 V DC).
Blue/white
(*1)
AVIC-F20BT
25 cm (*1)
31 cm (*2)
Rear output
(REAR OUTPUT)
Front output
(FRONT OUTPUT)
30 cm (*1)
15 cm (*2)
(*2)
AVIC-F920BT
Engb
14
Section
03 Connecting the System

Power amp
(sold separately)
Power amp
(sold separately)
Power amp
(sold separately)












RCA cables
(sold separately)
Front speaker
Rear speaker
Subwoofer
Front speaker
Rear speaker
Subwoofer
Left Right
System remote control
You can change the RCA output of the subwoofer depending on your subwoofer
system. (Refer to Operation Manual.)
Note
Engb 15
English
Section
03
Connecting the System

When connecting a rear
view camera
When this product is used with a rear view
camera, it is possible to automatically switch
from the video to rear view image when the
gearstick is moved to REVERSE (R). Rear
View mode also allows you to check what is
behind you while driving.
WARNING
USE INPUT ONLY FOR REVERSE OR MIRROR
IMAGE REAR VIEW CAMERA. OTHER USE MAY
RESULT IN INJURY OR DAMAGE.
CAUTION
!The screen image may appear reversed.
!The rear view camera function is to use this
product as an aid to keep an eye on trailers, or
backing into a tight parking spot. Do not use
this function for entertainment purposes.
!The object in rear view may appear closer or
more distant than in reality.
!Please note that the edges of the rear view
camera images may differ slightly according
to whether full screen images are displayed
when backing, and whether the images are
used for checking the rear when the vehicle is
moving forward.
The navigation unit
20 cm (*1)
23 cm (*2)
RCA cable
To video output
Brown
(REAR VIEW CAMERA IN)
(e.g. ND-BC4)
(sold separately)
Rear view camera
(*1)
AVIC-F20BT
(*2)
AVIC-F920BT RCA connector
Power cord
(REVERSE GEAR SIGNAL INPUT)
Violet/white
For more details about the wiring, refer to Connecting
the power cord (2) on page 12.
Notes
!It is necessary to set “Camera”in “Back
Camera Settings”to “On”when connect-
ing the rear view camera. (For details, refer
to Operation Manual.)
!Connect to the rear view camera. Do not
connect to any other equipment.
Engb
16
Section
03 Connecting the System

When connecting the
external video component
Using “AV1 Input”(AV1)
The navigation unit
RCA cables
(sold separately)
Yellow
Red, white
External video
component
(sold separately)
To video output
To audio outputs
CD-RM10
(sold separately)
USB and
mini-jack connector
2 m
!It is necessary to set “AV1 Input”in “AV
Settings”to “Video”when connecting the
external video component. (For details,
refer to Operation Manual.)
CAUTION
Be sure to use a CD-RM10 (sold separately) for
wiring. If you use other cables, there is a case
where wiring position differs, images and sounds
may be disturbed.
OK
G
VR
L
G
RV
L
L : Left audio (White)
R : Right audio (Red)
V : Video (Yellow)
G : Earth
Engb 17
English
Section
03
Connecting the System

Using “AV2 Input”(AV2)
To audio outputs
Yellow
(VIDEO INPUT)
RCA connector
Red, white
(AUDIO INPUT)
RCA cables
(sold separately)
To video output
The navigation unit
External video
component
(sold separately)
20 cm (*1)
23 cm (*2)
(*1)
AVIC-F20BT
(*2)
AVIC-F920BT
!It is necessary to set “AV2 Input”in “AV
Settings”to “Video”when connecting the
external video component. (For details,
refer to Operation Manual.)
When connecting the rear
display
The navigation unit
To video input
Rear display with
RCA input jacks
To audio inputs
Yellow
(REAR MONITOR
OUTPUT)
RCA connector
Red, white
(REAR MONITOR
OUTPUT)
RCA cables
(sold separately)
15 cm
RCA cables
(sold separately)
This connection
is available for
AVIC-F20BT.
When using a rear display
connected to rear video output
WARNING
NEVER install the rear display in a location
that enables the driver to watch the video
source while driving.
This navigation system’s rear video output is for
connection of a display to enable passengers in
the rear seats to watch the video source.
Engb
18
Section
03 Connecting the System

When connecting the external
unit featuring video source
pThis connection is available for the AVIC-
F20BT.
The navigation unit Blue
Pioneer external unit
(sold separately)
Yellow
(VIDEO INPUT)
To video output
Black
RCA connector
IP-BUS cable
(sold separately)
RCA cable
(sold separately)
To IP-BUS
output
20 cm
!It is necessary to set “AV2 Input”in “AV
Settings”to “EXT”when connecting the ex-
ternal unit. (For details, refer to Operation
Manual.)
Engb 19
English
Section
03
Connecting the System

Precautions before
installation
CAUTION
!Never install this product in places where,
or in a manner that:
—It could injure the driver or passengers
if the vehicle stops suddenly.
—It may interfere with the driver’s opera-
tion of the vehicle, such as on the floor
in front of the driver’s seat, or close to
the steering wheel or gearstick.
!Make sure there is nothing behind the
dashboard or panelling when drilling
holes in them. Be careful not to damage
fuel lines, brake lines, electronic compo-
nents, communication wires or power
cables.
!When using screws, do not allow them to
come into contact with any electrical lead.
Vibration may damage wires or insulation,
leading to a short circuit or other damage
to the vehicle.
!To ensure proper installation, use the sup-
plied parts in the manner specified. If any
parts other than the supplied ones are
used, they may damage internal parts of
this product or they may work loose and
the product may become detached.
!It is extremely dangerous to allow the
cables to become wound around the steer-
ing column or gearstick. Be sure to install
this product, its cables, and wiring away
in such a way that they will not obstruct
or hinder driving.
!Make sure that leads cannot get caught in
a door or the sliding mechanism of a seat,
resulting in a short circuit.
!Please confirm the proper function of
your vehicle’s other equipment following
installation of the navigation system.
!Do not install this navigation system
where it may (i) obstruct the driver’s vi-
sion, (ii) impair the performance of any of
the vehicle’s operating systems or safety
features, including airbags, hazard lamp
buttons or (iii) impair the driver’s ability
to safely operate the vehicle.
!Install the navigation system between the
driver’s seat and front passenger seat so
that it will not be hit by the driver or pas-
senger if the vehicle stops quickly.
!Never install the navigation system in
front of or next to the place in the dash,
door, or pillar from which one of your vehi-
cle’s airbags would deploy. Please refer to
your vehicle’s owner’s manual for refer-
ence to the deployment area of the frontal
airbags.
To guard against
electromagnetic interference
In order to prevent interference, set the follow-
ing items as far as possible from this naviga-
tion system, other cables or leads:
!FM, MW/LW aerial and its lead
!GPS aerial and its lead
In addition you should lay or route each aerial
lead as far as possible from other aerial leads.
Do not bind them together, lay or route them
together, or cross them. Such electromagnetic
noise will increase the potential for errors in
the location display.
Before installing
!Consult with your nearest dealer if installa-
tion requires the drilling of holes or other
modifications of the vehicle.
!Before making a final installation of this
product, temporarily connect the wiring to
confirm that the connections are correct
and the system works properly.
Engb
20
Section
04 Installation
