Pioneer AVX-7300 User manual

7 Inch Wide AV System Display
Operation Manual
AVX-7300
ENGLISH

i
Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your
musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement
your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer
Electronics Group want you to get the most out of your equipment by playing it at a safe level.
One that lets the sound come through loud and clear without annoying blaring or distortion—
and, most importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of
sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against
this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
•Start your volume control at a low setting.
•Slowly increase the sound until you can hear it comfortably and clearly, and without distor-
tion.
Once you have established a comfortable sound level:
•Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all,
we want you listening for a lifetime.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since
hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the
Electronic Industries Association’s Consumer Electronics Group recommend you avoid prolonged
exposure to excessive noise. This list of sound levels is included for your protection.
Decibel
Level Example
30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet.
THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet plane
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.

ii
For U.S. and Canadian Models
About This Product
Video System of a Connected Component
This product is compatible with the NTSC system. When connecting other components
to this product, be sure components are compatible with the same video systems. If it is
not, images will not be correctly reproduced.
Precaution:
•This product is incompatible with the PAL system. Refer to “Video System of a Connected
Component”on page 2 for explanation of other area models video system.
Important
The serial number of this device is located on the bottom of this product. For your own secu-
rity and convenience, be sure to record this number on the enclosed warranty card.
Precaution
After-sales Service for Pioneer Products
Please contact the dealer or distributor from where you purchased the product for its
after-sales service (including warranty conditions) or any other information. In case the
necessary information is not available, please contact the companies listed below:
Please do not ship your product to the companies at the addresses listed below for
repair without advance contact.
For warranty information please see the Limited Warranty sheet included with your product.
7U.S.A.
Pioneer Electronics Service, Inc.
CUSTOMER SERVICE
DEPARTMENT
P.O. Box 1760
Long Beach, CA 90801
800-421-1404
7CANADA
Pioneer Electronics of Canada, Inc.
CUSTOMER SATISFACTION
DEPARTMENT
300 Allstate Parkway
Markham, Ontario L3R OP2
[phone]
1-877-283-5901

iii
Before Using
IMPORTANT SAFEGUARDS
PLEASE READ ALL OF THESE INSTRUCTIONS REGARDING YOUR DISPLAY
AND RETAIN THEM FOR FUTURE REFERENCE
1. Read this manual fully and carefully before operating your display.
2. Keep this manual handy for future reference.
3. Pay close attention to all warnings in this manual and follow the instructions
carefully.
4. Do not allow other persons to use this system until they have read and under-
stood the operating instructions.
5. Do not install the display where it may (i) obstruct the driver’s vision, (ii)
impair the performance of any of the vehicle’s operating systems or safety
features, including air bags, or (iii) impair the driver’s ability to safely oper-
ate the vehicle.
6. As with any accessory in your vehicle’s interior, the display should not divert
your attention from the safe operation of your vehicle. If you experience dif-
ficulty in operating the system or reading the display, please park safely
before making adjustments.
7. Do not attempt to install or service your display by yourself. Installation or
servicing of the display by persons without training and experience in elec-
tronic equipment and automotive accessories may be dangerous and could
expose you to the risk of electric shock or other hazards.
8. Please remember to wear your seat belt at all times while operating your
vehicle. If you are ever in an accident, your injuries can be considerably
more severe if your seat belt is not properly buckled.

5
Before Using

Contents
1
Dear Customer .............................................. i
For U.S. and Canadian Models .................... ii
-About This Product
-Important
-Precaution
IMPORTANT SAFEGUARDS ........................ iii
-PLEASE READ ALL OF THESE
INSTRUCTIONS REGARDING
YOUR DISPLAY AND RETAIN
THEM FOR FUTURE REFERENCE
Before Using .......................................... 2
Before Using This Product .......................... 2
-About This Product
-How to Use This Manual
-To Ensure Safe Driving
-Precaution
-Be Sure to Adjust Picture
Brightness
-In Case of Trouble
-Preventing the Battery from
Becoming Exhausted
-Resetting the Microprocessor
Detaching and Replacing the Front Panel .... 5
-Theft Protection
Key Finder .................................................... 6
Operation of the Display ...................... 7
Deploying the Display .................................. 7

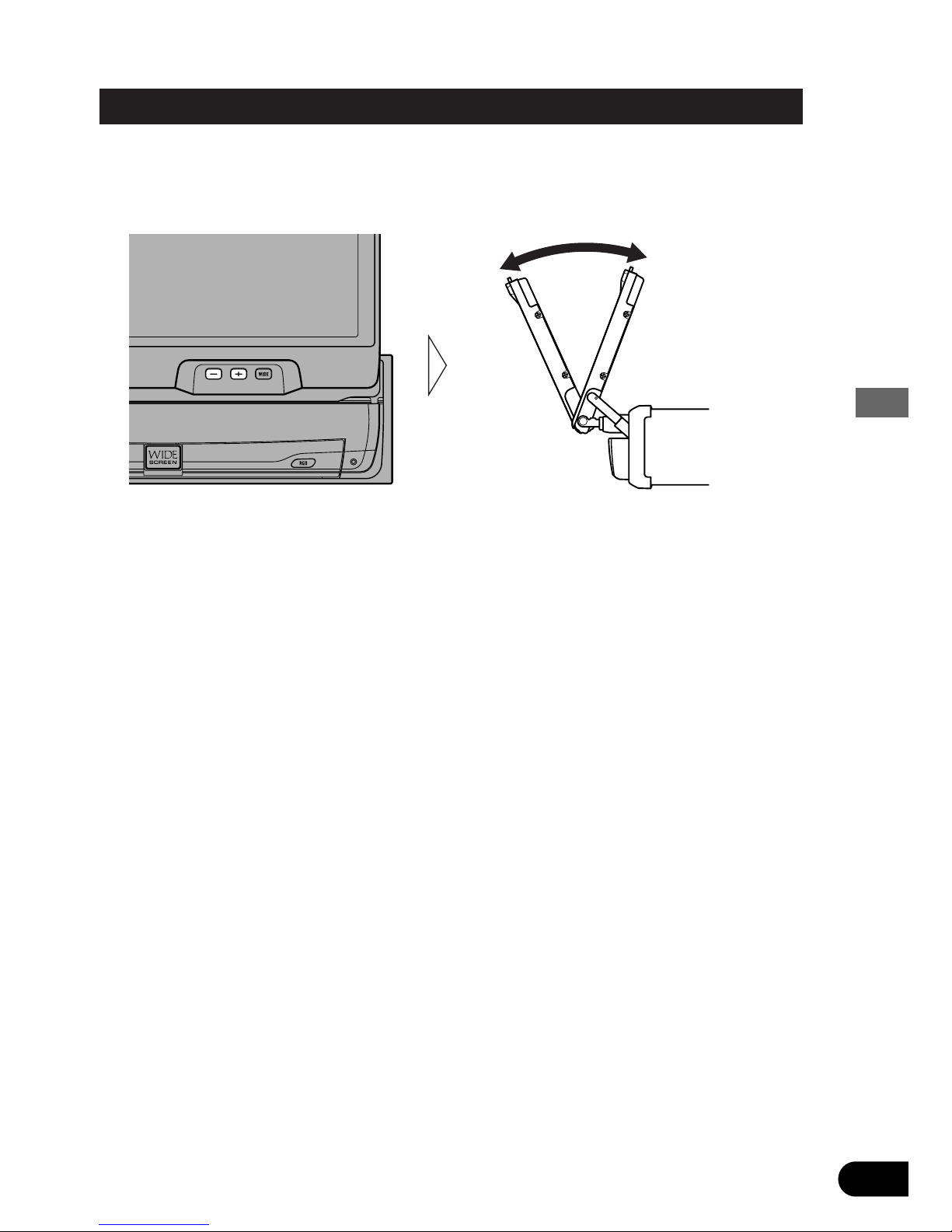

Screen Angle Adjustment .............................. 8
Closing the Display........................................ 9
Changing the Wide Mode ............................ 10
Switching the Illumination
Color (For European models) .............. 11
Switching the Video Source ........................ 12
Setting the Display .............................. 13
Operating the Setting Menu ........................ 13
-Entering the Display Setting Menu
-Switching the Video Select Setting
-Setting the Automatic Open Mode
-Adjusting the Bright
-Adjusting the Color
-Adjusting the Hue
-Adjusting the Dimmer
Others .................................................... 17
Using the Display Correctly ...................... 17
-Handling the Display
-About the Liquid Crystal (LCD) Screen
-Keeping the Display in Good Condition
-About the Small Fluorescent Tube
Appendix .............................................. 19
Specifications .............................................. 19

2
Before Using This Product
About This Product
[For European models]
Video System of a Connected Component [For models except U.S. and Canadian models]
This product is NTSC/PAL system compatible. When connecting other components to
this product, be sure components are compatible with the same video systems. If it is not,
images will not be correctly reproduced.
How to Use This Manual
This manual is divided into the sections shown below.
There is an index at the edge of each page in this manual.
Explanations of operations you should perform before
using this product.
Explanations of how to use the display.
Explanations of how to use the display’s setting menu.
Before Using:
Operation of the Display:
Settings the Display:
•This product complies with the EMC Directives (89/336/EEC, 92/31/EEC) and CE Marking
Directive (93/68/EEC).
Before Using
Before Using

3
Before Using
To Ensure Safe Driving
WARNING
•To avoid the risk of accident and the potential violation of applicable laws, this
product is not for use with a video screen that is visible to the driver.
•In some countries or states the viewing of images on a display inside a vehicle
even by persons other than the driver may be illegal. Where such regulations apply,
they must be obeyed.
To ensure safe vehicle operation, complicated functions are not operable during driving. If
any of these complicated functions are selected while driving, “YOU CANNOT USE THIS
FUNCTION WHILE DRIVING”is temporarily displayed on the display. To use these func-
tions, please stop your vehicle and engage the parking brake.
Precaution
•Keep this manual handy as a reference for operating procedures and precautions.
•Always keep the volume low enough for outside sounds to be audible.
•Protect the product from moisture.
Be Sure to Adjust Picture Brightness
Although the angle at which the LCD can be positioned and viewed clearly is limited
because of its design, visibility can be improved by adjusting the pictures brightness.
When first using the display, adjust the picture to a brightness that allows clear visibility
at the angle of use. (Refer to page 15.)

4
Before Using
In Case of Trouble
Should this product fail to operate properly, contact your dealer or nearest authorized Pioneer
Service Station.
Preventing the Battery from Becoming Exhausted
When using this product, be sure your car engine is running. If you use this product when
your engine is not running, the battery will become exhausted.

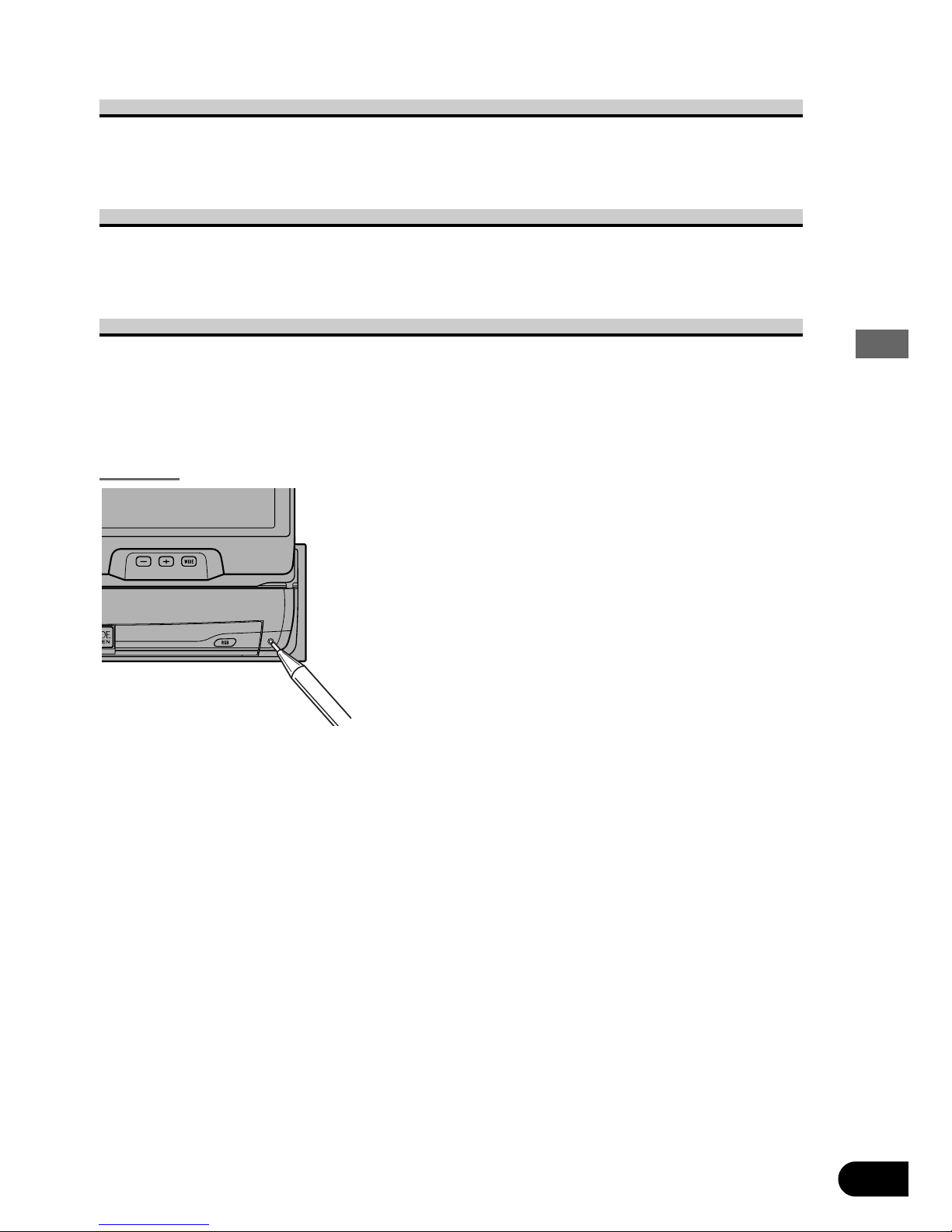

Resetting the Microprocessor
The microprocessor must be reset under the following conditions:
When using this product for the first time after installation.
When the machine fails to operate properly.
When strange (incorrect) messages appear on the display.
Resetting
Press the RESET button.
Use a pen tip or other pointed instrument.

5
Before Using

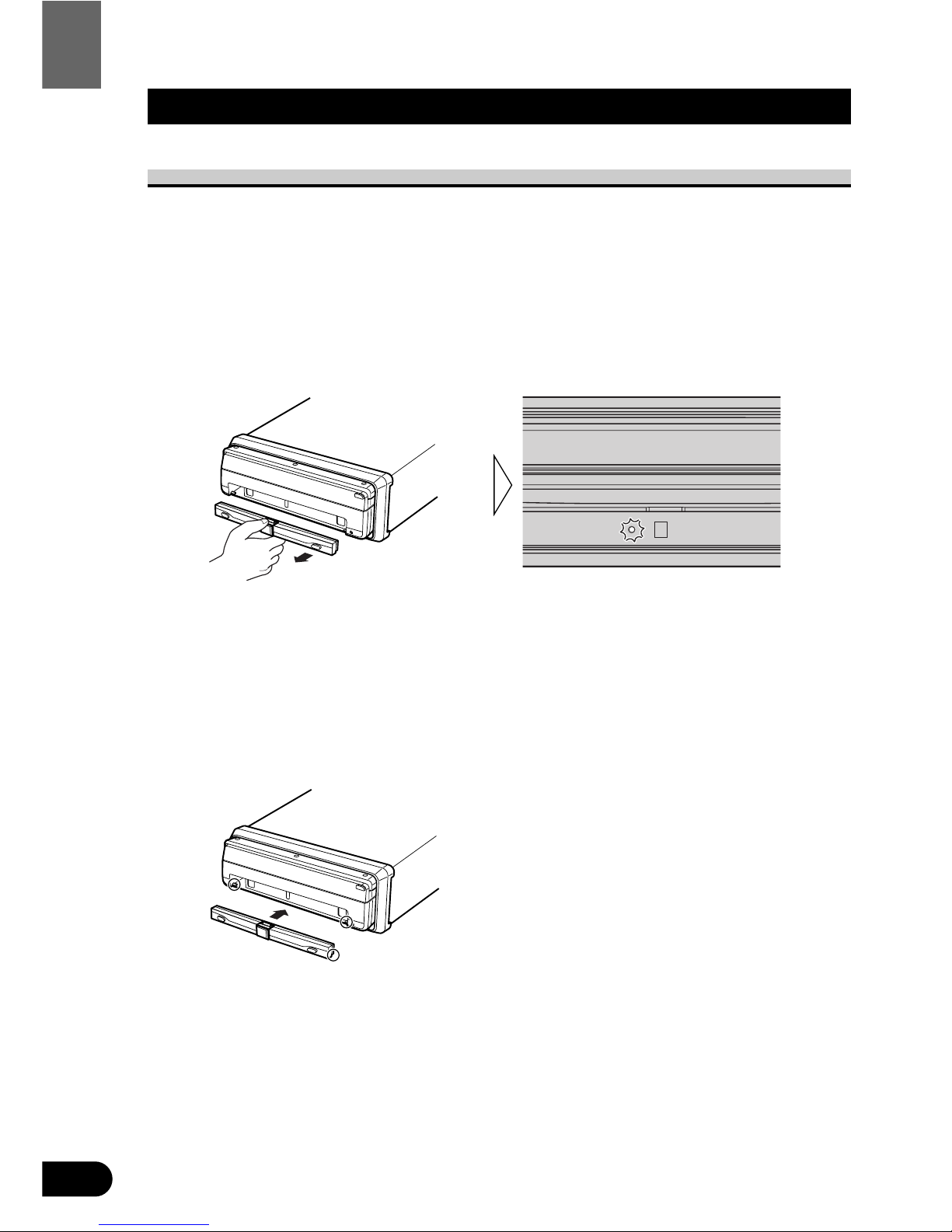

Detaching and Replacing the Front Panel
Theft Protection
The front panel of this product is detachable to discourage theft.
When the front panel is detached, this product will not be operable as the front panel
contains the Signal receptor and OPEN/CLOSE button that are necessary for opera-
tion.
Detaching the Front Panel
• Eject the front panel.
The LED indicator will flash while the front panel is being detached.
Note:
•Take care not to grip it too tightly or drop it.
Replacing the Front Panel
•Replace the front panel by clipping it into place.
Align the groove on the bottom of the front panel with the guide on the main body,
and clip in.
Precaution:
•When replacing the front panel, avoid pressing any of the buttons.
•Avoid subjecting the front panel to excessive shocks.
•Keep the front panel out of direct sunlight and high temperatures.

6
Before Using
Key Finder
The following diagram shows the display when it is deployed.
Display
V.SOURCE button WIDE button
RGB button
RESET button
OPEN/CLOSE
button
ANGLE buttons

7
Operation of the Display
•Turn your vehicle’s engine ON.
The display will be automatically deployed by the automatic close/open mode.
If the display is not automatically deployed, press the OPEN/CLOSE button.
Note:
•The automatic close/open mode will operate the display as follows.
* When the ignition switch is turned OFF while the display is deployed, the display will be
closed after approximately 6 seconds.
When the ignition switch is turned ON again (or turned to ACC), the display will be
deployed automatically.
* When using an AUDIO VISUAL MASTER UNIT, turning the power of either of these on
will deploy the display automatically.
* Installing the front panel will automatically deploy the display. (Refer to page 5.)
•The automatic close/open mode can be switched ON/OFF. (Refer to page 14.)
•When the ignition switch is turned OFF after the display has been closed, turning the ignition
switch ON again (or turning it to ACC) will not deploy the display. In this case, press the
OPEN/CLOSE button to deploy the display.
Operation of the Display
Deploying the Display

8
Operation of the Display
The angle of this product’s screen continues changing as long as you keep pressing the
ANGLE button.
•Adjust the screen to an easily viewable angle.
Precaution:
•If you can hear the display knocking against your vehicle’s console or dashboard, press the
ANGLE button on the (–) side to move the screen a little forward.
Note:
•When adjusting the angle, be sure to press the ANGLE button. Forcible adjusting of the dis-
play by hand may damage it.
•The adjusted angle of the display will be memorized and automatically returned to the next
time the display is deployed.
Screen Angle Adjustment

9
Operation of the Display
•Turn the vehicle’s engine OFF.
The display will be automatically closed by the automatic close/open mode. If the
display does not close automatically, press the OPEN/CLOSE button.
Note:
•When closing the display, check to make sure that it has closed completely. If the display has
stopped halfway, leaving it like this could result in damage to it.
•The automatic close/open mode will operate the display as follows.
* When the ignition switch is turned OFF while the display is deployed, the display will be
closed after approximately 6 seconds.
When the ignition switch is turned ON again (or turned to ACC), the display will be
deployed automatically.
* Removing the front panel will close the display. (Refer to page 5.)
•The automatic close/open mode can be switched ON/OFF. (Refer to page 14.)
•When the ignition switch is turned OFF after the display has been closed, turning the ignition
switch ON again (or turning it to ACC) will not deploy the display. In this case, press the
OPEN/CLOSE button to deploy the display.
Closing the Display

10
Operation of the Display

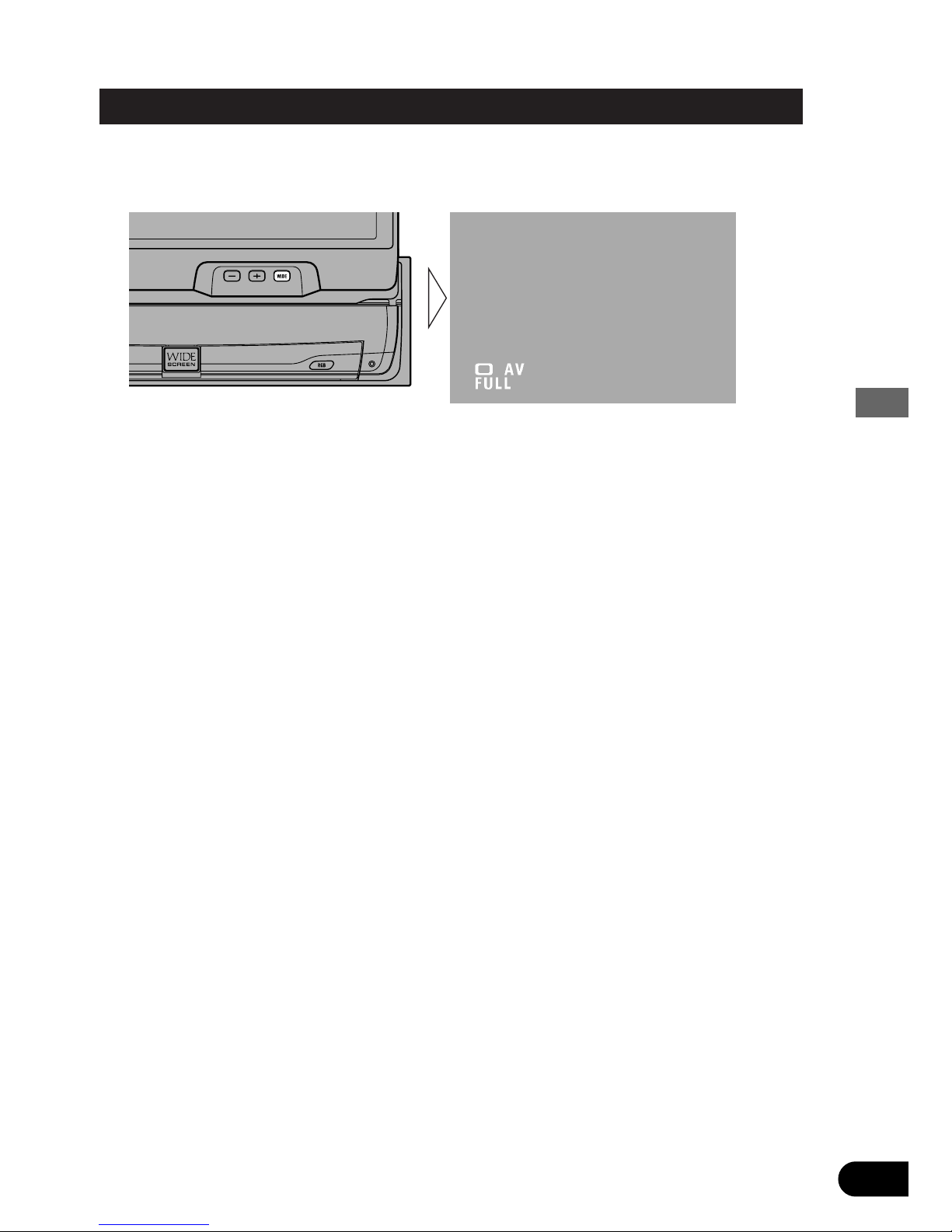

You can select a desired mode for enlarging a 4:3 picture to a 16:9 one.
•Select the desired mode in the following order:
Full (FULL) =Just (JUST) =Cinema (CINEMA) =Zoom (ZOOM) =Normal
(NORMAL)
Full (FULL)
A 4:3 picture is enlarged in the horizontal direction only, enabling you to enjoy a 4:3
TV picture (normal picture) without any omissions.
Just (JUST)
The picture is enlarged slightly at the center and the amount of enlargement increases
horizontally to the ends, enabling you to enjoy a 4:3 picture without sensing any dis-
parity even on a wide screen.
Cinema (CINEMA)
A picture is enlarged by the same proportion as FULL or ZOOM in the horizontal
direction and by an intermediate proportion between FULL and ZOOM in the verti-
cal direction; ideal for a cinema-sized picture (wide-screen picture) where captions
lie outside.
Zoom (ZOOM)
A 4:3 picture is enlarged in the same proportion both vertically and horizontally;
ideal for a cinema-sized picture (wide-screen picture).
Normal (NORMAL)
A 4:3 picture is displayed as it is, giving you no sense of disparity since its propor-
tions are the same as that of the normal picture.
Note:
•Different settings can be memorized for the AV, VTR and RGB video. In addition, different set-
tings can also be memorized for a component (AV) connected to the AV-BUS input.
•The Wide Mode used for menu setting is switched to Full (FULL). The Wide Mode will return
when the menu setting is deleted.
•When video is viewed in a wide mode that dose not match its original aspect ratio, it may
appear differently.
•Remember that using the wide mode feature of this system for commercial or public viewing
purpose may constitute an infringement on the author’s rights protected by the Copyright Law.
•Video will appear roughened when viewed in CINEMA or ZOOM mode.
Changing the Wide Mode

11
Operation of the Display

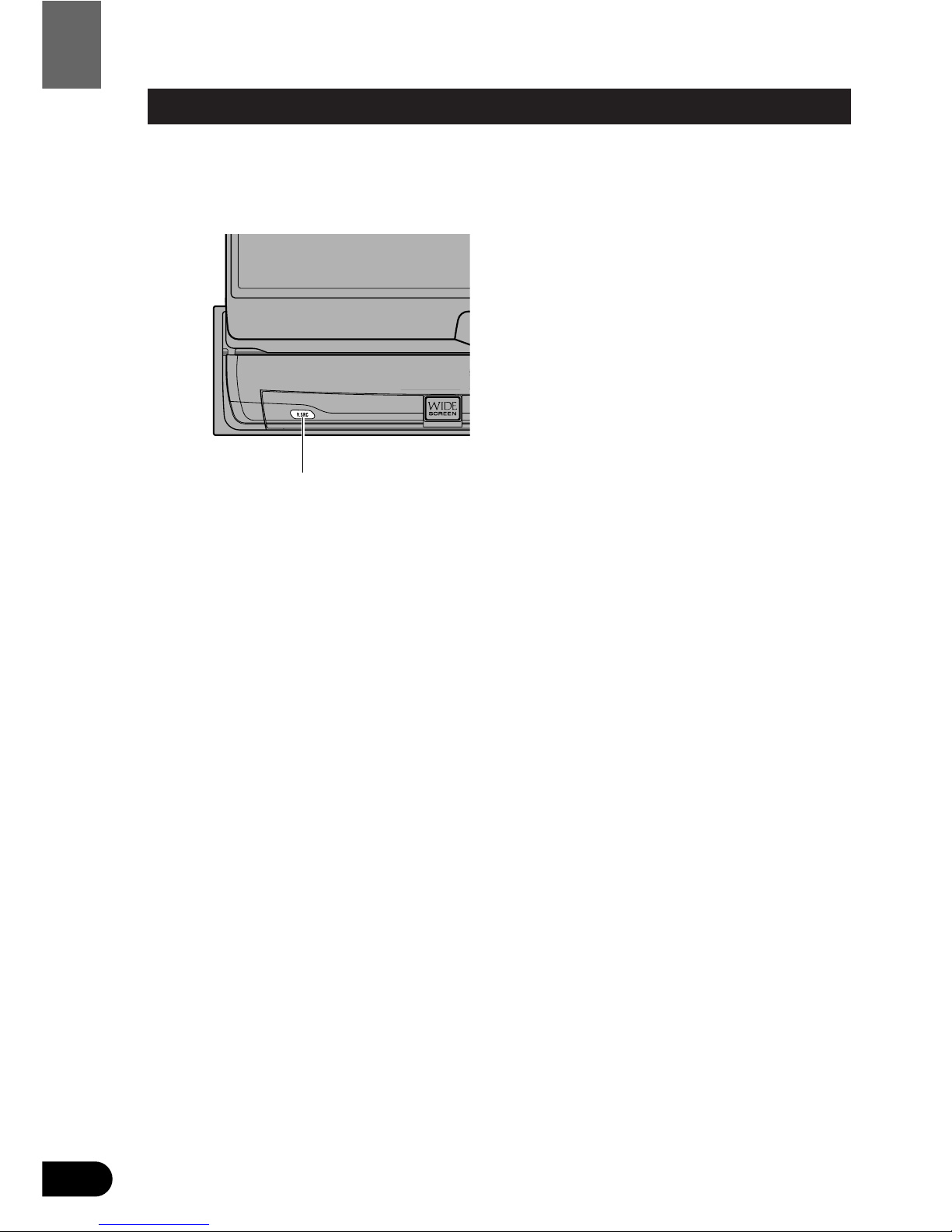

This product is equipped with two illumination colors, green and red. You can select the
desired illumination color.
•Switch to the desired illumination color.
Repeat the preceding operation to switch to the previous color.
Hold for 2 seconds
Switching the Illumination Color (For European models)

12
Operation of the Display

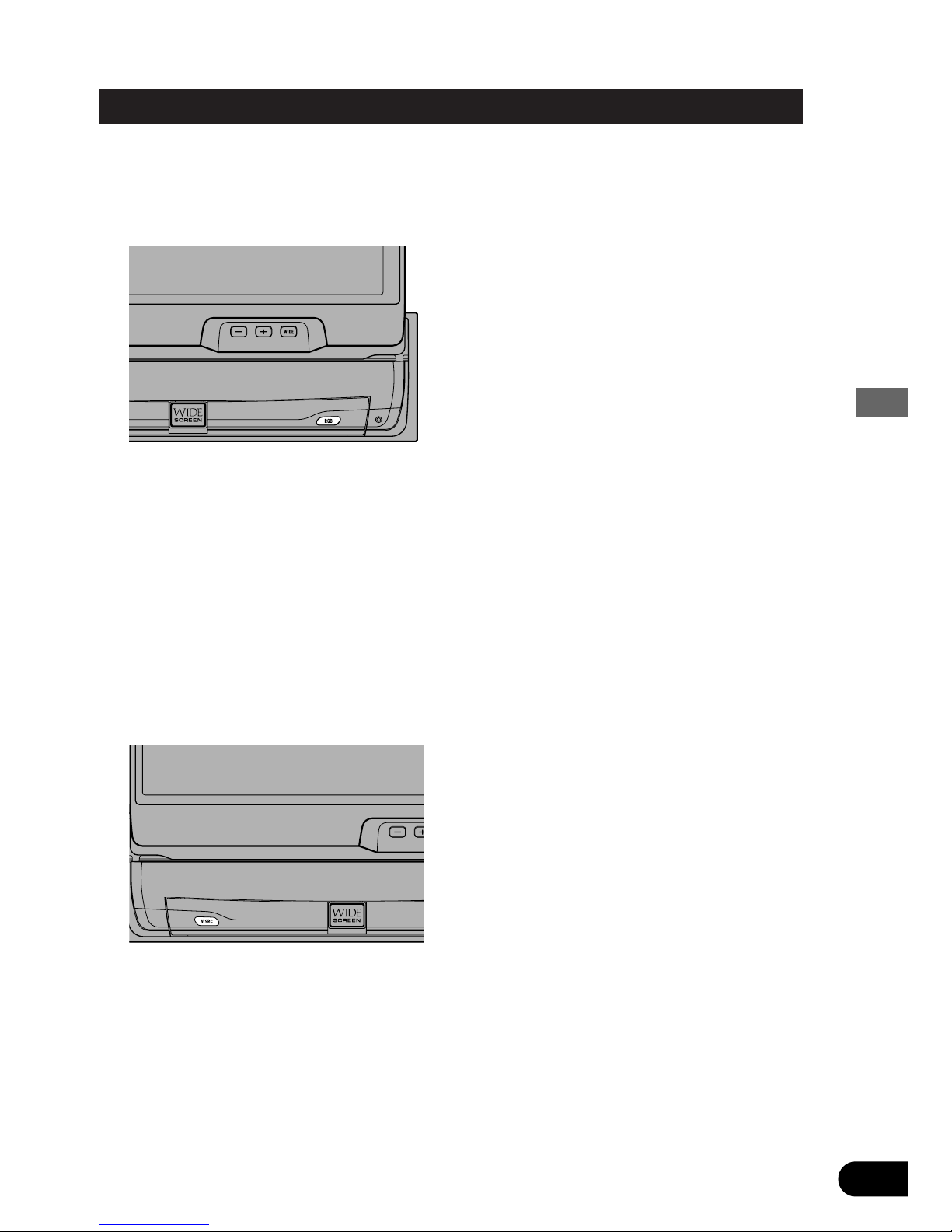

7Switching to RGB
You can watch videos from a component connected to this produt’s RGB input.
•Switch to RGB.
Repeat the preceding operation to switch to the previous video source.
Note:
•If you select the “AV M ”video select setting in the display setting menu, video is locked to
RGB. (See page 14.)
7Switching to AV and VTR
You can switch between video from a component connected to this product’s video
input (VTR) and video from a component connected to the AV-BUS input (AV) .
Note:
• When switched to AV, you can watch video from the AV-BUS component selected with the
Head Unit’s source select.
• Select the desired video source in following order:
AV =VTR
Note:
•If you select the “AV M ”video select setting in the display setting menu, video is locked to
RGB. (See page 14.)
Switching the Video Source

13
Setting the Display

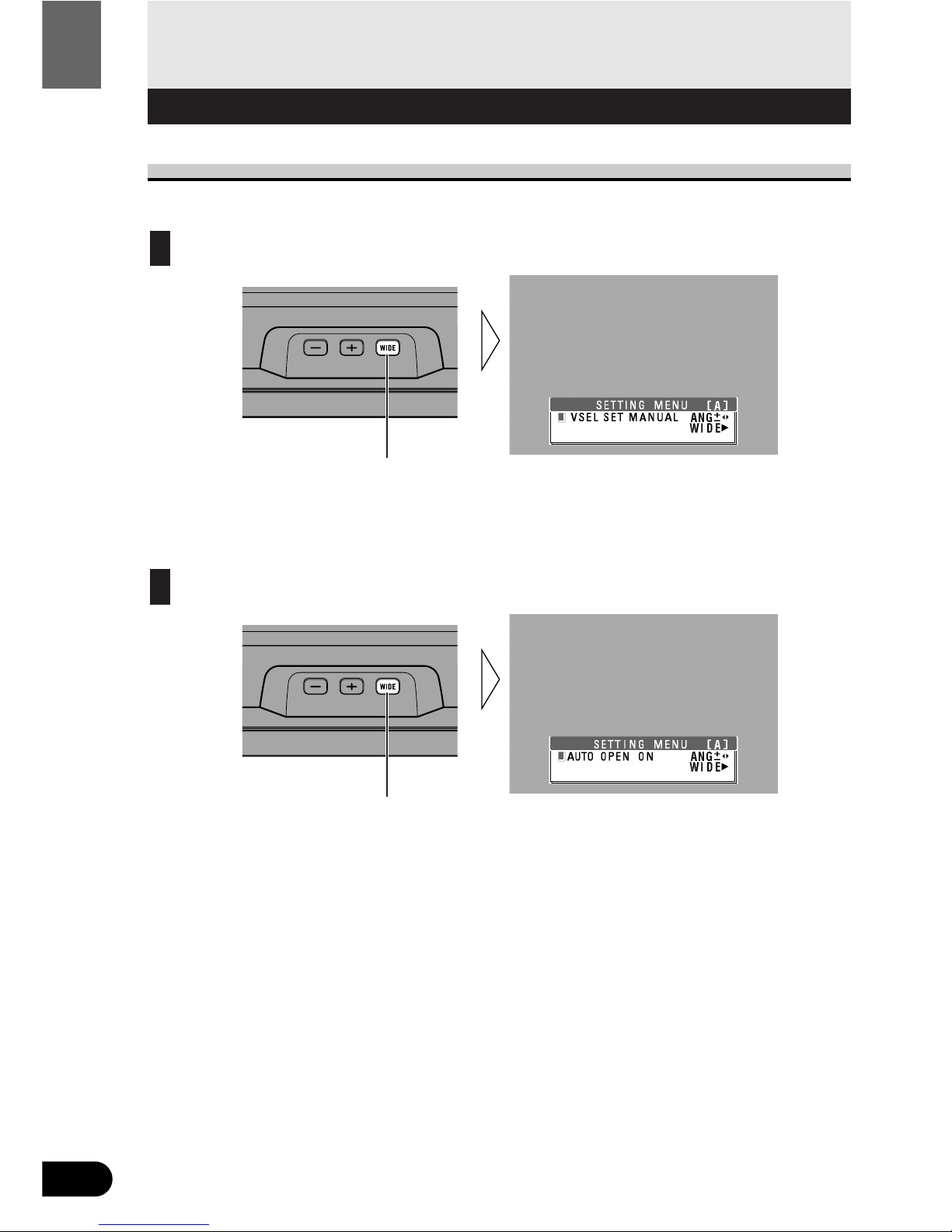

Entering the Display Setting Menu
Perform display and picture setting with this menu.
Enter the Display Setting Menu.
Select the desired mode in the following order:
VSEL SET =AUTO OPEN =BRIGHT =COLOR* =HUE* =DIMMER
To cancel the Display Setting Menu, press the WIDE button again for 2 seconds.
Note:
• After entering the Display Setting Menu, if you do not perfome an operation within about 30
seconds, the Display Setting Menu is automatically canceled.
• When the video source is RGB, you can not switch the “COLOR” and “HUE” .
Each press changes
the Mode ...
2
Hold for 2 seconds
1
Operating the Setting Menu
Setting the Display

14
Setting the Display

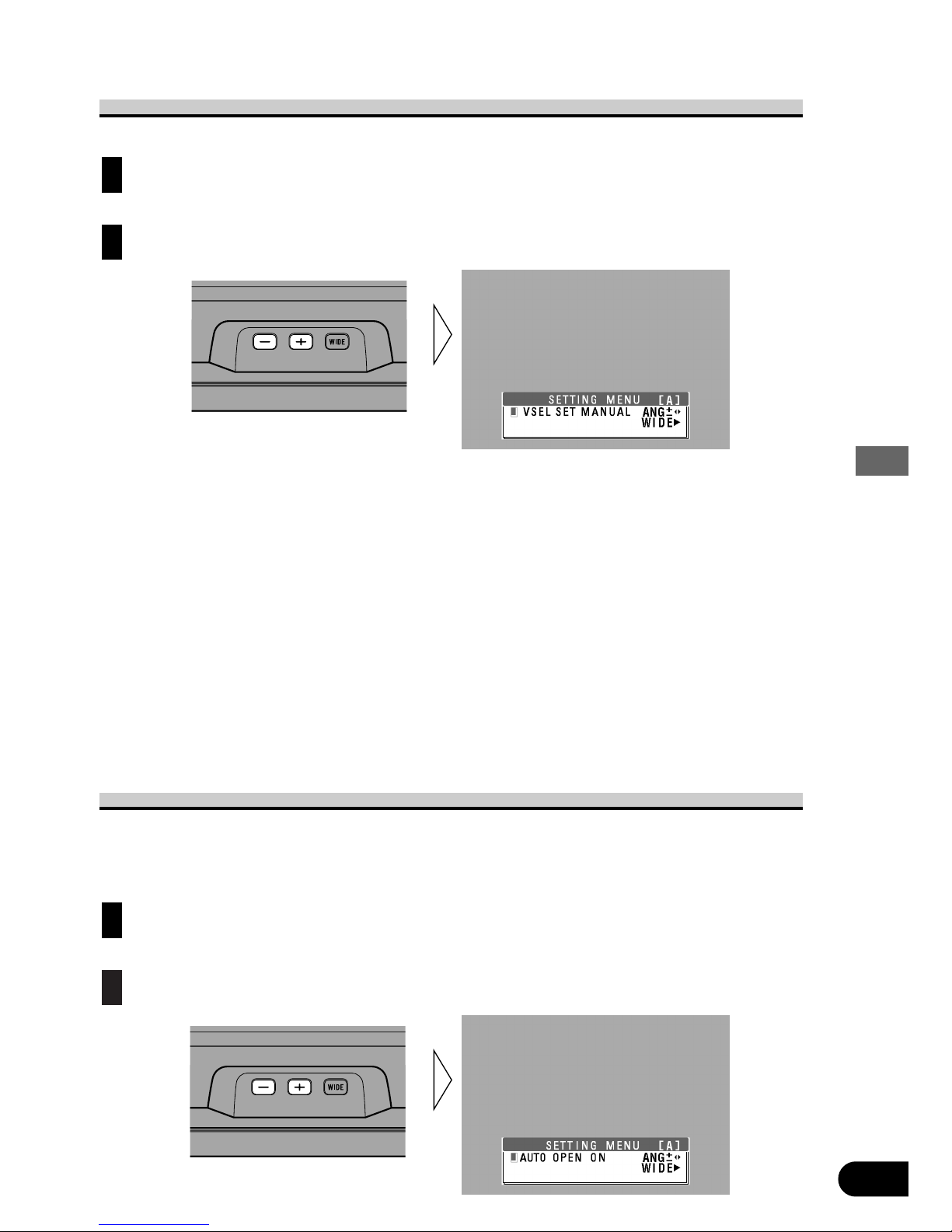

Switching the Video Select Setting
You can change the video select setting.
Press the WIDE button and select the video select mode (VSEL SET) in
the Display Setting Menu.
Switch to the desired video select setting in the following order:
AUTO =MANUAL =AV M
7AUTO
When the Head Unit source is switched to a component (e.g. SDV-P7) connected to
the AV-BUS, output automatically switches to video from that component.
Note:
•If an SDV-P7 is connected, you can use this function when using the SDV-P7 with the IP-
BUS mode.
7MANUAL
You can switch between VTR and AV with the V.SOURCE button. (Refer to
page 12.)
7AVM
This prevents switching from video from a component connected to the RGB input.
Setting the Automatic Open Mode
To prevent the display from hitting the shift lever of an automatic vehicle when it is in the
“P”(park) position, or when you do not wish opening/closing of the display to be carried out
automatically, you can switch this function ON/OFF.
Press the WIDE button and select the automatic open mode (AUTO
OPEN) in the Display Setting Menu.
Switch the automatic open ON/OFF.
2
1
2
1

15
Setting the Display
Adjusting the Bright
You can adjust the bright of the picture.
Press the WIDE button and select the Bright mode (BRIGHT) in the
Display Setting Menu.
Adjust the Bright.
Note:
•The density of the display black can be adjusted within the range of “–24”to “+24.”
•The adjustment values are recorded separately for the AV, VTR and RGB video. The adjust-
ment values of a component (AV) connected to the AV-BUS input are also recorded separate-
ly. Adjustment values are recorded when the vehicle lights are off (bright daylight) or on
(dark night) respectively.
Adjusting the Color
You can adjust the color of the picture.
Press the WIDE button and select the Color mode (COLOR) in the Display
Setting Menu.
Adjust the Color.
Note:
•“–24”to “+24”is displayed as it shifts from light color to dark color.
•The adjustment values are recorded separately for the AV, VTR and RGB video. The adjust-
ment values of a component (AV) connected to the AV-BUS input are also recorded separate-
ly. Adjustment values are recorded when the vehicle lights are off (bright daylight) or on
(dark night) respectively.
2
1
2
1
