Pioneer Super Tuner IIID AVH-P4100DVD User manual

English Français Español
Installation Manual
Manuel d’installation
Manual de instalación
DVD AV RECEIVER
AUTORADIO AV LECTEUR DE DVD
RADIO AV CON DVD
AVH-P4100DVD

2
Contents
Connecting the units ............................ 3
Parts supplied ................................................. 5
Connecting the power cord ........................... 6
When connecting to
separately sold power amp ....................... 8
When connecting
with supplied USB cable .......................... 9
When connecting with
optional CD-IU200V cable ......................... 9
When connecting with
a rear view camera .................................. 10
When connecting with
a multi-channel processor ...................... 11

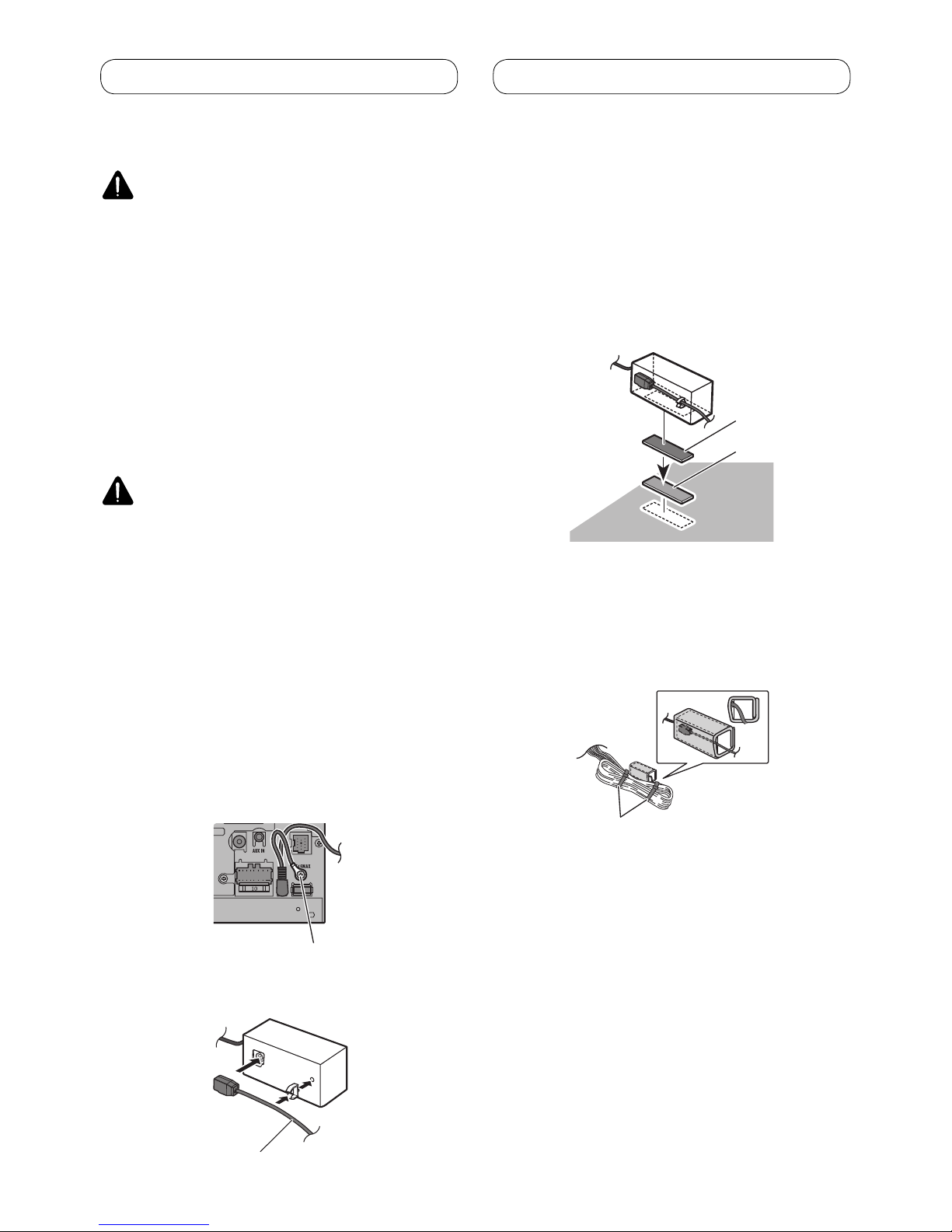

Connecting and installing
the optical cable connection box ........... 12
Connecting the optical cable ............................... 12
Installing the optical cable connection box ........ 12

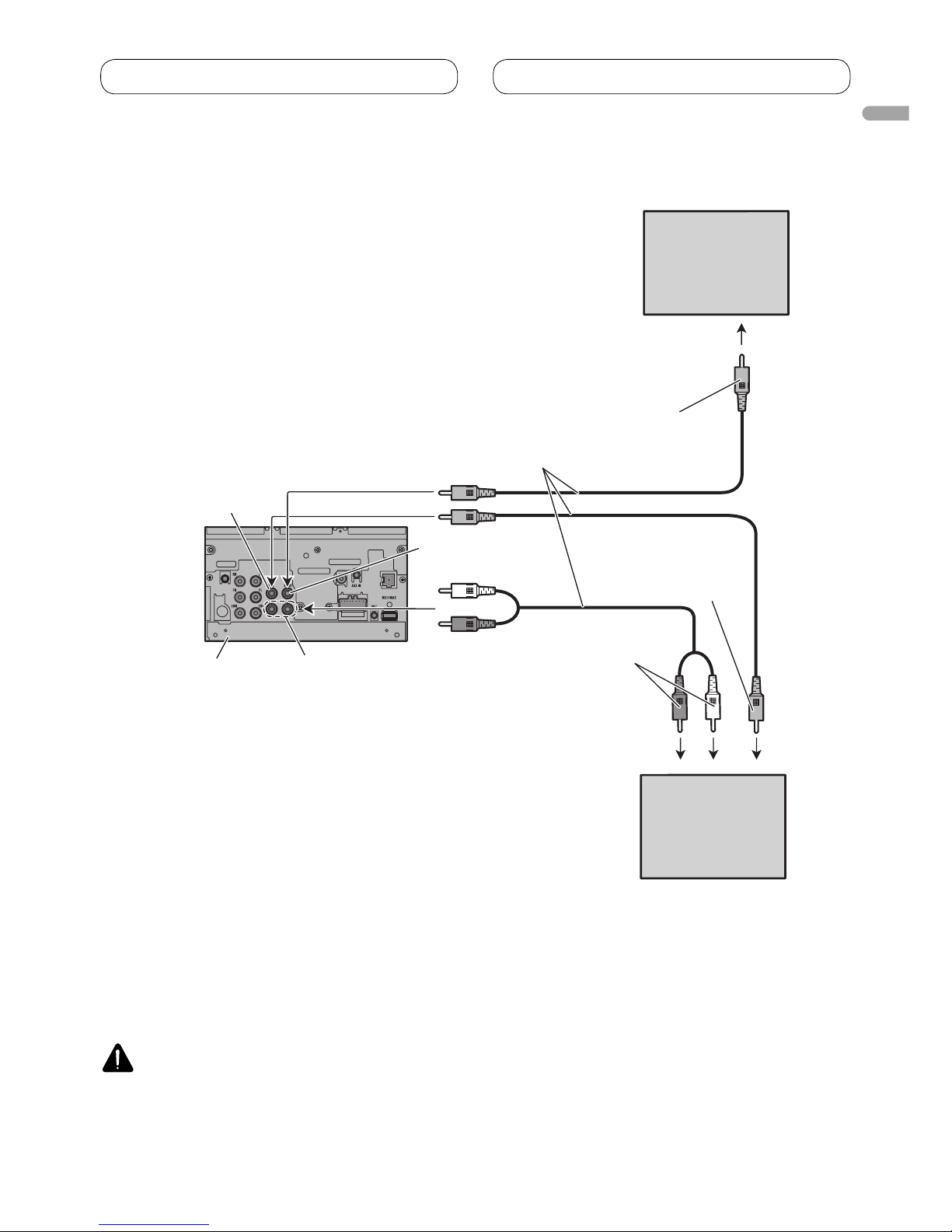

When connecting the external
video component and the display .......... 13
When using a display connected to
rear video output .......................................... 13

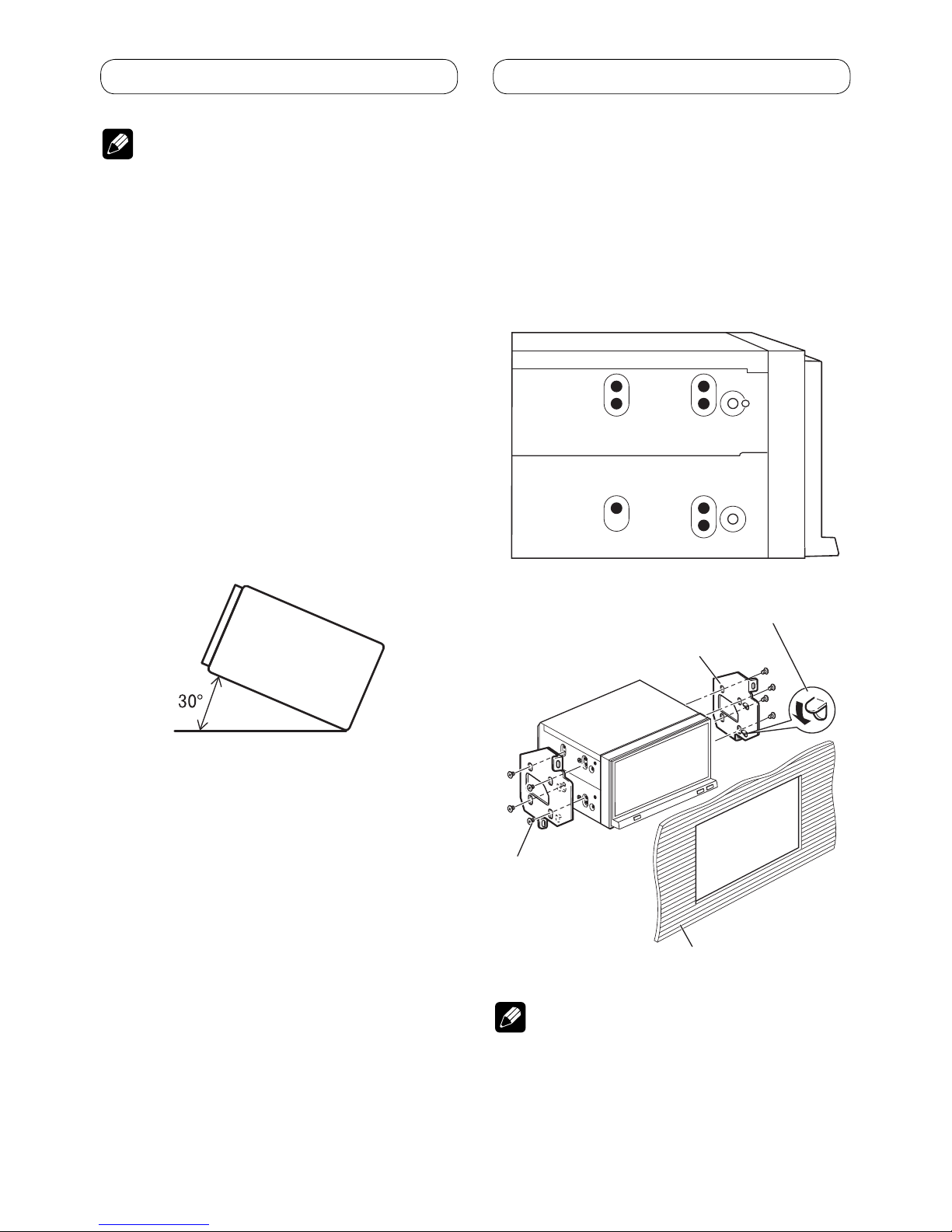

Installation ........................................... 14
Installation using the screw holes
on the side of the unit ............................. 14

3
Connecting the units
English
WARNING
• To avoid the risk of accident and the potential
violation of applicable laws, the front DVD or
TV (sold separately) feature should never be
used while the vehicle is being driven. Also, rear
displays should not be in a location where it is a
visible distraction to the driver.
• In some countries or states the viewing of images
on a display inside a vehicle even by persons
other than the driver may be illegal. Where such
regulations apply, they must be obeyed and this
unit’s DVD features should not be used.
CAUTION
• PIONEER does not recommend that you
install or service your display yourself.
Installing or servicing the product may
expose you to risk of electric shock or other
hazards. Refer all installation and servicing
of your display to authorized Pioneer service
personnel.
• Secure all wiring with cable clamps or
electrical tape. Do not allow any bare wiring
to remain exposed.
• Do not drill a hole into the engine
compartment to connect the yellow lead
of the unit to the vehicle battery. Engine
vibration may eventually cause the insulation
to fail at the point where the wire passes from
the passenger compartment into the engine
compartment. Take extra care in securing the
wire at this point.
• It is extremely dangerous to allow the display
lead to become wound around the steering
column or gearshift. Be sure to install the
display in such a way that it will not obstruct
driving.
• Make sure that wires will not interfere with
moving parts of the vehicle, such as the
gearshift, parking brake or seat sliding
mechanism.
• Do not shorten any leads. If you do, the
protection circuit may fail to work properly.
WARNING
LIGHT GREEN LEAD AT POWER CONNECTOR
IS DESIGNED TO DETECT PARKED STATUS
AND MUST BE CONNECTED TO THE POWER
SUPPLY SIDE OF THE PARKING BRAKE SWITCH.
IMPROPER CONNECTION OR USE OF THIS
LEAD MAY VIOLATE APPLICABLE LAW AND MAY
RESULT IN SERIOUS INJURY OR DAMAGE.

4
Connecting the units
Note
• This unit cannot be installed in a vehicle without
ACC (accessory) position on the ignition switch.
A
C
C
O
N
S
T
A
R
T
O
F
F
O
N
S
T
A
R
T
O
F
F
ACC position No ACC position
• Use this unit in other than the following
conditions could result in fire or malfunction.
—Vehicles with a 12-volt battery and negative
grounding.
—Speakers with 50 W (output value) and 4 ohm
to 8 ohm (impedance value).
• To prevent short-circuit, overheating or
malfunction, be sure to follow the directions
below.
—Disconnect the negative terminal of the
battery before installation.
—Secure the wiring with cable clamps or
adhesive tape. To protect the wiring, wrap
adhesive tape around them where they lie
against metal parts.
—Place all cables away from moving parts, such
as gear shift and seat rails.
—Place all cables away from hot places, such as
near the heater outlet.
—Do not pass the yellow cable through a hole
into the engine compartment to connect to a
battery.
—Cover any disconnected cable connectors with
insulating tape.
—Do not shorten any cables.
—Never cut the insulation of the power cable of
this unit in order to share the power to other
equipment. Current capacity of the cable is
limited.
—Use a fuse of the rating prescribed.
—Never wire the speaker negative cable directly
to ground.
—Never band together multiple speaker’s
negative cables.
• Control signal is output through blue/white cable
when this unit is powered on. Connect it to an
external power amp’s system remote control or
the vehicle’s auto-antenna relay control terminal
(max. 300 mA, 12 V DC). If the vehicle is equipped
with a glass antenna, connect it to the antenna
booster power supply terminal.
• Never connect blue/white cable to external power
amp’s power terminal. Also, never connect
it to the power terminal of the auto antenna.
Otherwise, battery drain or malfunction may
result.
• IP-BUS connectors are color-coded. Be sure to
connect connectors of the same color.
• Black cable is ground. This cable and other
product’s ground cable (especially, high-current
products such as power amp) must be wired
separately. Otherwise, fire or malfunction may
result if they are accidentally detached.

5
Connecting the units
English

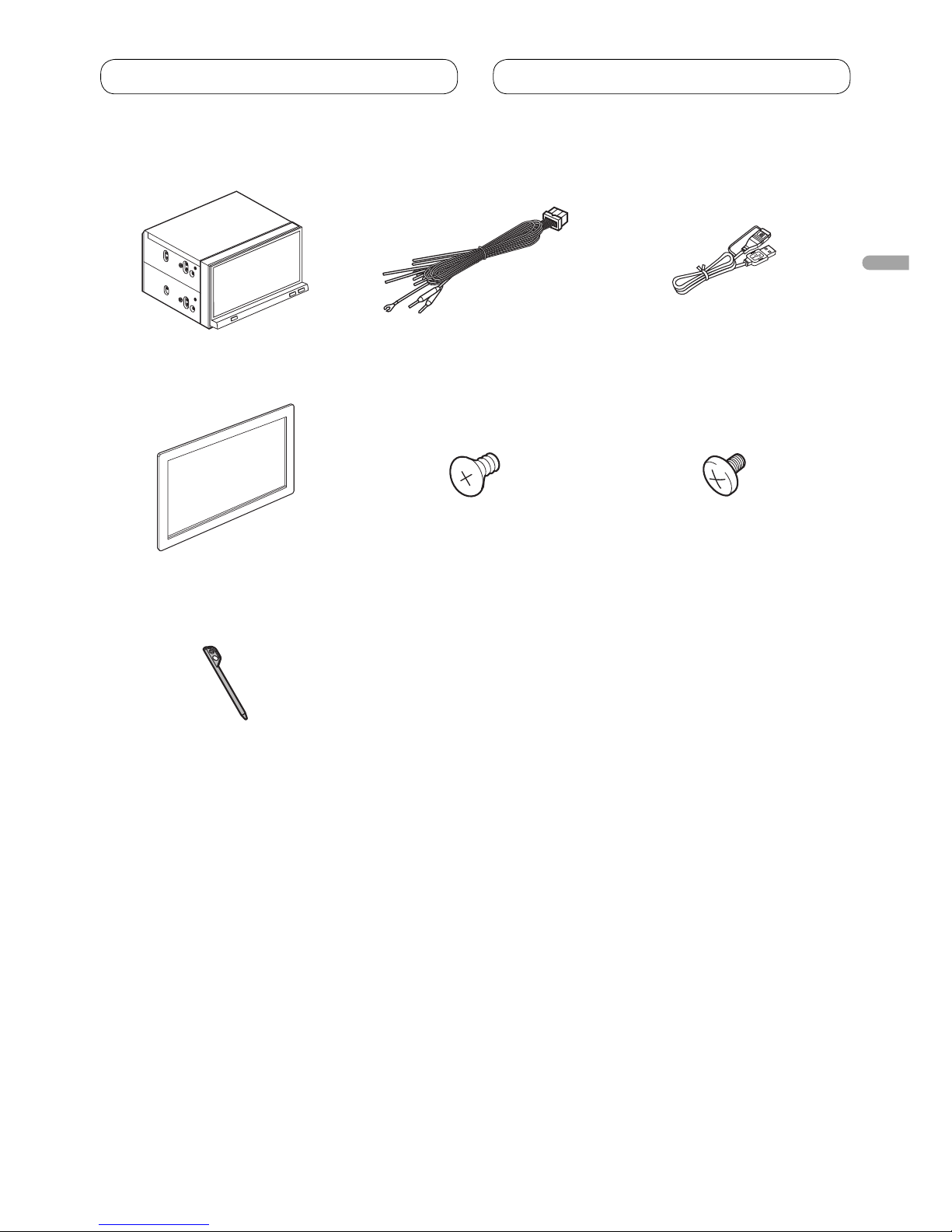

Parts supplied
This product Power cord USB cable
Frame Flush surface screw
(5 mm × 8 mm) (8 pcs.)
Binding screw
(5 mm × 8 mm) (8 pcs.)
Touch panel pen

6
Connecting the units

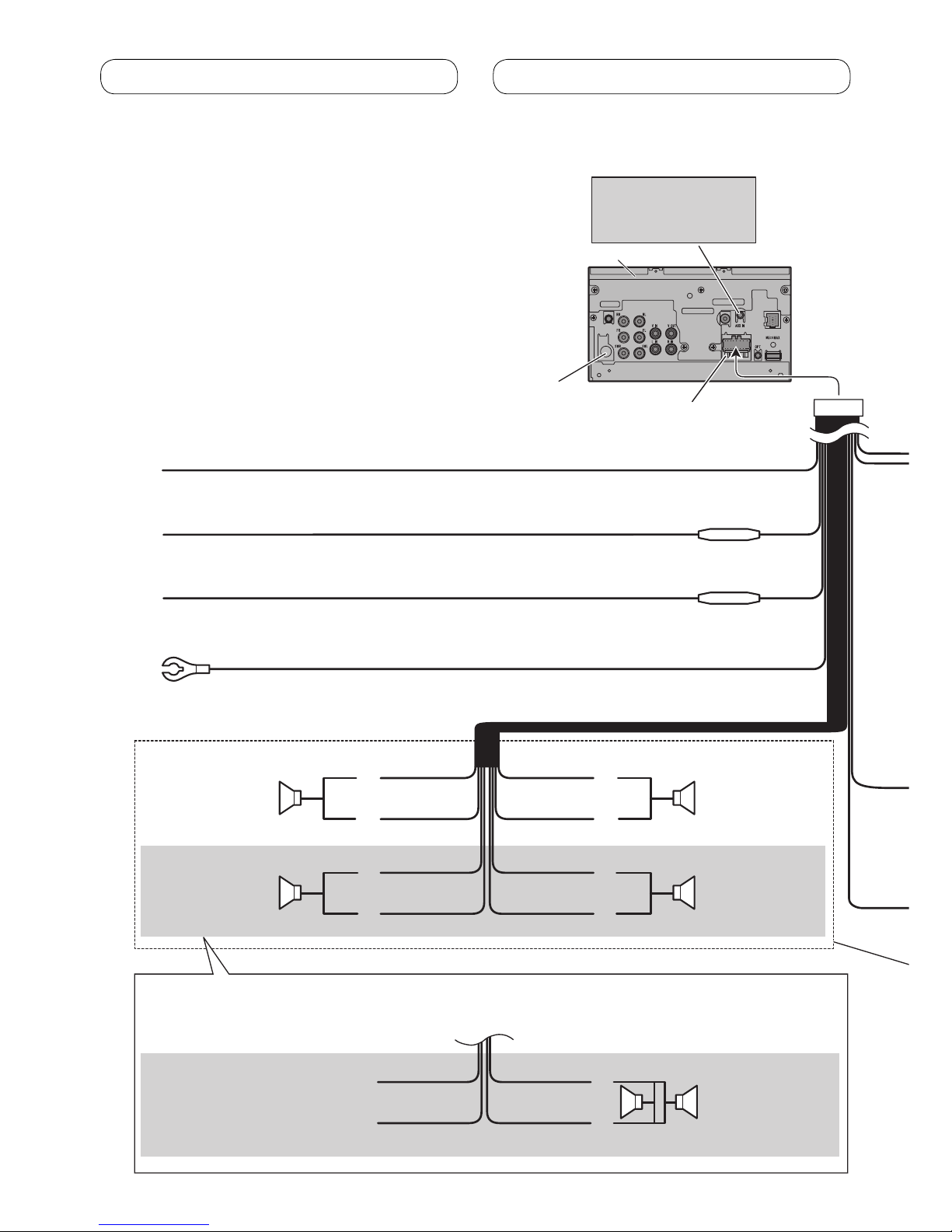

Connecting the power cord










Yellow
Connect to the constant 12 V supply terminal.
Fuse resistor
Red
Connect to terminal controlled by ignition switch (12 V DC).
Black (chassis ground)
Connect to a clean, paint-free metal location.
Left Right
Front speaker Front speaker
Rear speaker or
Subwoofer (4 Ω)
White Gray
Gray/blackWhite/black
Green Violet
Green/black Violet/black
Violet
Violet/black
Not used.
Green
Green/black
When using a subwoofer of 70 W (2 Ω), be sure to connect with Violet and Violet/black leads of this unit. Do not
connect anything to Green and Green/black leads.
Subwoofer (4 Ω)
× 2
Rear speaker or
Subwoofer (4 Ω)
Fuse (10 A)
Antenna input
Orange/white
Connect to lighting switch terminal. Fuse resistor
This product
Use a mini plug cable to
connect with auxiliary
device.
AUX jack (3.5 ø)

7
Connection method
1. Clamp the lead. 2. Clamp firmly with
needle-nosed pliers.
Note:
· The position of the parking brake switch depends on the vehicle model. For details,
consult the vehicle Owner’s Manual or dealer.
Yellow/black
If you use equipment with Mute function, wire this lead to the
Audio Mute lead on that piece of equipment. If not, keep the
Audio Mute lead free of any connections.
Light green
Used to detect the ON/OFF status of the parking
brake. This lead must be connected to the power
supply side of the parking brake switch.
Blue/white
Connect to system control terminal of the power amp or
auto-antenna relay control terminal (max. 300 mA 12 V DC).
Ground side
Power supply side
Parking brake
switch
Fuse resistor
With a 2 speaker system, do not connect anything to the speaker leads
that are not connected to speakers.
Note:
· Change the initial setting of this unit (refer
to the Operation Manual). The subwoofer
output of this unit is monaural.
Violet/white
Of the two lead wires connected to the back lamp, connect the one
in which the voltage changes when the gear shift is in the
REVERSE (R) position. This connection enables the unit to
sense whether the car is moving forwards or backwards.
When you connect the separately sold
multi-channel processor (e.g., DEQ-P8000) to
this unit, do not connect anything to the
speaker leads and system remote control
(blue/white).
Connecting the units
English

8
Connecting the units
When connecting to separately sold power amp












Blue/white
Connect to system control terminal of the
power amp or auto-antenna relay control
terminal. (max. 300 mA 12 V DC).
When you connect the separately sold
multi-channel processor (e.g., DEQ-P8000) to
this unit, do not connect anything to the
speaker leads and system remote control
(blue/white).
This product
Connect with RCA cables
(sold separately)
Rear speaker
Perform these connections when
using the optional amplifier.
System remote control
Front speaker Front speaker
Left Right
Front output
When you connect the multi-channel processor
to this unit, refer to multi-channel processor’s
installation manual for the connection method.
Rear speaker
Power amp
(sold separately)
Power amp
(sold separately)
Power amp
(sold separately)
Subwoofer Subwoofer
Rear output
Subwoofer output
To front output
To rear output
To subwoofer
output

9
English
Connecting the units
When connecting with supplied USB cable
This product
1.5 m (4 ft. 11 in.)
USB cable
Connect to sparately sold
USB device.
Wired remote input
Hard-wired remote control
adaptor can be connected
(sold separately).
IP-BUS cable
(Supplied with Bluetooth adapter)
Black
Bluetooth adapter
(e.g. CD-BTB200)
(sold separately)
Microphone
for hands-free phoning
(supplied with Bluetooth adapter)
Blue
IP-BUS input
1.5 m (4 ft. 11 in.)
When connecting with optional CD-IU200V cable
This product
Wired remote input
Hard-wired remote control
adaptor can be connected
(sold separately).
Dock connector
Interface cable
(CD-IU200V) (sold separately)
iPod with video capabilities
(sold separately)
IP-BUS cable
(Supplied with Bluetooth adapter)
Black
Bluetooth adapter
(e.g. CD-BTB200)
(sold separately)
Microphone
for hands-free phoning
(supplied with Bluetooth adapter)
1.5 m (4 ft. 11in.)
IP-BUS input
USB input
AUX input (AUX IN)
1.5 m
(4 ft. 11in.)
USB cable

10
Connecting the units
When connecting with a rear view camera
When this product is used with a rear view camera, it is possible to automatically switch
from the video to rear view image when the gear shift is moved to REVERSE (R).
WARNING
USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY
RESULT IN INJURY OR DAMAGE.
CAUTION
• The screen image may appear reversed.
• The rear view camera function is to be used as an aid for backing into a tight parking spot.
Do not use this function for entertainment purposes.
• Objects in the rear view may appear closer or more distant than they actually are.
RCA cable
(sold separately)
To video output
Rear view camera
Rear view camera input
(REAR CAMERA IN)
This product
Violet/white
Of the two lead wires connected to the back lamp, connect the one
in which the voltage changes when the gear shift is in the
REVERSE (R) position. This connection enables the unit to
sense whether the car is moving forwards or backwards.
You must use a camera
which outputs mirror
reversed images.
CAUTION
Fuse resistor
• It is necessary to set Camera Polarity properly in System Menu when connecting the rear
view camera.

11
English
When connecting with a multi-channel processor
IP-BUS cable (supplied with
multi-channel processor)
RCA cable (supplied with
multi-channel processor)
Optical cable
(supplied with
multi-channel processor)
This product
Wired remote input
Hard-wired remote control
adaptor can be connected
(sold separately).
IP-BUS cable
(Supplied with Bluetooth adapter)
Black
Bluetooth adapter
(e.g. CD-BTB200)
(sold separately)
Microphone
for hands-free phoning
(supplied with Bluetooth adapter)
Blue
Multi-channel processor
(e.g., DEQ-P8000)
(sold separately)
Black
Optical cable connection box
(supplied with multi-channel processor)
To RL
To RR
Black
Blue
Optical output
(Black)
IP-BUS input
Blue
Blue
Multi-CD player
(sold separately)
IP-BUS cable
Connecting the units

12
Connecting the units
Connecting and installing the optical cable connection box
WARNING
• Avoid installing the optical cable connection
box in locations where the operation of safety
devices such as airbags is prevented by this
unit. Otherwise, there is a danger of a fatal
accident.
• Avoid installing the optical cable connection
box in locations where the operation of the
brake may be prevented. Otherwise, it may
result in a traffic accident.
• Fix the optical cable connection box securely
with the hook and loop fastener or lock tie. If
the unit is loose, it disturbs driving stability,
which may result in a traffic accident.
CAUTION
• Install this unit using only the parts supplied with
this unit. If other parts are used, this unit may be
damaged or could dismount itself, which leads to
an accident or other problems.
• Do not install this unit near the doors where
rainwater is likely to be spilled on the unit.
Incursion of water into the unit may cause smoke
or fire.
Connecting the optical cable
1. Connect the optical cable and ground
lead to the main unit.
Connect the optical cable so that it does not
protrude from the main unit, as shown in the
illustration. Fasten the ground lead to the
protrusion on the back of the main unit.
2. Connect the optical cable to the
optical cable connection box.
Installing the optical cable
connection box
• When installing the optical cable
connection box with the hook and
loop fastener.
Install the optical cable connection box
using the hook and loop fastener in the
ample space of the console box.
• When installing the optical cable
connection box with the lock tie.
Wrap the optical cable and connection box
with the protection tape and fasten with the
power code using the lock tie.
Screw
Optical cable
Hook fastener
Loop fastener
Wrap with the protection tape
Fasten with the lock tie

13
When connecting the external video component and the
display
External video
component (sold
separately)
Audio input
(L IN, R IN)
Display with RCA
input jacks (sold
separately)
To video input
To video output
To audio outputs
This product
RCA cables (sold separately)
Video input (V IN)
Rear monitor output
(V OUT)
• It is necessary to change AV Input in System Menu when connecting the external video
component.
When using a display connected to rear video output
This product’s rear video output is for connection of a display to enable passengers in the
rear seats to watch video.
WARNING
Never install the display in a location where it is visible to the driver while driving.
Connecting the units
English

14
Installation
Note
• Check all connections and systems before final
installation.
• Do not use unauthorized parts. The use of
unauthorized parts may cause malfunctions.
• Consult with your dealer if installation requires
drilling of holes or other modifications of the
vehicle.
• Do not install this unit where:
— it may interfere with operation of the vehicle.
— it may cause injury to a passenger as a result
of a sudden stop.
• Do not install the display where it may (i) obstruct
the driver’s vision, (ii) impair the performance of
any of the vehicle’s operating systems or safety
features, including air bags, hazard lamp buttons
or (iii) impair the driver’s ability to safely operate
the vehicle.
• The semiconductor laser will be damaged if it
overheats. Install this unit away from hot places
such as near the heater outlet.
• Optimum performance is obtained when the unit
is installed at an angle of less than 30°.
• To some types of vehicles, this unit cannot be
properly installed. In such case, use the optional
installation kit (ADT-VA133).
Installation using the screw
holes on the side of the unit
Fastening the unit to the factory
radio-mounting bracket.
Position the unit so that its screw holes are
aligned with the screw holes of the bracket,
and tighten the screws at 3 or 4 locations on
each side.
Note
In some types of vehicles, discrepancy may
occur between the unit and the dashboard. If this
happens, use the supplied frame to fill the gap.
Factory radio
mounting bracket
If the pawl gets in the way,
bend it down.
Dashboard or console
Binding screw or
flush surface screw
Be sure to use the
screws supplied
with this unit.

15
English

Table des matières
Raccordements des appareils ............ 3
Pièces fournies ................................................ 5
Branchement du cordon d’alimentation ...... 6
Raccordements à un amplificateur de
puissance vendu séparément .................. 8
Raccordement avec le câble USB fourni ...... 9
Raccordement avec le câble optionnel
CD-IU200V .................................................. 9
Raccordements à une caméra de recul ..... 10
Lors du raccordement d’un processeur
multi-canaux ............................................ 11
Raccordement et installation de la boîte
de raccordement de câble à fibres
optiques ................................................... 12
Raccordement du câble à fibres optiques........... 12
Installation de la boîte de raccordement de
câble à fibres optiques ................................ 12
Raccordements à un appareil vidéo
externe et à un écran .............................. 13
Lors de l’utilisation d’un écran raccordé à la
sortie vidéo arrière ....................................... 13
Installation ............................................ 14
Installation à l’aide des perçages sur le
côté de l’appareil...................................... 14
2

Français
Raccordements des appareils
AVERTISSEMENT
• Pour éviter tout risque d’accident, et toute
infraction aux lois en vigueur, l’affichage à
l’avant d’image de DVD ou de télévision (vendue
séparément) ne doit jamais être employé tandis
que le véhicule roule. Par ailleurs, les écrans
arrière ne doivent jamais se trouver placés de
manière à distraire l’attention du conducteur.
• Dans certains états ou pays il peut être illégal
même pour des personnes autres que le
conducteur de regarder des images sur un
écran à l’intérieur d’un véhicule. Quand cette
réglementation est applicable, elle doit être
respectée, et les fonctions DVD de cet appareil ne
doivent pas être utilisées.
ATTENTION
• PIONEER ne vous recommande pas
d’installer ou d’entretenir vous-même cet
écran, car ces travaux peuvent présenter un
risque d’électrocution ou d’autres dangers.
Confiez tous les travaux d’installation et
d’entretien de votre écran au personnel de
service Pioneer agréé.
• Immobilisez toutes les câblages avec des
serre-fils ou du ruban isolant. Ne laissez
aucun conducteur à nu.
• Ne forez pas un orifice vers le compartiment
du moteur afin de raccorder le fil jaune de
l’appareil sur la batterie du véhicule car les
vibrations du moteur pourraient à la longue
abîmer l’isolation du fil au point de passage
entre l’habitable et le compartiment du
moteur. Veillez tout particulièrement à bien
immobiliser le fil à ce point.
• Une situation très dangereuse pourrait se
présenter si le fil de l’écran devait s’enrouler
autour de la colonne de direction ou du levier
des vitesses. Veillez à installer l’écran de telle
sorte que rien ne fasse obstacle à la conduite.
• Assurez-vous que les câblages ne font pas
obstacle aux pièces mobiles du véhicule,
telles que le levier des vitesses, le frein à
main ou le mécanisme de coulissement des
sièges.
• Ne court-circuitez pas les fils car le circuit
de protection ne fonctionnerait plus
correctement.
AVERTISSEMENT
LE FIL VERT CLAIR SUR LE CONNECTEUR
D’ALIMENTATION A POUR BUT DE DETECTER
L’ETAT DE STATIONNEMENT DU VEHICULE ET
DOIT ETRE CONNECTE AU COTE ALIMENTATION
DU COMMUTATEUR DU FREIN A MAIN. UNE
CONNEXION OU UNE UTILISATION INCORRECTE
DE CE FIL PEUT VIOLER LA LOI APPLICABLE ET
PEUT ENTRAINER DES BLESSURES GRAVES OU
DES DOMMAGES SERIEUX.
3

Raccordements des appareils
Remarque
• Cet appareil ne peut pas être installé dans
un véhicule dont le contacteur d’allumage ne
possède pas de position ACC (accessoire).
A
C
C
O
N
S
T
A
R
T
O
F
F
O
N
S
T
A
R
T
O
F
F
Position ACC Pas de Position ACC
• Utiliser cet appareil dans d’autres conditions
que les conditions suivantes peut entraîner un
incendie ou un mauvais fonctionnement.
—Véhicule avec une batterie de 12 volts et une
mise à la masse négative.
—Enceintes de 50 W (valeur de sortie) et de 4
ohms à 8 ohms (valeur d’impédance).
• Pour éviter tout court-circuit, surchauffe ou
mauvais fonctionnement, assurez-vous de suivre
les instructions ci-dessous.
—Déconnectez la borne négative de la batterie
avant l’installation.
—Fixez solidement les câbles avec des serre-
câbles ou du ruban adhésif. Pour protéger
le câblage, entourez-le de ruban adhésif à
l’endroit où il est en contact avec des pièces
métalliques.
—Tenez tous les câbles à l’écart des parties
mobiles, telles que le levier de vitesse et les
rails des sièges.
—Tenez tous les câbles à l’écart des endroits
chauds, tels que les sorties du chauffage.
—Ne faites pas passer le câble jaune par un
trou dans le compartiment du moteur pour le
connecter à la batterie.
—Recouvrez tous les câbles non connectés avec
du ruban isolant.
—Ne raccourcissez aucun câble.
—Ne coupez jamais l’isolant du câble
d’alimentation de cet appareil afin partager
l’alimentation avec un autre appareil. La
capacité électrique du câble est limitée.
—Utilisez un fusible de la valeur donnée.
—Ne connectez jamais le câble négatif des
enceintes directement à la masse.
—N’attachez jamais ensemble plusieurs câbles
négatifs de plusieurs enceintes.
• Le signal de commande est sorti par le câble
bleu/blanc quand cet appareil est sous
tension. Connectez-le à la télécommande
d’un système d’amplification extérieur ou à la
prise de commande du contrôle de relais de
l’antenne automatique (max. 300 mA, 12 V CC).
Si le véhicule est équipée d’une antenne de
vitre, connectez-la à la prise d’alimentation de
l’amplificateur d’antenne.
• Ne connectez jamais le câble bleu/blanc à la prise
d’alimentation d’un amplificateur extérieur. Et
ne le connectez pas à la prise d’alimentation de
l’antenne automatique. Sinon, la batterie risque
de se décharger ou un mauvais fonctionnement
peut se produire.
• Les connecteurs IP-BUS sont codés par couleur.
Assurez-vous de connecter les connecteurs de
même couleur.
• Le câble noir est pour la masse. Ce câble et
les câbles de masse des autres produits (en
particulier les appareils à haute intensité tels
que les amplificateurs) doivent être câblés
séparément. Sinon, ils peuvent entraîner un
incendie ou un mauvais fonctionnement s’ils se
détachent.
4

Français
Raccordements des appareils
Pièces fournies
Ce produit Cordon d’alimentation Câble USB
Cadre Vis à tête plate
(5 mm ×8 mm) (8 pcs)
Vis de pression
(5 mm × 8 mm) (8 pcs.)
Stylet pour écran tactile
5

Raccordements des appareils
Branchement du cordon d’alimentation










Jaune
Connectez à une prise d’alimentation constante 12 V.
Résistance
fusible
Rouge
Connectez à une prise commandée par le commutateur d’allumage (12 V CC).
Noire (masse au châssis)
Connectez à une section métallique propre et sans peinture.
Gauche Droit
Enceinte avant Enceinte avant
Enceinte arrière ou
caisson de grave
(4 Ω)
Blanc Gris
Gris/noirBlanc/noir
Vert Violet
Vert/noir Violet/noir
Violet
Violet/noir
Non utilisé.
Vert
Vert/noir
Lors de l’utilisation d’un haut-parleur d’extrêmes graves de 70 W (2 Ω), assurez-vous de le raccorder aux
conducteurs violet et violet/noir de cet appareil. Ne raccordez rien aux conducteurs vert et vert/noir.
Caisson de grave
(4 Ω) × 2
Enceinte arrière ou
caisson de grave
(4 Ω)
Fusible (10 A)
Entrée d'antenne
Orange/blanc
Connectez à la prise du commutateur d’éclairage. Résistance
fusible
Cet appareil
Utilisez un câble à fiches
mini pour raccorder un
appareil auxiliaire.
Prise AUX (3,5 ø)
6
