Piranha YQ-3888 User manual

Steam Cleaner
User Manual
Model No.: YQ-3888
Item No.: 900126
Rev 3
READ AND SAVE THESE INSTRUCTIONS
Note: The specifications and/or components of this appliance are subject to change without prior notice.

Page 2 of 14
1Warnings................................................................................................................................ 3
2Safety Direction..................................................................................................................... 3
3Recommendations ................................................................................................................ 5
4Safety: Protective Cut-Out and Pressure Relief ................................................................. 6
5Product Characteristics........................................................................................................ 6
5.1 Suggested Uses....................................................................................................................6
5.2 Higher Safety ........................................................................................................................6
5.3 Durable ..................................................................................................................................7
5.4 Energy Efficient ....................................................................................................................7
5.5 Easy To Use ..........................................................................................................................7
6Specification.......................................................................................................................... 7
7Components .......................................................................................................................... 8
8Operation Procedures .......................................................................................................... 8
9Functions ............................................................................................................................. 10
9.1 Disinfection and Sterilisation.............................................................................................10
9.2 Steaming Clothes ...............................................................................................................10
9.3 Cleaning Windows..............................................................................................................10
9.4 Upholstery Cleaning...........................................................................................................10
10 Installation of Accessories................................................................................................. 11
10.1 Round Brush or Bent Spray Nozzle...................................................................................11
10.2 Long Spray Nozzle & Flexible Extension Spray Nozzle ...................................................11
10.3 Accessory Spray Attachment for Cleaning Windows. .....................................................11
10.4 Towel Sleeve .......................................................................................................................12
11 Refill Water During Operation............................................................................................ 12
12 Completion and Storage..................................................................................................... 12
13 Cleaning Your Steam Cleaner............................................................................................ 13
14 Troubleshooting.................................................................................................................. 13
15 Guarantee ............................................................................................................................ 14

Page 3 of 14
1 Warnings
Before using this appliance, read and follow all warnings and instructions in this manual,
even if you are familiar with this product.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Young children should be supervised to ensure that they do not play with the appliance.
2 Safety Direction
Please read this instruction manual carefully before first use. It is advisable to keep this
instruction manual for future reference.
CAUTIONS:
DO NOT leave the appliance unattended when in use, hot or pressurised.
Take care that children cannot touch the appliance when the appliance is hot and/or
pressurised and make sure they cannot pull the mains cord.
DO NOT direct the steam towards persons, animals or other electrical products.
To protect against the risk of electric shock, do not immerse the appliance, cord or plug in
water or other liquids.
The liquid or steam must not be directed towards equipment containing electrical
components, such as the interior of ovens, etc
The filling aperture (Water Fill Cap) must not be opened during use.
Burns can occur from touching hot parts, hot water or steam. Be cautious when you turn this
appliance upside down to empty any excess water as the water in the tank may be extremely
hot.
DO NOT use near sinks, baths or showers containing water or near running water.
DO NOT use in swimming pools, etc. containing water.
Always disconnect the plug from wall socket, let cool completely and release the pressure
before removing the water fill cap.
It is highly recommended to disconnect the plug from wall socket and let cool before
changing the accessories.
Do not use this appliance if it has been dropped or any part of the appliance (including cord
or plug) has been damaged. Take this appliance to your nearest authorised service centre or
qualified dealer for inspection or repair.
Use only accessories recommended or supplied by an authorised service centre or qualified
dealer. The use of accessories not intended for use with this appliance may cause injuries to
the user or damage to the appliance.

Page 4 of 14
Do not place this unit on other appliances, on uneven surfaces or where it could be subject to
heat sources (e.g. radiators or stoves), direct sunlight, excessive dust
This Appliance should not be placed near a hot gas or electrical burner or placed in a heated
oven.
Do not operate this appliance underneath or near flammable or combustible materials (e.g.
curtains, petrol, fuels, etc.).
The appliance should always be switched off before connecting or disconnecting from the
power supply. Never pull the cord to disconnect the plug from the wall socket.
Any type of servicing, apart from ordinary cleaning, must be carried out by an authorised
service centre or qualified dealer. There are no user serviceable parts in this appliance.
If this appliance is to be used by a third party, please supply the instruction manual with it.
Always disconnect the plug from wall socket, let cool and release all internal pressure before
removing the Water Fill Cap when filling the appliance with water or pouring the remaining
water out. Note: Press the steam button to release the pressure. Never open the cap to
release pressure as Injury may result.
It is highly recommended to disconnect the plug from wall socket, let cool and release all
internal pressure before changing the attachments. Note: Press the steam button to release
the pressure. Never open the cap to release pressure as Injury may result.
To avoid an overloaded circuit, do not operate another high current appliance on the same
electrical circuit.
Ensure children and babies do not play with plastic bags or any of the packaging material.
Do not turn on power supply until the tank is filled with the appropriate amount of water.
Before and during operation, the water tank opening must be completely sealed hermetically
with the safety screw cap tightened in position.
In use, the appliance must not be inclined at more than 45 degrees otherwise boiling water
may be sprayed out together with the hot steam.
Important: Never overfill the tank, otherwise the steam generation will be affected
and/or the steam pressure will increase causing the Pressure Relief Valve to Activate
This appliance must be earthed. The use of an Earth Leakage Safety Switch is highly
recommended. Refer to your electrician for further information.
Position the power supply cord properly so that it will not be walked on or pinched by items
placed on or against it.
Use only clean water. Do not add any other agents into the water tank, such as, rust
removers, odour counter reacting agents, alcohol, cleaners, solvents, detergents, etc, as this
may cause serious injury to the user or bystander and may damage the appliance

Page 5 of 14
DO NOT store or use the appliance near or in high temperature areas.
DO NOT use the appliance if the power cord is damaged. Do not repair by yourself. It must
be repaired by the manufacturer, our customer service department or a similarly qualified
person.
ONLY for domestic use. Industrial or commercial use invalidates the warranty.
Danger of Scalding. To avoid scalding, DO NOT touch hot surfaces or the steam
nozzle during or just after use.
No liability can be accepted for any damage caused by non-compliance with these
instructions or any other improper use or mishandling of appliance.
Additional Safety Instructions Relating to the Plug and Power Cord
If using an extension cord:
The cord should be checked and tested by an authorised service centre or a qualified dealer.
The technical specifications of the extension cord must match the technical specifications of
this appliance.
The extension cord must be 3 core (Neutral, Live and Earth)
Do not allow the cord to hang over the edge of the work surface or to come into contact with
stoves or other hot surfaces.
If the cord or plug is worn or damaged, the appliance should be taken to your nearest
authorised service centre or qualified dealer for replacement with an approved cord or plug of
the same size and specification.
Unplug from power socket by grasping the plug - Do Not pull on the cord.
3 Recommendations
It is highly recommended that you check the use and instructions of any surface from the
manufacturer to ensure the suitability to steam cleaning.
You may also choose to perform a test clean on the surface in an inconspicuous area.
•On surfaces that have been treated with wax, the wax may be removed by heat and
steam action.
•Do not use on unsealed wood surfaces or direct steam on any wood surface for an
extended period of time. This may cause the wood grain to rise.
•On all fabric or upholstered surfaces, please check the care instructions
accompanying the item. If no instructions are present, contact the manufacturer of the
item for advice.
•In the case of using steam to smooth wrinkled fabric or clothing, do not direct steam at
the body.

Page 6 of 14
4 Safety: Protective Cut-Out and Pressure Relief
This appliance is designed in such a way that when the water in the tank has been used up,
the thermostat will activate and cut power off to the heating element thus preventing the
appliance from continuing to heat with no water.
The appliance should be immediately switched off and unplugged when there is no more
steam generated.
This appliance is also fitted with a safety pressure relief valve built into the screw cap. This
valve will only release steam in the event that the pressure increases above the normal
operating temperature.
Never use the appliance unless the proper screw cap is fitted.
Should the safety pressure relief valve operate every time the appliance is used, cease use
and have the appliance checked by a qualified service agent.
These safety devices are incorporated for your personal safety.
5 Product Characteristics
5.1 Suggested Uses
Technically leading with exclusive patented technologies, the high temperature and high
pressure steam can be used for cleaning away dirt, grease, stains, kill bacteria and germs
on most surfaces.
With an automatic heating control and being able to generate steam continuously, will
make cleaning easy.
Cleaning with high temperature and high pressure steam, with no added chemical agents,
makes this appliance environmentally friendly.
5.2 Higher Safety
This appliance is designed to prevent heating of the water tank after the water in the tank
has been used up.
The appliance will automatically disconnect the power supply to the heating element and
thus prevent empty heating.
With a highly sensitive thermostat, 135˚C steam temperature is available, ensuring
disinfection and sterilisation.
The pressure safety valve has an automatic pressure release function.
If there is higher than normal steam pressure in the tank, the valve will automatically open
and release the pressure.
This appliance is supplied with a 3 pin power lead and plug with an earthing connection so
that the tank and heating components can be grounded in order to ensure safety in
operation.
The extra long power cord with double insulation, can effectively insulate the cable from
water spray and dust, and ensure safety under normal operating conditions.

Page 7 of 14
5.3 Durable
The appliance is designed with an aluminium alloy die cast boiler tank with an extra-thick
inner wall, and can resist high pressures ensuring a long service life.
The high strength plastic body is made from high quality PP and PA with anti-corrosion
agents added ensuring a long service life.
5.4 Energy Efficient
With an integrated design of specially constructed heating tubes and boiler tank, an overall
heating solution is provided creating high heating efficiency and energy saving.
The double layer body shell structure effectively prevents heat loss which aids in being
environmentally friendly and energy efficient.
5.5 Easy To Use
With the comprehensive cleaning accessory kit supplied, the components can be
assembled and disassembled easily depending on your needs.
6 Specification
•Rating of Power Supply: 220 - 240Va.c. 50Hz, with earthed connection.
•Rated Power: 900W - 1050W
•Steam Rate: 28g/m approximate
•Allowed rated line load current is no greater than 10A.
•Tank Capacity: 350ml – NOTE. Do not fill more than 250ml from empty
•Max Capacity Of Water Cup: 175ml
•Steam Pressure: 0.25Mpa - 0.42Mpa
•Steam Pressure Relief Valve: 0.45Mpa
•Injected Steam Capacity: Approximately 28g/min
•Temperature Controller: Normal Operating Temperature: 135°C
•Over Temperature Fuse. 195°C
•Heat Up Time: Approximately 3 minutes.
•Overall Dimension: 285 × 145 × 225mm
•Net Weight: 1.36kg

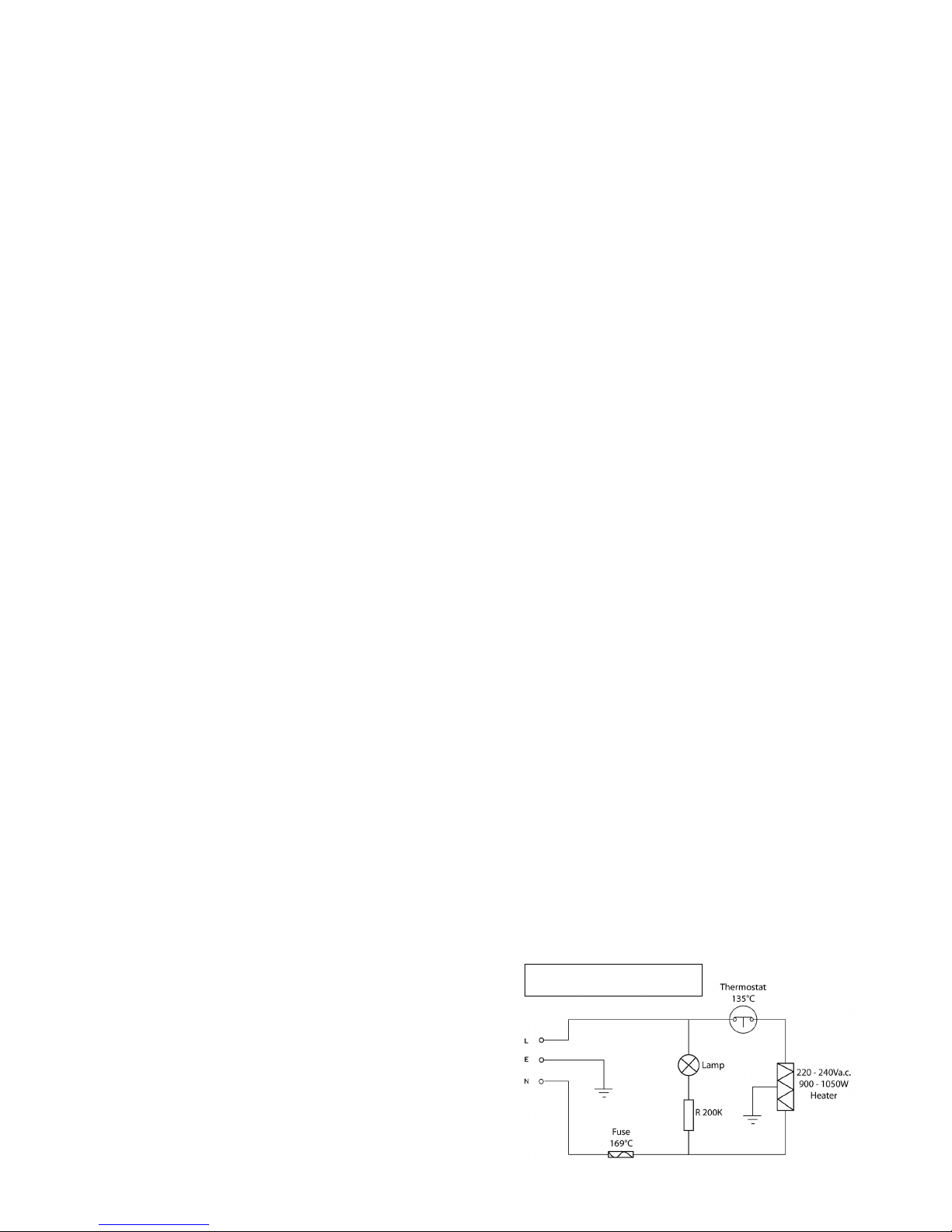

Wiring Diagram

Page 8 of 14
7 Components
8 Operation Procedures
•Before first use, please read the Instruction Manual carefully.
•Place the steam cleaner on a level flat surface.
•Push down on the safety screw cap and at the same time unscrew the safety screw cap
Anti-clockwise then remove it. Note: Constant downward pressure is required when
unscrewing the cap.
Item
Description
1
Body
2
Short spray nozzle
3
Safety Screw Cap
4
Steam button
5
Handle
6
Power cord and plug
7
Power Indicator
8
Funnel
9
Measuring nozzle
10
Round brush Attachment
11
Bent spray nozzle
12
Long spray nozzle
13
Flexible Extension spray nozzle
14
Accessory Spray Attachment
15
Squeegee plate
16
Towel sleeve

Page 9 of 14
•Place the funnel spout into the water tank opening.
•Fill the measuring cup up to the marks on the side (175ml) with clean water and pour the
water into the tank.
Note: Do not overfill the tank as some air space must be left in the tank for correct
operation.
•Remove the funnel and re-fit the safety screw cap.
Note: Screw the cap in clockwise as far as possible then push down hard on the cap top
and turn to fully tighten the cap in position.
Constant downward pressure is required when screwing the Cap Closed
•Check the power supply and socket, and confirm they comply with the requirements given
in the Instruction Manual.
•Turn on the power supply.
•Allow at least 3 minutes after the power supply is turned on for the appliance to heat up.
The orange indicator light will go out when operating temperature has been reached.
•Lightly press the steam button and check whether steam jets out of the nozzle. (DO NOT
aim the spray nozzle at other persons or objects).
•If the steam jets out, the setup is complete.
•Release the button and install the required accessories according to your needs. NOTE:
Refer to the Function section for selection of accessory and correct method of attaching
the accessories..
NOTE: It is highly recommended to disconnect the plug from wall socket, let cool and
release all internal pressure before changing the attachments as the nozzle will be
extremely hot.
Press the steam button to release the pressure. Never open the cap to release pressure as
Injury may result.
•When the desired accessory has been fitted and the unit has reached operating
temperature, press the steam button in order to carry out the operations required by you.
Note: The Indicator Light will turn On and Off during use. This indicates that the temperature is
being maintained.

Page 10 of 14
9 Functions
9.1 Disinfection and Sterilisation
Install the Long Spray Nozzle onto the Short Spray Nozzle, aim the spray nozzle at the
position that needs disinfection and press the steam button. High-temperature steam will
kill most bacteria.
9.2 Steaming Clothes
Note: Read the garment care label before proceeding to ensure steaming is
permissible. Allow clearance around the hung clothing to avoid steam coming in
contact with surrounding objects.
•Install the Accessory Spray Attachment onto the Short Spray Nozzle and then fit the
Towel Sleeve over the end.
•Aim the Accessory Spray Attachment at the hung clothes and press the steam button.
•Move the Accessory Spray Attachment in a circular motion across the fabric to smooth
out any wrinkles.
9.3 Cleaning Windows
Note: Do not spray hot steam onto cold windows as the glass may crack.
•Install the Accessory Spray Attachment onto the Short Spray Nozzle, and then install
the Squeegee Plate.
•Press the Squeegee Plate onto the window and press the steam button.
•Pull the Squeegee Plate down the glass to wipe off the dirty water as the steam loosens
the dirt.
•Finish cleaning up with a clean cloth.
9.4 Upholstery Cleaning
NOTE: Read the care labels for the upholstered surface before proceeding to ensure
steaming is permissible. We suggest to perform a test clean in the surface in an
inconspicuous area.
•Install the Accessory Spray Attachment onto the Short Spray Nozzle and then fit the
Towel Sleeve over the end.
•Aim the Accessory Spray Attachment at the surface and press the steam button.
•Move the Accessory Spray Attachment in a circular motion across the fabric to remove
stains.
•The Round Brush or Bent Nozzle may be used for spot stain removing.

Page 11 of 14
10 Installation of Accessories
10.1 Round Brush or Bent Spray Nozzle

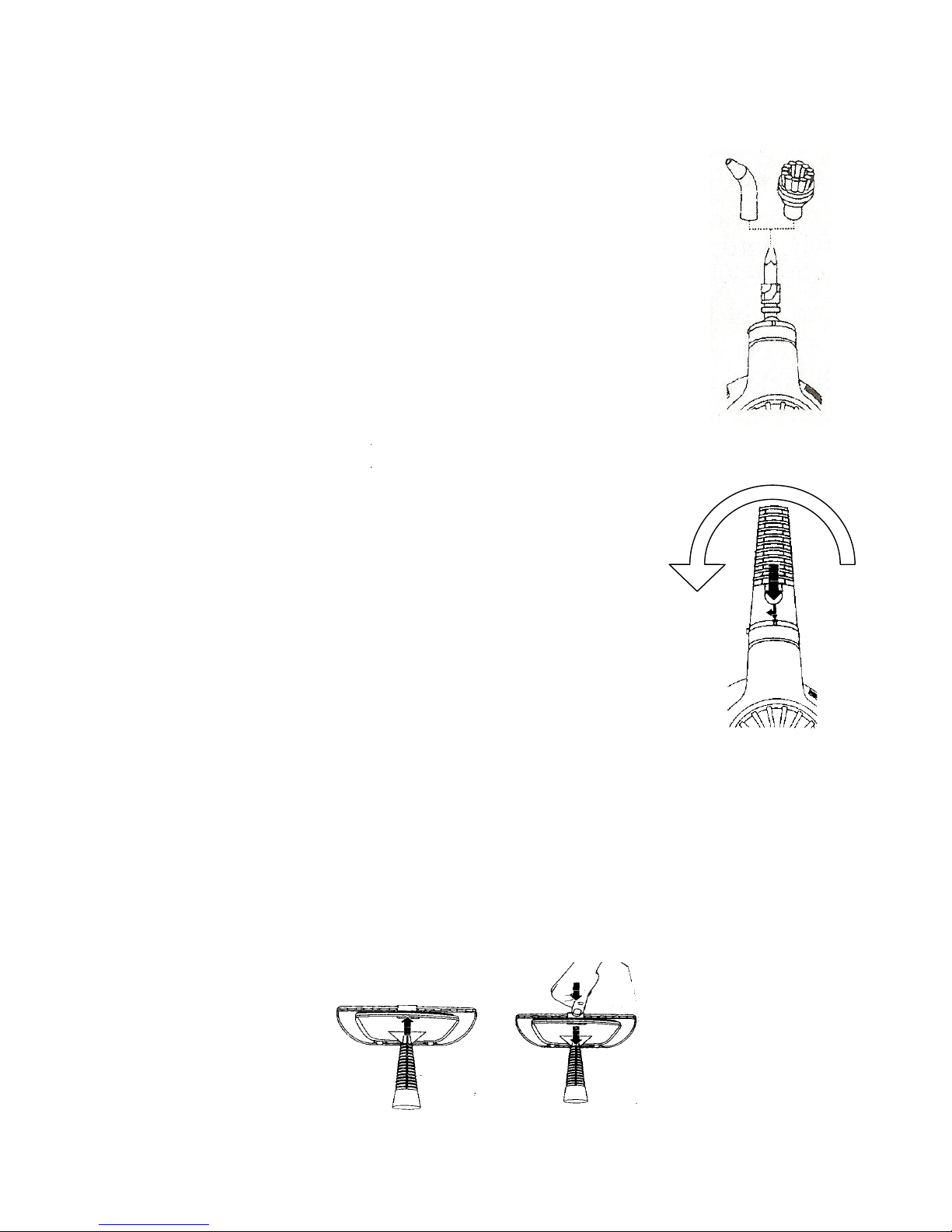

•For direct installation onto the Short Spray Nozzle, position the Bent
Spray Nozzle or the Round Brush over the tip of the Short Spray
Nozzle, as shown, and push either the Bent Spray Nozzle or the
Round Brush all the way onto the Short Spray Nozzle until it is in
position.
•The Short Spray Nozzle has six sides which means the Bent Spray
Nozzle or the Round Brush can be positioned at six different angles
depending on the application.
•Installing the Bent Spray Nozzle or the Round Brush to either the
Long Spray Nozzle or the Flexible Extension Spray Nozzle, is the
same procedure.
10.2 Long Spray Nozzle & Flexible Extension Spray Nozzle
•Hold the outer section of the Long Spray Nozzle and push it onto the
Short Spray Nozzle aligning the arrow on the Long Spray Nozzle
collar with the single-line marked on the front top of the appliance
body.
•Push the Long Spray Nozzle all the way on then rotate the Long
Spray Nozzle in the arrow direction shown on the Long Spray
Nozzle collar until the arrow aligns with the double-line marked on the
front side of the appliance body.
•Installation of the Flexible Extension Spray Nozzle is carried out
with the same procedure.
•To remove the Long Spray Nozzle or the Flexible Extension Spray Nozzle, reverse the
procedure above.
10.3 Accessory Spray Attachment for Cleaning Windows.
•First install the Accessory Spray Attachment onto the Short Spray Nozzle.
•Take the Squeegee Plate and locate the two small hooks into the two suspension lugs on
the back of the Accessory Spray Attachment and then swing the Squeegee Plate up
and lock the hook over the Accessory Spray Attachment body.
•To remove the Squeegee Plate, pull the hook back to release the plate then unhook from
the lugs.

Page 12 of 14
10.4 Towel Sleeve
•First install the Accessory Spray Attachment onto the Short Spray Nozzle.
•Take the Towel Sleeve and stretch it over the bottom face of the Accessory Spray
Attachment until it fits neatly.
•To remove the Towel Sleeve, gently pull the side down and the pull off.
11 Refill Water During Operation
•Unplug the power cord and disconnect from the power supply.
•Press the steam button to release the pressure until there is no more steam.
•Slowly unscrew the safety screw cap but do not remove it as there may be a short burst of
residual steam escaping first.
•Allow the appliance to cool it down for about 10 minutes. Finally, completely remove the
safety screw cap. Caution must be taken as the unit will still be very hot.
•Use the funnel and measuring cup to refill as described in the Operation Procedure
section of this manual.
•Re-fit the safety screw cap as described in the Operation Procedure section of this
manual.
12 Completion and Storage
•After you have finished using the appliance, unplug the power cord and disconnect from
the power supply.
•Press the steam button to release the pressure until there is no more steam.
•Slowly unscrew the safety screw cap but do not remove it as there may be a short burst of
residual steam escaping first.
•Allow the appliance to cool it down for about 10 minutes. Finally, completely remove the
safety screw cap.
•Empty the residual water in the tank and clean the external surface with a piece of dry
cloth.
Note: Burns can occur from touching hot parts, hot water or steam. Be cautious
when you turn this appliance upside down to empty the water as the water in the
tank may still be hot.
•Re-fit the safety screw cap as described in the Operation Procedure section of this
manual.
•Store the appliance safely and in a dry place.
Do Not wind the power cord around the appliance body as this will damage the cord over
time. Simply loop the cable and place next to the appliance

Page 13 of 14
13 Cleaning Your Steam Cleaner
•Turn off and unplug appliance prior to cleaning and let cool.
•Do Not immerse the appliance in water, or any other liquid.
•Rinse out the water chamber with clean fresh cold water.
•Do not allow detergents etc to enter the boiler as this will damage the appliance.
•Wipe the outer surface of the appliance with a soft damp cloth and dry with a dry towel.
•Do not use abrasive creams, solvents, steel wool or scouring pads as they will damage the
finish.
•All removable components should be detached and cleaned thoroughly in warm, soapy
water at regular intervals.
•Do Not place appliance or components in the dishwasher.
CAUTION: DO NOT IMMERSE MAIN BODY IN WATER OR LIQUID.
14 Troubleshooting
No Steam.
Power Not Switched On.
No water in the tank.
Thermal Fuse Blown
Switch On at power point.
Add water to the water tank.
Call service department
Water is ejected
instead of steam.
Too much water in the water tank.
Unit tipped over more than 45°
Empty some water out.
Maximum of 250ml to be
used.
Hold Unit upright more
A small amount of
water is ejected instead
of steam
This is normal when the Steam
Valve initially opens
or as the
pressure drops.
This is normal
Light turns On and Off
during use.
Indicates the temperature is being
maintained.
This is normal
Light will not come on.
No Power being supplied to the
Steam cleaner.
Thermal Fuse has Blown
Check your power point to
see if power is available.
Call service department

Page 14 of 14
15 Guarantee
WHAT’S COVERED?
1.1 H.E. Group Pty Ltd (“us” “we” or “our”) warrants this good for a full replacement or refund for a period of twelve
months from the date of purchase.
1.2 This warranty covers materials and workmanship defects only.
WHAT IS NOT COVERED?
2.1 This good is for household use only and if used in any way other than as detailed in the instruction manual will
void this warranty.
2.2 This warranty does not apply to defects arising from abuse, alteration, unauthorised or unreasonable use of the
good, nor does it cover general deterioration due to usage.
2.3 This warranty does not apply to accessories due to general deterioration or acts beyond human control.
WHAT WE WILL DO
3.1 We will replace the good or provide a refund to the value of the purchase price, if a defect is discovered in the
good during the warranty period of twelve months subject to verification of defect or malfunction and the date
and proof of purchase and purchase price.
WARRANTY COSTS
4.1 Once we have received the goods and you have complied with the warranty, our costs associated with the
warranty claim will be borne by us.
4.2 No responsibility will be taken for goods lost, mislaid or damaged whilst in transit.
GENERAL
The benefits of this warranty are additional to any other rights and remedies you may have under law.
5.1 Our goods come with guarantees that cannot be excluded under Australian Consumer Law. You are entitled to
a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
5.2 Notwithstanding 0, except as provided for in this warranty, all express and implied warranties and conditions
under statute or general law as to the merchantability, description, quality, suitability or fitness of the goods for
any purpose, or as to design, assembly, installation, materials or workmanship or otherwise are (where
permitted under law) expressly excluded.
5.3 To the extent permitted by law, our total liability for loss or damage of every kind related to the good in any way
whatsoever is limited to the amount paid to the retailer by you for the good or the value of the good.
5.4 These terms and conditions supersede and exclude all prior and other discussions, representations (contractual
or otherwise) and arrangements relating to the supply of the goods or any part of the goods. This includes
representations not made by us relating to the performance of the goods or any part of the goods or the results
that ought to be expected from using the good.
CUSTOMER CARE
6.1 To claim under this warranty, you must first contact our friendly customer service team on free call 1800
079 124 or via email [e-mail] and explain the basis of your claim. Our customer service
team will then provide you with directions on how to make your claim under this warranty.
This warranty is valid with the presentation of the original proof of purchase receipt or tax invoice originating
from the store of purchase for the product showing the retailer’s name, date of purchase and amount paid, by
you, for the good.
