Piusi SELF SERVICE 100 FM Quick start guide

SELF
SERVICE
k44 • FM • MC
Bulletin M0194 b EN_00
Installation, use and maintenance EN

3/124
3 /92
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
SELF SERVICE K44 • MC • FM
translated from italian
Bulletin M0194 b
ENGLISH

M0194 B
4 /92
Installation, use and maintenance
1 INDEX
2 DECLARATION OF CONFORMITY 5
3 GENERAL WARNINGS 6
4 SAFETY INSTRUCTIONS 7
5 FIRST AID RULES 9
6 GENERAL SAFETY RULES 9
7 TRANSPORT, HANDLING AND UNPACKING 10
7.1 DIMENSIONS AND WEIGHTS 10
7.2 PACKAGE CONTENTS/PRE-INSPECTION 11
8 MACHINE AND MANUFACTURER IDENTIFICATION 12
8.1 PLATES POSITIONS 12
9 DESCRIPTION OF MAIN COMPONENTS 13
9.1 BODY 13
9.2 PUMPING UNIT 15
9.3 FUEL METER 15
9.3.1 MECHANICAL METER 15
9.3.2 ELETRONIC METER 15
9.4 NOZZLE 15
9.5 SYSTEM MANAGEMENT (FOR VERSIONS FM E MC) 16
9.6 LEVEL INDICATOR (FOR VERSIONS FM E MC) 16
9.7 DISPLAY COVER (FOR VERSIONS FM E MC) 16
10 TECHNICAL FEATURES 17
10.1 POWER CONSUPTION 17
10.2 TECHNICAL DATA 17
11 INTENDED USE 18
12 INSTALLATION 18
12.1 POSITIONING 18
12.2 FIXING 19
12.3 HYDRAULIC CONNECTIONS 20
12.4 ELECTRIC CONNECTIONS 21
12.5 CONNECTION OF SINGLE-PHASE SELF SERVICE 27
12.6 PROBE OF LEVEL INDICATOR “OCIO” 27
13 STARTING 28
13.1 INITIAL PRIMING 28
13.2 CUT-OUT SYSTEM OF THE ELECTRONIC CONTROL SYSTEM FOR FIRST
PRIMING ON SELF SERVICE FM AND MC VERSION 29
13.3 INITIAL PRIMING 30
14 STATION CONFIGURATION 32
15 FUEL METER CALIBRATION 32
15.1 SELF SERVICE K44 32
15.2 SELF SERVICE FM E MC 33
16 DAILY USE 33
16.1 SELF SERVICE K44 33
16.2 SELF SERVICE FM E MC 34
16.2.1 FUEL DISPENSING 34
17 MAINTENANCE 35
17.1 ROUTINE MAINTENANCE 35
17.2 STATION MAINTENANCE 35
17.3 PUMP AND PIPES MAINTENANCE 35
17.4 DELIVERY AND NOZZLE MAINTENANCE 35
17.5 MANAGEMENT SYSTEM MAINTENANCE 36
17.6 FILTERS MAINTENANCE 38
17.6.1 SUCTION FILTER 40
17.6.2 PUMP FILTER (available on models with PANTHER 72 only) 40
17.6.3 DELIVERY FILTER (only for high Self Service versions) 41
17.6.4 FITTING INSTRUCTIONS FOR EXTERNAL FILTER
( Tank versions only) 42
17.7 SPECIAL MAINTENANCE 43
18 TROUBLESHOOTING 43
19 DEMOLITION AND DISPOSAL 44
20 EXPLODED VIEWS 45

5/124
5 /92
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
SELF SERVICE K44 • MC • FM
translated from italian
2 DECLARATION OF CONFORMITY
The undersigned: PIUSI S.p.A
Via Pacinotti c.m. z.i.Rangavino
46029 Suzzara - Mantova - Italy
HEREBY STATES under its own responsibility, that the equipment described below:
Description : Diesel fuel dispenser
Model : SELF SERVICE 100 FM SELF SERVICE TANK 100 FM
SELF SERVICE 100 K44 SELF SERVICE TANK 100 K44
SELF SERVICE 100 MC SELF SERVICE TANK 100 MC
SELF SERVICE 70 FM SELF SERVICE TANK 70 FM
SELF SERVICE 70 K44 SELF SERVICE TANK 70 K44
SELF SERVICE 70 MC SELF SERVICE TANK 70 MC
Serial number: refer to Lot Number shown on CE plate affixed to product
Year of manufacture: refer to the year of production shown on the CE plate affixed to the product
is in conformity with the legal provisions indicated in the directives :
- Machine Directive 2006/42/EC
- Low-Voltage Directive 2014/35/EU
- Electromagnetic Compatibility Directive 2014/30/EU
- ROHS II Directive 2011/65/EU
The documentation is at the disposal of the competent authority following motivated request at Piusi S.p.A.
or following request sent to the email address: [e-mail]
The person authorised to compile the technical file and draw up the declaration is Otto Varini as legal
representative.
Suzzara, 01/11/2015
Otto Varini
legal representative.
.

M0194 B
6 /92
Installation, use and maintenance
3 GENERAL WARNINGS
Important
precautions To ensure operator safety and to protect the pump from potential dam- age, workers must be fully acquainted with this instruction manual before
performing any operation.
Symbols used
in the manual The following symbols will be used throughout the manual to highlight safety information and precautions of particular importance:
ATTENTION
This symbol indicates safe working practices for operators and/or poten-
tially exposed persons.
WARNING
This symbol indicates that there is risk of damage to the equipment and/or
its components.
NOTE
This symbol indicates useful information.
Manual preser-
vation This manual should be complete and legible throughout. It should
remain available to end users and specialist installation and maintenance
technicians for consultation at any time.
Reproduction
rights All reproduction rights are reserved by Piusi S.p.A.
The text cannot be reprinted without the written permission of Piusi S.p.A.
© Piusi S.p.A.
THIS MANUAL IS THE PROPERTY OF Piusi S.p.A.
ANY REPRODUCTION, EVEN PARTIAL, IS FORBIDDEN.
This manual belongs to Piusi S.p.A., which is the sole proprietor of all
rights indicated by applicable laws, including, by way of example, laws on
copyrights. All the rights deriving from such laws are reserved to Piusi S.p.A.:
the reproduction, including partial, of this manual, its publication, change,
transcription and notification to the public, transmission, including using
remote communication media, placing at disposal of the public, distri¬bution,
marketing in any form, translation and/or processing, loan and any other
activity reserved by the law to Piusi S.p.A..

7/124
7 /92
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
SELF SERVICE K44 • MC • FM
translated from italian
4 SAFETY INSTRUCTIONS
Mains - pre-
liminary checks
before instal-
lation
ATTENTION
You must avoid any contact between the electrical power supply and the
fluid that needs to be FILTERED.
Maintenance
control Before any checks or maintenance work are carried out, disconnect the
power source.
FIRE AND
EXPLOSION
When flamma-
ble fluids are
present in the
work area, such
as gasoline
and windshield
wiper fluid,
be aware that
flammable
fumes can ig-
nite or explode.
To help prevent fire and explosion:
Use equipment only in will ventilated area.
Keep work area free of debris, including rags and spilled or open containers
of solvent and gasoline.
Do not plug or unplug power cords or turn lights on or off when flammable
fumes are present.
Ground all equipment in the work area.
Stop operation immediately if static sparking occurs or if you feel a shock.
Do not use equipment until you identify and correct the problem.
Keep a working fire extinguisher in the work area.
ELECTRIC
SHOCK
Electrocution
or death
FThis equipment must be grounded. Improper grounding, setup or usage of
the system can cause electric shock.
Turn off and disconnect power cord before servicing equipment.
Connect only to a grounded electrical outlets.
Use only 3 wire extension cords in accordance with local electrical codes.
Extension cords should have a ground lead.
Ensure ground prongs are intact on power and extension cords.
Do not expose to rain. Store indoors.
Never touch the electric plug of socket with wet hands.
Do not turn the dispensing system on if the power connection cord or other
important parts of the apparatus are damaged, such as the inlet outlet
plumbing, dispensing nozzle or safety devices. Replace damaged compo-
nents before operation.
Before each use check that the power connection cord and power plug are
not damaged. If damaged, have power connection cord replaced before use
by a qualified electrician.
The electrical connection between the plug and socket must be kept well away
from water.
Unsuitable extension leads can be hazardous, in accordance with current
regulations. only extension cords that are labelled for outdoor use and have
a sufficient conduction path should be used outdoors.
For safety reasons, we recommend that, in principle, the equipment be used
only with a earth-leakage circuit breaker (max 30 mA).
Electrical connections must use ground fault circuit interrupter (GFCI).
Installation operations are carried out with the box open and accessible
electrical contacts. All these operations have to be done with the unit
isolated from the power supply to prevent electrical shock!

M0194 B
8 /92
Installation, use and maintenance
EQUIPMENT
MISUSE
Misuse can
cause death or
serious injury
!Do not operate the unit when fatigued or under the influence of drugs or
alcohol.
Do not leave the work area while equipment is energized or under pressure.
Turn off all equipment when equipment is not in use.
Do not alter or modify equipment. Alterations or modifications may void
agency approvals and create safety hazards.
Route hoses and cables away from traffic areas, sharp edges, moving parts,
and hot surfaces.
Do not kink or over bend hoses or use hoses to pull equipment.
Keep children and animals away from work area.
Comply with all applicable safety regulations.
Do not exceed the maximum operating pressure or the temperature of the
part with lower nominal value of the system. See Technical Data in all equip-
ment manuals.
Use fluids and solvents that are compatible with the wetted part of the sys-
tem. See Technical Data in all equipment manuals. Read the manufacturer’s
instructions of the fluids and solvents. For more information on the mate-
rial, request the safety data sheet (MSDS) from the distributor or dealer.
Check the equipment every day. Immediately repair or replace worn or dam-
aged parts only with original spare parts of the manufacturer.
Make sure the equipment is classified and approved compliant with the stan-
dards of the environment where it is used.
Use the equipment only for the intended use. Contact your distributor for
more information.
Keep hoses and cables far from traffic areas, sharp edges, moving parts and
hot surfaces.
Do not bend or overbend the hoses or use the hose to pull the equipment.
BURN HAZARD
Equipment sur-
faces and fluid
that is heated
can become
very hot during
operation
To avoid severe burns do not touch hot fluid or equipment.
TOXIC FLUID
OR FUMES
HAZARD
Read MSDS’s to know the specific hazards of the fluids you are using.
Store hazardous fluid in approved containers, and dispose of it according to
applicable guidelines.
Prolonged contact with the treated product may cause skin irritation: always
wear protective gloves during dispensing.

9/124
9 /92
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
SELF SERVICE K44 • MC • FM
translated from italian
5 FIRST AID RULES
Contact with
the product In the event of problems developing following EYE/SKIN CONTACT, INHA- LATION or INGESTION of the treated product, please refer to the SAFETY
DATA SHEET of the fluid handled.
Electrocution disconnect the unit from the mains, or use a dry insulator as protection
while moving the electrocuted person far from any conductor. Do not
touch the electrocuted person with bare hands until he/she is far from any
conductor. Ask qualified and trained people for help immediately
NOTE Please refer to the safety data sheet for the product
SMOKING
PROHIBITED When operating the dispensing system and in particular during refuelling, do not smoke and do not use open flame.
6 GENERAL SAFETY RULES
Essential
protective
equipment
characteristics
Wear protective equipment that is:
suited to the operations that need to be performed;
resistant to cleaning products.
Personal
protective
equipment that
must be work
Wear the following personal protective equipment during handling and
installation:
safety shoes;
close-fitting clothing;
protective gloves;
safety goggles;
Other
equipment instruction manual
Protective
gloves Prolonged contact with the treated product may cause skin irritation; always
wear protective gloves during dispensing.
WARNING Never touch the electric plug or socket with wet hands.
Do not switch the dispensing system on if the network connection cable
or important parts of the apparatus are damaged, such as the inlet/outlet
pipe, nozzle or safety devices. Replace the damaged pipe immediately.
Beforeeachuse,checkthatthenetworkconnectioncableandpowerplugarenotdamaged.
Havethenetworkconnectioncablereplacedimmediatelybyaqualifiedelectrician.
ATTENTION The electrical connection between the plug and socket must be kept well away from water.
Unsuitable extension leads can be dangerous. In accordance with current
regulations, only extension cords that are labelled for outdoor use and
have a sufficient conduction path should be used outdoors.
For safety reasons, we recommend that, in principle, the equipment be
used only with a earth-leakage circuit breaker (max 30 mA).

M0194 B
10 /92
Installation, use and maintenance
7 TRANSPORT, HANDLING AND UNPACKING
SELF SERVICE is supplied in non-stackable cardboard packing. Store and
handle the unit paying attention to the indications supplied graphically on
the packing. In case of lifting make sure that capacity of lifting means and
accessories (bands, for example) are suitable. Handling and lifting equip-
ment shall be used by authorized and properly trained personnel only.
During standstill periods the unit , either in packed or unpacked conditions,
shall be kept in a place sheltered from dust and weather (rain, humidity, sun,
etc..). Remove the cardboard packing using scissors or a cutter. Operate
carefully, to avoid damaging the unit.
The following indications are specified on the package:
- an arrow indicating the TOP side;
- a label containing all the information relating to the equipment (model,
weight, etc.).

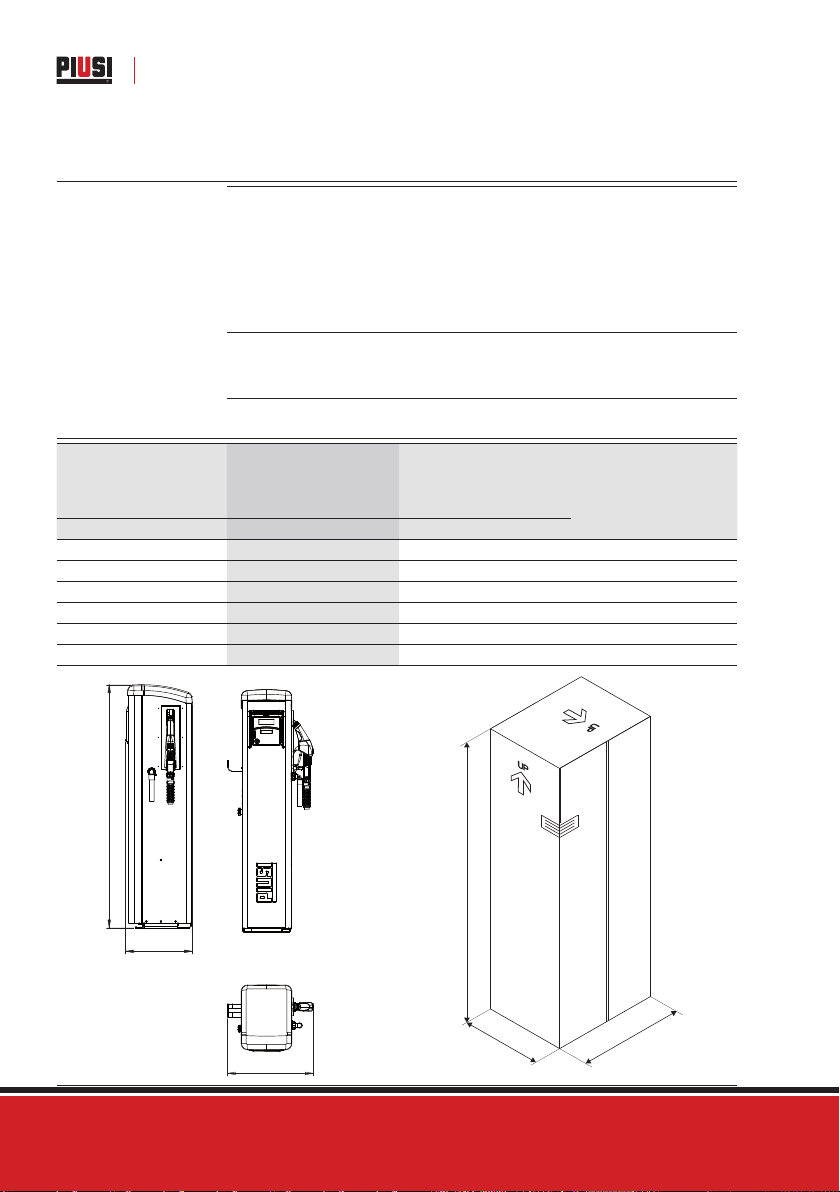

7.1 DIMENSIONS AND WEIGHTS
STATION DIMENSIONS
(mm) PACKAGING DIMEN- SIONS (mm)
WEIGHT
STATION
(Kg)
WEIGHT
PACKAGED
STATION
(Kg)
A B C A B C
SELF SERVICE K44 1391 491 381 1478 400 480 61.3 65.9
SELF SERVICE MC 1391 491 381 1478 400 480 59.1 63.7
SELF SERVICE FM 1391 491 381 1478 400 480 56.6 61.2
SELF SERVICE TANK K44 994 491 381 1080 400 480 51.1 55.7
SELF SERVICE TANK MC 994 491 381 1080 400 480 48.7 53.3
SELF SERVICE TANK FM 994 491 381 1080 400 480 56.6 61.2
A
C
B
A
BC

11/124
11 /92
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
SELF SERVICE K44 • MC • FM
translated from italian
7.2 PACKAGE CONTENTS/PRE-INSPECTION
Premessa Have the packing opened completely, two people must move the SELFSER-
VICE unit to a vertical position to facilitate reaching its final site.
NOTA Once unpacked, the unit should always be kept in a vertical position. Put
all packing elements (cardboard, wood, cellophane,polystyrene etc.) into
the corresponding containers. Do not leave them in the environment or
within children’s reach as they are potentially dangerous. They should be
disposed of according to the regulations in force in the country where the
unit will be used.
Check the conditions of the unit making sure that no part shows such dam-
ages as compromise safety and functionality. In case of doubt, do not install
the machine and contact the manufacturer’s Technical Service. Make sure
that all accessories are available (see enclosure).
After unpacking, assemble the unit as follows:

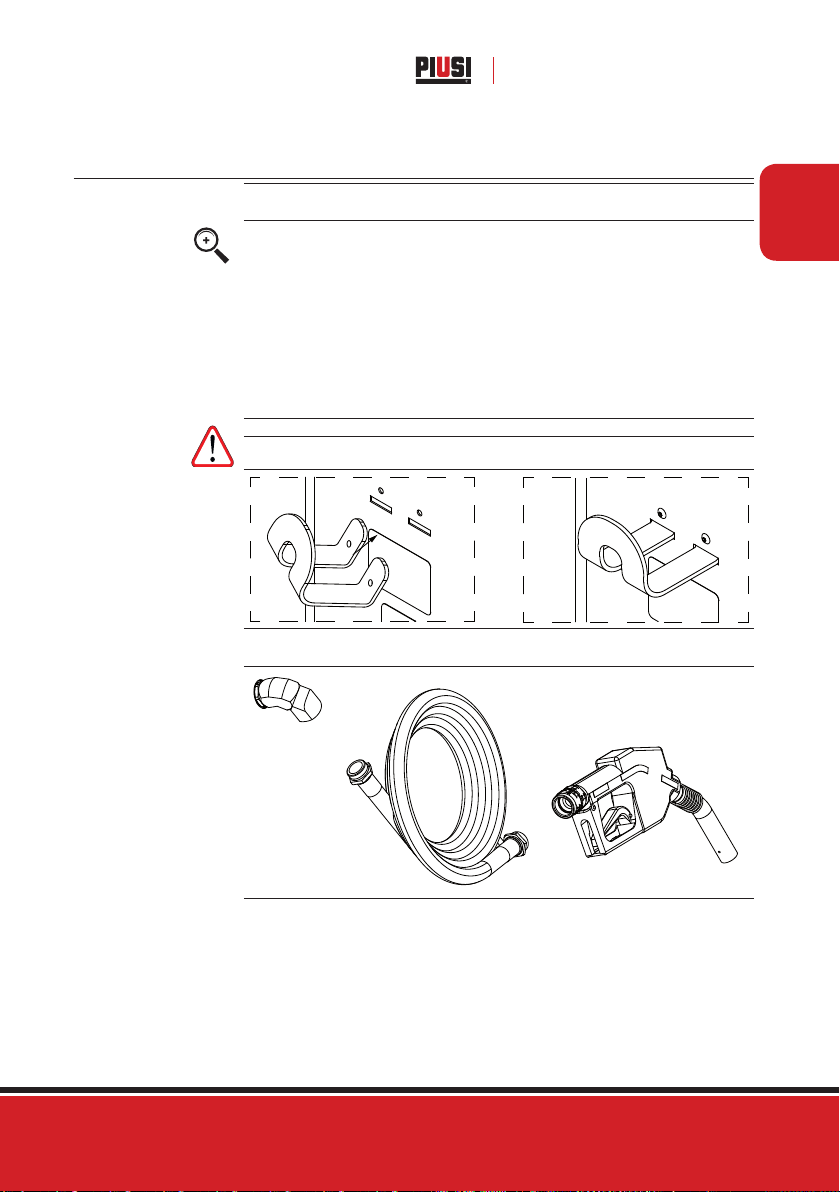

ATTENTION 1 - Fit the hose support into the relative slots (1)
2 - Tighten the screws and fix the hook in the desired position. (2).
1 2
3 - Before mounting nozzle and hose, apply a sealant paste on the threads
as indicated in “Electrical Connection” paragraph.
3

M0194 B
12 /92
Installation, use and maintenance
8 MACHINE AND MANUFACTURER IDENTIFICATION
The SELF SERVICE stations feature an identification plate that is attached
to the shell showing
- Model
- Serial number / Year of manufacture
- Technical data
- EC mark
- Instruction manual code
ATTENTION Before installing the unit, check that the model is right and suitable for
currently available supply voltage and frequency
8.1 PLATES POSITIONS
The dispensing system is equipped with decals and/or plates to provide
operators with the necessary important information. Make sure that these
do not deteriorate or become detached over time.
NOTE Should this situation arise, please contact our support department and
arrange to have the damaged or missing plates sent back and replaced
where necessary.
The decals present are as follows: 2 - label: use with diesel only
3
- Pump activation plate (K44 only)
F0074200B
3 - CE plate with technical data
4 - “attention” plate
applied to the seal of the station door, with indications of reading
of the instructions for use before use.

13/124
13 /92
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
SELF SERVICE K44 • MC • FM
translated from italian
F0074200B
SELF SERVCE
F0074200B
1234567
5 corner label
to be applied on the box
9 DESCRIPTION OF MAIN COMPONENTS

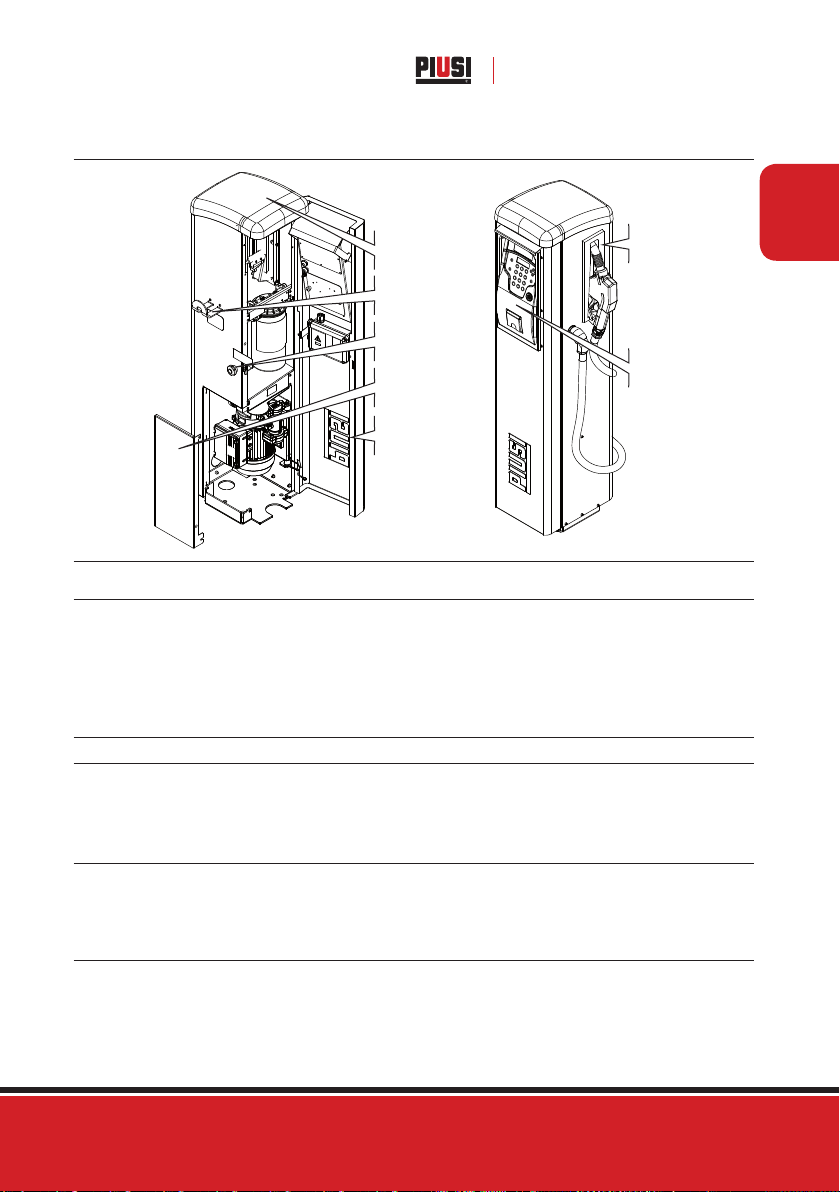

9.1 BODY
The SELF SERVICE body - all versions - consists of a strong treated-steel shell, closed on top by a
plastic cap and a sturdy base for attaching it to the ground.
- The front panel is entirely hinged to provide easy access to the internal components of the station
(pump, filter, meter) and closed by a lock . Moreover, depending on the version, it may house the
control panel The right side panel can be easily detached to allow installation or maintenance opera-
tions.

M0194 B
14 /92
Installation, use and maintenance
HOSE
HOOK
ROOF
LOCK AND
KEY
DETACHABLE
PANEL
FRONT
PANEL
CONTROL
PANEL
NOZZLE
SEAT
HOSE
HOOK
ROOF
LOCK AND
KEY
DETACHABLE
PANEL
FRONT
PANEL
CONTROL
PANEL
NOZZLE
SEAT

15/124
15 /92
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
SELF SERVICE K44 • MC • FM
translated from italian
HOSE
HOOK
ROOF
LOCK AND
KEY
DETACHABLE
PANEL
FRONT
PANEL
CONTROL
PANEL
NOZZLE
SEAT
9.2 PUMPING UNIT
Self-priming motor-driven vane pump, equipped with by-pass valve which allows the pump to con-
tinue operating for short periods of time when the delivery nozzle is closed.
Single-phase self-ventilated induction motor, enclosed type (1P 55, as per EN 60034-5-86 laws),
directly flanged on the pump. An ANGULAR MESH FILTER is connected to the pump intake for easy
cleaning. See Specific manual
9.3 FUEL METER
9.3.1 MECHANICAL METER
Nutating disk fuel meter with mechanical readout device, with wheels, indicating subtotals (which can
be set to zero) and total (which can not be set to zero). Strong and reliable, the fuel meter can be set
on site to achieve maximum precision levels. See Specific manual
9.3.2 ELETRONIC METER
The meter features a measurement system with high-precision oval gears designed for accurate fuel
metering. It includes a strong drawn aluminium structure, a suction filter, and offers both easy mainte-
nance and high reliability. See Specific manual
9.4 NOZZLE
SELF SERVICE is supplied with automatic nozzle, with delivery shutoff device operating when the
tank is full.

M0194 B
16 /92
Installation, use and maintenance
9.5 SYSTEM MANAGEMENT (FOR VERSIONS FM E MC)
The electronic control system ensures the dispenser can only be used by authorised personnel. All
the data relating to each dispensing operation are stored to be printed or transferred to a PC.
9.6 LEVEL INDICATOR (FOR VERSIONS FM E MC)
The efficient electronic indicator “OCIO” is integrated in the management system to check and
measure fuel level in tanks.
Further information can be found in the corresponding manual, specified in paragraph E1 (Table), sup-
plied with the FM SELF SERVICE units.

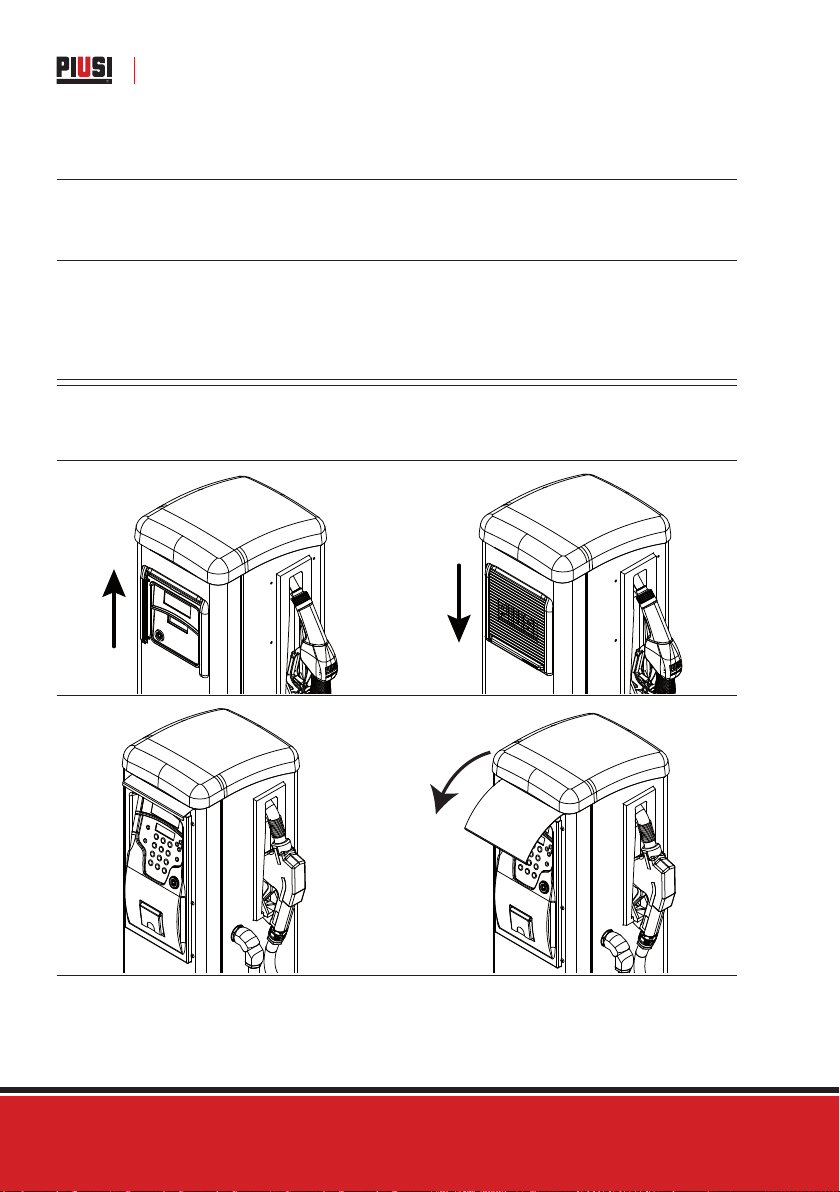

9.7 DISPLAY COVER (FOR VERSIONS FM E MC)
In order to guarantee a suitable protection and a proper display visibility to Self Service units, even in
extremely lit conditions, a special extractable protection has been fitted under the top which can be
lowered in case of need. We recommend to keep it always down when the sunlight is very strong and
when the Self Service door has to be opened

17/124
17 /92
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
SELF SERVICE K44 • MC • FM
translated from italian
10 TECHNICAL FEATURES
10.1 POWER CONSUPTION
NOTE SELF SERVICE stations shall be supplied with electric power having the
same RATED VOLTAGE / FREQUENCY as shown on the DATA PLATE.
The following max. variations can be accepted:
- VOLTAGE +/- 5%
- FREQUENCY +/- 2%
ATTENTION Power supply from lines with values that do not fall within the indicated
limits could cause damage to the electrical components.
10.2 TECHNICAL DATA
MODEL POWER CURRENT MAX FLOW
RATE
Current Voltage Frequency Power Maximum
SELF SERVICE 70 MC AC 230 V 50 HZ 900 W 4,2 A 68 l/min
SELF SERVICE 70 MC AC 230 V 50 HZ 550 W 3,3 A 68 l/min
SELF SERVICE 70 K44 AC 230 V 60 HZ 500 W 3,9 A 70 l/min
SELF SERVICE 70 K44 AC 230 V 50 HZ 550 W 3,3 A 68 l/min
SELF SERVICE 70 FM AC 230 V 50 Hz 900 W 4,2 A 68 l/min
SELF SERVICE 70 FM AC 230 V 50 Hz 550 W 3,3 A 68 l/min
SELF SERVICE 100 MC AC 230 V 50 Hz 1150 W 5,7 A 85 l/min
SELF SERVICE 100 K44 PUL AC 230 V 50 Hz 1150 W 5,7 A 85 l/min
SELF SERVICE 100 K44 GAL AC 230 V 60 HZ 1150 W 5,7 A 80 l/min
SELF SERVICE 100 K44 AC 230 V 50 Hz 1150 W 5,7 A 85 l/min
SELF SERVICE 100 FM AC 230 V 50 Hz 1150 W 5,7 A 85 l/min
SELF SERVICE 100 FM AC 120 V 60 Hz 1000 W 10 A 85 l/min
SELF SERVICE TANK 70 MC AC 230 V 50 HZ 900 W 4,2 A 70 l/min
SELF SERVICE TANK 70 K44 PUL AC 230 V 50 HZ 900 W 4,2 A 70 l/min
SELF SERVICE TANK 70 K44 AC 230 V 50 HZ 550 W 3,3 A 70 l/min
SELF SERVICE TANK 70 FM AC 230 V 50 Hz 900 W 4,2 A 70 l/min
SELF SERV TANK 100 MC AC 230 V 50 Hz 1150 W 5,7 A 90 l/min
SELF SERV TANK 100 K44 AC 230 V 50 Hz 1150 W 5,7 A 90 l/min
SELF SERV TANK 100 FM AC 230 V 50 Hz 1150 W 5,7 A 90 l/min

M0194 B
18 /92
Installation, use and maintenance
11 INTENDED USE
WARNING
Flammable
liquids and explo-
sive atmosphere
The system was not designed for dispensing of diesel, petrol, flammable liquids
with flash point <55°C/131°F, or for operation in environments with potentially
explosive atmosphere. The use in the above mentioned conditions is forbidden.
ATTENTION
Environmental
conditions
The use of the system for purposes different from those specified in section
«Intended use» is strictly forbidden. Do not operate the system for any
purpose other than the purpose described within this manual; all other use
is considered «IMPROPER» and will result in Piusi S.p.A. disclaiming any re-
sponsibility for damage to property, people, animals or to the system itself.
Fluid Permitted DIESEL FUEL at a VISCOSITY from 2 to 5.35 cSt (at a temperature of 37.8°
/ 100°F C). Minimum Flash Point (PM): 55°C / 131°F
ATTENTION
Environmental
conditions
TEMPERATURE: min. –20° C / max +60° C
RELATIVE HUMIDITY: max. 90%
The temperature limits shown apply to the pump components and must be
respected to avoid possible damage or malfunction.
12 INSTALLATION
WARNING
Authorised
installation
personnel
All installations must be carried out by authorised and competent personnel
only. Authorised persons must
- install the system in dry and well-ventilated place;
- ensure the correct installation of equipment required for the correct
functioning of the pump;
- only use accessories that have been supplied with the system.
ATTENTION The use of accessories that are unsuitable and were not provided with the
system is strictly prohibited. Piusi S.p.A. accepts no responsibility for dam-
age to persons, property or the environment caused by failure to comply
with this requirement.
THE DISPENSING SYSTEM IS FOR PROFESSIONAL USE ONLY.
As per the current legislation, the dispensing system must be used n prem-
ises that are sufficiently well-lit.
The dispensing system has been specifically designed for use in a dry place.
If installed outside, an adequate protective covering must be provided.
Motors are not explosion-proof. DO NOT install SELF SERVICE in places
with danger of explosion.
12.1 POSITIONING
SELF SERVICE should be so positioned as to ensure
an easy removal of detachable panels when access to internal components is required;
compliance with max. distances and difference in height between station and tank;
correct and safe fixing of the body to the ground on a horizontal plane.

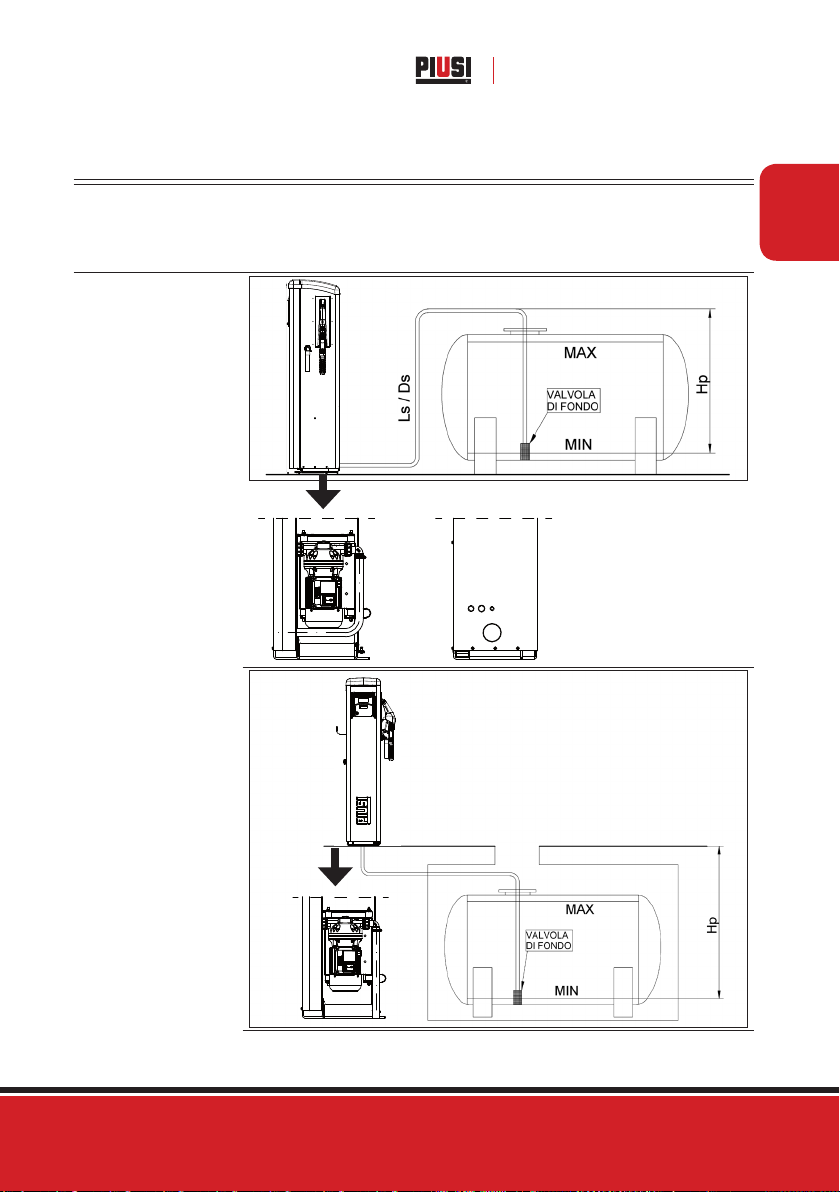

Unit position results in the following parameters, characterizing each installation
Hp: priming height
Ls: total length of suction piping – from foot valve to station (in meters)
Correct operation of the units requires full respect of the following limits:
Hp max: not exceeding 3 meters
LS max: not exceeding 15 meters
ATTENTION Place Self Service in a protected place.
In compliance with regulations in force, the dispensing system must be
used in premises that are sufficiently well-lit.

19/124
19 /92
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
SELF SERVICE K44 • MC • FM
translated from italian
12.2 FIXING
The station should be attached to the ground with screw anchors suitable for M12 screws, to be placed as indi-
cated in the following pictures. The same figure also shows the two possible input positions (hose axis) of the
suction hose, for the two types of connection to UNDERGROUND tank or ABOVE GROUND tank.
Before fixing the unit, make sure that the bearing area for station frame is flat and strong.
To facilitate SUCTION line connection, SELF SERVICE units are equipped both with rear and bottom inlets
ABOVE-GROUND
TANK
UNDERGROUND TANK

M0194 B
20 /92
Installation, use and maintenance
DIAGRAM: FIXING
THE UNIT TO THE
GROUND
155
95
140
48
70.5
59

13

13

60
R35
200
95.6
118
70.6
48 24
37
59.5
78
138
12.3 HYDRAULIC CONNECTIONS
ATTENTION The use of accessories that are unsuitable and were not provided with the
system is strictly prohibited. Piusi S.p.A. accepts no responsibility for dam-
age to persons, property or the environment caused by failure to comply
with this requirement.
Always follow the below-listed instructions:
- Use pipes and joints suitable for operation in vacuum conditions.
- Use pipes and accessories suitable for treated fluid. Unsuitable materials
can result in serious damage to the pump; they can also cause pollution.
- Do not use conical threaded connectors that could cause damage to the
threaded connector on the pump filter if tightened excessively
- Use wide-radius bends so that pressure losses are reduced to minimum
levels.
- Check that suction pipe is perfectly clean and free from scales.
- Install a FOOT VALVE equipped with FILTER at suction pipe end. Place
the foot valve on tank bottom. Foot valve and pipe must have the SAME
DIAMETER.
- Before starting installation, make sure that no packing material has been
left in the pipes.
SUCTION LINE The diameter of the suction line in the Self Service and Self Service Tank
stations should not be lower than 1” 1/2 Gas.
The connector is 1” 1/2 female Gas.
