Planet VC-202 User manual

Ethernet over VDSL2 Converter
VC-201 / VC-202
User’s Manual

Trademarks
Copyright © PLANET Technology Corp. 2007
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology
Corp. The information in this manual is subject to change
without notice. All other trademarks belong to their
respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware
will work properly in all environments and applications,
and makes no warranty and representation, either implied
or expressed, with respect to the quality, performance,
merchantability, or tness for a particular purpose.
PLANET has made every effort to ensure that this User’s
Manual is accurate; PLANET disclaims liability for any
inaccuracies or omissions that may have occurred.
Information in this User’s Manual is subject to change
without notice and does not represent a commitment on the
part of PLANET. PLANET assumes no responsibility for any
inaccuracies that may be contained in this User’s Manual.
PLANET makes no commitment to update or keep current
the information in this User’s Manual, and reserves the
right to make improvements to this User’s Manual and/or
to the products described in this User’s Manual, at any time
without notice.

If you nd information in this manual that is incorrect,
misleading, or incomplete, we would appreciate your
comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with
the regulations for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with
this user’s guide, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his
own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this
product may cause radio interference, in which case the
user may be required to take adequate measures.

WEEE Warning
To avoid the potential effects on the environment
and human health as a result of the presence of
hazardous substances in electrical and electronic
equipment, end users of electrical and electronic
equipment should understand the meaning of the crossed-
out wheeled bin symbol. Do not dispose of WEEE as
unsorted municipal waste and have to collect such WEEE
separately.
Revision
Ethernet Over VDSL2 Converter User’s Manual
For Models: VC-201 / VC-202
Rev 1.0 (September 2007)
Part No.: 2010-AC0070-000

TABLE OF CONTENTS
1. Introduction ...............................................................7
1.1 Checklist.............................................................7
1.2 Introduction to Ethernet over VDSL2 Converter......7
1.3 Key Features.....................................................10
1.4 Specications .................................................... 11
2. Hardware Description ................................................14
2.1 Front Panel .......................................................14
2.1.1 LED indicators .......................................... 15
2.2 The Rear Panel.................................................. 16
2.2.1 MODE DIP Switch .....................................16
3. Installing and Using VDSL Converter .........................19
3.1 Install the Ethernet Over VDSL2 Converter ..........19
3.1.1 VC-201 LAN to LAN connection .................. 19
3.1.2 VC-201 Connect to Multi-Port Master..........20
3.2 Connecting VC-201 ............................................ 21
3.2.1 Connecting Standalone PC......................... 21

3.2.2 Connecting Multiple PCs to an Ethernet LAN..22
3.3 Connecting VC-202 ............................................ 23
3.3.1 Connecting Standalone IP device ............... 23
3.3.2 Connecting Multiple PCs to an Ethernet LAN..24
3.4 Chassis Installation and Rack Mounting ...............25
4. POWER INFORMATION .............................................. 27
5. Troubleshooting ........................................................ 28
6. FAQ ....................................................................... 30

7
1. Introduction
1.1 Checklist
Check the contents of your package for following parts:
● Ethernet over VDSL2 Converter
● Power Adapter
● RJ-11 Telephone line (VC-201 only)
● User’s Manual
If any of these pieces are missing or damaged, please
contact your dealer immediately, if possible, retain the
carton including the original packing material, and use them
against to repack the product in case there is a need to
return it to us for repair.
1.2 Introduction to Ethernet over VDSL2
Converter
PLANET’s state-of-the-art Ethernet-over-VDSL2 products
are based on two core networking technologies: Ethernet
and VDSL2 (Very-high-data-rate Digital Subscriber Line).
This technology offers the absolute fastest possible data
transmission speeds over existing copper telephone lines or
coaxial cables without the need for rewiring.
The VC-201/VC-202 Ethernet over VDSL2 converters has a
switching architecture with one RJ-45 10/100Mbps Ethernet
port and one symmetric Ethernet over VDSL port (symmetry

8
means upstream and downstream rate are the same or
similar) – the VDSL port can be RJ-11 connectors or BNC
connector. The VC-201/VC-202 can be set to CO mode or
CPE mode via a DIP switch. When the VC-20X-CO is used
to connect to the other VC-20X-CPE as a standalone pair, up
to 100/55Mbps asymmetric data rate within 200m and up
to 30/6Mbps asymmetric data rate at 1km. This capability
is ideal for use as an Ethernet extender for your existing
Ethernet network.
PLANET’s VDSL2 Converter solution provides a much
cheaper replacement and smooth migration for existing
Long Reach Ethernet (LRE) networks.
The cable specications of the connection are listed as
following:
● 10BASE-T, Category 3, 4 or 5 UTP
● 100BASE-TX, Category 5 UTP
● Ethernet over VDSL, Twisted-pair telephone wires
● Ethernet over VDSL, Coaxial cable
The two drawings listed below are typical application for the
Ethernet over VDSL converter.
Note
Slave device (CPE) must connect to Master
device (CO) through the telephone wire. Slave
cannot connect to Slave and Master cannot
connect to Master. To define the VC-201 to CO
or CPE, please refer to section 2.2.1 for more
detail.

9

10
1.3 Key Features
The converter provides the following key features:
● Cost-effect VDSL2 CO/CPE bridge solution
● One box design, CO/CPE selectable via DIP Switch
● Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3x
standards
● DMT (Discrete Multi-Tone) line coding
● Half duplex Back pressure and IEEE 802.3x Full Duplex
Pause frame ow control
● Built-in POTS/ISDN splitter
● Voice and data communication can be shared on the ex-
isting telephone wire simultaneously
● Support up to 1536 bytes packet size, 802.1Q VLAN tag
transparent
● VDSL2 stand-alone transceiver for simple bridge modem
application
● Advantage of minimum installation time (Simply as Plug-
and-Play)
● Selectable target data rate and target SNR margin
● Support extensive LED indicators for network diagnostics
● Co-work with PLANET MC family Media Chassis (MC-
700/1000R/1500)
● Compact in size, easy installation

11
1.4 Specications
Product VC-201 VC-202
Hardware Specication
Ports
10/100Base-TX 1 RJ-45, Auto-negotiation and Auto-MDI/MDI-X
VDSL
1 RJ-11, female
Phone Jack
1 BNC, female
connector
PHONE
1 RJ-11, Built-in
splitters for
POTS/ISDN
connection
-
DIP Switch 4 position DIP switch
Functionality
• CO / CPE mode select
• Selectable fast and interleaved mode
• Selectable target Data Rate
• Selectable target SNR mode
Encoding
• VDSL-DM
- ITU-T G.993.1 VDSL
- ITU-T G.997.1
- ITU-T G.993.2 VDSL2 (Prole 12a
Support), Annex A

12
LED Indicators
• One Power,
• 3 for RJ-11/VDSL2 WAN :
- Green, LNK/ACT
- Green, CO mode
- Green, CPE mode
• 2 for per RJ-45 10/100Base-TX port
- Green, LNK/ACT.
- Green, Speed
Cabling
Ethernet
• 10Base-T: 2-pair UTP Cat.3,4,5 up to 100m
(328ft)
• 100Base-TX: 2-pair UTP Cat.5, up to 100m
(328ft)
VDSL
Twisted-pair telephone
or ISDN wires
(AWG24 or better) up
to 6.0k feet
50 ohm, RG58A/U,
RG58C/U, RG58/U or
equivalent
Performance*
(Down Stream / Up
Stream)
200m -> 100/55Mbps
400m -> 90/40Mbps
600m -> 70/10Mbps
800m -> 48/8Mbps
1000m -> 30/6Mbps
200m -> 100/65Mbps
400m -> 100/65Mbps
600m -> 100/58Mbps
800m -> 100/52Mbps
1000m -> 100/42Mbps
1600m-> 70/10Mbps
Power Requirement 5V DC 2A
Operating Temperature 0~50ºC
Storage Temperature -25~70ºC

13
Operating Humidity
10% to 90% , relative humidity, non-
condensing
Storage Humidity
10% to 90% , relative humidity, non-
condensing
Standard Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
ITU-T
- G.993.1 (VDSL)
- G.997.1
- G.993.2 VDSL2 (Prole 12a Support),
Annex A
* The actual data rate will vary on the quality of the copper
wire or coaxial cable and environment factors.

14
2. Hardware Description
VC-201 provides 2 RJ-11 ports for voice connection (like
telephone or ISDN) and for network line connection.
VC-202 provides 1 BNC connector and supports 50 ohm
cable with distance of up to 1.6km
Both VC-201 and VC-202 provide 1 RJ-45 ports for two
different running speed –10Mbps, 100Mbps, in the same
converter and automatically distinguish the speed of
incoming connection.
This section describes the hardware features of these
Converters. For easier control of the converter, familiarize
yourself with its display indicators, and ports. Front panel
illustrations in this chapter display the unit LED indicators.
Before connecting any network device to the converter, read
this chapter carefully.
2.1 Front Panel
The units’ front panel provides a simple interface monitoring
the converter.

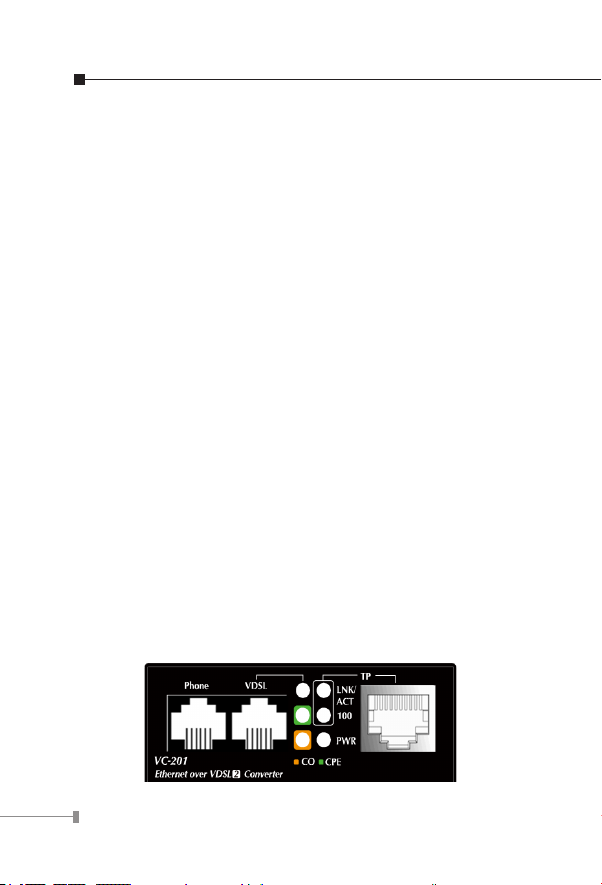

● VC-201 Front Panel

15
● VC-202 Front Panel
2.1.1 LED indicators
The rich diagnostic LEDs on the front panel can provide the
operating status of individual port and whole system.
● System
LED Color Function
PWR Green Lit: Power ON
Off: Power OFF

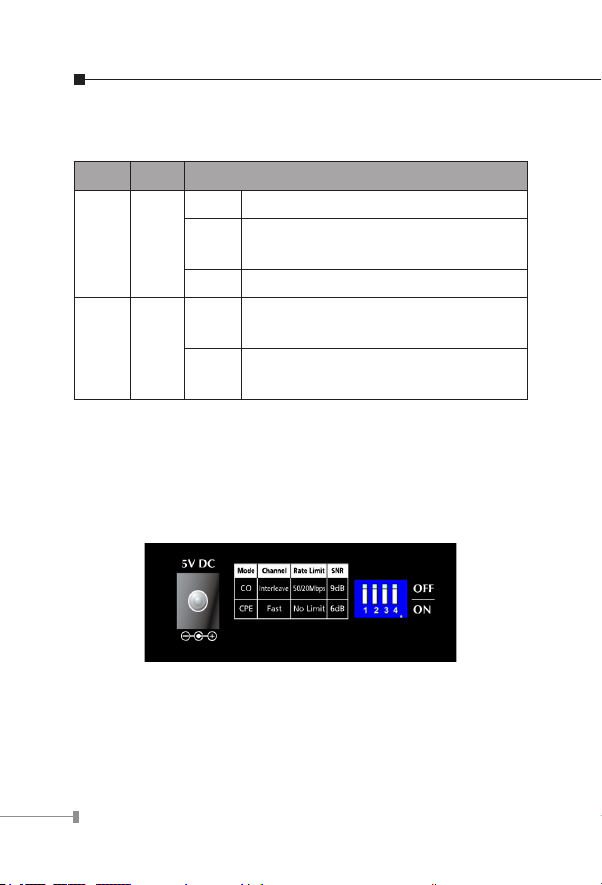

● VDSL
LED Color Function
LNK/
ACT Green
Lit: Indicate that the VDSL link is
established.
Fast
Blink:
Indicate that the VDSL link is at training
status(about 10 seconds)
Slow
Blink:
Indicate that the VDSL link is at idle
status
Off: Indicate that the port is link down
CO Green Lit: Indicate the VDSL Bridge is running at
CO mode
CPE Green Lit: Indicate the VDSL Bridge is running at
CPE mode

16
● 10/100Base-TX Port
LED Color Function
LNK/
ACT Green
Lit: Indicate that the port is link up.
Blink: Indicate that the converter is actively
sending or receiving data over that port
Off: Indicate that the port is link down
100 Green
Lit: Indicate that the port is operating at
100Mbps.
Off: Indicate that the port is link down or
10Mbps.
2.2 The Rear Panel
The rear panel of the converter is shown below.
● VC-201 / VC-202 Rear Panel
2.2.1 MODE DIP Switch
The converter provides 4 selective transmission modes.
By switching the transmission modes, you can obtain a
best transmission mode to suit with phone line quality or

17
distance of connectivity. The following is the summary table
of transmission setting, bandwidth and distance extensibility
tested for AWG 24 (0.5mm) twisted-pair without noise and
cross talk.
DIP-1 DIP-2 DIP-3 DIP-4
Mode Channel Rate Limit SNR
OFF CO Interleave 50/20 Mbps 9dB
ON(default) CPE Fast No Limit 6dB
● CO / CPE
▪ CO (Central Ofce) – the Master device mode, usually
the CO device will be located at the data center of ISP
or enterprise to link to the backbone.
▪ CPE (customer premises equipment) – the Slave device
mode, usually the CPE device will be located at branch
ofce, home or remote side as the long reach data re-
ceiver. The CPE can be connect to the PC, IP Camera or
Wireless Access Point and etc network devices.
● Fast and Interleave mode: (For CO Mode only)
▪ Fast mode guarantees a minimum end to end latency
less than 1 ms.
▪ Interleaved mode provides impulse noises protection for
any impulse noise with a duration less than 250 us. In-
terleaved mode has a maximum end to end latency of
10m sec.

18
● Rate Limit: (For CO Mode only)
User has the ability to select xed data rate. When Rate
Limit is selected, the system will lock the date rate at
50Mbps/20Mbps whenever the calculated SNR margin is
higher than 9 dB. This gives best system stability.
● Target SNR (Signal Noise Ratio) Margin: (For CO Mode only)
When xed SNR margin is selected, the system will
maintain the SNR margin at 9 dB across all usable loop
length.
Please power off the converter before making any
transmission mode adjustment.
VC-201 and VC-202 require 5V DC power input. It will
conform to the bundled AC adapter. Should you have the
problem to make the power connection, please contact your
local sales representative.
Note
1.The device is a power-required device,
it means, it will not work till it is
powered. If your networks should active
all the time, please consider using UPS
(Uninterrupted Power Supply) for your
device. It will prevent you from network
data loss or network downtime.
2.In some area, installing a surge
suppression device may also help to
protect your converter from being
damaged by unregulated surge or
current to the converter or the power
adapter.

19
3. Installing and Using VDSL Converter
3.1 Install the Ethernet Over VDSL2 Converter
The Converter does not require any software conguration.
Users can immediately use any feature of this product
simply by attached the cables and plug power on. There is
some key limitation on the Ethernet over VDSL2 converter.
Please check the following items:
● The device is used for Point-to-Point connection only
(Master device to Slave device) and allows data and voice
work on the same telephone or ISDN lines.
● VC-201 Two RJ-11 connectors for VDSL port. One for
voice device connection (like telephone) and the other
one for network link connection.
Depending on the quality of telephone line, the maximum
distance of one VDSL segment is 1.5km (5000ft) with
AWG 24 telephone wires.
● VC-202 1 BNC connector and supports 50 ohm cable.
Depending on the quality of coaxial cable, the maximum
distance of one VDSL segment is 1.6km with 5C coaxial
cable.
● The distance will change by the quality of telephone wires
and coaxial cables.
3.1.1 VC-201 LAN to LAN connection
Two sets of the converters could be used to link two local
Area networks that are located in different place. Through
the normal telephone line, it could setup a to 100/55Mbps

20
asymmetric backbone, but one converter must be Master
(CO mode) and the other one is Slave (CPE mode).
Figure 3-1: VC-201 LAN to LAN connection
3.1.2 VC-201 Connect to Multi-Port Master
In order, to built up a local Internet in apartment, hotel,
campus and hospitality environment.
The Multi-port Master (for example, VC-810S VDSL2 Switch)
need to be placed In the wiring center (MDF room) and
connect to the telephone line system, on the other hand,
need to install a Slave (VC-201 CPE) converter on the
individual client side and connect to the Multi-port Master
through the telephone lines.
When deciding where to put the converter then you must
ensure:
● It is accessible and cables can be connected easily.
● Cabling is away from sources of electrical noise such as
radios, transmitters and power lines and uorescent light-
ing xtures.
● Water or moisture can not enter the unit Converter.
