Planet IGUP-805AT User manual

Industrial 1-Port 100/1000X SFP to 1-Port 10/100/1000T
802.3bt PoE++ Media Converter
IGUP-805AT
Quick Installation Guide

Table of Contents
1. Package Contents................................................................................. 3
2. Hardware Introduction .......................................................................... 4
2.1 Media Converter Front Panel ........................................................... 4
 2.2 LEDDenition: .............................................................................. 5
2.3 Upper Panel .................................................................................. 6
2.4 Wiring the Power Inputs................................................................. 7
2.5 Wiring the Fault Alarm Contact ....................................................... 8
2.6 Grounding the Device..................................................................... 9
3. Hardware Installation.......................................................................... 10
3.1 DIN-rail Mounting Installation ....................................................... 10
3.2 Wall-mount Plate Mounting ........................................................... 11
3.3 Side Wall-mount Plate Mounting.................................................... 11
4. ProductSpecications ......................................................................... 12
5. Physical Dimensions ........................................................................... 14
6. Fiber and PoE Installation.................................................................... 15
Customer Support.................................................................................... 16

3
1. Package Contents
Thank you for purchasing PLANET Industrial 100/1000X to 10/100/1000T
802.3bt PoE++ Media Converter, IGUP-805AT. In the following sections, the
term “Industrial PoE++ Media Converter” means the IGUP-805AT.
Open the box of the Industrial PoE++ Media Converter and carefully unpack it.
Theboxshouldcontainthefollowingitems:
Industrial PoE++ Media
Converter x 1 QR Code Sheet x 1 Wall-mount Kit x 1
DIN-rail Kit x 1 RJ45 Dust Cap x 1 SFP Dust Cap x 1
If any of these are missing or damaged, please contact your dealer
immediately; if possible, retain the carton including the original packing
material, and use them again to repack the product in case there is a need to
return it to us for repair.

4
2. Hardware Introduction
2.1 Media Converter Front Panel
The front panel of the Industrial PoE++ Media Converter consists of 1 auto-
sensing 10/100/1000Mbps Ethernet RJ45 port and 1 100/1000BASE-X SFP
port.
Figure 2-1 shows the front panel of the Industrial PoE++ Media Converter.
Front View
P1 P2 Alarm
30W 60W 90W+
100/1000X
IGUP-805AT
LNK/
ACT
10/100/1000T
802.3bt PoE++
LNK ACT
PoE-in-Use
SFP Port
100/1000BASE-X SFP port for
transceiver module enables to
have a networking distance of
550 meters to 2km (multi-mode
ber)and10/20/30/40/60/80/120
kilometers(single-modeber).
Gigabit TP Interface
10/100/1000BASE-T copper RJ45
twisted-pair with up to 100 meters
in distance.
Figure 2-1: IGUP-805AT Front
Panel

5
2.2 LEDDenition:
System
LED Color Function
P1 Green Lights to indicate power input 1 has power.
P2 Green Lights to indicate power input 2 has power.
Alarm Red
Lit: Indicates one or more of the following events are
triggeringthealarm(LED).
PWR1 PWR2 Fiber Port
Link Status Alarm LED
YES YES ON OFF
YES NO ON ON
NO YES ON ON
YES YES DOWN Blink rapidly
YES NO DOWN Slow blink for 2 seconds
NO YES DOWN Slow blink for 2 seconds
LED Color Function
PoE
Usage Amber
Monitor PoE Mode:
30W > 60W > 90WLEDwillashonceinsequence
when the PoE mode DIP switch is set to “BT”.
60WLEDwillashthree times when the PoE mode DIP
switch is set to “Legacy”.
Monitor power usage 30W, 60W, 90W+:
Lights to indicate the system consumes over 30-/60-/90-
watt PoE power budget.
Blinks to indicate the system consumes less than 30-/60-/
90-watt PoE power budget.

6
Gigabit TP Interface
10/100/1000T
802.3bt PoE++
LNK ACT
PoE-in-Use
LED Color Function
TP
LNK/ACT Green
Lights to indicate that the copper port is
successfully connecting to the network at
10/100/1000Mbps.
Blinks to indicate the copper port is
receiving or sending data.
PoE-in-Use Amber
Lights to indicate that the port is providing
PoE to remote powered device.
OtoindicatethattheportisnotaPoE
powereddevice(PD).
Gigabit Fiber Interface
100/1000X
LNK/
ACT
LED Color Function
Fiber
LNK/ACT Green
Lightstoindicatethattheberopticport
is successfully connecting to the network at
100/1000Mbps.
Blinkstoindicatetheberopticportis
receiving or sending data.
2.3 Upper Panel
The upper panel of the Industrial PoE++ Media Converter consists of one
terminal block connector within two power inputs, and also provides 2 DIP
switches.
Figure 2-2 shows the upper panel of the IGUP-805AT.
Max. Fault Alarm Loading: 24V, 1A
V1+ V2+
PWR1 PWR2Alarm
DC Input:
12-54V , 6A max.
DIP
LFPP
PoE
1 2
ON
Enable
Legacy
OFF
Disable
BT
1 2
DIP
ON
1 2 3 4 5 6
Figure 2-2: IGUP-805AT Upper Panel

7
The2DIPswitchsettingsanddescriptions:
1 2
DIP
ON
1 2 3 4 5 6
DIP ON OFF
1LFPP Enable Disable(default)
2PoE Legacy BT(default)
LFPP means Link Fault Passthrough PoE Control.
LFPPON:
1. The IGUP-805AT will disable PoE port once it detects the fiber
optic link is down.
2.TheIGUP-805ATwillturnonberalarm.
LFPPOFF: TheIGUP-805ATLFPPisinactivated.(default)
2.4 Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of Industrial PoE++
Media Converter is used for two 12-54V DC redundant power inputs. Please
follow the steps below to insert the power wire.
Caution
When performing any of the procedures like inserting the wires
or tightening the wire-clamp screws, make sure the power is
OFF to prevent from getting an electric shock.
1. Insert positive and negative DC power wires into contacts 1 and 2 for
POWER 1, or 5 and 6 for Power 2.
Max. Fault Alarm Loading: 24V, 1A
V1+ V2+
PWR1 PWR2Alarm
DC Input:
12-54V , 6A max.
DIP
LFPP
PoE
1 2
ON
Enable
Legacy
OFF
Disable
BT
1 2
DIP
ON
1 2 3 4 5 6

8
2. Tighten the wire-clamp screws for preventing the wires from loosening.
123456
Power 1 Alarm Power 2
+ - + -
Note
1. The wire gauge for the terminal block should be in the range
between 12 and 24 AWG.
2. The DC power input range is 12-54V DC.
PWR1 and PWR2 must provide exactly the same DC voltage for
power load balance while operating with dual power input.
2.5 Wiring the Fault Alarm Contact
The fault alarm contacts are in the middle of the terminal block connector as
the picture shows below. When inserting the wires, the Industrial Ethernet
Extender will detect the fault status of the power failure and then form an
open circuit. The following illustration shows an application example for wiring
the fault alarm contacts.
Fault Alarm Contacts Alarm
1 2 3 4 5 6
The Fault Alarm Contacts are energized
(CLOSE) for normal operation and will
OPEN when failure occurs
Insert the wires into the fault alarm contacts

9
Note
1. The wire gauge for the terminal block should be in the range
between 12 and 24 AWG.
2. Alarm relay circuit accepts up to 24V, max. 1A currents.
2.6 Grounding the Device
Users MUST complete grounding wired with the device; otherwise, a sudden
lightning could cause fatal damage to the device. EMD (Lightning) DAMAGE IS
NOT CONVERED UNDER WARRANTY.
Max. Fault Alarm Loading: 24V, 1A
V1+ V2+
PWR1 PWR2Alarm
DC Input:
12-54V , 6A max.
DIP
LFPP
PoE
1 2
ON
Enable
Legacy
OFF
Disable
BT
1 2
DIP
ON
1 2 3 4 5 6
Earth Ground
Note
EMD(Lightning)DAMAGEISNOTCOVEREDUNDERWARRANTY.

10
3. Hardware Installation
This section describes the functionalities of the Industrial PoE++ Media
Converter’s components and guides you to installing it on the DIN rail and
wall. Please read this chapter completely before continuing.
Note
This following pictures show the user how to install the device,
and the device is not IGUP-805AT.
3.1 DIN-rail Mounting Installation
1
2

11
3.2 Wall-mount Plate Mounting
3.3 Side Wall-mount Plate Mounting
Caution
You must use the screws supplied with the wall-mounting
brackets. Damage caused to the parts by using incorrect screws
would invalidate your warranty.

12
4.ProductSpecications
Model IGUP-805AT
HardwareSpecications
Copper Port 1 x 10/100/1000BASE-T port
SFP Port 1 x 1000BASE-SX/LX/BX SFP interface
Compatible with 100BASE-FX SFP
DIP Switch
DIP ON OFF
1LFPP Enable Disable(default)
2PoE Legacy BT(default)
Dimensions
(WxDxH) 32 x 87 x 135 mm
Weight 447g
PowerRequirements 12-54V DC,
Redundant power with reverse polarity protection
Power Consumption
System ON without loading
12VDC:3.6W
54VDC:4.4W
Full loading with PoE
12VDC:70W
54VDC:101.3W
Flow Control Back pressure for half duplex mode
IEEE 802.3x pause frame for full duplex mode
Switch Fabric 2Gbps
Throughput 2.98Mbps@64bytes
Address Table 2k entries
SharedDataBuer 1M bits
Maximum Frame Size 9K
ESD Protection 6KV DC
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount ear

13
Power Over Ethernet
PoE Standard IEEE 802.3bt Power over Ethernet Plus Plus
PoE Power Output 802.3btPoE++:95W
Legacymode:95W
PoE Power Supply
Type End-span + Mid-span
Power Pin Assignment End-span:1/2(-),3/6(+);
Mid-span:4/5(+),7/8(-)
PoE Power Budget 95 watts@24-54V DC input
60 watts@12-23V DC input
Standards Conformance
Regulatory
Compliance FCC Part 15 Class A, CE
Protocols and
Standards Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet over Fiber Optic
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE802.3azEnergyEcientEthernet(EEE)
Stability Testing
IEC60068-2-32(freefall)
IEC60068-2-27(shock)
IEC60068-2-6(vibration)
Environment
Temperature Operating:-40~75degreesC
Storage:-40~85 degreesC
Humidity Operating:5~90%(non-condensing)
Storage:5~90%(non-condensing)

14

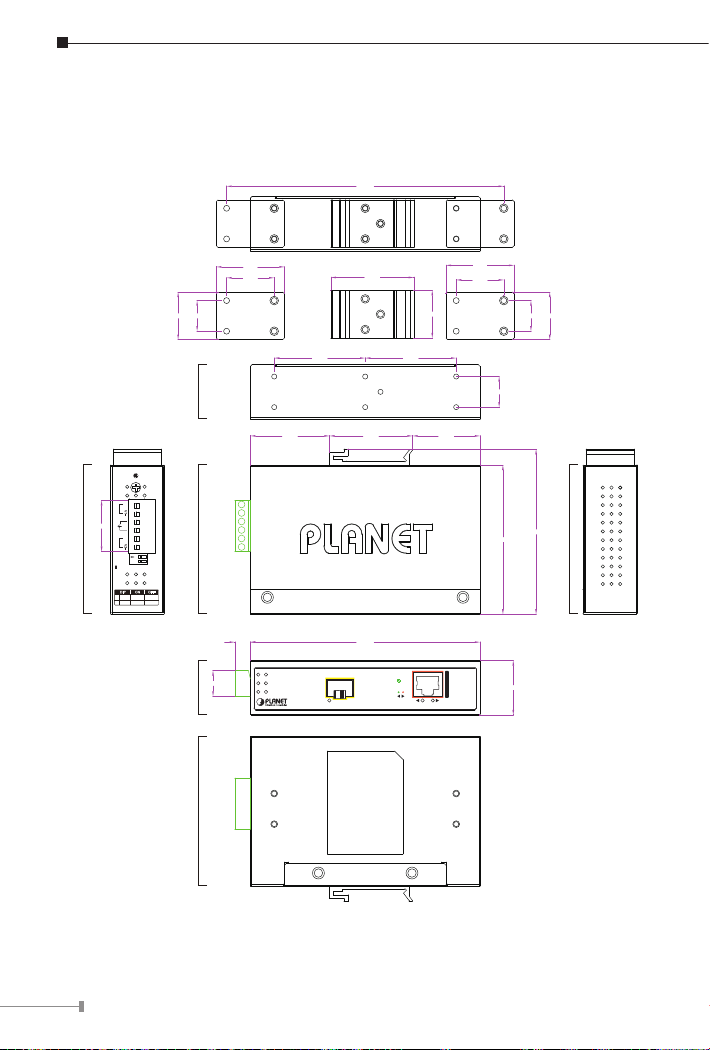

5. Physical Dimensions
The IGUP-805AT Industrial PoE++ Media Converter dimensions (W x D x H):
32 x 87 x 135mm
32.00
135.00
87.80
97.10
48.8046.50 39.70
28.00
48.80
53.50 53.50
18.00
15.20
30.00
9.20
40.00
28.0018.00
28.00
18.0028.00
28.00
40.00
163.00
Top View
Side View Front View
Mounting Kit Mounting Kit
DIN-Rail Kit
Side View Rear View
Unit: mm
Bottom View
P1 P2 Alarm
30W 60W 90W+
100/1000X
IGUP-805AT
LNK/
ACT
10/100/1000T
802.3bt PoE++
LNK ACT
PoE-in-Use
1
2
DIP
ON
1 2 3 4 5 6
Max. Fault Alarm Loading: 24V, 1A
V1+ V2+
PWR1 PWR2Alarm
DC Input: 12-54V , 6A max.
DIP
LFPP
PoE
1
2
ON
Enable
Legacy
OFF
Disable
BT

15
6. Fiber and PoE Installation
The IGUP-805AT is exible enough to extend the distance from 550m to
120km. It depends on the 1000BASE-X or 100BASE-FX SFP transceivers. The
SFP transceivers are hot-pluggable and hot-swappable. You can plug in and
out the transceiver to/from any SFP port without having to power down the
Industrial 802.3bt PoE++ Media Converter.
If there is any IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt device needed to be
powered on, the IGUP-805AT can easily do just that.
The IGUP-805AT needs 12-54V DC input and it injects the DC power into the
pin of the twisted-pair cable.
DC Power Line (DC)
1000BASE-SX/LX Fiber Optic
1000
PoE
1000BASE-T UTP with PoE
550m / 120km 100m
IGUP-805AT
Power
Data
PoE
IP Speed Dome
Monitoring
Center
Fiber Switch
DC 12~56V
Power
DC
PoE
Data
1000

16
Customer Support
Thank you for purchasing PLANET products. You can browse our online FAQ
resource on PLANET web site rst to check if it could solve your issue. If you
need more support information, please contact PLANET support team.
PLANETonlineFAQs:
http://www.planet.com.tw/en/support/faq.php
Supportteammailaddress:
[email protected]
Copyright © PLANET Technology Corp. 2022.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
