Planet IGT-1205AT User manual

Industrial 10/100/1000Base-T to
2 100/1000Base-X SFP Media Converter
IGT-1205AT
User's Manual

Trademarks
Copyright © PLANET Technology Corp. 2013.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All
other trademarks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work
properly in all environments and applications, and makes no warranty
and representation, either implied or expressed, with respect to
the quality, performance, merchantability, or tness for a particular
purpose.
PLANET has made every effort to ensure that this User’s Manual is
accurate; PLANET disclaims liability for any inaccuracies or omissions
that may have occurred.
Information in this User’s Manual is subject to change without notice
and does not represent a commitment on the part of PLANET. PLANET
assumes no responsibility for any inaccuracies that may be contained in
this User’s Manual. PLANET makes no commitment to update or keep
current the information in this User’s Manual, and reserves the right
to make improvements to this User’s Manual and/or to the products
described in this User’s Manual, at any time without notice.
If you nd information in this manual incorrect, misleading, or
incomplete, we would appreciate your comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the Instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.

CE Mark Warning
This is a Class A product. In a domestic environment, this product may
cause radio interference, in which case the user may be required to
take adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human
health as a result of the presence of hazardous substances in
electrical and electronic equipment, end users of electrical
and electronic equipment should understand the meaning of
the crossed-out wheeled bin symbol. Do not dispose of WEEE as
unsorted municipal waste and have to collect such WEEE separately.
Revision
PLANET Industrial 10/100/1000Base-T to 2 100/1000Base-X SFP Media
Converter User's Manual
For Model: IGT-1205AT
Revision: 1.0 (APRIL, 2013)
Part No: EM-IGT_1205AT_v1.0 (2350-AH1210-000)

Table of Contents
1. Introduction............................................................................... 5
1.1 Package Contents................................................................ 5
1.2 How to Use This Manual ...................................................... 5
1.3 Product Features ................................................................. 6
1.4 Product Specications .......................................................... 7
1.5 Physical Dimensions ............................................................ 9
2. Installation ...............................................................................10
2.1 Product Description ............................................................10
2.1.1 Converter Front Panel ...............................................12
2.1.2 LED Indicators..........................................................13
2.1.3 Converter Upper Panel ..............................................14
2.1.4 Wiring the Power Inputs............................................15
2.1.5 Wiring the Fault Alarm Contact ..................................16
2.1.6 Cabling ....................................................................16
2.1.7 Redundancy Overview ...............................................22
2.2 Mounting Installation ..........................................................23
2.2.1 Install DIN-Rail Mounting ..........................................23
2.2.2 Wall Mount Plate Mounting ........................................25
3. Applications ..............................................................................26
4. Troubleshooting.........................................................................28
5. Cable Connection Parameters .....................................................29
APPENDIX A: Networking Connection...............................................30
A.1 Converter’s RJ-45 Pin Assignments .......................................30
A.2 RJ-45 Cable Pin Assignments ...............................................31

5
1. Introduction
1.1 Package Contents
Check the contents of your package for the following parts:
Industrial Gigabit Media Converter x 1l
User's Manual x 1l
DIN Rail Kit x 1l
Wall Mount Kit x 1l
If any of these are missing or damaged, please contact your dealer
immediately; if possible, retain the carton including the original packing
material, and use them against to repack the product in case there is a
need to return it to us for repair.
The term “Industrial Gigabit Media Converter” mentioned in this
user’s manual also means the IGT-1205AT.
1.2 How to Use This Manual
This Industrial Gigabit Media Converter User Manual is
structured as follows:
Chapter 2 Installation
The chapter explains the feature, functionality and the physical
installation of the Industrial Gigabit Media Converter.
Chapter 3 Application
The chapter explains the Industrial Gigabit Media Converter application.
Chapter 4 Troubleshooting
The chapter explains the troubleshooting of the Industrial Gigabit Media
Converter.
Chapter 5 Cable Connection Parameters
The chapter contains the cable connection parameters of the Industrial
Gigabit Media Converter.
Appendix A
This chapter contains cable information of the Industrial Gigabit Media
Converter.

6
1.3 Product Features
Physical Port
1-port 10/100/1000Base-T RJ-45 with auto MDI / MDI-X function
2 SFP interfaces, 100/1000Base-X dual mode (DIP switch control)
Layer 2 Features
IEEE 802.3 / 802.3u / 802.3ab / 802.3z Ethernet Standard
Compliant
Supports Auto-negotiation and 10/100Mbps half / full duplex and
1000Mbps full duplex mode
Prevents packet loss with back pressure (Half-Duplex) and IEEE
802.3x PAUSE frame ow control (Full-Duplex)
9K Jumbo Frame Size support
Automatic address learning and address aging
Industrial Case / Installation
Slim type IP30 metal case / protection
DIN Rail and Wall Mount Design
Redundant Power Design
- 12 to 48V DC, redundant power with polarity reverse protect func-
tion
- AC 24V power adapter acceptable
Supports EFT protection for 6000 VDC for power line
Supports 6000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature
Fiber Port Redundancy
Link status auto-detect and redundant on Dual ports with same
connector type
Only when Primary-Port is active, the Backup-Port is blocked

7
 When Primary-Port link fails, the trafc will swap to Backup-Port
automatically
 Once the Primary-Port status is back to link up, the trafc will swap
from Backup-Port to Primary-Port
1.4 ProductSpecications
Model IGT-1205AT
Hardware Specication
10/100/1000Base-T
Ports 1
SFP Interfaces
2 1000Base-SX/LX/BX SFP interfaces
(Port-1 and Port-2)
Compatible with 100Base-FX SFP
Dimensions
(W x D x H) 135 x 87 x 32mm
Weight 505g
Power Requirements
DC 12~48V, Redundant power with polarity
reverse protection function. AC 24V Power
Adapter
Power Consumption /
Dissipation 4.8 watts/16BTU
Installation DIN Rail Kit and Wall Mount Ear
Converter Specication
Processing Scheme Store-and-Forward
Flow Control Back pressure for half duplex
IEEE 802.3x Pause Frame for full duplex
Fabric 6Gbps
Throughput
(packet per second) 4.46Mpps
Maximum
Transmission Unit 9216bytes

8
Network Cables
10/100/1000Base-T :
Cat. 3, 4, 5, 5e, 6 UTP cable (100meters,
max.)
EIA/TIA-568 100-ohm STP (100meters,
max.)
1000Base-SX :
50/125μm or 62.5/125μm multi-mode
ber optic cable, up to 550m (vary on SFP
module)
1000Base-LX :
9/125μm single-mode ber optic cable, up to
10/20/30/40/50/70/120 kilometers (vary on
SFP module)
100Base-FX :
50/125μm or 62.5/125μm multi-mode ber
optic cable, up to 2 kilometers (vary on SFP
module)
9/125μm single-mode ber optic cable, up to
20/40/60 kilometers (vary on SFP module)
Standards Conformance
Standards
Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
Regulation
Compliance FCC Part 15 Class A, CE
Stability Testing
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~95% (Non-condensing)
Storage: 5~95% (Non-condensing)

9
1.5 Physical Dimensions
IGT-1205AT Industrial Gigabit Media Converter dimensions (W x D x
H): 135 x 87 x 32mm
Side View
Bottom View
Front View
Mounting Kit Mounting Kit
DIN-Rail Kit
Top View Rear View
1000 LNK/ACT 100 LNK/ACT
IGT-1205AT
1
10/100/1000T
P1 P2 FAULT
2
3
LNK/
ACT
SFP
1000X
LNK/
ACT
SFP
1000X
Input DC 12~48V, AC 24V
V1-
V1+
V2-
V2+
PWR1
Port 1
Port 2
Mode
Faul t
PWR2
100FX
100FX
Redundant
1000X
ON OFF
1000X
Switch
1 2 3
ON
1 2 3 4 5 6

10
2. Installation
This section describes the functionalities of the Industrial Gigabit Media
Converter’s components and guides how to install it on the desktop.
Basic knowledge of networking is assumed. Please read this chapter
completely before continuing.
2.1 Product Description
Flexibility and Network Distance Extension Solution
The IGT-1205AT Industrial Gigabit Media Converter is equipped with
one 10/100/1000Base-T auto-negotiation port and two 100/1000X
SFP slots. The two SFP slots are compatible with 1000Base-SX / LX
or 100Base-FX through SFP (Small Form Factor Pluggable) ber-optic
transceiver; the two SFP slots allow changing the operation speed mode
with its built-in DIP switch. The ber optical uplink capability guarantees
the throughput to all nodes hooked into the network and the Gigabit
Ethernet distance can be extended from 550 meters (Multi-Mode ber
cable) up to 10/20/30/40/50/70/120 kilometers (Single-Mode ber
cable), also the Fast Ethernet distance can be extended from 2km
(Multi-Mode ber cable) up to 20/40/60 kilometers (Single-Mode ber
cable). They are well suited for applications within the factory data
centers and distributions.
Adjustable 3-Port Switch Mode or 2 Fiber Port Redundant Mode
Via the built-in DIP-switch, the two SFP ber interfaces of IGT-1205AT
can be congured as Ethernet switch mode or Fiber Redundant mode.
With the Ethernet switch mode, it can operate Store-and-Forward
mechanism with high performance; with the 2-Port Fiber Redundant
mode, it provides redundancy of link for highly critical Ethernet
applications. The redundant mode supports auto-recover function. If
the destination port of a packet is link down, it forwards the packet to
the other port of the backup pair.
Environmentally Hardened Design
With IP30 metal industrial case protection, the IGT-1205AT provides a
high level of immunity against electromagnetic interference and heavy
electrical surges which are usually found on plant oors or in curb side

11
trafc control cabinets. It also possesses an integrated power supply
source with wide range of voltages (12 to 48V DC or 24V AC) for
worldwide high availability applications requiring dual or backup power
inputs. Being able to operate under the temperature range from -40
to 75 degrees C, the IGT-1205AT can be placed in almost any difcult
environment. The compact IP30 standard metal case of IGT-1205AT
allows either DIN rail or wall mounting for efcient use of cabinet
space.
Robust Gigabit Media Converter Performance
The IGT-1205AT offers wire-speed packets transfer performance without
risk of packet loss. The high data throughput of the device makes it
ideal for most Gigabit environments. With a 6Gbps internal fabric and
featuring auto negotiation support in its Gigabit port, the IGT-1205AT
Industrial Gigabit Media Converter can handle large amounts of data in
a secure topology linking to a backbone or high capacity servers.
The ow control function enables the IGT-1205AT to provide fast and
reliable data transfer. The RJ-45 copper interface in the IGT-1205AT
supports 10/100/1000Mbps Auto-Negotiation for optimal speed
detection through RJ-45 Category 6, 5 or 5e cables. The standard
Auto-MDI/MDI-X support can detect the type of connection to any
Ethernet device without requiring special straight or crossover cables.

12
2.1.1 Converter Front Panel
Figure 2-1 shows the front panel of Industrial Gigabit Media Converter.
1000 LNK/ACT
100 LNK/ACT
IGT-1205AT
1
10/100/1000T
P1 P2 FAULT
2
3
LNK/
ACT
SFP
1000X
LNK/
ACT
SFP
1000X
Figure 2-1: IGT-1205AT Front Panel

13
2.1.2 LED Indicators
System
LED Color Function
P1 Green Lit: indicate power 1 has power.
P2 Green Lit: indicate power 2 has power.
FAULT Green Lit: indicate either power 1 or power 2 has no
power.
Per 10/100/1000T Port
LED Color Function
100 LNK/ACT Orange
Lit: indicate the link through that port is
successfully established at 100Mbps or
10Mbps.
Blink: indicate that the Switch is actively
sending or receiving data over that port.
Off: indicate the link through that port is
successfully established at 1000Mbps.
1000
LNK/ACT Green
Lit: indicate the link through that port is
successfully established at 1000Mbps or
10Mbps.
Blink: indicate that the Switch is actively
sending or receiving data over that port.
Off: indicate the link through that port is
successfully established at 100Mbps.
Per 100 / 1000X SFP Slots
LED Color Function
LNK/ACT Green
Lit: indicate the link through that port is
successfully established at 100Mbps or
1000Mbps.
Blink: indicate that the Converter is actively
sending or receiving data over that port or the
port operate.

14
2.1.3 Converter Upper Panel
The upper panel of the Industrial Gigabit Media Converter consists of
one terminal block connector within two DC power inputs, and also
provides 3 DIP Switches for 100/1000X ber support on two SFP slots
and ber redundant function. Figure 2-2 shows the upper panel of the
Industrial Gigabit Media Converter.
1 2 3 4 5 6
Input DC 12~48V, AC 24V
V1-
V1+
V2-
V2+
PWR1
Port 1
Port 2
Mode
Fault
PWR2
100FX
100FX
Redundant
1000X
ON OFF
1000X
Switch
1 2 3
ON
Figure 2-2: Industrial Gigabit Media Converter Upper Panel
The 3 DIP switch settings and descriptions:
1 2 3
ON
ON OFF (Default)
Port 1 (DIP 1) 100FX 1000X
Port 2 (DIP 2) 100FX 1000X
Fiber Mode (DIP 3) Fiber Redundant Switch
The ber redundancy function explains in chapter 2.1.7 Redundancy
Overview.

15

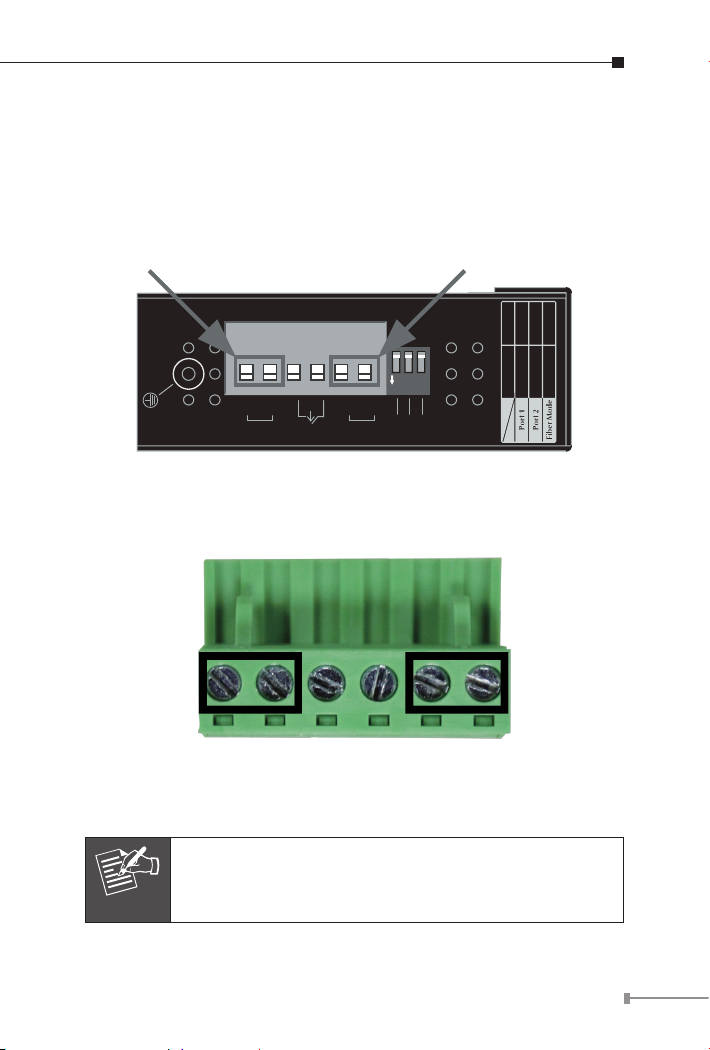

2.1.4 Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of Industrial
Gigabit Media Converter is used for two DC redundant power inputs.
Please follow the steps below to insert the power wire.
Insert positive / negative DC power wires into contacts 1 and 2 for
POWER 1, or 5 and 6 for POWER 2.
1 2 3 4 5 6
Input DC 12~48V, AC 24V
V1- V1+ V2- V2+
PWR1
Port 1 Port 2 Mode
Fault
PWR2
100FX
100FX
Redundant
1000X
ON OFF
1000X
Switch
1 2 3
ON
V1- V1+ V2- V2+
Tighten the wire-clamp screws for preventing the wires from loosening.
123456
Power 1 Fault Power 2
- + - +
Note
The wire gauge for the terminal block should be in the
range between 12 and 24 AWG.

16
2.1.5 Wiring the Fault Alarm Contact
The fault alarm contacts are in the middle of the terminal block
connector as the picture shows below. Inserting the wires, the
Industrial Gigabit Media Converter will detect the fault status of the
power failure and then forms an open circuit. The following illustration
shows an application example for wiring the fault alarm contacts.
Fault Alarm Contacts
The Fault Alarm Contacts are
energized (CLOSE) for normal
operation and will OPEN when
failure occurs
Fault
1 2 3 4 5 6
Insert the wires into the fault alarm contacts
Note
The wire gauge for the terminal block should be in the
range between 12 and 24 AWG.
2.1.6 Cabling
10/100/1000Base-T and 100Base-FX / 1000Base-SX/LX
The 10/100/1000Base-T port comes with Auto-Negotiation capability.
It automatically supports 1000Base-T, 100Base-TX and 10Base-T
networks. Users only need to plug a working network device into
the 10/100/1000Base-T port, and then turn on the Industrial Gigabit
Media Converter. The port will automatically runs in 10Mbps, 20Mbps,
100Mbps or 200Mbps and 1000Mbps or 2000Mbps after the negotiation
with the connected device.

17
The Industrial Gigabit Media Converter has two SFP interfaces that
supports 100/1000 dual speed mode (Optional Multi-mode / Single-
mode 100Base-FX / 1000Base-SX/LX SFP module) through DIP switch
setting.
Cabling
The 10/100/1000Base-T port uses RJ-45 socket -- similar to phone jack
-- for connection of unshielded twisted-pair cable (UTP). The IEEE 802.3
/ 802.3u / 802.3ab Fast / Gigabit Ethernet standard requires Category
5 UTP for 100Mbps 100Base-TX. 10Base-T networks can use Cat.3, 4,
5 or 1000Base-T uses 5/5e/6 UTP (see table below). Maximum distance
is 100 meters (328 feet). The 100Base-FX / 1000Base-SX/LX SFP slot
is used as LC connector with optional SFP module. Please see table
below and know more about the cable specications.
Port Type Cable Type Connector
10Base-T Cat 3, 4, 5, 2-pair RJ-45
100Base-TX Cat.5 UTP, 2-pair RJ-45
1000Base-T Cat.5/5e/6 UTP, 4-pair RJ-45
100Base-FX 50 / 125µm or 62.5 / 125µm multi-
mode 9 / 125µm single-mode
LC (Multi /
Single mode)
1000Base-SX/LX 50 / 125µm or 62.5 / 125µm multi-
mode 9 / 125µm single-mode
LC (Multi /
Single mode)
Any Ethernet devices like hubs/ PCs can be connected to the Industrial
Gigabit Media Converter by using straight-through wires. The
10/100/1000Mbps port is auto-MDI/MDI-X and can be used on straight-
through or crossover cable.

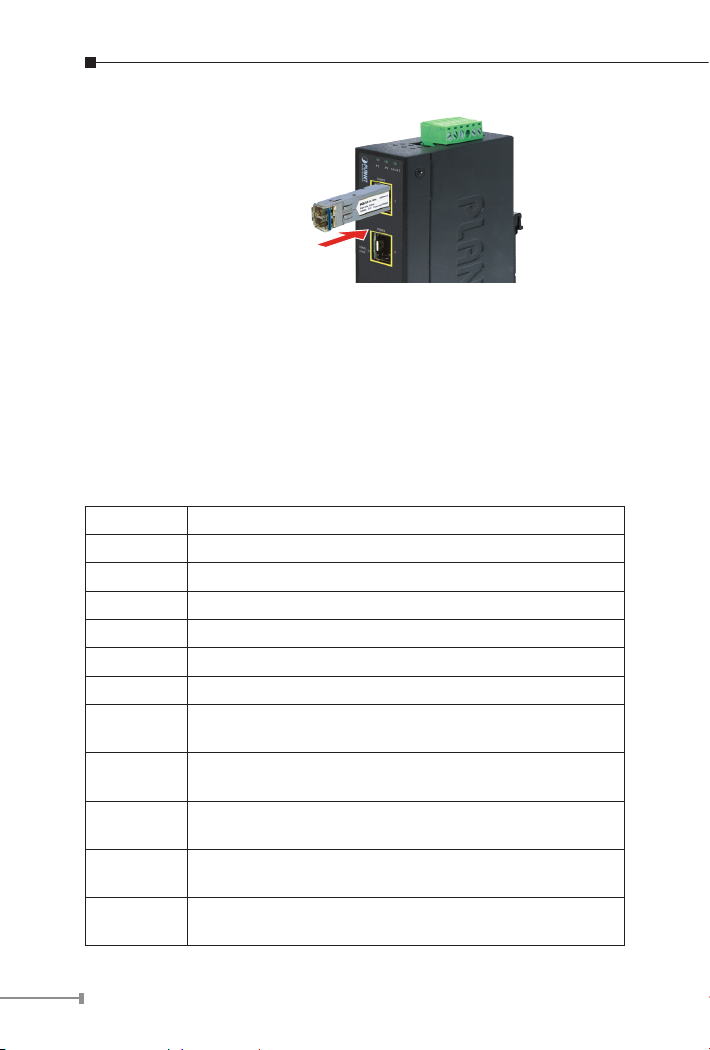

2.1.6.1 Installing the SFP Transceiver
The sections describe how to insert an SFP transceiver into an SFP slot.
The SFP transceivers are hot-pluggable and hot-swappable. You can
plug in and out the transceiver to/from any SFP port without having
to power down the Industrial Gigabit Media Converter as Figure 2-3
shows.

18
MGB / MFB Series
Transceiver
Figure 2-3: Plug in the SFP Transceiver
Approved PLANET SFP Transceivers
PLANET Industrial Gigabit Media Converter supports 100/1000 dual
mode with both Single mode and Multi-mode SFP transceivers. The
following list of approved PLANET SFP transceivers is correct at the
time of publication:
Gigabit SFP Transceiver Modules
MGB-GT SFP-Port 1000Base-T Module - 100m
MGB-SX SFP-Port 1000Base-SX mini-GBIC module - 550m
MGB-LX SFP-Port 1000Base-LX mini-GBIC module - 10km
MGB-L30 SFP-Port 1000Base-LX mini-GBIC module - 30km
MGB-L50 SFP-Port 1000Base-LX mini-GBIC module - 50km
MGB-L70 SFP-Port 1000Base-LX mini-GBIC module - 70km
MGB-L120 SFP-Port 1000Base-LX mini-GBIC module - 120km
MGB-LA10 SFP-Port 1000Base-LX (WDM, TX:1310nm) mini-GBIC
module - 10km
MGB-LB10 SFP-Port 1000Base-LX (WDM, TX:1550nm) mini-GBIC
module - 10km
MGB-LA20 SFP-Port 1000Base-LX (WDM, TX:1310nm) mini-GBIC
module - 20km
MGB-LB20 SFP-Port 1000Base-LX (WDM, TX:1550nm) mini-GBIC
module - 20km
MGB-LA40 SFP-Port 1000Base-LX (WDM, TX:1310nm) mini-GBIC
module - 40km

19
MGB-LB40 SFP-Port 1000Base-LX (WDM, TX:1550nm) mini-GBIC
module-40km
MGB-TSX SFP-Port 1000Base-SX mini-GBIC module - 550m
(-40~75°C)
MGB-TLX SFP-Port 1000Base-LX mini-GBIC module - 10km
(-40~75°C)
MGB-TL30 SFP-Port 1000Base-LX mini-GBIC module - 30km
(-40~75°C)
MGB-TL70 SFP-Port 1000Base-LX mini-GBIC module - 70km
(-40~75°C)
Fast Ethernet SFP Transceiver Modules
MFB-FX SFP-Port 100Base-FX Transceiver (1310nm) - 2km
MFB-F20 SFP-Port 100Base-FX Transceiver (1310nm) - 20km
MFB-F40 SFP-Port 100Base-FX Transceiver (1310nm) - 40km
MFB-F60 SFP-Port 100Base-FX Transceiver (1310nm) - 60km
MFB-FA20 SFP-Port 100Base-BX Transceiver (WDM, TX:1310nm)
- 20km
MFB-FB20 SFP-Port 100Base-BX Transceiver (WDM, TX:1550nm)
- 20km
MFB-TFX SFP-Port 100Base-FX Transceiver (1310nm) - 2km
(-40~75°C)
MFB-TF20 SFP-Port 100Base-FX Transceiver (1310nm) - 20km
(-40~75°C)
Note
It is recommended to use PLANET SFPs on the Indus-
trial Gigabit Media Converter. If you insert an SFP trans-
ceiver that is not supported, the Industrial Gigabit Media
Converter will not recognize it.
1000Base-SX/LX:
Before connecting the other switches, workstation or Media Converter,
please do the following:

20
1. Set the DIP Switch of SFP Port 1 or Port 2 to the “OFF” position with
ber speed 1000Base-X.
ON OFF
Port 1 (DIP 1) 100FX 1000X
Port 2 (DIP 2) 100FX 1000X
2. Make sure both sides of the SFP transceiver are with the same media
type; for example, 1000Base-SX to 1000Base-SX, 1000Base-LX to
1000Base-LX.
3. Check whether the ber-optic cable type matches the SFP transceiver
model.
To connect to 1000Base-SX SFP transceiver, use the Multi-mode
ber cable with one side being the male duplex LC connector type.
To connect to 1000Base-LX SFP transceiver, use the Single-mode
ber cable with one side being the male duplex LC connector type.
Connect the ber cable
1. Attach the duplex LC connector on the network cable to the SFP
transceiver.
2. Connect the other end of the cable to a device, switches with SFP
installed, to ber NIC on a workstation or a Media Converter.
3. Check the LNK/ACT LED of the SFP slot on the front of the Industrial
Gigabit Media Converter. Make sure that the SFP transceiver is oper-
ating correctly.
100Base-FX:
Before connecting the other switches, workstation or Media Converter,
please do the following:
1. Set the DIP Switch of SFP Port 1 or Port 2 to the “ON” position with
ber speed “100FX”.
ON OFF
Port 1 (DIP 1) 100FX 1000X
Port 2 (DIP 2) 100FX 1000X
