Plantronics K100 User manual

READY SET CONNECT
HEAR CALLS THROUGH YOUR CAR STEREO TIPS
You can listen to calls through your car
stereo speakers by transferring the audio
from the speakerphone to one of five FM
channel options.
If your phone is A2DP-enabled you can also
hear streaming audio like GPS instructions
and music through your car speakers.
We recommend that you transfer audio to
an FM channel before you start driving, and
that you make a routinely clear channel a
preset on your stereo.
2. SET
Press the FM button to enter FM transmit
mode. The FM transmit channel will be
announced.
1. READY
Ensure that your phone and speakerphone
are powered on and connected.
3. CONNECT
Manually set your radio to the announced FM
channel. You are now ready to transmit calls
and streaming audio like GPS directions from
your phone to your car stereo.
If a radio station suddenly takes over the
FM channel, tap the FM button to quickly
redirect the audio back through the
speakerphone.
To find another FM channel, while FM is
turned on, press and hold the FM button
until another channel option is announced,
then tune your radio to the new channel.
Keep Your Eyes on the Road:
The controls are easy to find with your
fingertips without looking for them.
Before driving, reach up and familiarize
yourself with the controls so you can keep
your eyes on the road when a call comes in.
The notched Volume wheel is easy to find.
The Multi-function button is inside the wheel.
The Mute button has a raised notch.
Sound Your Best:
Clip the speakerphone to your visor where
the two microphones, located on the top
of the unit, can be closest to your face so
you can speak in a normal tone of voice and
be heard.
Avoid a Dead Battery:
Remember to power off the speakerphone
when you exit your car. If you forget, the
speakerphone will automatically turn off
after 90 minutes of not having an active
connection.
Z109
N10687
© 2010 Plantron ics, Inc. All Rig hts Reserved .
Bluetooth i s a registered tra demark of Blueto oth
SIG, Inc. an d any use by Plantroni cs is under license .
All other tra demarks are the p roperty of the ir
respecti ve owners.
83987-51 (07.10) AM 83988-5 1
GET
STARTED
K100™Bluetooth®
In-car Speakerphone

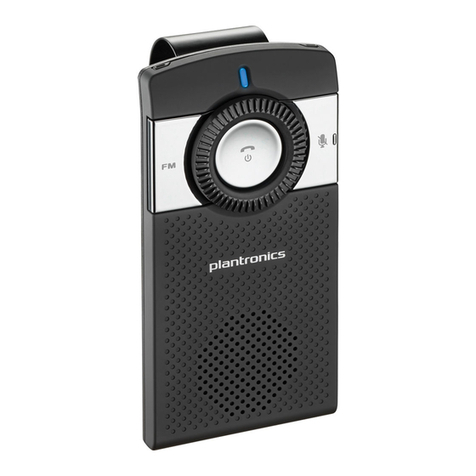

TAKE A GOOD LOOK CONNECT TO YOUR PHONE
MULTI-FUNCTION BUTTON
• Power on or of f (3- to 4-second press)
• Take a call or end it (1 tap)
• Red ial (2 taps)
• Transfer audio to or from phone
during call (3-second press)
• Reject a call (press and ho ld until you
hear tone)
• Initiate phone’s voice- dialing (2-second
press until second tone is heard)
• Activate manual pairing (with pow er off,
press and hold until LED flashes red/blue)
FM BUTTON
• FM transmit on or off ( 1 tap)
• Find FM channel (press and hold until
station option is announced)
LED
• Charging (solid red)
• Powering on or off ( 2 blue flashes)
• FM transmission (2 purple flashes)
• Missed call (1 purple flash)
• Pairing mode (red/blue flashes)
VOLUME WHEEL
• Increas e volume (rotate clockw ise)
• Decrease volume (rotate counterclockwise)
MUTE BUTTON
• Mute on or off ( 1-second tap)
• Night mode: LED on or of f (2-second press
until tone is heard)
MICRO USB CHARGING PORT
• With micro USB or car charger:
2.5 hours (100% charge)
• Best per formance when fully charged
“Pairing” is the process that connects the
speakerphone to your phone. You can pair
more phones but can have only one active
connection at a time.
1. READY
Activate the Bluetooth feature on your
phone, then use the phone’s settings to
add/search/discover new Bluetooth devices.
iPhone®: Settings > General > Bluetooth > On
(starts the search for devices)
BlackBerry® smartphone: Set tings/options >
Bluetooth: On > Search for devices
VIDEO TUTORIAL FOR USA:
www.plantronics.com/pairing
2. SET
First Time:
With speakerphone turned off, activate
Bluetooth pairing mode by pressing and
holding the Multi-function button to turn on
speakerphone. The LED flashes red/blue to
indicate pairing mode.
3. CONNECT
Select “PLT_K100” from the list of Bluetooth
devices shown on your phone.
If the phone asks for a passcode, enter four
zeros (0000). You may see **** on screen.
Some phones also ask to confirm the
connection after pairing.
The speakerphone LED will stop flashing
red/blue once your phone is successfully
paired/connected.
Listen to the Voice:
You will hear various voice status alerts
when you power on/off, search for FM
channels or when battery level is low.
Learn to Share:
When powering on, the speakerphone
searches for the last connected phone.
If the last connec ted phone is not within
range, or the Bluetooth feature is turned off
on the phone, then another phone within
range that has been previously paired with
the speakerphone can be connected by
tapping the Multi-function
button.
TIPS
NEED MORE HELP?
24-hour support in USA:
1-866-363-BLUE (2583)
1-year limited warranty details:
www.plantronic s.com/warrant y
Microphones
Suggested placement
