PlayAlive e-Wall User manual

Installation manual
e-Wall
®

Content
1
1. Content
2. Component overview
2.1 Electronic components
2.2 Wall mounting components
2.3 Other components
3. Installation
3.1 Wall mounting
3.2 Fastning bottom
3.3 Controle box
4. Installing the power supply
4.1 230V power supply for e-Wall
5. Start up
5.1 Start up the e-Wall
5.2 Select game
5.3 Reset game
5.4 Idle mode
5.5 Adjust volume
6. Appendix
6.1 PlayAlives technology platform
6.2 Games on e-Wall
6.3 Active learning

Component overview
2
1 x e-Wall
(Sensors and electronics
preinstalled)
P00411
1 x Control Box
IPSU (with Wi-Fi)
P00413
2.1 Electronics
2.2 Wall mounting
2.2 Other
1 x Power Cable
standard
Installation manual
(this copy)
1 x Devicenet Cable
Standard length - 5.5 meters
(preinstalled in e-Wall)
3 x M4,5X35MM Screws
(For brackets)
3 x M5X20MM Screws
(For brackets)
1 x Wall rail
3 x Brackets
7 x Wall plugs
1 x Sign
(either sourced locally or
ordered by PlayAlive)
4 x M5X65MM Screws
(For mounting rail)

Installation
3
3.1 Wall mounting
1.5 meter.
Measure 1.5 meter from ground to top of the
wall rail.
1.
Mark and drill four Ø5MM holes. Use holes in
the wall rail as guides.
Fasten the wall rail with four M5X65MM screws
and four plugs.
2.
Mark and drill four Ø5MM holes.
Fasten the wall rail with four M5X65MM
screws and four plugs.
3.
Our recommendation:
Important!
The exact hight of the e-Wall depends
on the client’s wishes. Our recommen-
dations are based so, even the young-
est kids can apply the e-Wall.

Installation
3

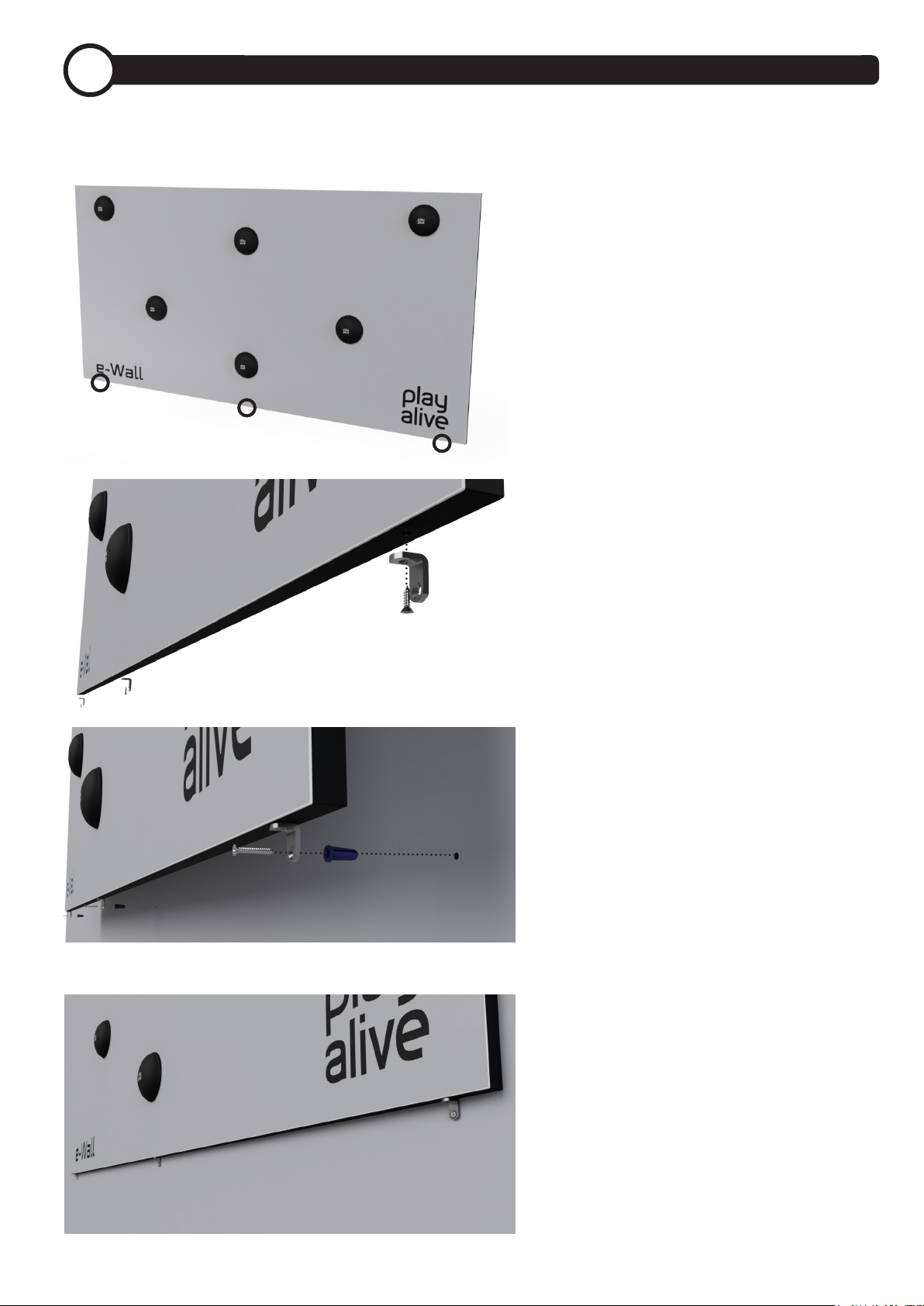

3.2 Fastning bottom
At the bottom of the e-Wall there are three
pre drilled holes.
4.
Fasten the three brackets with three M5X20
screws to the bottom of the e-Wall.
5.
Mount the e-Wall on to the wall rail and mark
and drill three holes.
Use brackets as guides for the three holes.
6.
Fasten so it’s mounted solid to the wall.
7.

Installation
3
3.3 Controle box
Distance from e-Wall to safe cabinet:
STANDARD - MAX 5 METER
Install Power Supply Box in nearby building or in waterpro and vandal proof safe cabinet.
8.
Power cabinet
min. 40 x 40 cm
5 cm
230V
Power
Supply
Secure cable with routing clamps or cable duct
Important!
Remember routing
clamps, cable duct and
safety cabinet must be
sourced locally.
11 cm
Controle box dimensions:
27 cm.
10 cm.
19 cm.

Start up
5
In idle mode all satellites lights up individually and can be used indi-
vidually. This mode is often a hit for minor children and designed to
create awareness.
The platform will go in idle mode if games are not selected. The
system will turn o and only wake up every now and then and show
colors to attract attention. Touching any satellite will bring the system
back and you willl be able to select games again.
Thanks for your eort installing another PlayAlive product.
5.1 Start up the e-Wall
Turn the power on at the IPSU. The satellites boot up and after few
minutes the power supply box should indicate two green lights. The
system is now ready to play.
5.2 Select game
5.3 Reset the game
5.4 Idle mode
Please select a game by touching the satellite in the middle.
The satellite toggles between 4 dierent colors. For example
when the satellite indicate the green color it indicates that
you can choose the game Reaction. See more at section 6.2
Games.
Touch the satellite in the middle for 5 seconds and you will reset
your current game and be able to select a new game.
To adjust the volume, follow this procedure:
1. Turn o power
2. Wait 5 seconds
3. Turn on power
4. Wait for the select game menu to appear (switching between
dierent colors)
5. Select a game for example e-squash.
6. When the game is on please touch and hold satellite 0 until
the satellite speak: “Set volume/Set ID” – then release satellite.
7. Tap satellite when it speaks: “Set volume”.
8. Touch/tap satellite repeatedly to adjust the volume.
9. Volume adjustments are automatically saved and will remain
at this level until you adjust it again.
NOTE: It is rather important to have a certain sound level in order
to experience the full joy of the individual PlayAlive activities.
If you have been able to conduct the elements as described at section
5.1 - 5.3 the PlayAlive e-Wall has beeen successfully installed.
5.5 Adjust volume if needed
Green lights
Make sure the build-in
ethernet cable is con-
nected to the box.

Appendix
6
The PlayAlive system is an interactive system. The technology elements
communicate with each other and thereby make it possible to realize
activities for all ages.
The visible part of the installation is the “satellites”. The satellites are
intelligent units that contain light, sound, touch sensor, and communica-
tion. They act as the user interface to the system. Cables connected to
satellites supply them with power and communication.
The PlayAlive technology elements are highly advanced electronics. De-
spite the fact that they are very robust after installation, they can easily
be damaged before or during installation if not treated correctly.
NOTE: ALL PARTS ARE DESIGNED TO FIT TOGETHER WITHOUT THE
NEED OF USING FORCE.
IMPORTANT: BE CAREFUL WHEN HANDLING THE PARTS. THANKS.
6.1 General introduction to PlayAlives Technology Platform
6.2 Games on e-Wall
Please see the instructions for the dierent games below:
Additional games can be ordered at PlayAlive.
Reaction (Green game)
Test your reaction! See how fast you and your
friends can turn o all the green lights in 20
seconds. Look out for double points (white
satellite) and negative points (red satellite).
Mind (Red game)
Team-up (Blue game)
e-Squash (Yellow game)
Electronic version of “Simon Say’s”. Repeat
the correct sequences and test how many
combinations you can remember.
Two players work together in a race against
time. The players must hit the matching
lights at the same time. A fun social game
Beat your best friend in a game of
e-Squash. The game is adaptive and will
adjust speed to the level of the players.
Serve the rst “ball” by touching the ash-
ing satellite out at the eld. The ball is now
sent over to the opponent’s court and the
game is on.
Free Play / Idle Mode Each satellite will have its own play mode
with Funny sounds and light creation. Will
cease when games are started.

Appendix
6
This products also supports active learning. Here the user download the
app “FIL” in app store for free (Search: FIL and press search).
See examples from the dierent sections in the learning app:
The iPad/iPhone will be linked to the interactive playspot by e-Wall’s
closed Wi-Fi connection.
If you have any questions please do not hesitate to contact PlayAlive:
Ole Clausen or Claus Raaen Thomsen
Tel: [phone] Tel: [phone]
Mail: [e-mail] Mail: [e-mail]
6.3 Active learning
