pleasant hearth OFW110R User manual

SUNDERLAND 12 IN. DEEP BOWL FIRE PIT
MODEL #OFW110R/#OFW110R-1
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Español p.10
Français p.19
1
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-447-4768, 8:00 a.m. – 4:30 p.m. CST, Monday – Friday, or
email us at [email protected]
30-10-033 Rev. 08/26/2019

A
B
C
D
E
F
G
H
2
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
APoker Bracket 1
BMesh Cover 1
CCooking Grid 1
DAir Vents 3
EOuter Handle 4
FFire Bowl 1
GLegs 4
HPoker 1

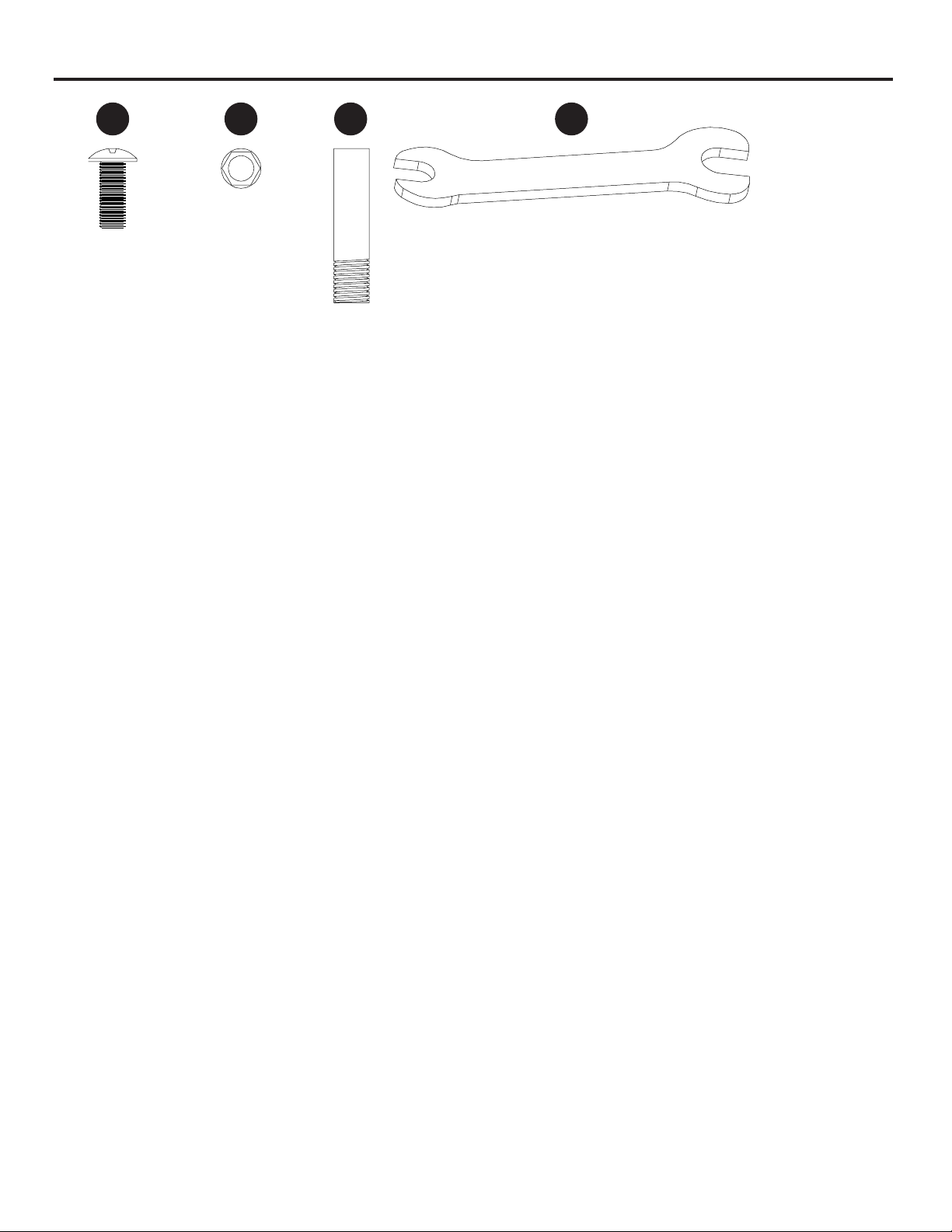

HARDWARE USED
WRENCH
QTY: 1
M6 NUT
QTY: 1
THREADED PEG
QTY: 4
M6X15mm BOLT
QTY: 18
AA BB CC DD
3

4
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product. If you have any questions regarding the product, please call customer service at 1-877-447-
4768, 8:00 a.m. – 4:30 p.m. CST, Monday – Friday.
WARNINGS:
• DO NOT allow children or pets near the re pit without supervision.
• DO NOT touch surface of re pit while in use.
• FOR OUTDOOR USE ONLY! Burning wood or charcoal indoors can kill you. It gives off carbon
monoxide, which has no odor.
• NEVER burn in vehicles, tents, garages, other enclosed areas or indoors. CARBON
MONOXIDE HAZARD.
• NEVER LEAVE FIRE UNATTENDED!
• NEVER place a storage cover on re pit when in use. Ensure the re pit and mesh cover have
cooled before placing a storage cover over the re pit.
• When the re pit is in use, the poker bracket on the mesh cover can reach extreme temperatures
that can cause serious injury to an unprotected hand. Use a poker when handling.
• DO NOT use under overhead cables or power lines.
CAUTIONS:
• Adequate re extinguishing material should be readily available.
• Always ensure that the mesh cover is secured over re bowl while in use.
• Burn only seasoned hard wood or re logs in the re pit.
• DO NOT attempt to move the re pit while it is hot or in use.
• DO NOT use gasoline or kerosene to start the re in your re pit.
• DO NOT use this outdoor re pit under any overhead or near any unprotected combustible
constructions. Avoid using near or under overhanging trees and shrubs. DO NOT use this unit
on long or dry grass and/or leaves.
• Always use this outdoor re pit on a hard, level, non-combustible surface such as concrete,
rock or stone. An asphalt or blacktop surface may not be acceptable for this purpose. DO NOT
use on wooden decks.
• Place the re pit no closer than 10 feet / 3.05 meters from walls or combustibles during use.
• Poker handle may become hot during and after use.
• Use heat-resistant gloves to handle hot tools.
WARNING
This product and the fuels used to operate this product (charcoal or wood), and the
products of combustion of such fuels, can expose you to chemicals including carbon
black, which is known to the State of California to cause cancer, and carbon monox-
ide, which is known to the State of California to cause birth defects or other repro-
ductive harm.
For more information go to www.p65Warnings.ca.gov

BB
1
DD
A
B
BB
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents above. If any part is missing or damaged, do not attempt to
assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 30 minutes
Tools Required for Assembly:
Phillips Screwdriver (Not Included) and Wrench (Included).
ASSEMBLY INSTRUCTIONS
1. Insert Poker Bracket (A) into hole in mesh
cover (B) and secure with M6 nut (BB). Tighten
nut with wrench (DD).
Hardware Used
M6 Nut x 1
M6 Wrench
5

ASSEMBLY INSTRUCTIONS
4
E
4. Assemble outer handle (E) by inserting the
male end of each outer handle (E) section into
the corresponding female end in order to make a
complete ring.
2F
D
AA
F
AA
D
Hardware Used
x 6M6 x 15mm Bolt
2. Place rebowl (F) on its side on a smooth,
clean surface. Attach one air vent (D) by inserting
two M6 x 15mm bolts (AA) through pre-drilled
holes in rebowl (F) and air vents (D) as illustrated.
Repeat with remaining air vents (D). Tighten all
bolts with a screwdriver.
AA
6
3
AA
G
F
Hardware Used
3. Attach Leg (G) to the rebowl (F) by inserting M6
x 15mm bolts (AA) through pre-drilled holes in re-
bowl (F) and leg (G) as illustrated. Tighten all bolts
with a screwdriver.
x 8M6 x 15mm Bolt
AA

5
6
CC
77
AA
G
E
H
B
CC
F
ASSEMBLY INSTRUCTIONS
5. Attach outer handle (E) to the top of the legs
(G) by inserting four M6 x 15mm bolts (AA)
through pre-drilled holes in handle (E) and legs
(G). Loosely tighten for proper alignment. Once
the pre-drilled holes and bolts are properly
aligned, then nish tightening all bolts with a
screwdriver.
Hardware Used
7. For re pit use, top with mesh cover (B). Place
poker (H) beside re pit for use as needed.
6. Insert threaded pegs (CC) into edge of re
bowl (F) as illustrated and hand tighten.
Hardware Used
Threaded Peg x 4
7
x 4M6 x 15mm Bolt
AA

8
H
C
B
H
ASSEMBLY INSTRUCTIONS
CARE AND MAINTENANCE
• Use gloves in lieu of bare hands while handling.
• To protect re pit nish, use a soft cloth to wipe re pit and poker.
• Do not attempt to clean while hot.
• Store in a cool, clean, dry place.
8. For barbeque use, remove mesh cover (B), place
cooking grid (C) onto the threaded pegs in the bowl.
Replace mesh cover (B) when re is lit and food is
placed on the cooking grid. Keep poker (H) near the
re pit for use anytime.
1-YEAR LIMITED FRAME WARRANTY
If within one year from the date of original purchase, this item fails due to a defect in material or
workmanship, we will replace or repair at our option, free of charge. To order parts or to obtain
warranty service, call 1-877-447-4768, Monday - Friday, 8:00 a.m. - 4:30 p.m. CST. This warranty
does not cover defects resulting from improper or abnormal use, misuse, accident, or alteration.
Failure to follow all instructions in the owner's manual will also void this warrranty. The
manufacturer will not be liable for incidental or consequential damages, or common erosion of
outdoor products. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation may not apply to you. This warranty gives you
specic legal rights, and you may also have other rights which vary from state to state.
8

A
B
C
D
E
F
G
H
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-877-447-4768, 8:00 a.m. – 4:30 p.m.,
CST, Monday – Friday.
9Printed in China
Manufactured by
GHP Group, Inc.
6440 W. Howard St.
Niles, IL 60714-3302
877-447-4768
AA BB CC
DD
PART DESCRIPTION PART #
APoker bracket 40-07-453
BMesh Cover 30-06-174
CCooking Grid 30-06-223
DAir Vents 30-06-177
EOuter Handle 30-06-176
FFire Bowl 30-06-175
GLegs 30-06-178
HPoker 40-04-409
AA - DD
Hardware Pack 30-09-094
N/A Instruction Manual 30-10-033
